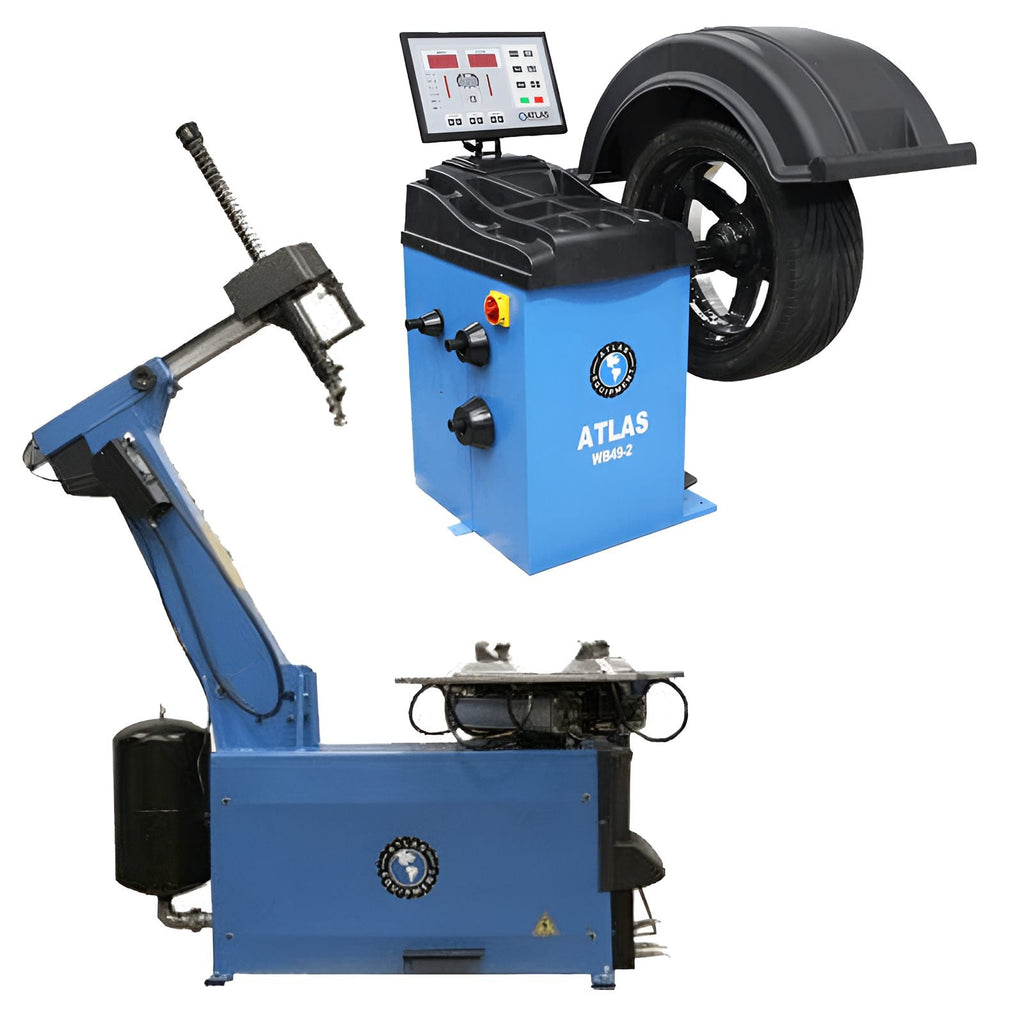

Atlas TC755 Tire Changer w/ WB49-2 Wheel Balancer Combo 3 SKU ATETCWB-COMBO3
Partner it with the WB49-2 for unmatched precision. This smart balancer handles wheels up to 150 lbs with 1-gram accuracy at 150 rpm. Its automatic 2D data entry and optional 3D capabilities streamline your workflow. From stubborn beads to hidden weights, this balancer and changer combo transforms tire service from a chore to something you could almost do in your sleep. Without the Atlas TC755 and WB49-2, you're leaving efficiency and precision on the table.

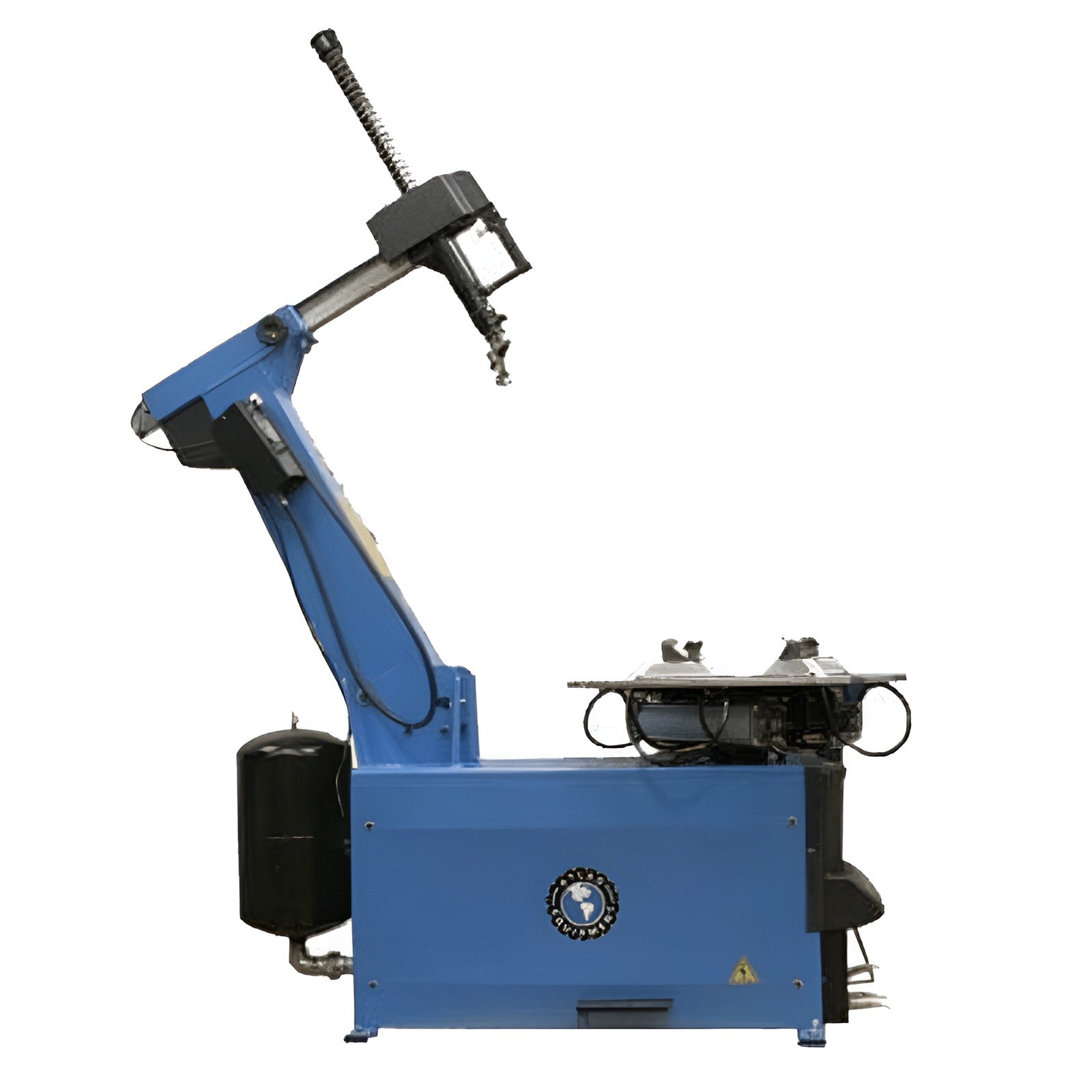

Tire Changer TC755 Specifications:
- Rims: Steel, Aluminum, Alloy
- External Locking Rim Dimension (3 Positions):
- 11 7/8" - 26"
- 12 7/8" - 27"
- 13 3/4" - 28"

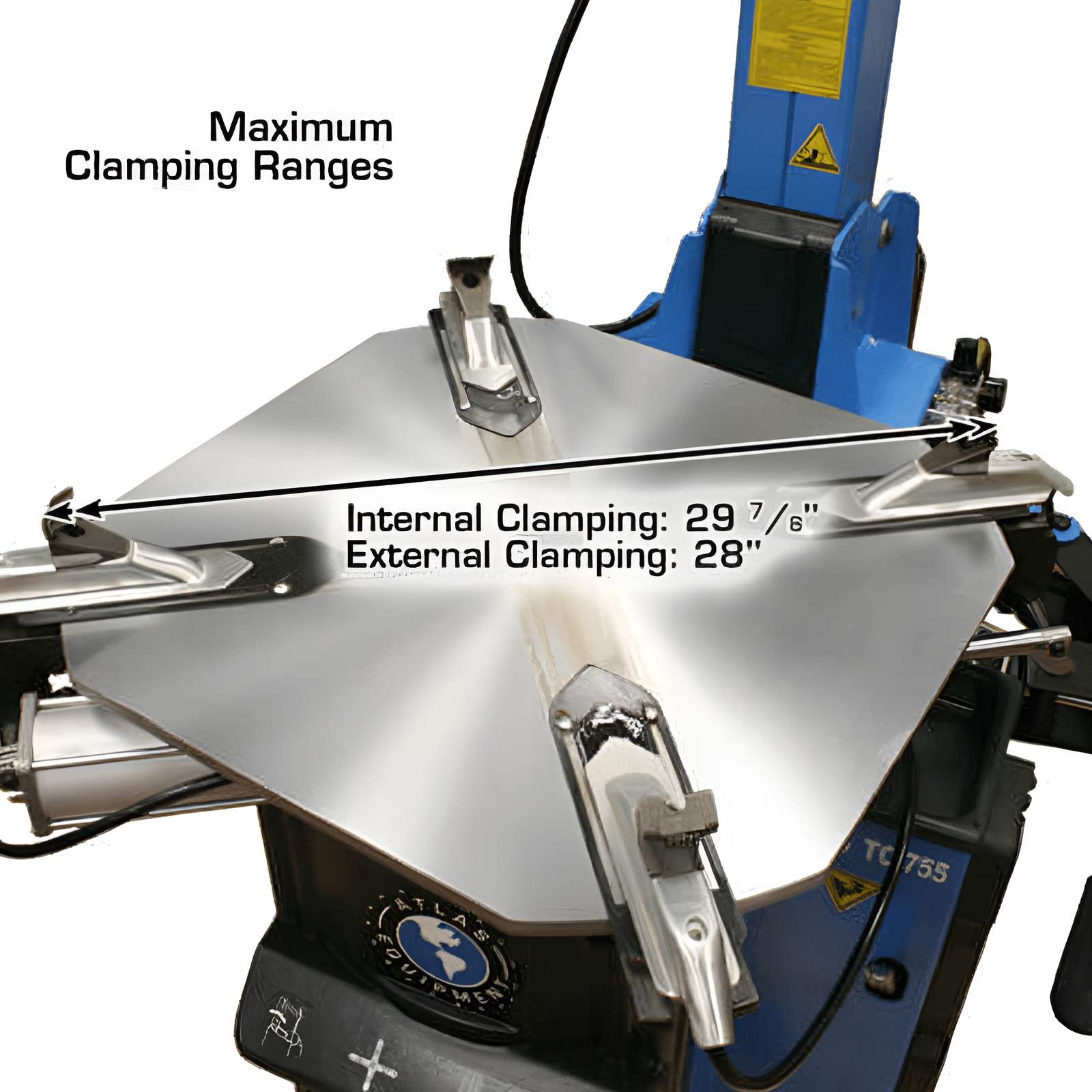

- Internal Locking Rim Dimension (3 Positions):
- 13 7/8" - 27 7/8"
- 14 5/8" - 28 7/8"
- 15 5/8" - 29 7/8"
- Maximum Tire Diameter: 47"
- Maximum Wheel Width (Bead Breaker): 18"
- Table Motor: 1 HP
- Turntable Rotating Torque: 885 ft/lbs
- Bead Breaker: 5,500 LB. Force
- Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
- Operating Voltage: 110volt
- Shipping Weight: 650 lbs.

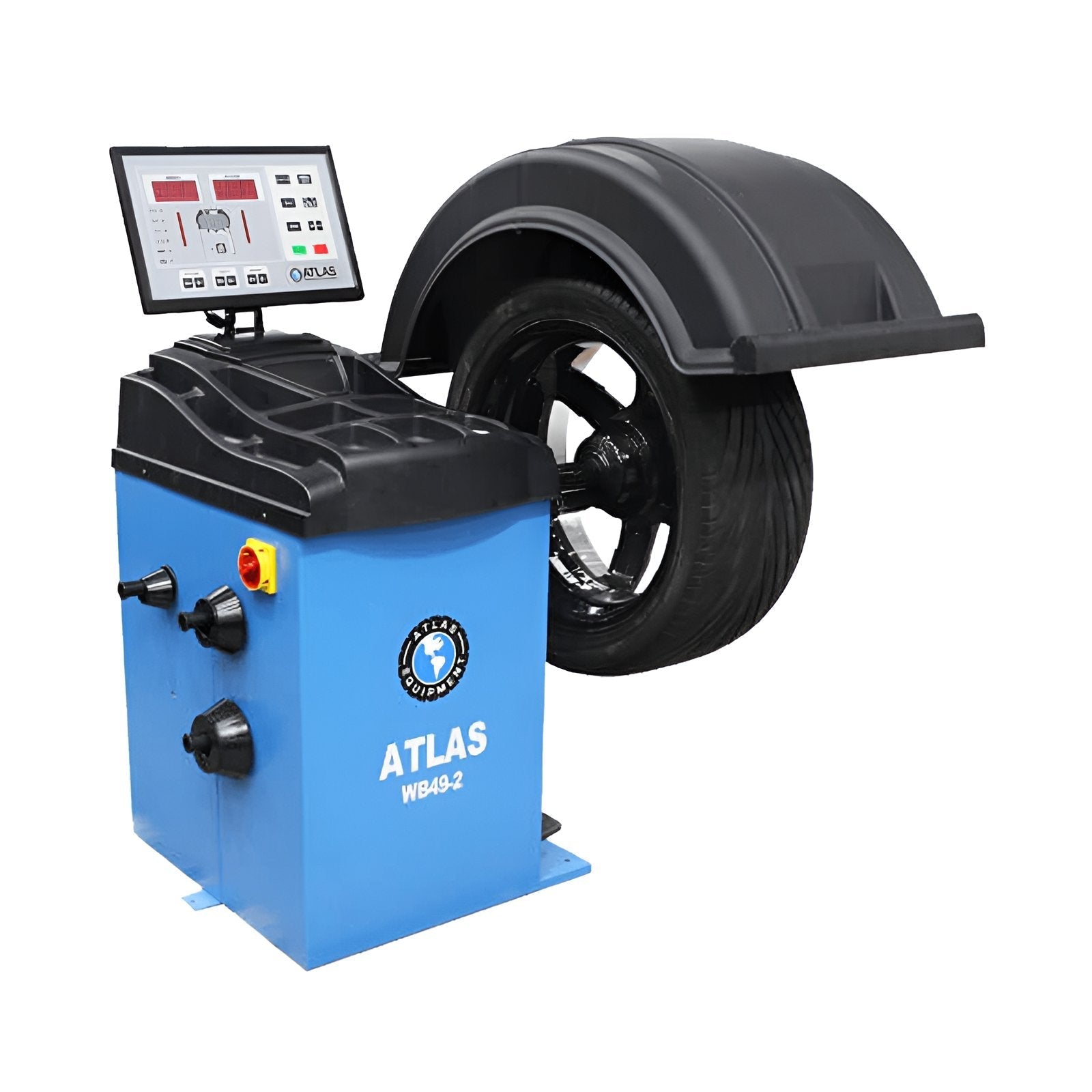

Wheel Balancer WB49-2 Specifications:
- Max Tire Diameter: 39" (3' 6")
- Rim Sizes (Cars And Light Trucks): 10"-32"
- Rim Width: 1 1/2"-20"
- Shaft Size: 40mm
- Max. Wheel Weight: 150 lbs.
- Balancing Speed: 150 rpm
- Data Entry: Automatic 2D (Automatic 3D Optional)
- Measurements: Standard Or Metric
- Accuracy: 1 gram
- Weight Position Resolution: 1.4 Degrees
- Self Calibration: Yes
- Motor: 1/4 HP
- Power Supply: 110volt
- Shipping Weight: 400 lbs.
TC755 Tire Changer Special Features:
- Tilt-Back Column Tire Changer
- Rim-Clamp Style
- Extra-Large turntable, more clearance
- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions
- Button-Controlled Bead Breaker (operated at blade)
- Metal mount/demount head w/ metal roller or replaceable plastic inserts
- Column mounted inflator box w/ gauge Included
- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included
- Built in “Beadblaster”
WB49-2 Wheel Balancer Special Features:
- Computer Controlled Motorized Spin Balancer
- Raised, Easy to Read Display
- Large Wheel Weight Tray
- Automatic 2D Data Entry
- Width Measuring Gauge for Automatic 3D Data Entry Available (SOLD SEPARATELY)
- Split-Weight Function for hiding weights behind spokes
- Automatic LED Light
- Auto-Positioning

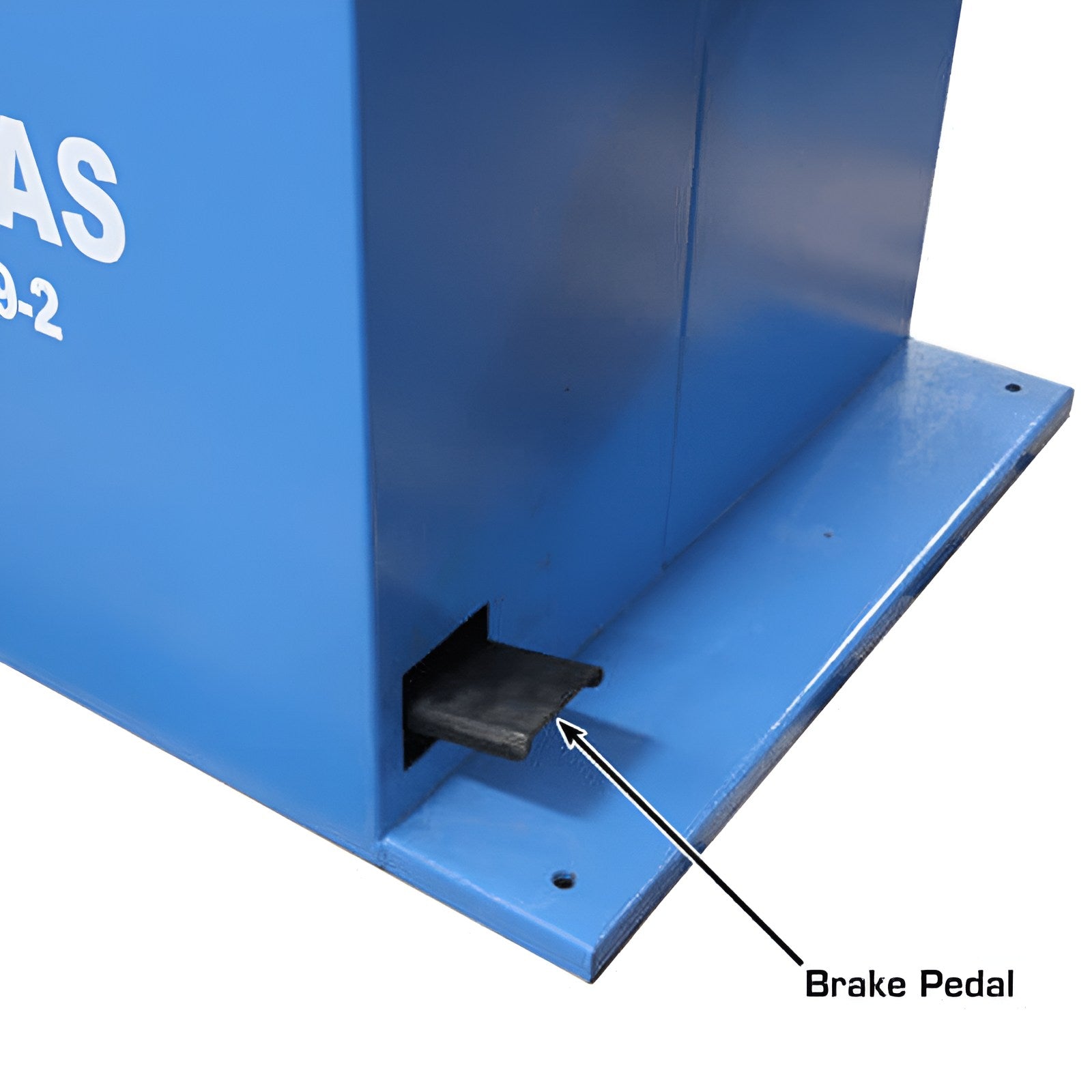

- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-Diagnosing and Self-calibrating
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
- Optional Item(Sold Separately)
- Pneumatic Leverless Head Assembly
- Truck Adapter Set
- Adjustable Center Post Adapter
- Universal Adapter
- Quick Change Head Assembly
- Pneumatic Leverless Head Assembly
Atlas TC755 and WB49-2 Manual
TC755 Tire Changer and WB49-2 Wheel Balancer - Sold Separately
- Tire Changer TC755
- Wheel Balancer WB49-2
