Description
Atlas Tire Changer TC289 w/ WB41 Wheel balancer Combo 2 SKU ATETCWB-COMBO2
The Atlas® TC289 Tire Changer and WB41 Wheel Balancer are the dynamic duo your shop needs. The TC289 flexes its muscles with a 5,500 lb. bead breaking force and handles tires up to a whopping 47" in diameter. Its 1 HP motor delivers 885 ft/lbs of turntable torque, making quick work of even the toughest tires.
Meanwhile, the WB41's computer-controlled system handles rims from 10" to 32", with both static and dynamic modes. The self-diagnosing feature ensures pinpoint accuracy every time. No more guesswork or time-consuming recalibrations. Plus, with the automatic brake and start/stop function, you'll breeze through jobs faster than ever. Don't let tire service bottlenecks hold you back.
Tire Changer TC289 Specifications:
- Rims: Steel, Aluminum, Alloy
- External Locking Rim Dimension (3 Positions):
- 11 7/8" - 26"
- 12 7/8" - 27"
- 13 3/4" - 28"
- Internal Locking Rim Dimension (3 Positions):
- 13 7/8" - 27 7/8"
- 14 5/8" - 28 7/8"
- 15 5/8" - 29 7/8"
- Maximum Tire Diameter: 47"
- Maximum Wheel Width (Bead Breaker): 18"
- Table Motor: 1 HP
- Turntable Rotating Torque: 885 ft/lbs
- Bead Breaker: 5,500 LB. Force
- Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
- Operating Voltage: 110volt
- Shipping Weight: 620 lbs.
Wheel Balancer WB41 Specifications:
- Max Tire Diameter: 39" (3' 6")
- Rim Sizes (Cars And Light Trucks): 10"-32"
- Rim Width: 1 1/2"-20"

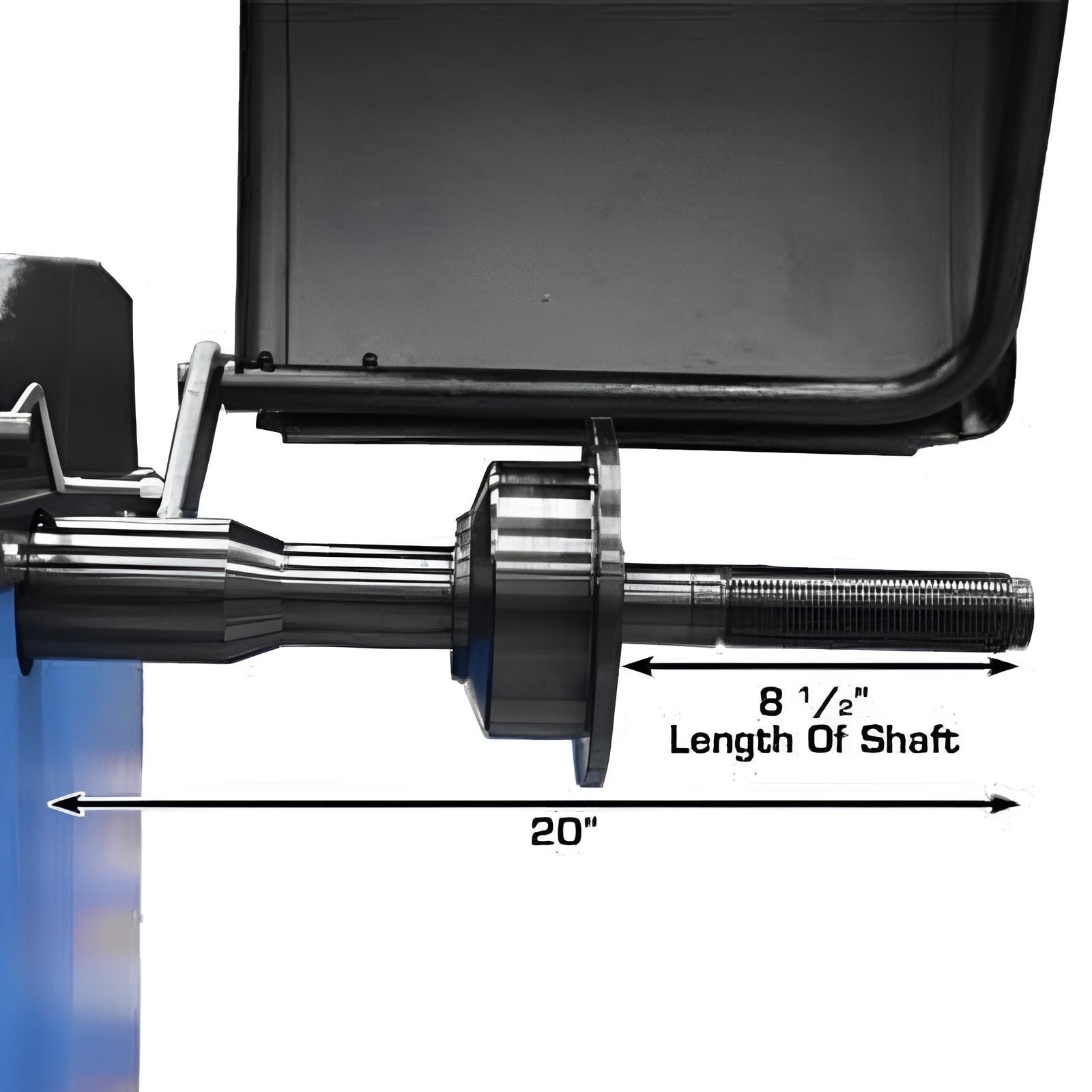

- Shaft Size: 40mm
- Max. Wheel Weight: 150 lbs.
- Balancing Speed: 150 rpm
- Data Entry: All Dimensions Manual
- Measurements: Standard Or Metric
- Accuracy: 1 gram
- Weight Position Resolution: 1.4 Degrees
- Self Calibration: Yes
- Motor: 1/4 HP
- Power Supply: 110volt
- Shipping Weight: 400 lbs.
TC289 Tire Changer Special Features:
- Rim Clamp/Swing Arm Tire Changer
- Extra Large Turntable, More Clearance
- Built-in “Beadblaster”
- Adjustable Bead Breaker Plate
- Adjustable jaws, 3 mounting positions
- Oiler, Filter, Regulator included (external air supply required)
- Plastic Protectors included
- Tire Tool, Lube Bucket, and Lube Brush Included
- Inflation Box w/ Gauge Included
Wheel Balancer WB41 Special Features:
- Computer Controlled Motorized Spin Balancer
- Raised, Easy to Read Display
- Large Wheel Weight Tray
- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-Diagnosing and Self-calibrating
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
- Optional Item (Sold Separately)
- 200/700 Series Left-Hand Assist Arm
- Universal Adapter
- Truck Adapter Set
- 200/700 Series Left-Hand Assist Arm
TC289 Manual
TC289 Tire Changer and WB41 Wheel Changer - Sold Separately
