Description

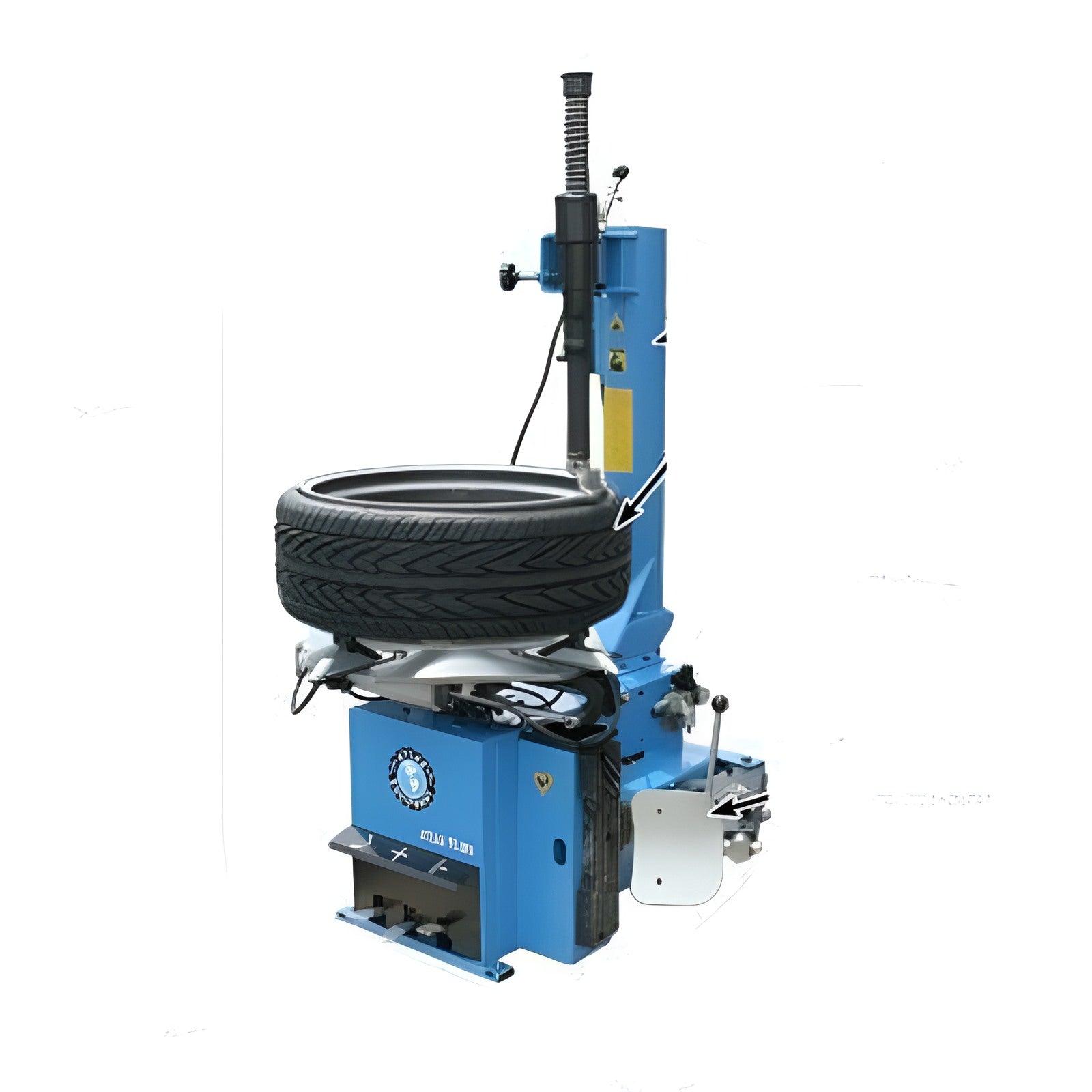

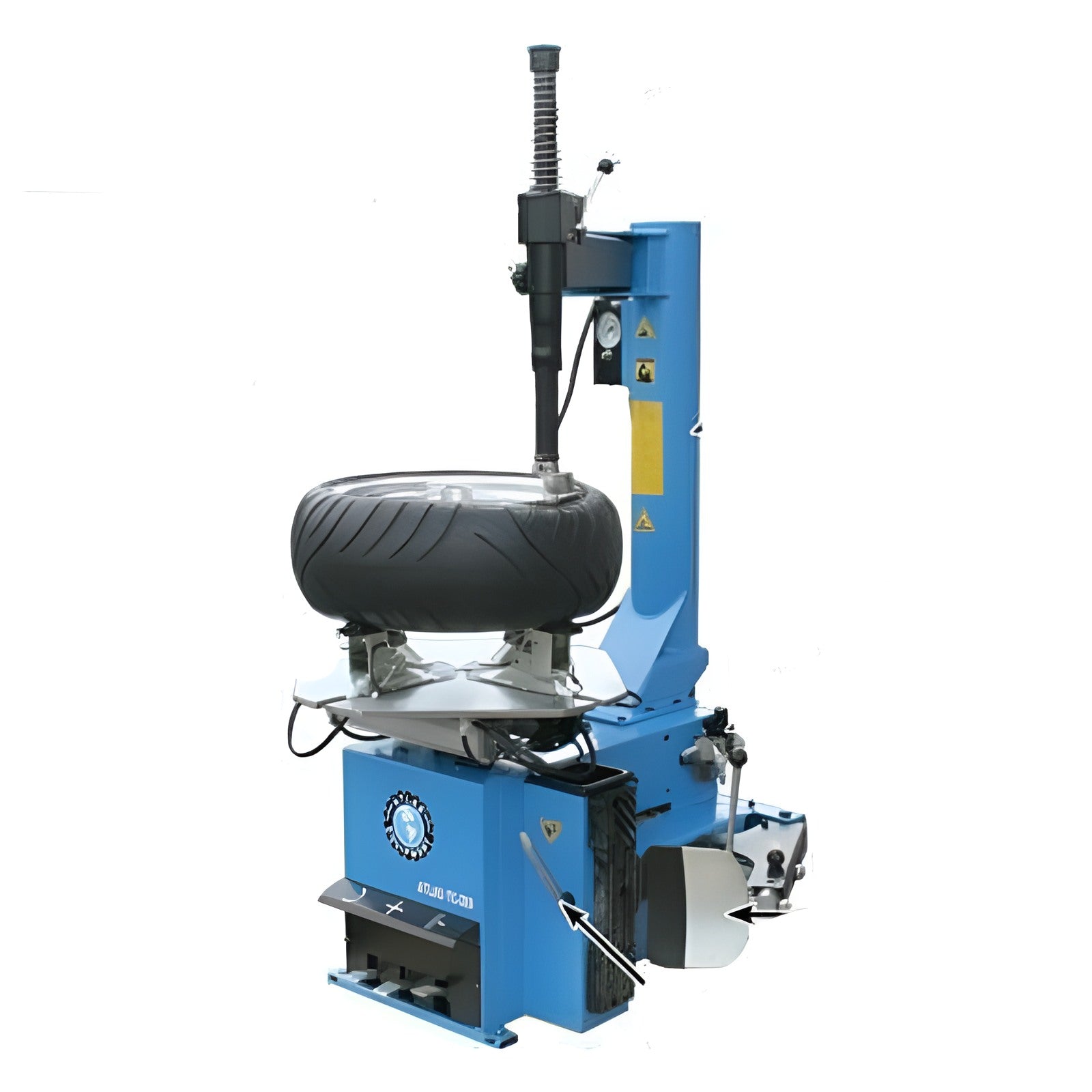

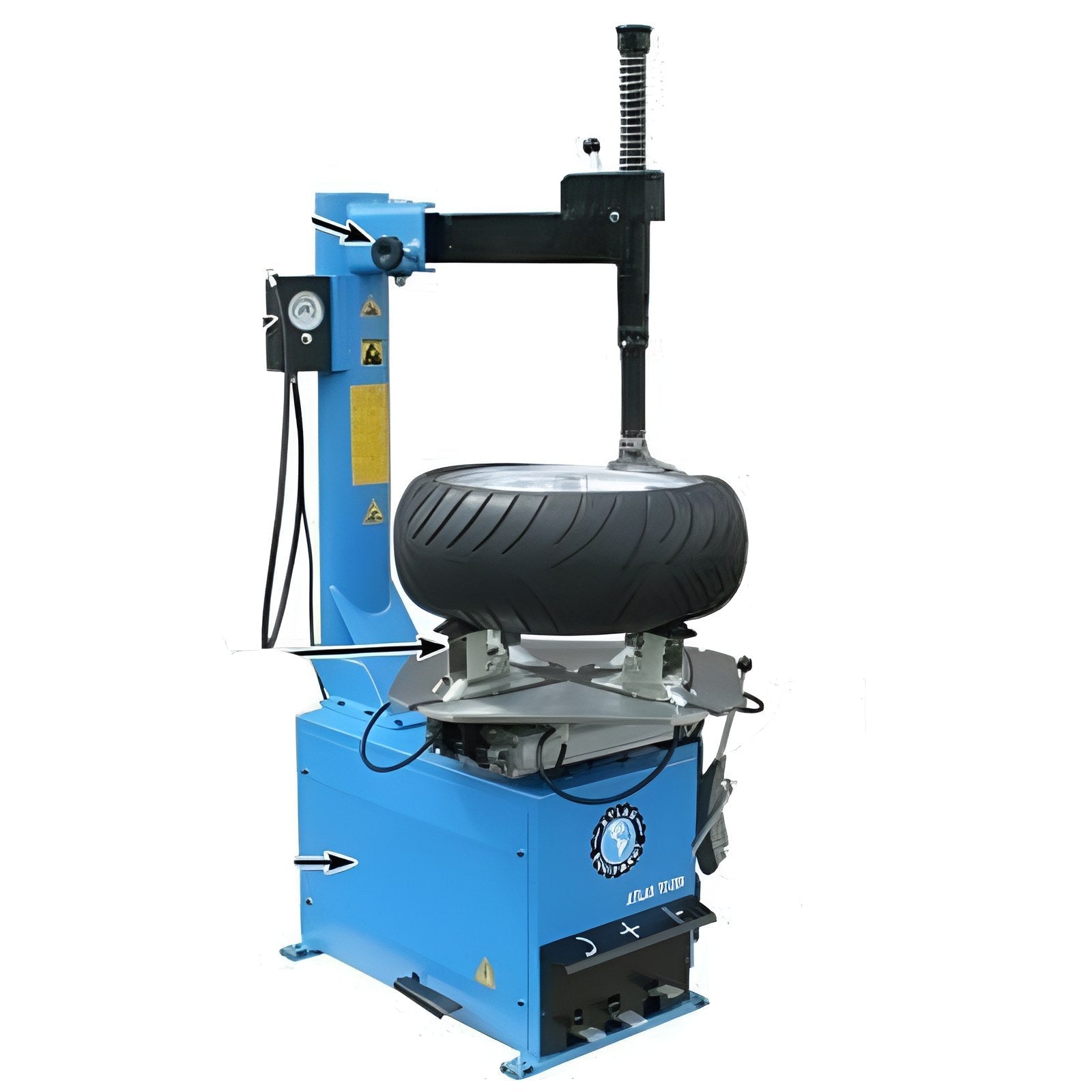

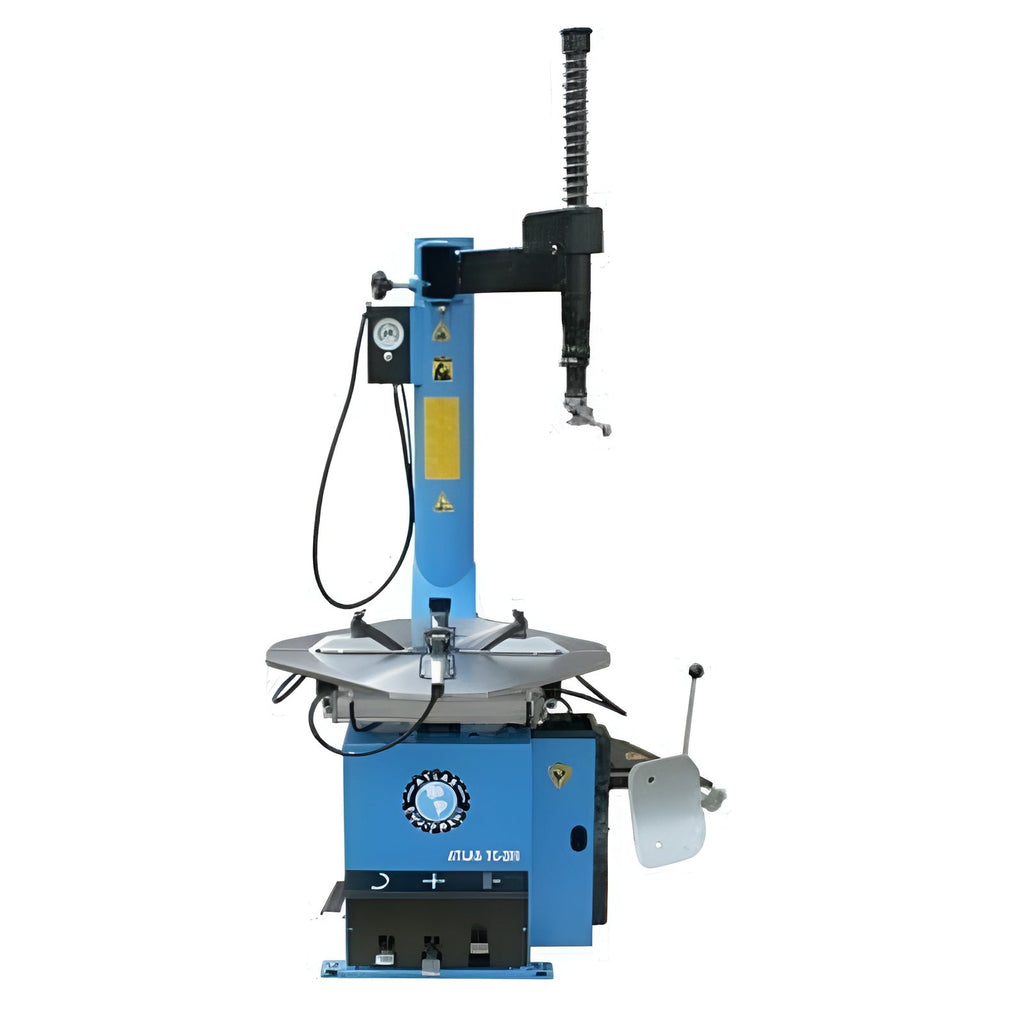

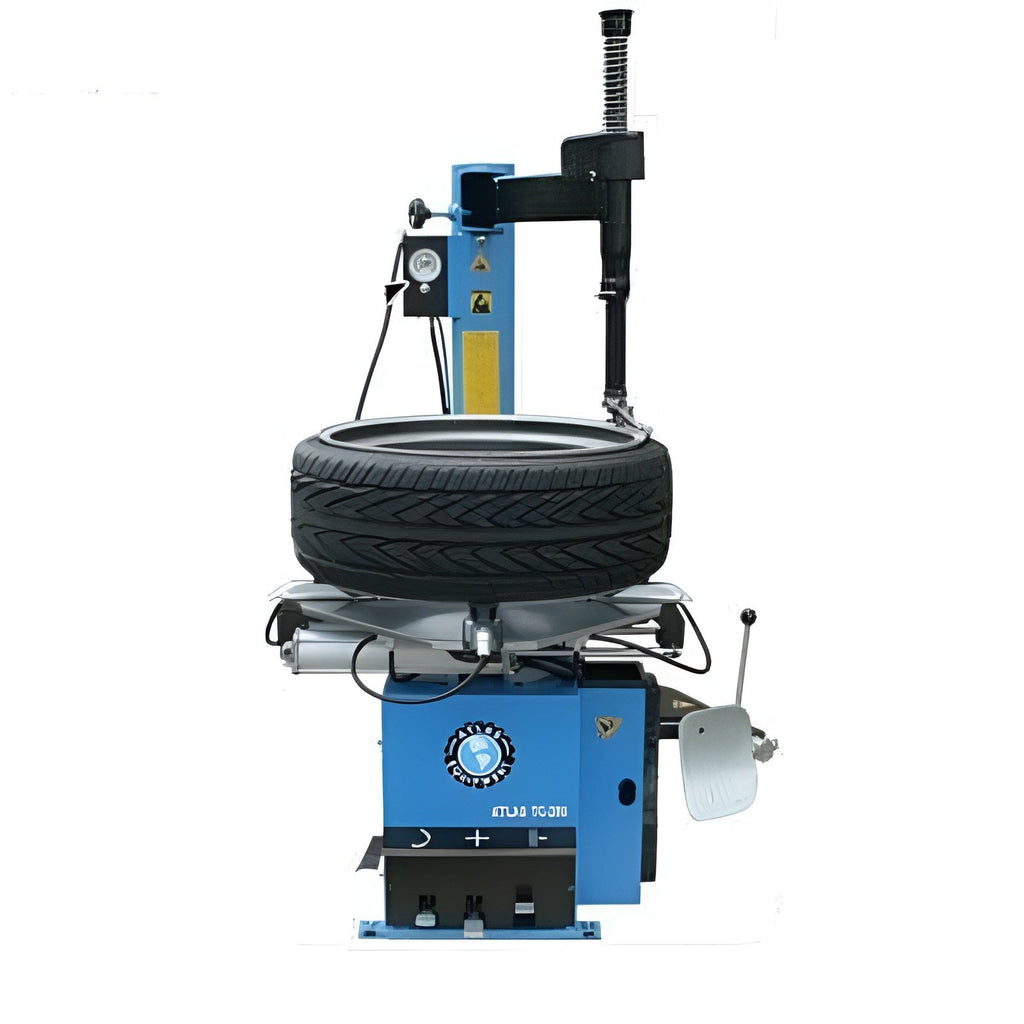

Atlas Extra Large Rim-Clamp Tire Changer SKU ATEATTC289
The Atlas TC289 Rim-Clamp Swing Arm Tire Changer is here to revolutionize your tire service game. This powerhouse handles rims up to 29 7/8" and tires up to 47" in diameter, making it perfect for oversized SUVs and one-ton trucks. With a 5,500 lb. bead breaking force and 885 ft/lbs of turntable rotating torque, it conquers even the most stubborn tires.
Don't let its power fool you - the TC289 is all about precision. Its adjustable bead breaker and versatile turntable jaws with optional plastic covers ensure your high-end alloy wheels stay scratch-free. The built-in "Beadblaster" system inflates stiff sidewalls effortlessly, while the 1 HP motor keeps things running smoothly. Operating on 110V with air requirements of 90-110 PSI, this 620 lb beast is ready to tackle any tire challenge. Take control of your tire changing process today with the Atlas TC289!
Atlas TC289 Parts & Specifications:
- Rims: Steel, Aluminum, Alloy
- External Locking Rim Dimension (3 Positions): 1) 11 7/8" - 26" 2) 12 7/8" - 27" 3) 13 3/4" - 28"
- Internal Locking Rim Dimension
- (3 Positions): 1) 13 7/8" - 27 7/8" 2) 14 5/8" - 28 7/8" 3) 15 5/8" - 29 7/8"
- Maximum Tire Diameter: 47"
- Maximum Wheel Width (Bead Breaker): Position 1: 14 3/4" - Position 2: 18 1/2"
- Table Motor: 1 HP
- Turntable Rotating Torque: 885 ft/lbs
- Bead Breaker: 5,500 LB. Force
- Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
- Operating Voltage: 110volt
- Shipping Weight: 620 lbs.
Atlas TC-289 Tire Changer Special Features:
- Large Rim Clamp/Swing Arm Tire Changer
- Extra-Large turntable, more clearance
- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions
- Adjustable Bead Breaker Plate
- Metal mount/demount head w/ metal roller or replaceable plastic inserts
- Column mounted inflator box w/ gauge Included
- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included
- Motorcycle and ATV adapters available (sold separately)
- Built in “Beadblaster”
- Replacement Parts & Wear Items Always in Stock
- 1 Year Parts Only Warranty
- Optional Item (Sold Separately)
- 200/700 Series Left-Hand Assist Arm
- Adjustable Center Post Adapter
- Motorcycle-ATV Flip Adapters
- 200/700 Series Left-Hand Assist Arm
Atlas TC289 Manual
