Description
Atlas Tire Changer With PWB50 Wheel Balancer Combo 7 SKU ATETCWB-COMBO7
The Atlas® TC229 Tire Changer and PWB50 Wheel Balancer, the ultimate duo for efficiency and precision! The TC229 combines robust specifications with essential features to tackle a variety of rims, including steel, aluminum, and alloy. With adjustable external and internal locking rim dimensions ranging from 9 3/4" to 25 1/4", this tire changer can handle tires up to 39" in diameter and wheel widths of up to 13". Powered by a 1 HP table motor delivering a formidable 885 ft/lbs of turntable rotating torque and a bead breaker with 5,500 lbs of force, it’s ready for any challenge.
The PWB50 Wheel Balancer is designed for professional tire shops, accommodating a maximum tire diameter of 43" and rim sizes from 10" to 30" with widths ranging from 1 1/2" to 20". With a maximum wheel weight capacity of 165 lbs and a balancing speed of 130 rpm, it ensures accurate measurements with a resolution of 1 gram. Equipped with Italian engineering and automatic 2D data entry, the PWB50 offers static and dynamic balancing modes, making it a versatile addition to your workshop. Together, the TC229 and PWB50 provide a comprehensive solution for all your tire-changing and wheel-balancing needs.
Tire Changer TC229 Specifications:
- Rims: Steel, Aluminum, Alloy
- External Locking Rim Dimension (3 Positions):
- 9 3/4" - 21 5/8"
- 10 3/4" - 22 1/2"
- 11 5/8" - 23 1/4"
- Internal Locking Rim Dimension (3 Positions):
- 11 5/8" - 23 1/4"
- 12 5/8" - 24 1/4"
- 13 1/2" - 25 1/4"
- Maximum Tire Diameter: 39"
- Maximum Wheel Width (Bead Breaker): 13"
- Table Motor: 1 HP
- Turntable Rotating Torque: 885 ft/lbs
- Bead Breaker: 5,500 LB. Force
- Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
- Operating Voltage: 110volt
- Shipping Weight: 550 lbs.

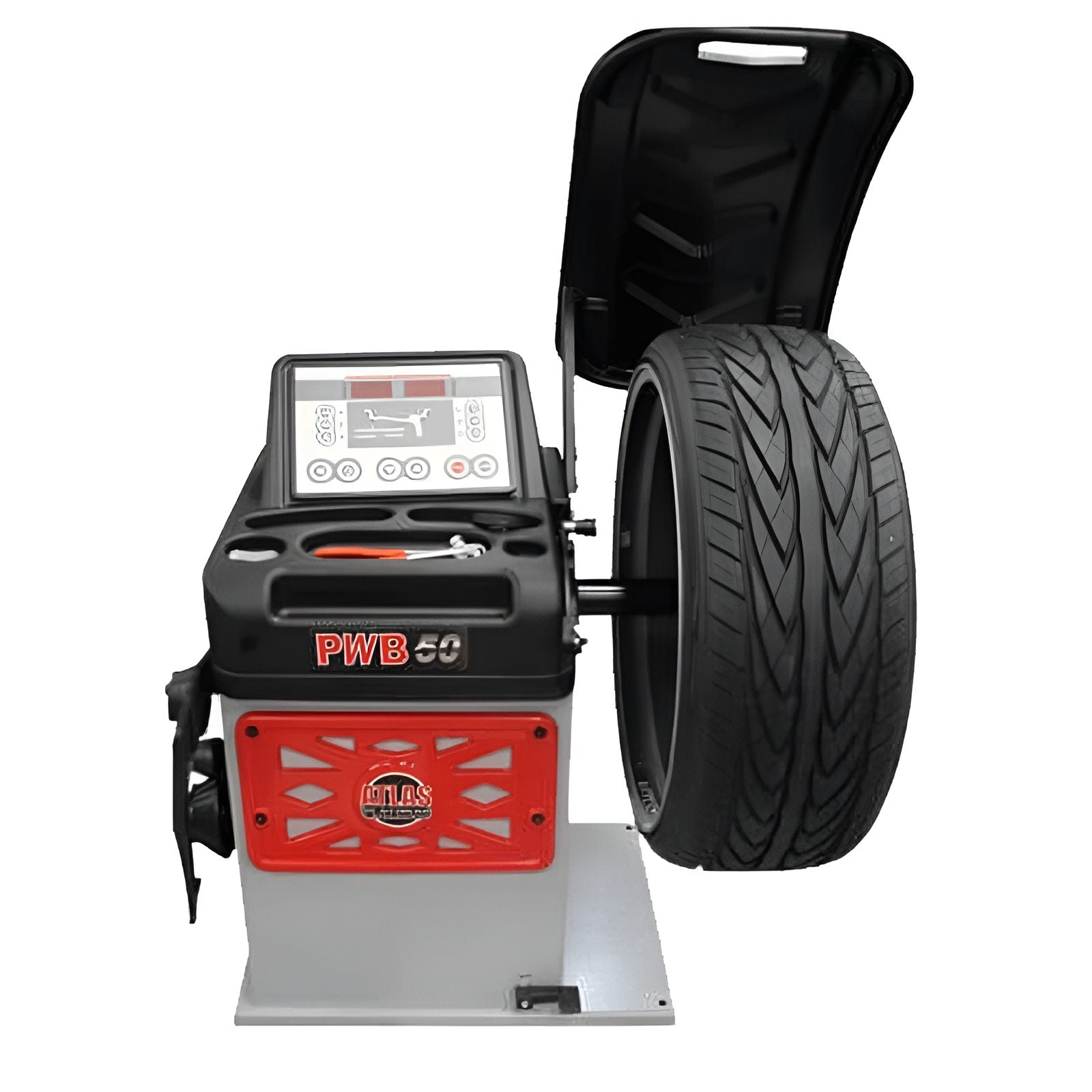

Wheel Balancer PWB50 Specifications:
- Max Tire Diameter: 43"
- Rim Sizes (Cars And Light Trucks): 10"-30"
- Rim Width: 1 1/2"-20"
- Shaft Size: 40mm
- Max. Wheel Weight: 165 lbs.
- Balancing Speed: 130 rpm
- Data Entry: Automatic 2D
- Measurements: Standard Or Metric
- Accuracy: 1 gram
- Weight Position Resolution: 1.4 Degrees
- Self Calibration: Yes
- Cycle Time: 7 seconds
- Power Supply: 110volt
- Shipping Weight: 230 lbs.
TC229 Tire Changer Special Features:
- Rim Clamp/Swing Arm Tire Changer
- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions
- Metal mount/demount head w/ metal roller or replaceable plastic inserts
- Column mounted inflator box w/ gauge Included
- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included
- Built in “Beadblaster”
PWB50 Wheel Balancer Special Features:
- Platinum Computer Controlled Motorized Spin Balancer
- Italian Engineering and Components
- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Optimatch, FES (Split), OPF (Opposite Position) Functions
- Special ALU-S and other ALU Programs
- Automatic 2D Data Entry
- NWN (no wheel need) System
- Self-Diagnosing and Self-calibrating
- USB hub for firmware update through PC/Notebook
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
- Optional Item(Sold Separately)
- Universal Adapter
- Adjustable Center Post Adapter
- Truck Adapter Set
TC229 Manual
TC229 Tire Change and PWB50 Wheel Balancer - Sold Separately
- Tire Changer TC229
- Wheel Balancer PWB50
