Atlas Tire Changer With WB11 Wheel Balancer Combo SKU ATETCWB-COMBOEC
Meet the ultimate duo: the TC221 Tire Changer and the WB11 Wheel Balancer, designed to streamline your tire service operations! With the TC221’s robust capability to handle various rim types—including steel, aluminum, and alloy—you’ll breeze through tire changes with its air-operated jaws and powerful bead breaker.
But it doesn’t stop there! The WB11 complements the TC221 perfectly, offering precision balancing for rims ranging from 10 to 32 inches. With an impressive 1 gram balancing accuracy and a maximum tire diameter of 39 inches, this balancer ensures your wheels are perfectly aligned every time. Together, they create a seamless workflow: the TC221’s powerful 1 HP motor delivers 885 ft/lbs of torque for quick tire changes, while the WB11’s computer-controlled motor enhances efficiency with its automatic start/stop feature. Upgrade to this unbeatable package and watch your productivity soar while delivering top-notch service.

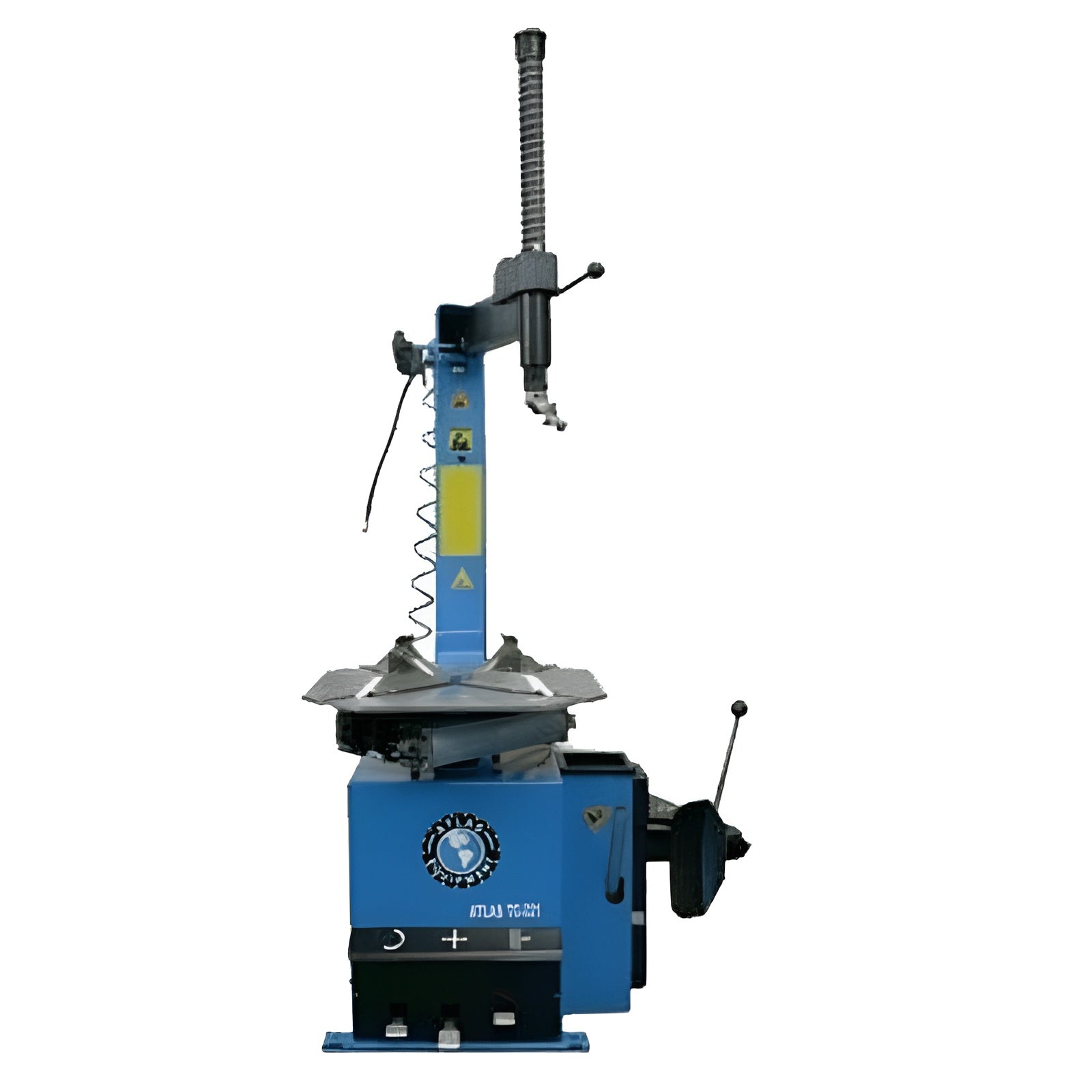

Tire Changer TC221 Specifications:
- Rims: Steel, Aluminum, Alloy
- External Locking Rim Dimension (3 Positions):
- 9 3/4" - 21 5/8"
- 10 3/4" - 22 1/2"
- 11 5/8" - 23 1/4"
- Internal Locking Rim Dimension (3 Positions):
- 11 5/8" - 23 1/4"
- 12 5/8" - 24 1/4"
- 13 1/2" - 25 1/4"
- Maximum Tire Diameter: 39"
- Maximum Wheel Width (Bead Breaker): 13"
- Table Motor: 1 HP
- Turntable Rotating Torque: 885 ft/lbs
- Bead Breaker: 5,500 LB. Force
- Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
- Operating Voltage: 110volt
- Shipping Weight: 550 lbs.

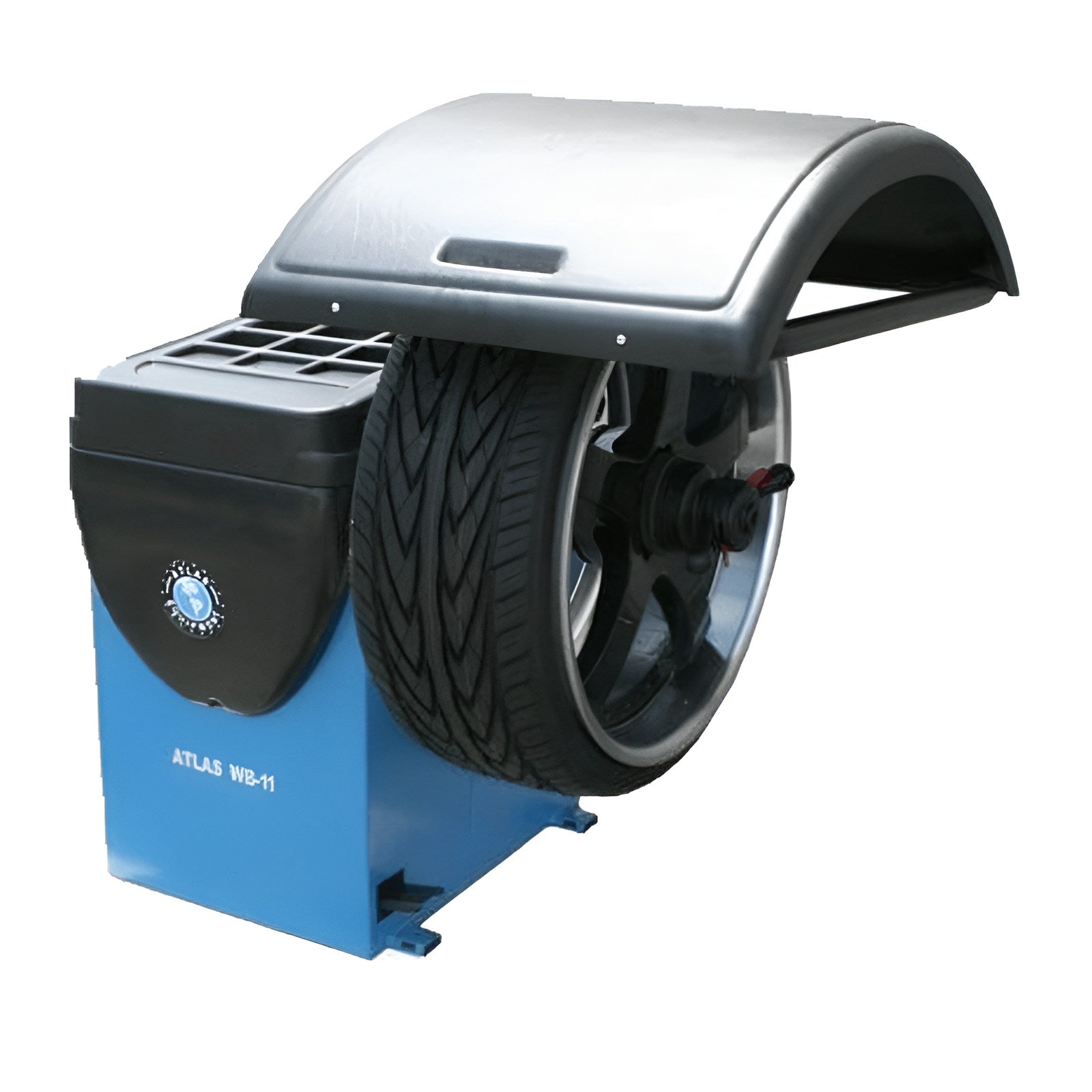

Wheel Balancer WB11 Specifications:
- Max Tire Diameter: 39" (3' 6")
- Rim Sizes (Cars And Light Trucks): 10"-32"
- Rim Width: 1 1/2"-20"

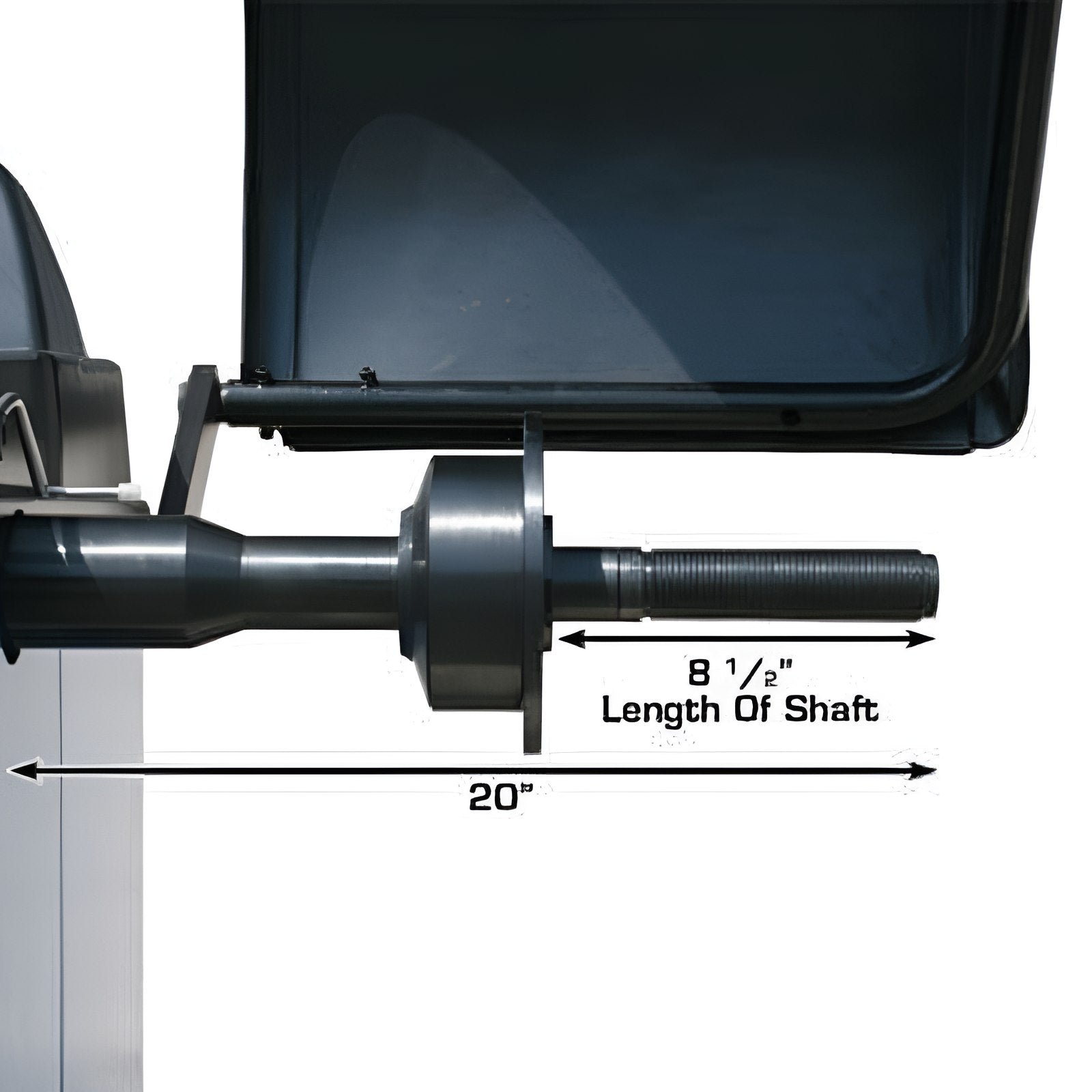

- Shaft Size: 40mm
- Max. Wheel Weight: 150 lbs.
- Balancing Speed: 150 rpm
- Data Entry: All Dimensions Manual
- Measurements: Standard Or Metric
- Accuracy: 1 gram
- Weight Position Resolution: 1.4 Degrees
- Self Calibration: Yes
- Motor: 1/4 HP
- Power Supply: 110volt
- Shipping Weight: 355 lbs.

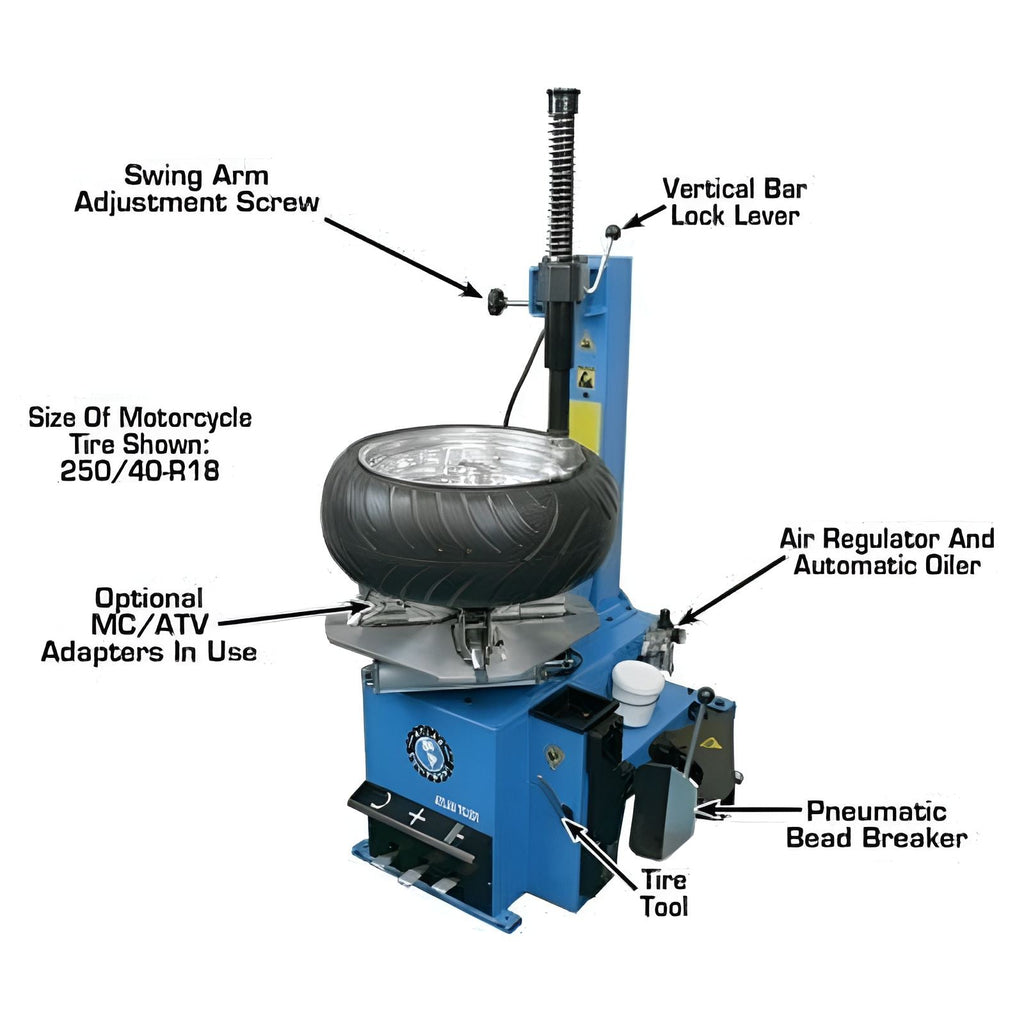

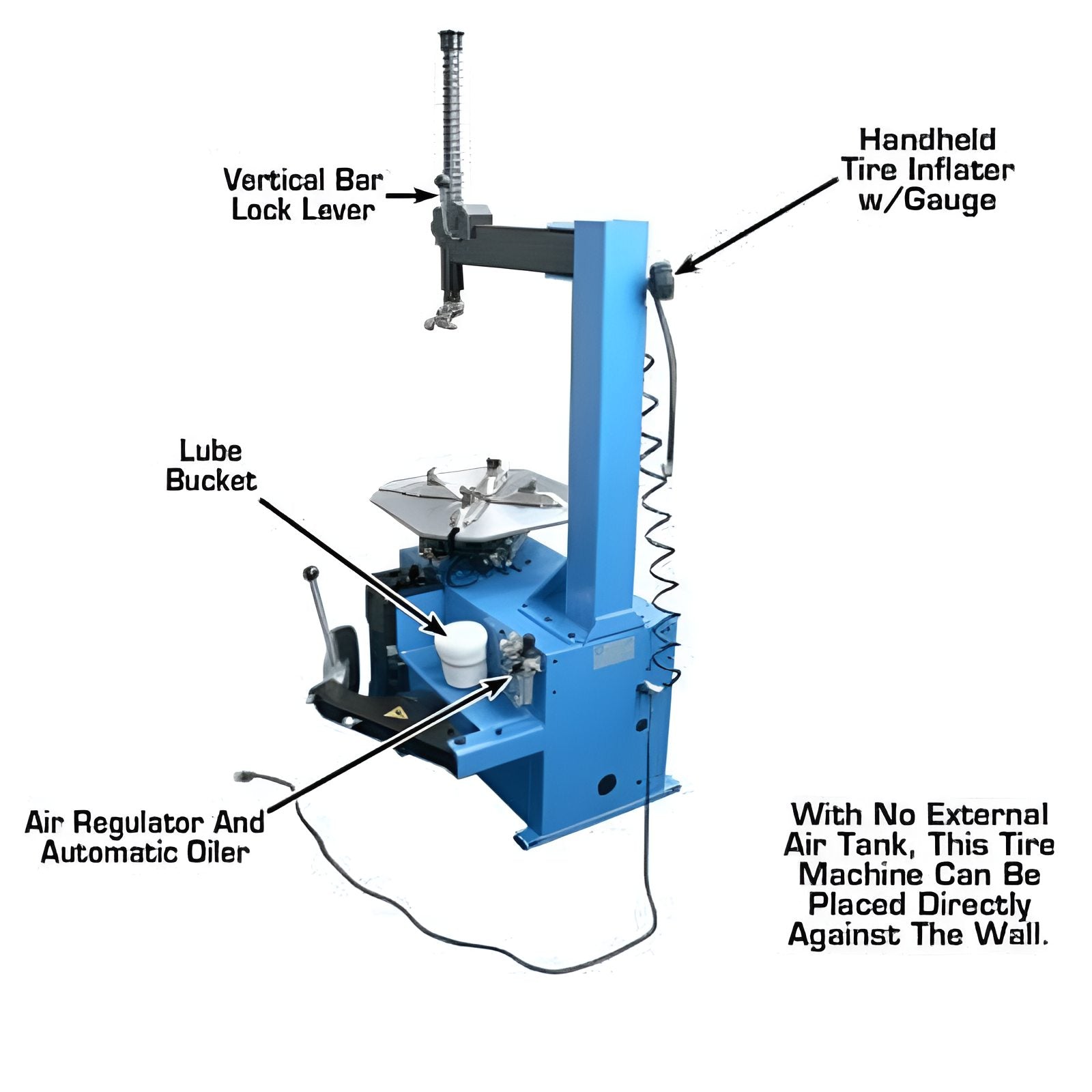

TC221 Tire Changer Special Features:
- Rim Clamp/Swing Arm Tire Changer
- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions
- Metal mount/demount head w/ metal roller or replaceable plastic inserts
- Column mounted inflator box w/ gauge Included
- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included
WB11 Wheel Balancer Special Features:
- Computer Controlled Motorized Spin Balancer
- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-Diagnosing and Self-calibrating
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
- Optional Item(Sold Separately)
- Standard Motorcycle Adapter Kit
- Deluxe ATV Adapters
- Deluxe Motorcycle Adapters
- Standard Motorcycle Adapter Kit
TC221 and WB11 Manual
TC221 Tire Changer and WB11 Wheel Balancer - Sold Separately
- Tire Changer TC221
- Wheel Balancer WB11
