Description

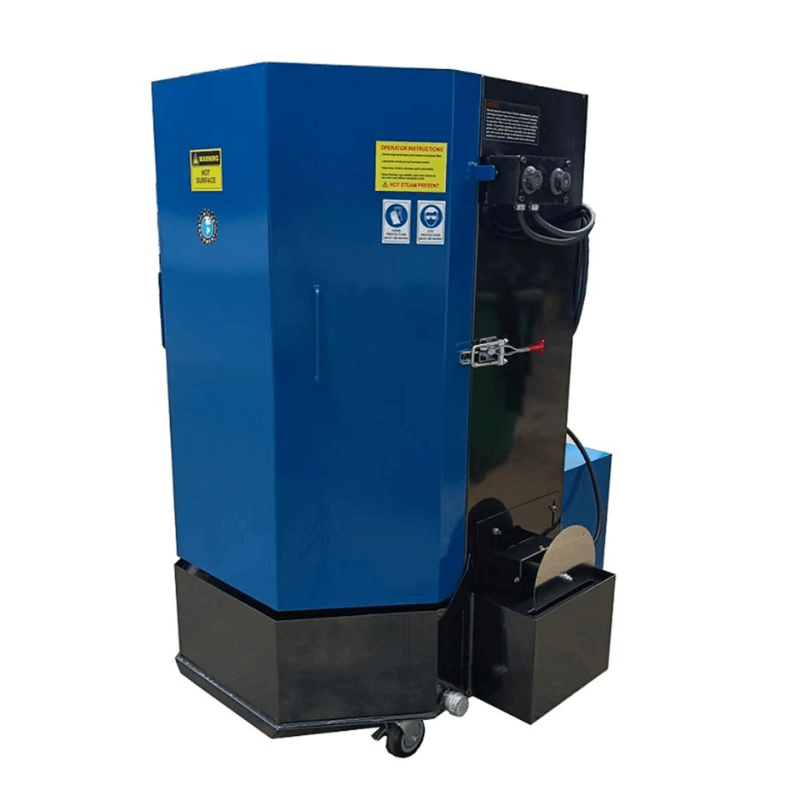

The Atlas® 750 Spray Wash Cabinet is the ideal parts washer for any automotive repair shop looking for more space for even the biggest parts. The 1,000 lb. capacity turntable is strong enough for any size auto or light truck engine. The cut-away sides under the door allow you to wheel your engine crane right over the table for easy loading and unloading. 22 high pressure spray jets quickly clean the greasiest engine components whether they are on the turntable, hanging from the parts tree or in the standard parts basket. The 60-minute timer means the washer can be left unsupervised so your mechanic can go on to the next job while the washer is running. When he gets back the parts are clean and dry within seconds of unloading. The parts washer requires no harmful solvents using only hot water and biodegradable detergents for an environmentally safe operation. The standard stainless steel skimming disc extends the life of your cleaning solution.
The Atlas® 750 Spray Wash Cabinet incorporates maximum performance, durability and ease of use meet todays demands for complex cleaning. By using an octagonal, full-opening door, more than 55% of the turntable is exposed, allowing operators enhanced loading capabilities. The heavy-duty, 12-gauge steel cabinet was strengthened for greater durability, then we coated it with an industrial two-step primer and polyurethane finish to provide years of protection. The Spray Wash Cabinet also features simple operating controls, stainless-steel nozzles, a large 43-gpm pump and a gasket-free door. Add up all of these features and you have a spray-wash system that can do more than clean parts, it can brighten your future.
Spray Wash Cabinet STW-750 Specifications:
-
50-gallon tank capacity
-
Inside height: 54"
-
Inside width: 32"
-
Turntable diameter: 30"
-
Turntable load capacity: 1,000 lbs
-
Overall dimensions: 44 3/8" L x 44 1/8" W x 78" H
-
Cycle time: Up to 60 minutes
-
Pump output: 28 PSI @ 43 GPM
-
Heater temperature range: 135°F – 175°F
-
Power supply: 220V / Single-phase (30 Amp breaker required)
-
Motor: 1.5 HP
-
Shipping weight: 800 lbs
STW750 Extra Large Spray Wash Cabinet Special Features
-
Heavy-duty 12-gauge steel cabinet construction
-
Powder-coated exterior for long-lasting durability
-
1,000 lb. capacity turntable for large parts and components
-
High-efficiency 43 GPM water pump
-
19 adjustable steel spray nozzles for thorough cleaning
-
Octagonal full-opening door allows 55% turntable access
-
Heater maintains consistent water temperature (135°F–175°F)
-
Built-in 60-minute timer with automatic shut-off
-
Environmentally friendly—uses hot water and biodegradable detergents
-
Built-in oil skimmer extends the life of cleaning solution
-
Includes parts tree rack and parts basket
-
Gasket-free door design for easier maintenance
-
Simple, user-friendly control panel
-
Freight prepaid (F.O.B.)
-
1-year limited parts-only warranty
