Description
Atlas Scissor Alignment Lift, RJ8 Rolling Jack Combo SKU ATEATPK-PX16ACF-COMBO
Without the right equipment, performing 4-wheel alignments on both cars and long-wheelbase trucks can quickly become a hassle, limiting your ability to serve customers efficiently.
Enter the Atlas PX16A Scissor Alignment Lift and RJ8 Rolling Jack Combo, designed to make your life easier. The PX16A offers a hefty 16,000 lb capacity, supporting vehicles of all sizes, from Mini Coopers to heavy-duty trucks. With built-in slip plates, turntables, and a precise leveling system, alignments are faster and more accurate. The included RJ8 Rolling Jacks, with an 8,000 lb capacity each, make tire and brake service a breeze, ensuring your shop stays organized and efficient. This high-quality combo delivers both the power and flexibility you need to handle any job with ease.
Scissor Alignment Lift and Rolling Jack PX16A+RJ8 Specification:

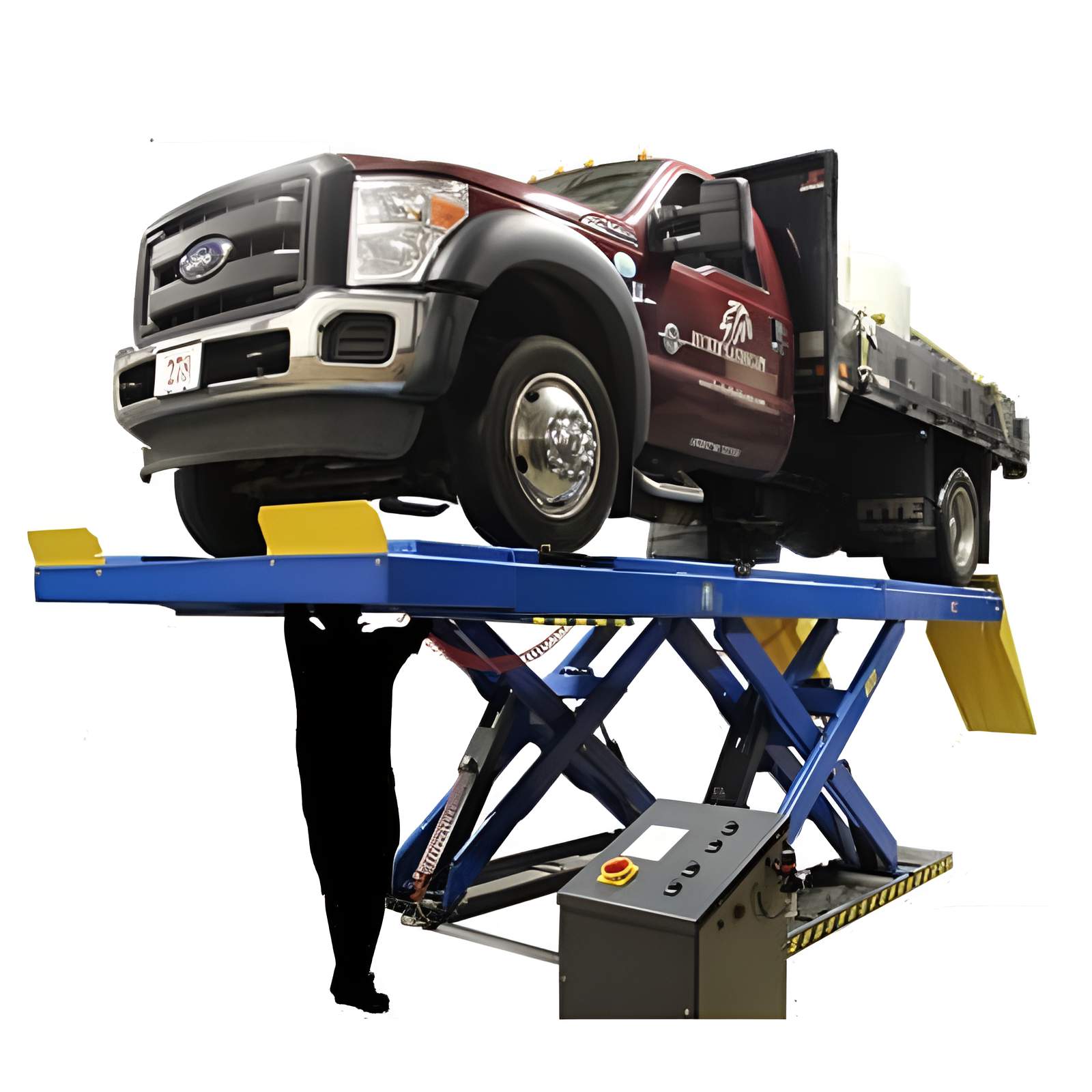

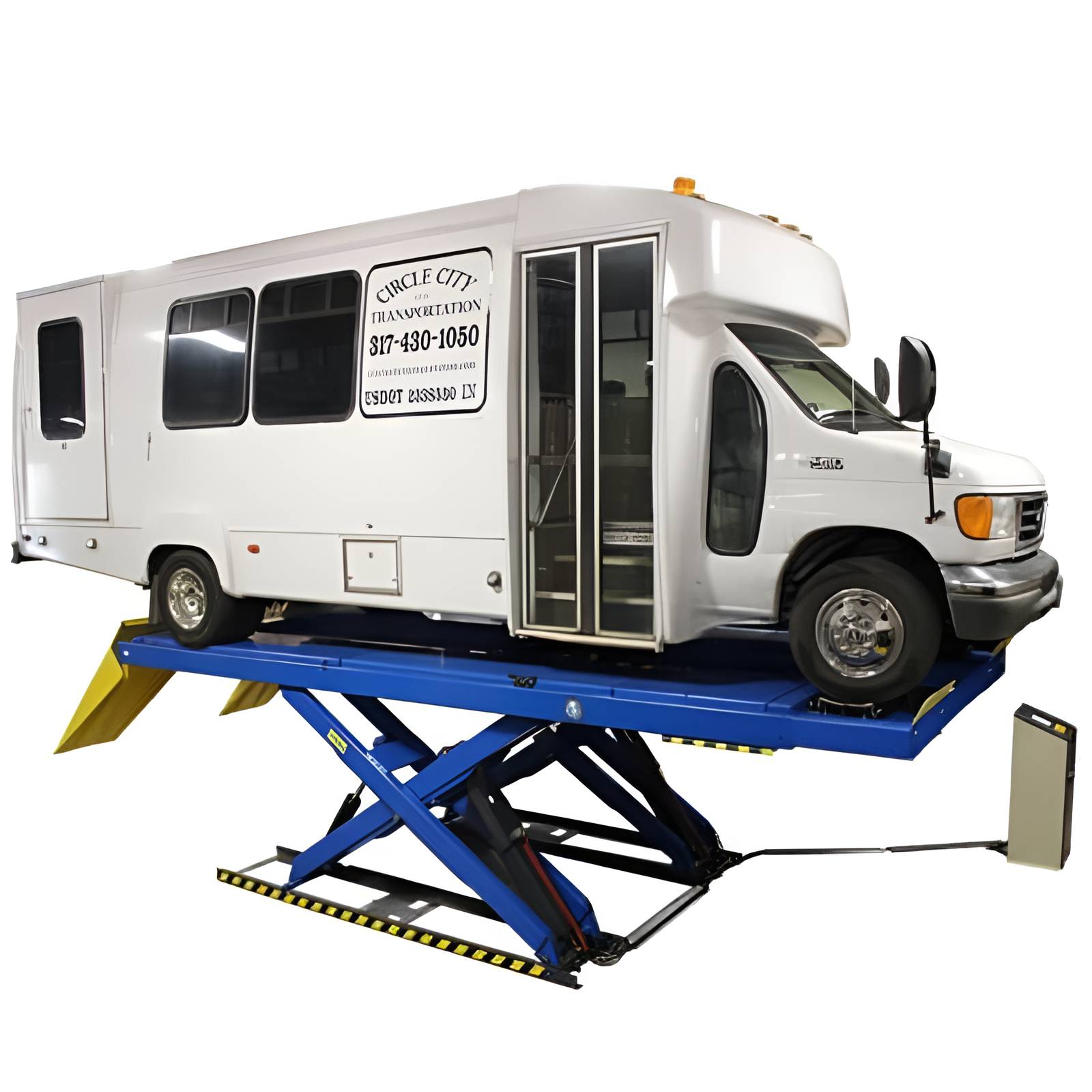

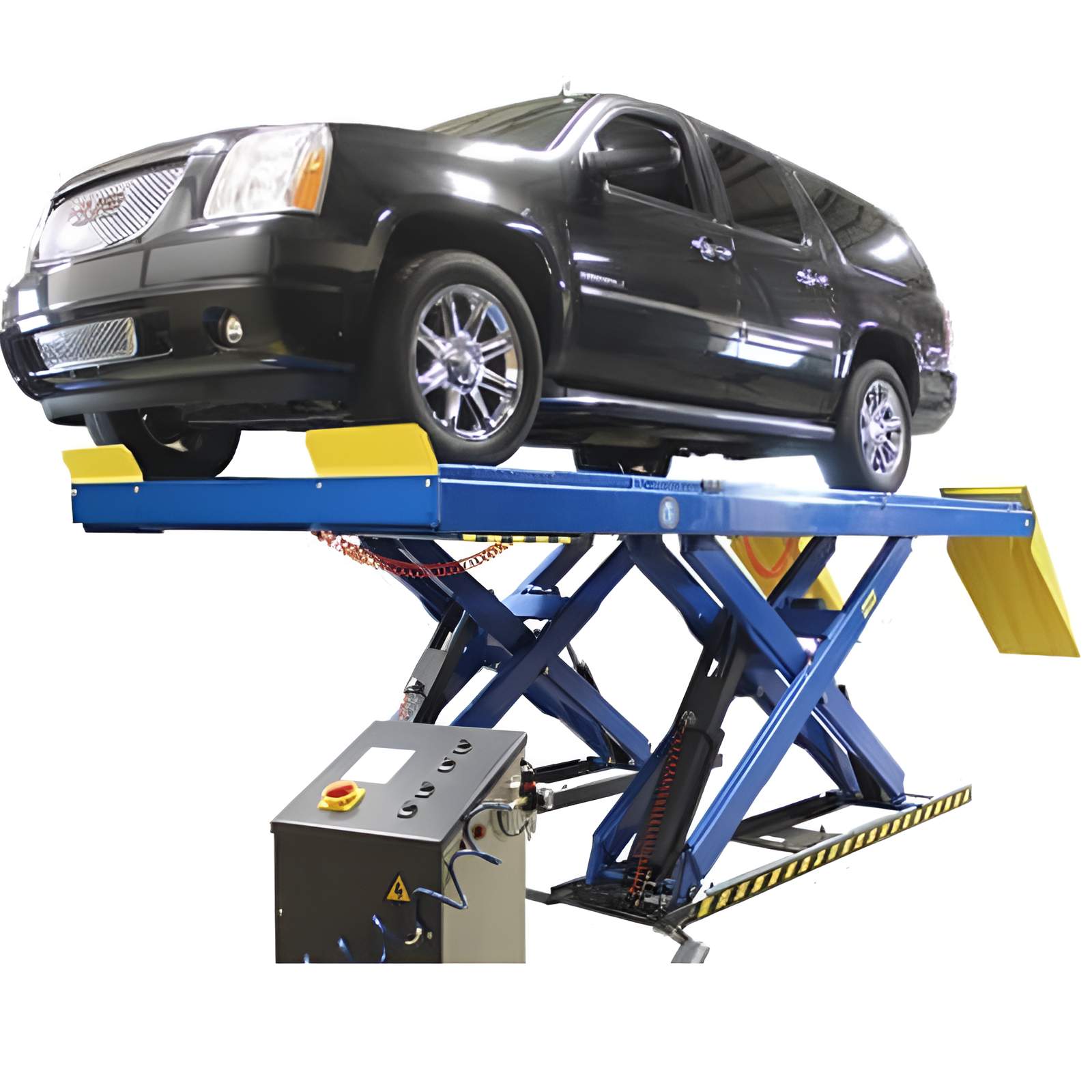

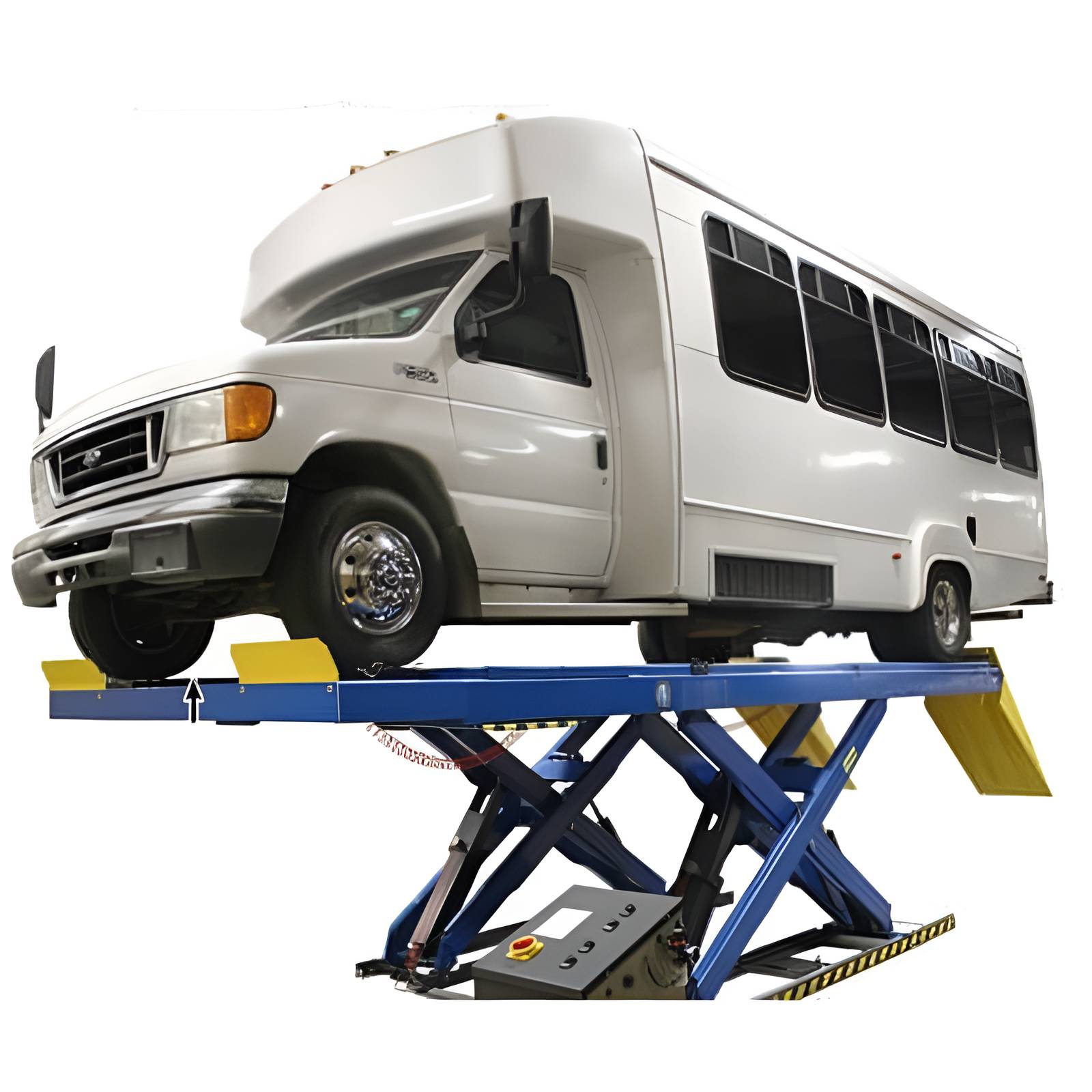

PX16A
- Lifting Capacity: 16,000 LB
- Lifting Height: 71 1/2" (5' 11 1/2")
- Lowered Height: 13 1/4"
- Overall Width: 94" (7' 10")
- Overall Length with Approach Ramps: 271" (22' 7")
- Overall Length without Approach Ramps: 206 1/2" (17' 2 1/2")
- Approach Ramp Length: 66" (5' 6")
- 4-Wheel Alignment Wheelbase: Max. 184 in.
- 4-Wheel Alignment Wheelbase: Min. 96 in.
- Runway Width including Rail: 23 3/4" (1' 11 3/4")
- Width Between Runways: 44 7/8"
- Width Between Runway Rails: 41 3/8"
- Air Requirement: 90-120 PSI
- Motor/Electrical Requirement: 220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required.
- Oil Requirement: 3.5 Gallons AW32/AW46
- Shipping 217" x 30" x 42" - 6,200 lbs.
- Requires a minimum of 6" of concrete with a 3000 psi. rating

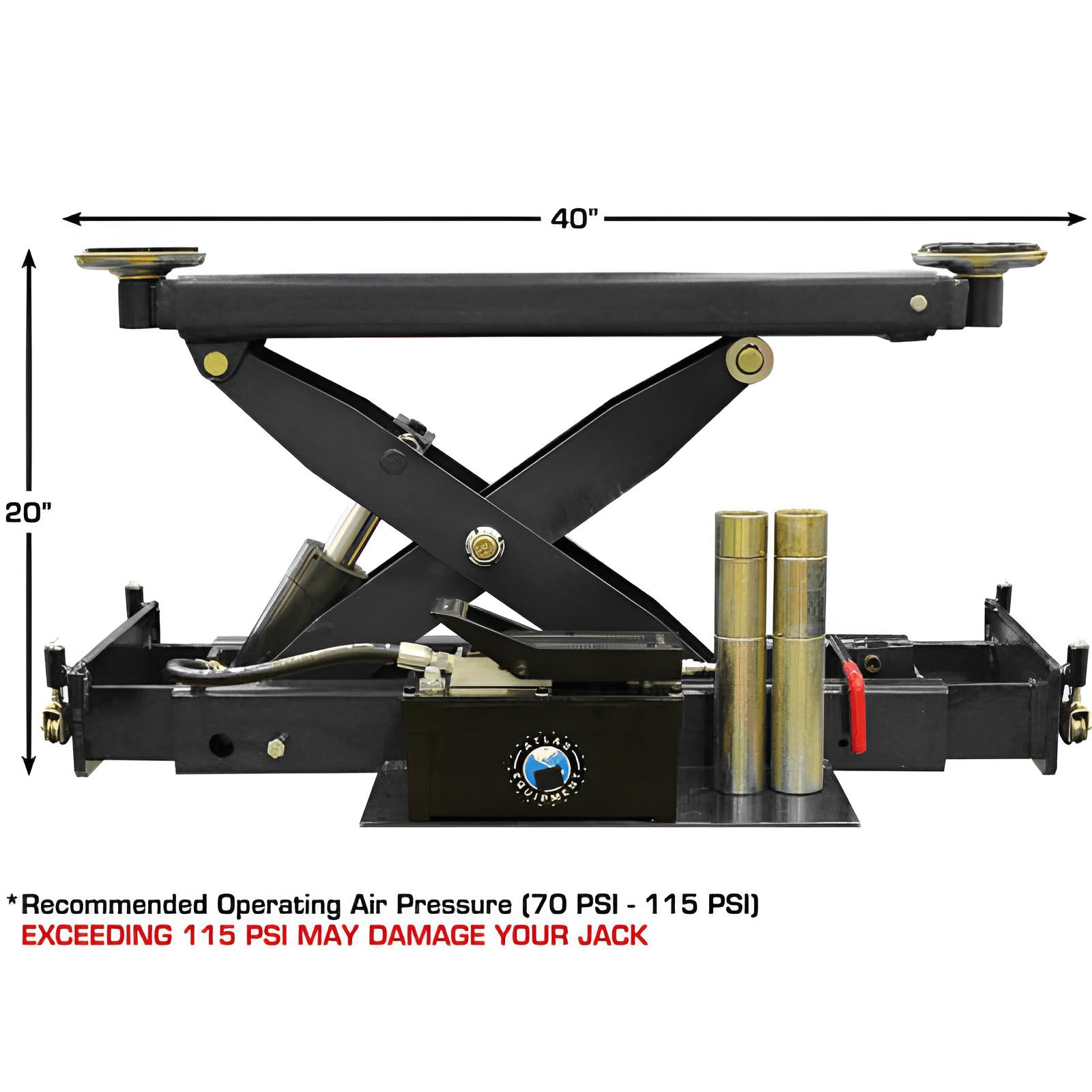

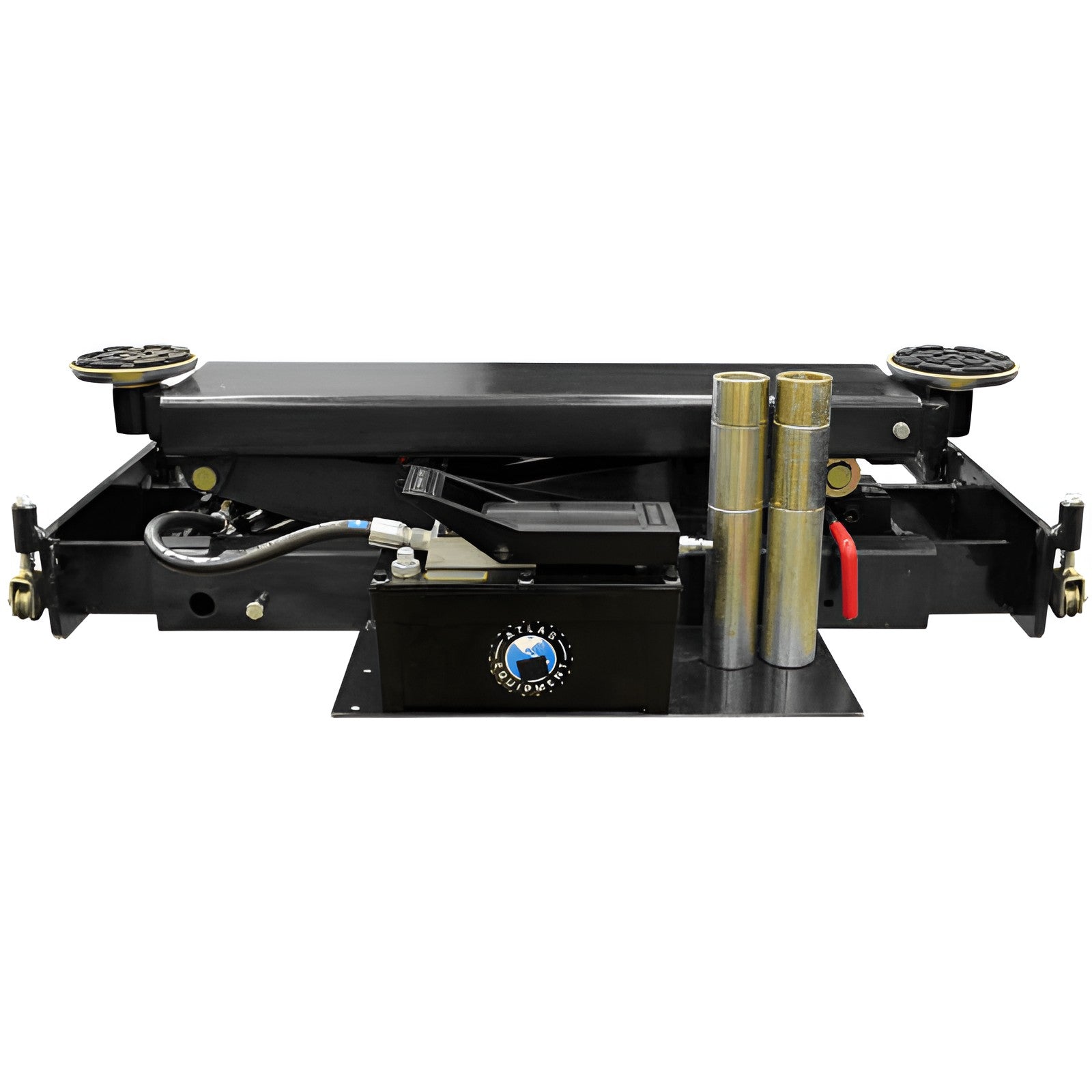

RJ8
- Maximum Capacity 8,000 lb.
- Maximum Width 68" (5' 8")
- Minimum Width 40" (3' 4")
- Distance Between Runway Capability 33"-53"
- Maximum Lifting Height (With Adapters) 27"
- Air Requirement 70-115 PSI
- Shipping Weight 390 lbs.
- Adapter Heights 2 Each 2", 3"
- Arm Hole/Adapter Peg Size 1.5"
PX16A 16,000 lb Scissor Alignment Lift and RJ8 Rolling Special Features:
PX16A
- 16,000 lb. Capacity
- Heavy Duty Commercial Grade Construction
- Scissor Alignment Lift
- Front Cross-Beam for Added Stability
- Super-Balanced with Very Precise Platform Leveling Accuracy for Wheel Alignment
- Built-in Slip Plates and Alignment Turntables Included
- Recessed Positions for Turntables
- Separate Self-Contained Control Unit
- Air Operated Mechanical Safety Locks (External Air Supply Required)
- Emergency manual pump for lowering
- Overload Valve Included
- Lowering Speed Valve Included
- Mounting Hardware Included
- Extra Long Slip Plates Allow For 4-Wheel Aligning Of Wheelbases From 96″ to 184″
- Shipping Weight: 6,200 lbs.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
RJ8
- 8,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)
- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
PX16A with RJ8 Manual
*Due to Extra Large Size, product cannot be delivered to a freight terminal.
Warehouse Pickup locations (No shipping charge):
- Atlanta, GA
- Dallas, TX
- Indianapolis, IN
- Phoenix, AZ
- Somerset, NJ
