Atlas 9,000 lb 2 Post Lift, ALI Certified SKU ATEAP-PVL9BP

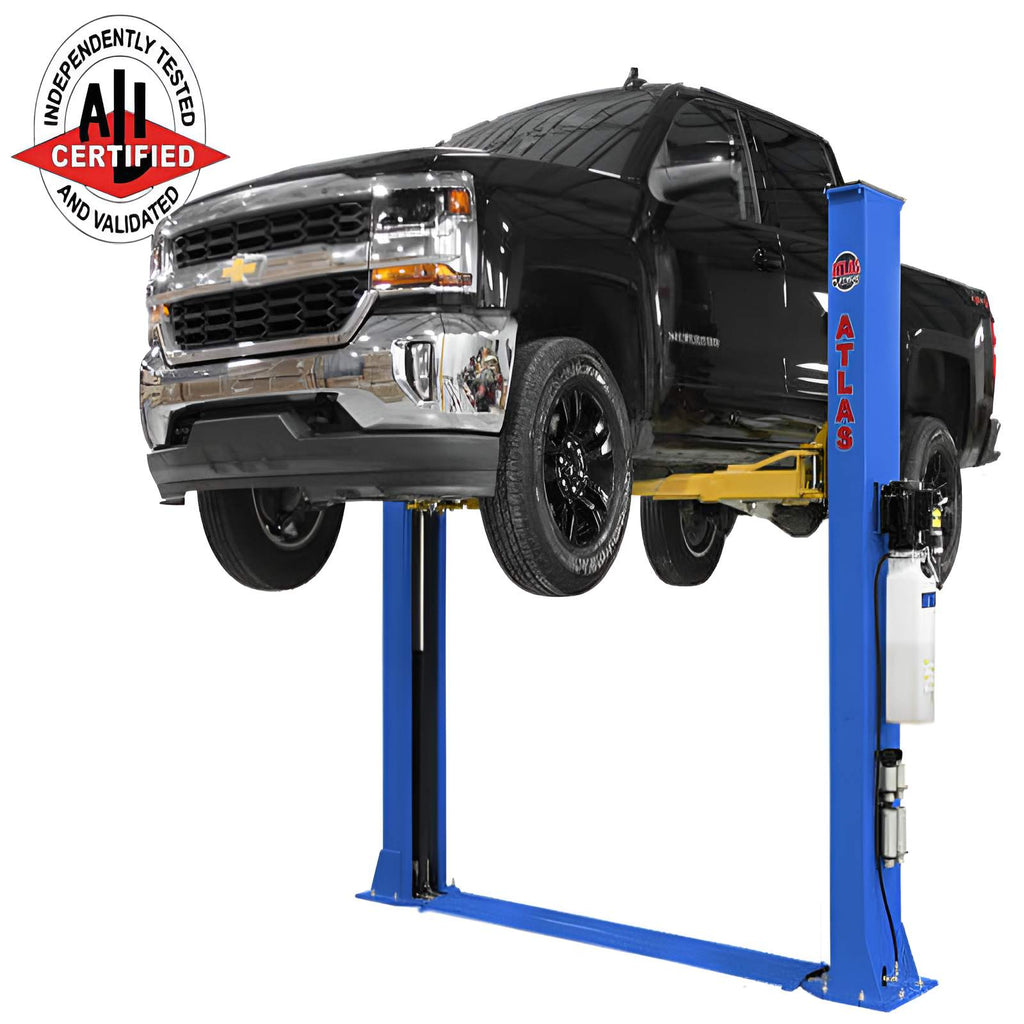

Enter the Atlas® Platinum PVL9BP - the 9,000 lb capacity two-post lift that's revolutionizing low-ceiling garages. With a compact 111 1/8" column height and open-top design, it fits where others can't. Yet it still packs the punch to lift everything from compact cars to full-size pickups.
The PVL9BP's ALI Certification ensures top-notch safety, while its ALLY power unit, certified for both US and Canada, delivers reliable performance. With 3-stage symmetric arms and automatic restraints, it adapts to any vehicle effortlessly. The dual hydraulic chain-drive cylinders provide smooth, consistent lifting. And the cherry on top? A 5-year structural warranty that lets you lift with confidence.
Atlas Platinum PVL 9BP Specifications:
- Capacity 9,000 LB.

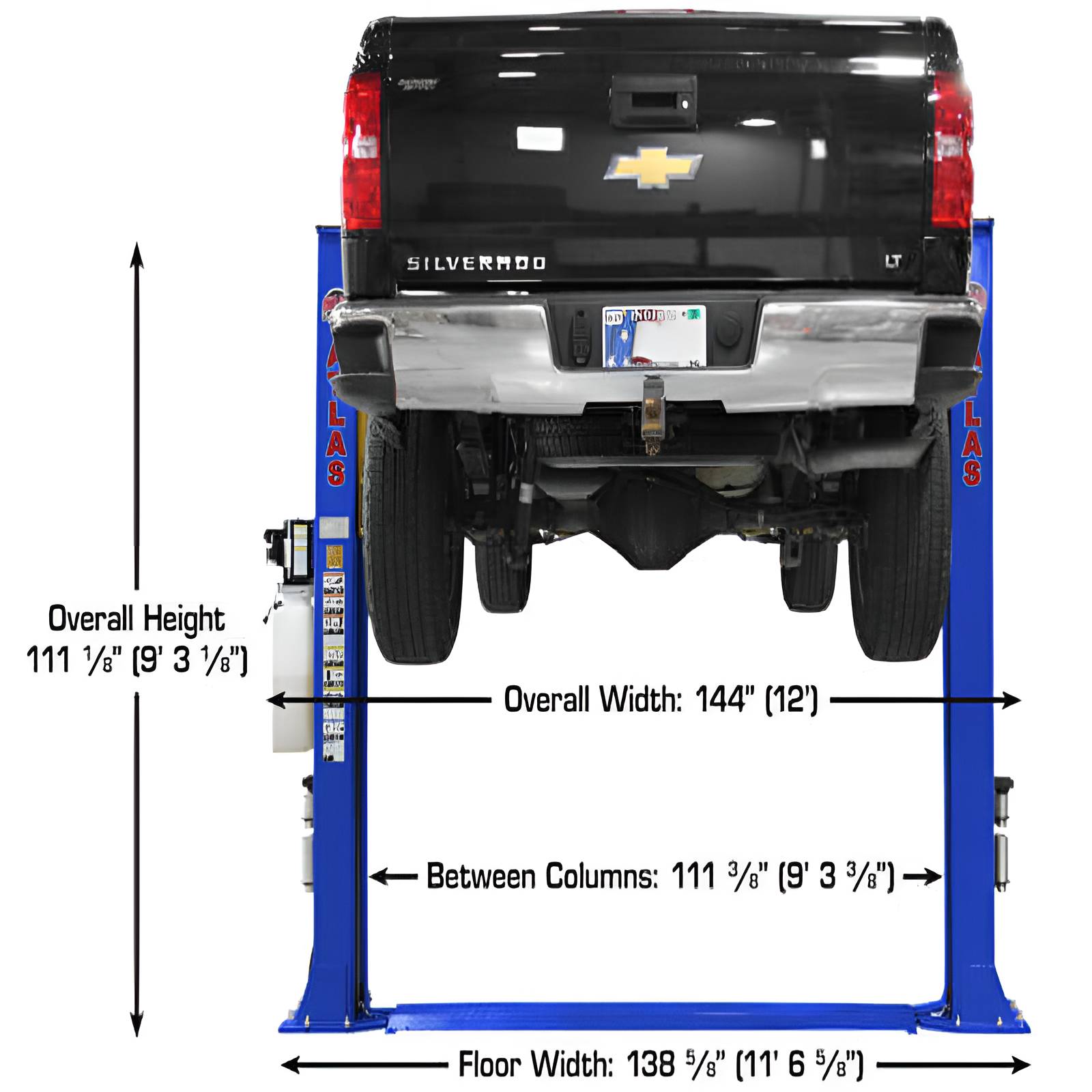

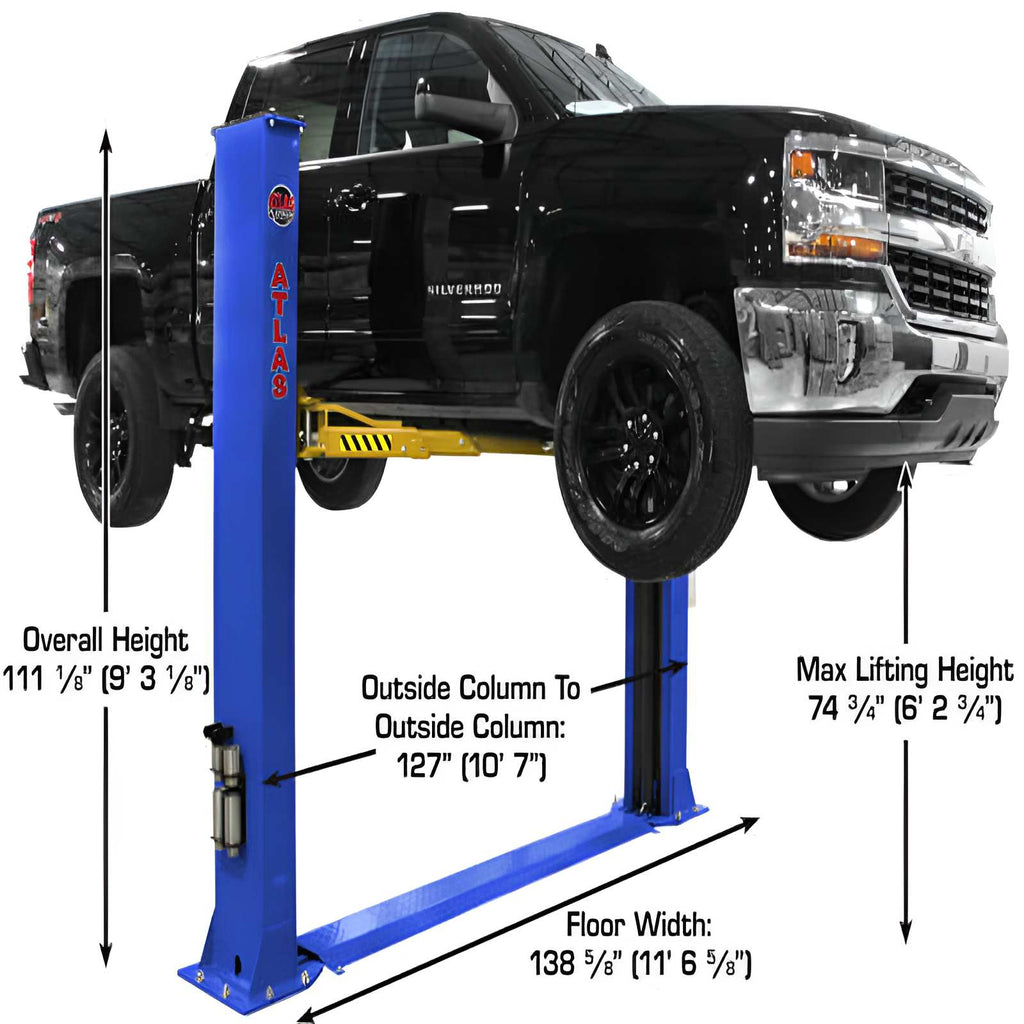

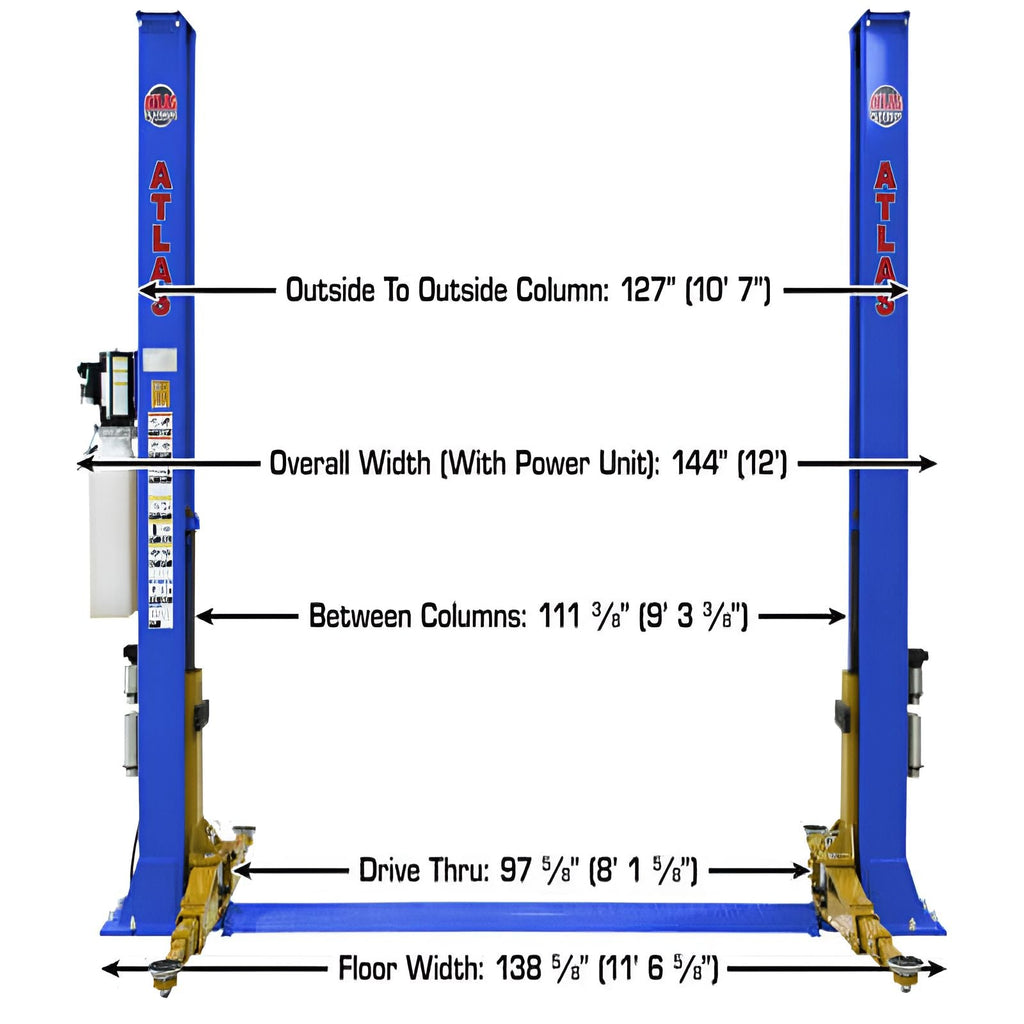

- Overall Height 111 1/8" (9’ 3 1/8")
- Overall Floor Width 138 5/8" (11’ 6 5/8")

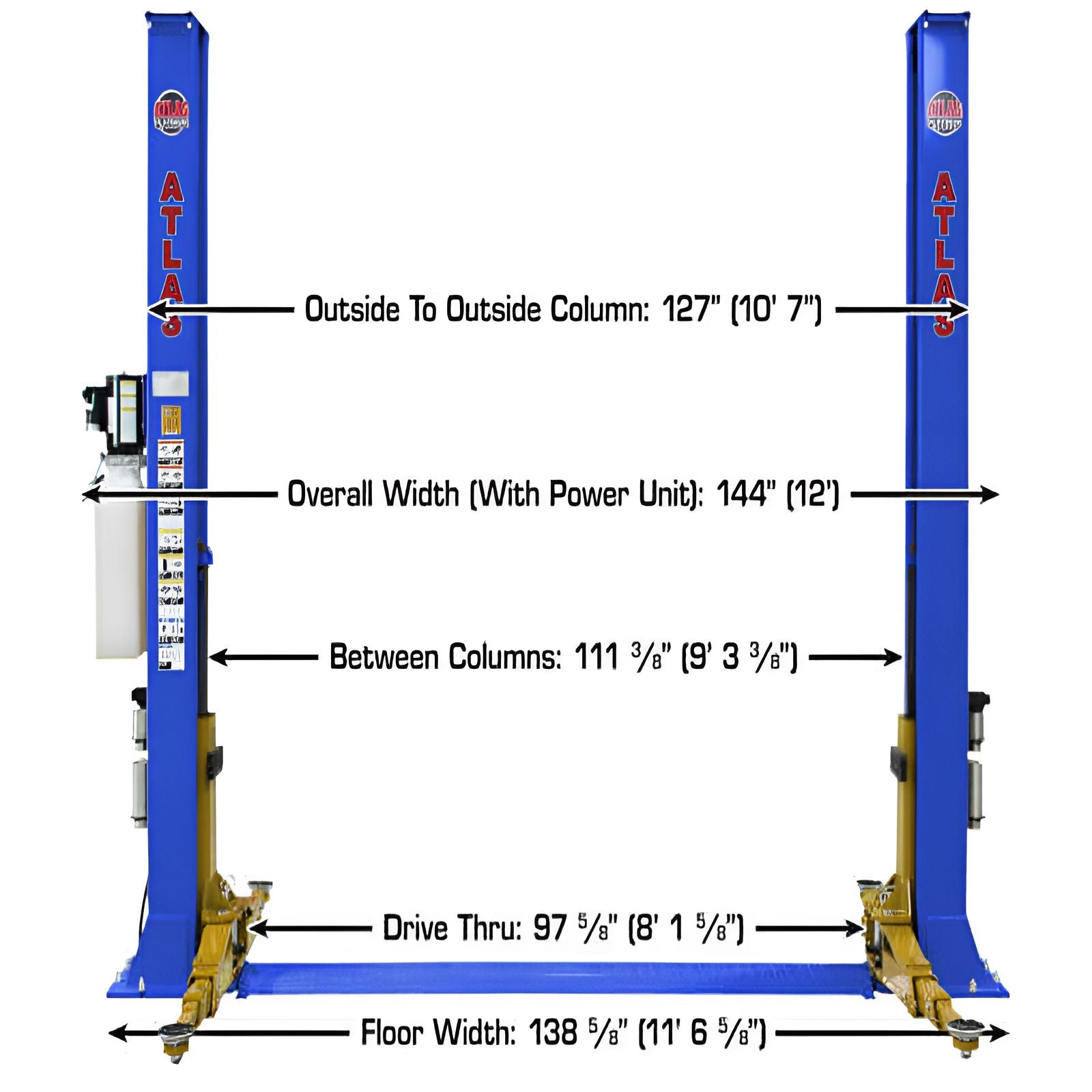

- Outside Column to Outside Column 127 1/2" (10’ 7 1/2")

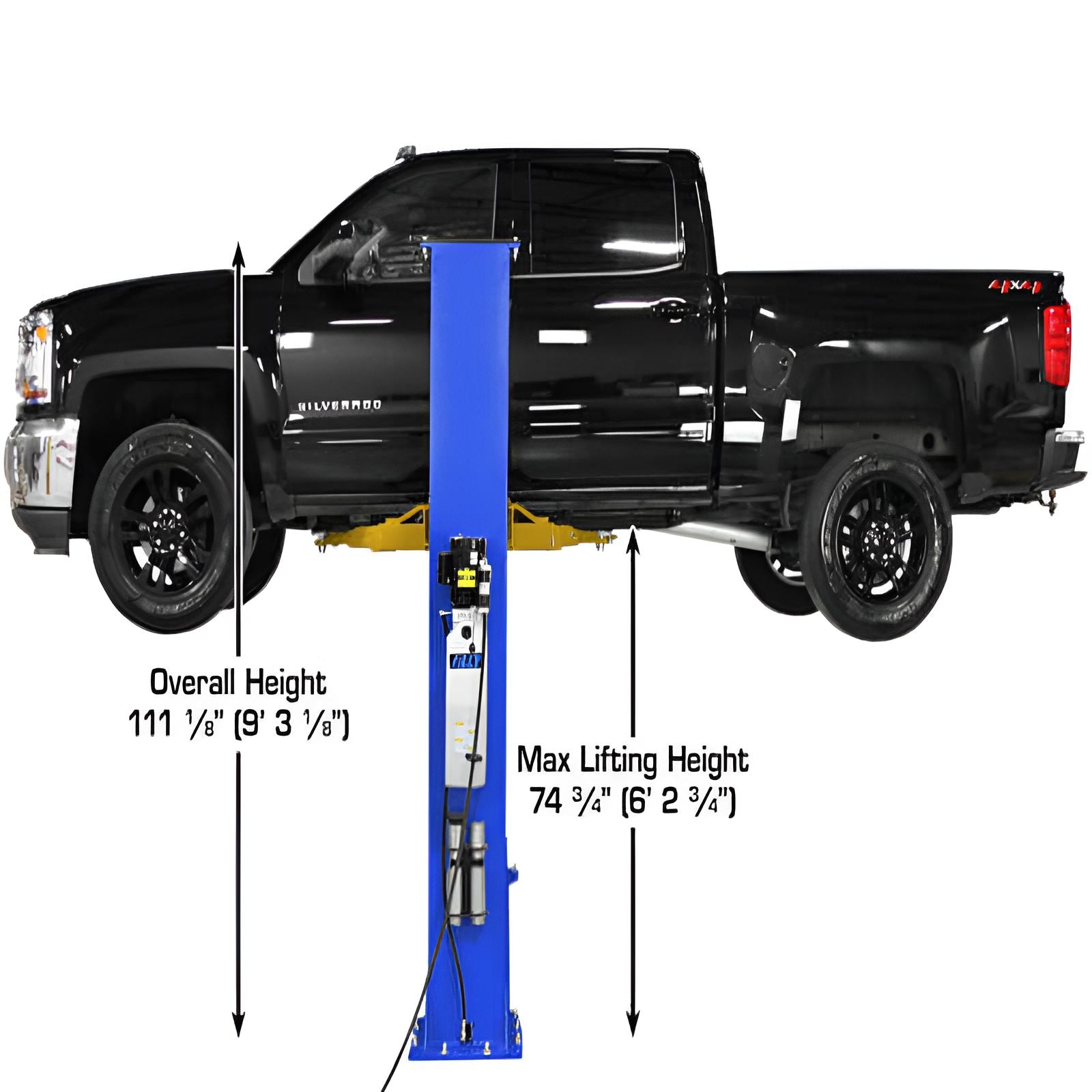

- Maximum Lift Height (Without Adapters) 74 3/4"
- Maximum Lift Height (With Adapters) 83 3/4"
- Minimum Arm Height 4 1/2"
- Inside Column 111 3/8” (9’ 3 3/8”)
- Drive Thru 97 5/8” (8’ 1 5/8”)
- Column Size 7 5/8" x 14 1/4"
- Column Thickness of Steel 6mm
- Base Of Lift 19 1/2" x 20 1/2"

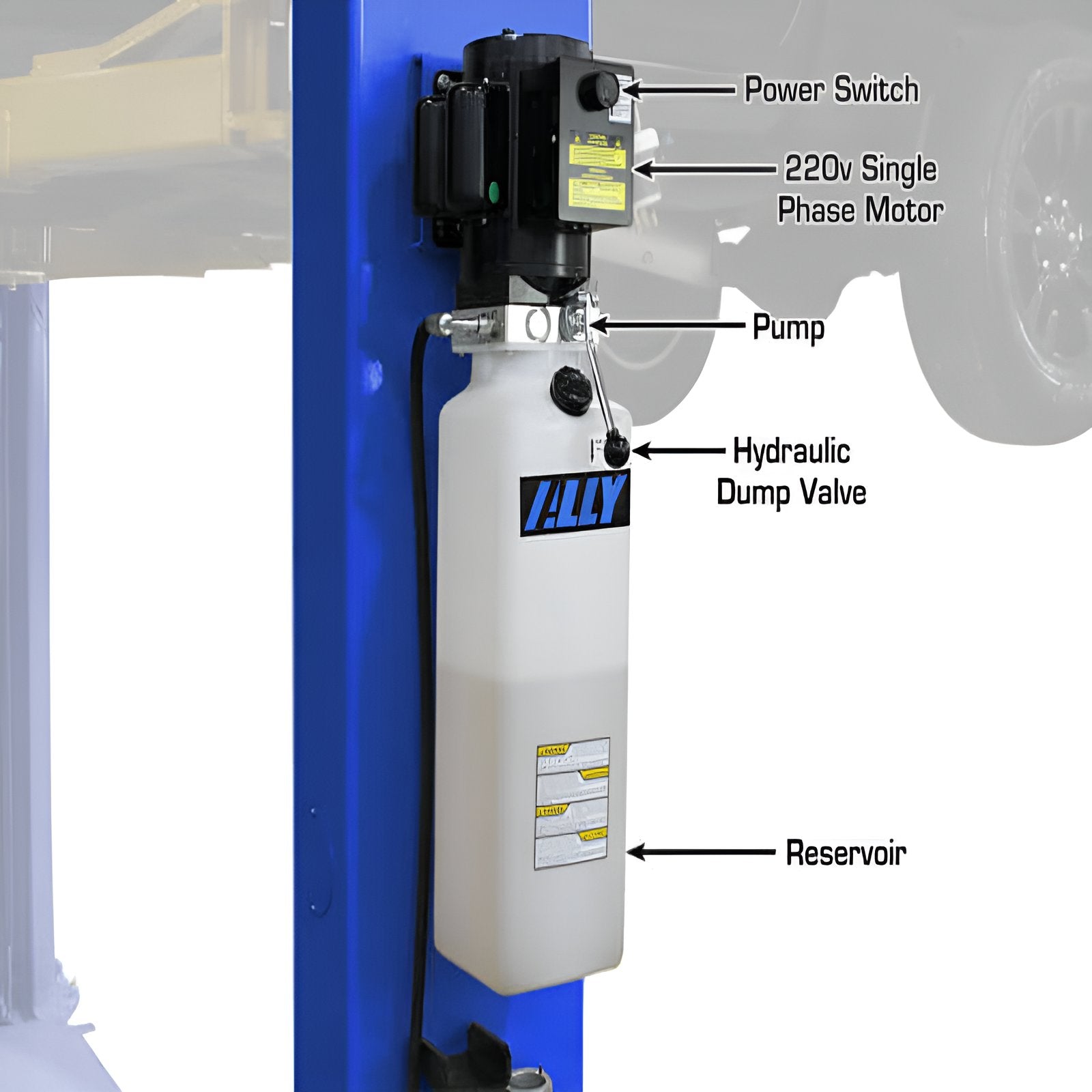

- Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 1,700 LBS.
- Pallet Size: 113" Long x 44" Tall x 22-1/4" Wide
- Adapter Heights 4 Each 3”, 6”
- Arm Hole/Adapter Peg Size 2”
- Requires a minimum of 6" of concrete with a 3000 psi. rating
ATEAP-PVL9BP Special Features:
- ALI Certified
- Commercial Grade
- Base Plate, Open-Top Design

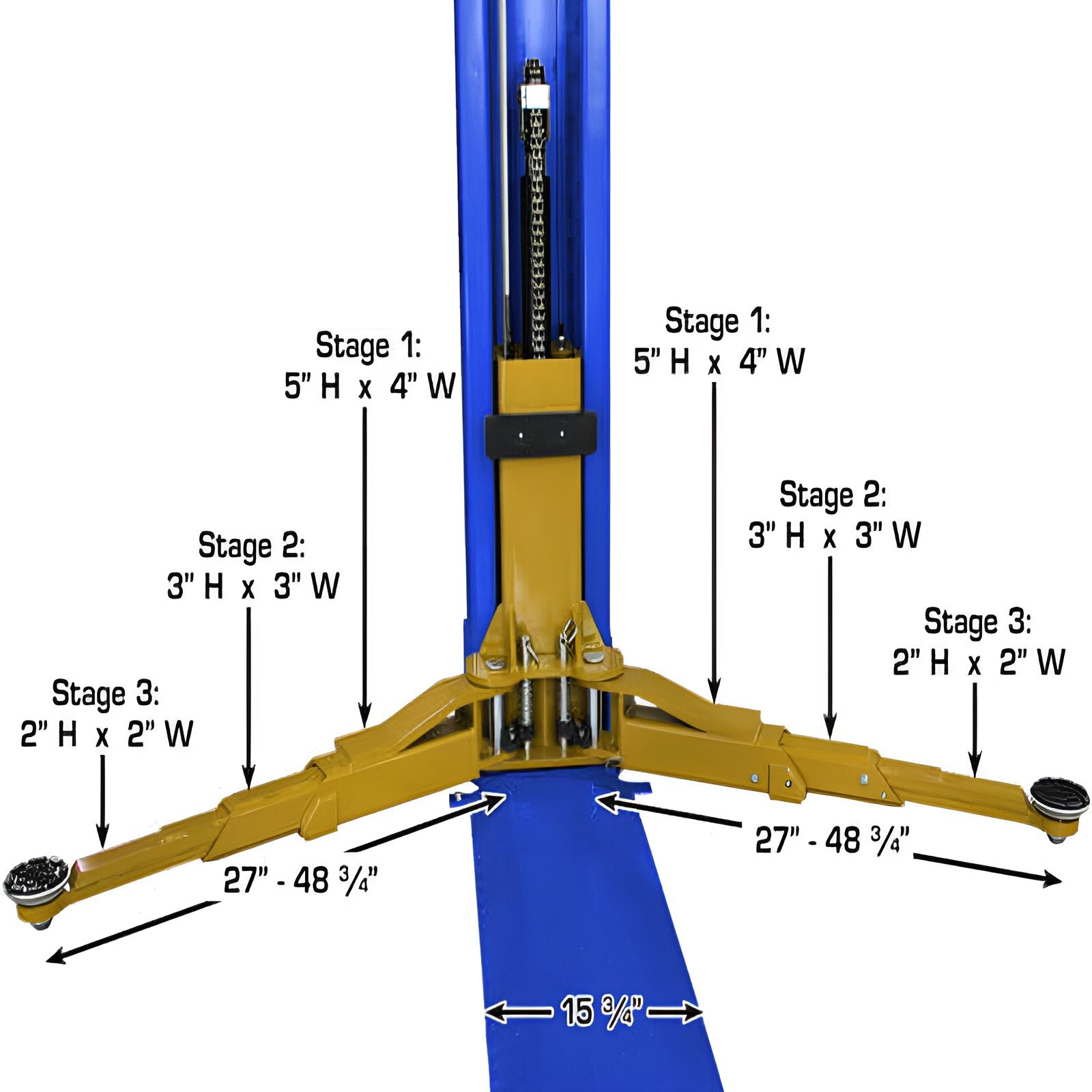

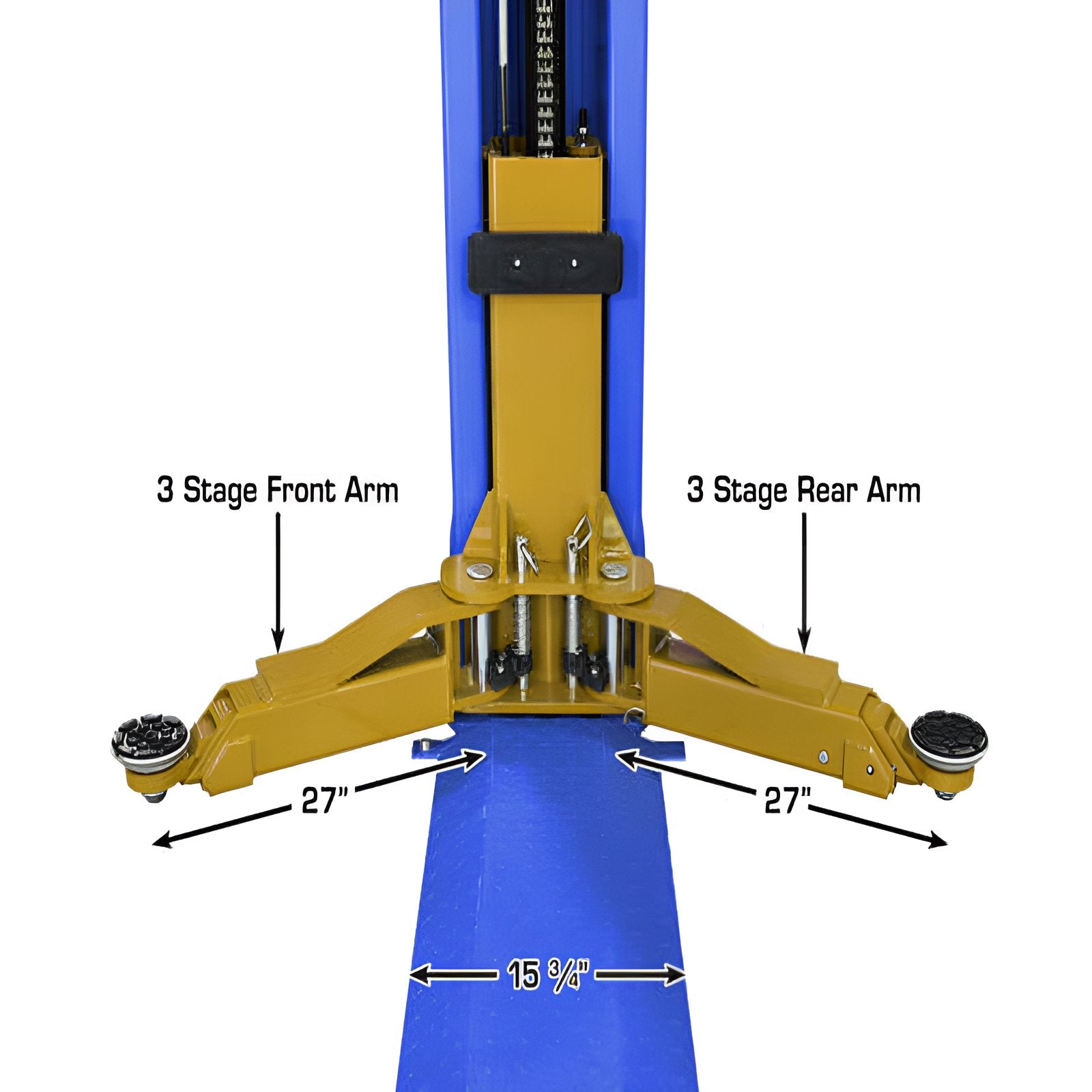

- 3-Stage Symmetric Arms
- Lock Release: Dual Point

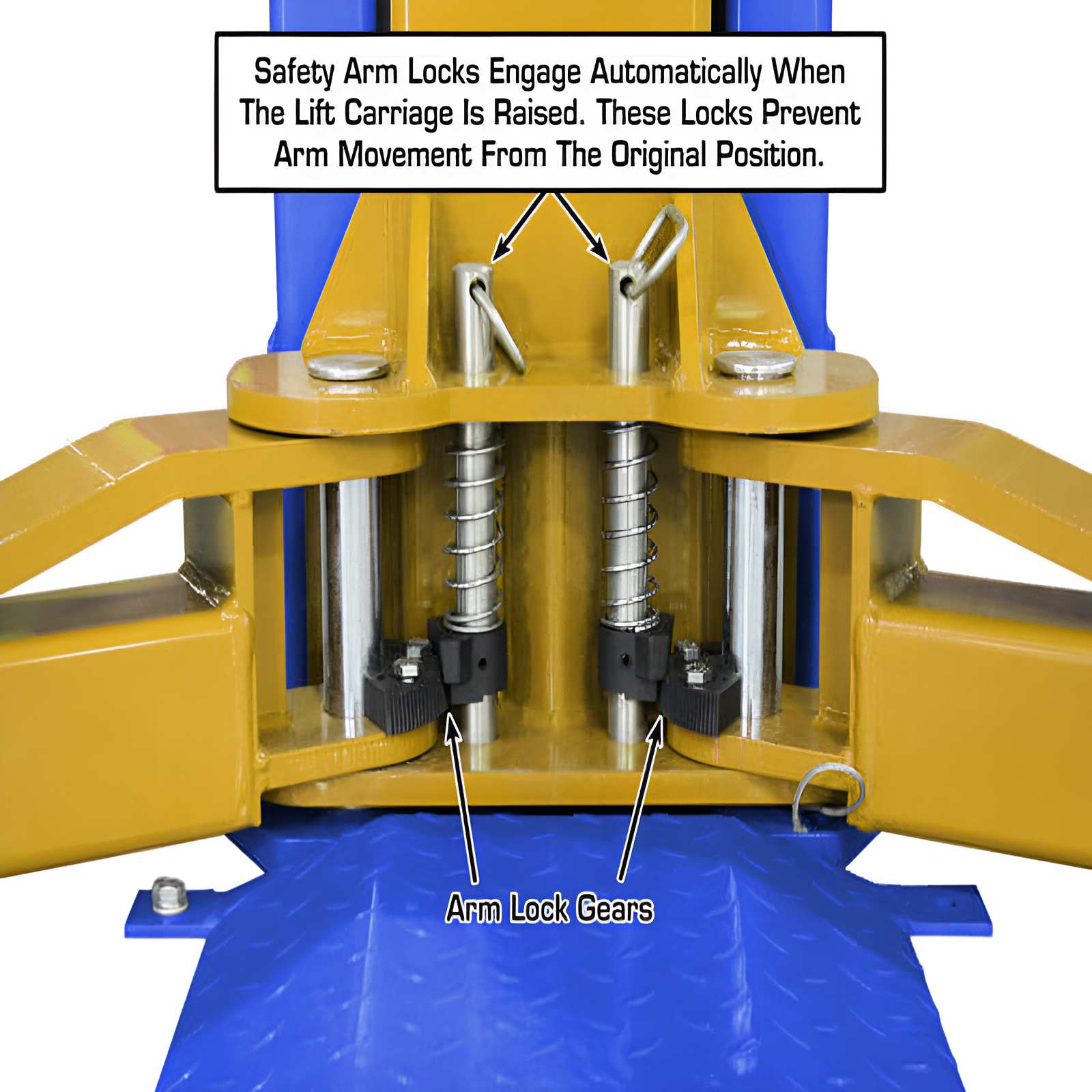

- Automatic Arm Restraints

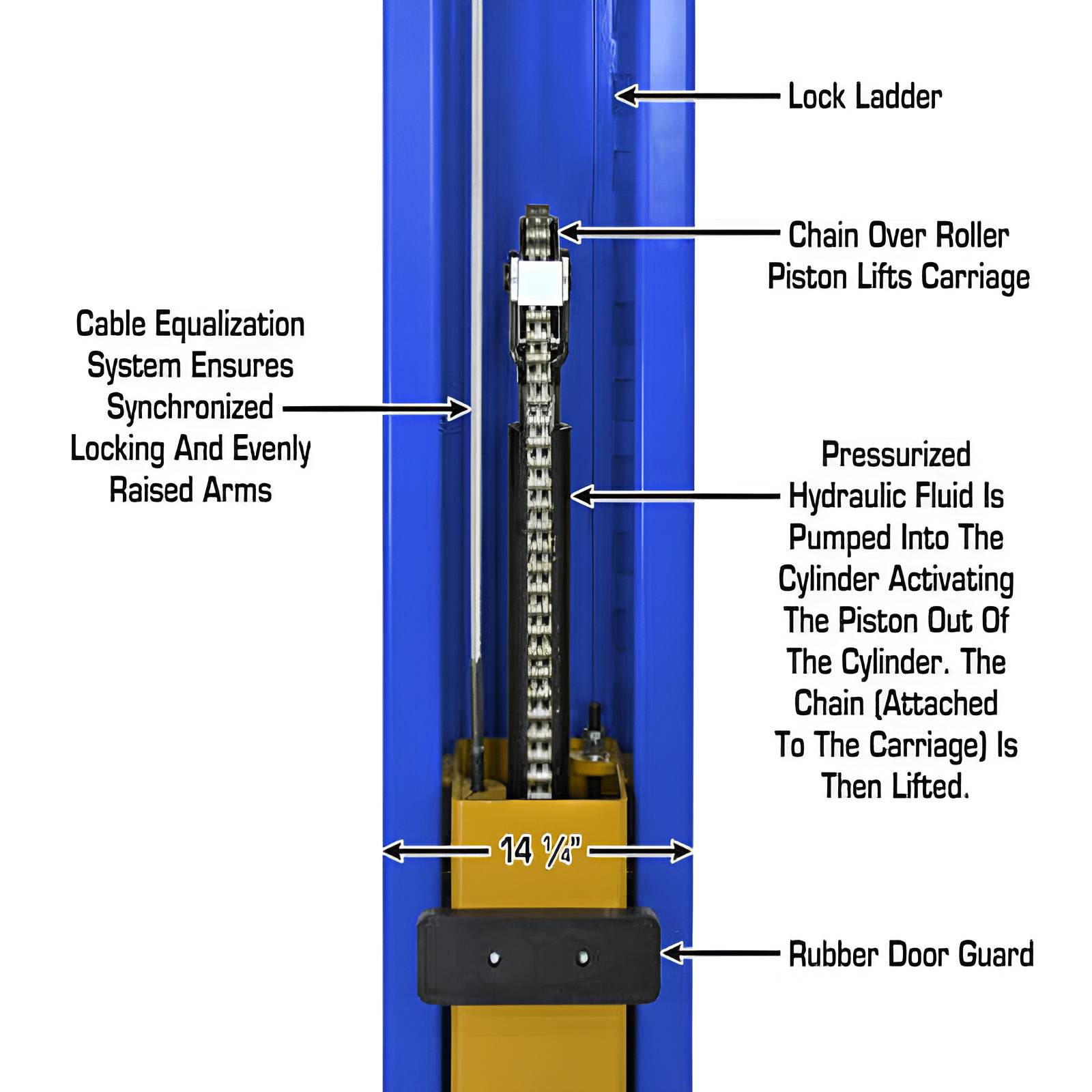

- Dual Hydraulic Chain-Drive Cylinders
- Pads on Carriage
- Powder Coat Finish
- Secondary Lock System
- Warranty: 5 year Structural; 2 year Hydraulic; 2 year Power Unit ‐ Parts Only
- Unit Includes:
- Mounting Hardware

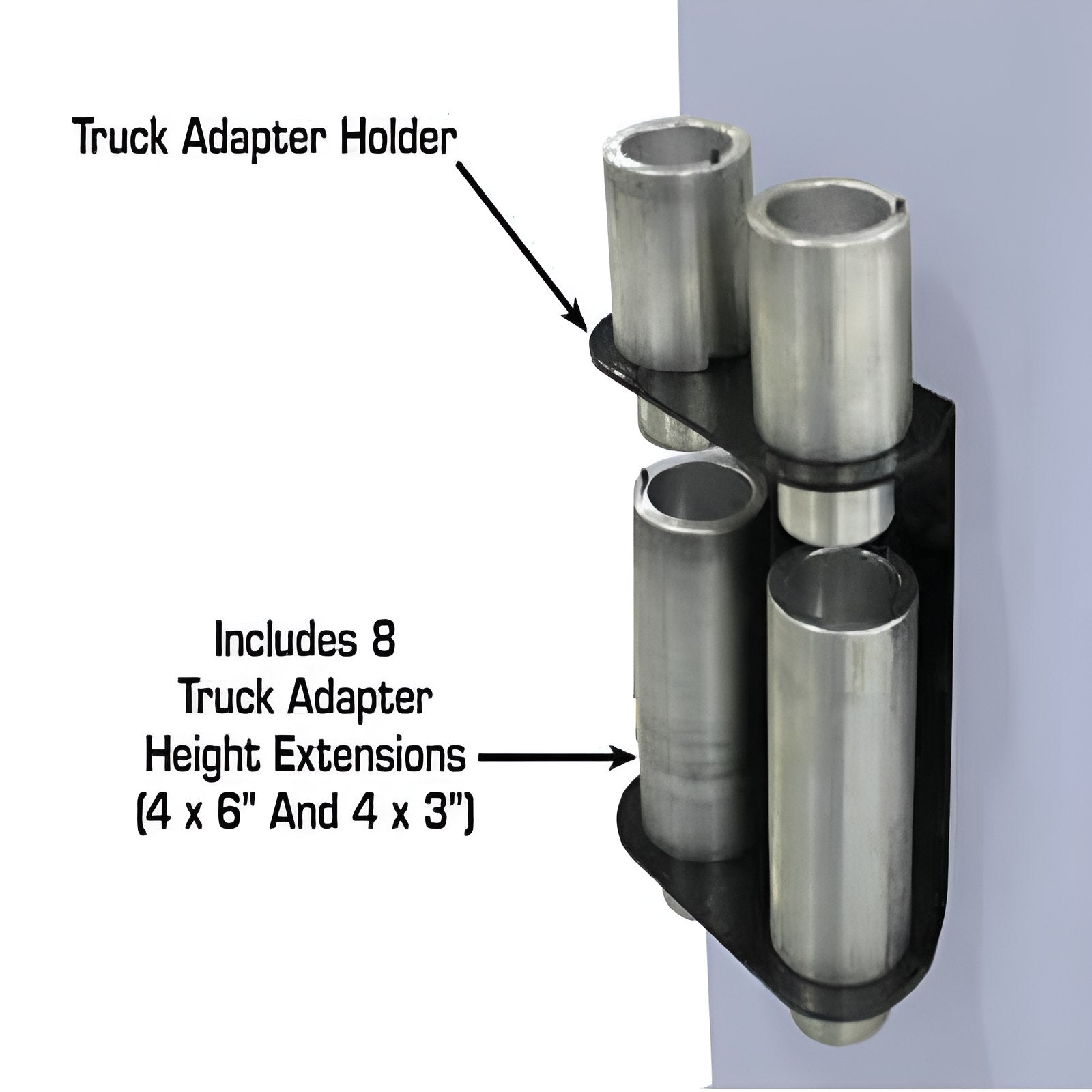

- 8-piece Truck Adapter Set

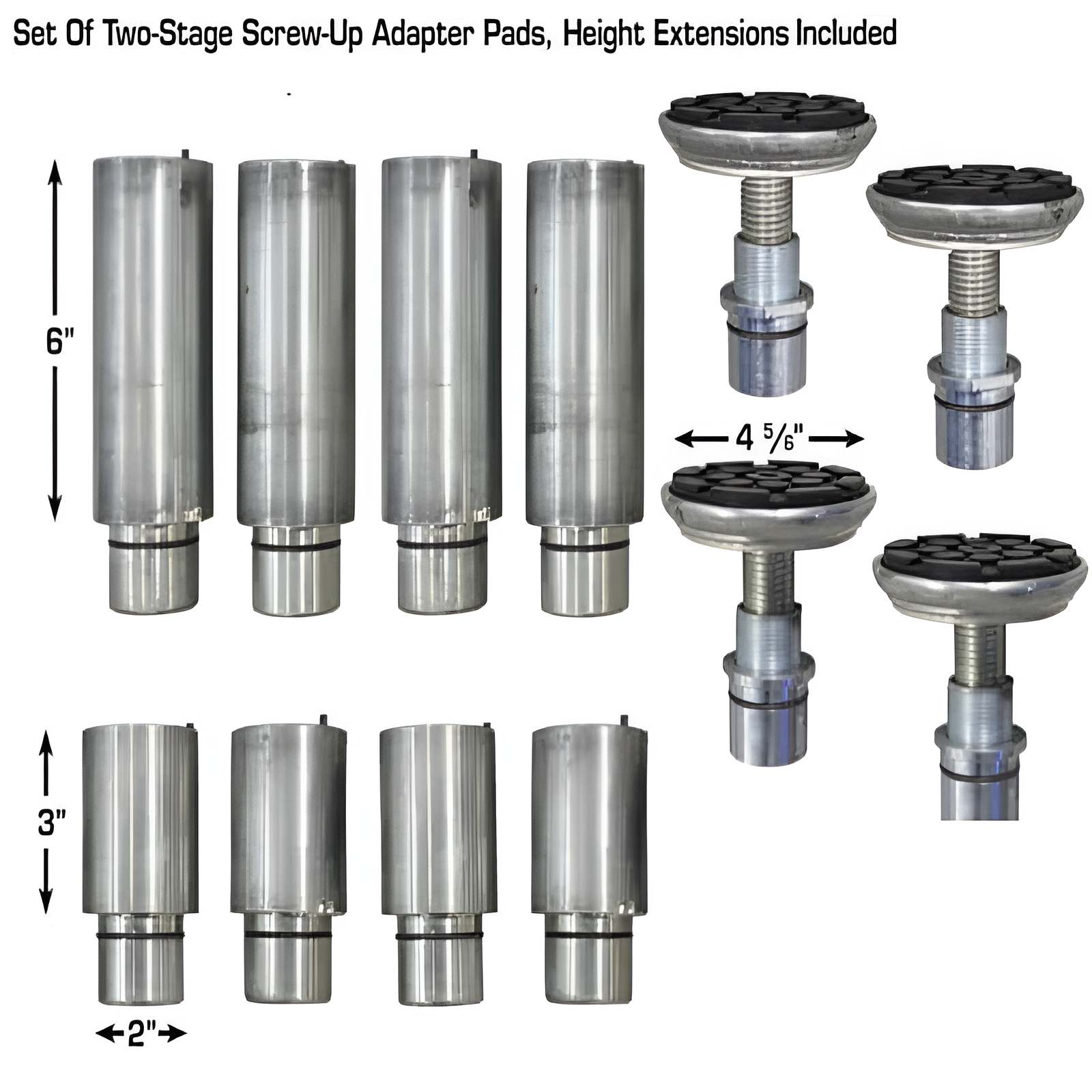

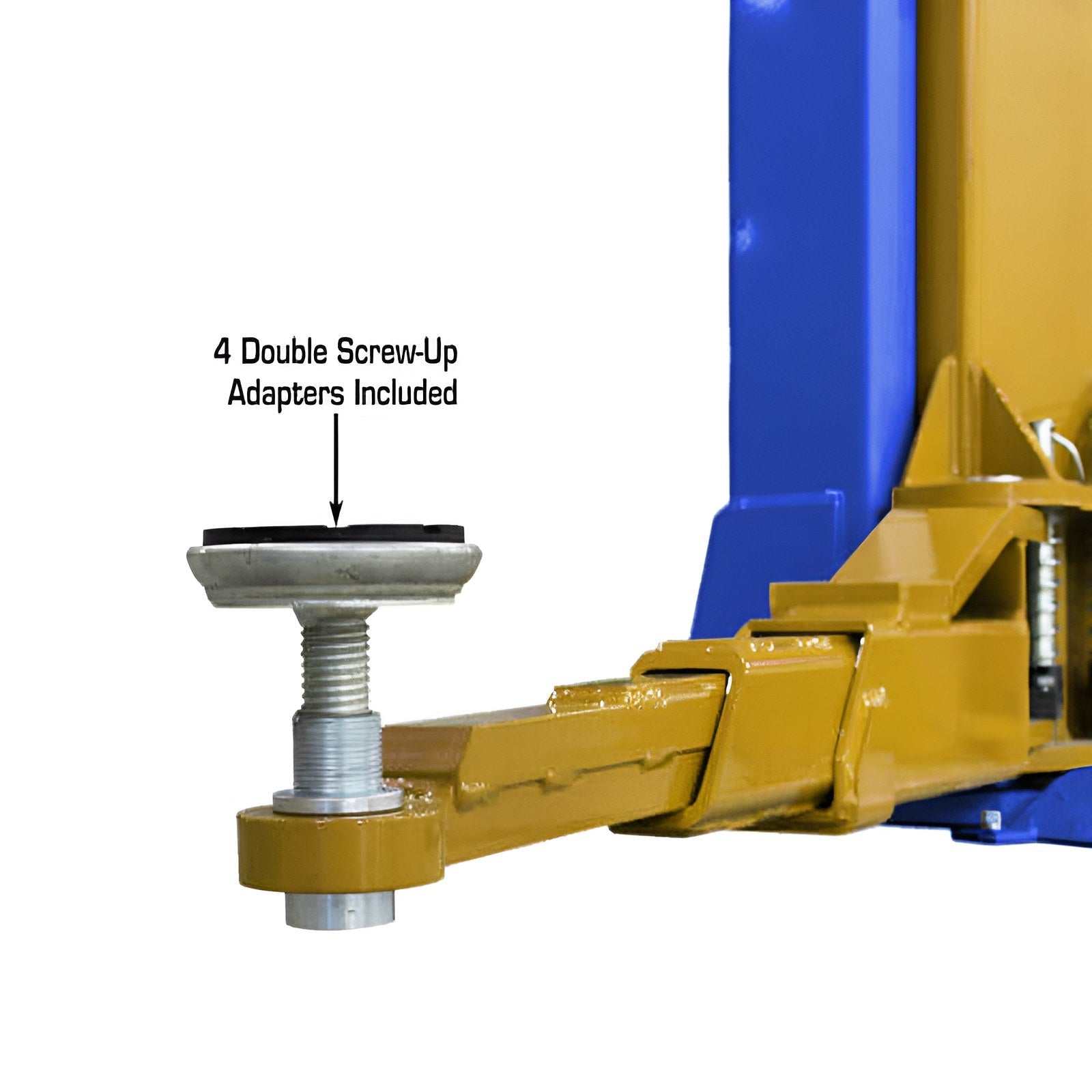

- Double Screw-up Adapters
PVL9BP Manual
