Atlas 15,000 lb 2 Post Lift, Commercial Grade, ALI Certified SKU ATEAP-PVL16

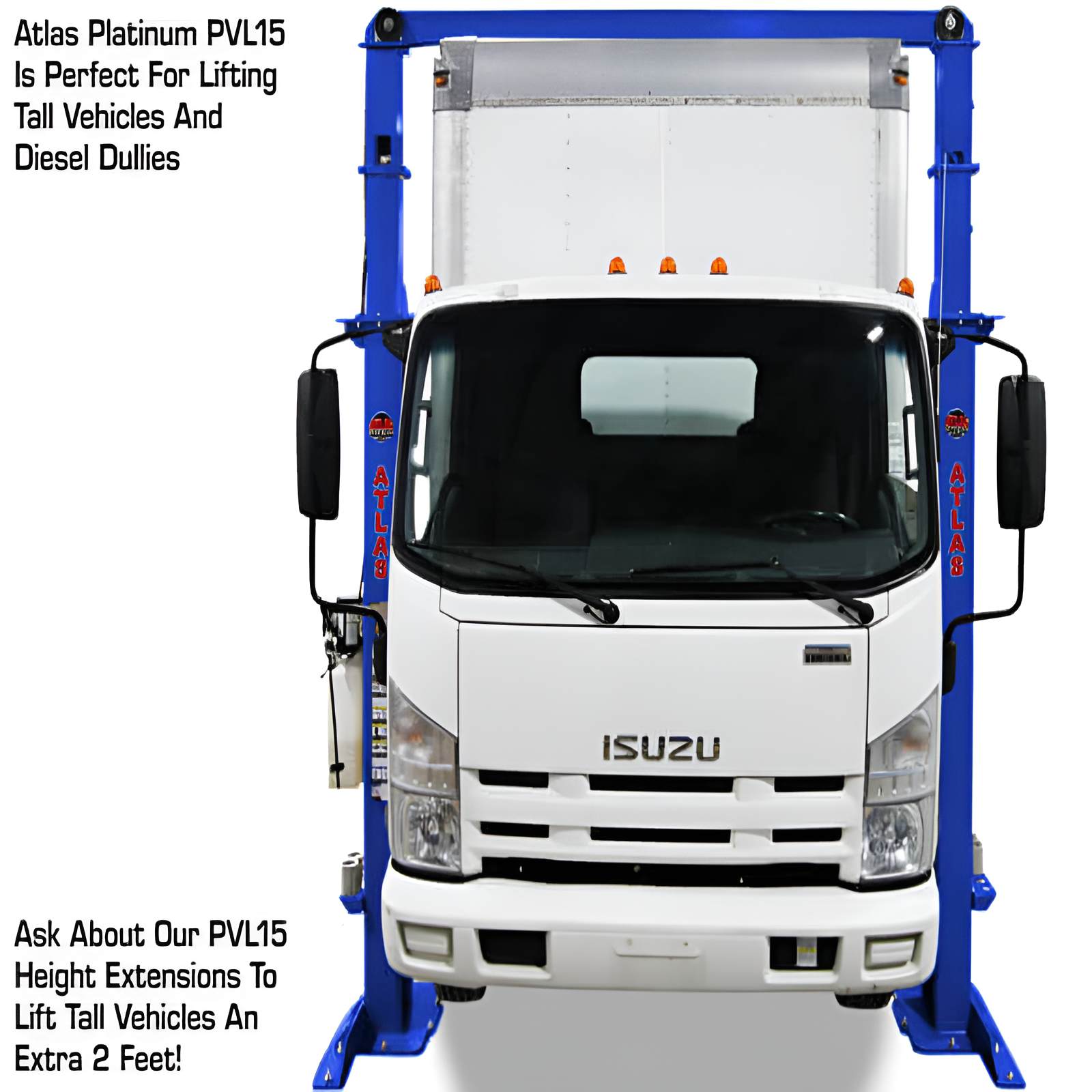

The Atlas® Platinum PVL15, the ultimate two-post lift designed for serious professionals. With a capacity of 15,000 lbs, this heavy-duty, ALI CERTIFIED Atlas lift is built to handle everything from long-wheelbase trucks to service vehicles, ensuring you can tackle any job with ease. Need a little extra height? No problem! Just add the Height Extension Kit for an additional 2 feet of lifting power.

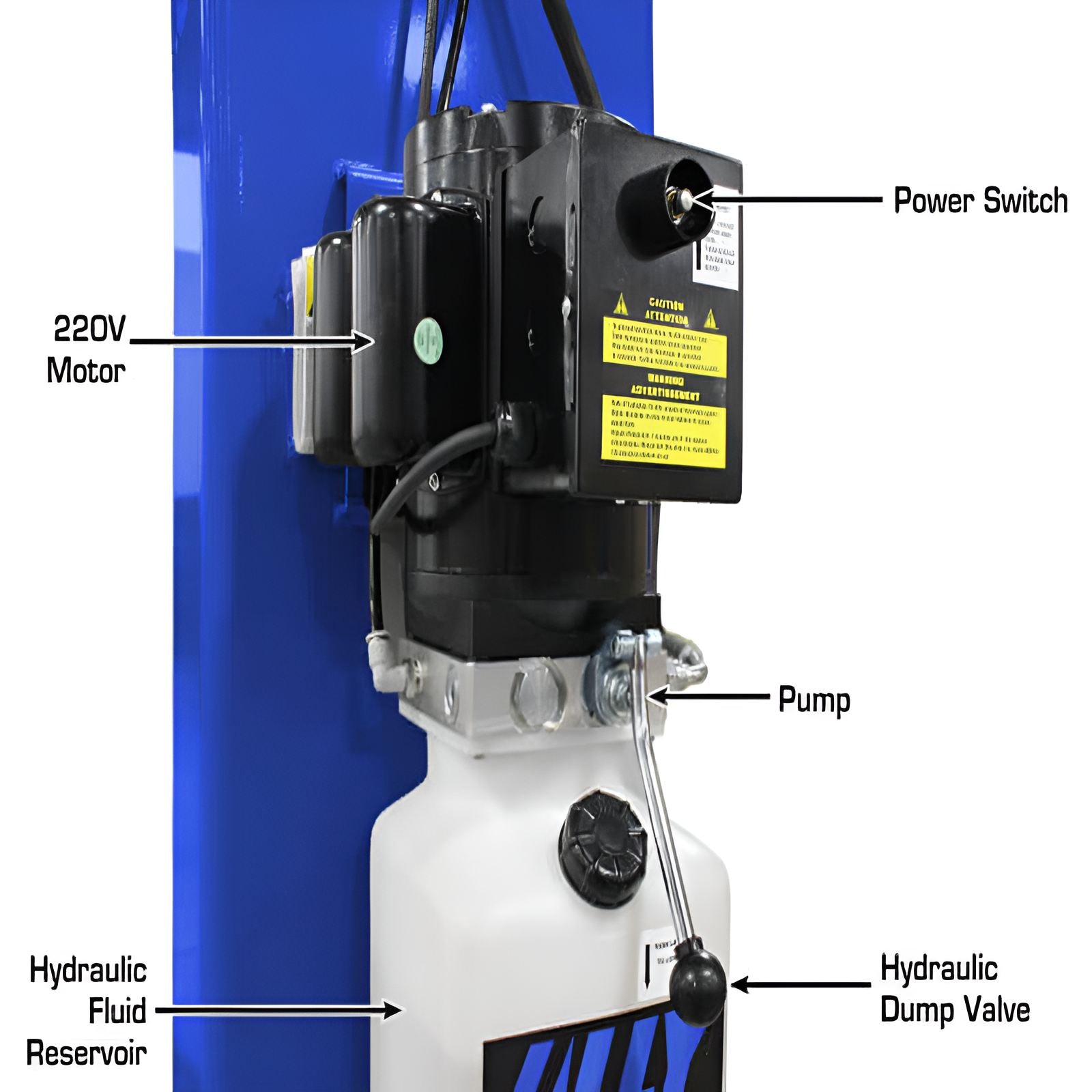

This lift is powered by the ALLY Hydraulic AL2300 Power Unit, which is certified by MET Laboratories Inc. for electrical compliance in the US and Canada. With its heavy-duty armatures and increased motor windings, you’ll enjoy less heat generation and consistent torque, all backed by an industry-leading two-year limited warranty. The Atlas® Platinum PVL15 features an overhead, open floor design and symmetric arms for easy access and maneuverability. Plus, with a commercial-grade arm lock restraint system, your projects will be secure while you work. Upgrade to the Atlas® Platinum PVL15 today and experience the power, reliability, and peace of mind that comes with a lift designed for the pros!
PVL-15 Specifications:
- Capacity 15,000 LB.

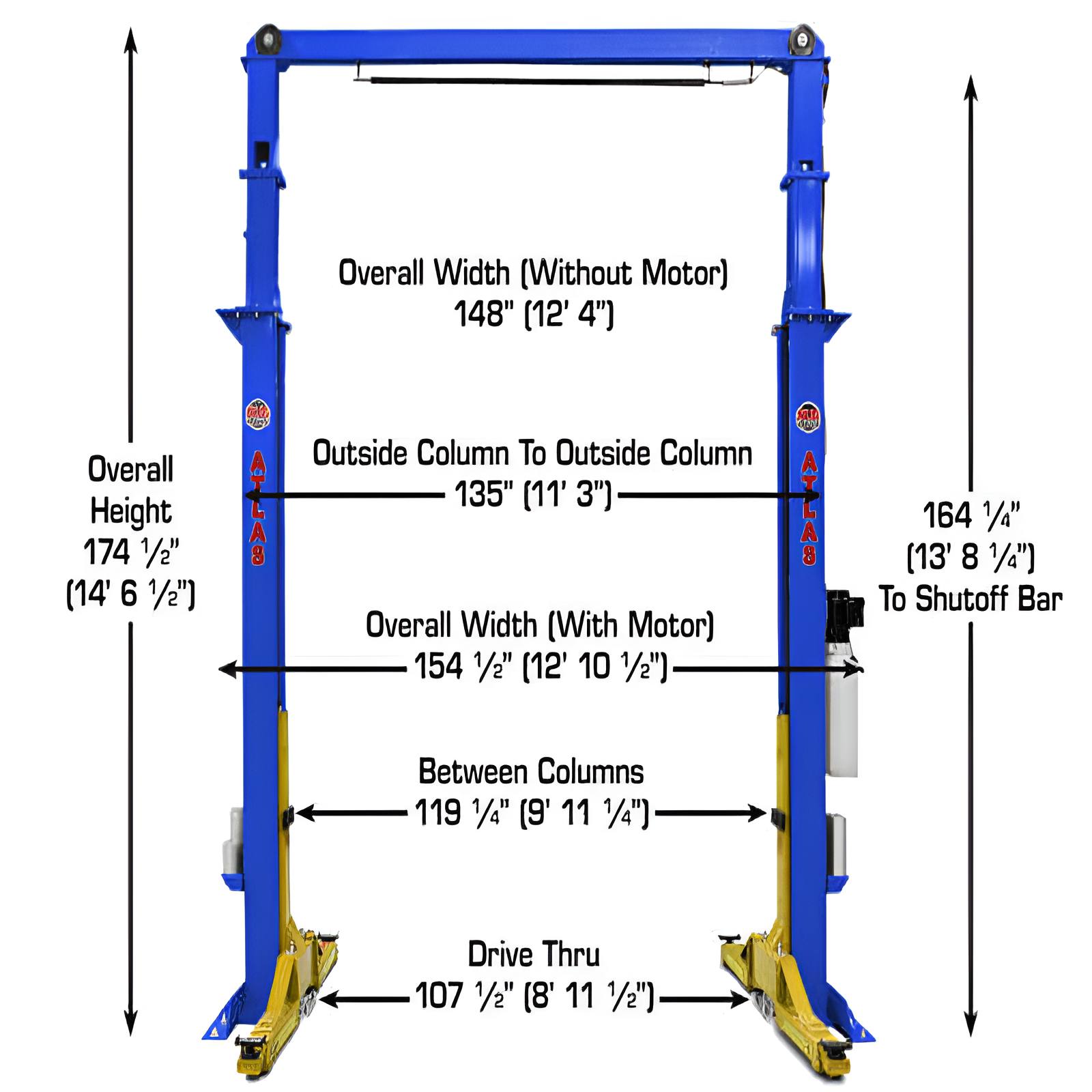

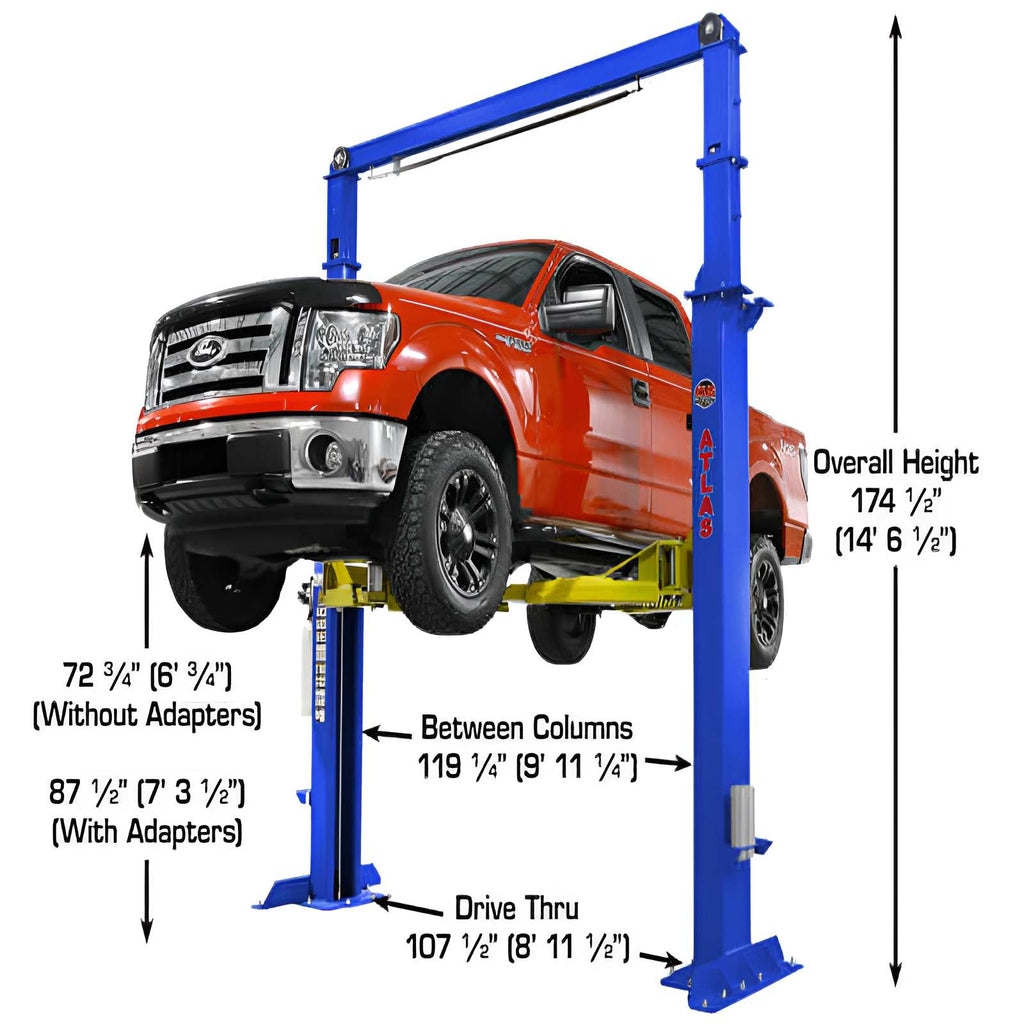

- Overall Height 174 1/2" (14' 6 1/2”)
- Overall Floor Width 148" (12' 4”)
- Outside Column to Outside Column 135" (11' 3")

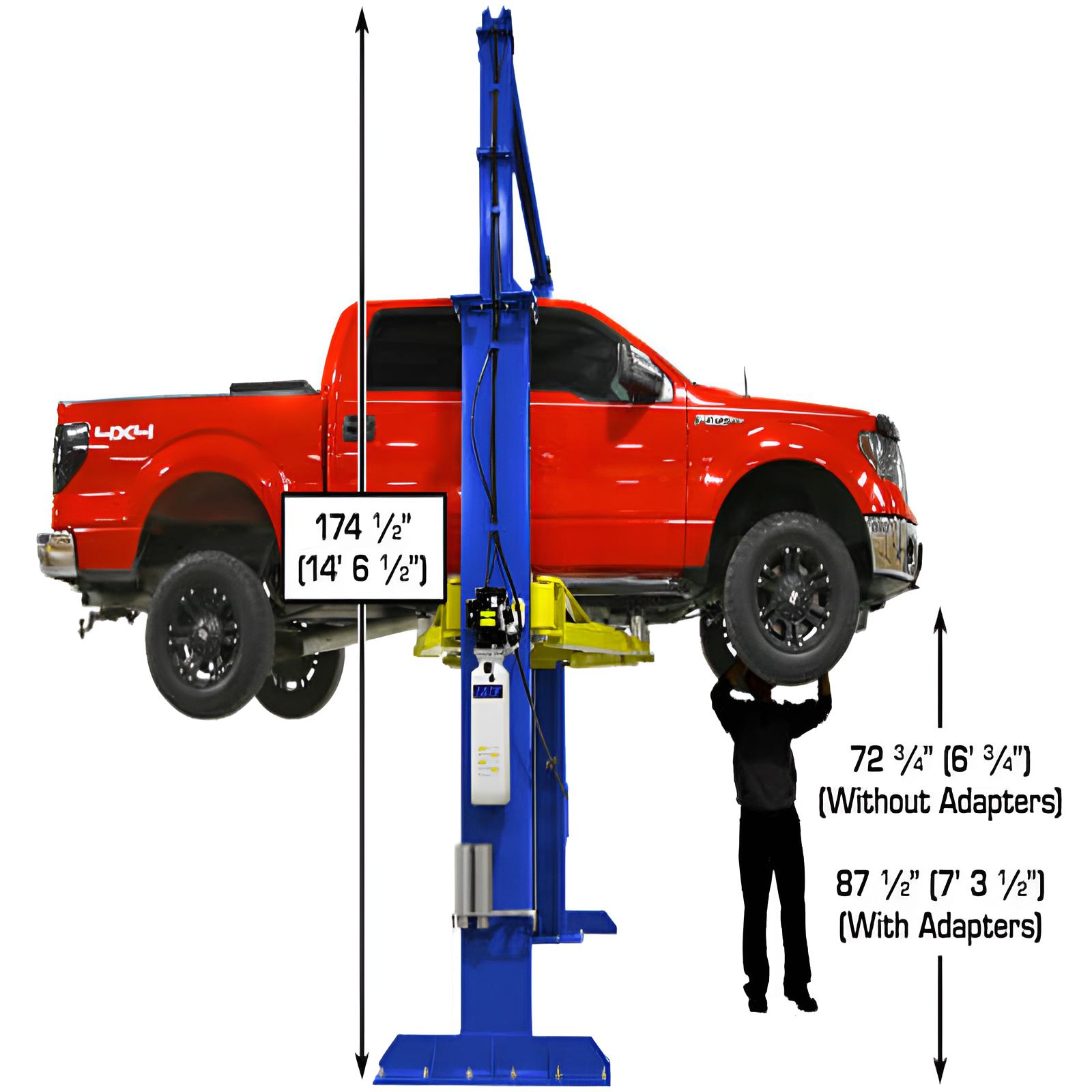

- Maximum Lift Height (Without Adapters) 72 3/4"
- Maximum Lift Height (With Adapters) 87 1/2"
- Minimum Arm Height 6"
- Inside Column 119 1/4” (9' 11 1/4”)
- Drive Thru 107 1/2” (8' 11 1/2”)
- Column Size 8" x 14 1/2"
- Column Thickness of Steel 8mm
- Base Of Lift 21" x 48"
- Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 2,600 LBS.
- Pallet Size: 122" Long x 44.5" Tall x 48" Wide

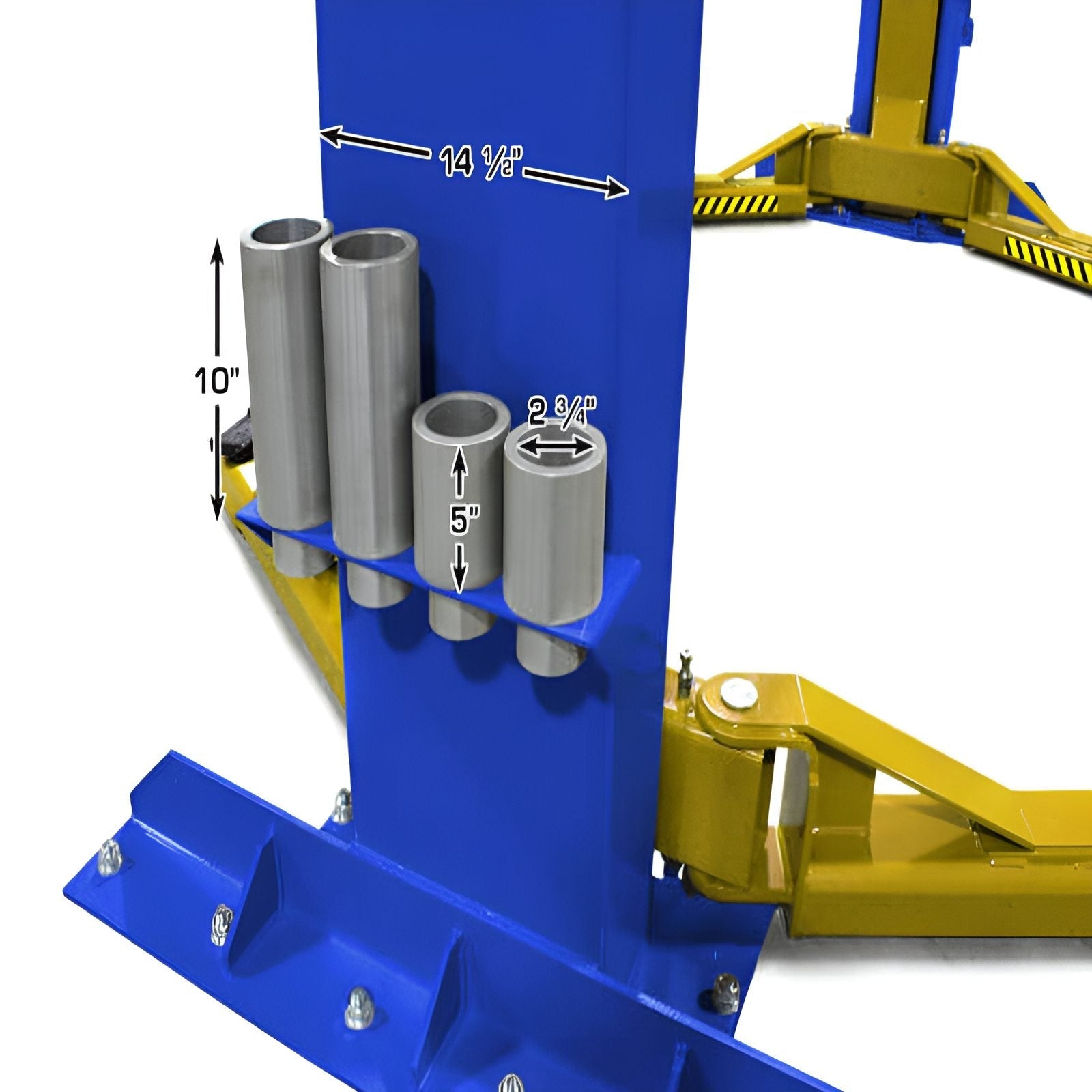

- Adapter Heights 4 Each 5”, 10”
- Arm Hole/Adapter Peg Size 2.75”
- Requires a minimum of 6" of concrete with a 3000 psi. rating
PVL 15 15,000 lb 2 Post Lift Special Features:

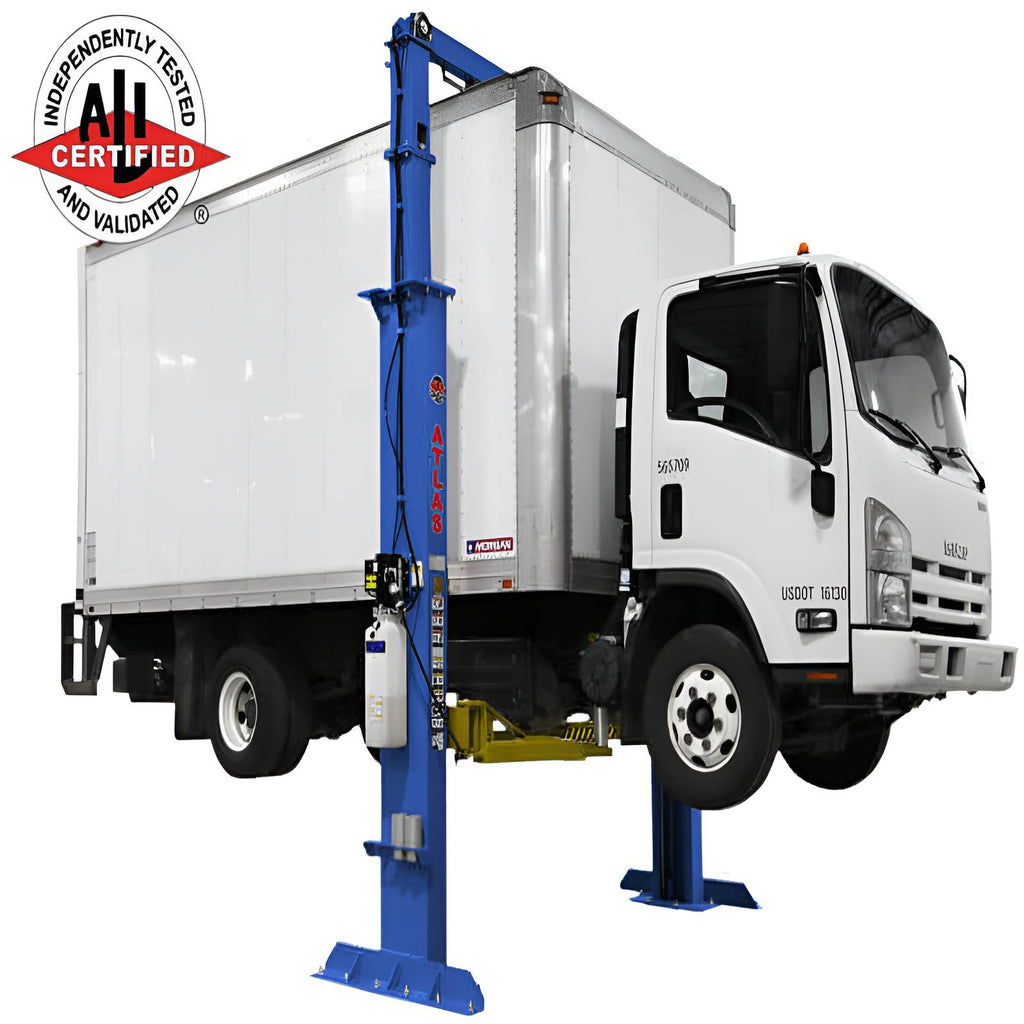

- ALI Certified
- Heavy Duty; Commercial Grade
- Overhead, Open Floor Design

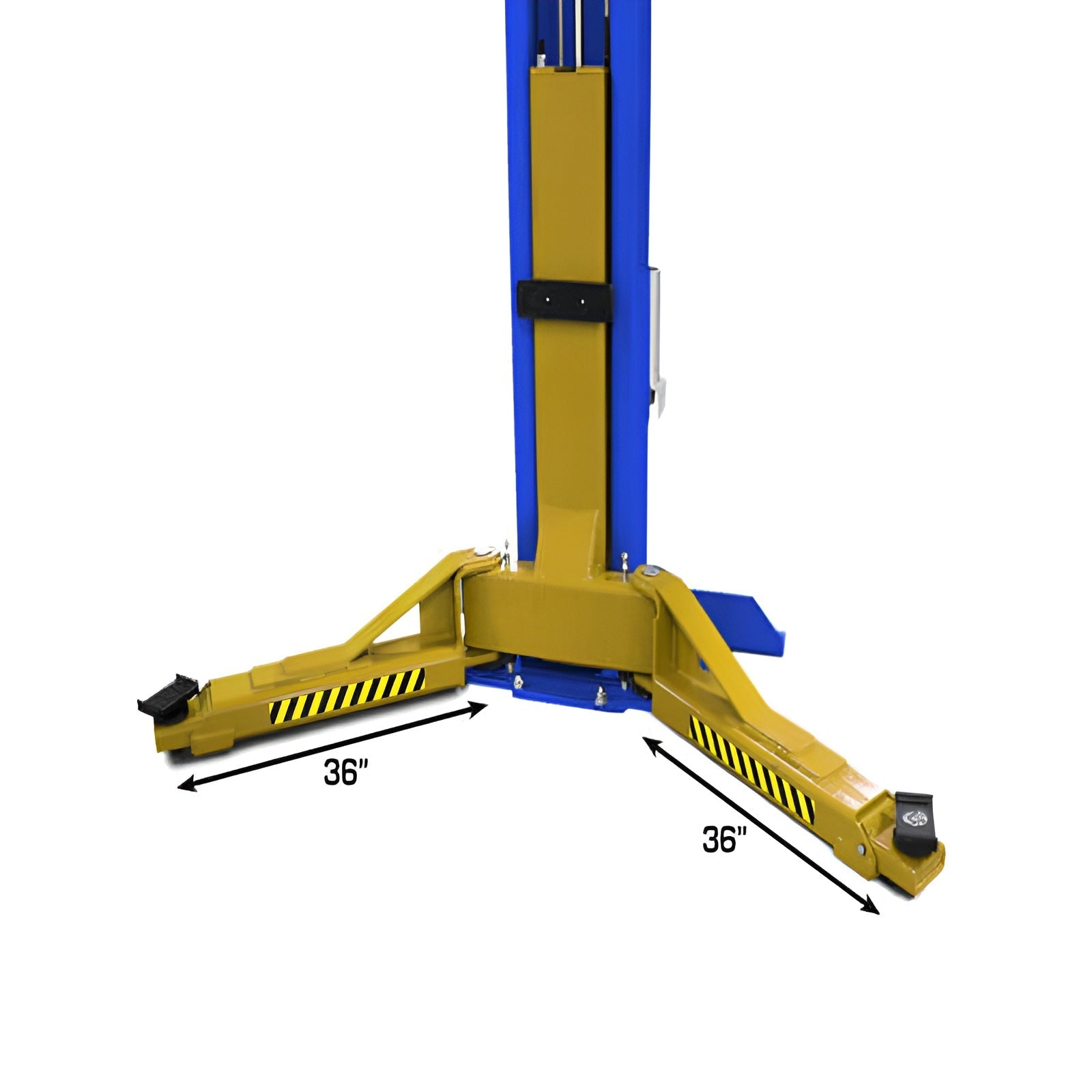

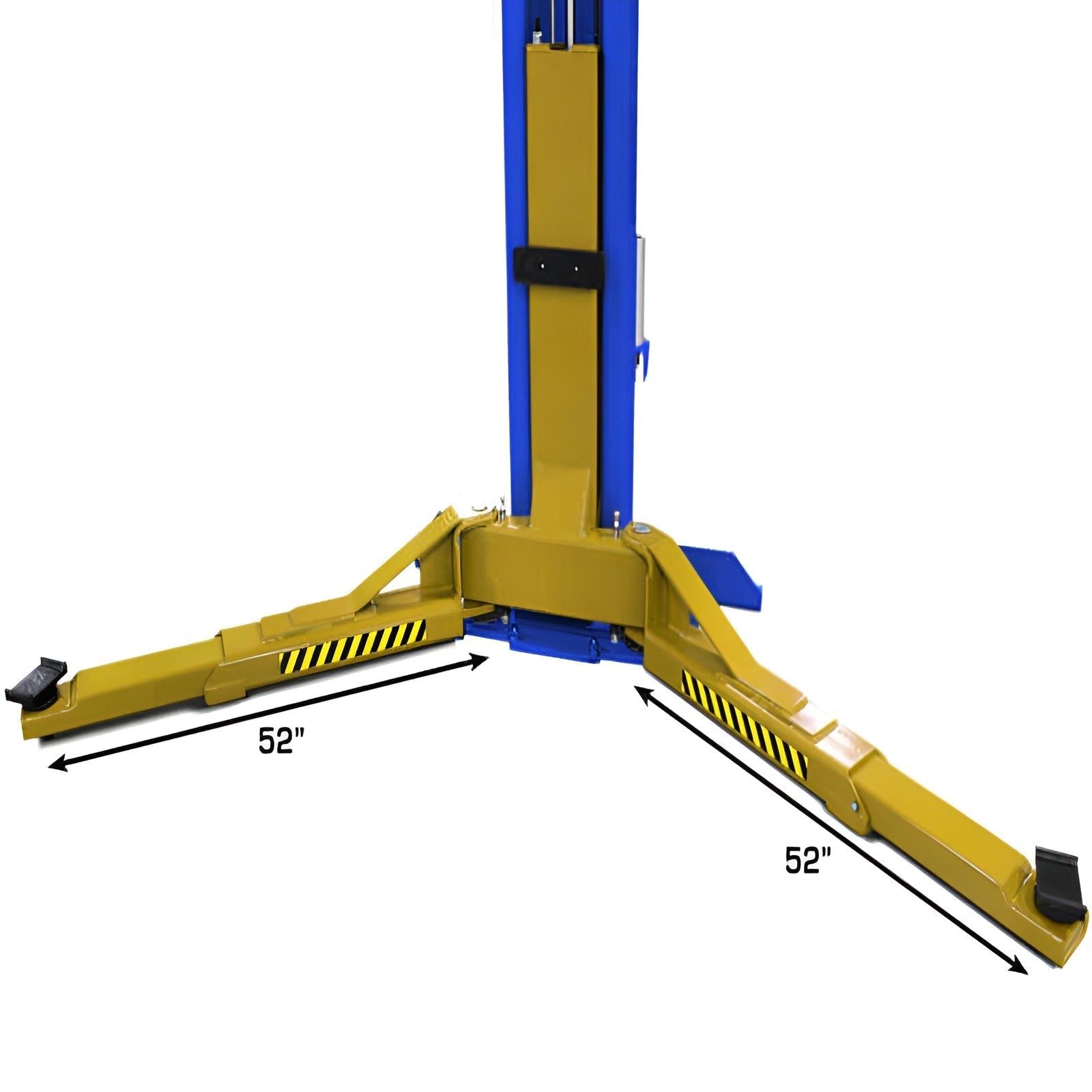

- Symmetric Arms
- Arm Lock Restraint System - Commercial Grade
- Lock Release: Single Point
- Dual Direct Drive Hydraulic Cylinders
- Padded Carriages
- Heavy Duty 3/8" Equalization Cables
- Warranty: 5 year Structural; 2 year Hydraulic; 2 year Power Unit ‐ Parts Only
- Unit Includes:
- Mounting Hardware

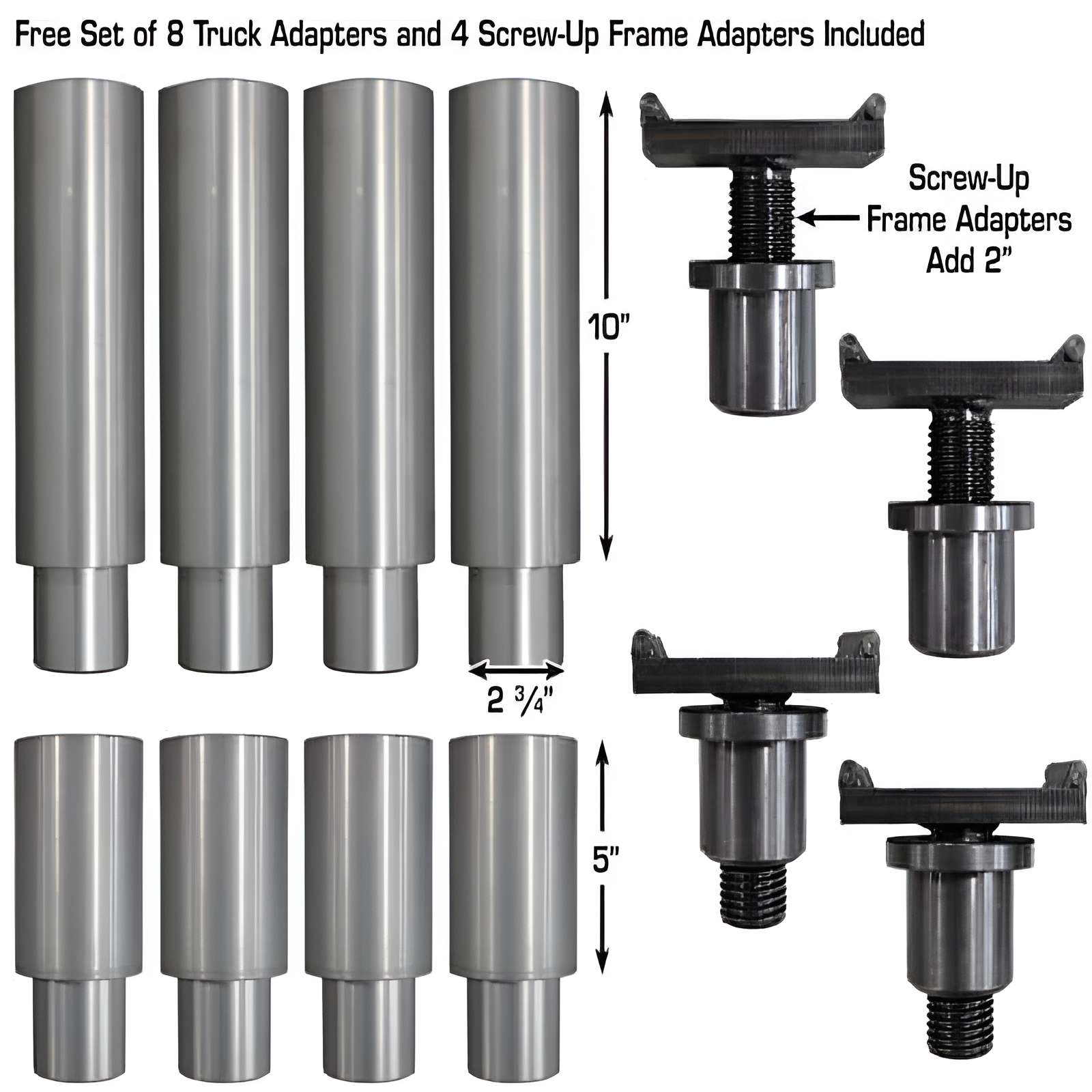

- 8-piece Truck Adapter Set
- 4 Screw-up Frame Adapters
- Optional Item(Sold Separately)
- Platinum PVL15 Height Extension Kit
PVL15 Manual
