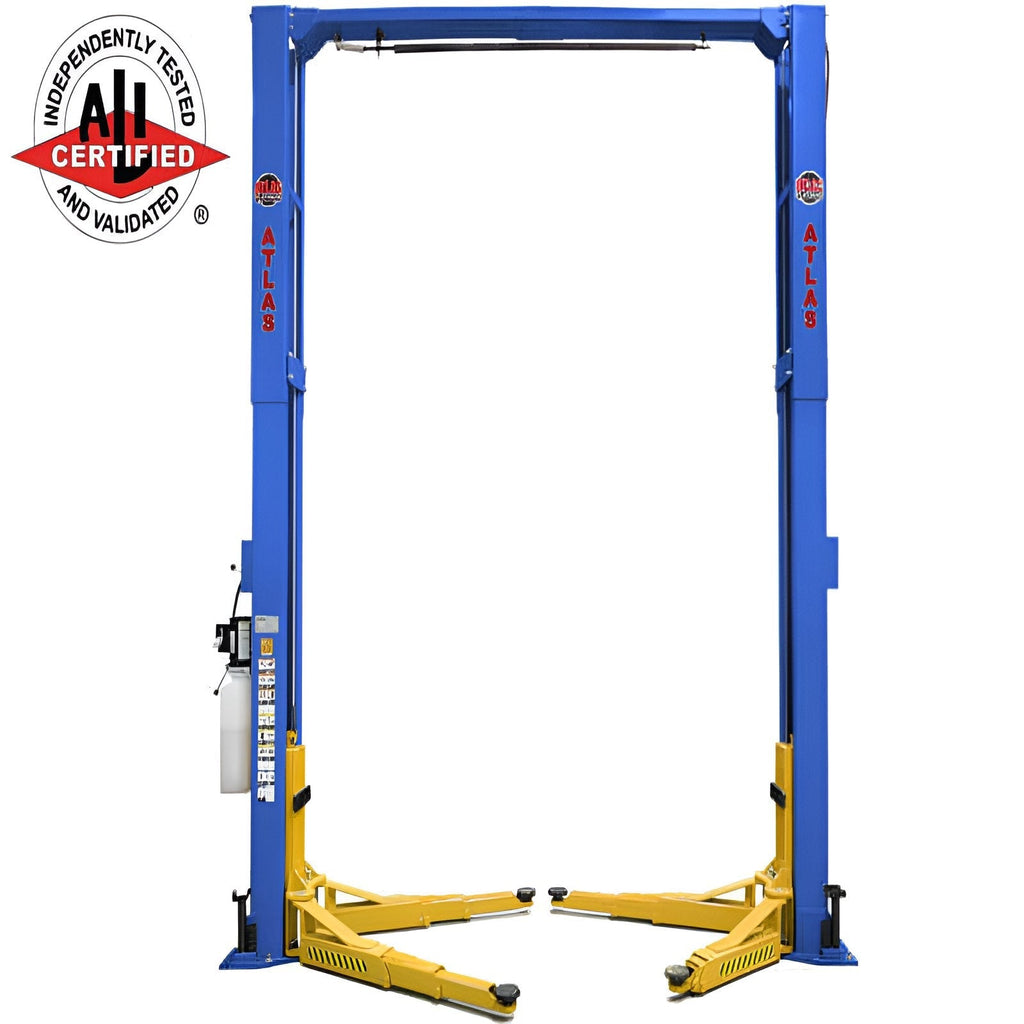

Atlas 12,000 lb 2 Post Lift, Extra Wide, Tall, ALI Certified SKU ATEAP-PVL12
Meet the Atlas® Platinum PVL12 – the professional’s choice for conquering even the toughest jobs. This isn’t just a lift; it’s a workhorse. With a massive 12,000 lb. capacity and ALI certification, it’s built to handle whatever you throw at it. Low pad height? Check. Extra-wide stance? You got it.
No more struggling with oversized vehicles or worrying about your lift's capacity. The PVL12 is more than just equipment; it's a productivity boost. Its premium power unit, with heavy-duty components and a two-year warranty, ensures you’re backed by quality. Don’t let another frustrating lift job slow you down. Upgrade to the Atlas® Platinum PVL12. Your back (and your bottom line) will thank you.
ATEAP-PVL12 Specifications:
- Capacity 12,000 LB.

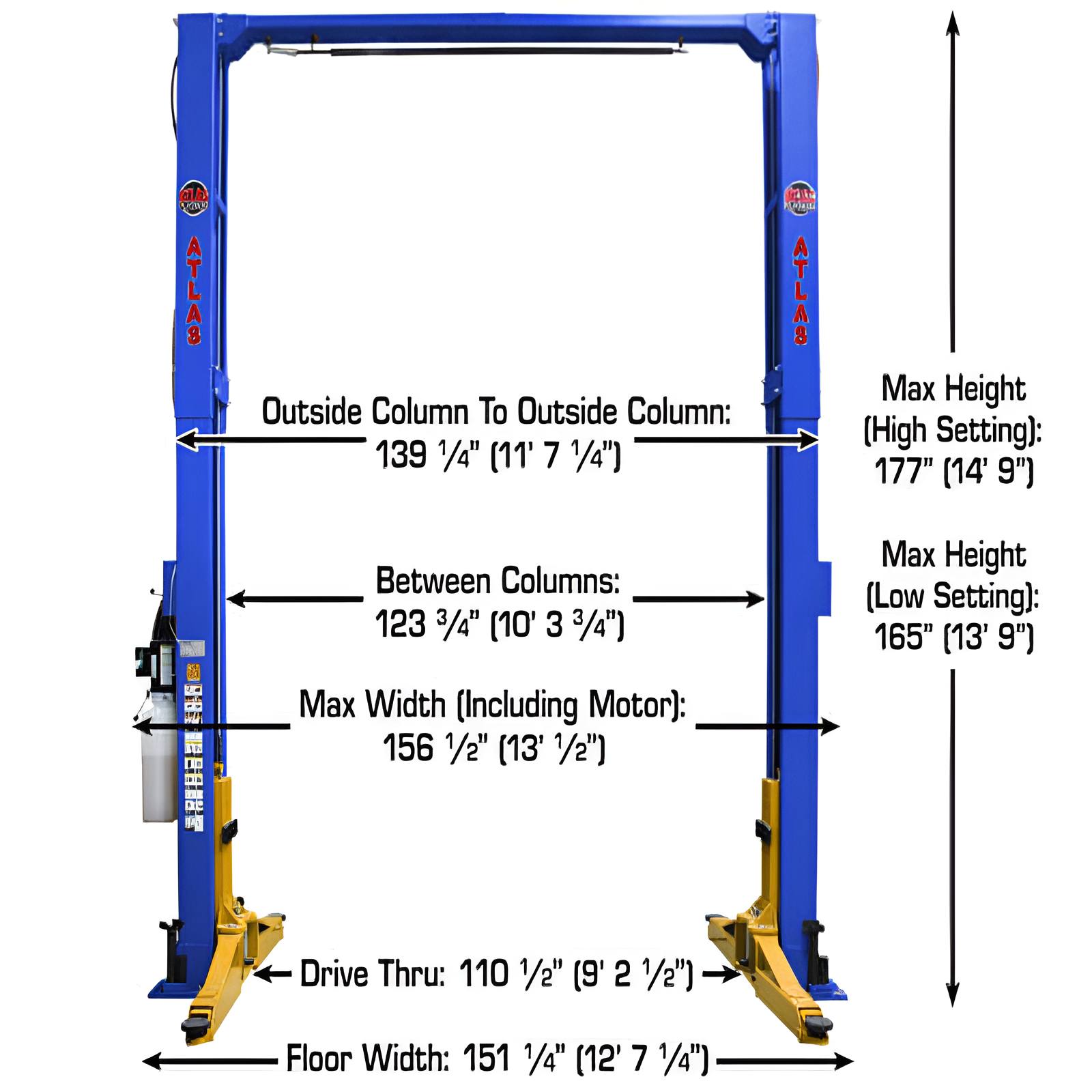

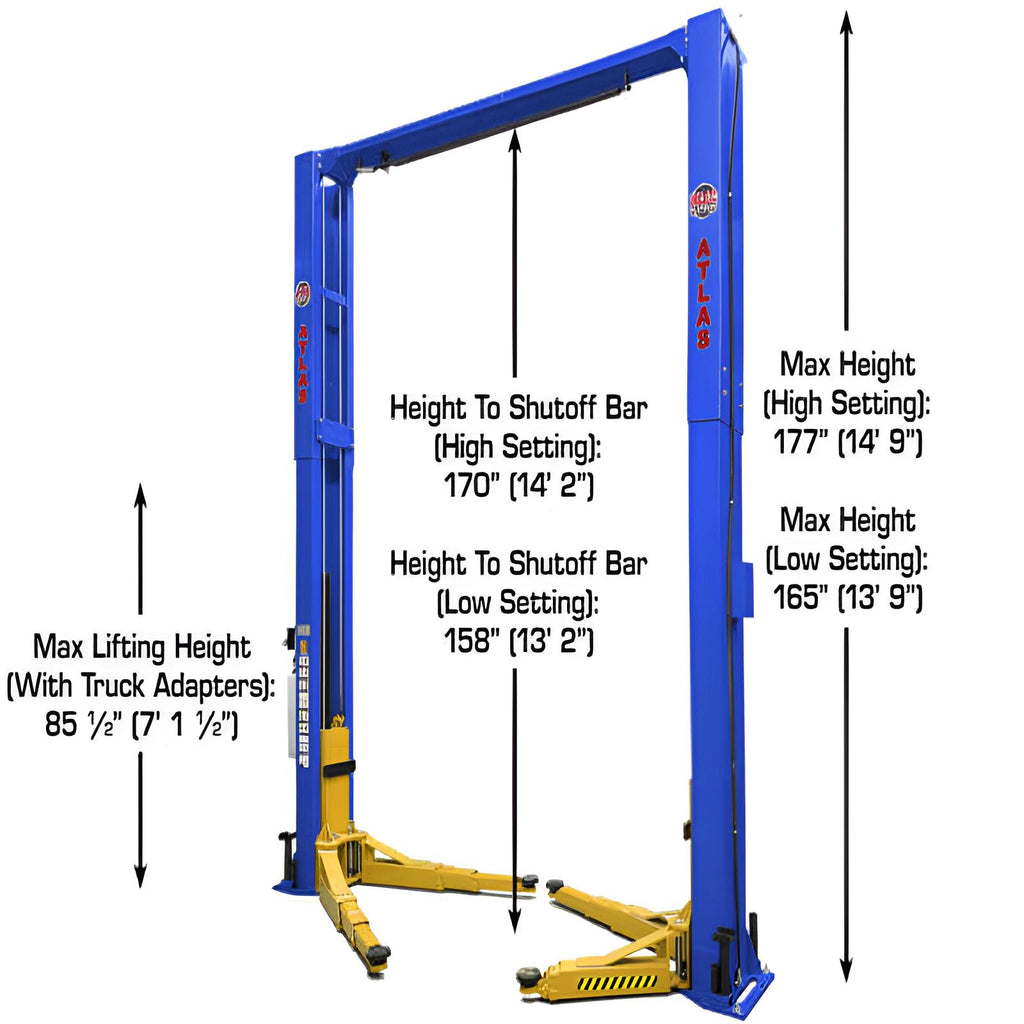

- Overall Height 165" (13' 9”) or 177” (14' 9”)
- Overall Floor Width 150 3/8" (12' 6 3/8”)
- Outside Column to Outside Column 139 1/8" (11' 7 1/8")
- Maximum Lift Height (Without Adapters) 73 5/8"
- Maximum Lift Height (With Adapters) 85 1/2"
- Minimum Arm Height 4 1/2"
- Inside Column 122 5/8” (10' 2 5/8”)
- Drive Thru 109 5/8" (9' 1 5/8”)
- Column Size 7 1/2" x 14 1/2"
- Column Thickness of Steel 6mm
- Base Of Lift 17 1/2" x 20 1/2"
- Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 2,425 LBS.
- Pallet Size: 113-1/2" Long x 46" Tall x 21-1/2" Wide

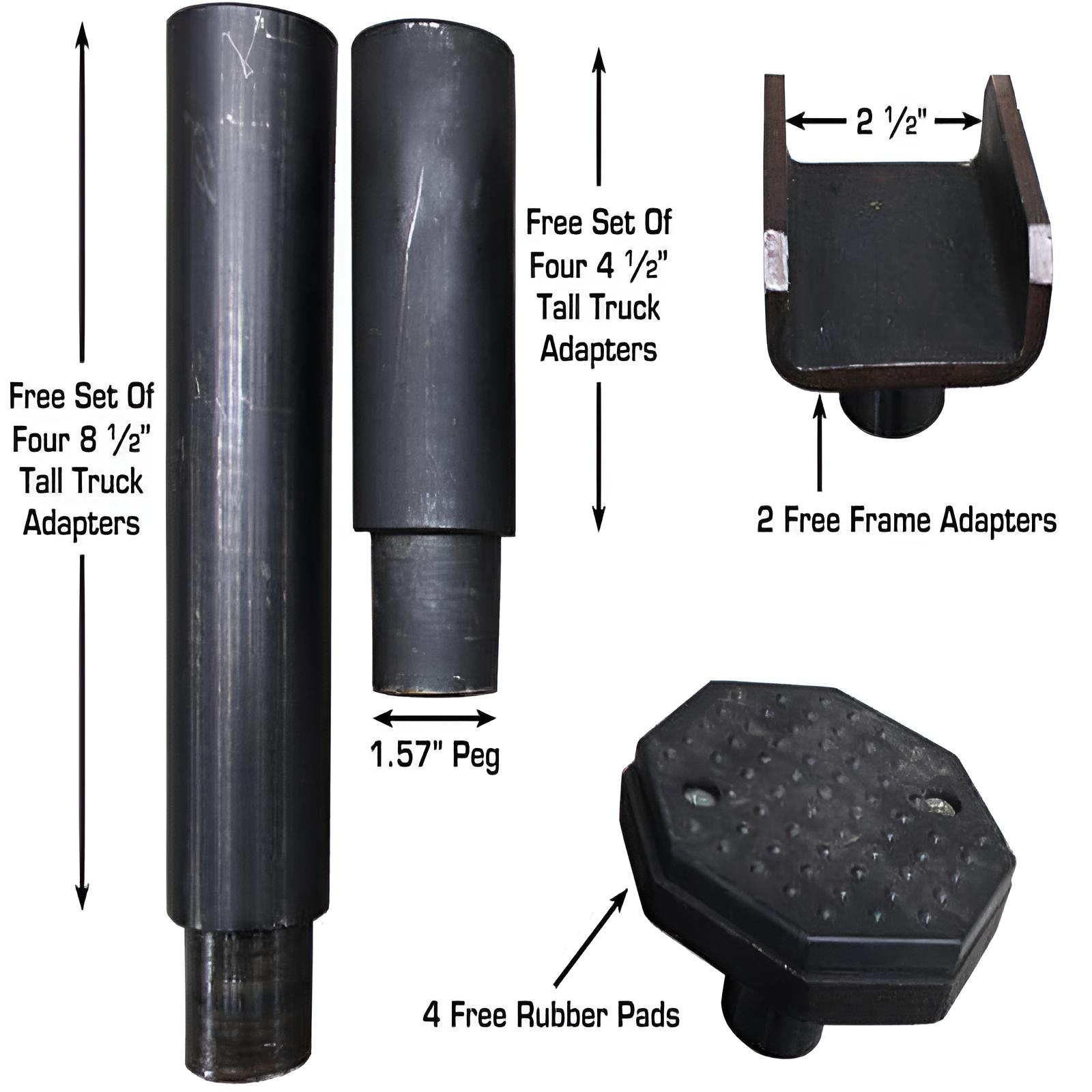

- Adapter Heights 4 Each 4.5”, 8.5”
- Arm Hole/Adapter Peg Size 1.57”
PVL12 12,000 lb 2 Post Lift Special Features:
- ALI Certified
- Commercial Grade
- Overhead, Open Floor Design

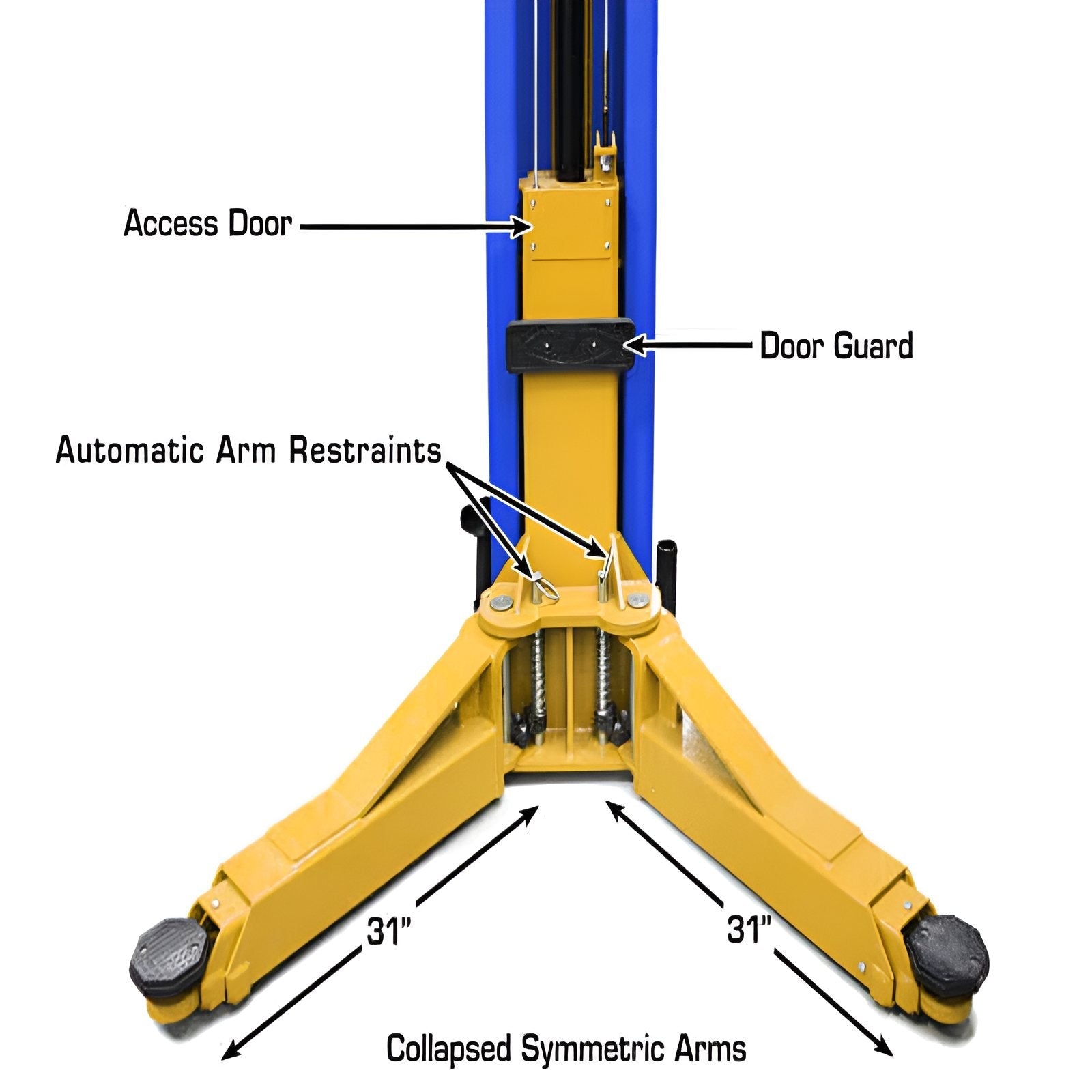

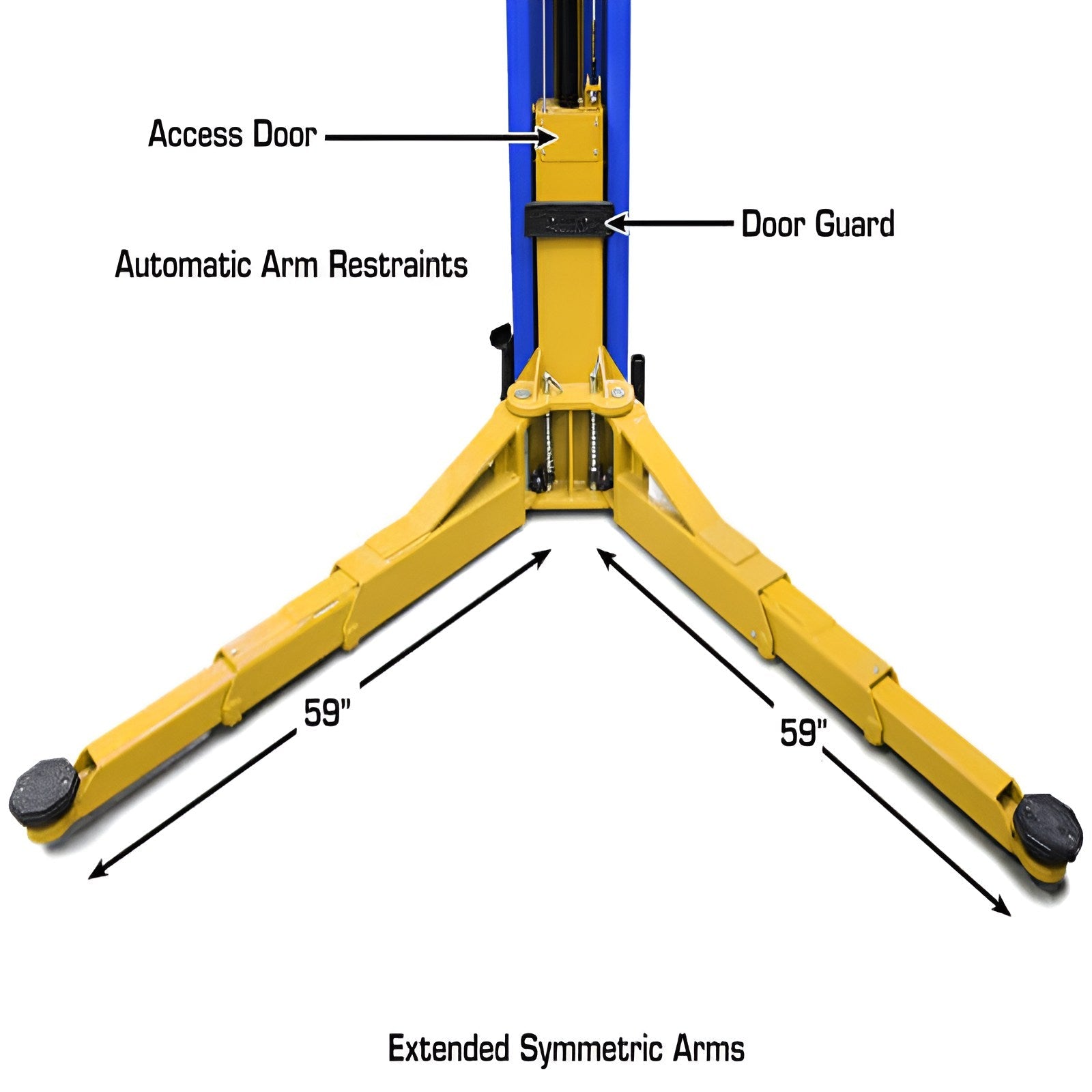

- 3-Stage Symmetric Arms
- Extra Wide & Extra Tall

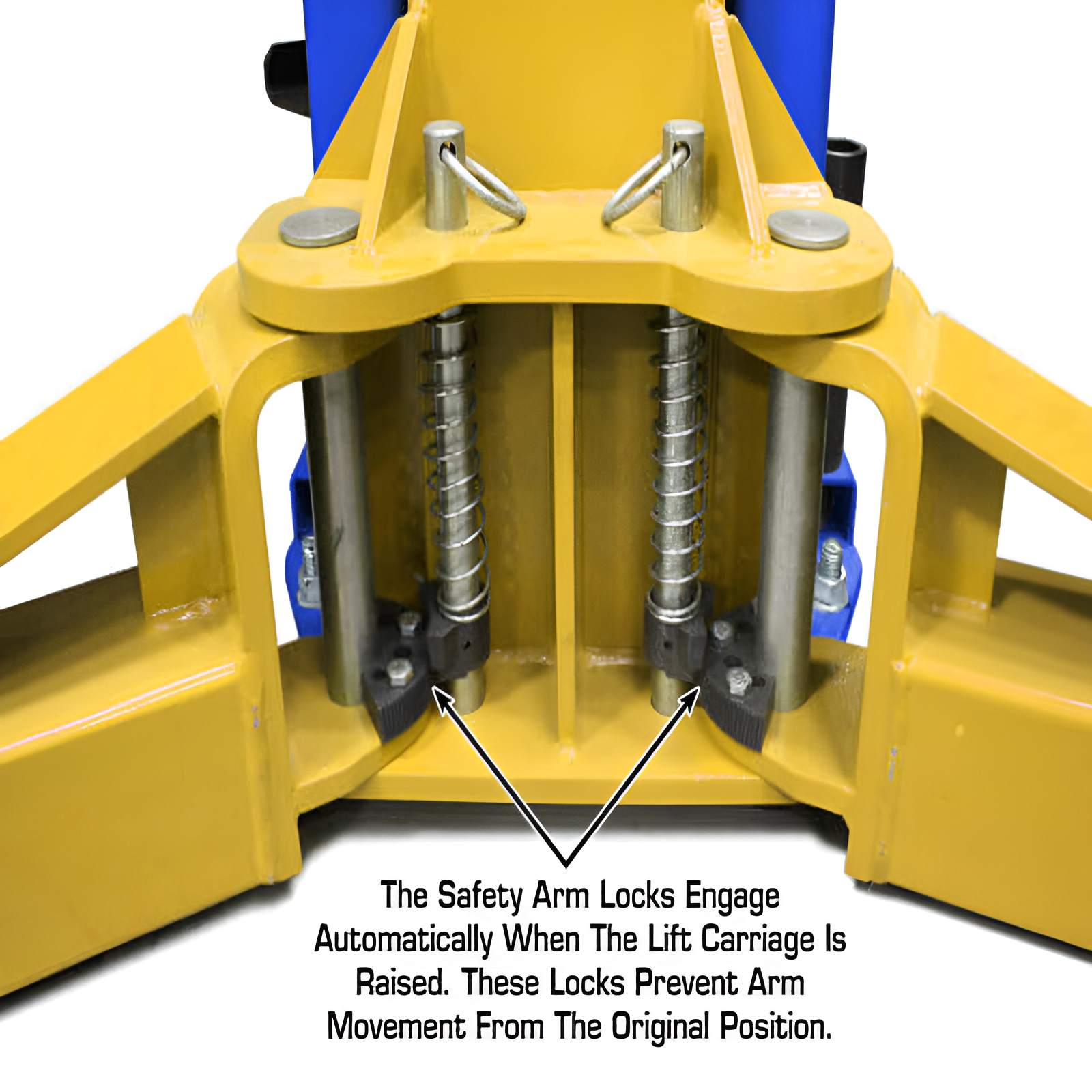

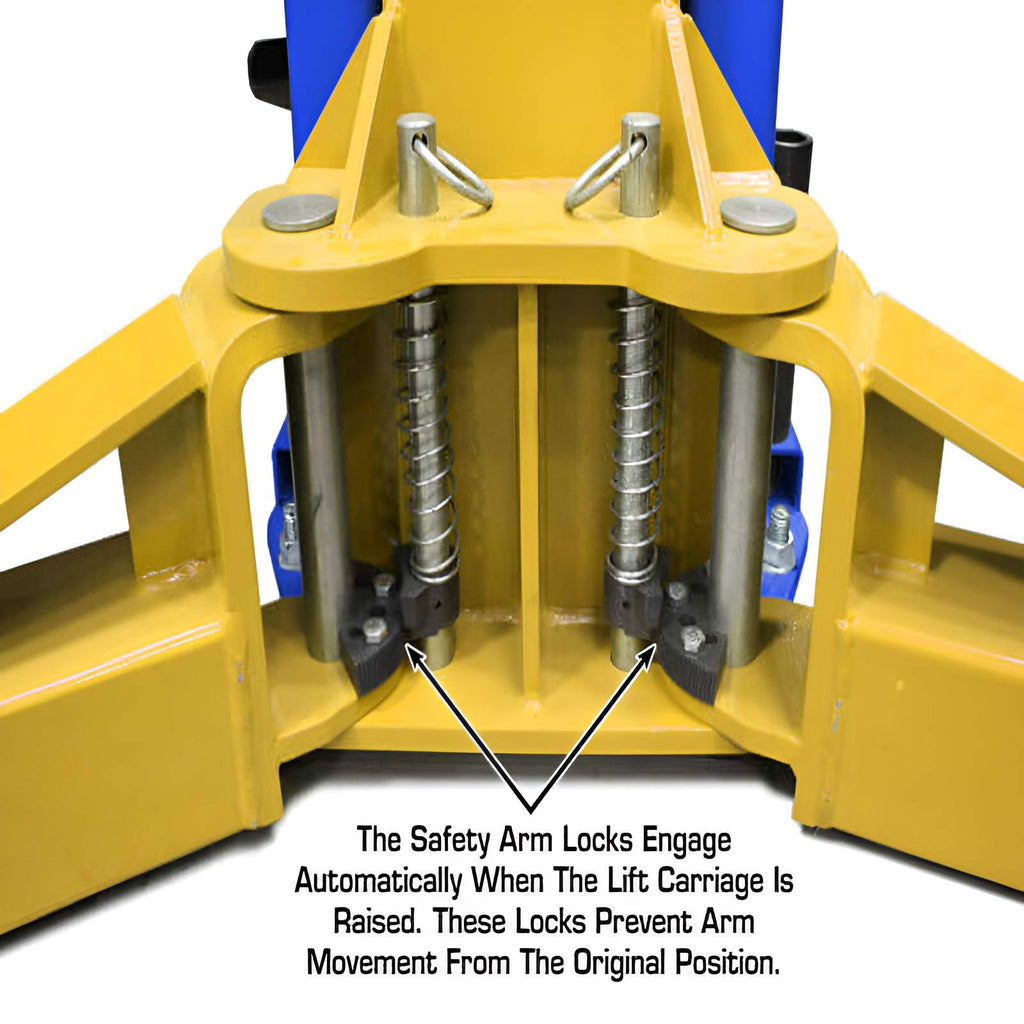

- Automatic Arm Restraints
- Lock Release: Single Point

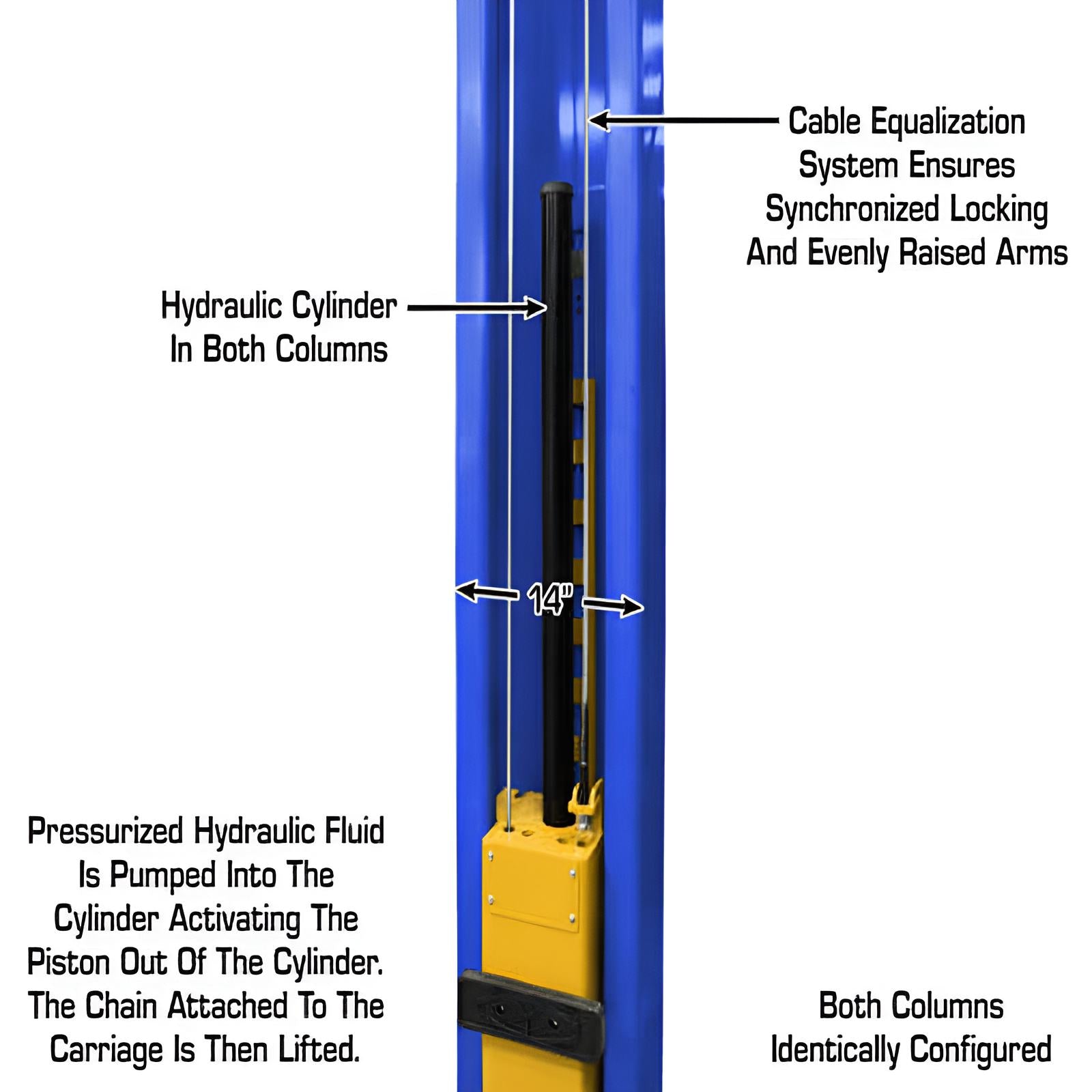

- Direct Drive Cylinders
- Thick Door Guards on Carriage
- Padded Shutoff Bar
- Powder Coat Finish
- Secondary Lock System
- Warranty: 5 year Structural; 2 year Hydraulic; 2 year Power Unit ‐ Parts Only
- Unit Includes:
- Mounting Hardware
- 8-piece Truck Adapter Set
PVL12 Manual
