Description
Atlas 12,000 lb 2 Post Lift SKU ATEXH-PV12PX

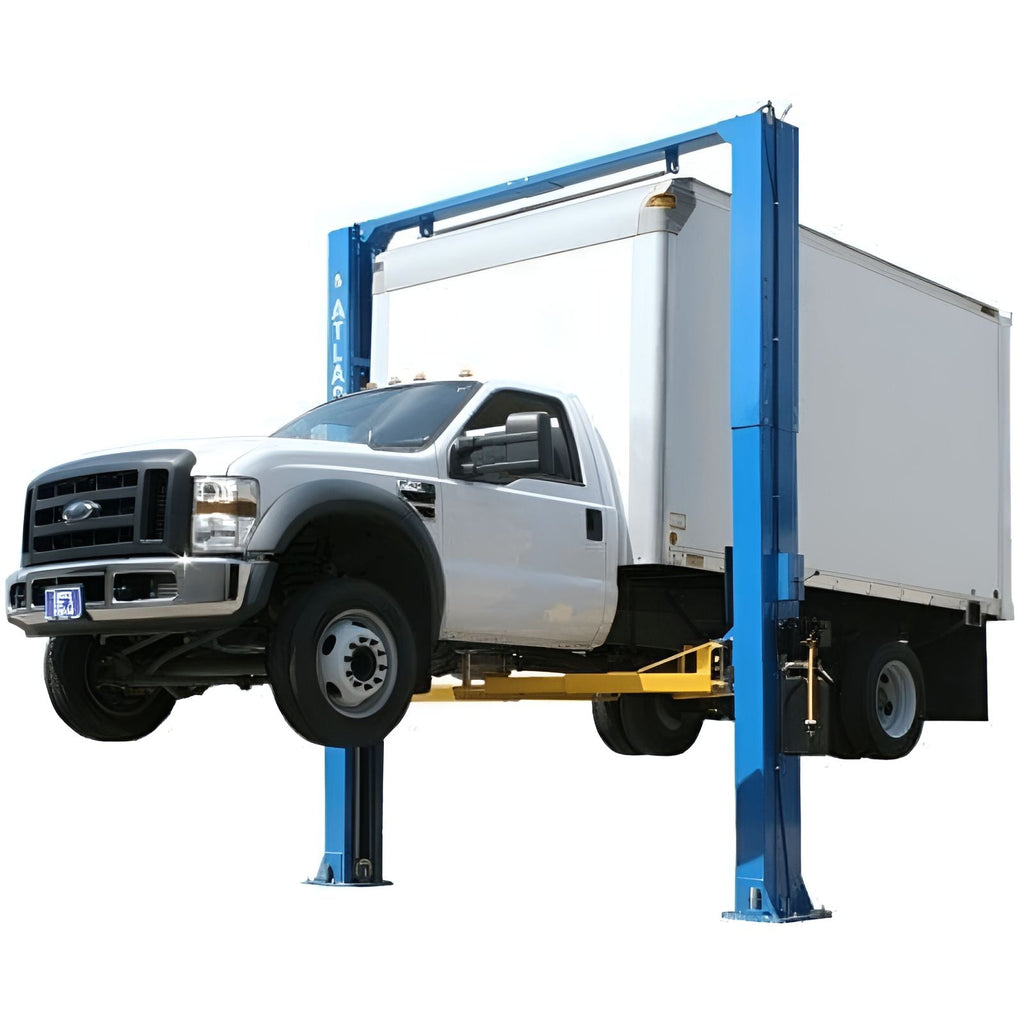

Meet the Atlas PV12PX, a 12,000 lb capacity overhead 2-post lift that's been delivering top-tier performance for years. Whether you're dealing with compact cars or long wheelbase trucks, this lift has you covered with its low pad height and massive 109" drive-through space (SEE: 2 post lift dimensions article), giving you the freedom to handle vehicles with extended mirrors or wider bodies. Designed for commercial use, it’s built like a tank, offering rugged durability at a price that won’t break the bank.
But that's not all—the PV12PX is packed with features that make your job easier. From extended symmetrical arms to its peg-style truck adapters, you’ll be safely lifting everything from passenger cars to box trucks without a hitch. And with adjustable height settings up to 14' 9", clearance is no longer a concern. Add in automatic arm restraints, a padded shut-off bar, and heavy-duty construction, and you’ve got yourself a professional-grade lift that gets the job done every time.
ATEXH-PV12PX Specification
- Capacity: 12,000 LB

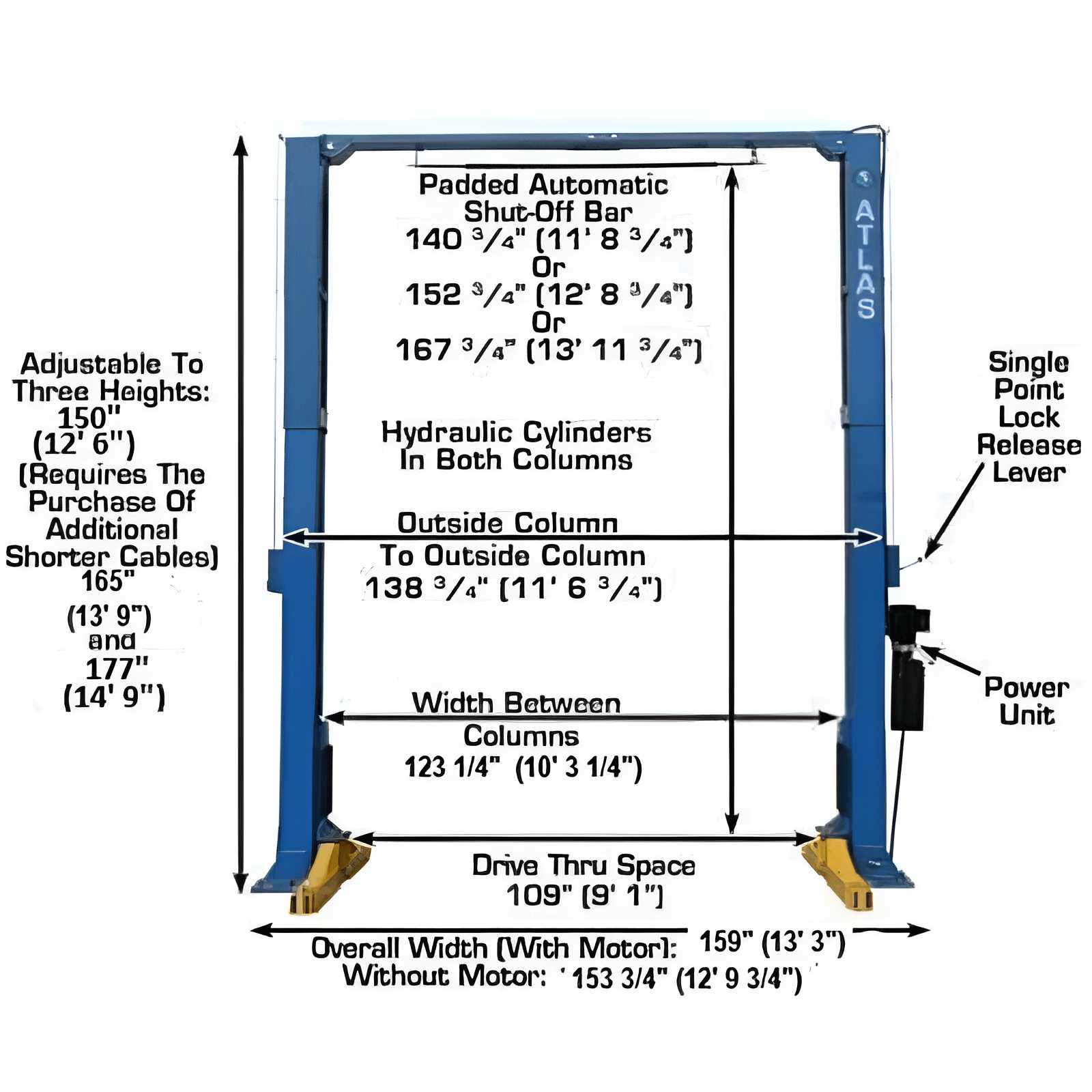

- Overall Height: 165" (13’ 9”) or 177” (14’ 9”)
- Special Low Height: 150" (12’ 6”) (Requires Purchase of Extra Cables)
- Overall Floor Width: 150 3/4" (12’ 6 3/4”)
- Outside Column to Outside Column: 139 1/8" (11’ 7 1/8")
- Maximum Lift Height (Without Adapters): 72 1/4"

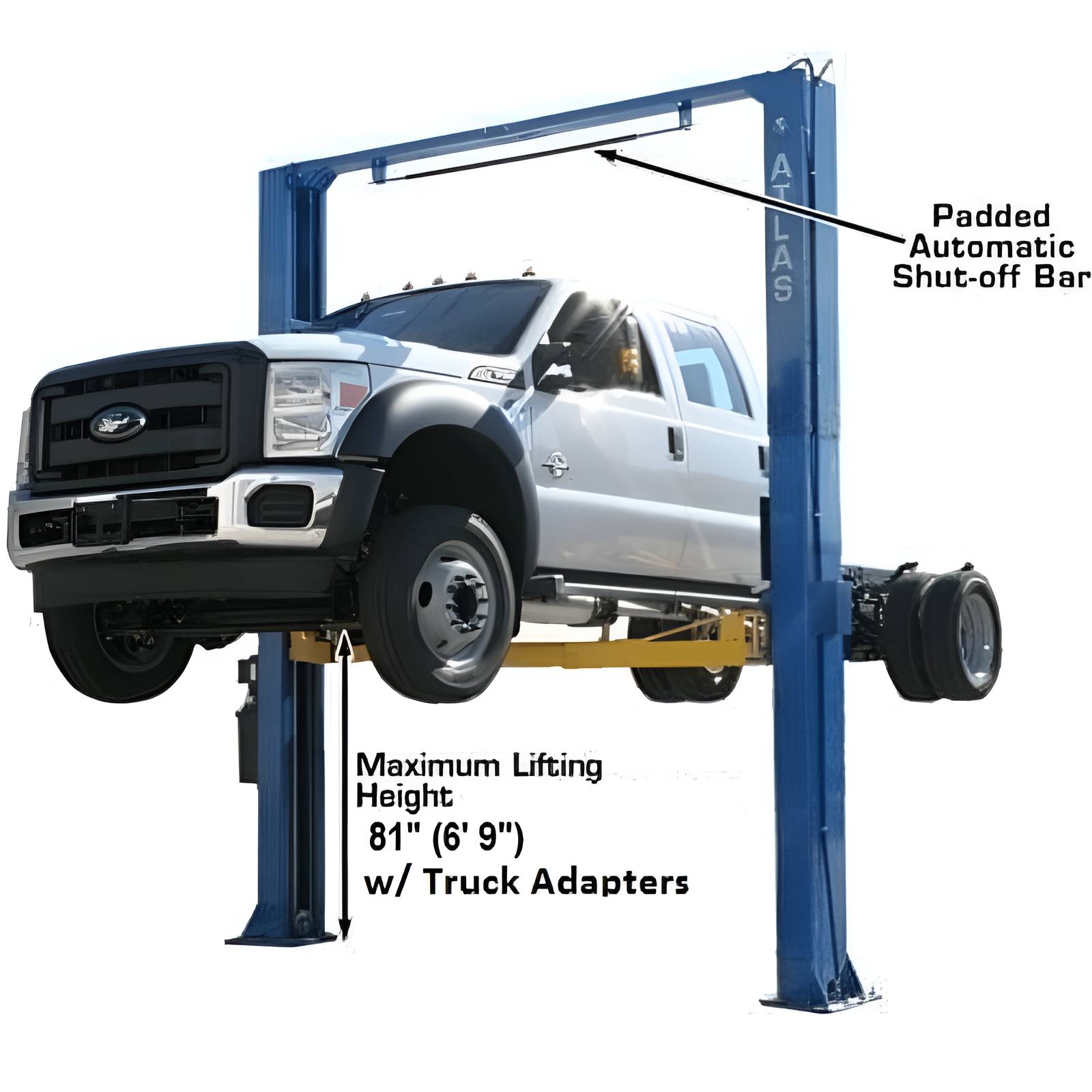

- Maximum Lift Height (With Adapters): 81"
- Minimum Arm Height: 4 1/2"
- Inside Column Width: 123 1/2” (10’ 3 1/2”)
- Drive Thru Width: 109 1/2" (9’ 1 1/2”)
- Column Size: 7 1/2" x 14 1/2"
- Column Thickness of Steel: 6mm

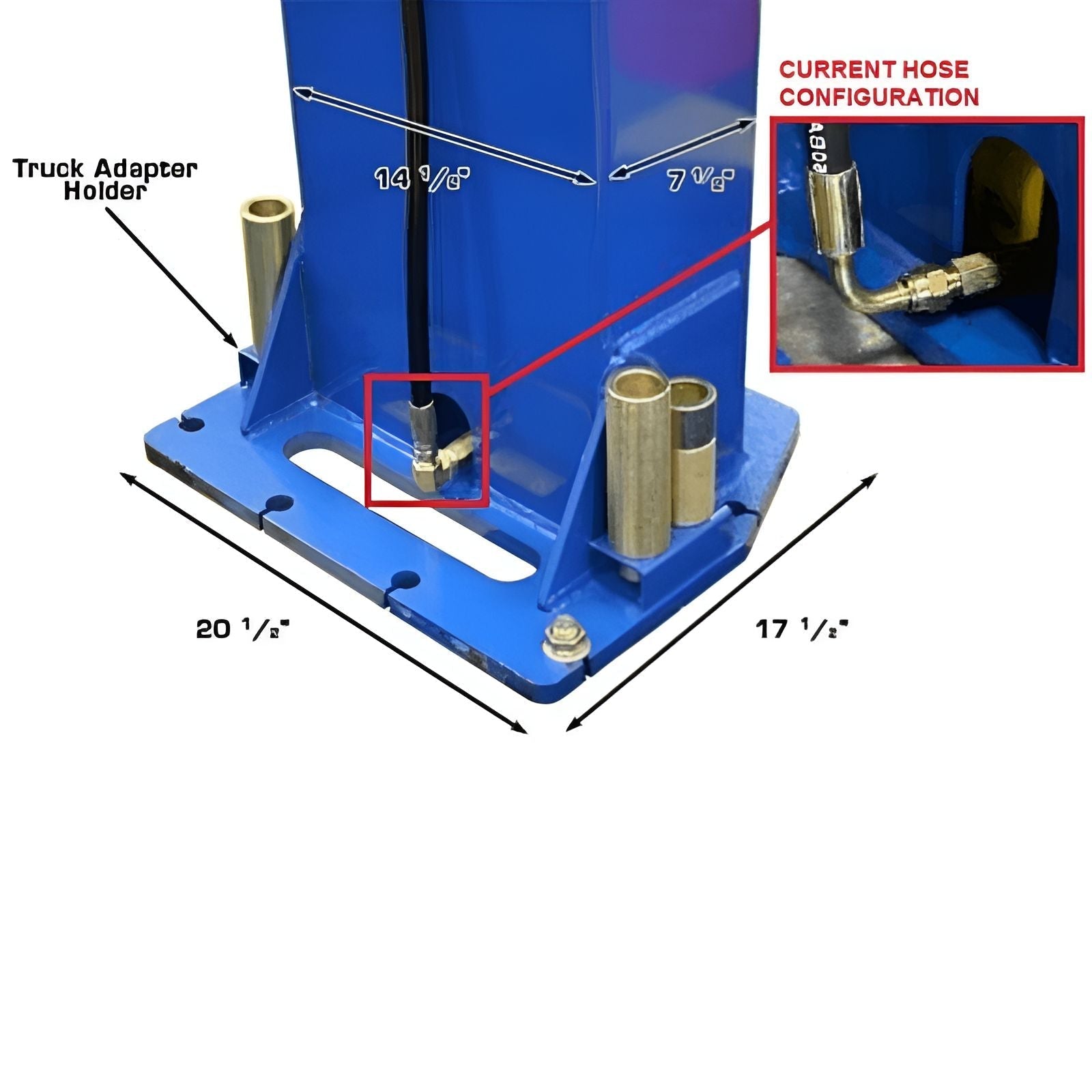

- Base of Lift Dimensions: 17 1/2" x 20 1/2"
- Motor/Electrical Requirement: 220 volt single (1) phase, 30 amp breaker recommended
- Oil Requirement: 3-5 Gallons AW32/AW46 (Not Included)

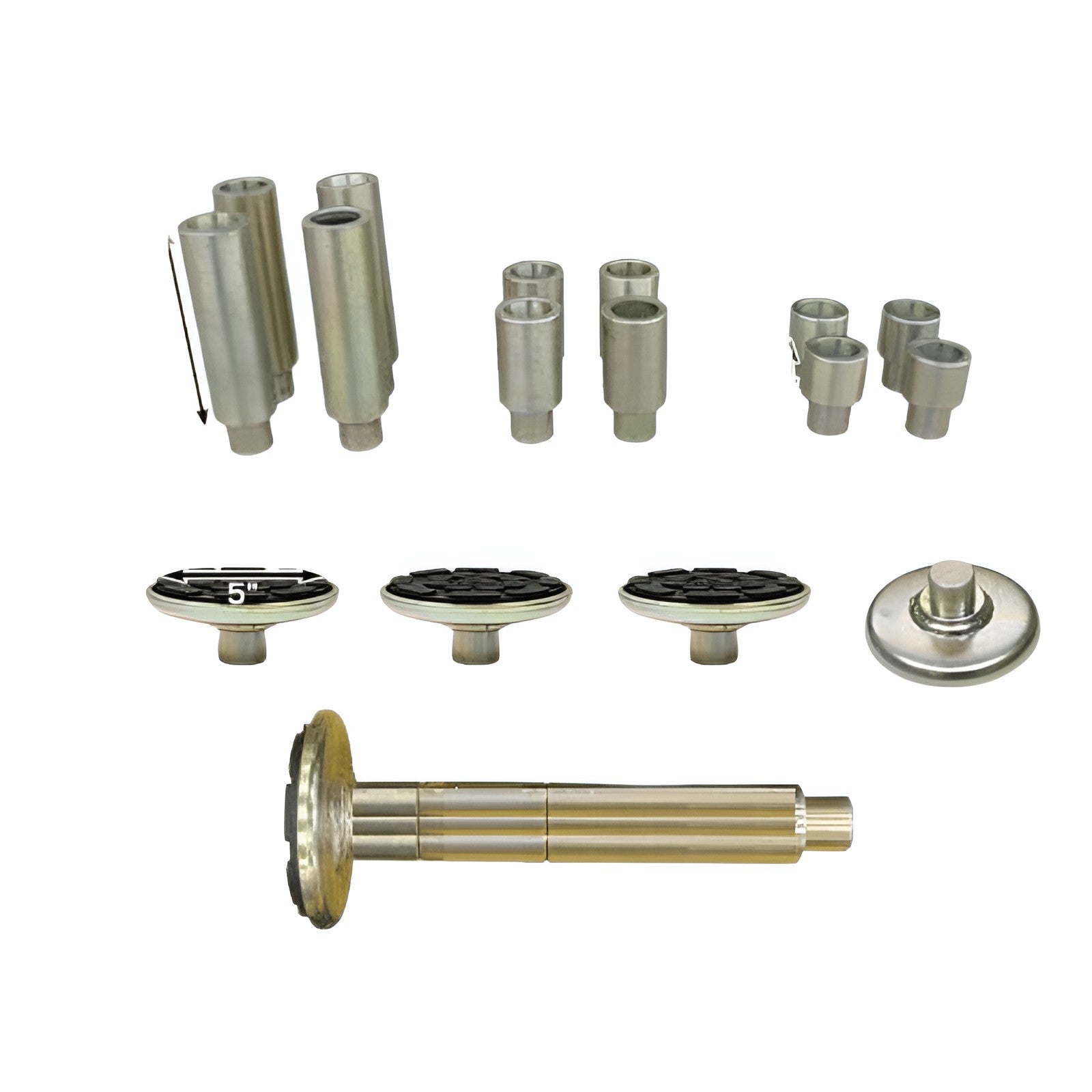

- Adapter Heights: 4 Each: 1.25”, 2.5”, 5”
- Arm Hole/Adapter Peg Size: 1.5”
- Shipping Dimensions: 114"L x 22" x 30" Tall - 2,160 LBS
Atlas 12,000 lb 2-Post Lift Special Features
- 12,000 lb. capacity
- Extra Tall & Extra Wide
- Commercial Grade

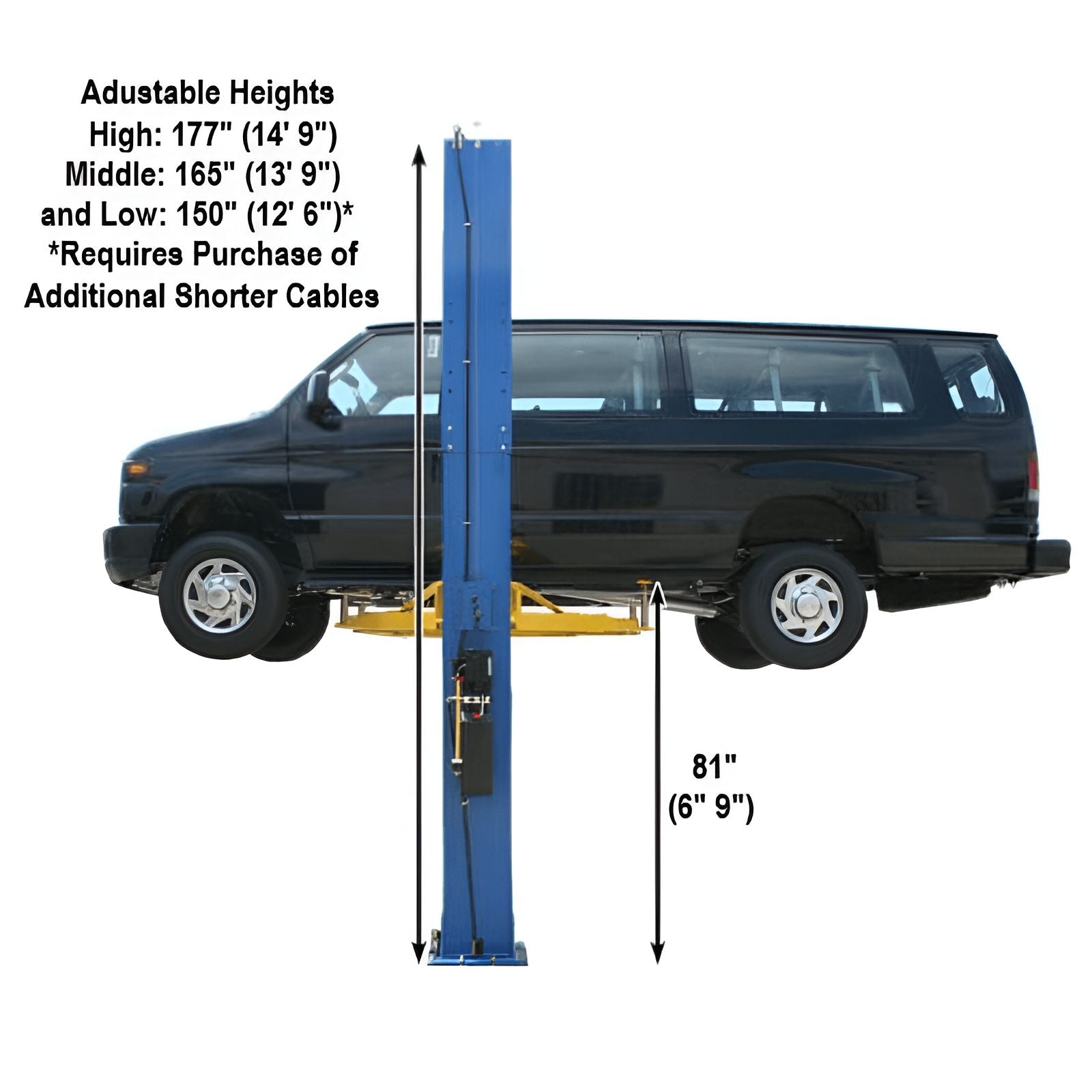

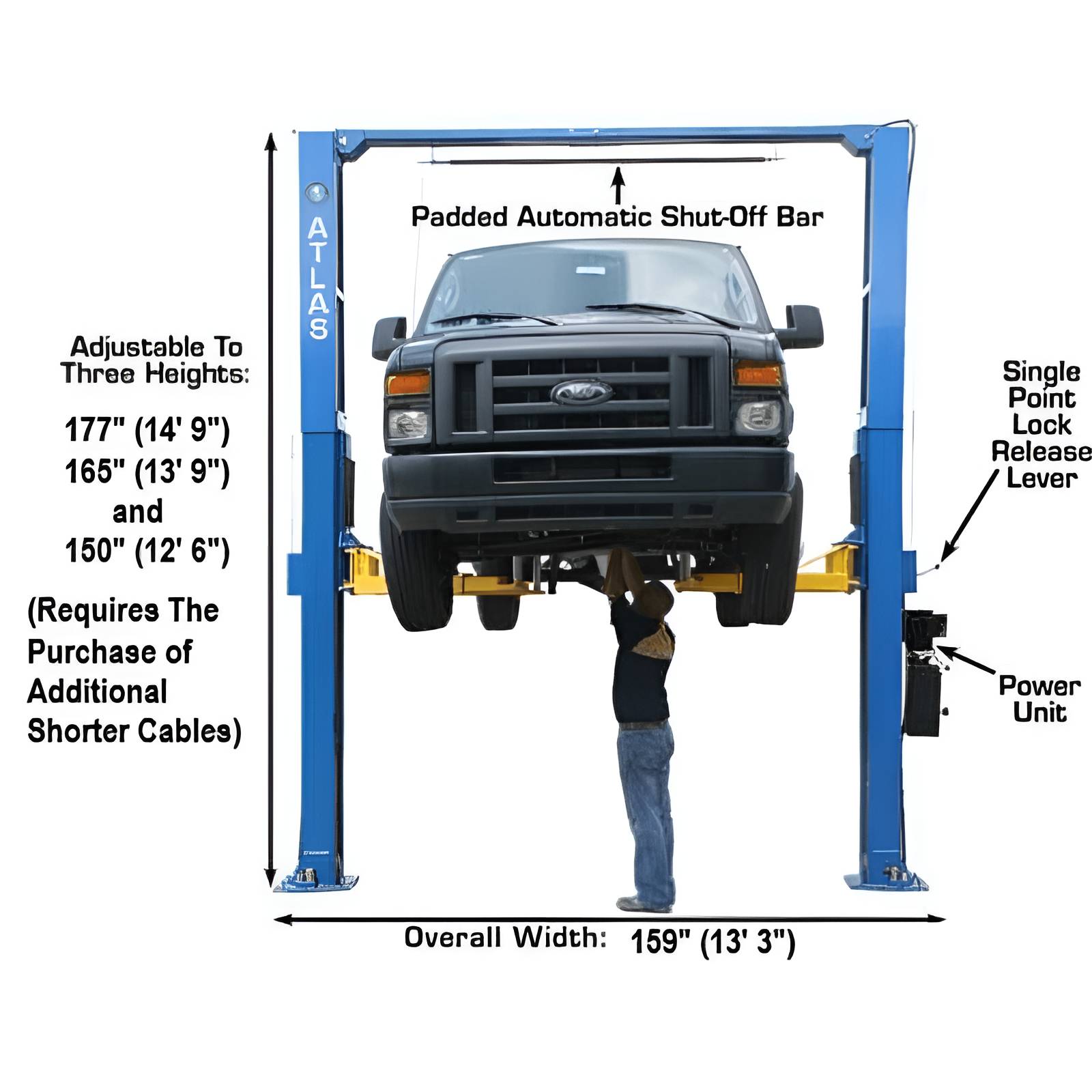

- Adjustable height 150″ (12′ 6″) or 165″ (13′ 9″) or 177″ (14′ 9″)
- Special low height 150″ (12′ 6″) (Part No. ATEATPKP-217112 - sold separately)
- Symmetric arms
- Automatic Arm Restraints

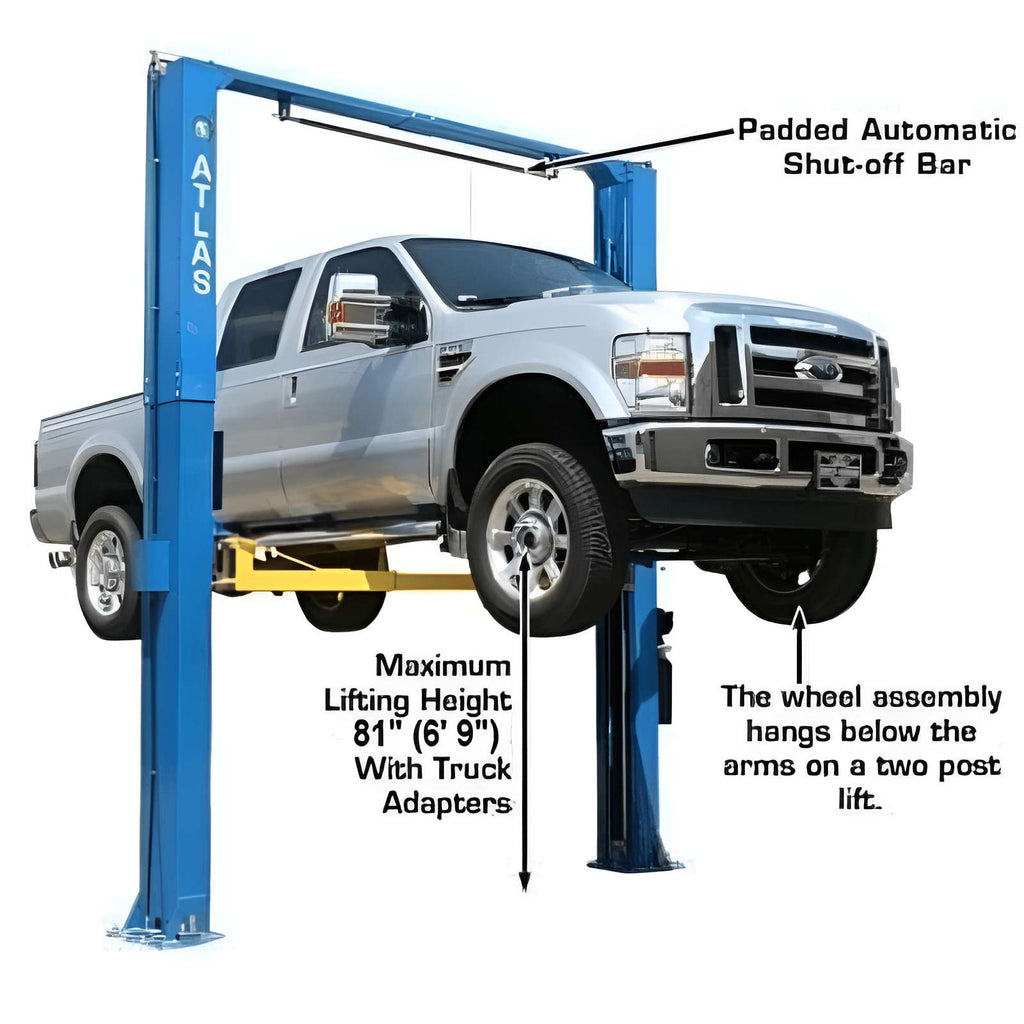

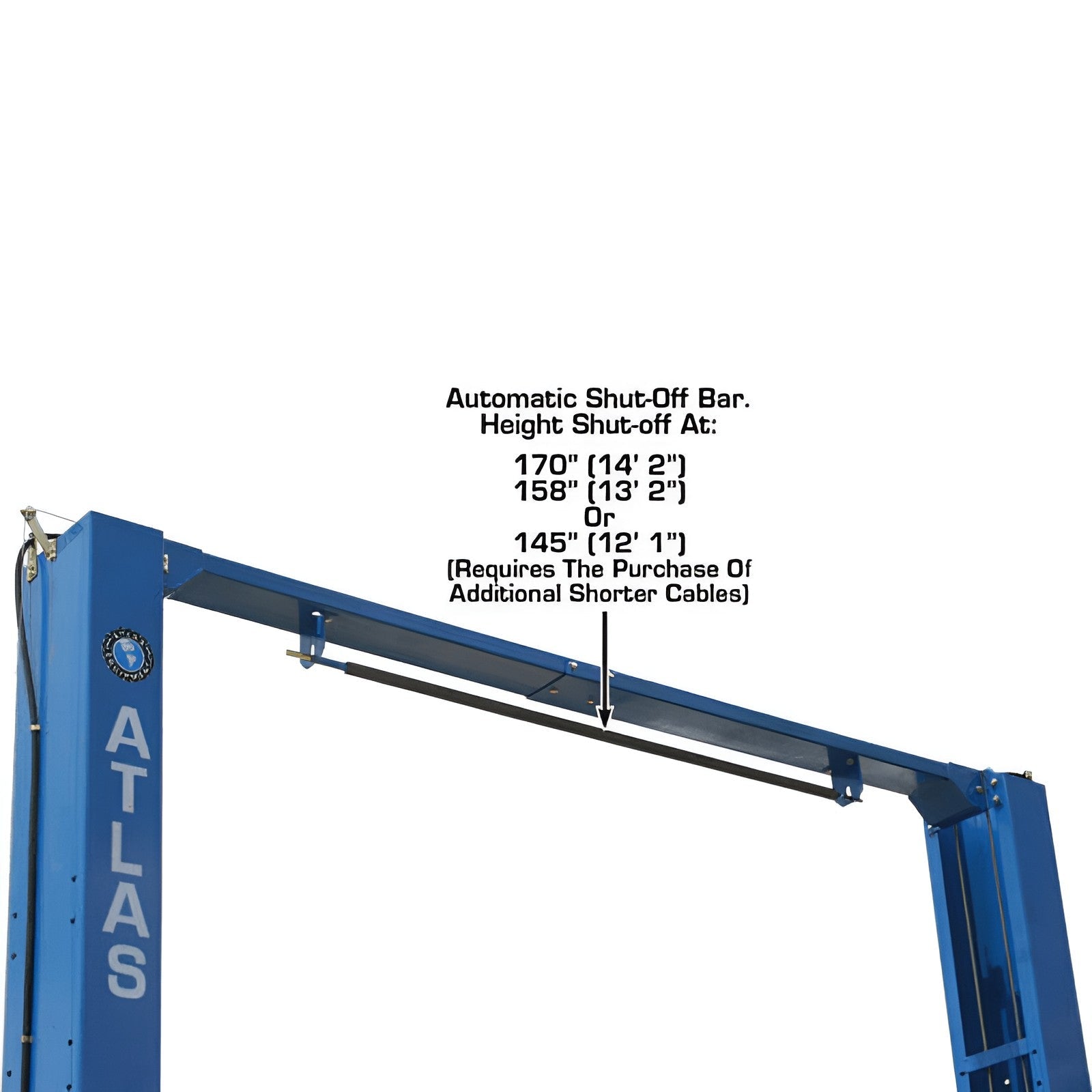

- “Padded” Shut-Off Bar
- Door Guards on Carriages

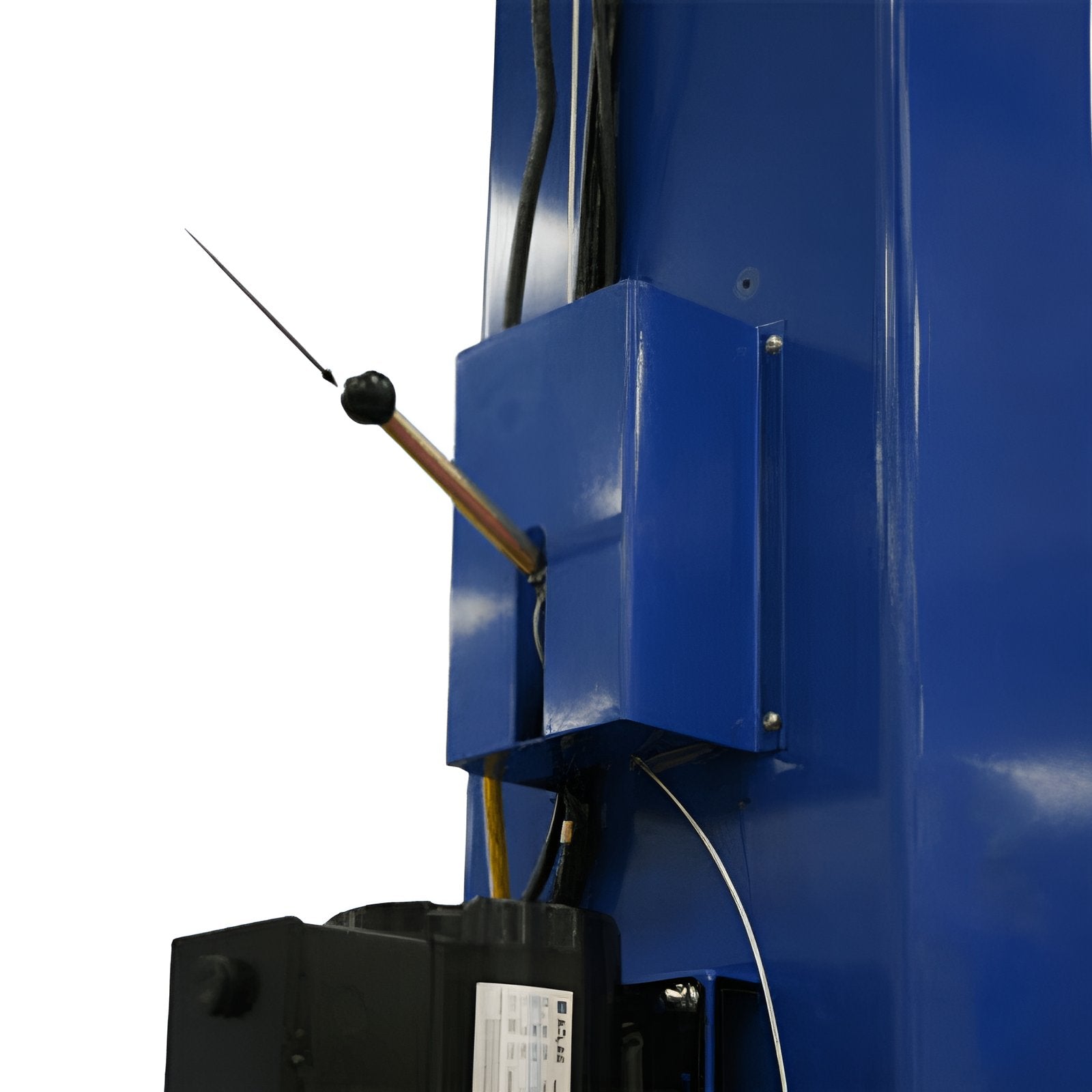

- Single Point Lock Release
- 2 Stage Arms
- Direct-Drive Cylinders
- Powder Coat Finish

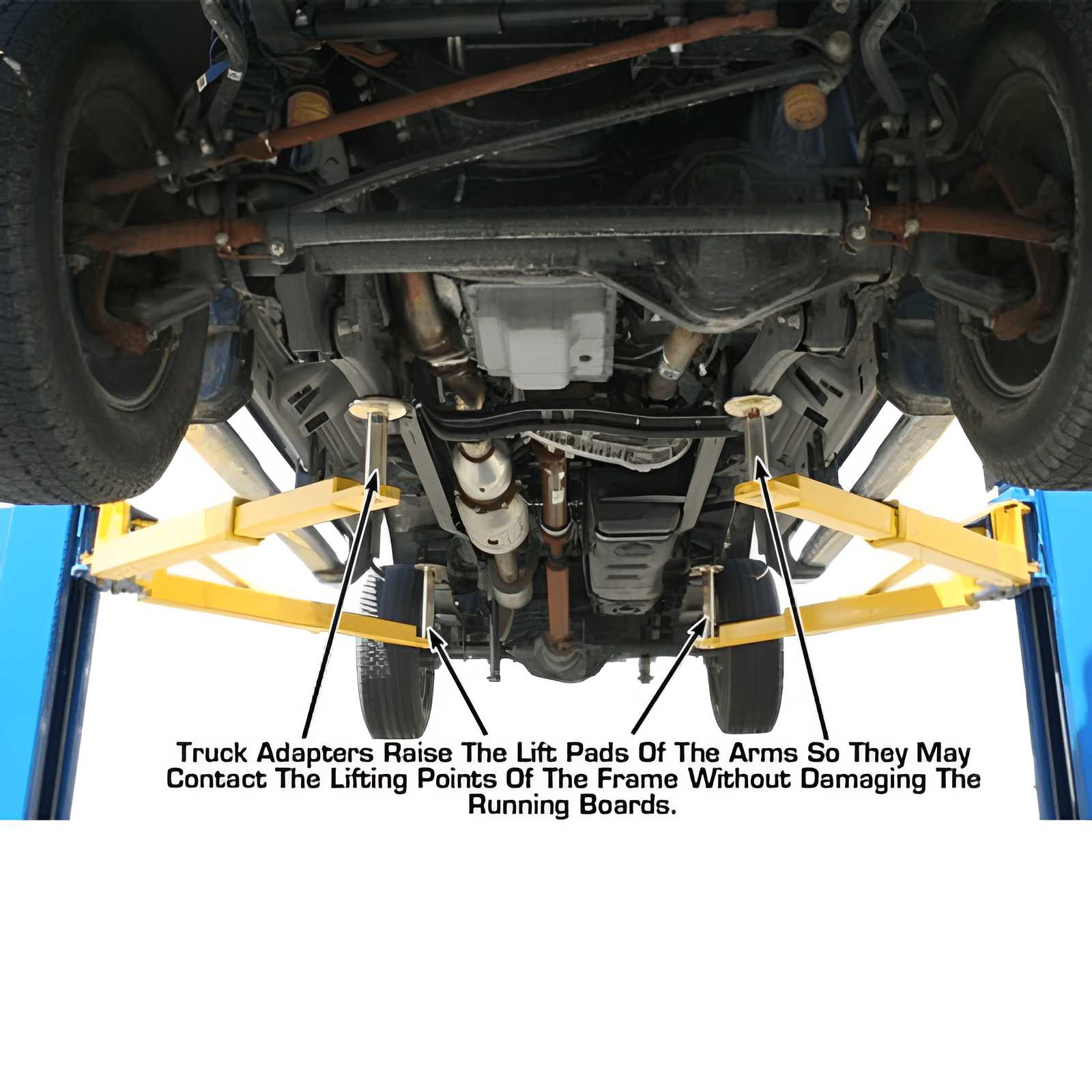

- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping weight: 2,160 lbs.
- 5 yr. Structural – 2 yr. Hydraulic – 1 yr. Power Unit – Parts Only Warranty
PV12PX Manual
