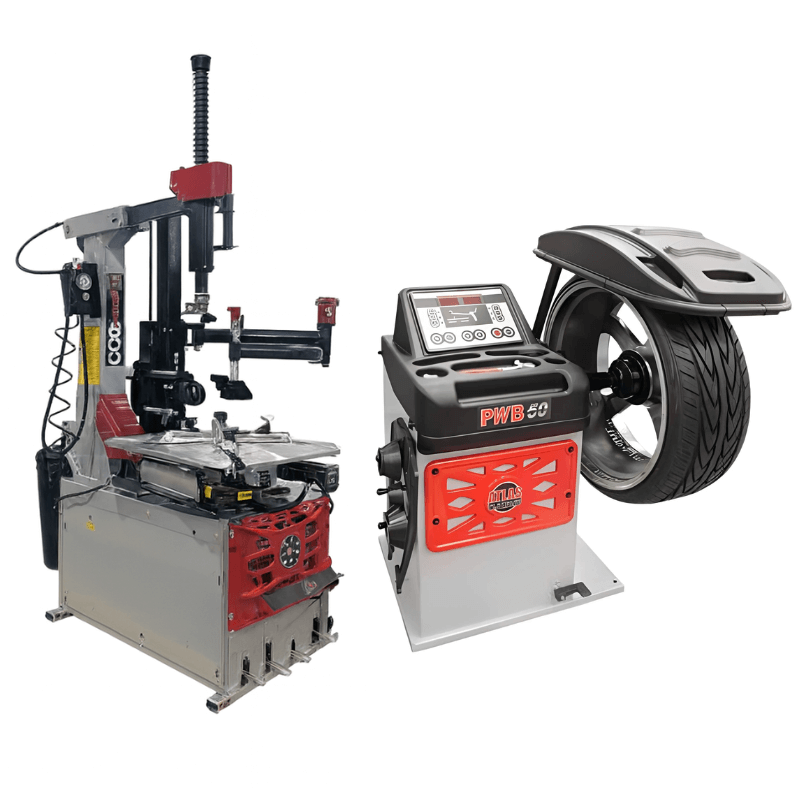

This combo package includes the Atlas® Platinum PTC600 tire changer and the Atlas® Platinum PWB50 wheel balancer.

The Atlas® Platinum PTC600 represents the pinnacle of quality in a machine meant for the "Professional Tire Dealer" or "Large Car Dealership." The PTC600 is an Italian engineered Tilt-Back Tire Changer that comes standard with a Right-Hand Bead Pressing and Bead Rolling Assist Arm to make changing the most challenging tires a breeze. The Tilt-Back design means the PTC600 has a pneumatic locking mount/demount head, dramatically lowering the risk of the head moving during use and possibly damaging rims. The PTC600 boasts a 29-inch clamping capability, high torque 110V electric turntable, anodized aluminum bead breaker cylinder, and integrated bead blast system. The Atlas PTC600 requires some assembly after purchase.

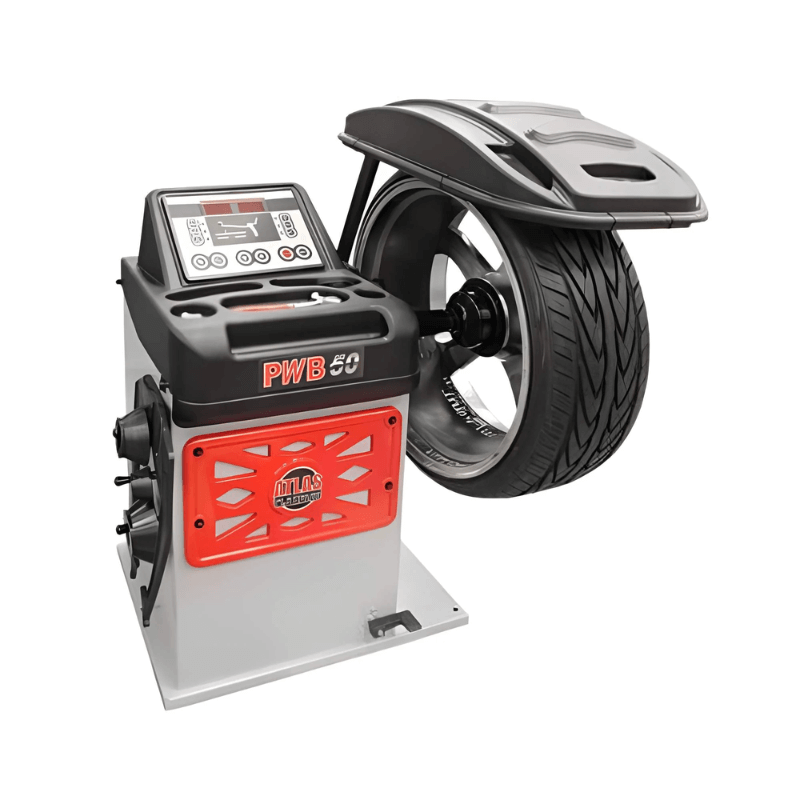

The Atlas® Platinum PWB50 is an electronic wheel balancer with an easy to read LED display and that offers Automatic 2D Data Entry via a single data entry gauge. Whilst there are a multitude of ALU weight placement configurations, the weight placement arm actually enables the operator to choose the most convenient position for the weights, and the machine will guide the operator back to that exact position after the spin cycle, ensuring accurate dynamic adhesive weight application. The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows an operator to change the weight application position from 12 o'clock to 6 o'clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the PWB50 via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient.

The Atlas® Platinum range of wheel service equipment incorporates the highest quality Italian designed components and engineering to assure it is the best value available at its price point.

• Clamping Capability: Up to 29 inches

• Electric Turntable: 110V high-torque

• Bead Breaker Cylinder: Anodized aluminum

• Integrated Bead Blaster: For efficient tire removal

• Assist Arm: Right-hand bead pressing and bead rolling

• Mount/Demount Head: Pneumatic locking for secure operation

• Air Requirement: 120–145 PSI

• Weight: 795 lbs

• Assembly: Required after purchase

• Design: Tilt-back for maximum convenience

Platinum PTC600 Tire Changer Special Features

• Tilt-back design for easy tire mounting and demounting

• Right-hand assist arm for low-profile and challenging tires

• Pneumatic locking head to minimize rim damage

• 29-inch clamping capacity for various tire sizes

• High torque 110V electric turntable for smooth operation

• Anodized aluminum bead breaker for durability

• Integrated bead blast system for faster tire servicing

• Professional-grade machine for tire shops and dealerships

Wheel Balancer Platinum PWB50 Specifications

• Rim Sizes (Cars and Light Trucks): 10" - 30"

• Rim Width: 1 1/2" - 20"

• Shaft Size: 40mm

• Max. Wheel Weight: 165 lbs.

• Balancing Speed: 130 rpm

• Data Entry: Automatic 2D

• Measurements: Standard or Metric

• Accuracy: 1 gram

• Weight Position Resolution: 1.4 Degrees

• Self Calibration: Yes

• Cycle Time: 7 seconds

• Power Supply: 110V

• Shipping Weight: 230 lbs.

Platinum PWB50 Wheel Balancer Special Features

• Max Tire Diameter: 43"

• Platinum Computer Controlled Motorized Spin Balancer

• Italian Engineering and Components

• Automatic and pedal-operated brake

• Automatic start/stop when hood is lowered/raised

• Static and dynamic balancing modes

• Optimatch, FES (Split), OPF (Opposite Position) Functions

• Special ALU-S and other ALU Programs

• Automatic 2D Data Entry

• NWN (no wheel need) System

• Self-Diagnosing and Self-calibrating

• USB hub for firmware update through PC/Notebook

• Exceptional stability in reading the unbalance between planes

• Display in grams or ounces, and in mm or inches

• No anchor-down installation needed

• Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers

• Replacement Parts & Wear Items Always in Stock

• 2 Year Parts Only Warranty

PTC600 + PWB50 Manual

   Atlas PWB50 Manual

Platinum PTC600 Tire Changer Platinum PWB50 Wheel Balancer Individual Item Sold Separately.

• Platinum PTC600 Tire Changer
• Platinum PWB50 Wheel Balancer
