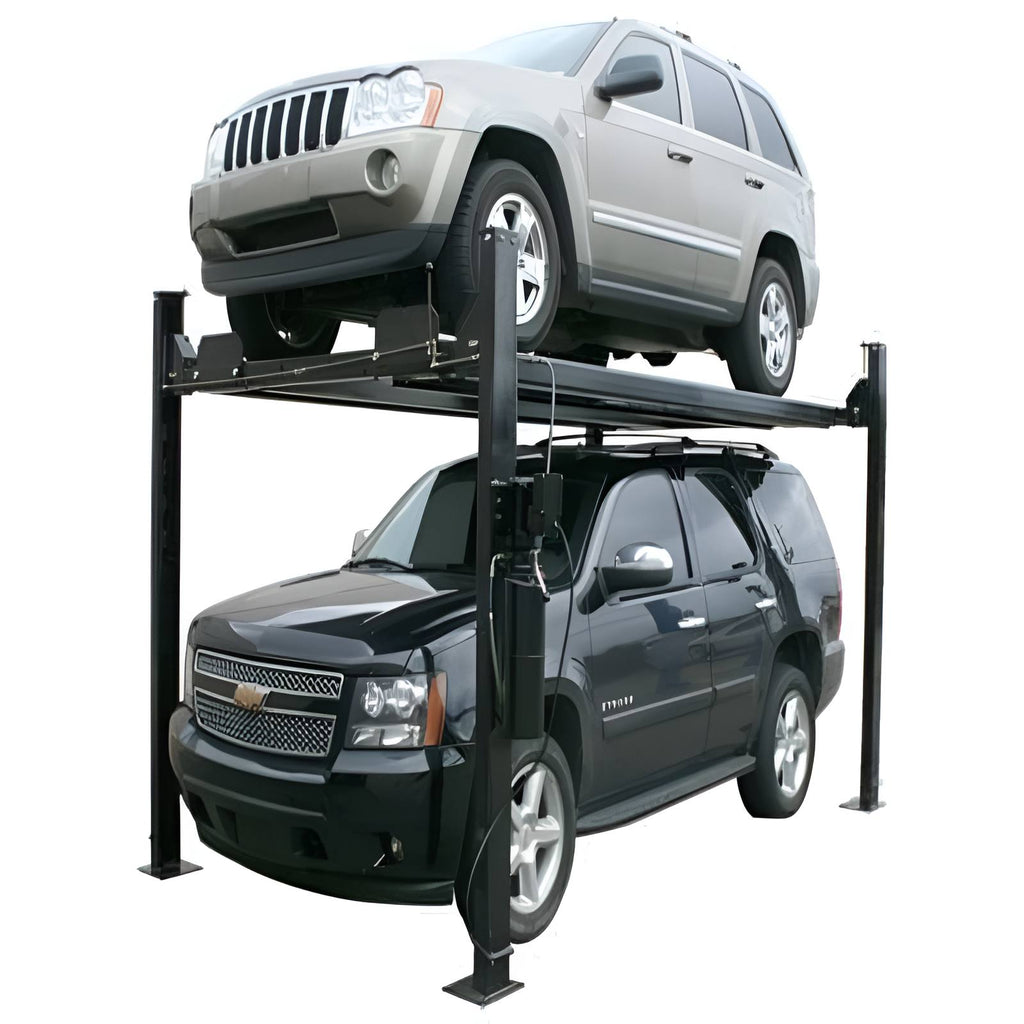

This extra tall, 8,000 lb. capacity 4-post lift allows you to stack vehicles and save valuable floor space. If you’re limited by horizontal constraints but need to maximize vehicle storage or work on multiple cars at once, this lift is the solution. With 79" clearance under the runways and an 84.25" lifting height, you can comfortably store SUVs, pickups, or even large trucks above smaller vehicles, all while maintaining a flexible shop layout.

This lift offers a compact design with an overall length of just 206.75" and a 104.5" width, making it suitable for most shop environments. Whether you need it for personal use or as a professional service tool, the Atlas® Garage PRO8000EXT is designed to meet your needs with ease. Powered by a standard 110-volt electrical system, it integrates seamlessly into your existing setup. Plus, with plastic drip trays and a steel jack tray included, you’ll be prepared for any maintenance or service job.

Pro 8000EXT Specifications:

• Capacity: 8,000 lbs

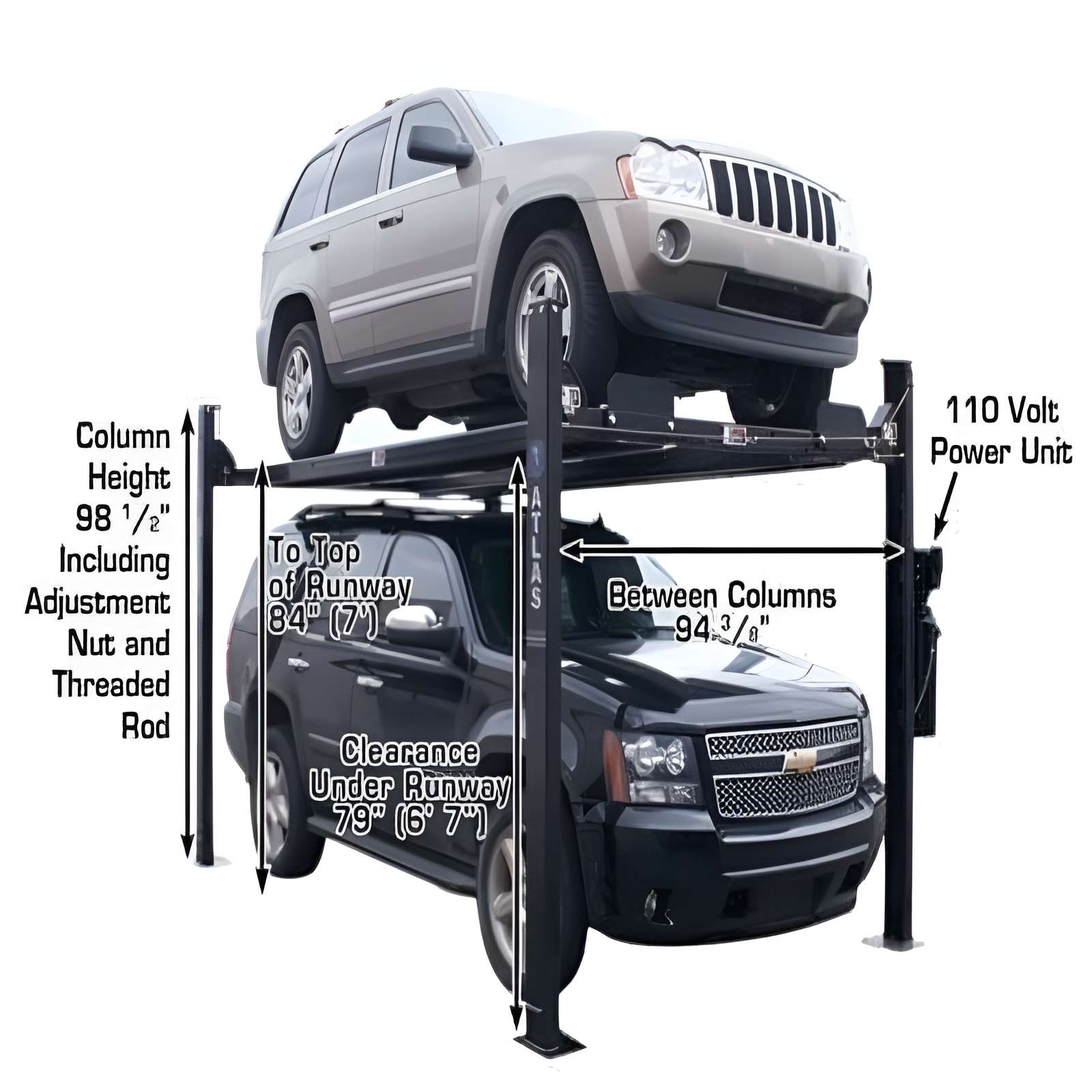

• Lifting Height to Top of Runway: 84 1/4" (7' 1/4")

• Clearance Under Runways: 79" (6' 7")

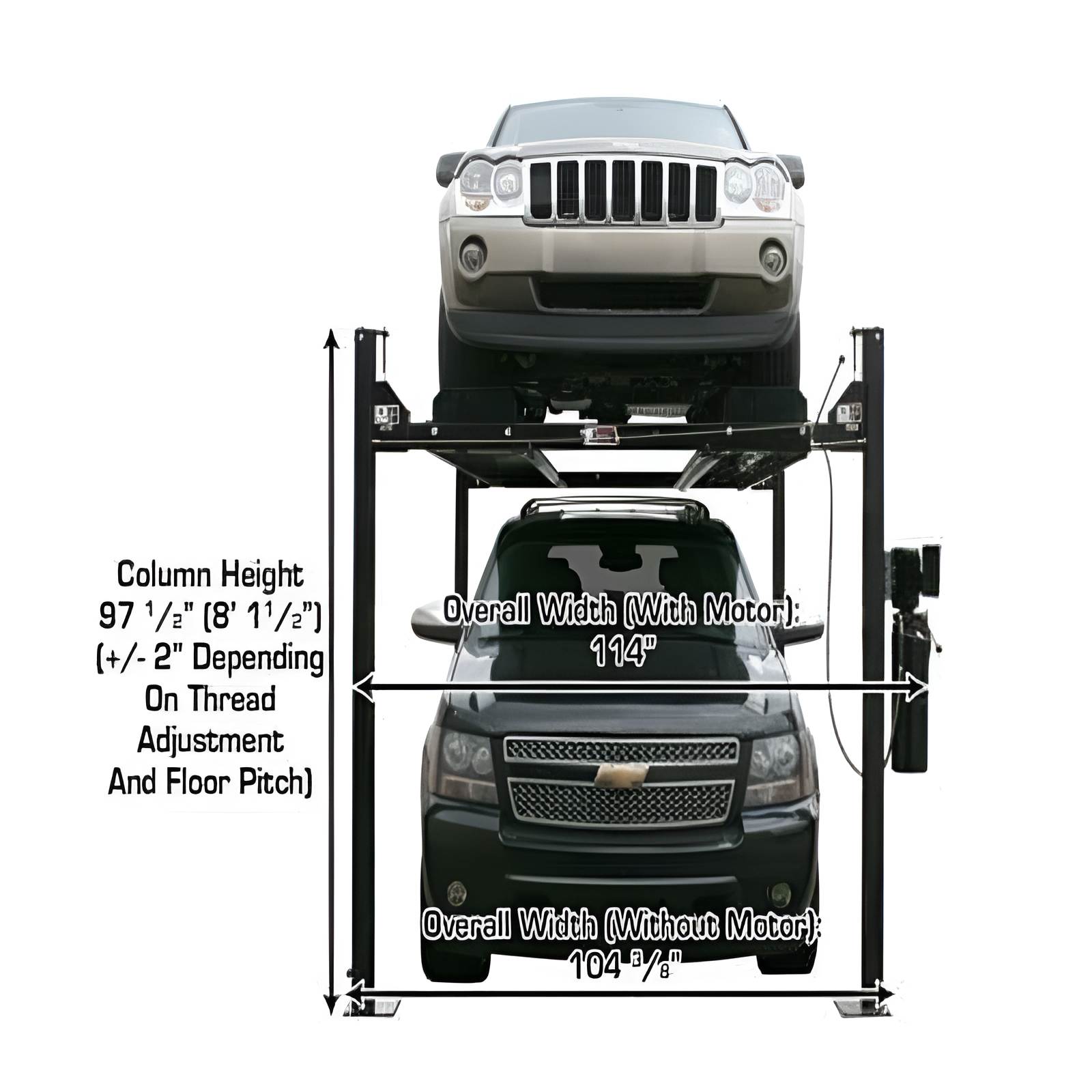

• Height of Columns: 98 1/2" (8' 2 1/2")

• Overall Width (Without Motor): 104 1/2" (8' 8 1/2")

• Overall Width (With Motor): 115" (9' 7")

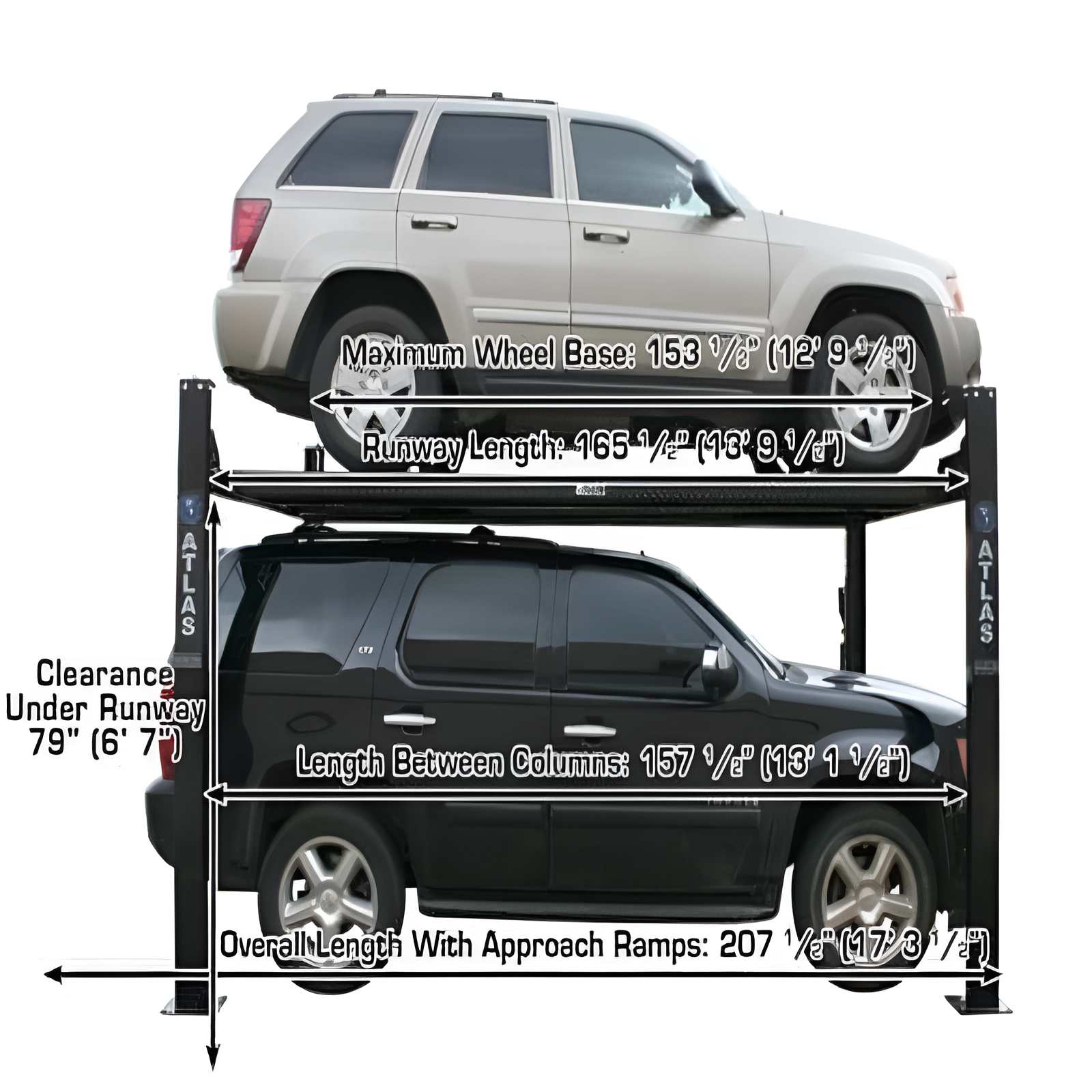

• Overall Length with Approach Ramp: 206 3/4" (17' 2 3/4")

• Approach Ramp: 37" (3' 1")

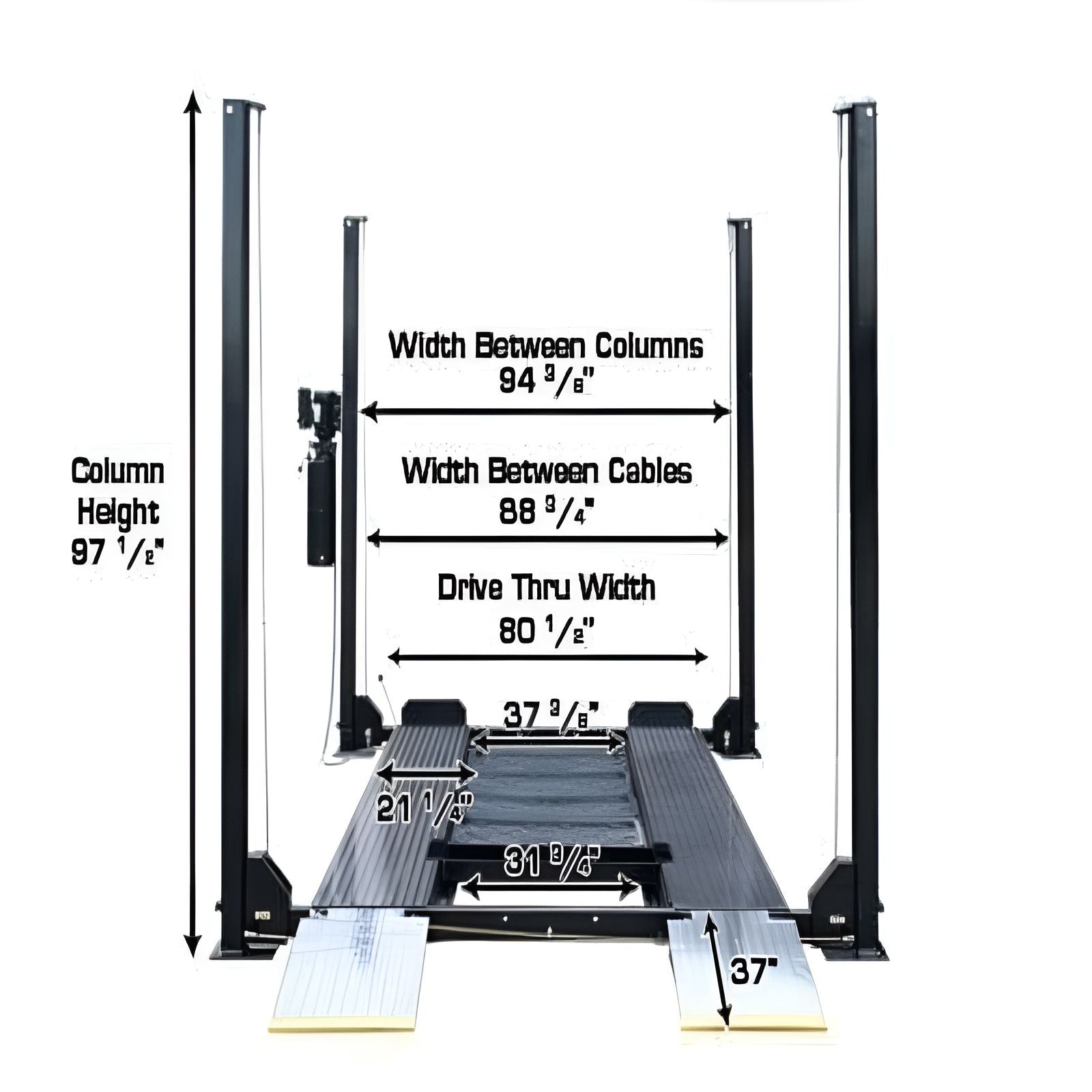

• Runway Width: 21 1/4" (with rails) or 18 3/4" (driving surface)

• Runway Length: 165 3/4" (13' 9 3/4")

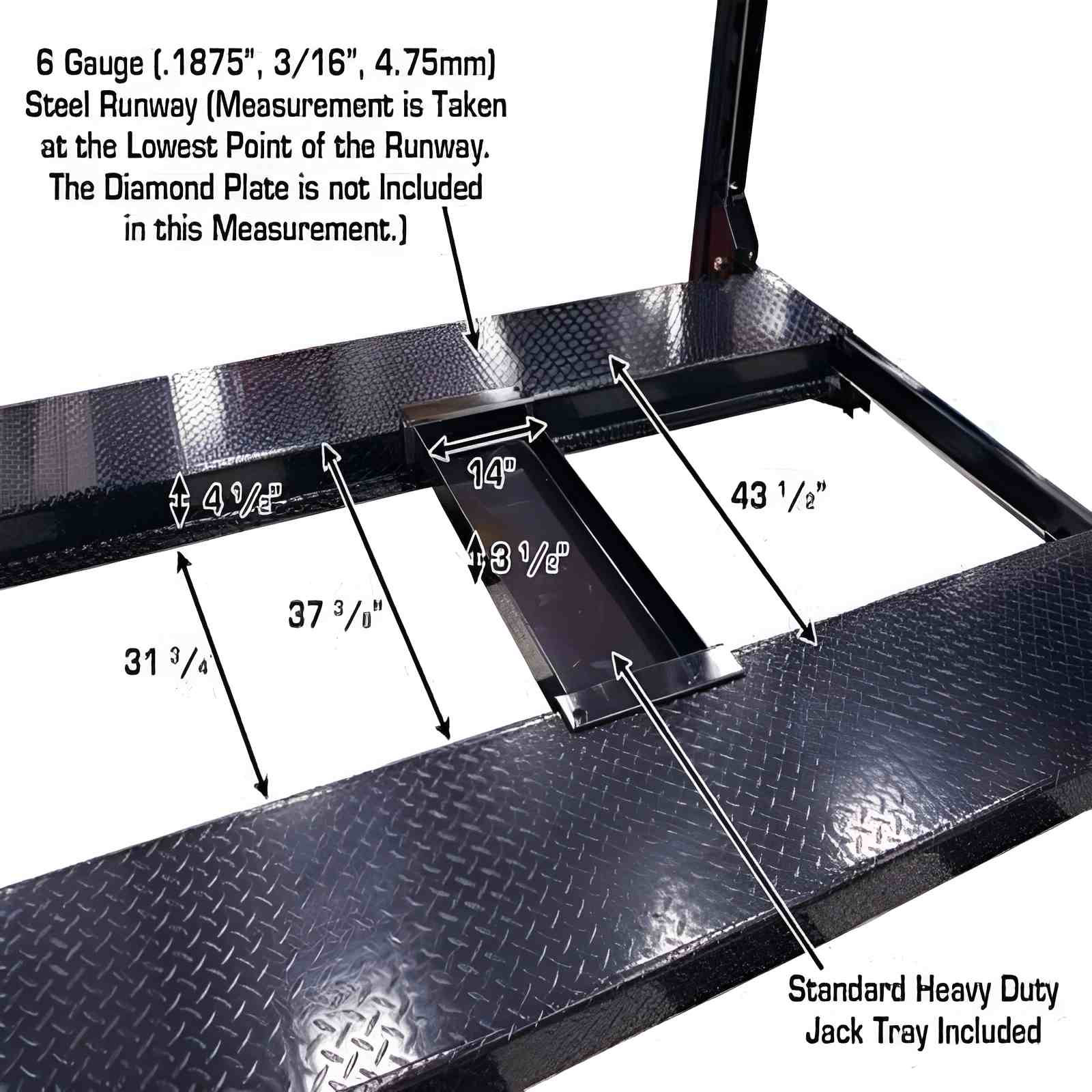

• Runway Thickness: 4 1/2"

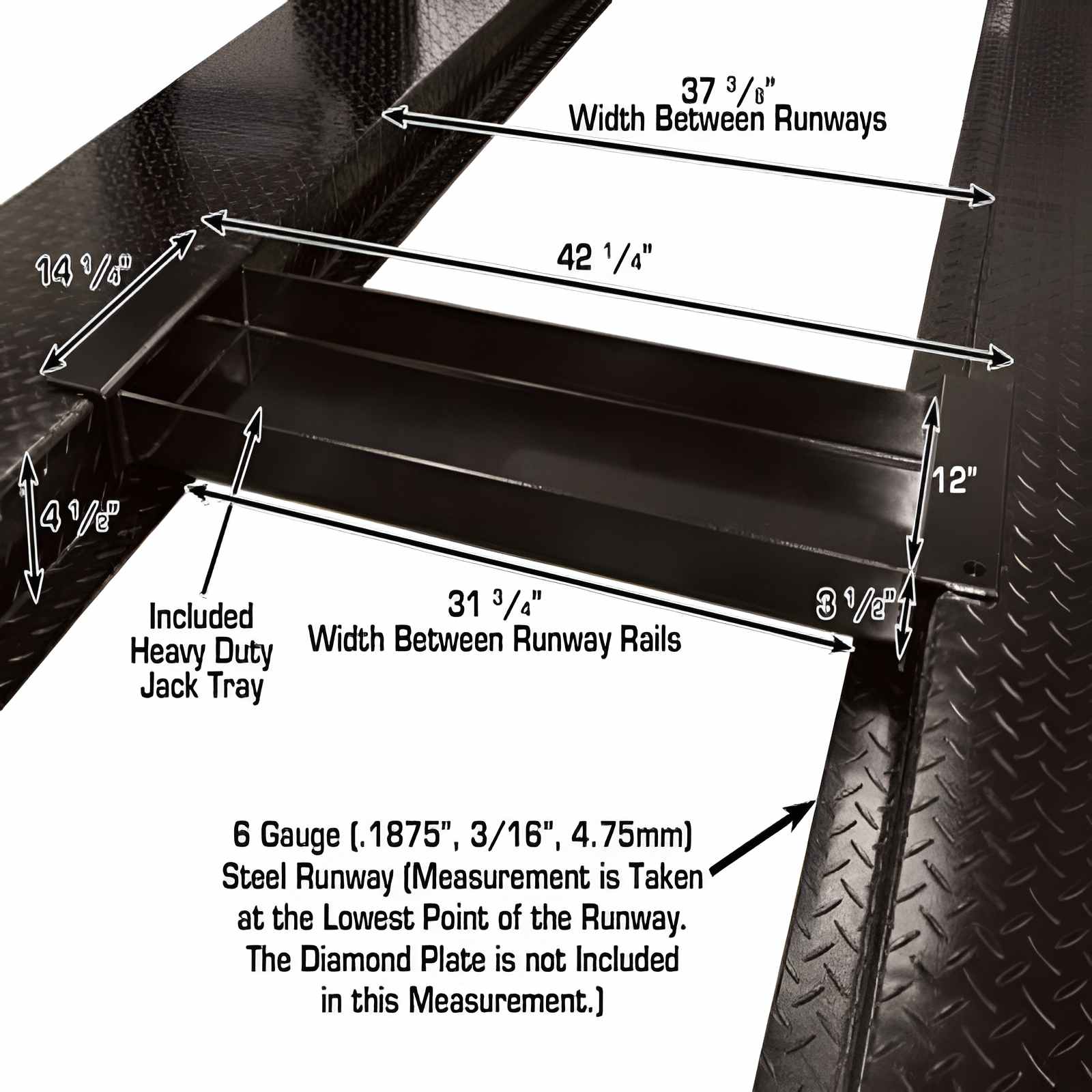

• Width Between Runways: 37" (3' 1")

• Width Between Runway Rails: 31 1/2" (2' 7 1/2")

• Outside Runway to Outside Runway: 74 5/8" (6' 2 5/8")

• Clearance Between Columns: 94 1/2" (7' 10 1/2")

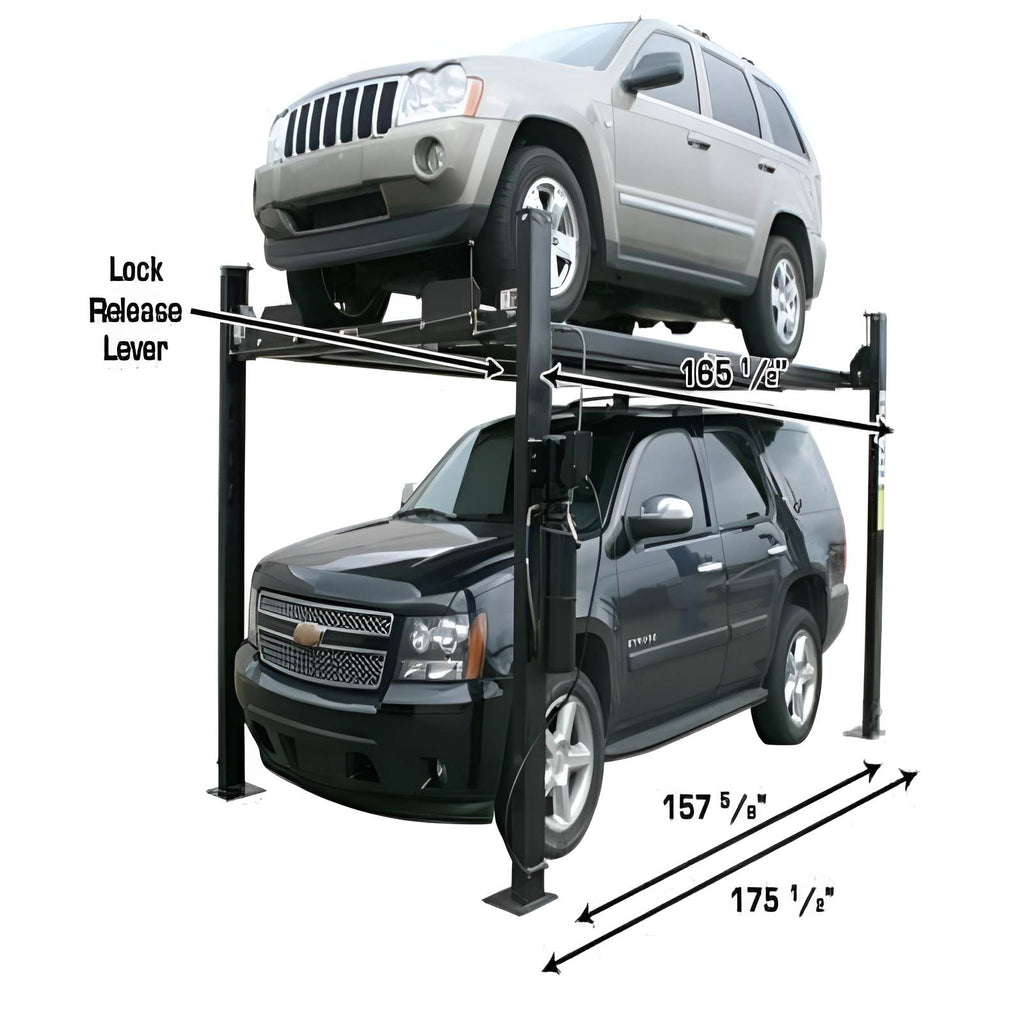

• Length Between Columns: 157 1/2" (13' 1 1/2")

• Maximum Wheel Base: 153 1/2" (12' 9 1/2")

• Drive Thru (Outside of Tire to Outside of Tire): 80 1/2" (6' 8 1/2")

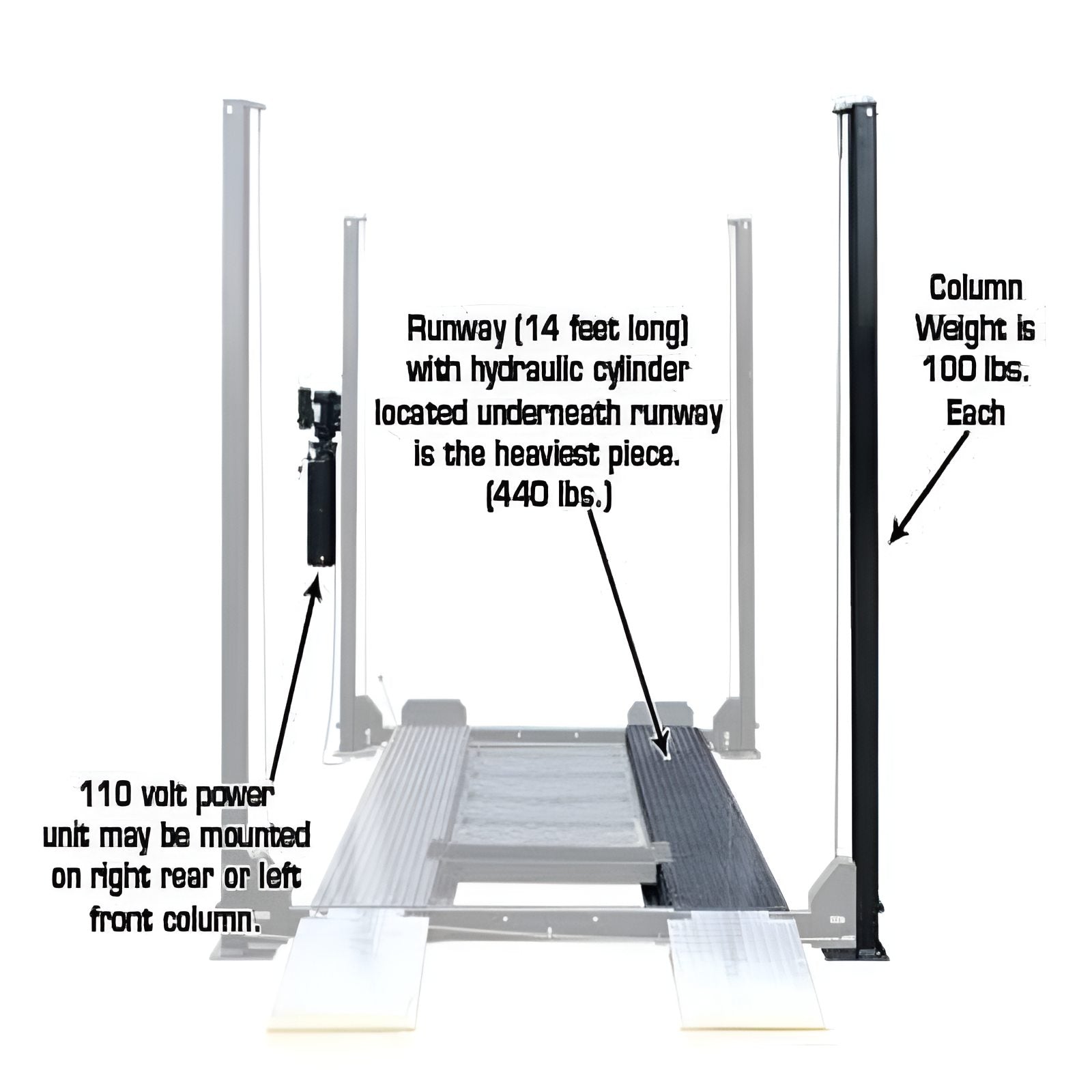

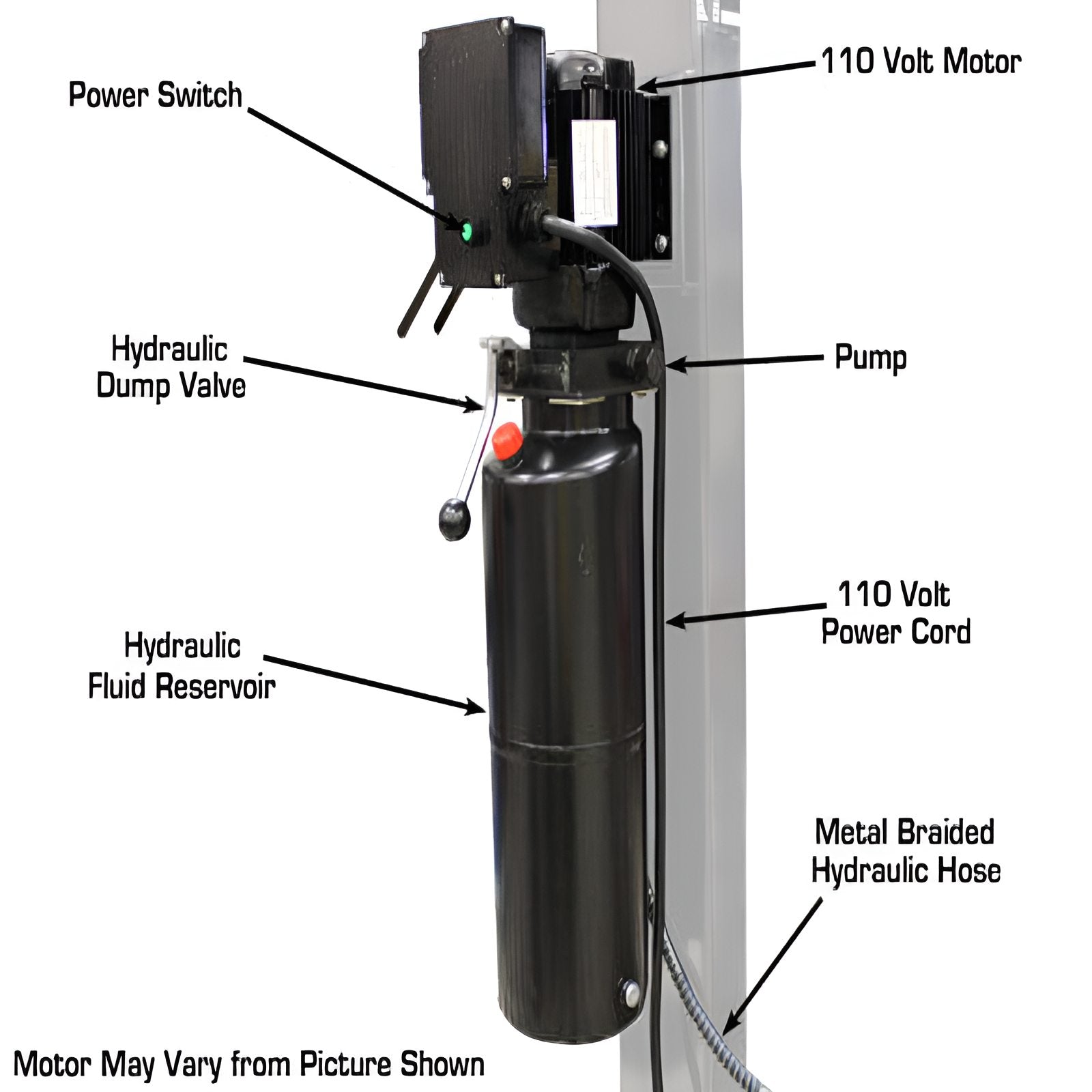

• Motor/Electrical Requirement: 110 Volt, 30 AMP breaker required

• Shipping Weight: 1,850 lbs

• Pallet Size: 167" Long x 28-1/2" Tall x 22" Wide

Pro8000 EXT 8,000 lb 4 Post Vehicle Storage Lift Special Features:

• Capacity: 8,000 lb

• Style: Extra Tall

• Design: Free Standing & Portable

• Diamond Plated Runways for durability and slip resistance

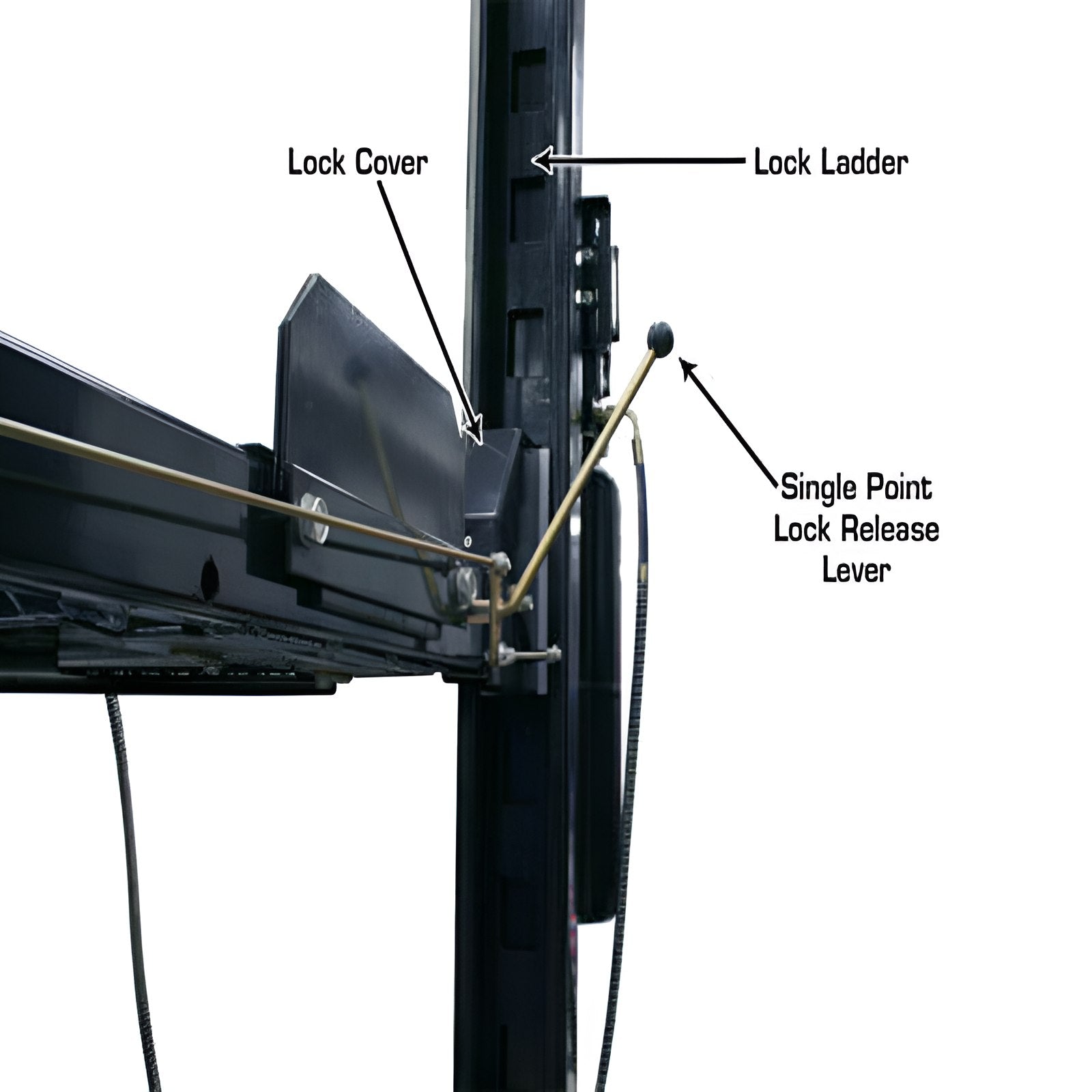

• Lock Release: Single-Point

• Lock Design: Lock Ladder with Double Lock Safety System

• Warranty: 2 years Structural, 1 year Hydraulic (Parts Only)

Unit Includes:

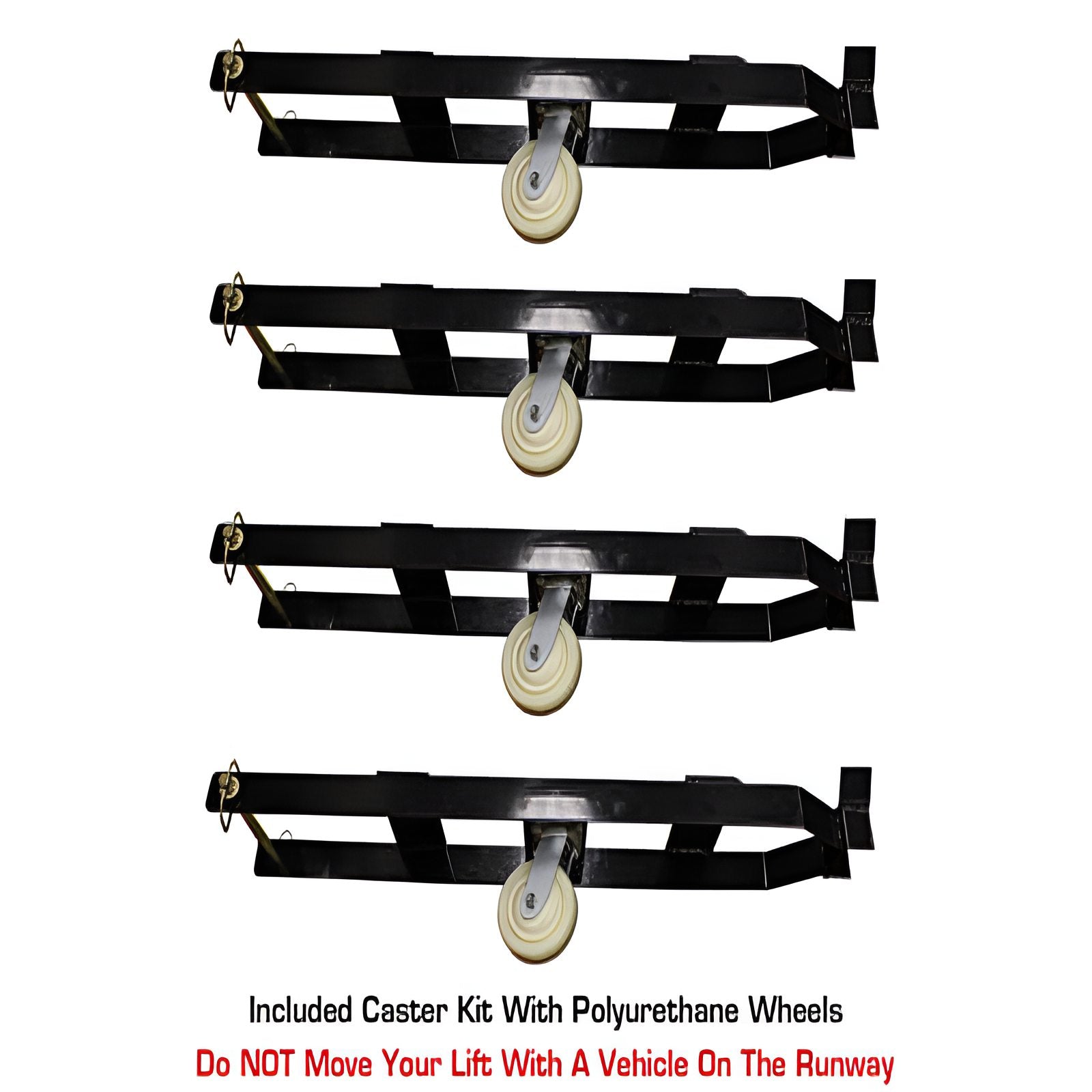

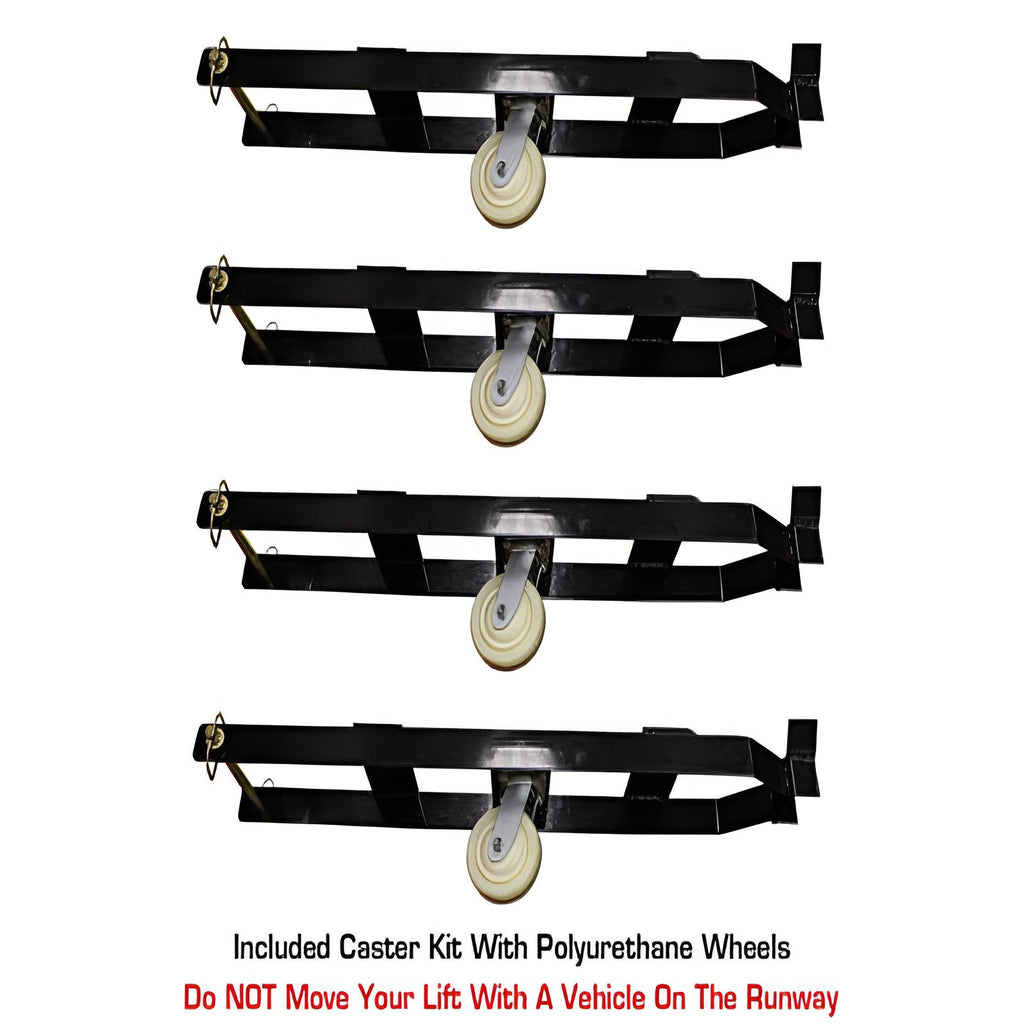

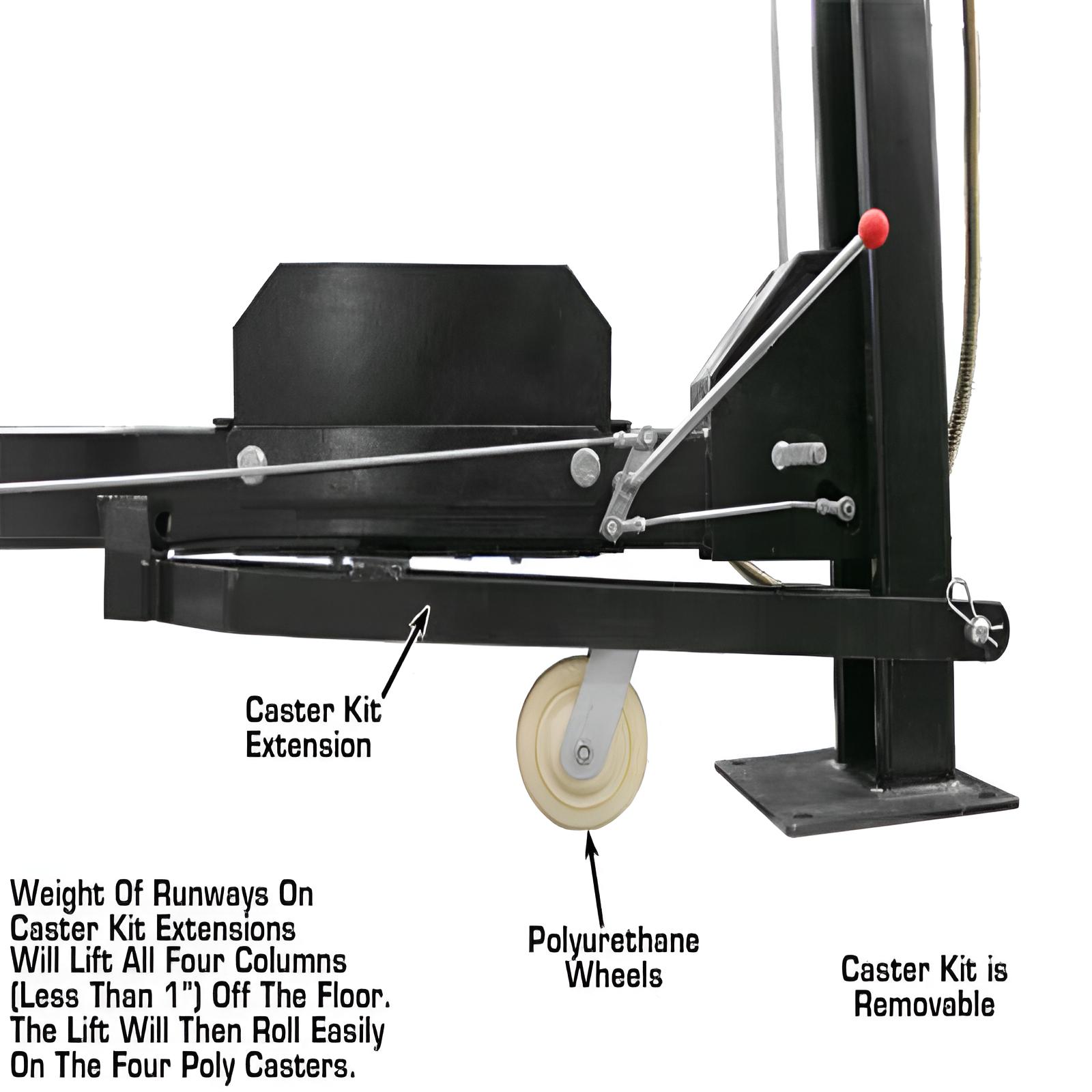

• Caster Kit with Polyurethane Wheels for easy portability

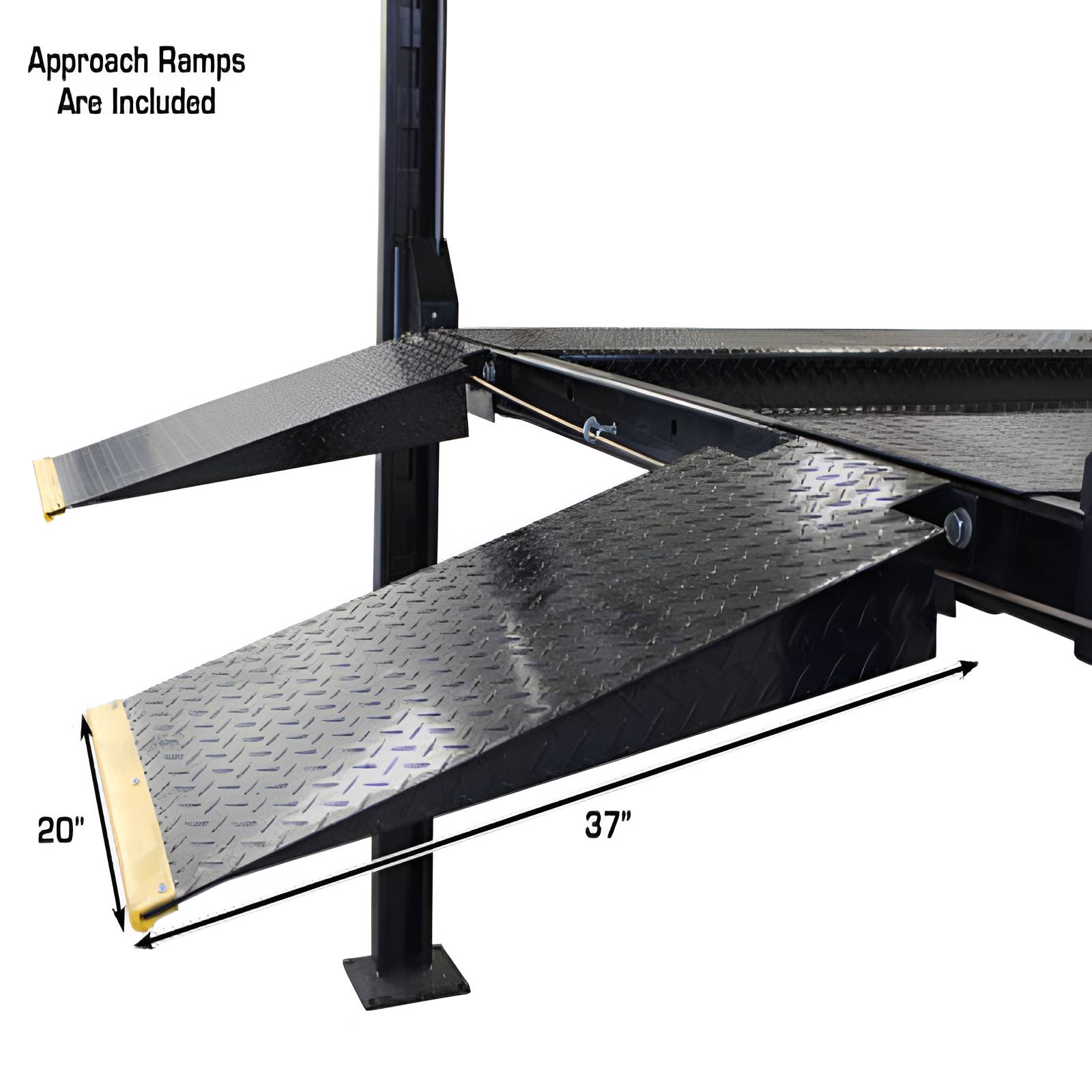

• Steel Approach Ramps for safe vehicle drive-on

• Steel Jack Tray for added convenience in servicing vehicles

• 4 Plastic Drip Trays for keeping your workspace clean

• 4 Wheel Stops for safe vehicle positioning

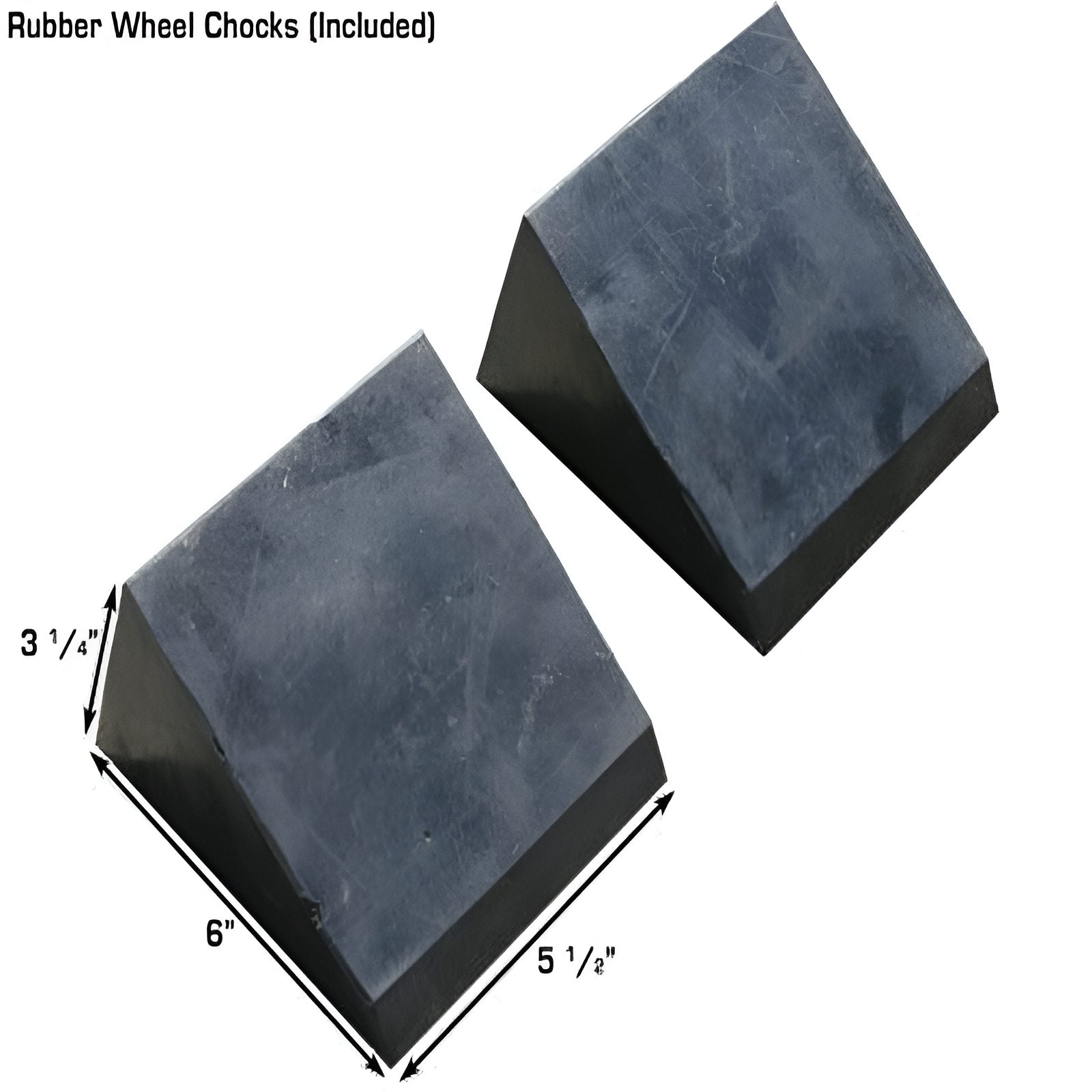

• 2 Rubber Wheel Chocks to prevent vehicle movement

• Buy as a Combo Atlas PRO8000EXT + RJ35
• Optional Item(Sold Separately)
  • 37" Steel Jack Tray

  • 37" Plastic Drip Tray

Pro8000EXT 4 Post Vehicle Storage Lift Optional Items (sold separately):

• ProJack35 Sliding Jack


Pro8000EXT Manual

   Atlas Pro8000EXT Manual
