Description
Atlas PRO8000EXT 4 Post Lift, 2 x ProJack35 Sliding Jack Combo SKU ATEXH-PRO8EXT-COMBO

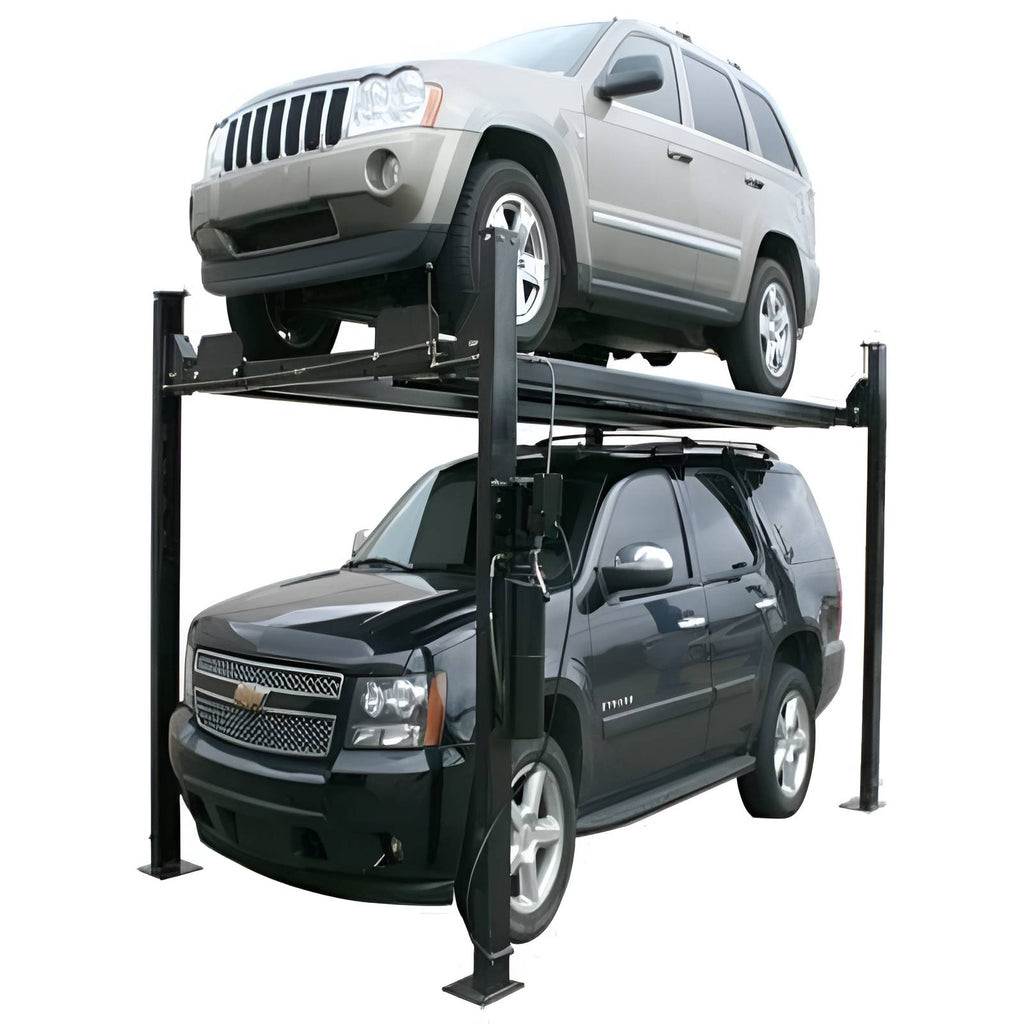

The PRO8000EXT features 165.5-inch long runways that can handle vehicles with wheelbases up to 153.5 inches. That means you can stack your SUV above your sports car without breaking a sweat. But why you would do that beats us. This combo comes with two Atlas RJ35 sliding bridge jacks, each capable of lifting 3,500 lbs. These jacks can raise your vehicle's wheels up to 17.25 inches high, making tire and brake work a breeze. The package even throws in approach ramps, a jack tray, drip trays, wheel stops, and chocks. It's like Christmas came early for your garage!

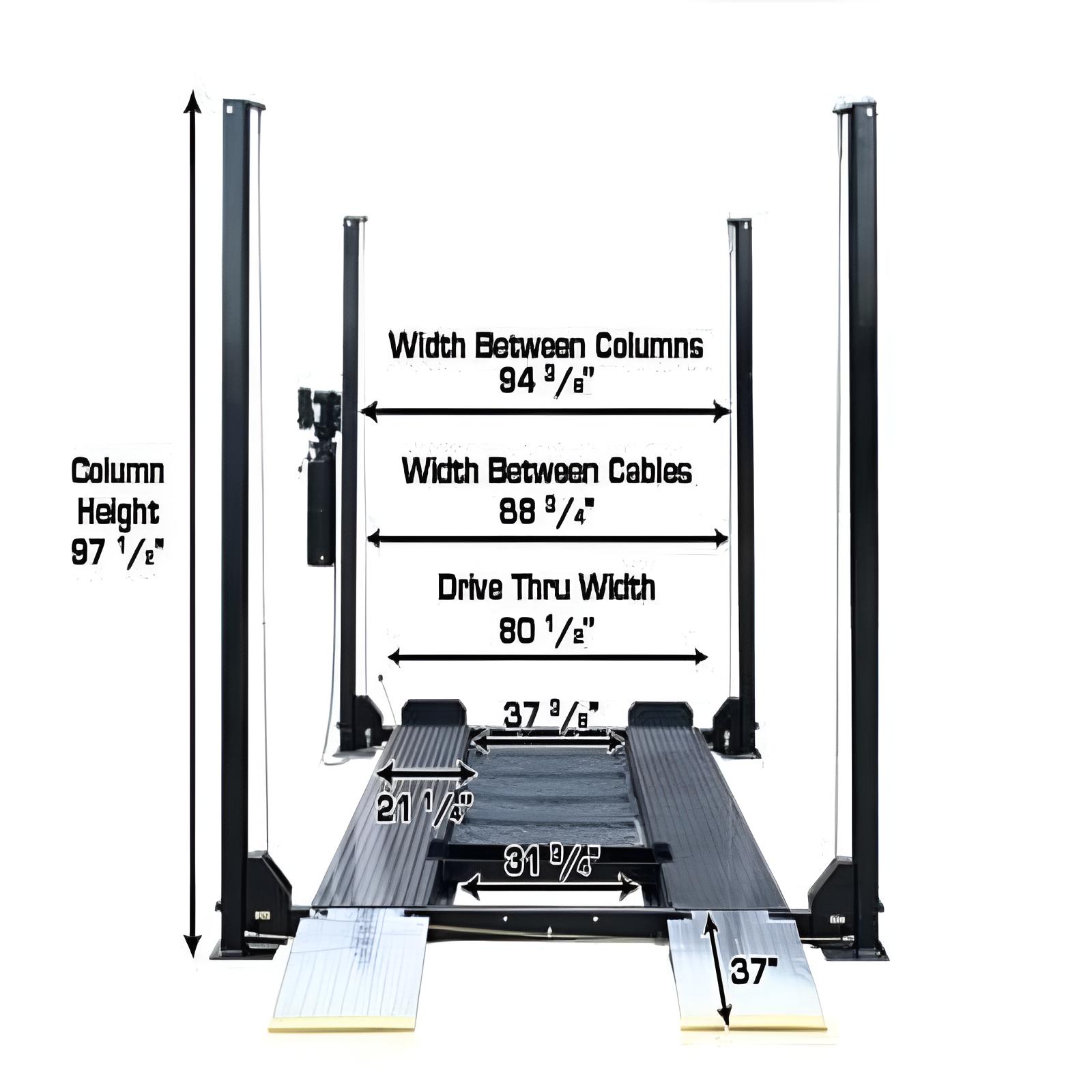

4 Post Parking Lift Pro8000EXT Specifications:
- Capacity: 8,000 LB
- Lifting Height: 84 1/4" (7' 1/4")

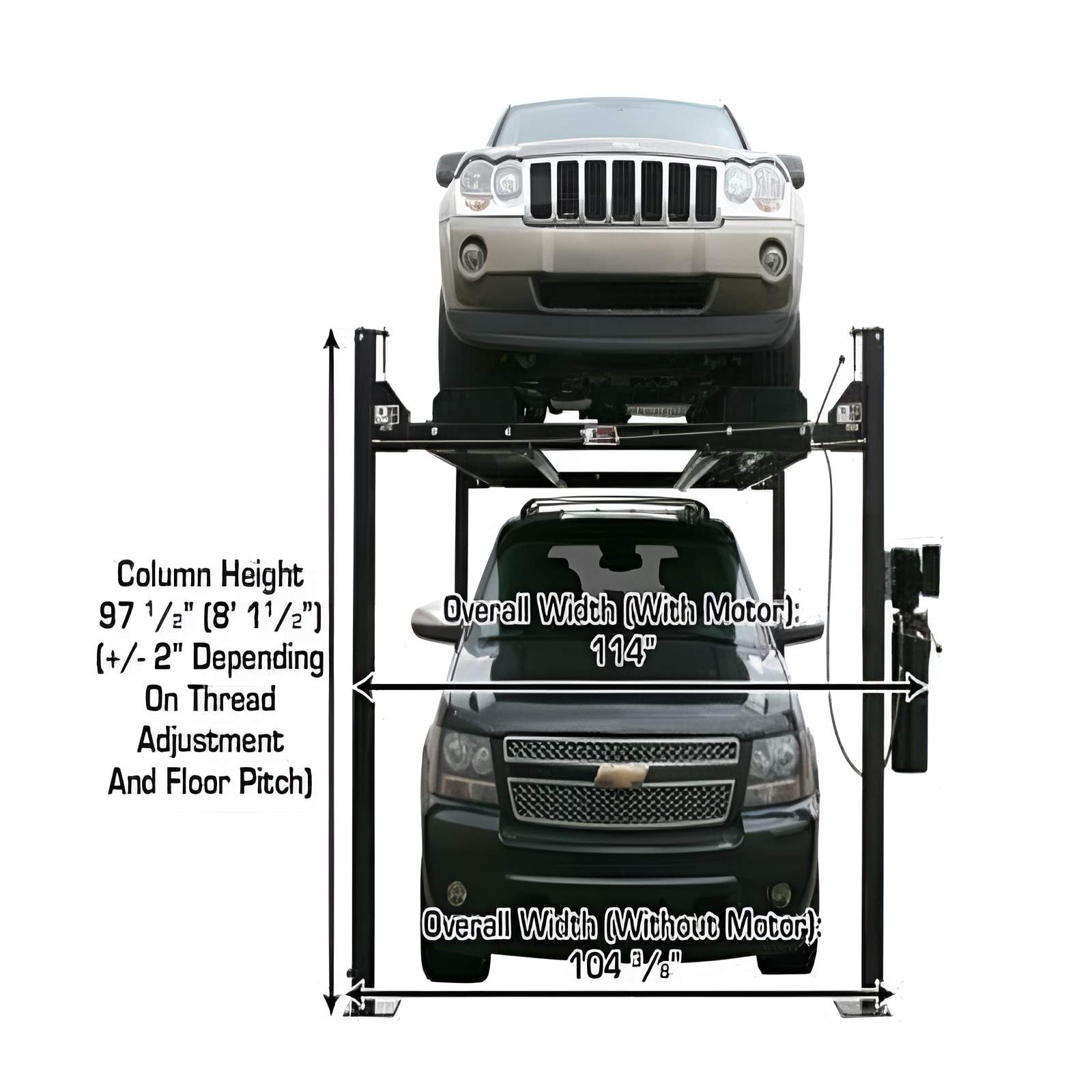

- Overall Width (Without Motor): 104 3/8" (8' 8 3/8")
- Overall Width (With Motor): 114" (9' 6")
- Length Between Columns: 157 5/8" (13' 1 5/8")
- Overall Length with Approach Ramps: 207 1/2" (17' 3 ½")
- Overall Length without Approach Ramps: 175 1/2" (14' 7 ½")

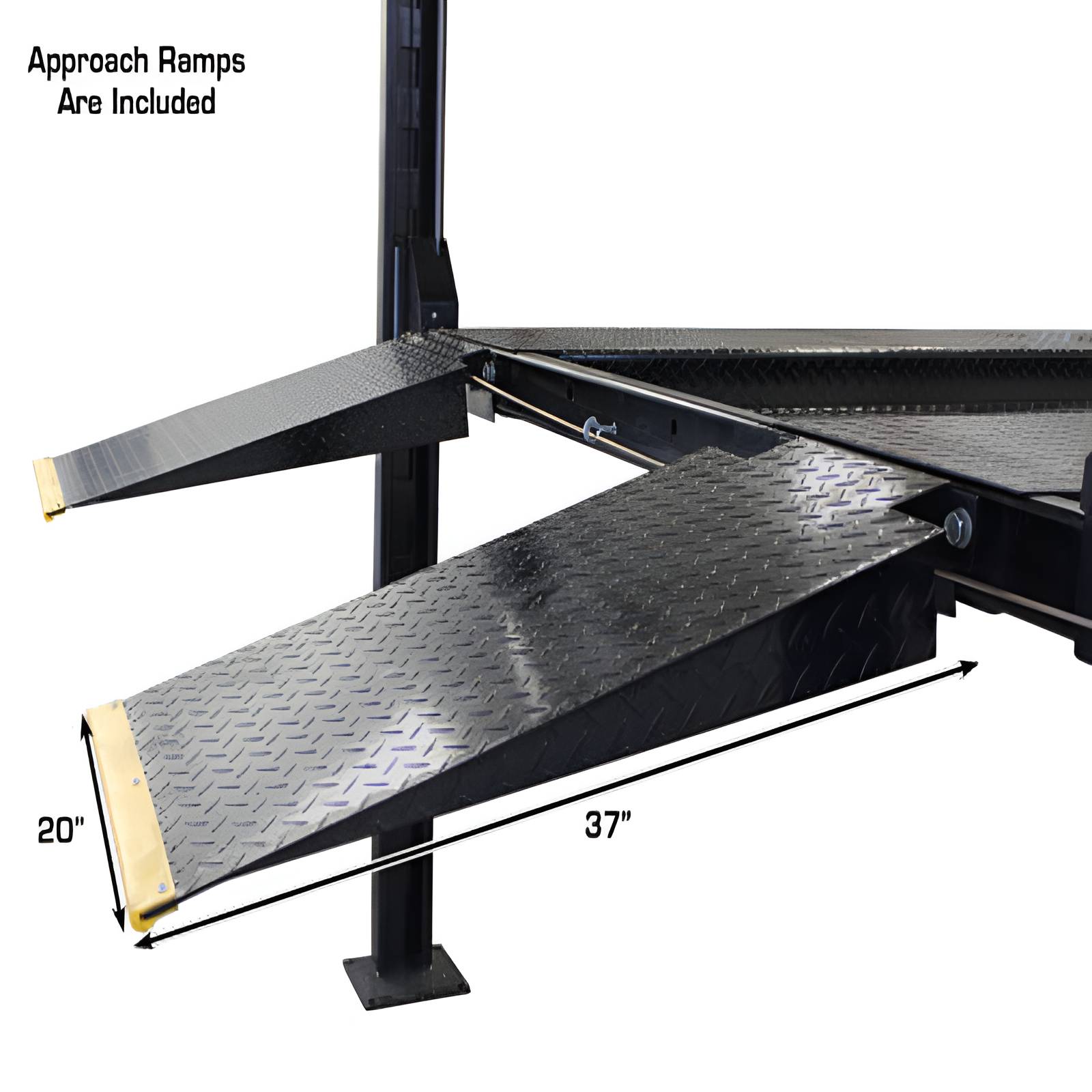

- Approach Ramps: 37" (3' 1")
- Total Runway Width: 21 1/4" (1' 9 1/4")

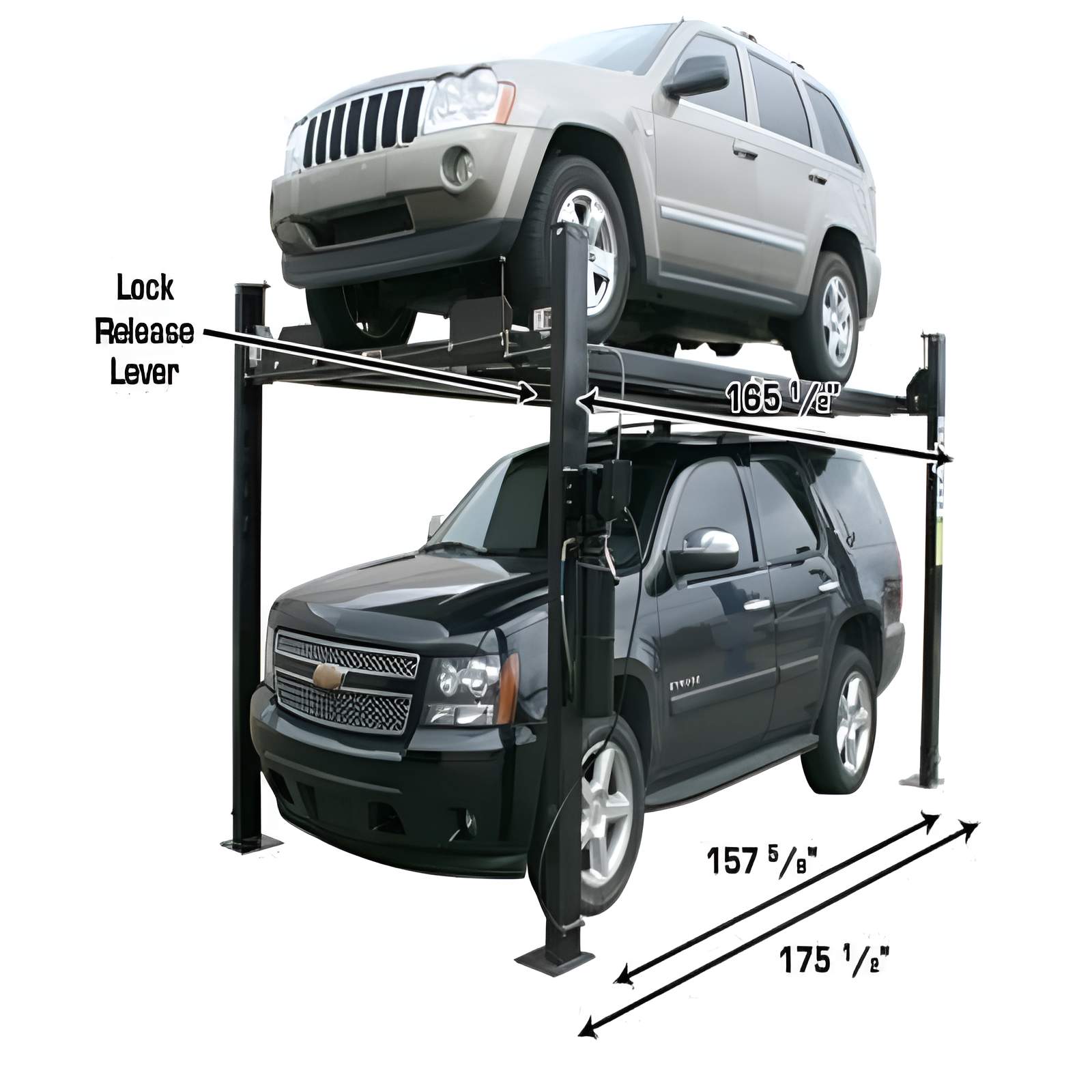

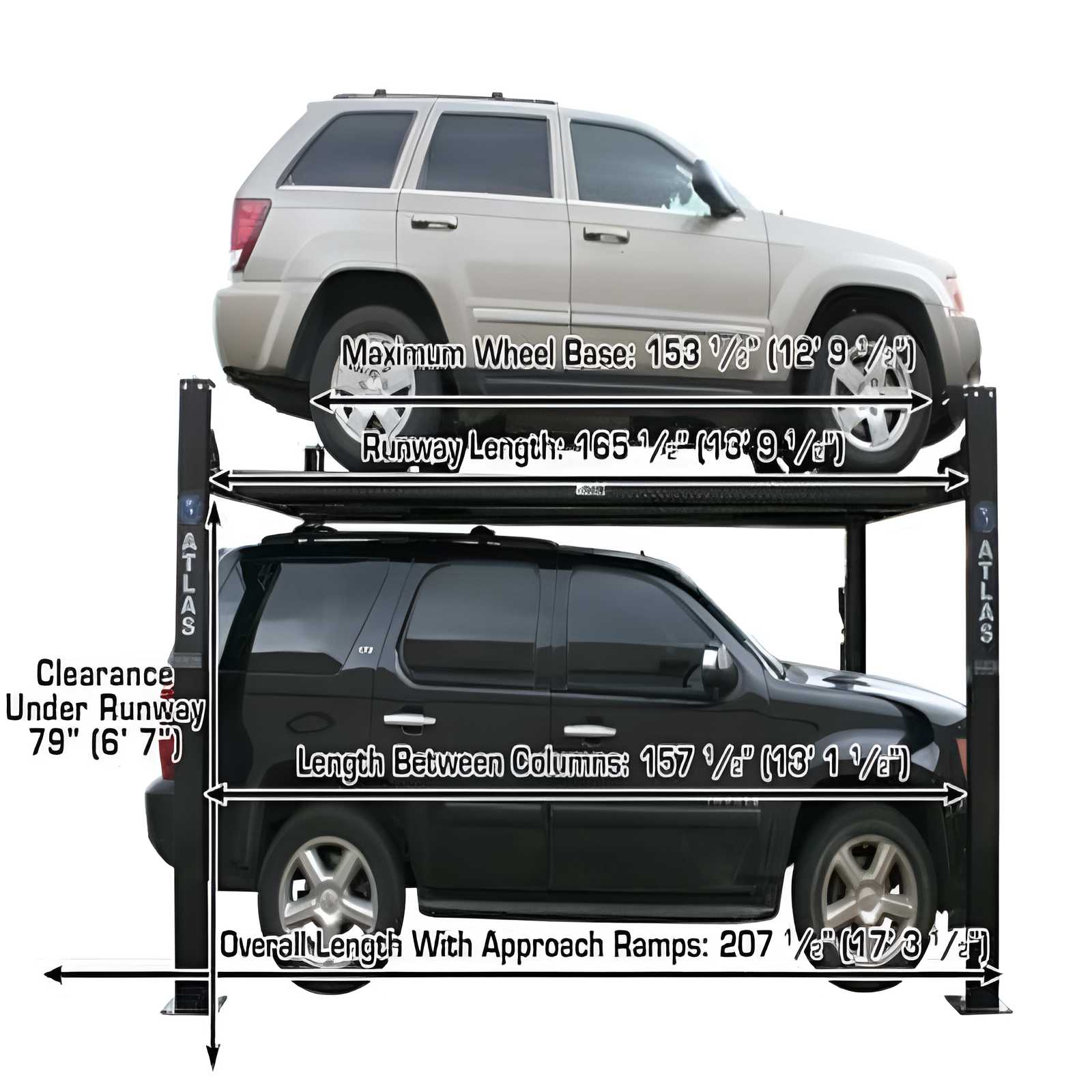

- Runway Length: 165 1/2" (13' 9 ½")
- Runway Thickness: 5"

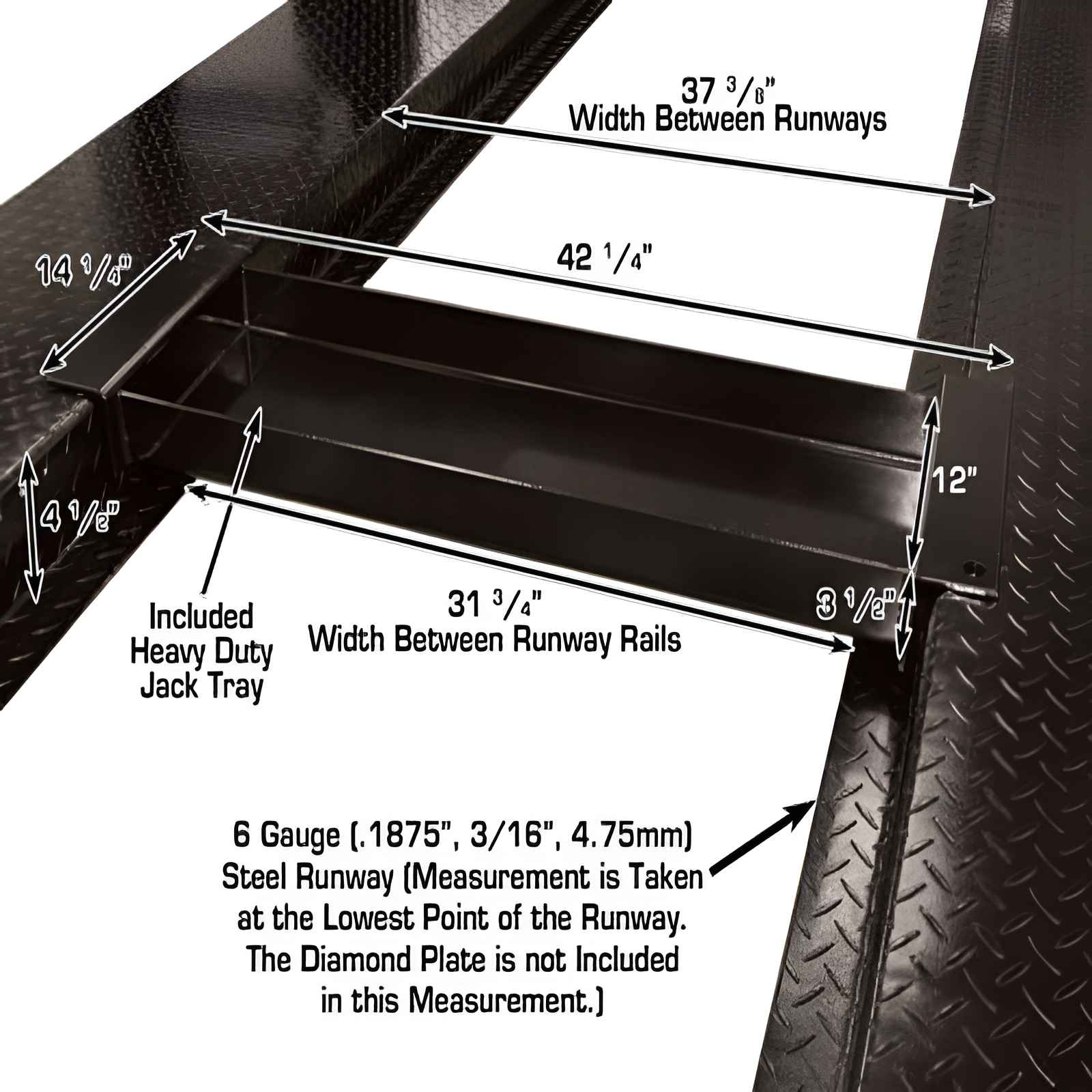

- Width Between Runways: 37 3/8"
- Width Between Runway Rails: 31 3/4"
- Outside Runway to Outside Runway: 74 3/4" (6' 2 ¼")

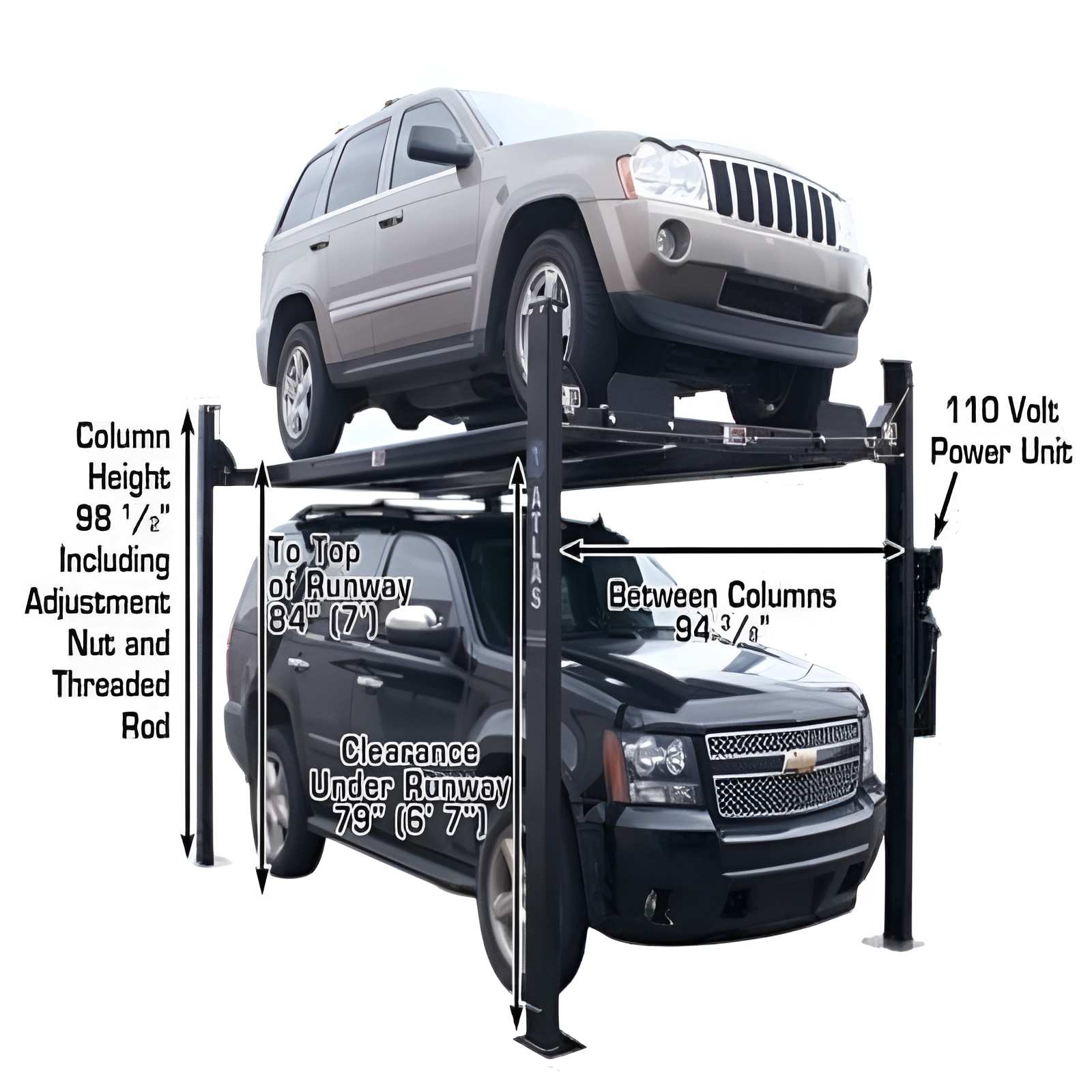

- Clearance Under Runways: 79" (6' 7")
- Size of Column: 6 1/4" x 3 3/8"
- Clearance Between Columns: 94 3/8" (7' 10 3/8")
- Base of Column: 9 5/8" x 11 1/2"
- Height of Columns: 98 1/2" (8' 2 1/2")
- Maximum Wheel Base: 153 ½" (12' 9 ½")
- Drive Thru (Outside of Tire to Outside of Tire): 80 ½" (6' 8 ½")
- Cable Diameter: .350"

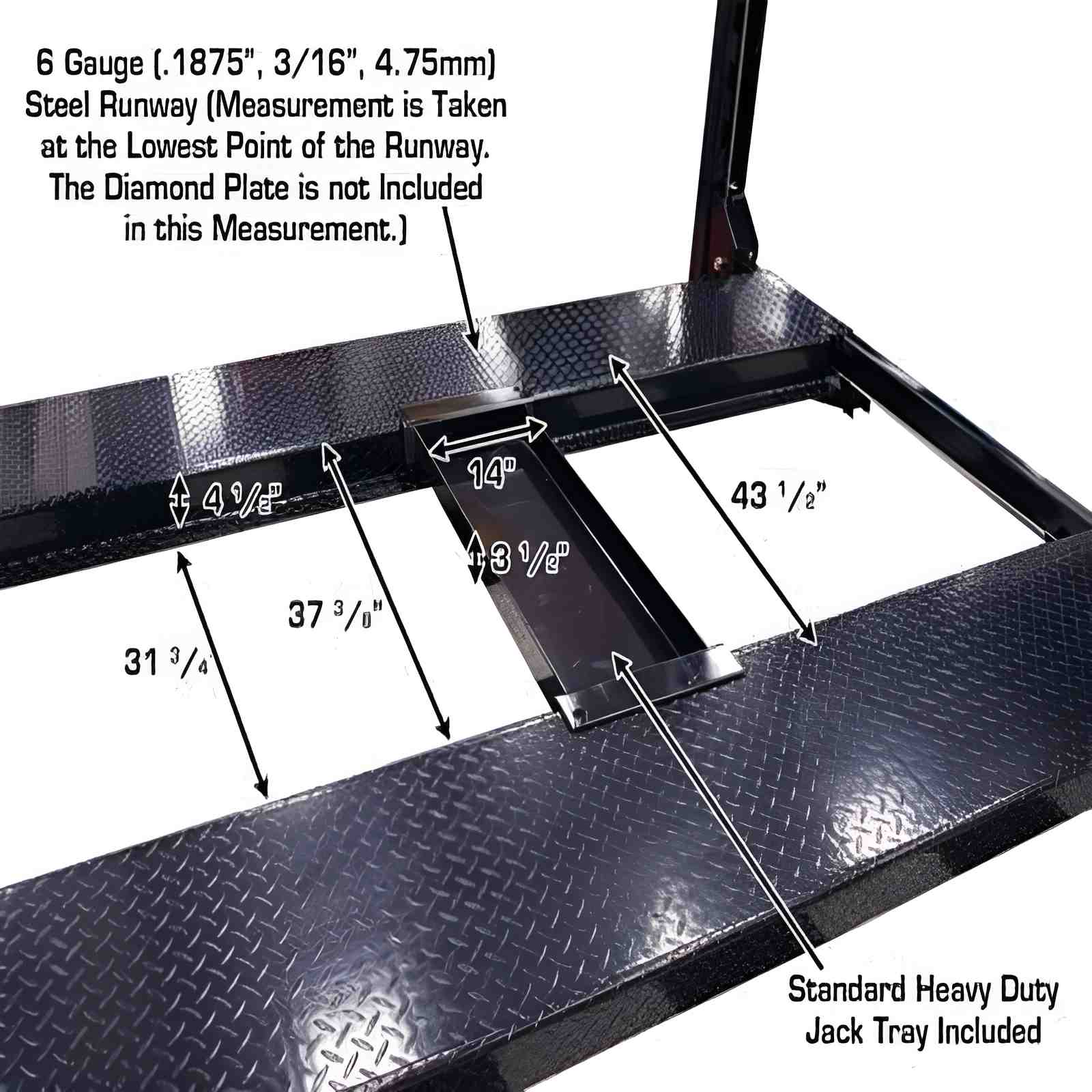

- Gauge of Steel: 6 Gauge (.1875"/ 3/16"/ 4.75mm)

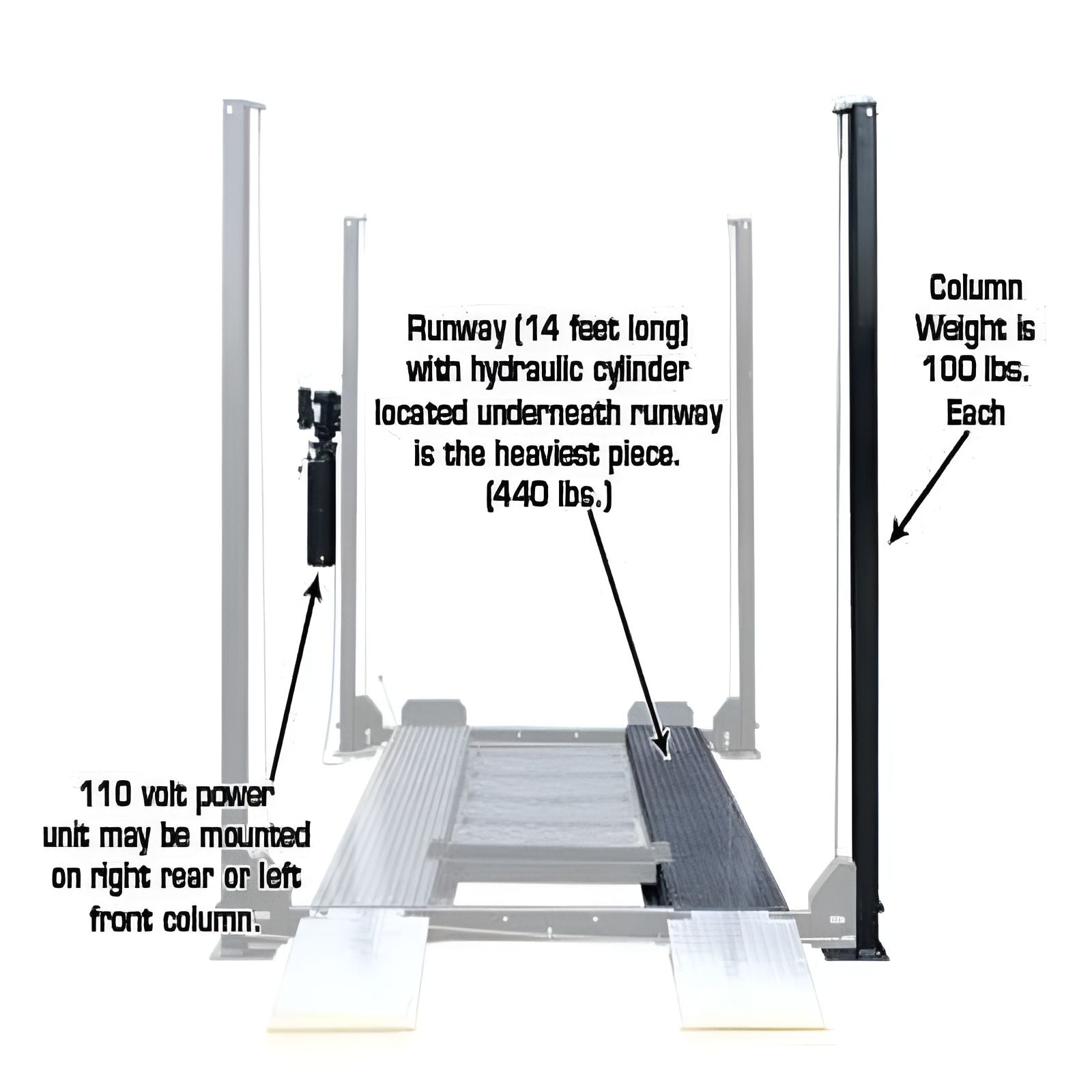

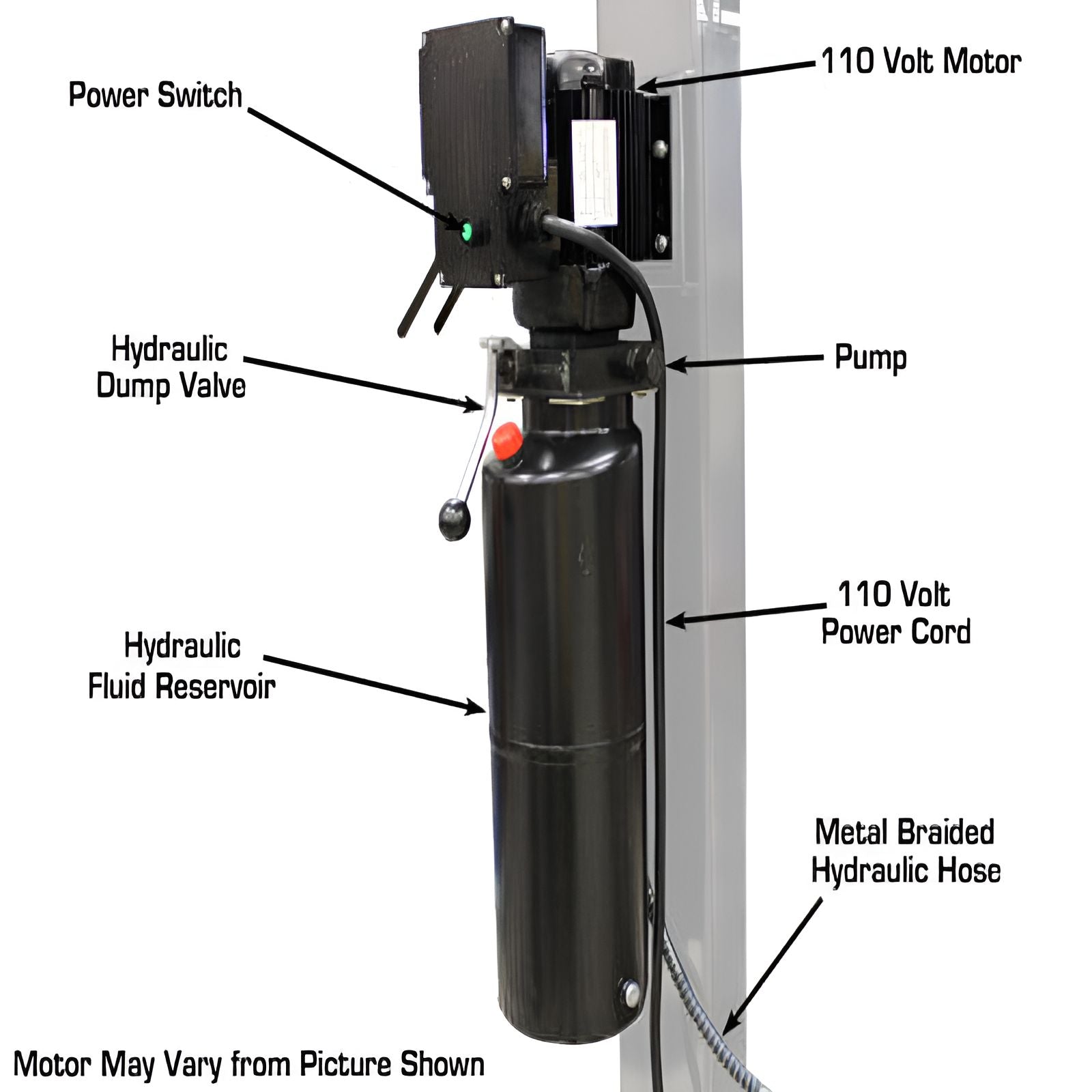

- Motor: 110 Volt, requires a 30 amp breaker
- Shipping Weight: 1,739 LB
PRO8000EXT 4 Post Lift Special Features
- 8,000 lb. Capacity
- Free Standing/Portable Design
- EXTRA TALL, GREATER CLEARANCE UNDER RUNWAYS
- Diamond Plated Runways

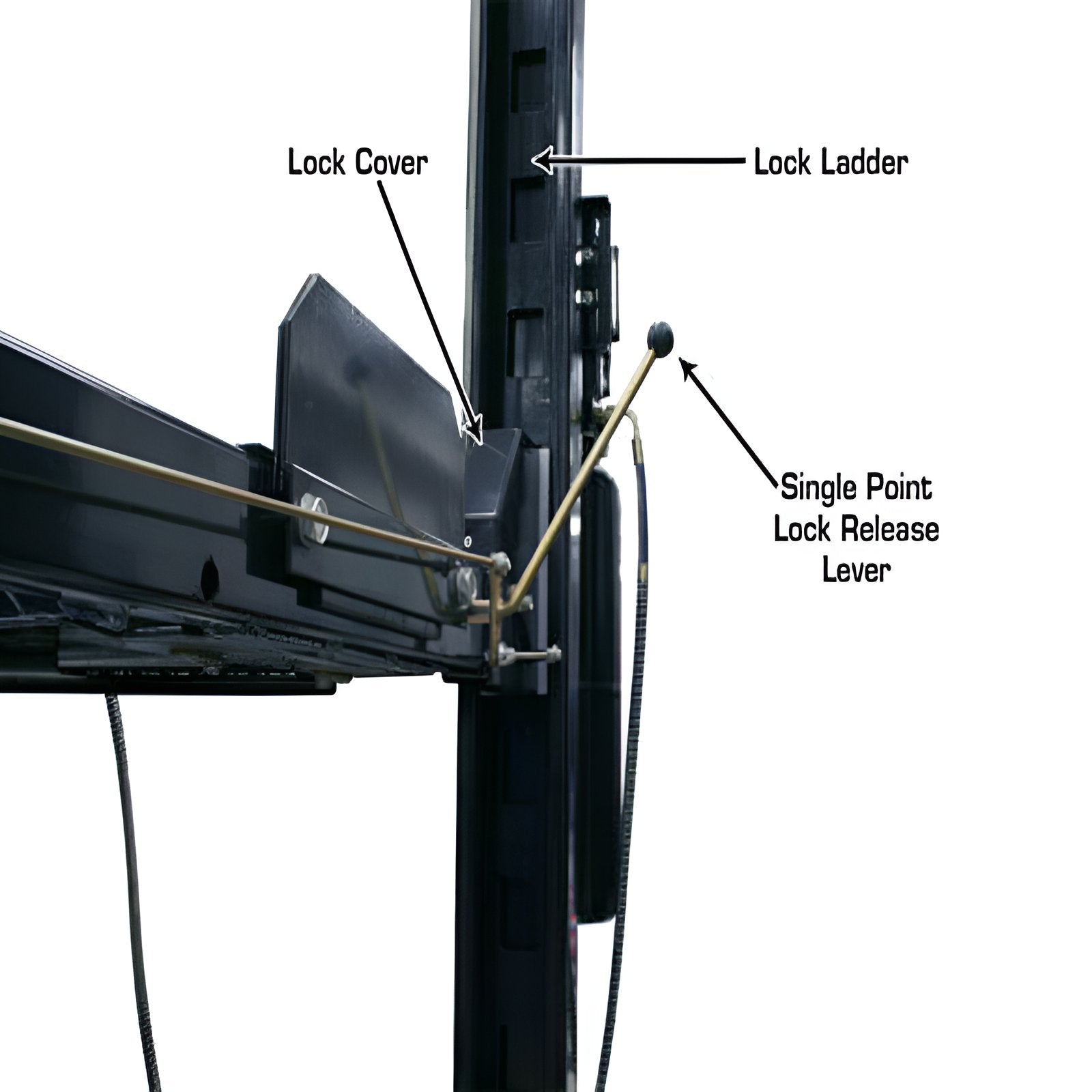

- Single-Point Lock Release
- Lock Ladder Design
- Double Lock Safety System

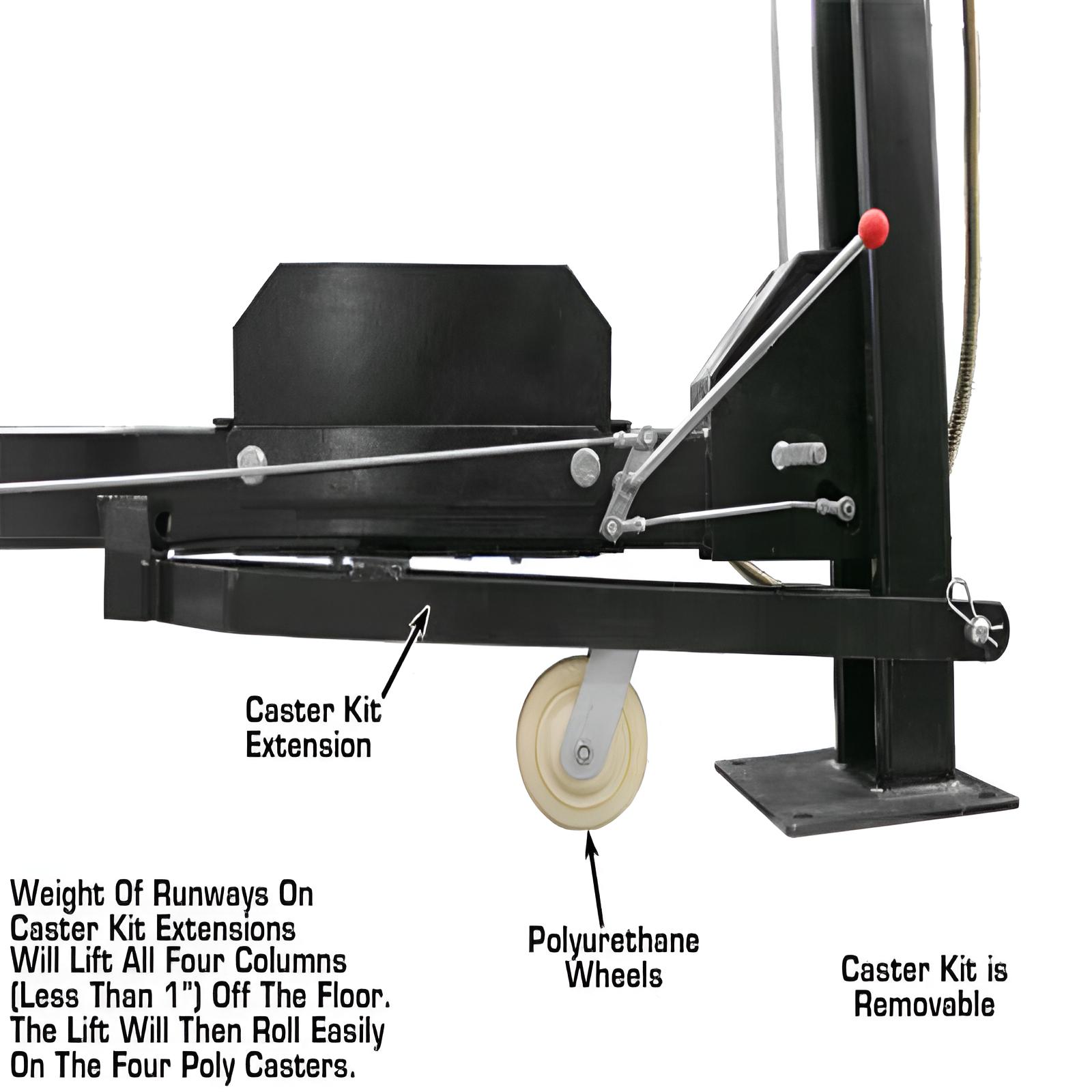

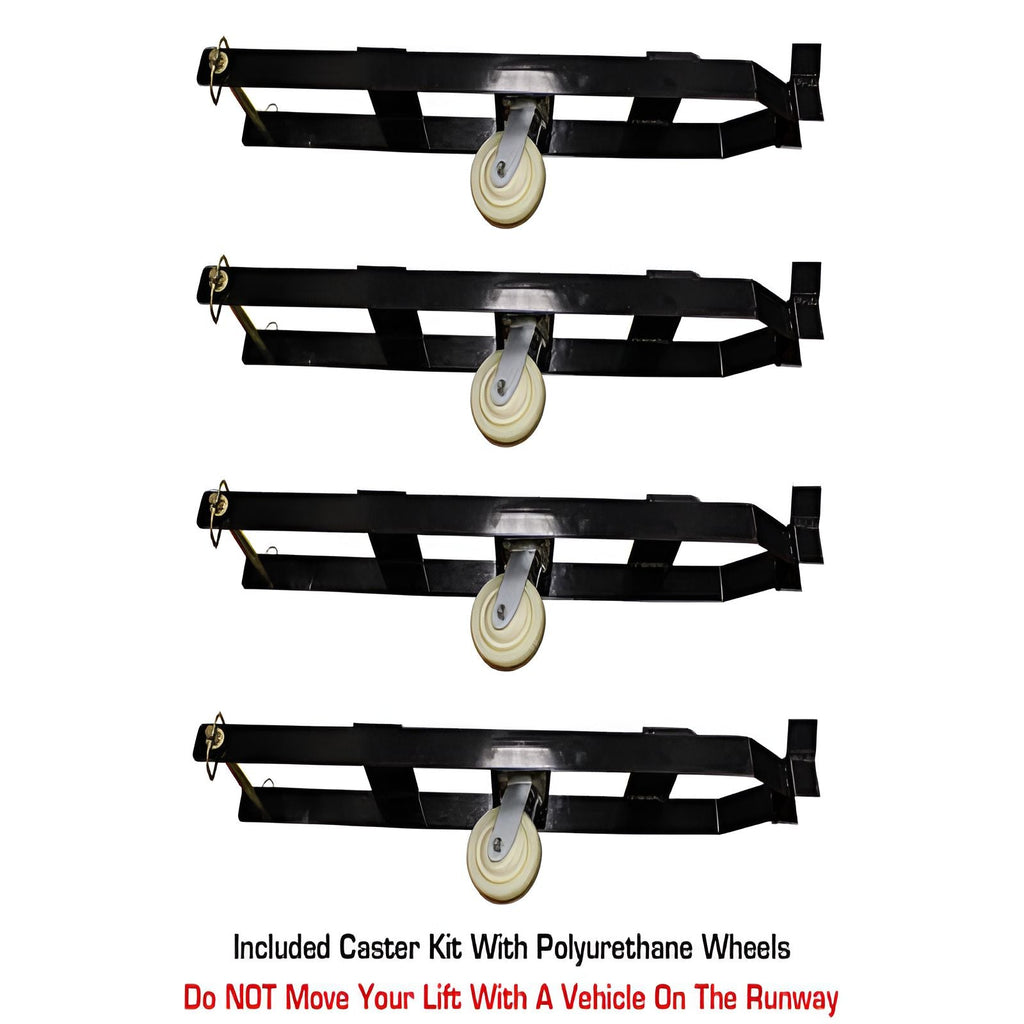

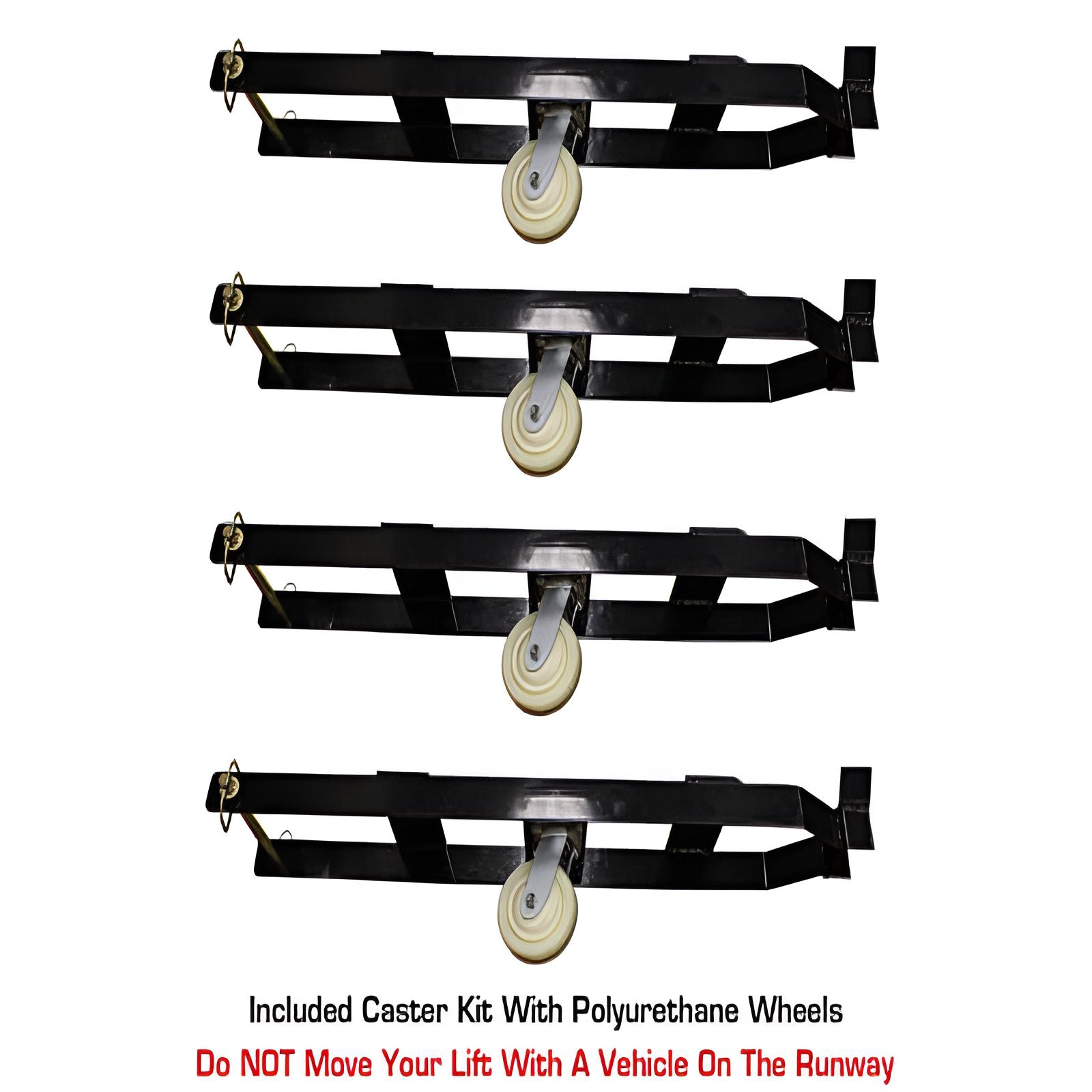

- Caster Kit With Polyurethane Wheels Included
- Steel Approach Ramps Included
- Steel Jack Tray Included
- 4 Plastic Drip Trays Included
- 4 Wheel Stops Included

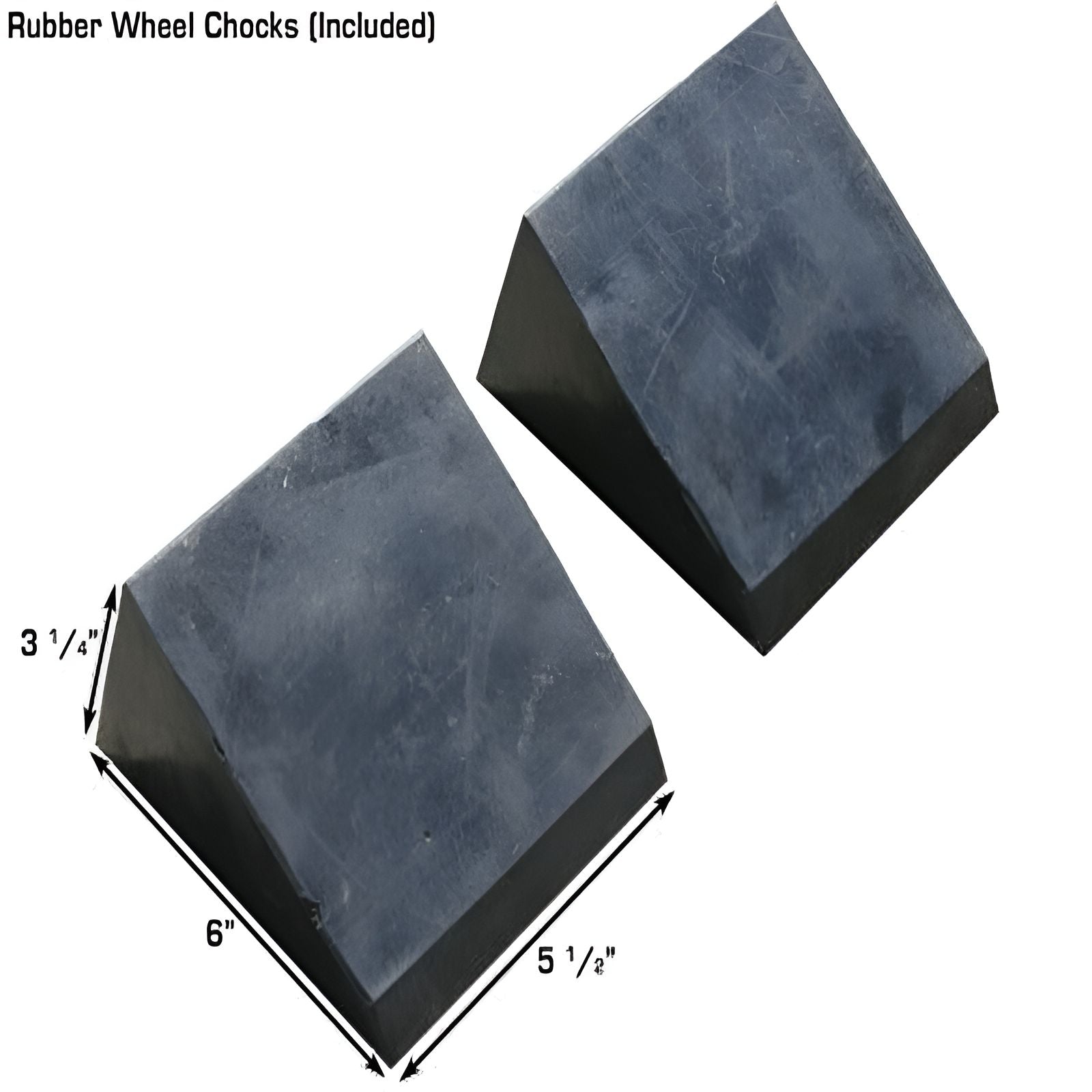

- 2 Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles
- 110volt Electric Operation (30 AMP BREAKER REQUIRED)
- Shipping Weight 1,850 lbs.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

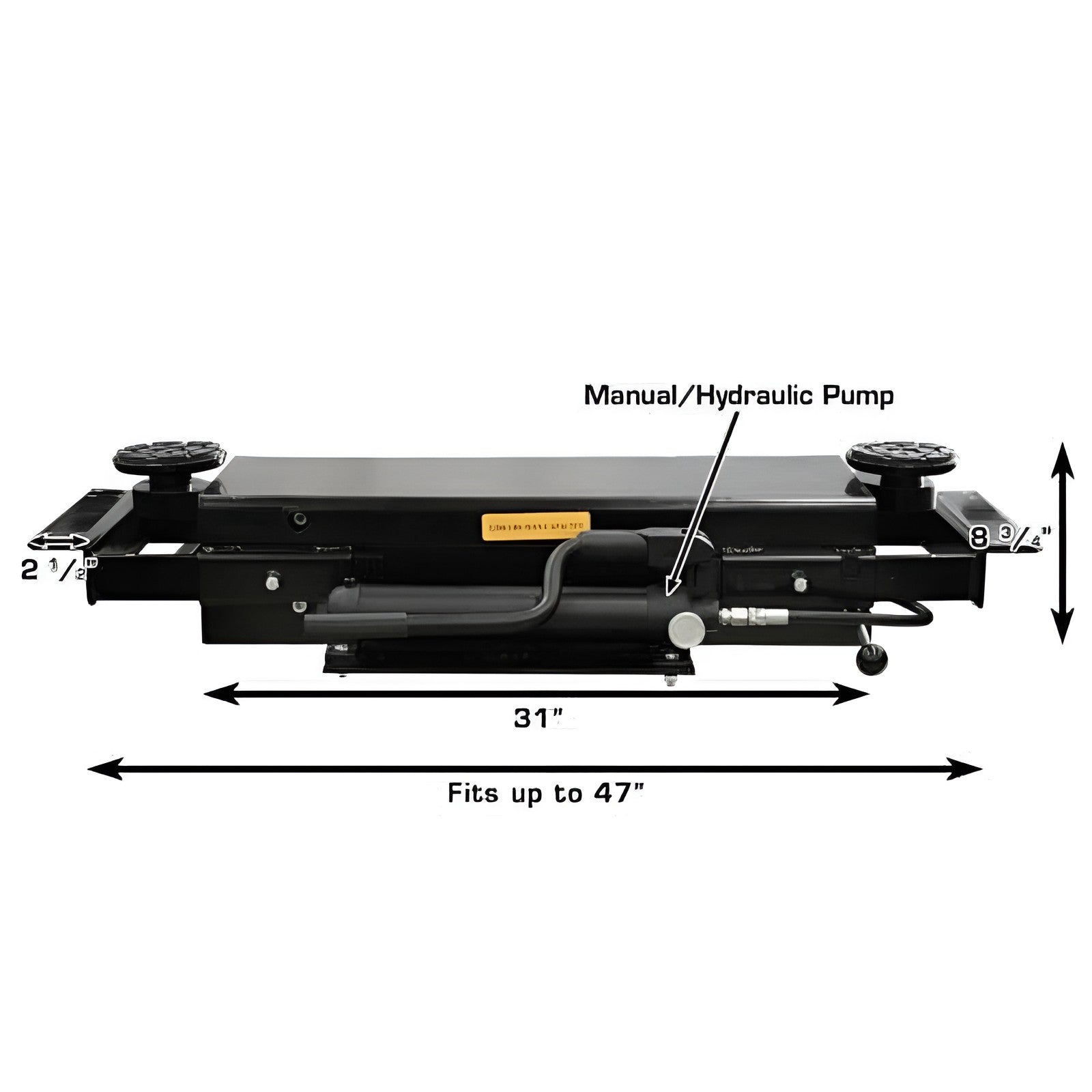

ProJack35 Specifications
- Qty: 2
- Capacity: 3,500 LB
- Minimum Width: 29 1/2"
- Minimum Width with Arms In: 39 1/2"
- Maximum Width with Arms Out: 64 3/4"
- Working Width: 31" - 47"
- Minimum Height with Lift Pad: 3 1/2"
- Lifting Pad: 1 3/8"

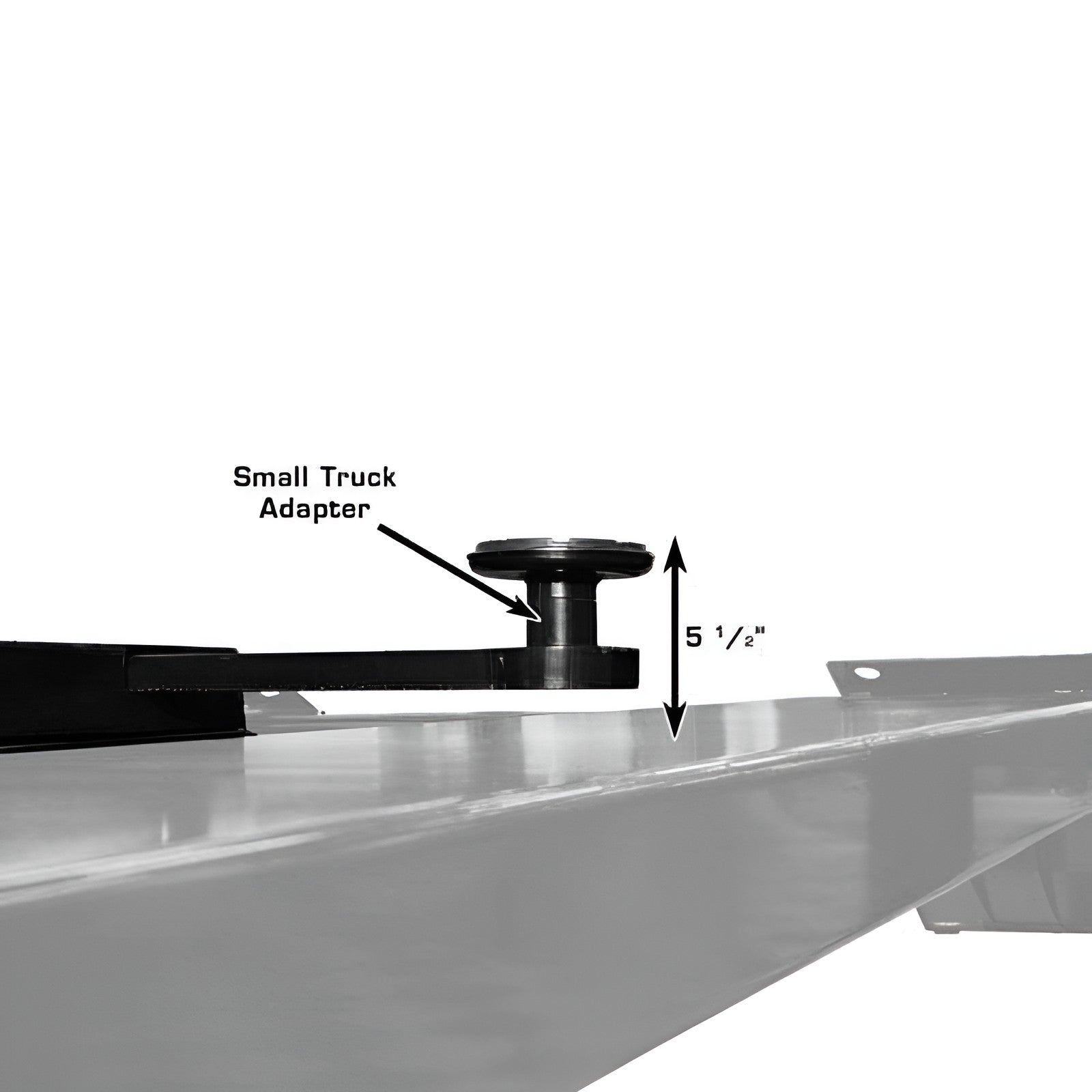

- Short Adapter: 1 1/4"
- Tall Adapter: 5"
- Raised Height without Adapter: 11"
- Raised Height with Small Adapter: 12 1/4"

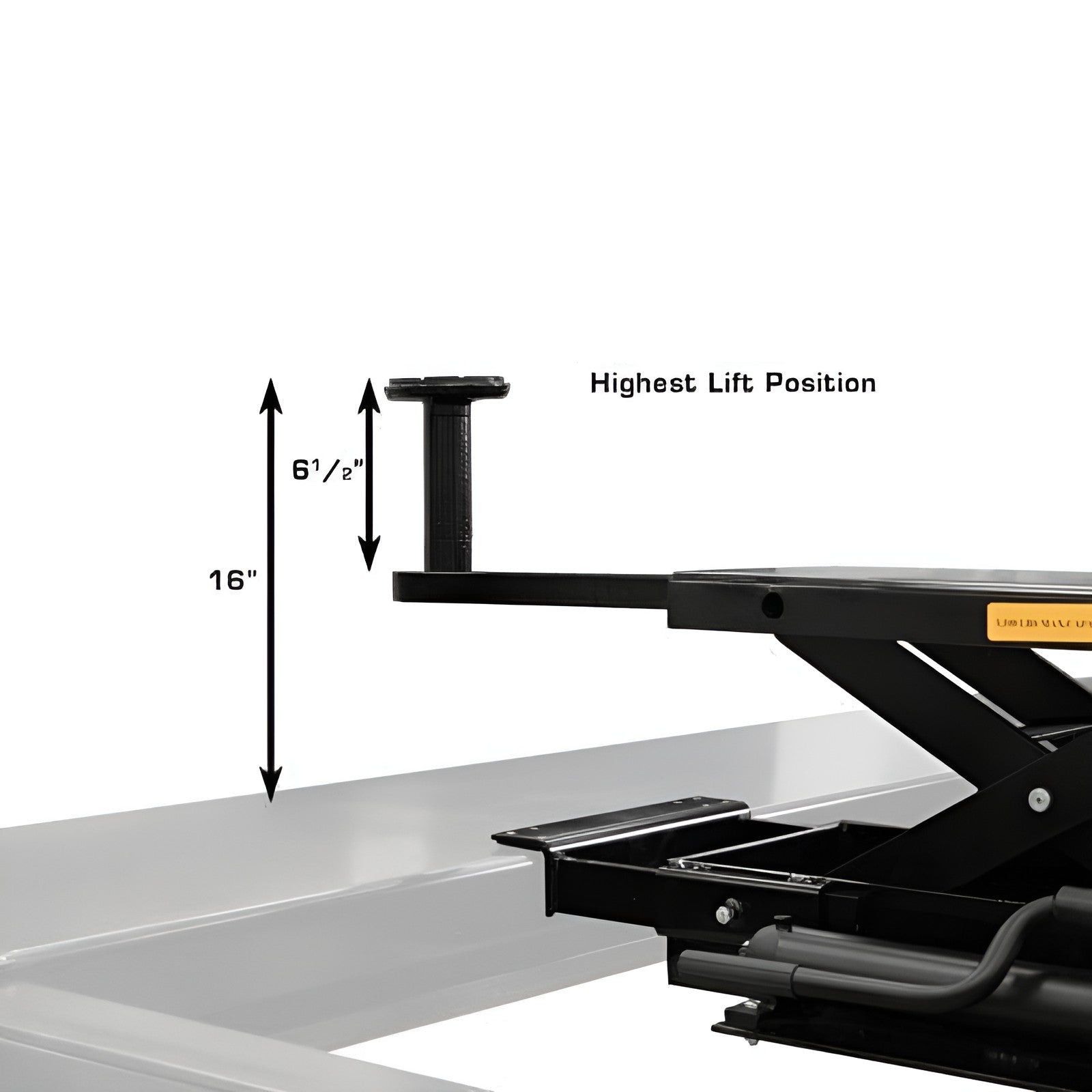

- Raised Height with Large Adapter: 16"
- Raised Height with Small and Large Adapter: 17 1/4"
- Shipping Weight: 350 LB

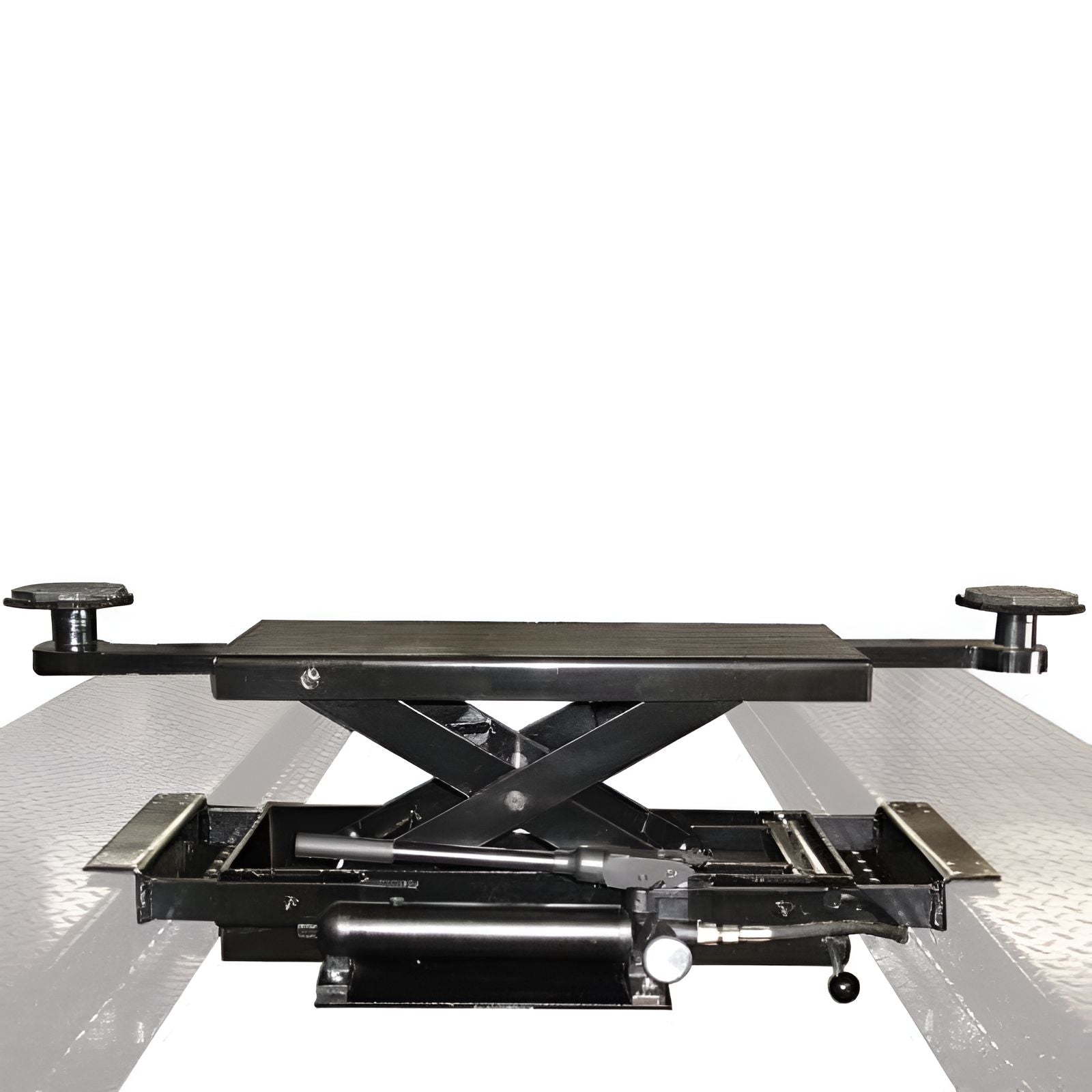

PROJACK35 Special Features
- Sliding Bridge Jack
- Capacity: 3,500 lbs.
- Manual, hand pump operated
- Scissor mechanism allows for level lifting
- Low Profile, Compact Design
- Adjustable Width to fit many 4-post lifts
- Adjustable Lift Arms to reach many lifting points
- Multiple Safety Lock Positions
- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
PRO8000EXT + RJ35 Manual
Pro8000EXT 4 Post Parking Lift Optional Items (sold separately):
- ProJack35 Sliding Jack
- Atlas PRO8000EXT 4 Post Lift
Warehouse Pickup locations (No shipping charge):
- Atlanta, GA
- Dallas, TX
- Indianapolis, IN
- Phoenix, AZ
- Somerset, NJ
