The Atlas® Garage PRO8000, you can double your workspace without the need for costly renovations. Take on more projects, increase efficiency, and boost your profit, all while using the same footprint. This 4-post lift is the game-changer your shop needs.

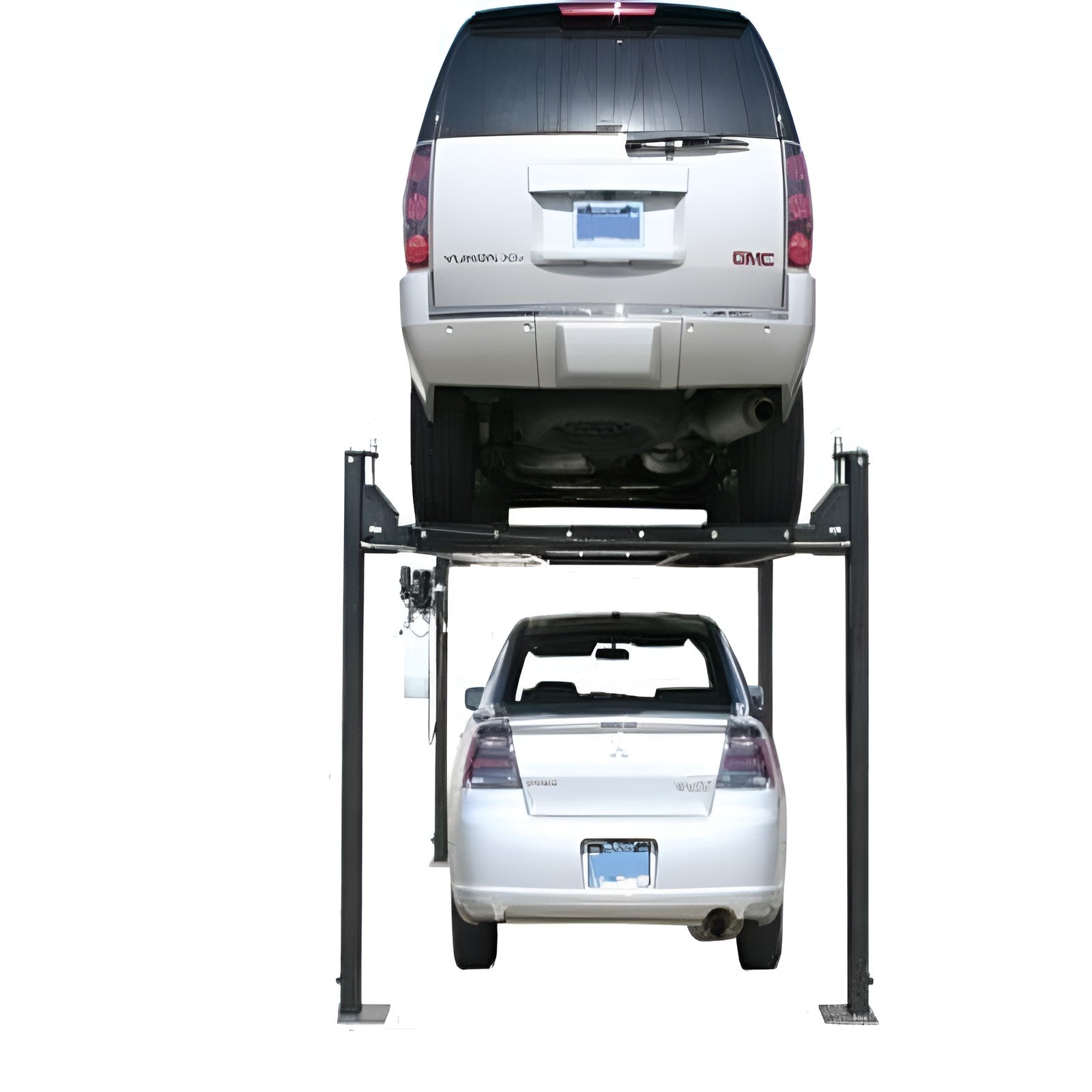

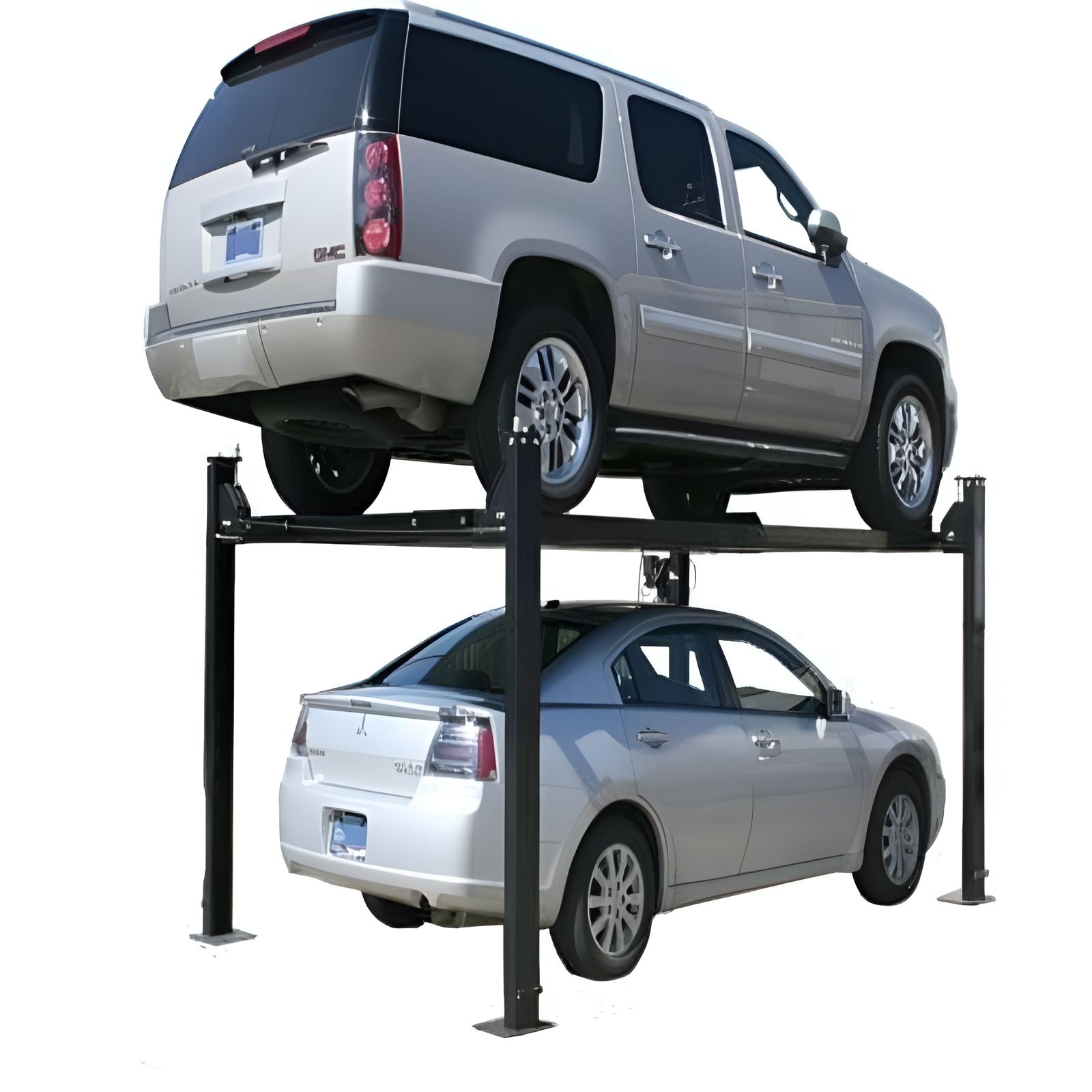

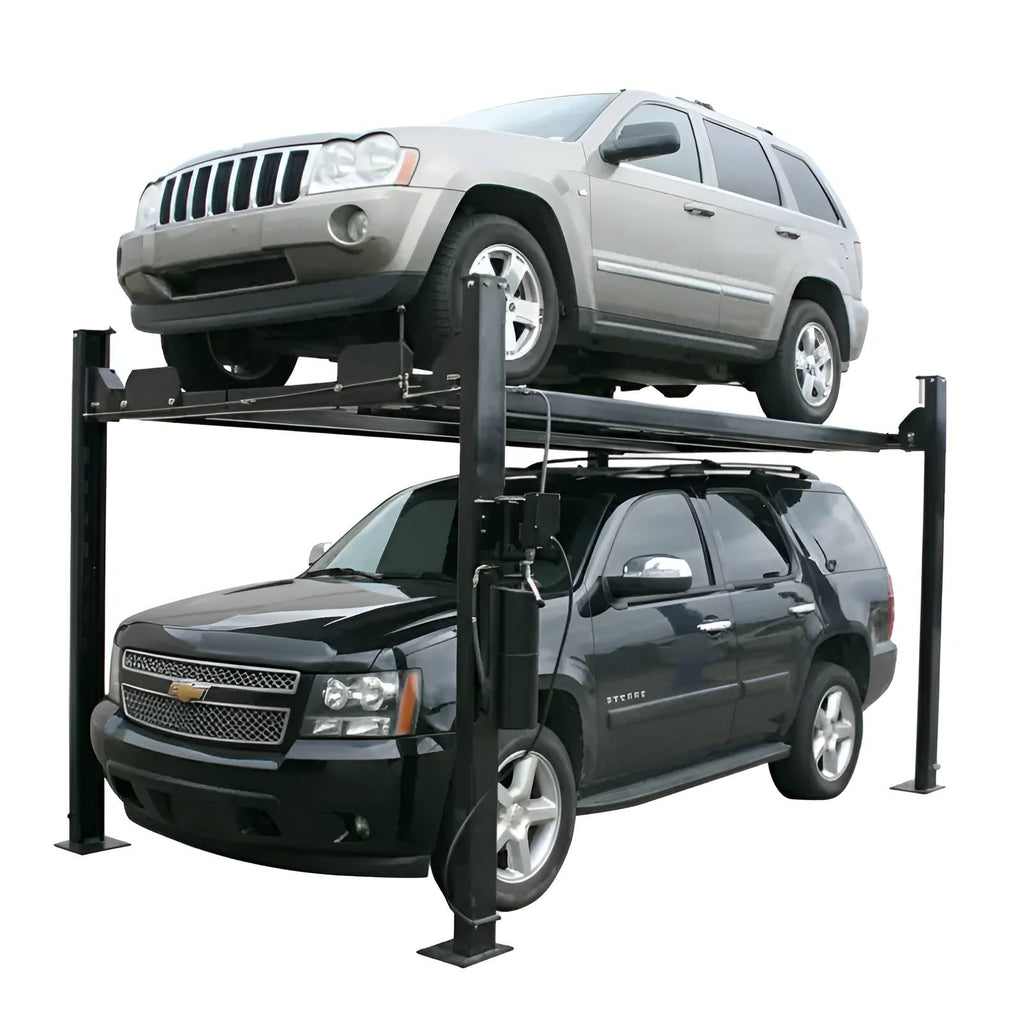

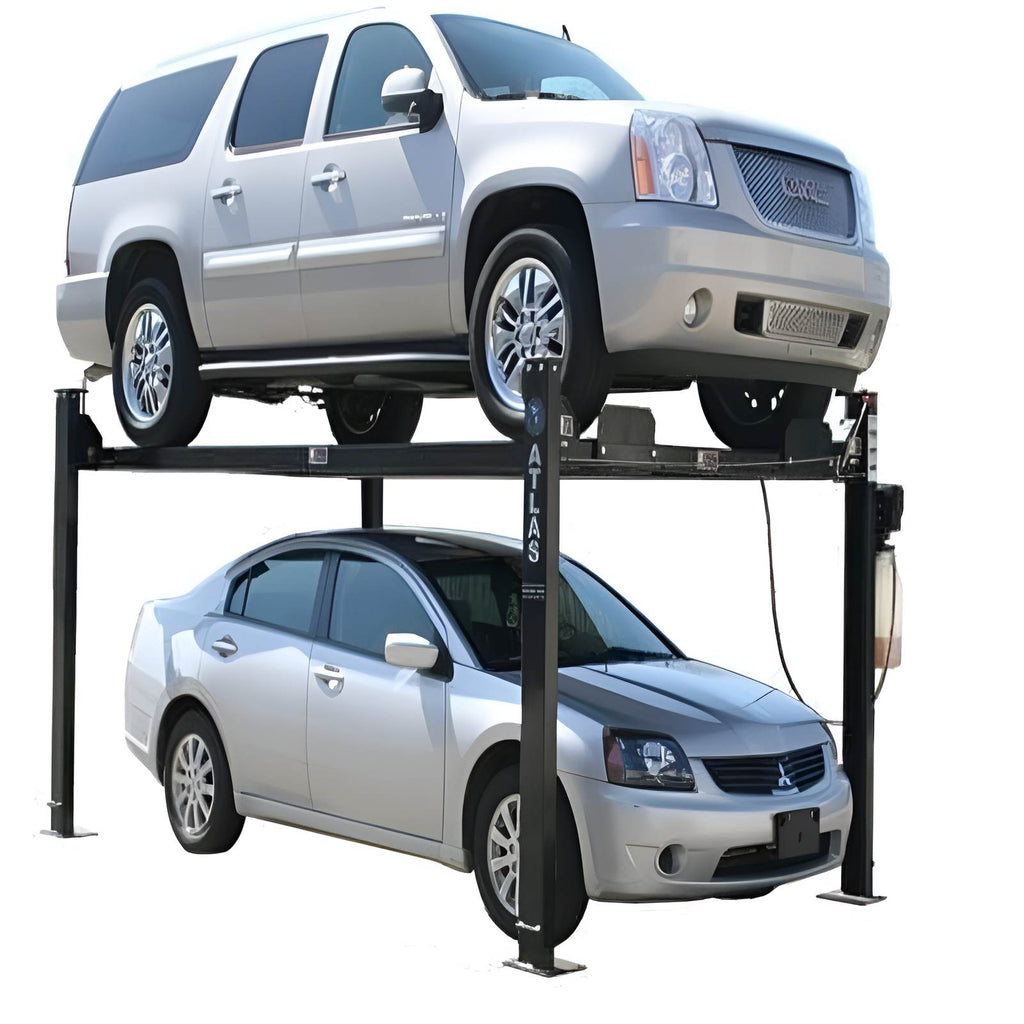

With an 8,000 lb. capacity and 72" lifting height, the Atlas® Garage PRO8000 allows you to create a double-decker parking solution. The 67-inch clearance under the runways offers ample space for working beneath vehicles, freeing up room for additional projects. Designed to fit most shop layouts, this lift is 115" wide (with motor) and 206.75" long (with ramps), providing the flexibility to accommodate various vehicle sizes. Its caster kit makes relocation a breeze, allowing you to reposition the lift quickly as your needs evolve.

The Atlas® Garage PRO8000 provides stability and accessibility with 21.5" wide runways and 37" between runways, ensuring it can handle everything from cars to larger vehicles. Powered by 110-volt electricity with a 30-amp breaker, this lift is easy to integrate into your shop’s current setup. Included plastic drip trays and a steel jack tray equip you for a wide range of tasks, from routine maintenance to heavier service work.

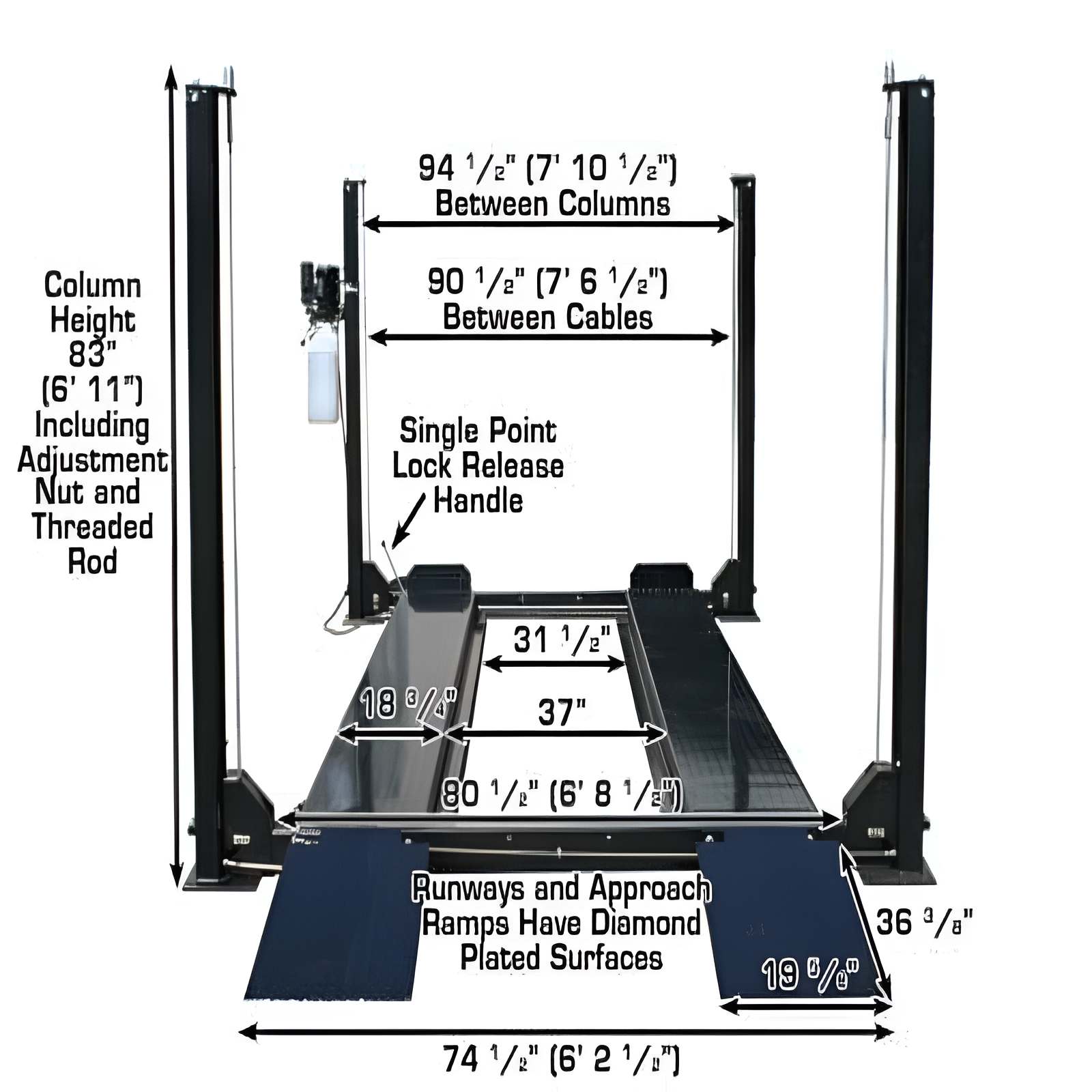

Atlas 8000 4 Post Lift Specifications:

• Capacity: 8,000 lb

• Lifting Height to Top of Runway: 72" (6')

• Clearance Under Runways: 67" (5' 7")

• Height of Columns: 83" (6' 11")

• Overall Width (Without Motor): 104 1/2" (8' 8 1/2")

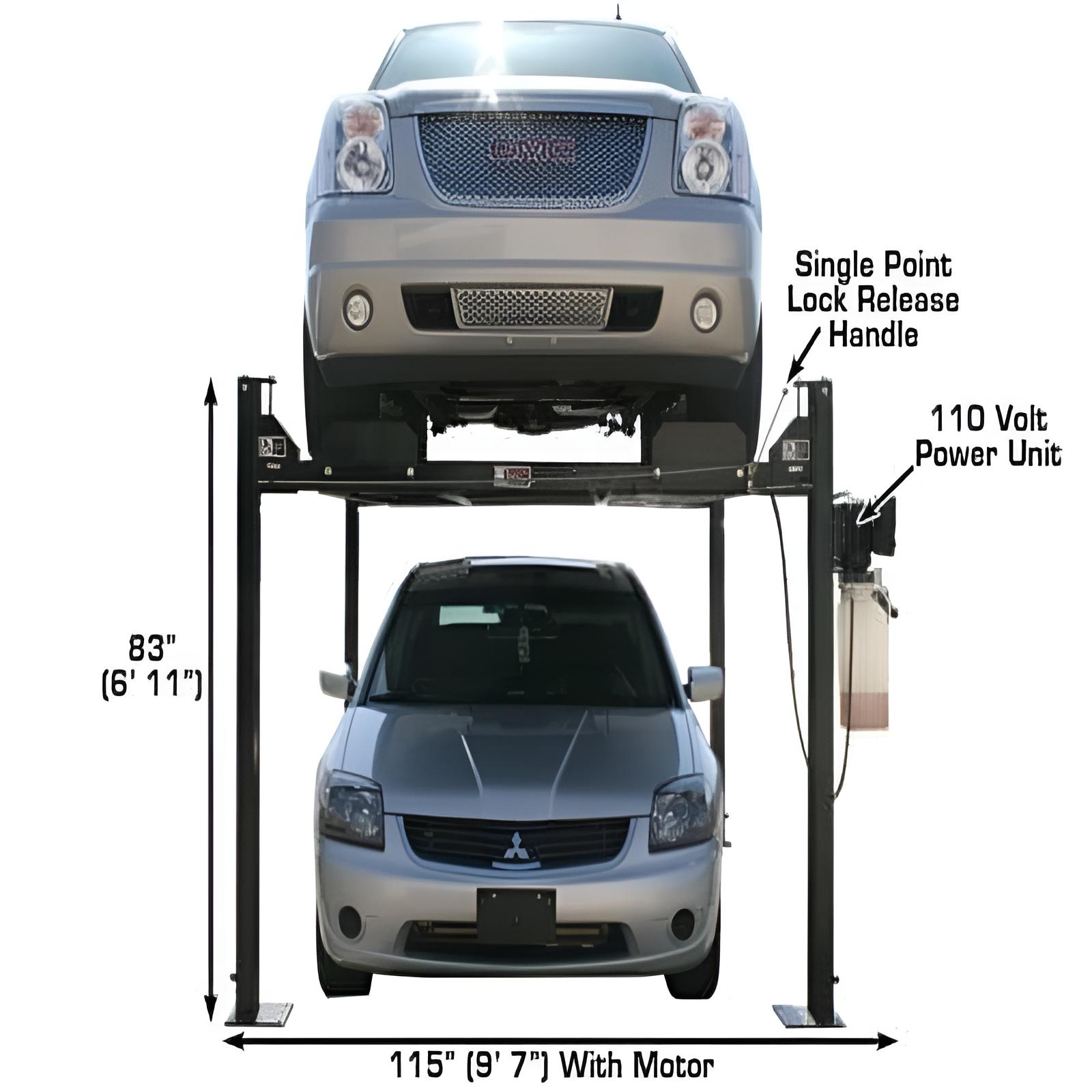

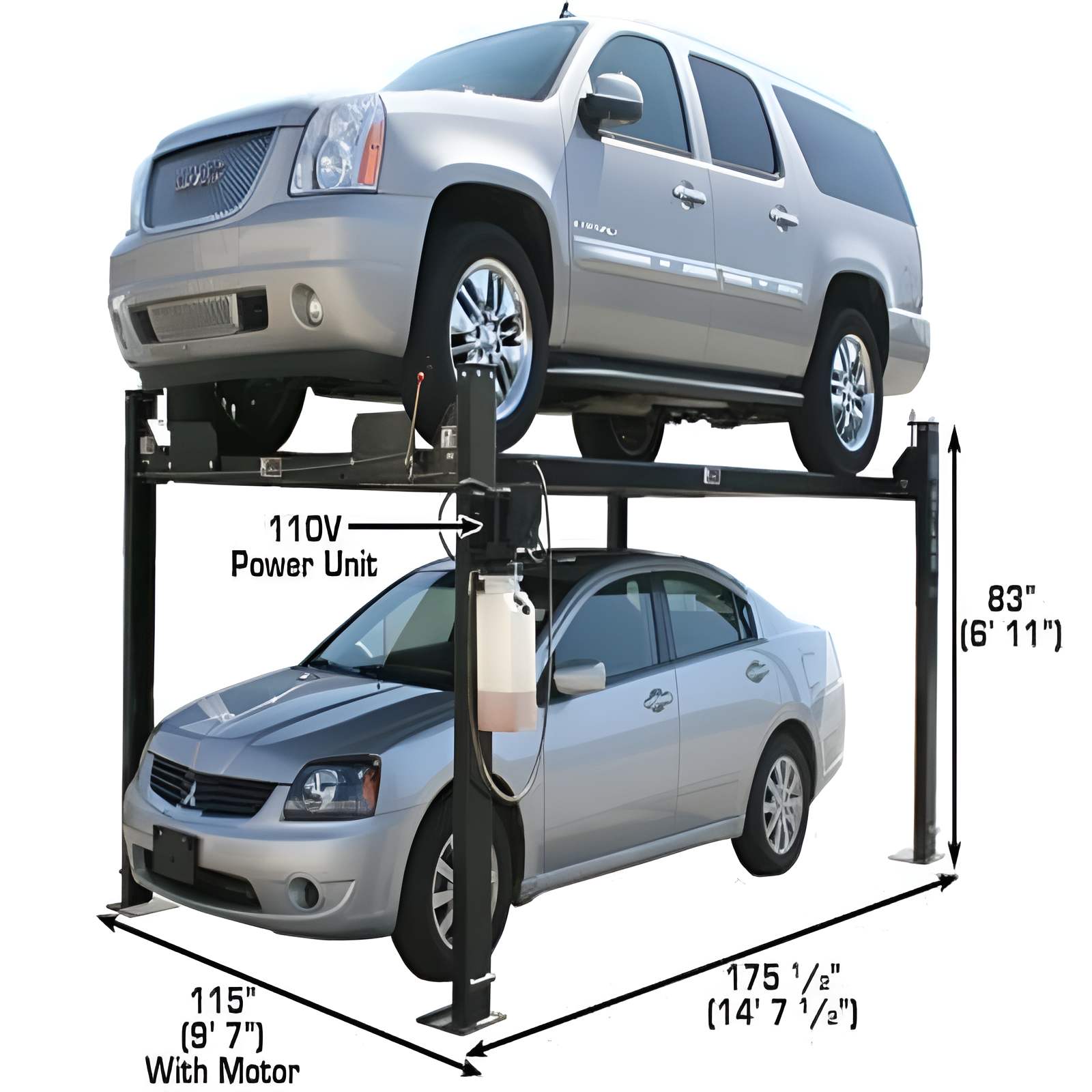

• Overall Width (With Motor): 115" (9' 7")

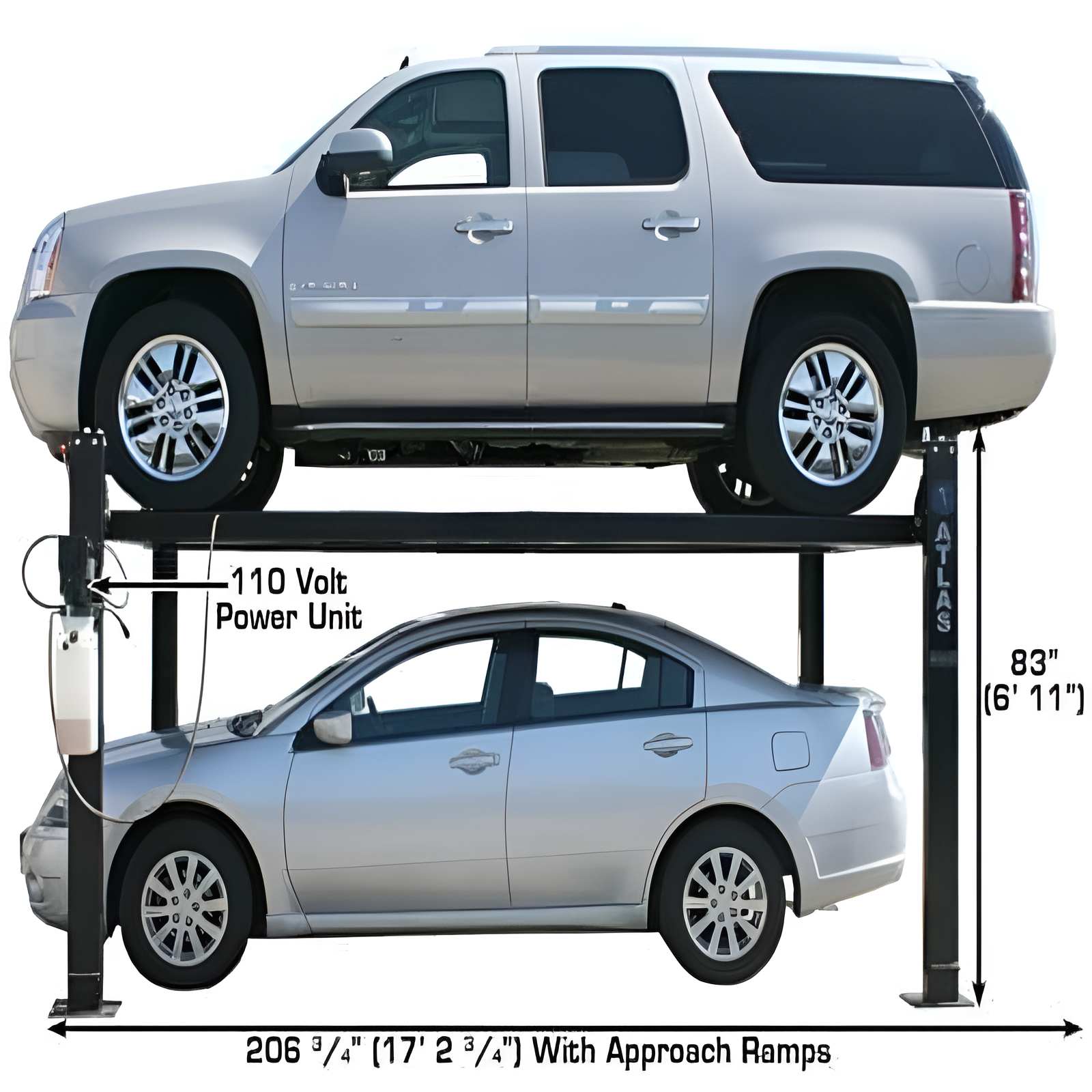

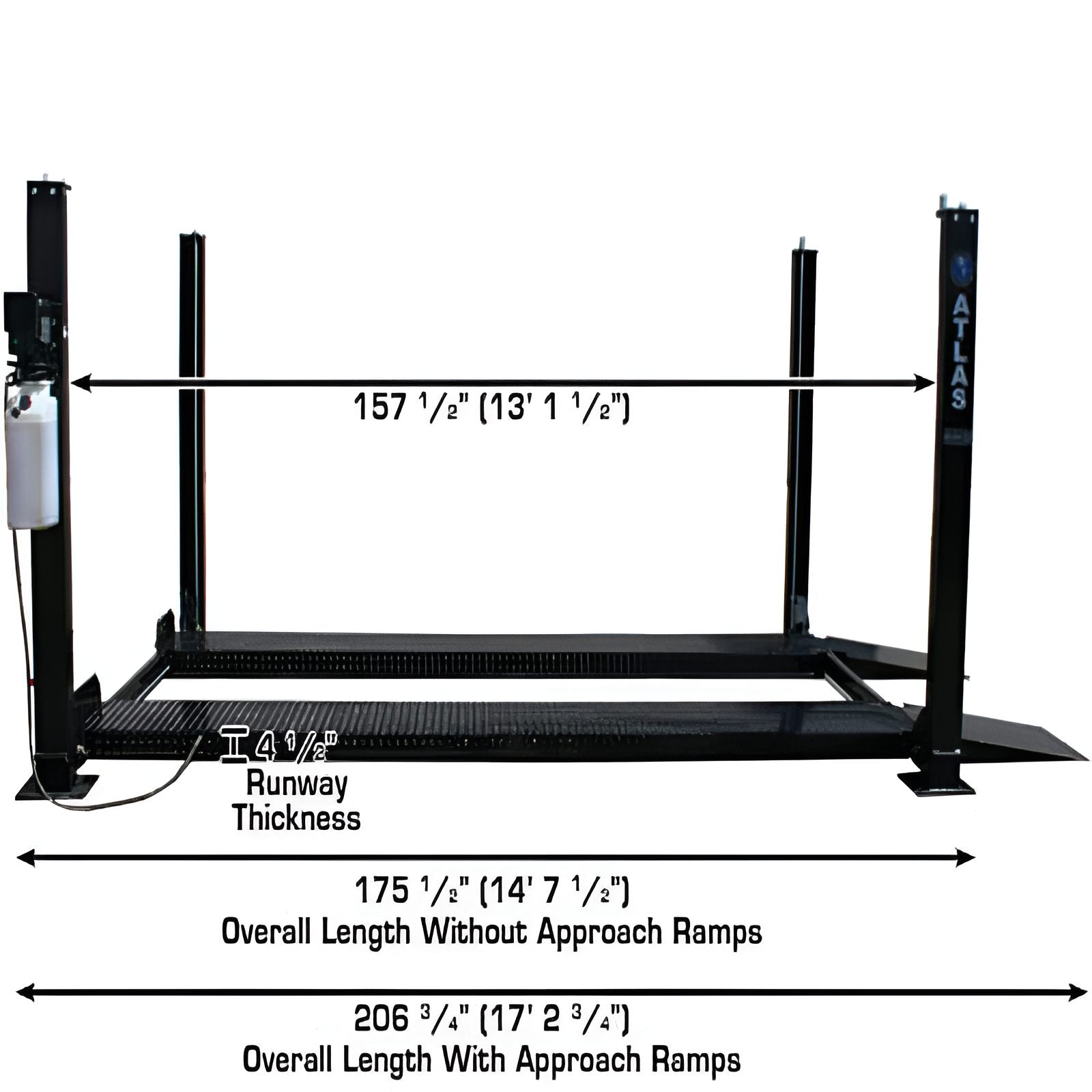

• Overall Length with Approach Ramp: 206 3/4" (17' 2 3/4")

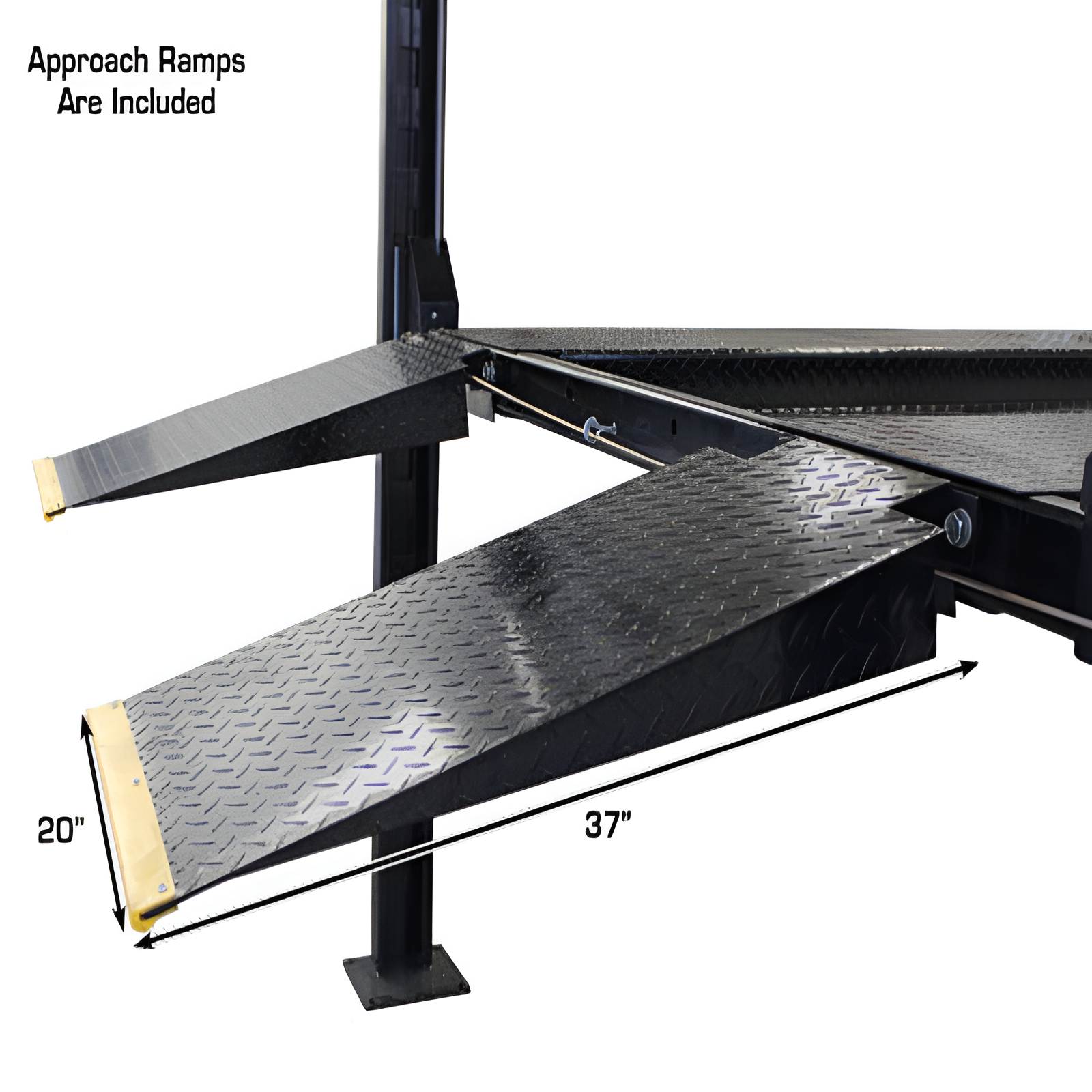

• Approach Ramp: 37" (3' 1")

• Runway Width: 21 1/2" (with Rails) or 18 3/4" (Driving Surface)

• Runway Length: 165 3/4" (13' 9 3/4")

• Runway Thickness: 4 1/2"

• Width Between Runways: 37" (3' 1")

• Width Between Runway Rails: 31 1/2" (2' 7 1/2")

• Outside Runway to Outside Runway: 74 5/8" (6' 2 5/8")

• Clearance Between Columns: 94 1/2" (7' 10 1/2")

• Length Between Columns: 157 1/2" (13' 1 1/2")

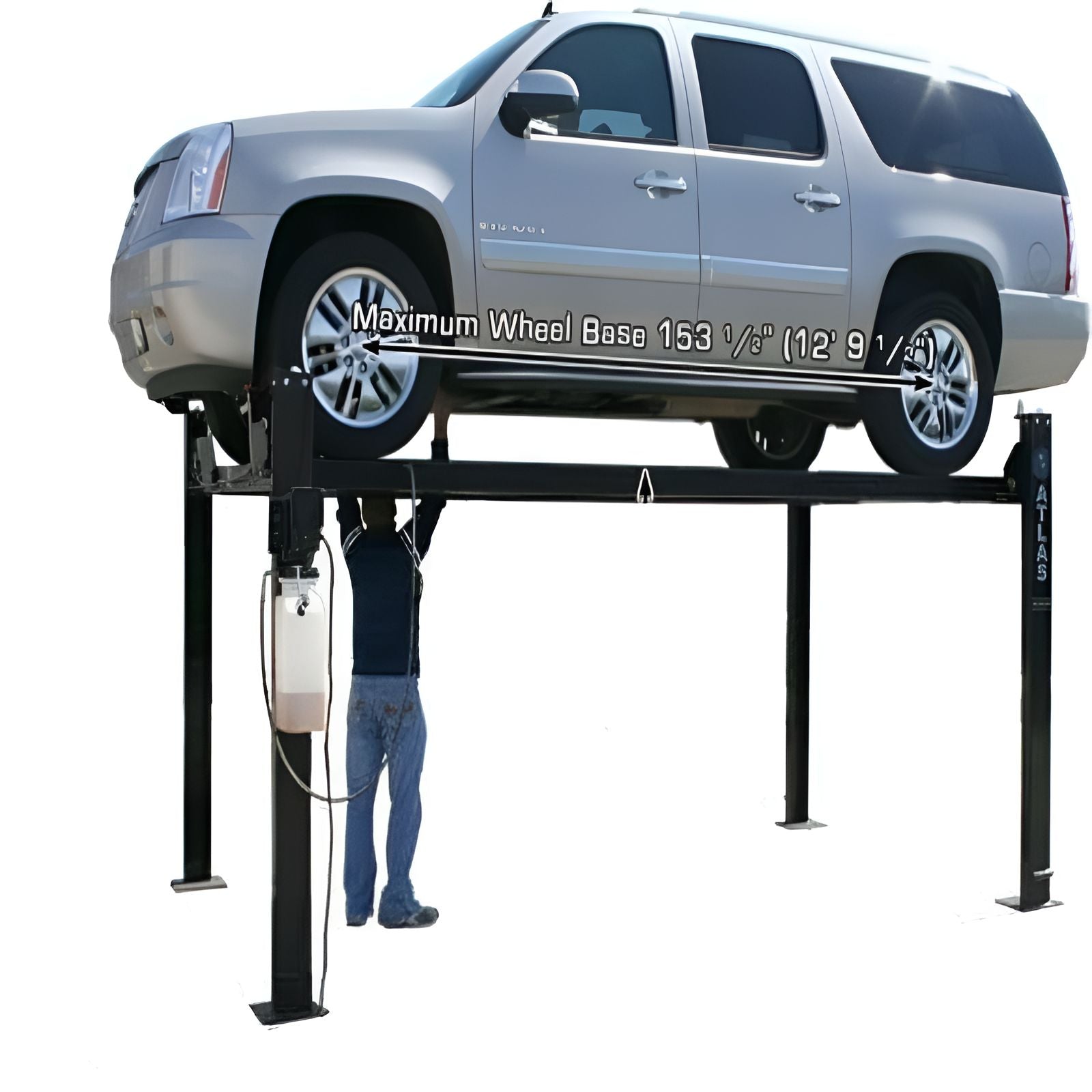

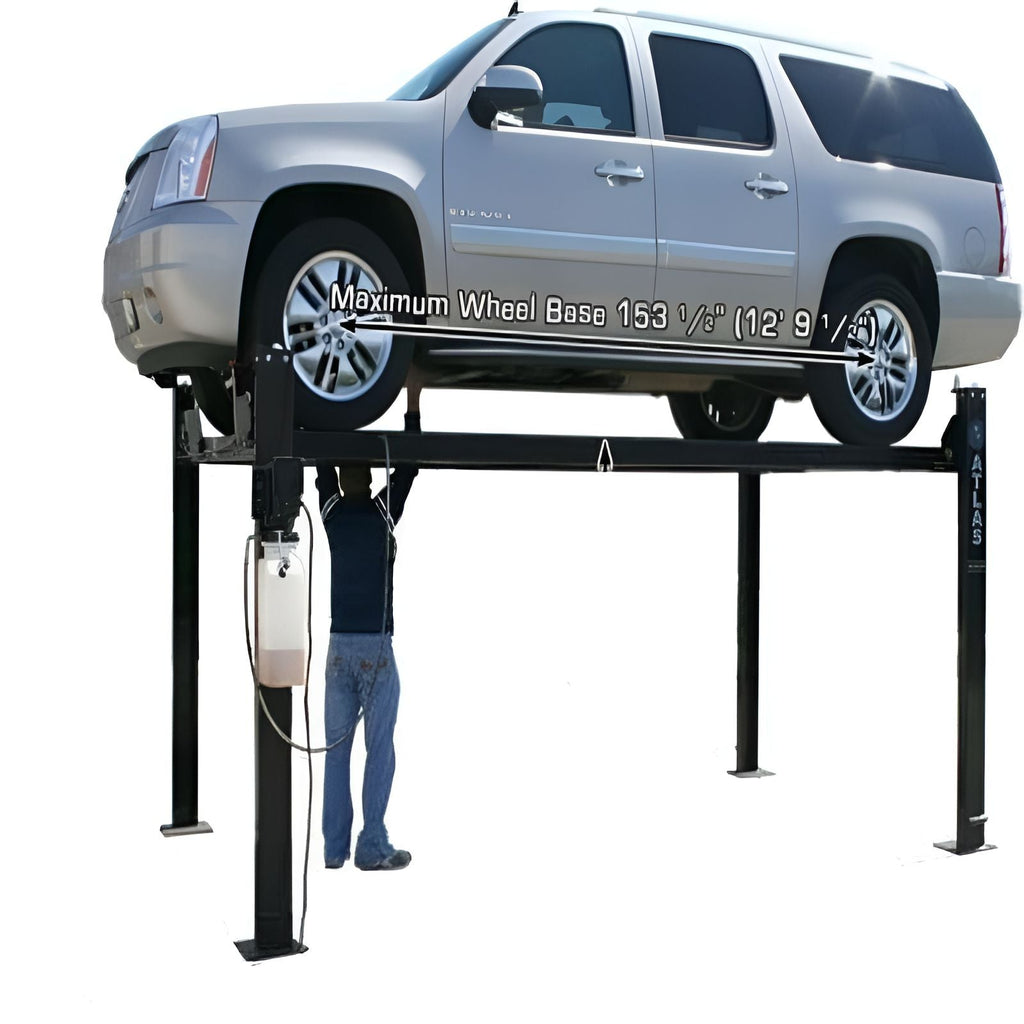

• Maximum Wheel Base: 153 1/2" (12' 9 1/2")

• Drive Thru (Outside of Tire to Outside of Tire): 80 1/2" (6' 8 1/2")

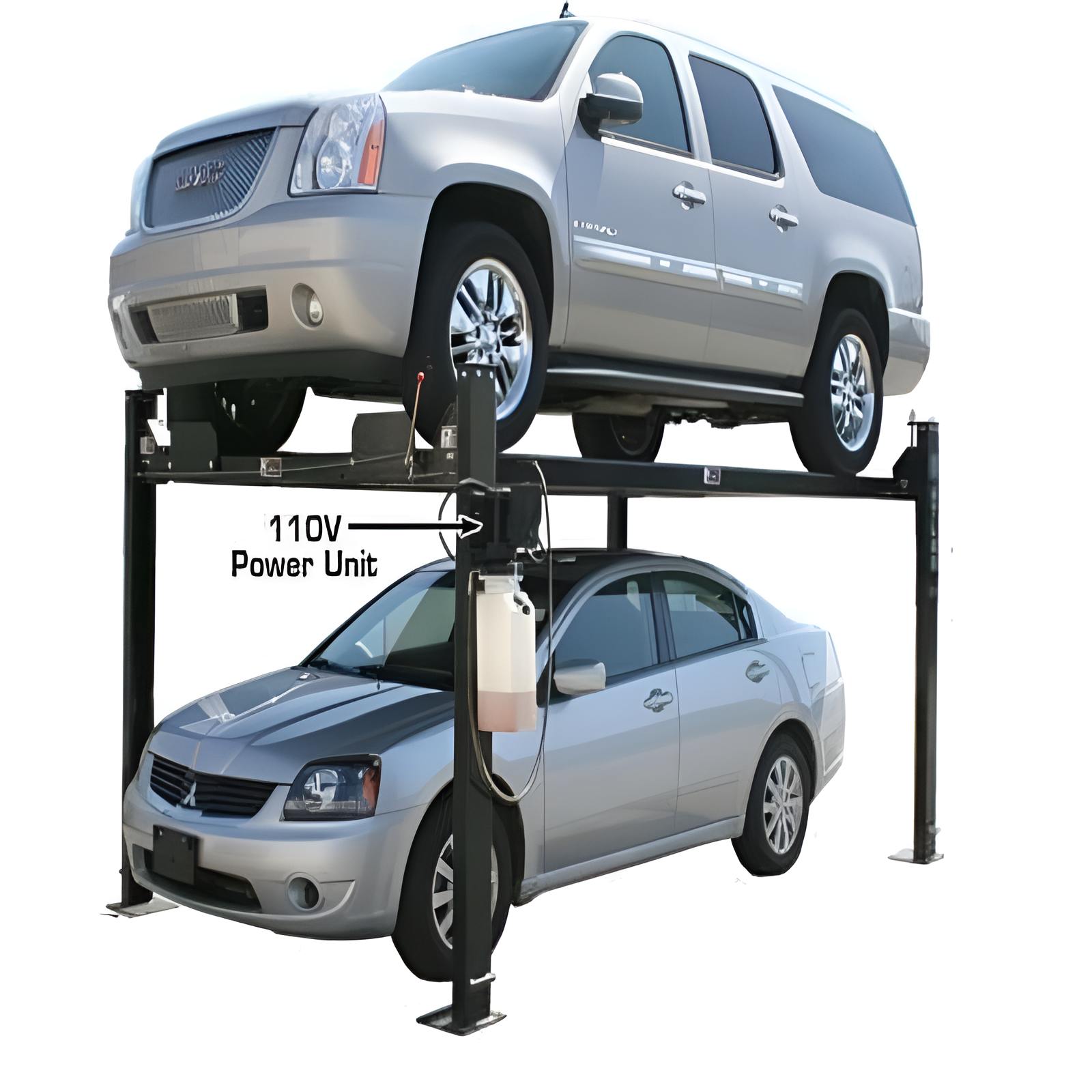

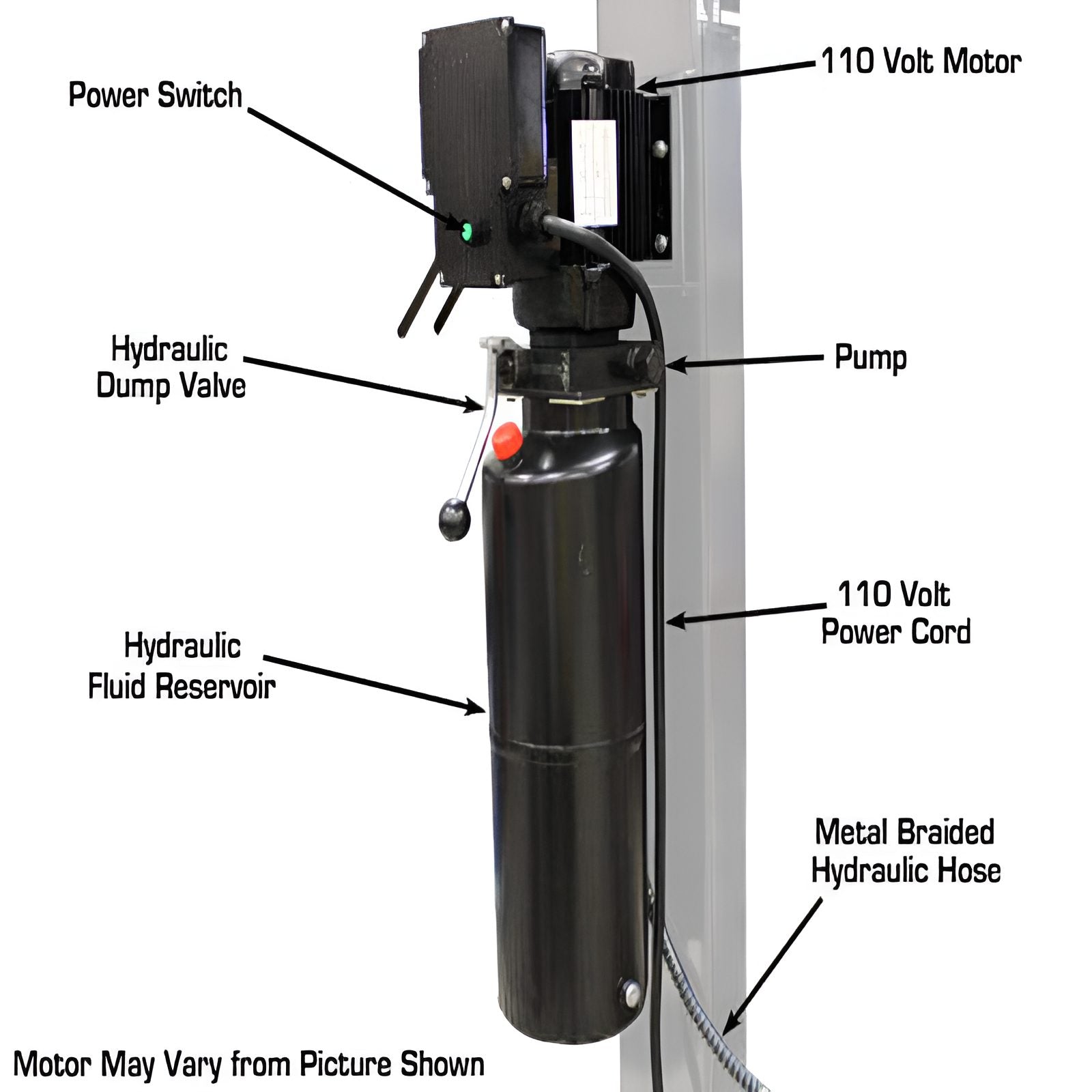

• Power: 110-volt Electric Operation (30 AMP Breaker Required)

• Shipping Weight: 1,800 lbs

• Pallet Size: 167" Long x 28-1/2" Tall x 22" Wide

Garage Pro8000 4 Post Vehicle Storage Lift Special Features:

• Capacity: 8,000 lb
• Design Free Standing & Portable
• Diamond Plated Runways

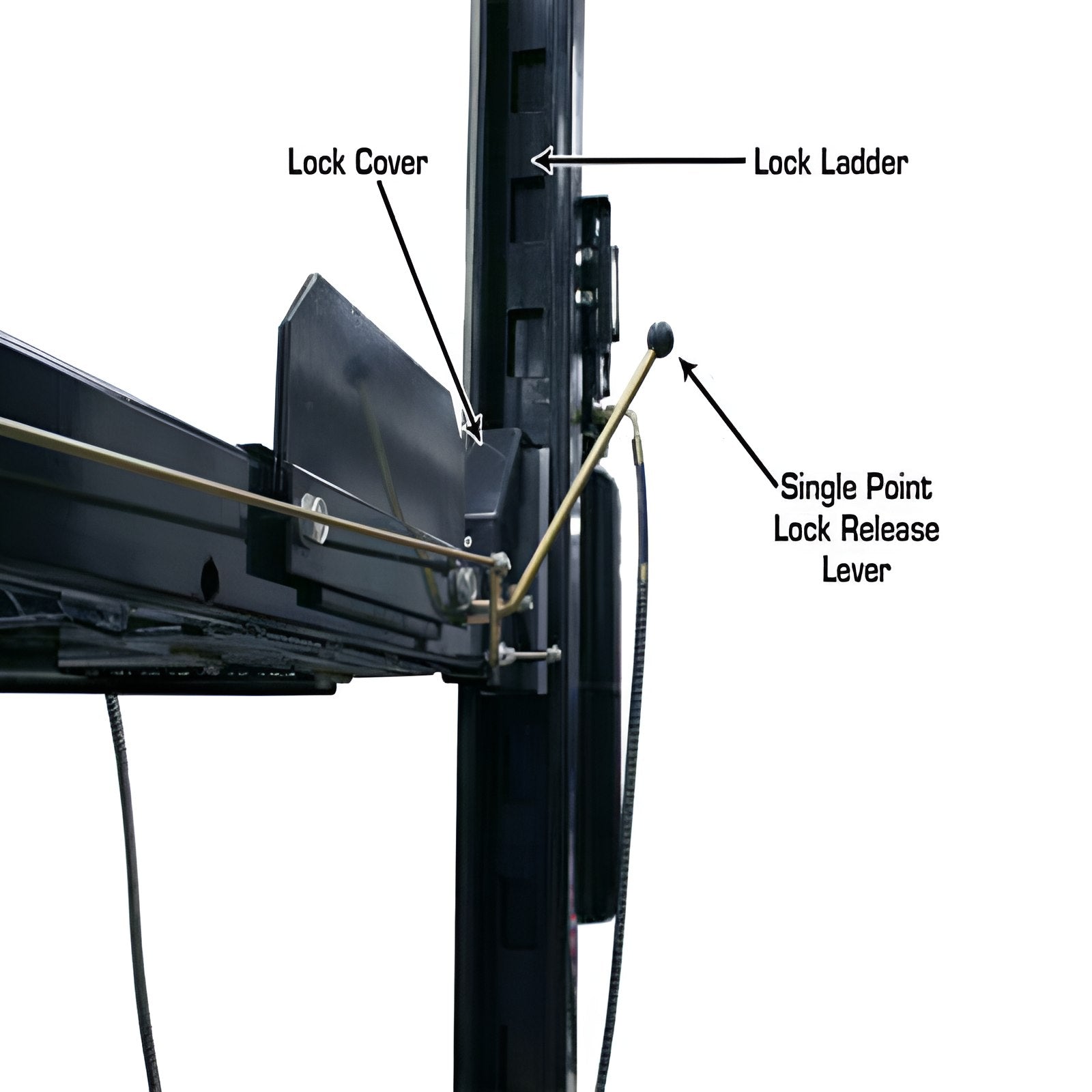

• Lock Release: Single-Point

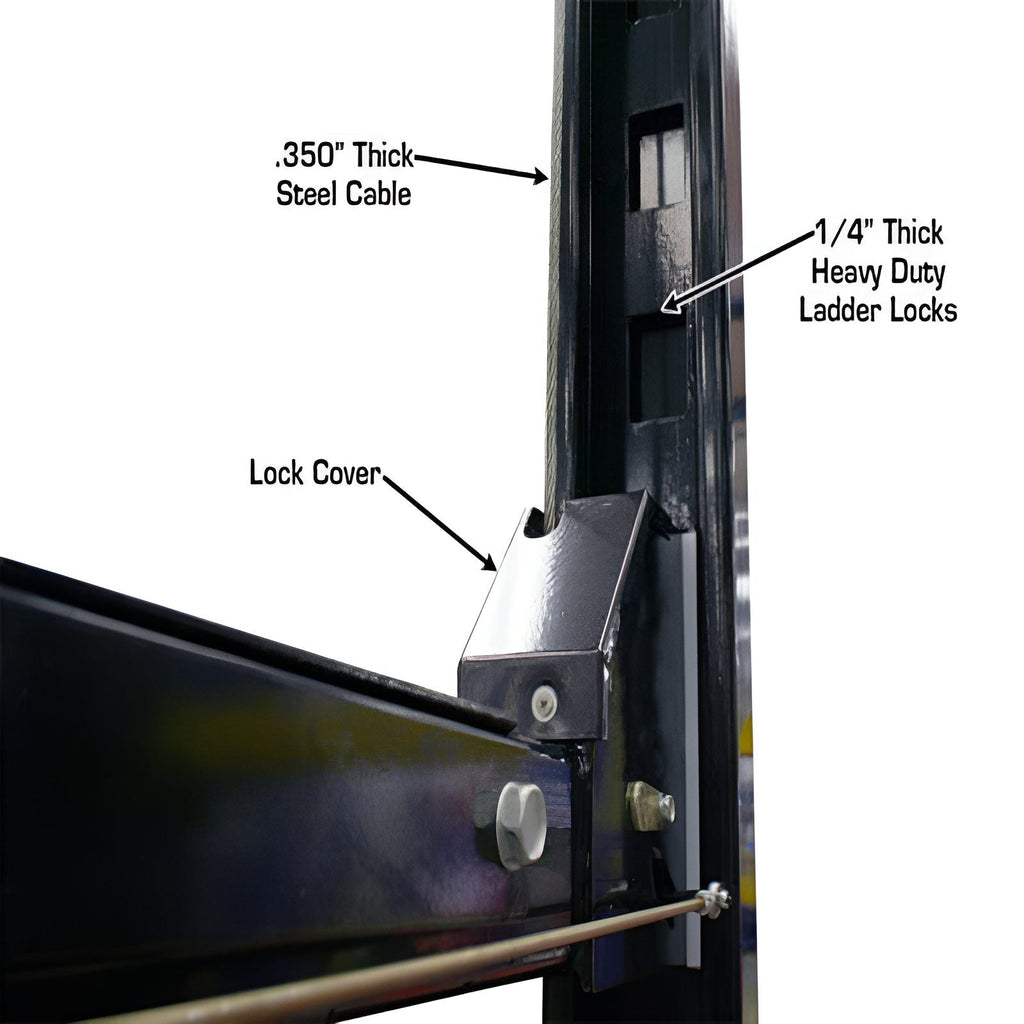

• Lock Design Lock Ladder w/ Double Lock Safety System
• Warranty: 2 year Structural; 1 year Hydraulic ‐ Parts Only
• Unit Includes:

• Unit Includes:

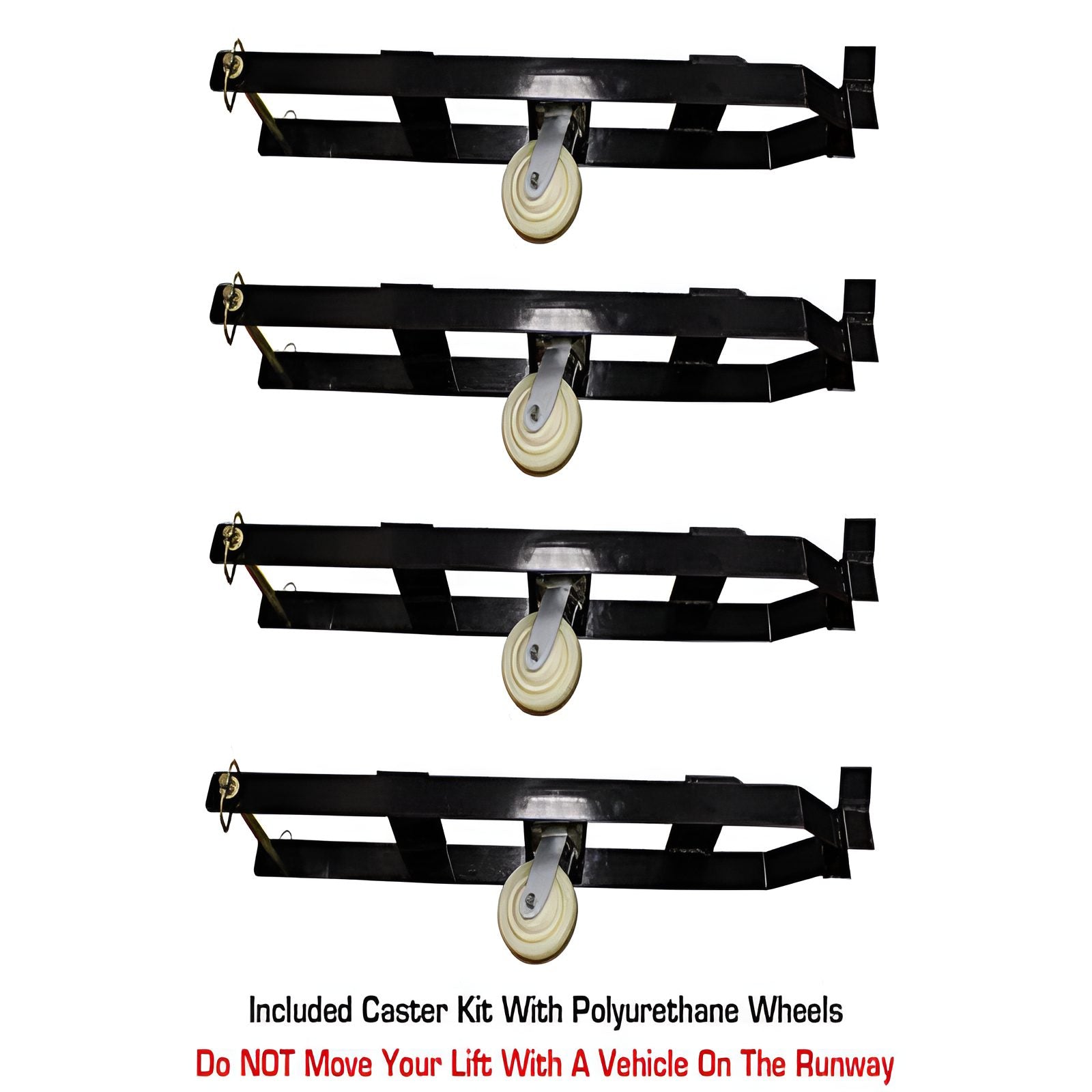

  • Caster Kit with Polyurethane Wheels for easy movement

  • Steel Approach Ramps for safe vehicle drive-on

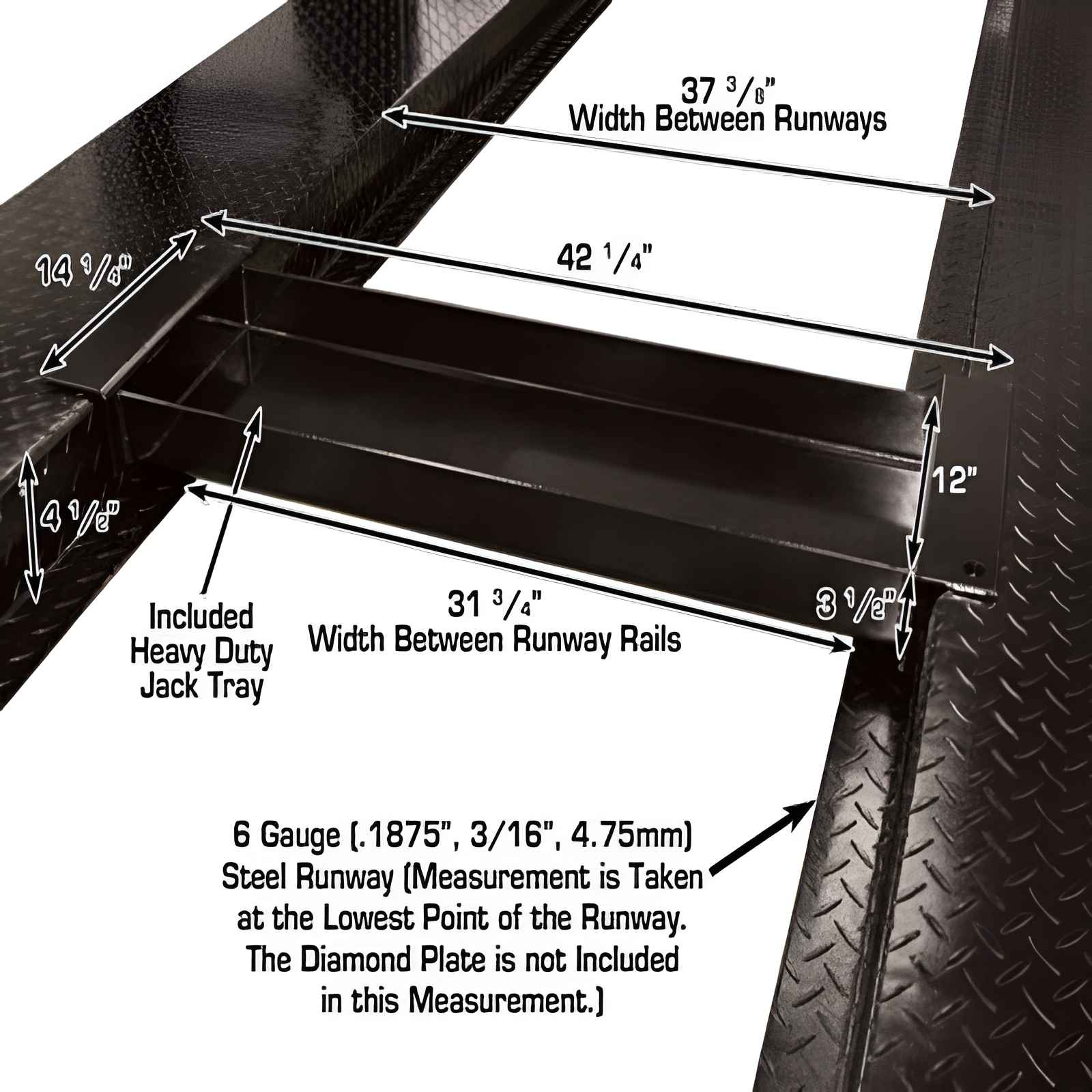

  • Steel Jack Tray for efficient servicing

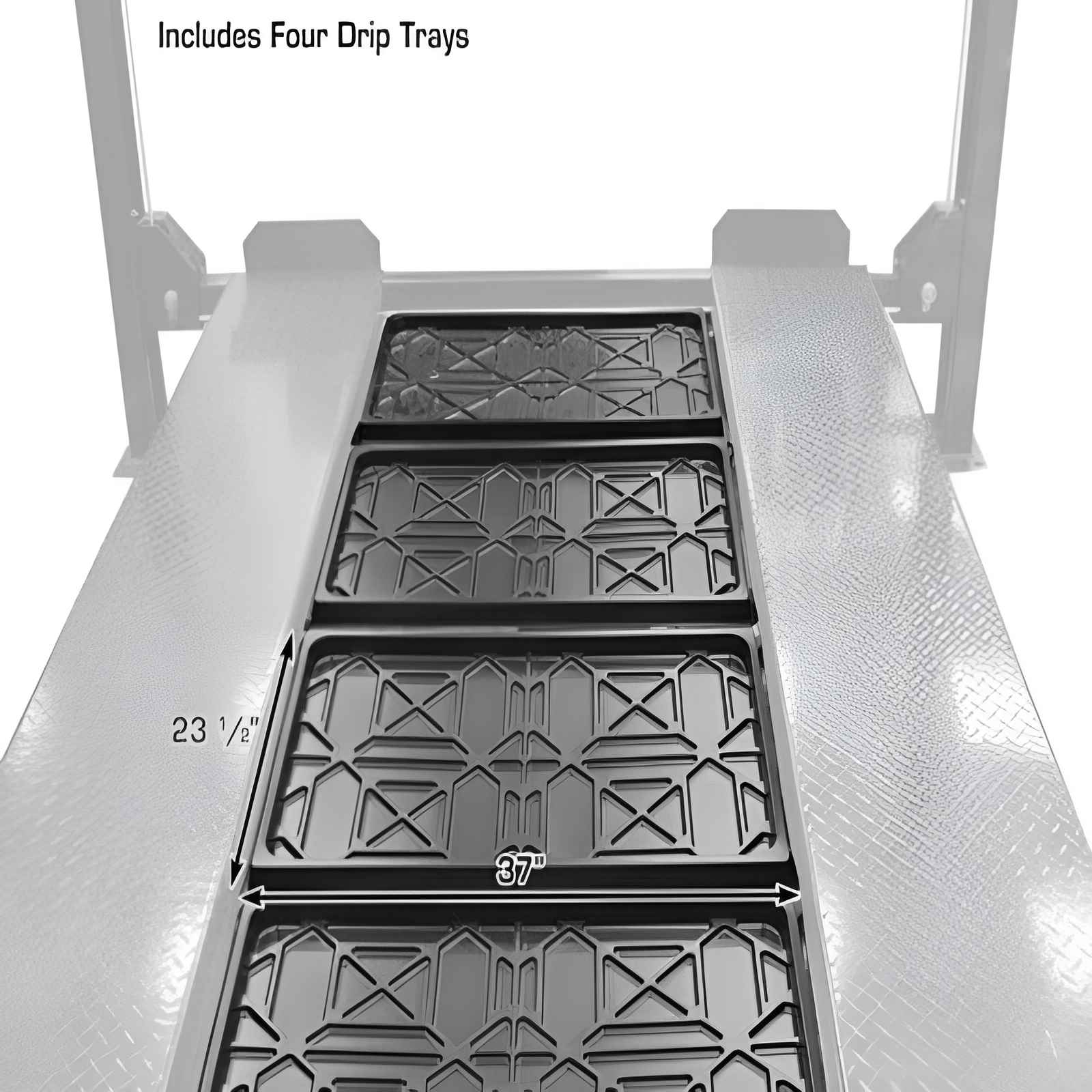

  • 4 Plastic Drip Trays to keep your workspace clean

  • 4 Wheel Stops for secure vehicle positioning

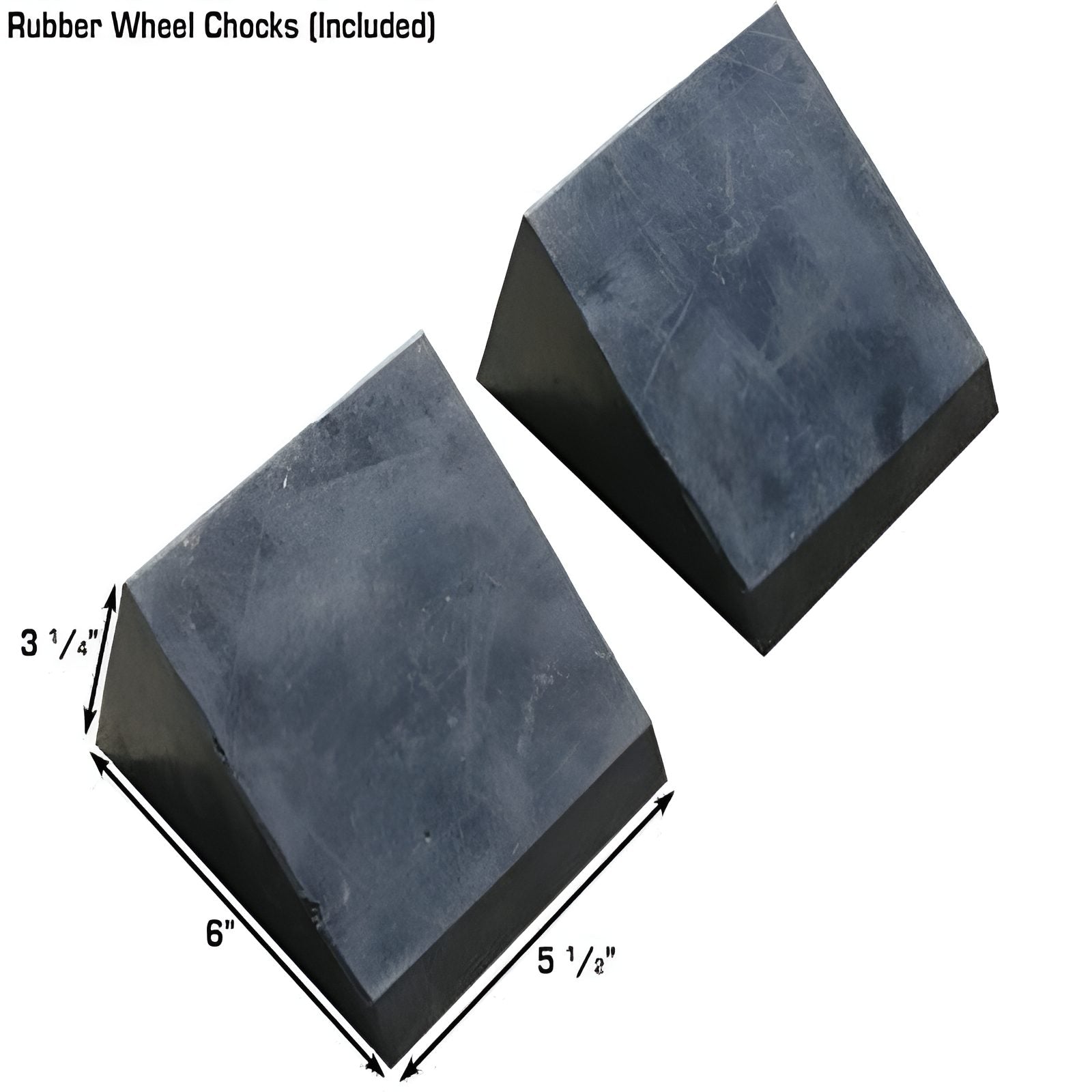

  • 2 Rubber Wheel Chocks to prevent vehicle movement

• Buy as a Combo Atlas PRO8000 + RJ35
• Optional Item(Sold Separately):
  • 37" Steel Jack Tray

Pro8000 4 Post Vehicle Storage Lift Optional Items (sold separately):

• ProJack35 Sliding Jack

Atlas Pro 8000 Manual:

   Atlas Pro8000 Lift Manual
