Atlas 7,000 lb 4 Post Lift, Extra Tall SKU ATEXH-PRO7000ST

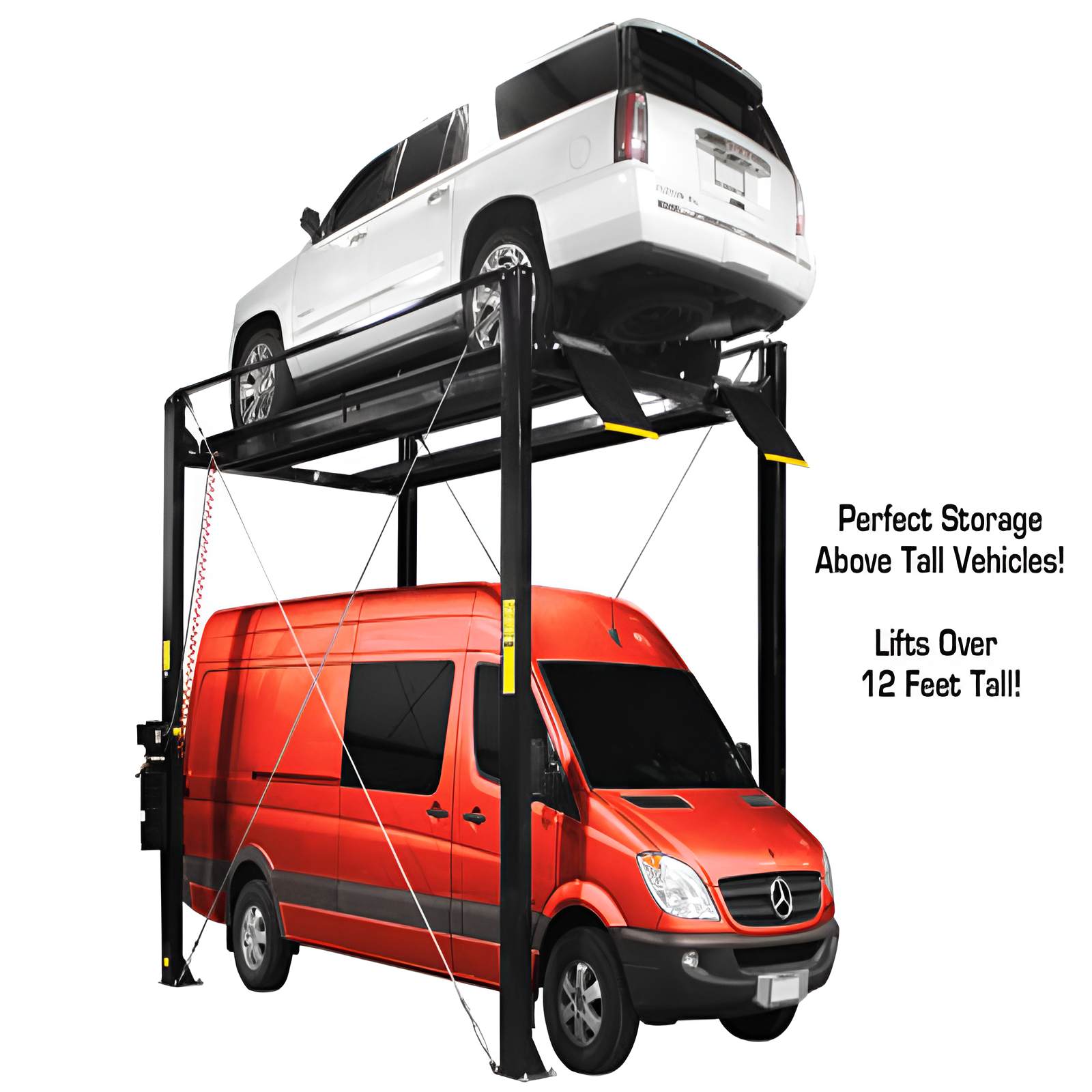

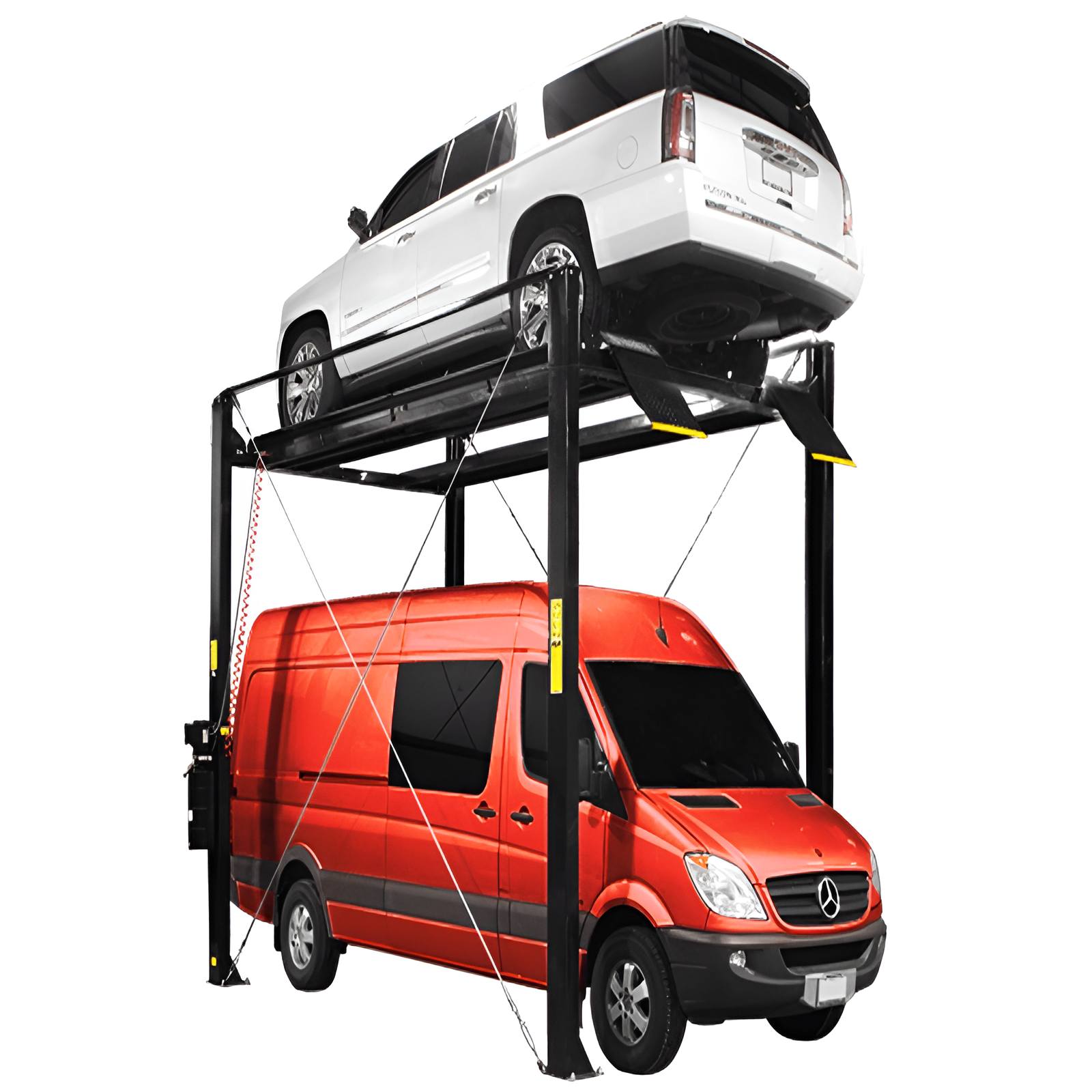

The Atlas® Garage PRO7000ST lift - the sky-high solution for your vertically-challenged garage! This four-post behemoth isn't just tall; it's a game-changer that'll have you stacking cars like an automotive Jenga master.
Interest: Picture this: a lift that can hoist your prized rides over 12 feet in the air, giving you enough space to park a monster truck underneath. With a lifting capacity of 7,000 lbs, this steel giant is ready to elevate your entire car collection. Desire: The PRO7000ST isn't just about brute strength - it's got brains too. With 21 locking positions and an adjustable lock ladder, you'll have more parking options than a crowded mall on Black Friday. And let's talk about those heavy-duty runways - they're not just pretty faces. They come with welded tracks, perfect for rolling bridge jacks, turning your lift into a DIY mechanic's dream.
4 Post Lift PRO7000ST Specifications:
- Capacity: 7000 lbs

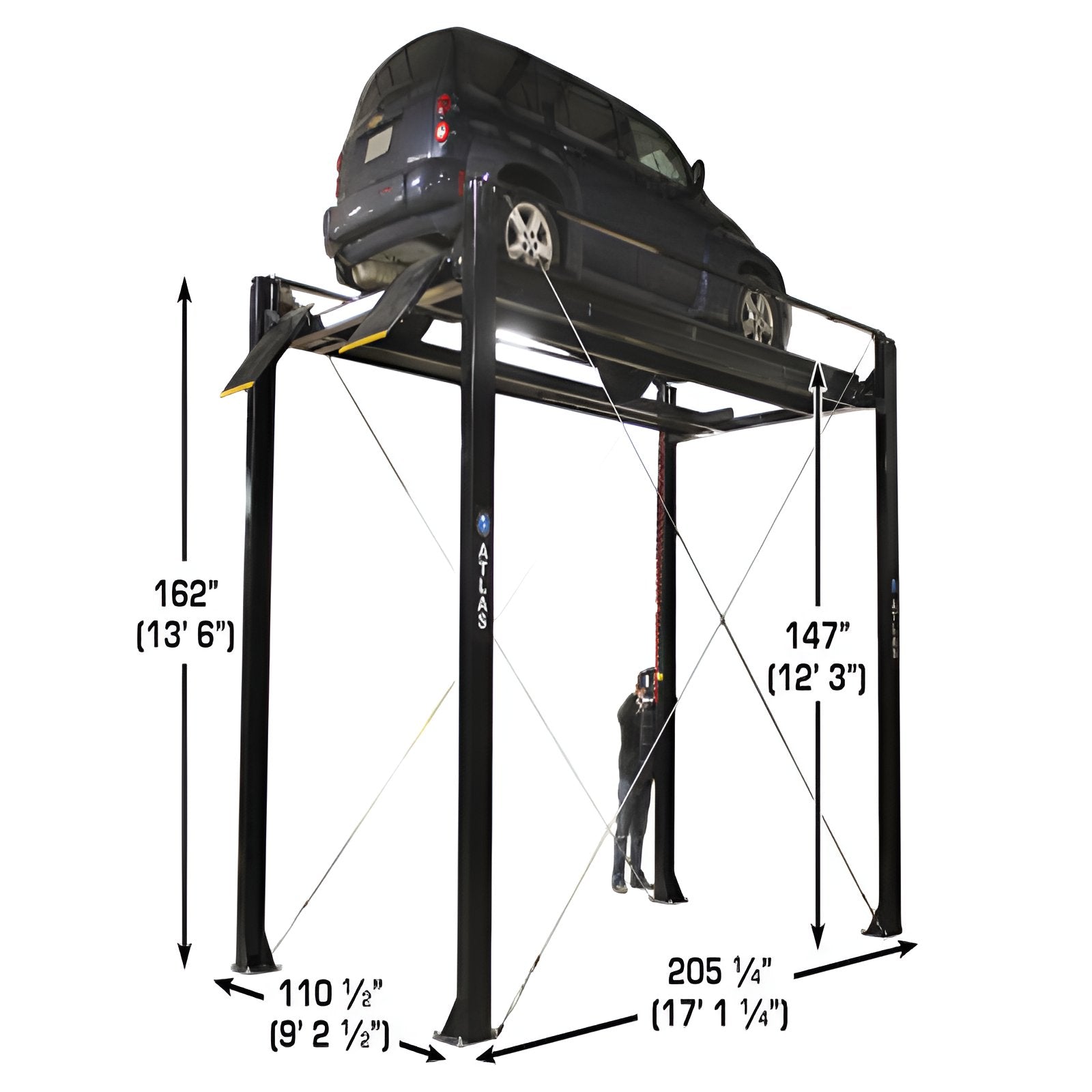

- Lifting Height, Top of Runway: 147" (12' 3")
- Clearance Under Runways: 142" (11' 10")

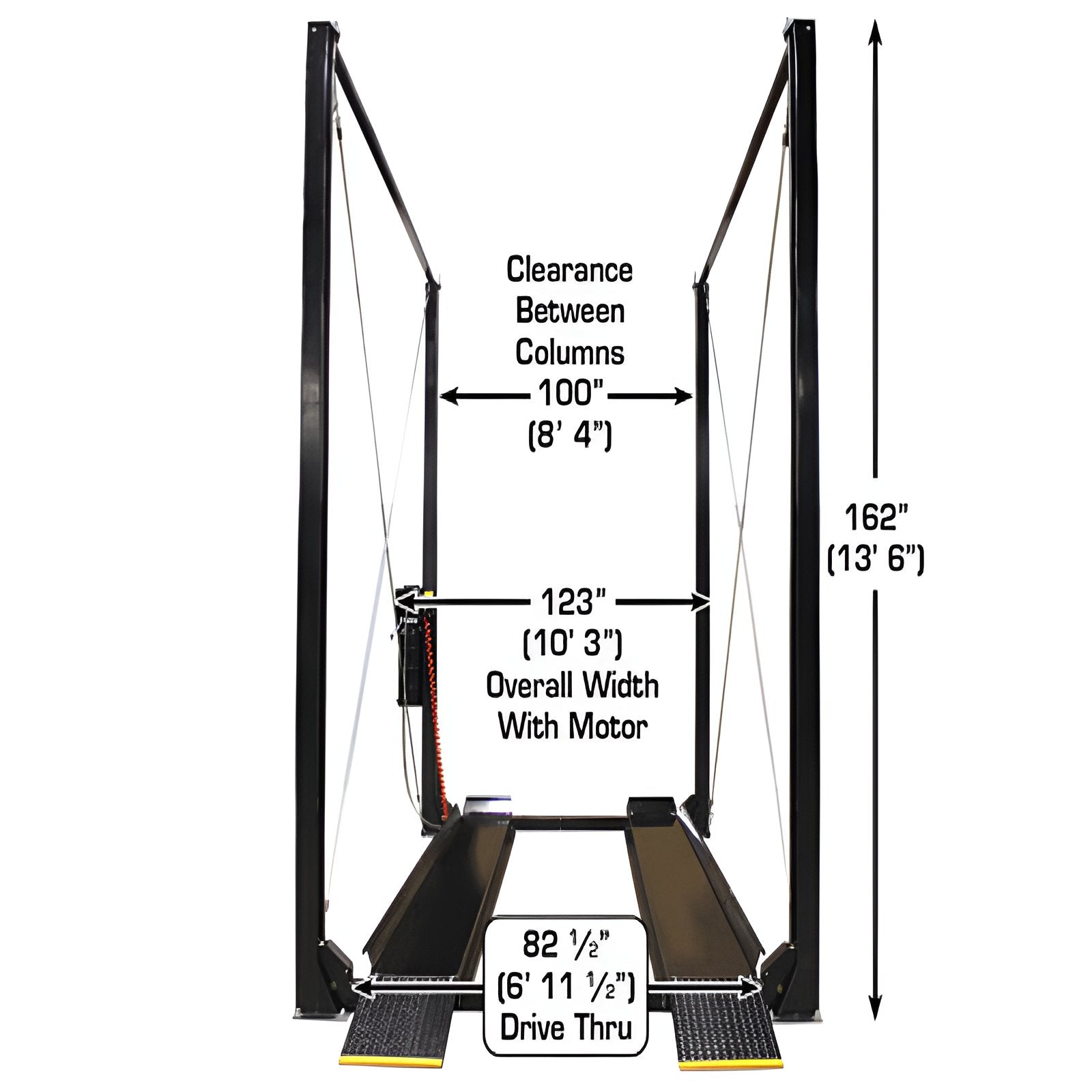

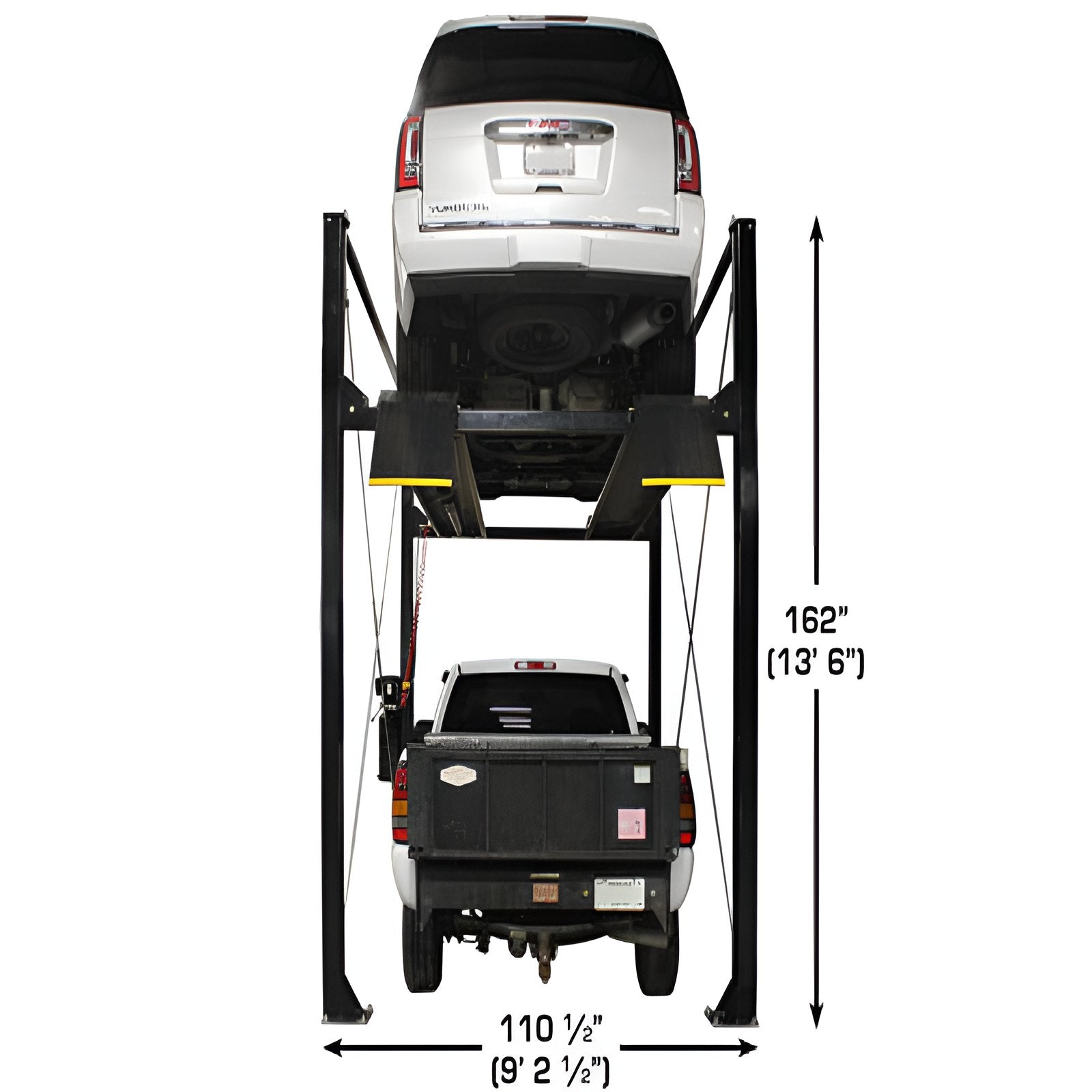

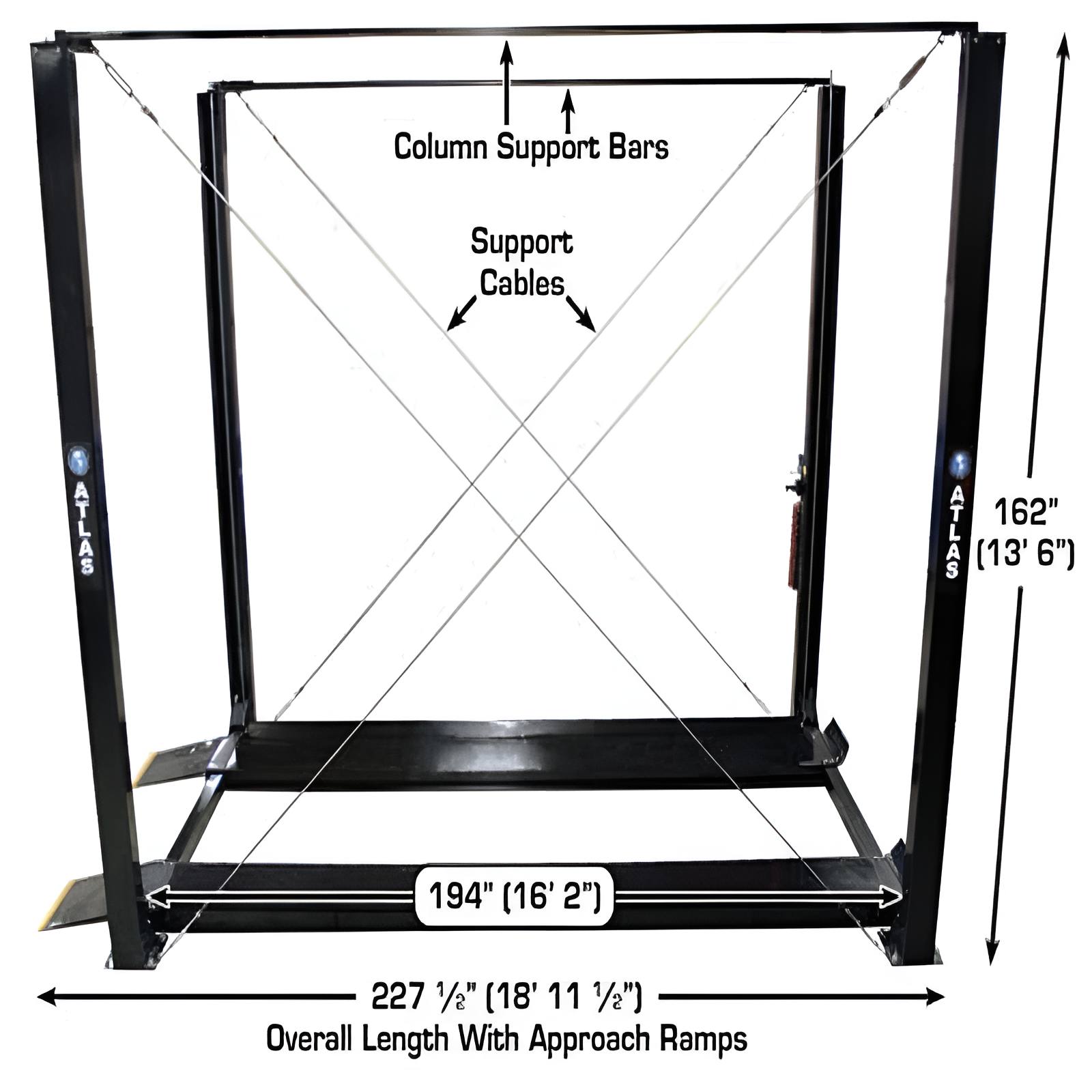

- Height of Columns: 162" (13' 6")
- Overall Width: 110 1/2" (9' 2 1/2") w/ motor 123" (10' 3")
- Overall Length w/ Ramps: 227 1/2" (18' 11 1/2")
- Runway Length: 194" (16' 2")
- Runway Width: 21"
- Runway Thickness: 4 1/2"

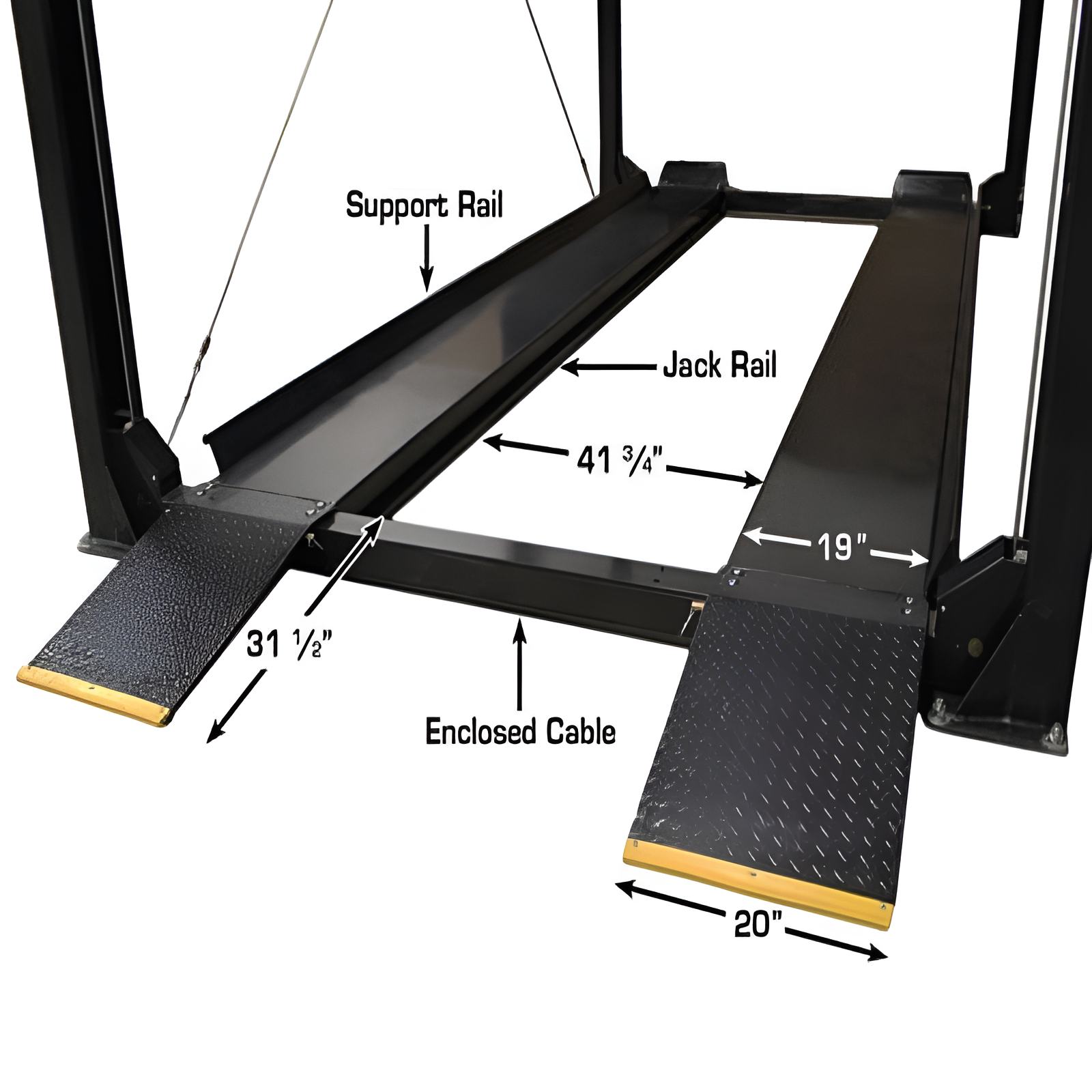

- Width Between Runways: 45" w/ Rail 41 3/4"
- Outside Runway to Outside Runway: 83" (6' 11")

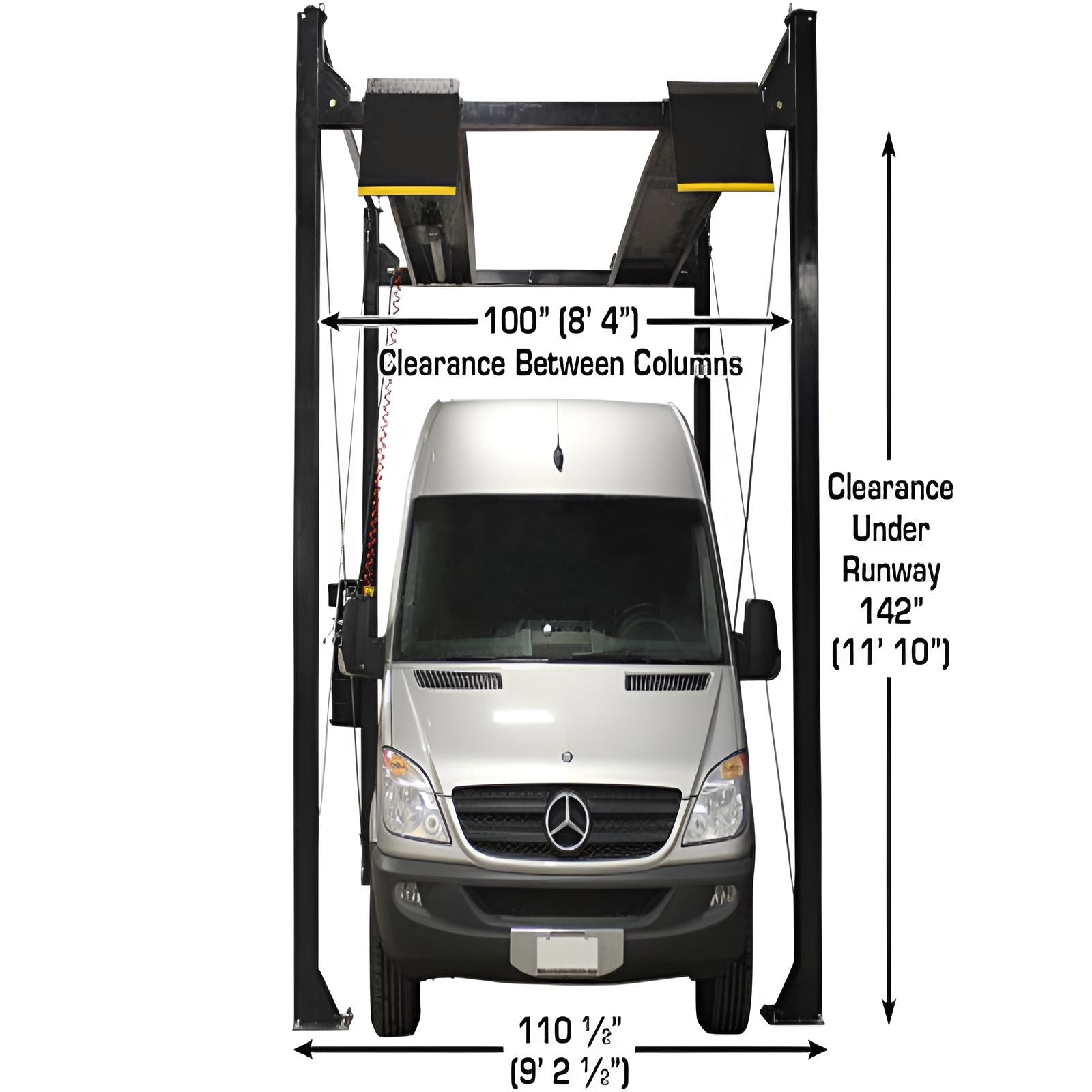

- Clearance Between Columns: 100" (8' 4")
- Length Between Columns: 185" (15' 5")
- Drive Thru: 82 1/2" (6' 10 1/2")
- Motor/Electrical Requirement: 220volt/1phase, 30 amp breaker required
- Oil Requirement: 5 Gallons AW32 or AW46 (NOT INCLUDED)
- Shipping Weight: 2866 lbs
- Pallet Size: 204" Long x 41-1/2" Tall x 22" Wide
PRO7000ST 7,000 lb 4 Post Lift Special Features:
- Capacity: 7,000lb
- Heavy Duty
- Super Tall Lifting Height: (12'-3")
- Diamond Plated Runways

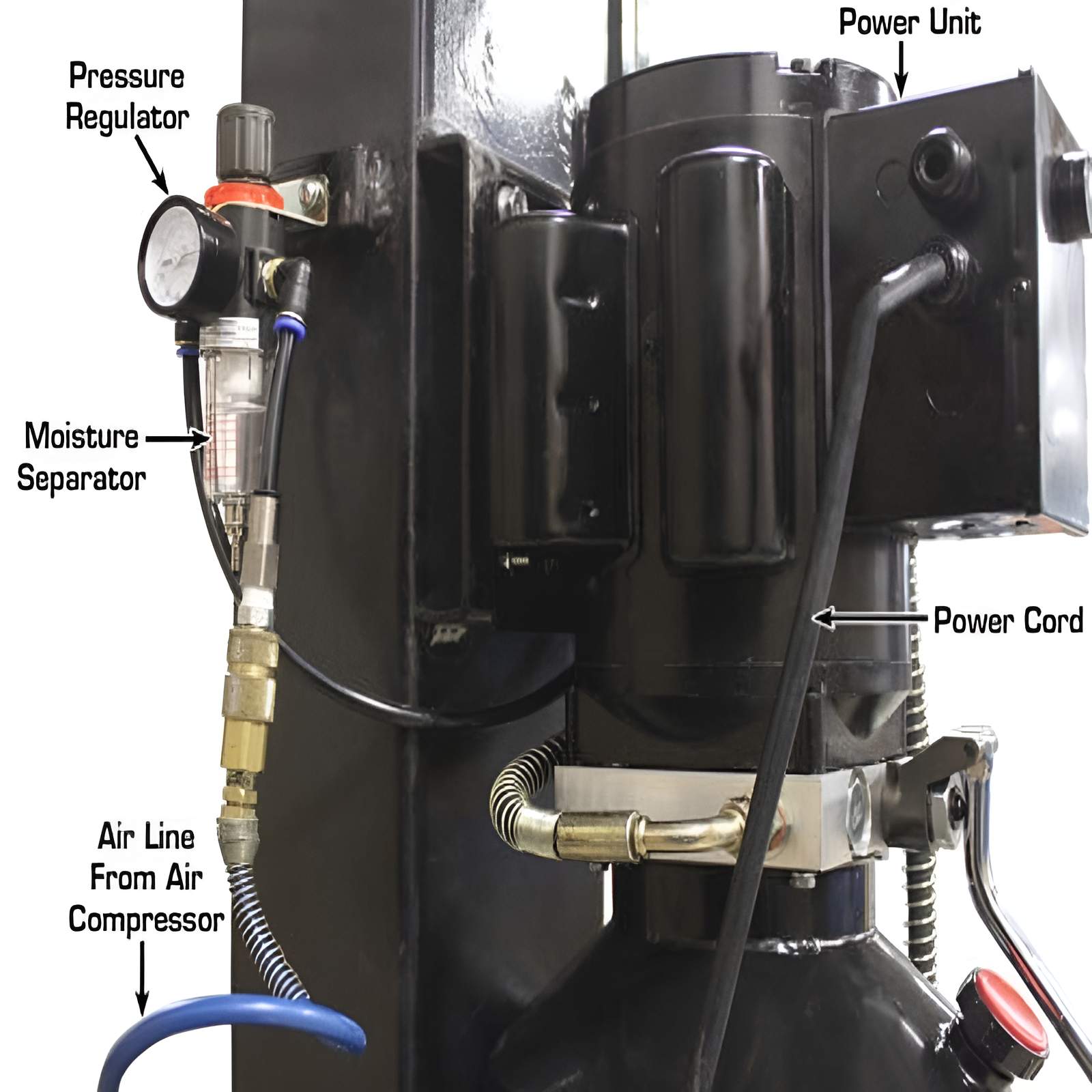

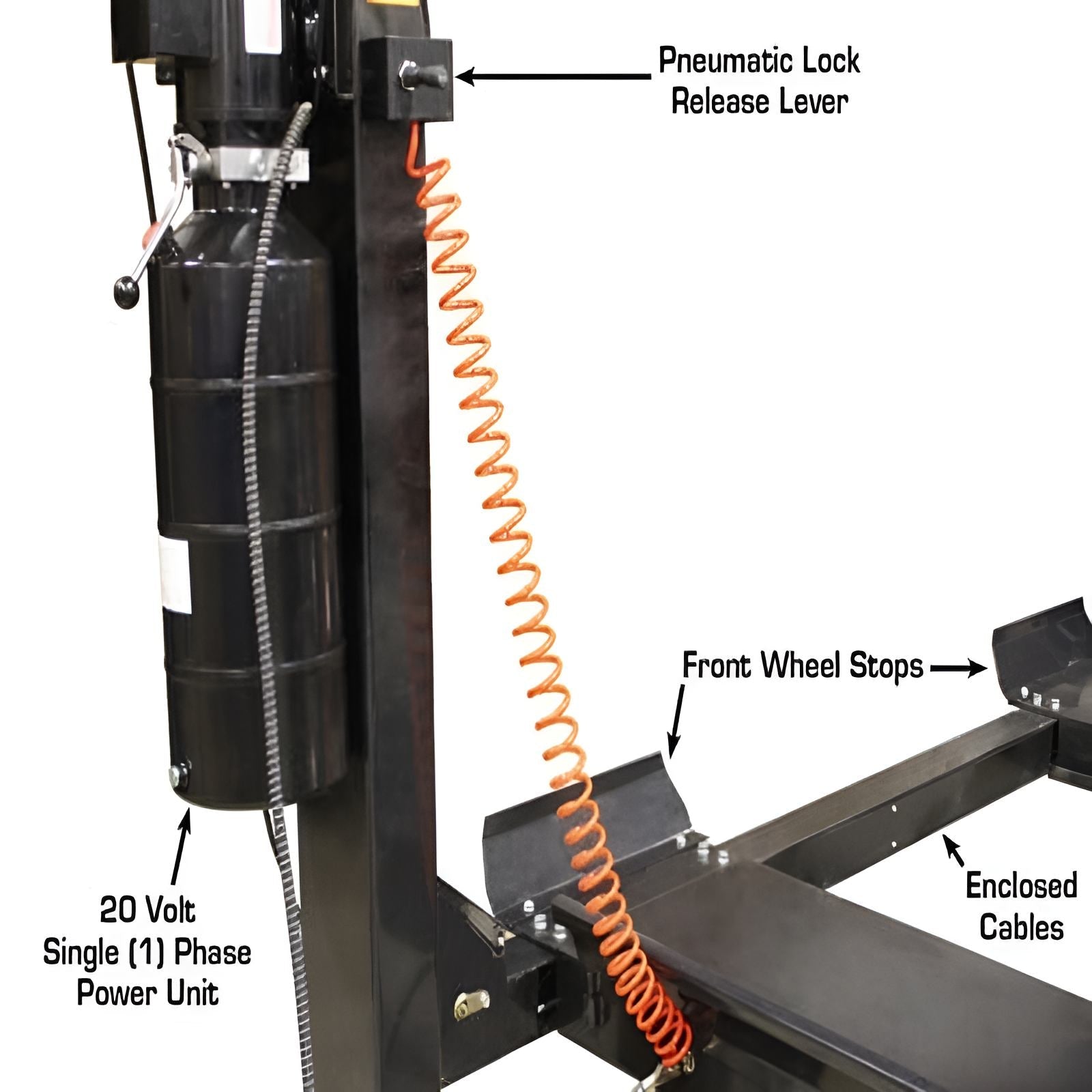

- Lock Release: Single-Point, Pneumatic Locks)
- Lock Design: Lock Ladder w/ Double Lock Safety System
- Finish: Powder Coat
- Warranty: 2 year Structural; 1 year Hydraulic ‐ Parts Only
- Unit Includes:
- Steel Approach Ramps Included
- Mounting Hardware
PRO7000ST 4 Post Lift Optional Items (sold separately):
- RJ6BK Rolling Jack
- RJ6BKAH Rolling Jack
PRO7000ST Manual
*Due to Extra Large Size, product cannot be delivered to a freight terminal.
Warehouse Pickup locations (No shipping charge):
- Atlanta, GA
- Indianapolis, IN
