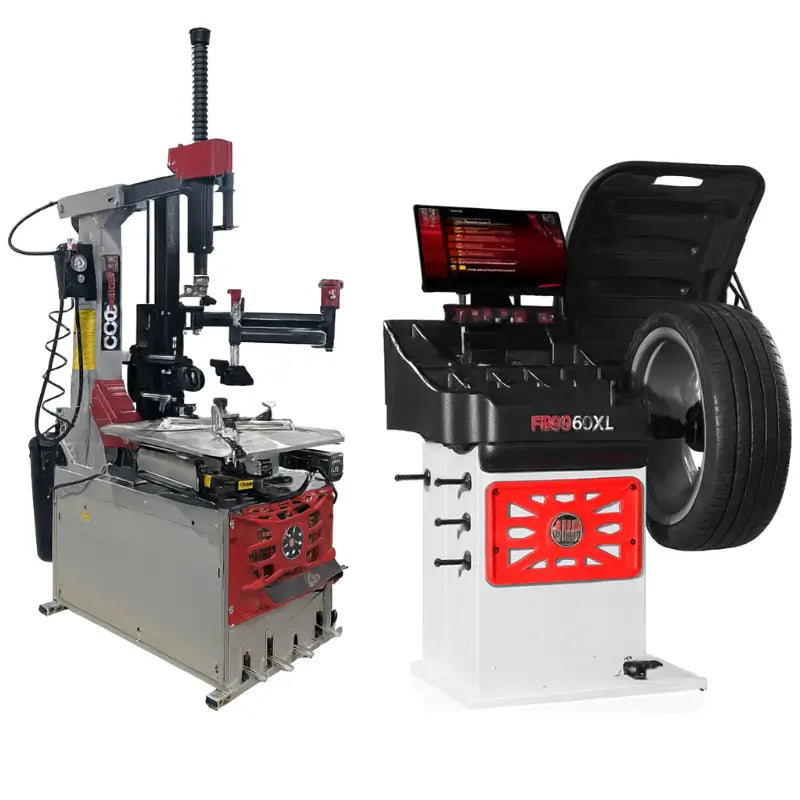

This combo package includes the Atlas® Platinum PTC600 tire changer and the Atlas® Platinum PWB70 wheel balancer.

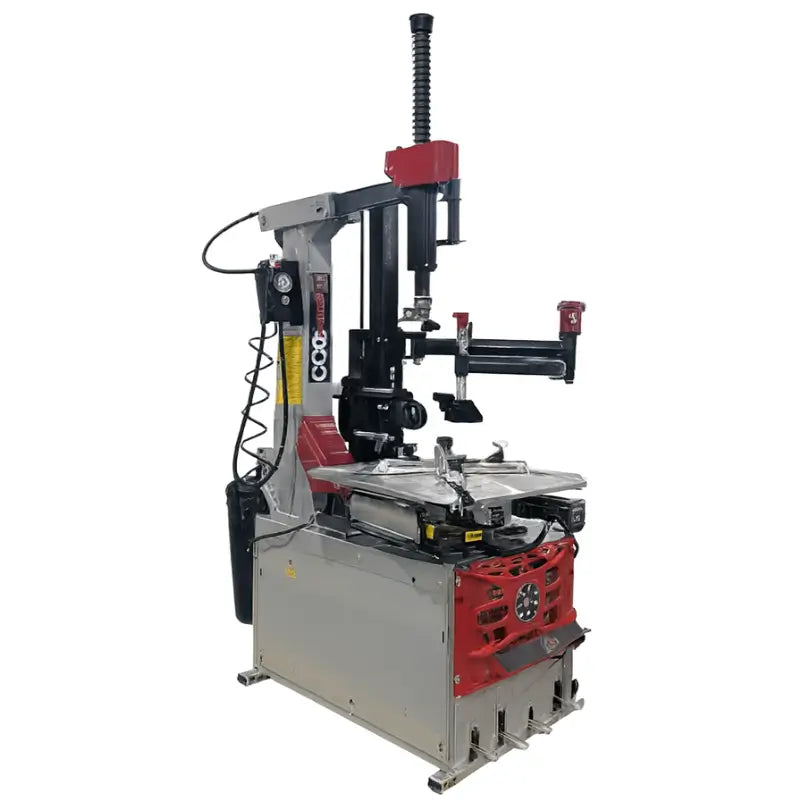

The Atlas® Platinum PTC600 represents the pinnacle of quality in a machine meant for the "Professional Tire Dealer" or "Large Car Dealership." The PTC600 is an Italian engineered Tilt-Back Tire Changer that comes standard with a Right-Hand Bead Pressing and Bead Rolling Assist Arm to make changing the most challenging tires a breeze. The Tilt-Back design means the PTC600 has a pneumatic locking mount/demount head, dramatically lowering the risk of the head moving during use and possibly damaging rims. The PTC600 boasts a 29-inch clamping capability, high torque 110V electric turntable, anodized aluminum bead breaker cylinder, and integrated bead blast system. The Atlas PTC600 requires some assembly after purchase.

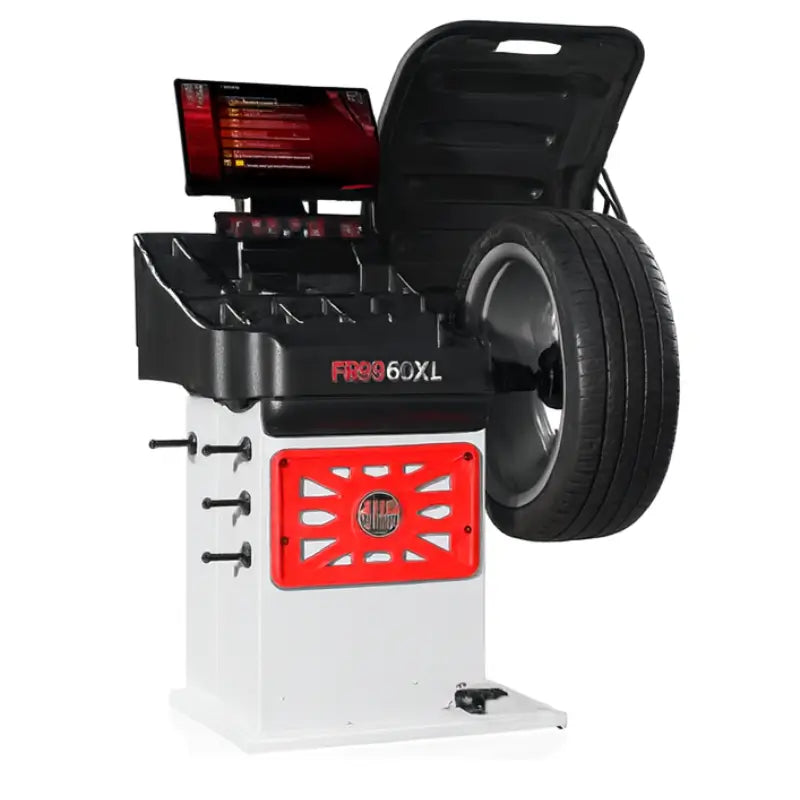

The Atlas® Platinum PWB70 is an electronic wheel balancer that improves on the already high quality PWB50 model. The Platinum PWB70 features a bigger wheel weight tray, a larger hood, and also adds an LED light and Laser Line guide for more precise wheel weight placement.

The Platinum PWB70 comes standard with an easy to read LED display and Automatic 2D Data Entry via a single data entry gauge. The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows an operator to change the weight application position from 12 o'clock to 6 o'clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the PWB70 via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient.

The Atlas® Platinum range of wheel service equipment incorporates the highest quality Italian designed components and engineering to assure it is the best value available at its price point.

Platinum PTC600 Tire Changer Platinum PWB70 Wheel Balancer Key Specifications

• External Locking Rim Range: 10" – 27"

• Internal Locking Rim Range: 12" – 29"

• Maximum Tire Diameter: 43"

• Maximum Wheel Width: 16"

• Air Requirement: 120–145 PSI

• PTC600 Shipping Weight: 795 lbs

• Balancing Rim Sizes: 10" – 30"

• Balancing Rim Width: 1.5" – 20"

• Shaft Size: 40mm

• Max Balancing Weight: 165 lbs

• Balancing Speed: 130 RPM

• Accuracy: 1 gram

• Power Supply (Both Units): 110V

• PWB70 Shipping Weight: 280 lbs

• Warranty: 2-Year Parts Only

• Availability: Will Call Only

Platinum PTC600 + Platinum PWB70 Special Features

• Professional tilt-back tire changer with right-hand assist arm

• Air-operated jaws & bead breaker for secure clamping

• High-torque 110V electric turntable for effortless tire changing

• Integrated bead blaster & FRL system for tire servicing

• Pneumatic locking mount/demount head to prevent rim damage

• LED display with automatic 2D data entry for easy setup

• Laser line guides weight placement for enhanced accuracy

• Optimatch, FES, and OWF functions for advanced balancing

• Static and dynamic balancing modes for precise results

• Self-diagnosing & self-calibrating system

• Fast & Easy Split (FES) function for hiding adhesive weights

• Ideal for high-volume tire shops and car dealerships

Platinum PTC600 Tire Changer Platinum PWB70 Wheel Balancer Individual Item Sold Separately.

• Platinum PWB70 Wheel Balancer
• Platinum PTC600 Tire Changer
