Description

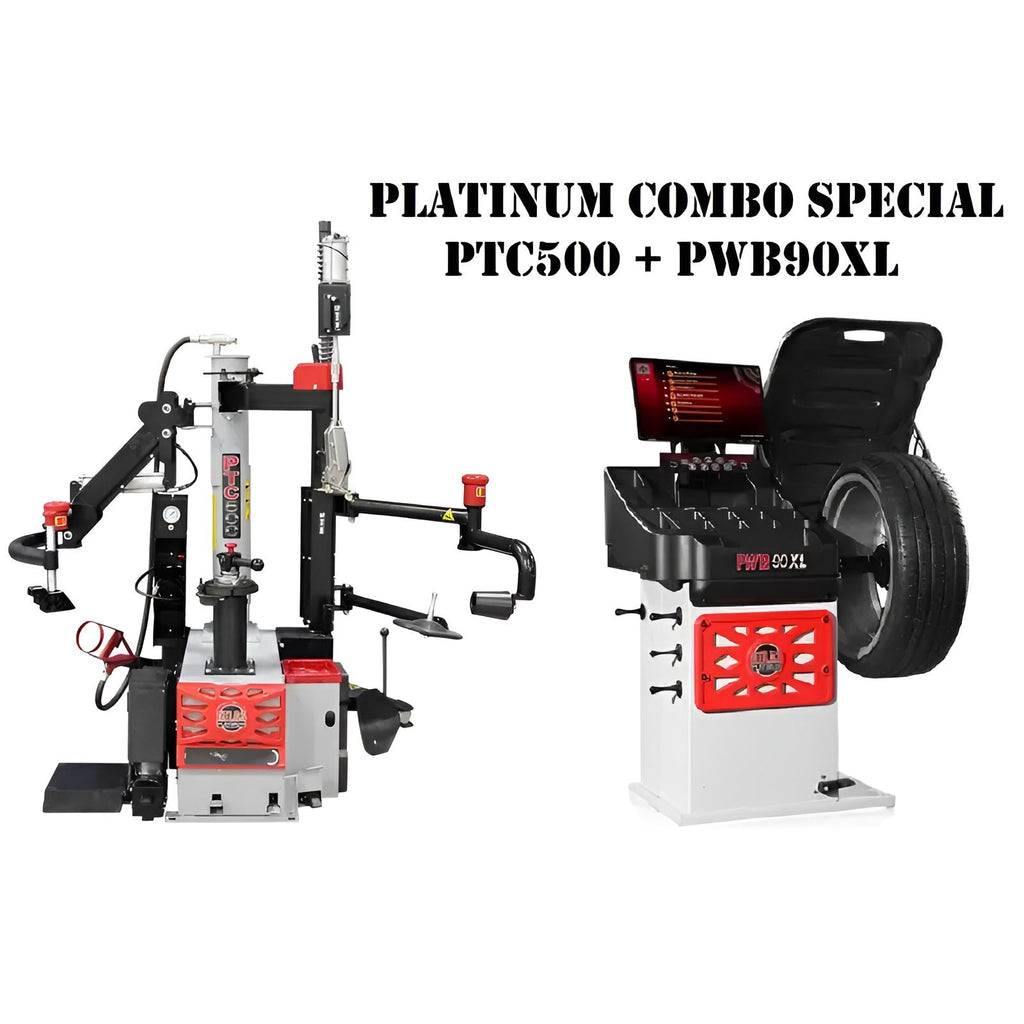

Atlas Platinum PTC500, PWB90XL Wheel, Tire Combo SKU ATEAP-TCWB-COMBO2
The AtlasĀ® Platinum Tire and Wheel Service Combo is the lifeline your shop needs. This powerful pairing of the PTC500 Tire Changer and PWB90XL Wheel Balancer is engineered to revolutionize your operations, boosting productivity and minimizing downtime.
The PTC500 Tire Changer tackles even the toughest tire jobs with ease. Its dual assist arms, wheel lift, and innovative Lever/No-Lever system make quick work of tire changes. Designed to handle rims from 12 to 30 inches and tires up to 47 inches in diameter, this machine is built for versatility. Coupled with the PWB90XL Wheel Balancer, featuring a clamping range of 10 to 30 inches and a maximum wheel weight of 165 lbs, you can handle a wide range of vehicles. The PWB90XL's advanced 3D data entry, laser line guidance, and automatic functions ensure precise wheel balancing, saving you time and effort.

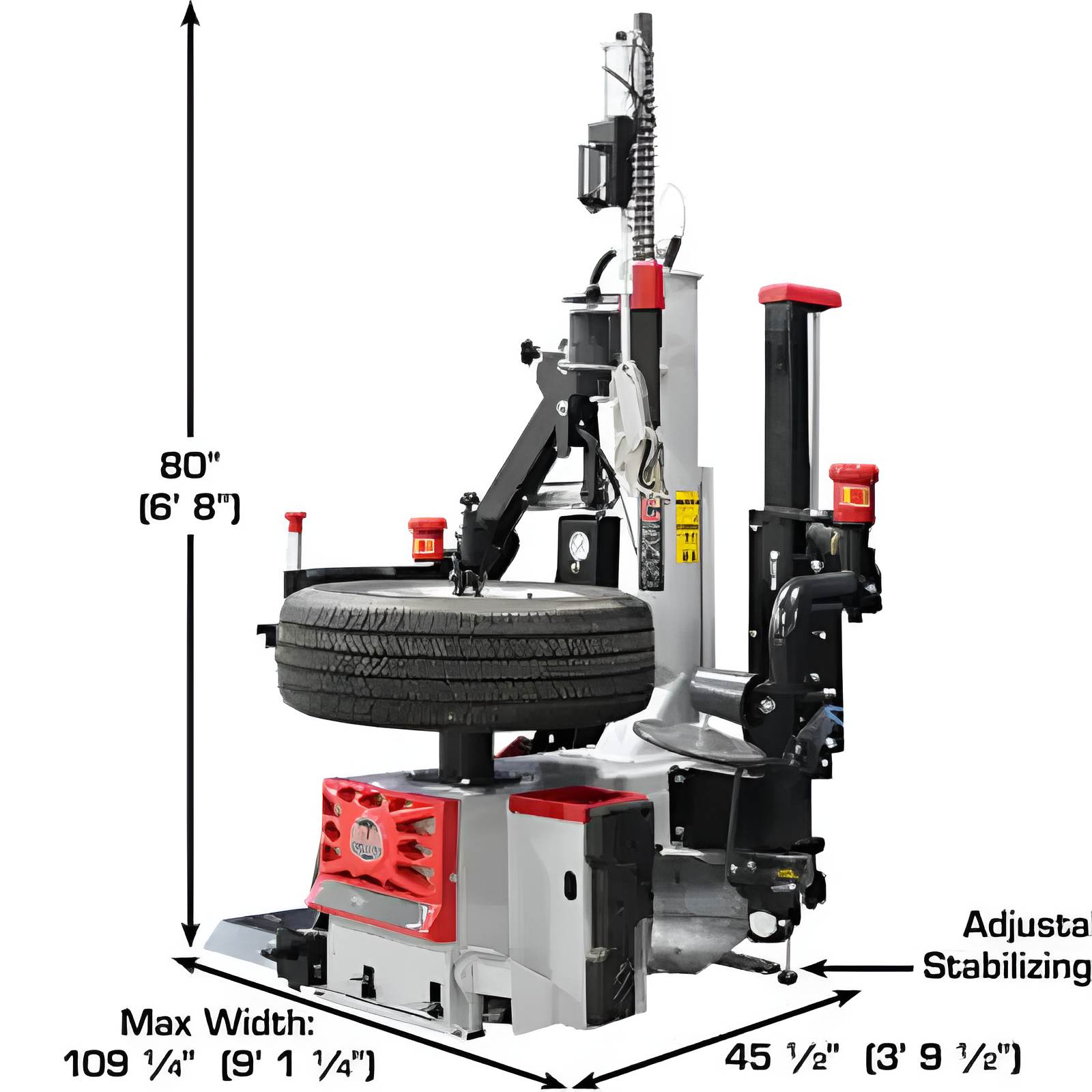

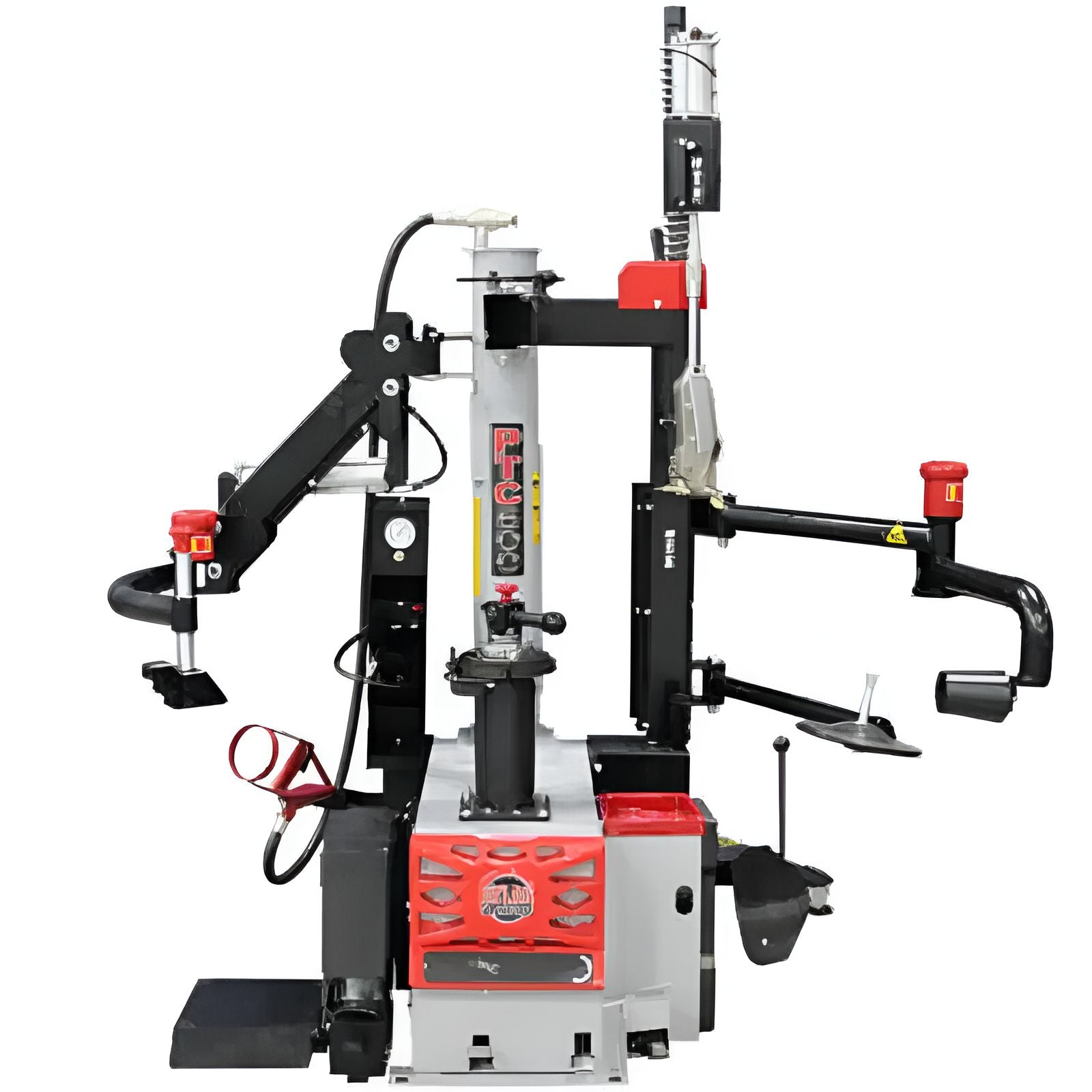

Tire Changer Platinum PTC500 Specifications
- Rims: Steel, Aluminum, Alloy
- Clamping Range: 12" - 30"
- Maximum Tire Diameter: 47"
- Maximum Wheel Width: 15"
- Turntable Rotating Speed: 7 RPM

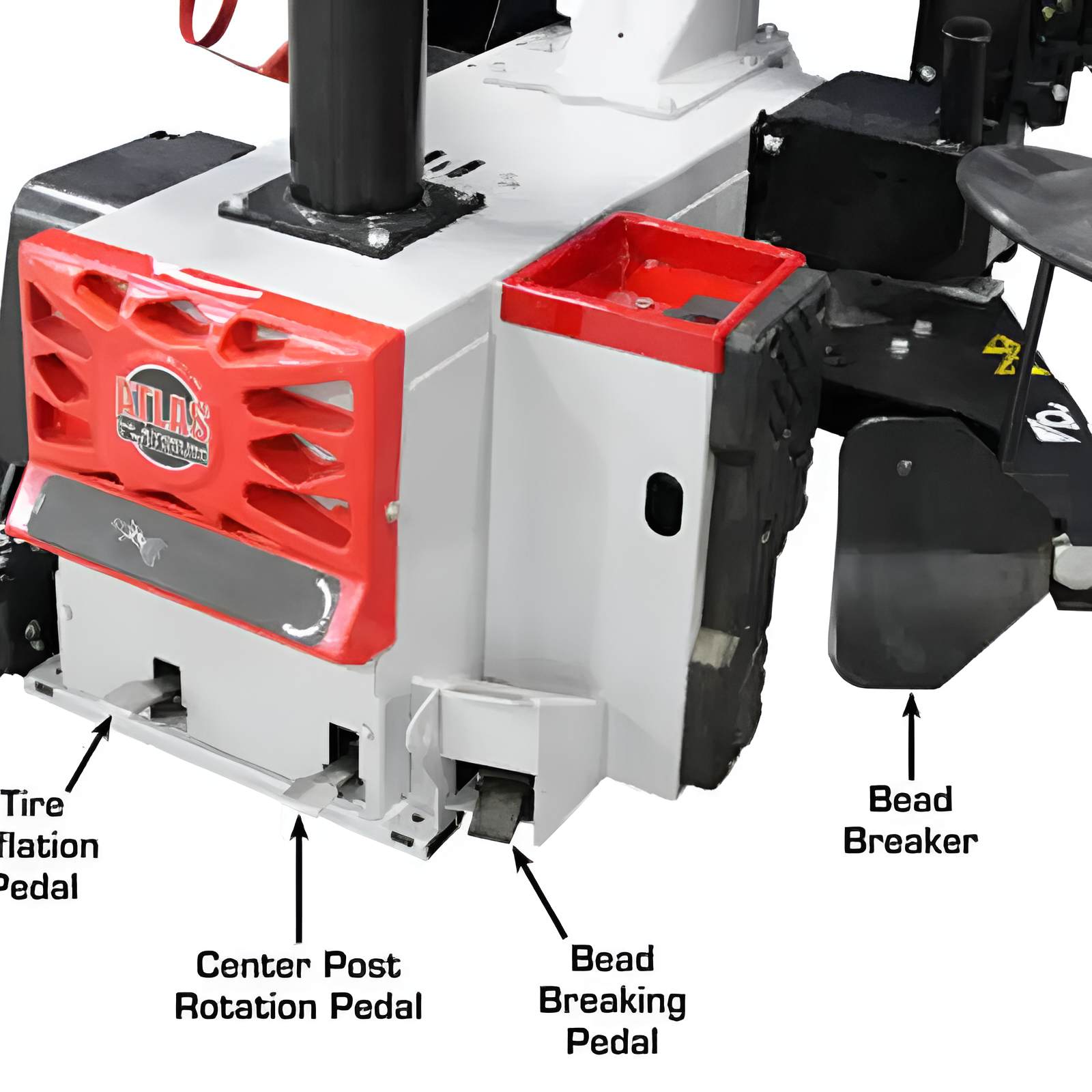

- Bead Breaker: 6,924 LB. Force
- Air Requirement: 120-145 PSI
- Operating Voltage: 110volt
- Shipping Weight: 885 lbs.

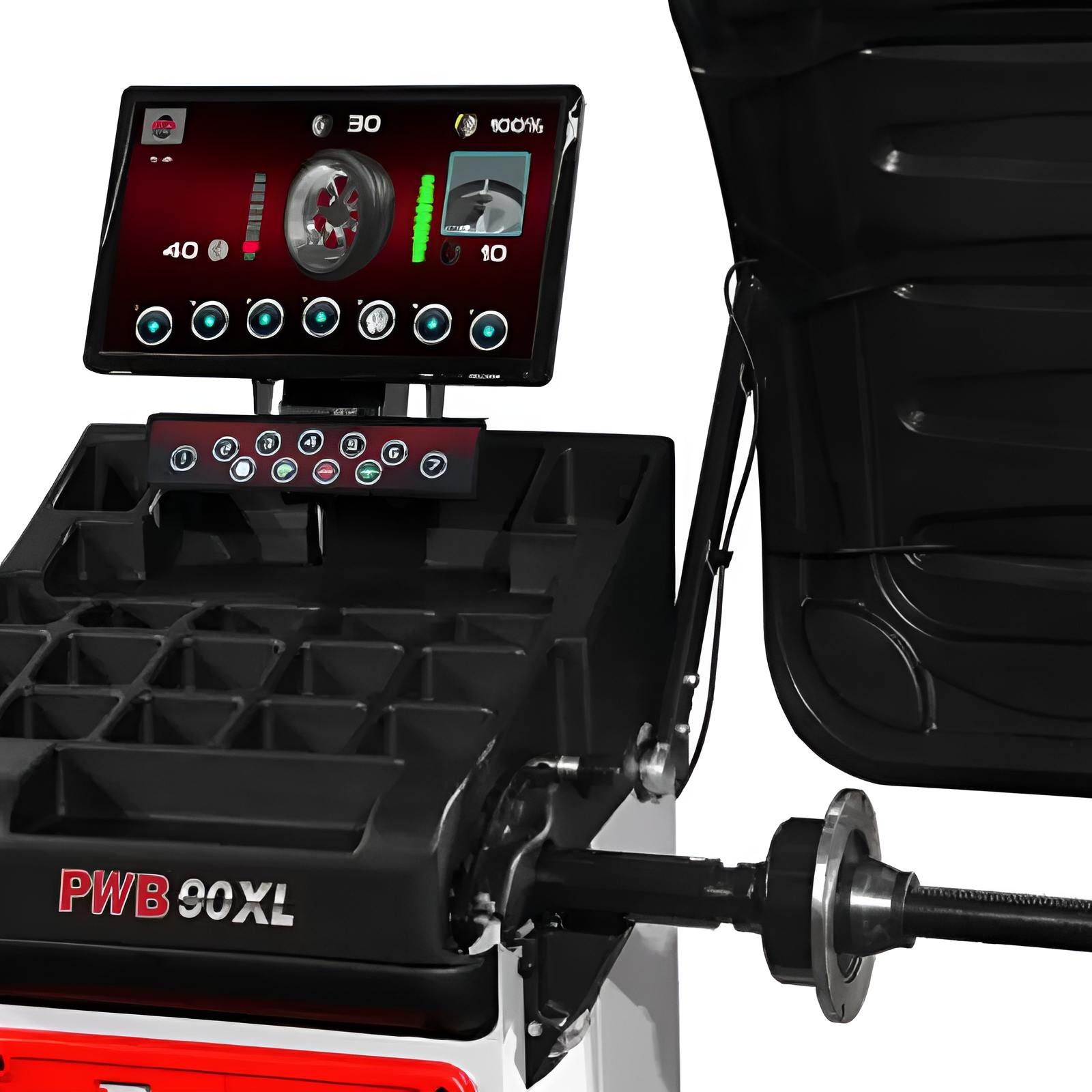

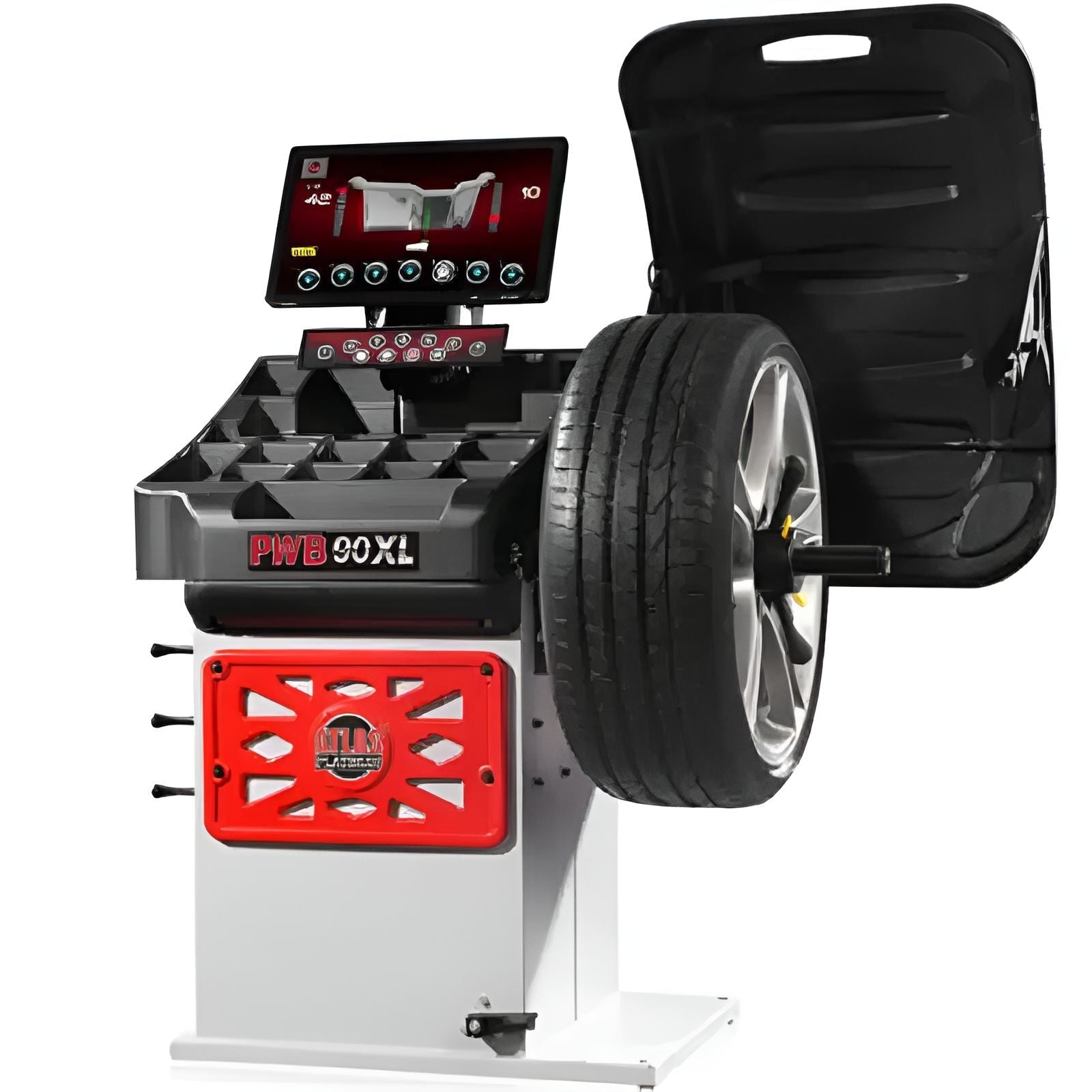

Wheel Balancer PWB90XL Specifications
- Max Tire Diameter: 43"
- Rim Sizes (Cars and Light Trucks): 10"-30"
- Rim Width: 1 1/2"-20"
- Shaft Size: 40mm
- Max. Wheel Weight: 165 lbs.
- Balancing Speed: 130 rpm
- Data Entry: Super Automatic 3D
- Measurements: Standard or Metric
- Accuracy: 1 gram
- Weight Position Resolution: 1.4 Degrees
- Self Calibration: Yes
- Cycle Time: 7 seconds
- Power Supply: 110volt
- Shipping Weight: 290 lbs.
PTC500 Tire Changer Special Features:
- Center Post Tire Changer

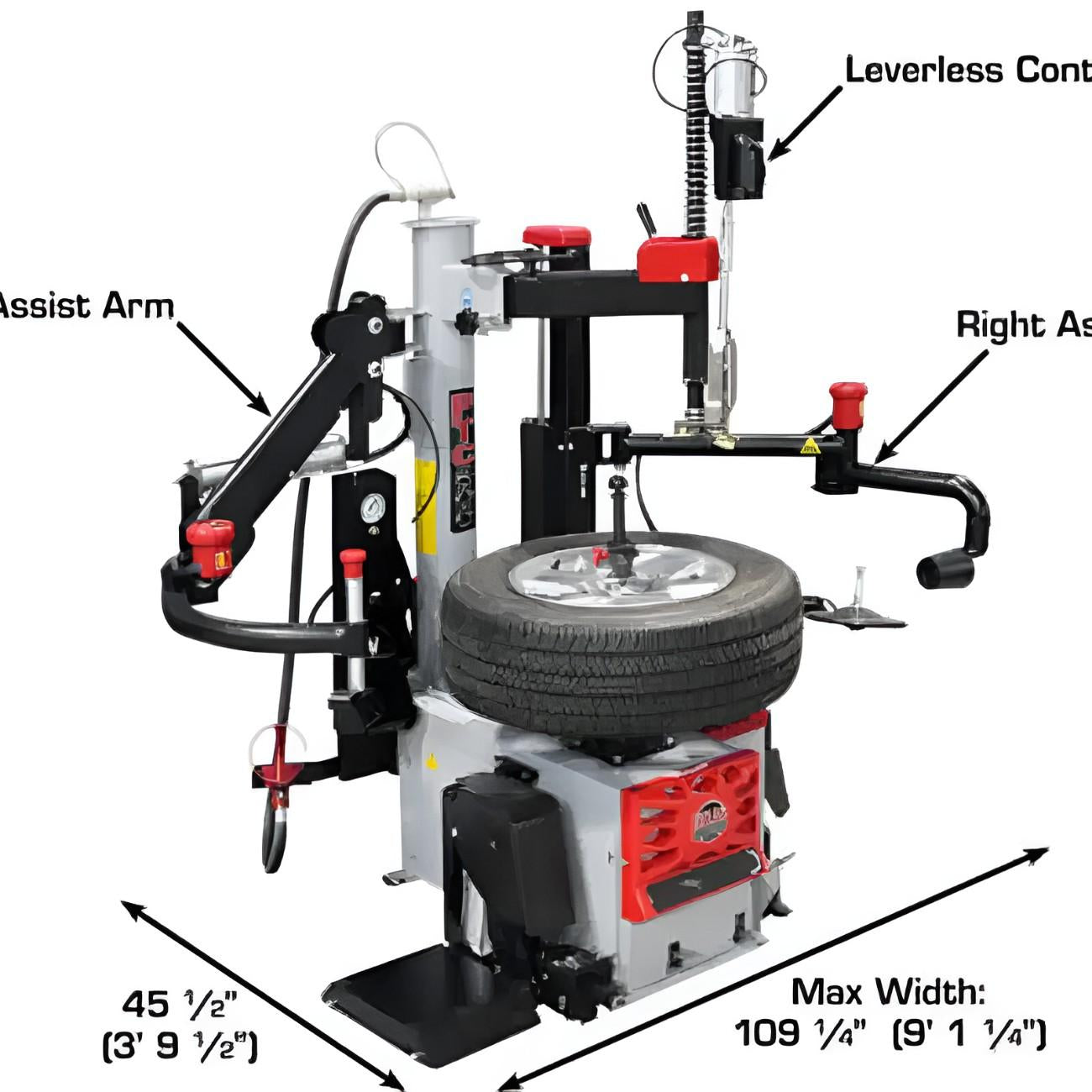

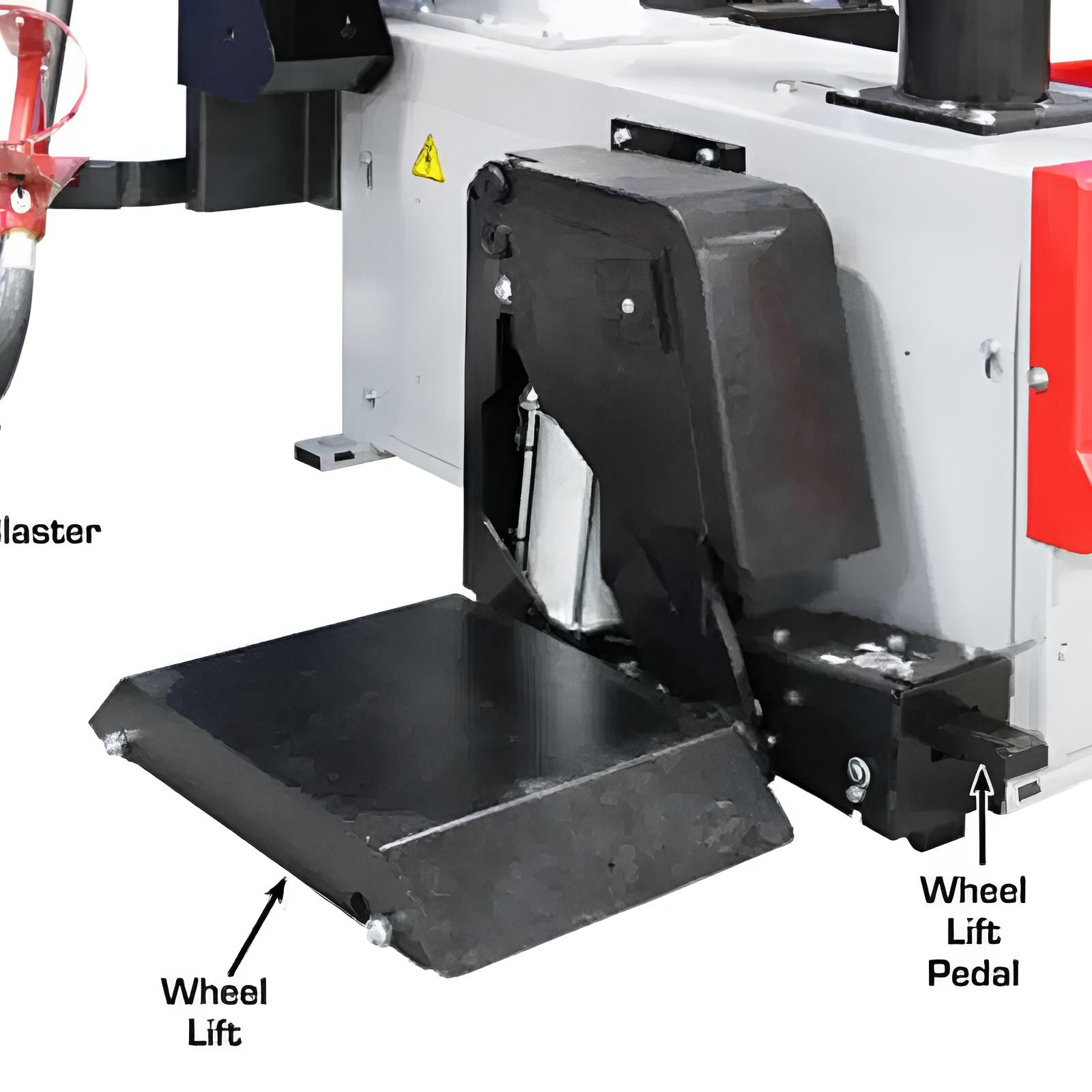

- Dual Assist Arms and Wheel Lift Included

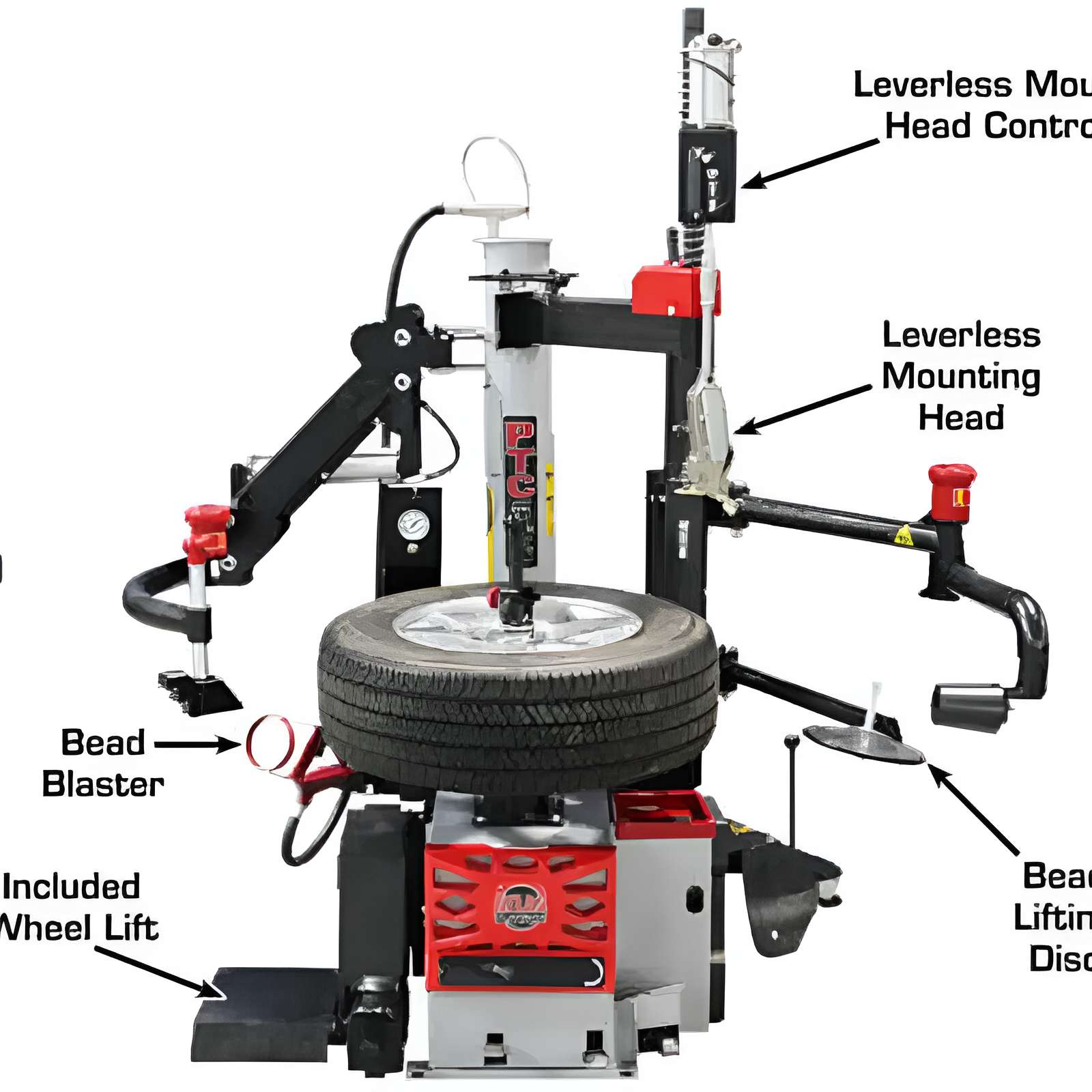

- āLever/No-Leverā Changing System
- āSmart Lockā Center-Post Mounting System
- Oiler, Filter, Regulator included (external air supply required)
- Plastic Protectors included
- Tire Tool, Lube Bucket, and Lube Brush Included
- Inflation Box w/ Gauge Included
PWB90XL Wheel Balancer Special Features:
- Computer Controlled Spin Balancer

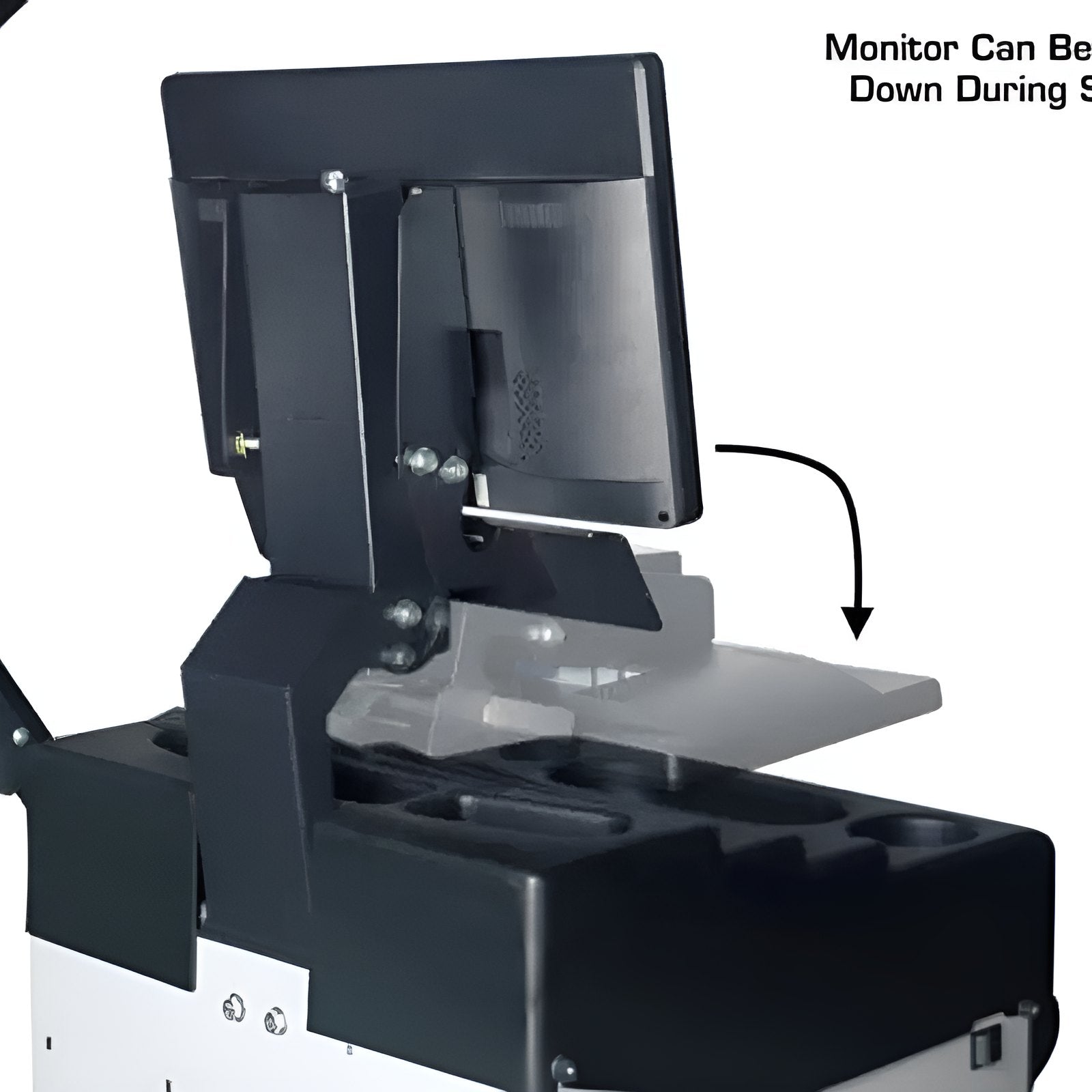

- High-Resolution Video Monitor Display
- Automatic 3D Data Entry

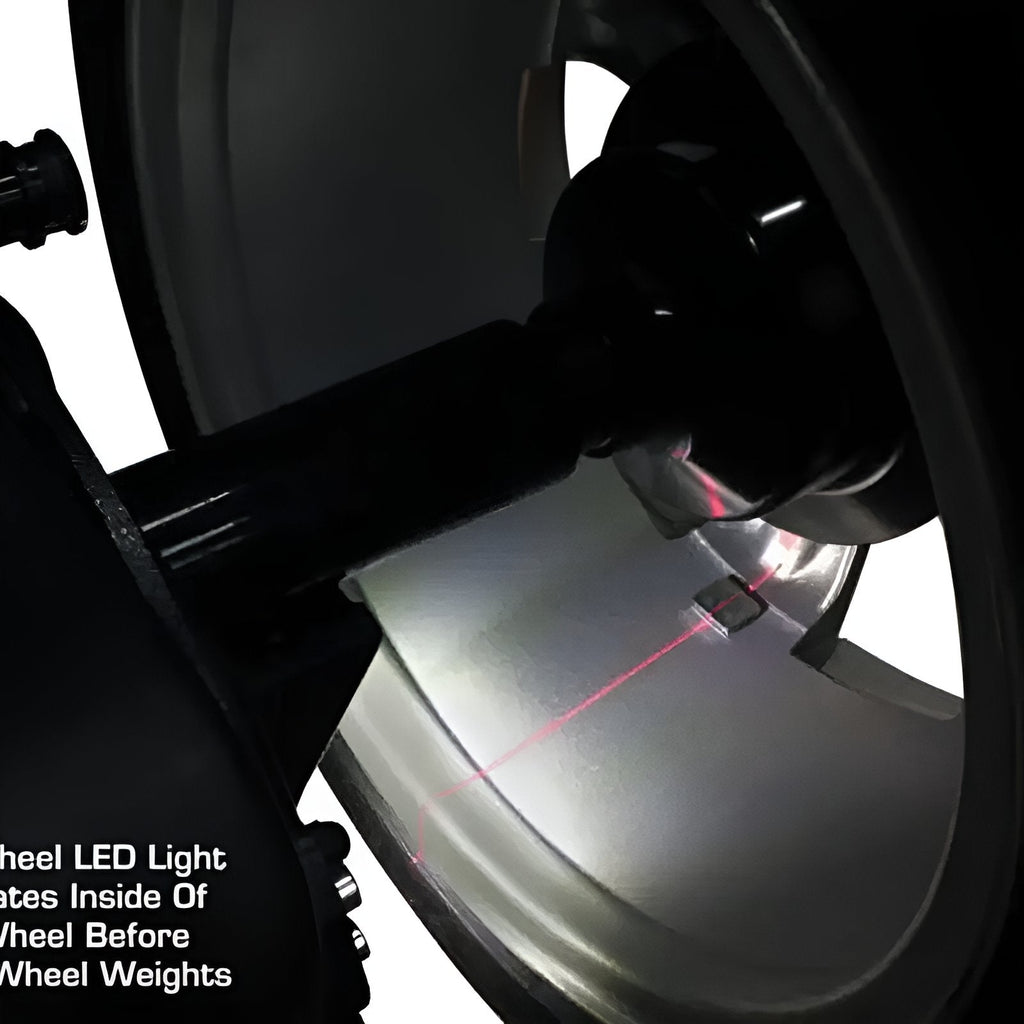

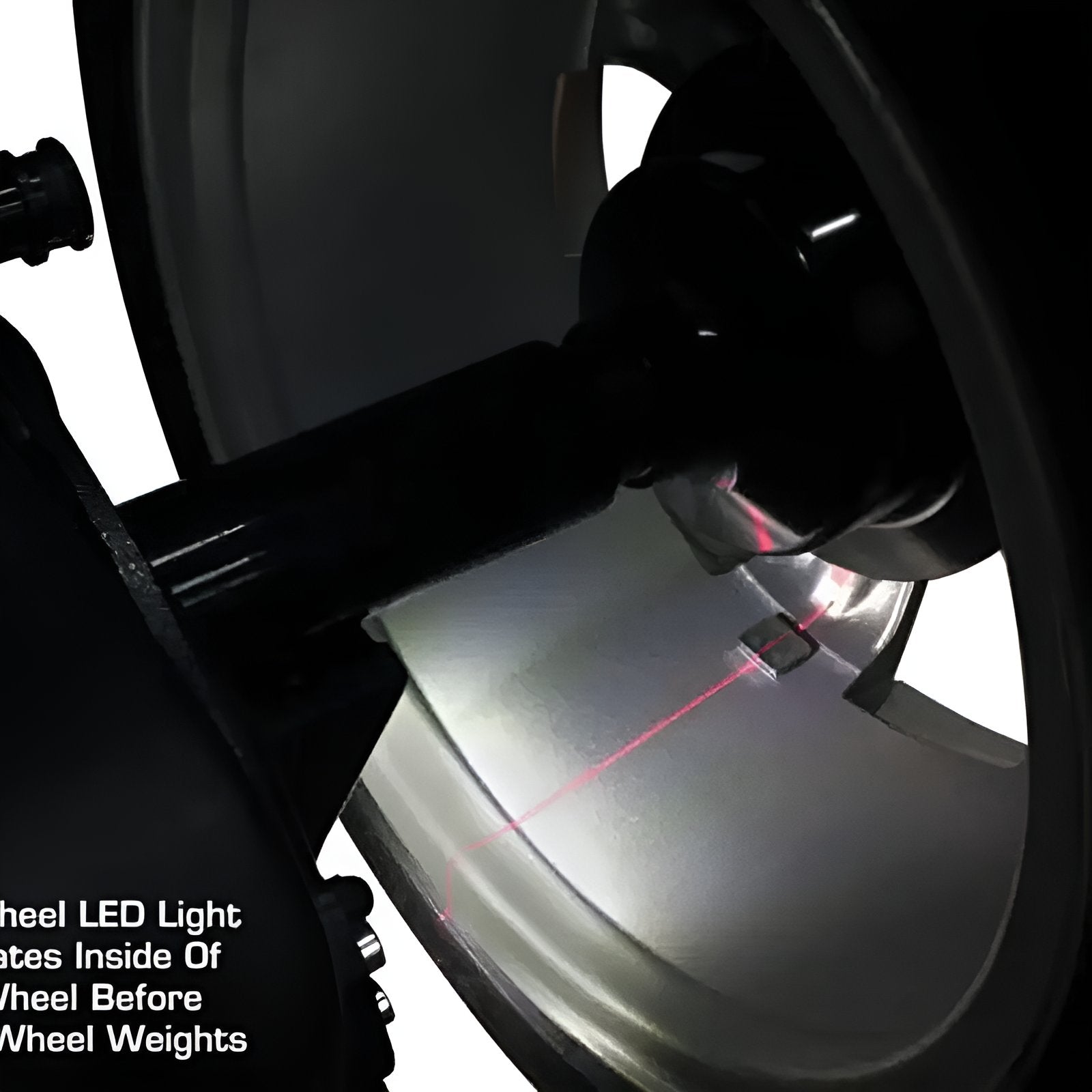

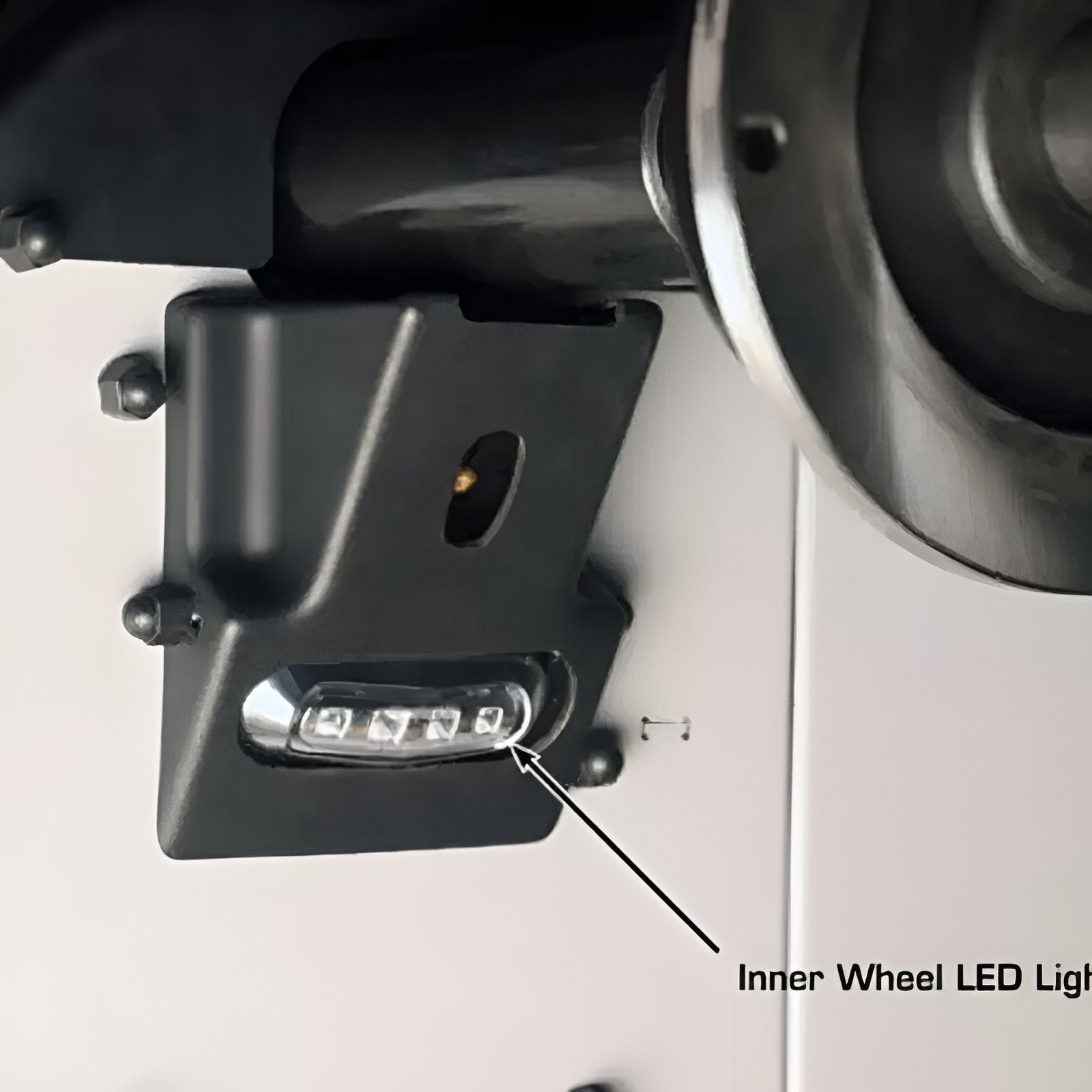

- LED Light to Illuminate Wheel, Laser Line to Guide Weight Placement
- Optimatch, FES (Split), OPF (Opposite Position) Functions
- Self Diagnosis/Self Calibration
- Display in grams or ounces, in mm or inches
- 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included
Platinum TCWB-COMBO2 Manual
Ā Ā
Ā Ā Ā Atlas PWB90XL Manual
Ā
