This combo package includes the Atlas® Platinum PTC400 tire changer and the Atlas® Platinum PWB90XL wheel balancer.

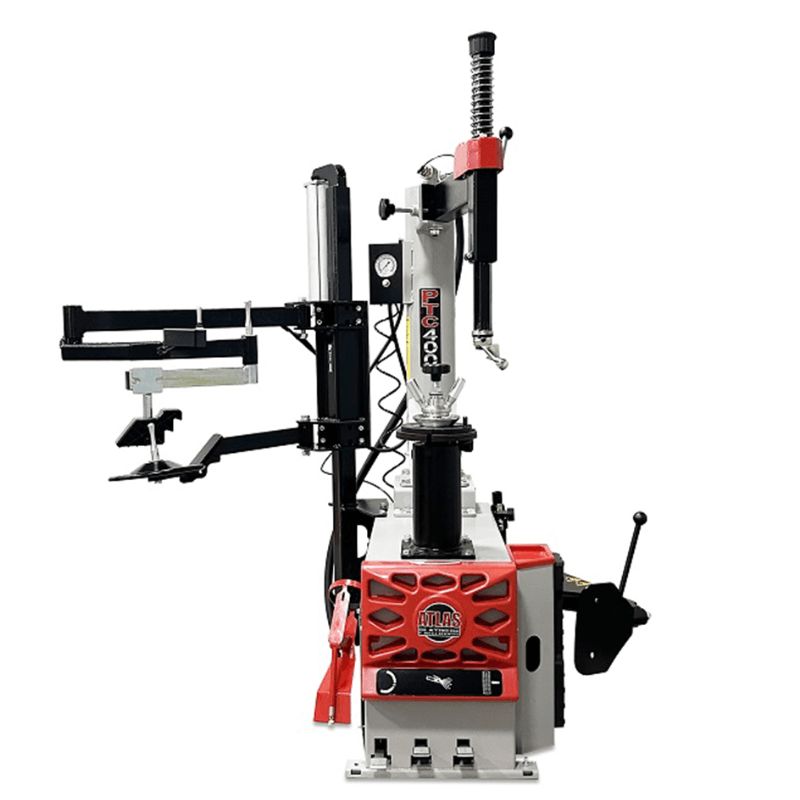

The Atlas® Platinum PTC400 combines all the best features and qualities of the popular PTC300 and a versatile center post design. The PTC400 is an Italian engineered Swing-Arm Tire Changer that comes standard with a Left-Hand Bead Pressing and Bead Lifting Assist Arm to make changing the most challenging tires a breeze.The PTC400 boasts a center post with a 26-inch rim capability, high torque 110V electric turntable, anodized aluminum bead breaker cylinder, integrated bead blast system, and a 2-year warranty. The Atlas® PTC400 requires some assembly after purchase..

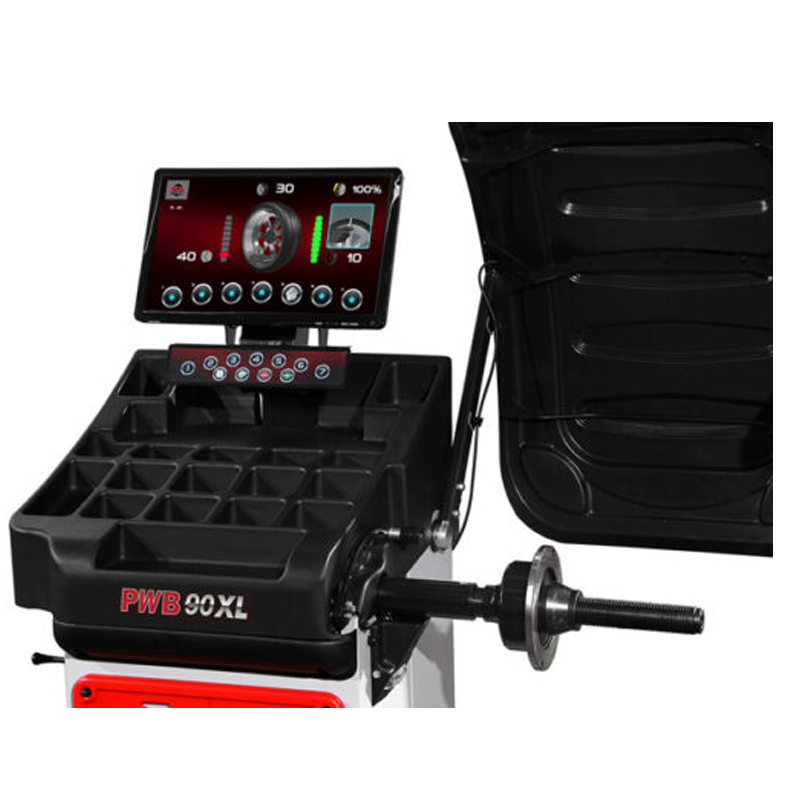

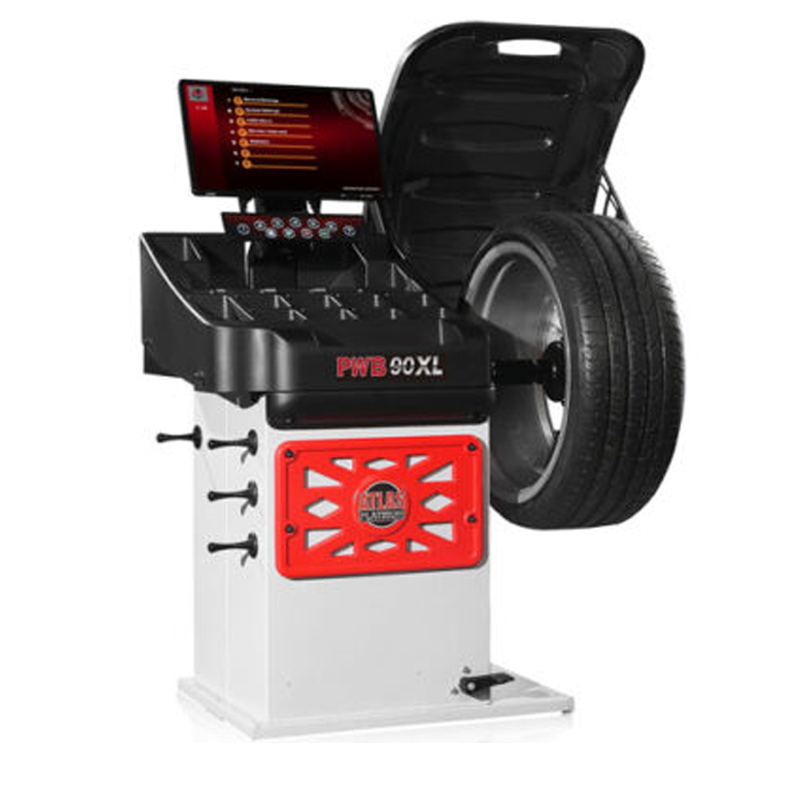

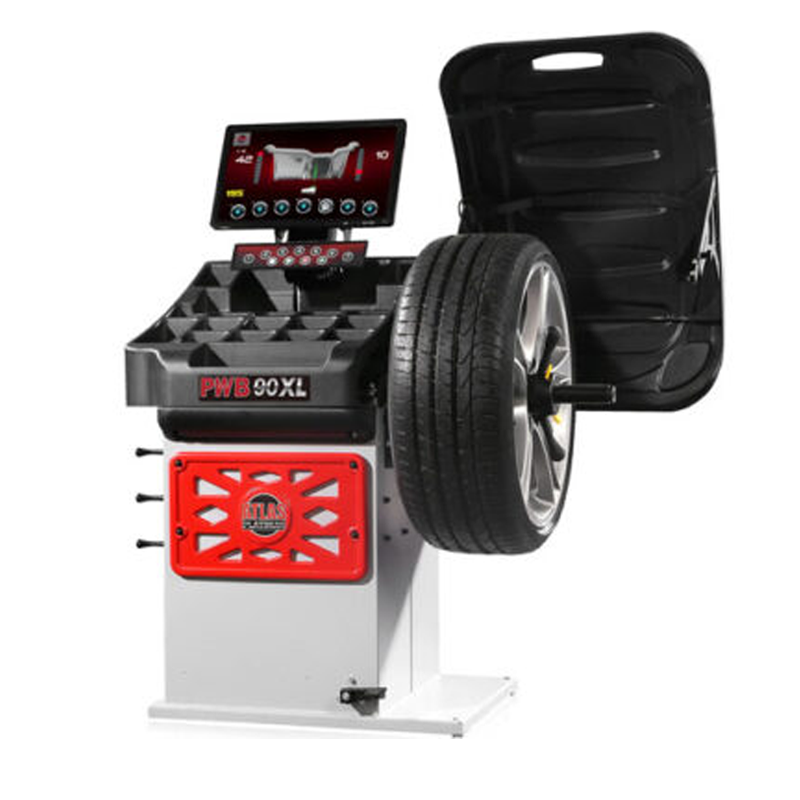

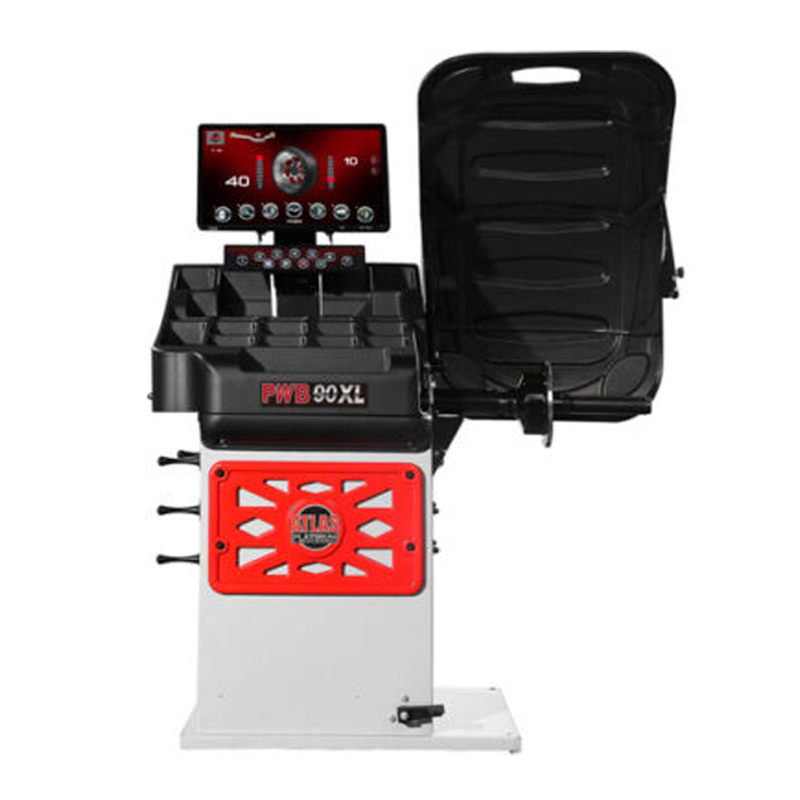

The Atlas® Platinum PWB90XL features Super Automatic 3D Data Entry via a single data entry gauge for offset and diameter, and touchless sonar for rim width (no old-fashioned measuring arm). Using the weight placement arm, the user can choose the most convenient location to put the weights, and a Laser Line guides the operator back to the exact location after the spin cycle, eliminating any possibility for human error and ensuring first time zero/zero results. The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows the operator to change the weight application position from 12 o'clock to 6 o'clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the PWB90XL via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient.Make no mistake, the PWB90XL is a real top of the line wheel balancer, competing with those big name brands seen as the benchmark for premium quality.

The Atlas® Platinum range of wheel service equipment incorporates the highest quality Italian designed components and engineering to assure it is the best value available at its price point.

 PTC 400 Specifications:

• Clamping Range: 10" – 26"

• Max Tire Diameter: 43"

• Max Wheel Width: 15" (13" for reverse)

• Rotating Speed: 7 RPM

• Bead Breaker Force: 6,924 lbs

• Operating Voltage: 110V

• Air Requirement: 120–145 PSI

• Shipping Weight: 620 lbs

Atlas PTC 400 Special Features

• Italian-engineered swing-arm center post design

• Left-hand assist arm for tough tire applications

• High-torque electric turntable (110V)

• Metal mount/demount head with replaceable plastic inserts

• Air-operated bead breaker (external air supply required)

• External flexible bead blast system

• Bead breaker with plastic protective cover

• Filter/regulator/lubricator system included

• Tire tool, lube bucket, and brush included

• Anodized aluminum bead breaker cylinder

• Durable construction with quality components

• Replacement parts and wear items readily available

• 2-year parts-only warranty

PWB90XL Wheel Balancer Specifications

• Max Tire Diameter: 43"

• Rim Sizes (Cars/Light Trucks): 10"–30"

• Rim Width: 1.5"–20"

• Shaft Size: 40mm

• Max Wheel Weight: 165 lbs

• Balancing Speed: 130 RPM

• Data Entry: Super Automatic 3D

• Accuracy: 1 gram

• Cycle Time: 7 seconds

• Weight Position Resolution: 1.4°

• Power Supply: 110V

• Shipping Weight: 290 lbs

PWB90XL Wheel Balancer Key Features

• Platinum 3D video motorized spin balancer

• Super Automatic 3D Data Entry with touchless sonar

• High-resolution video monitor display

• Laser line to guide weight placement

• LED light illuminates wheel interior

• Static and dynamic balancing modes

• Optimatch, FES (Split), OPF (Opposite Position) functions

• NWN (no-wheel-needed) system

• Self-diagnosing and self-calibrating

• Includes cones, quick-release nut, pliers, and calipers

• No anchor-down installation required

• 2-year parts-only warranty

Atlas PTC400 + PWB90X Optional Item Sold Separately

• PTC400 Center Post Tire Changer with Assist Arm
• PWB90XL 3D Video Wheel Balancer W/ Laser Line
