This combo package includes the Atlas® Platinum PTC400 tire changer and the Atlas® Platinum PWB70 wheel balancer.

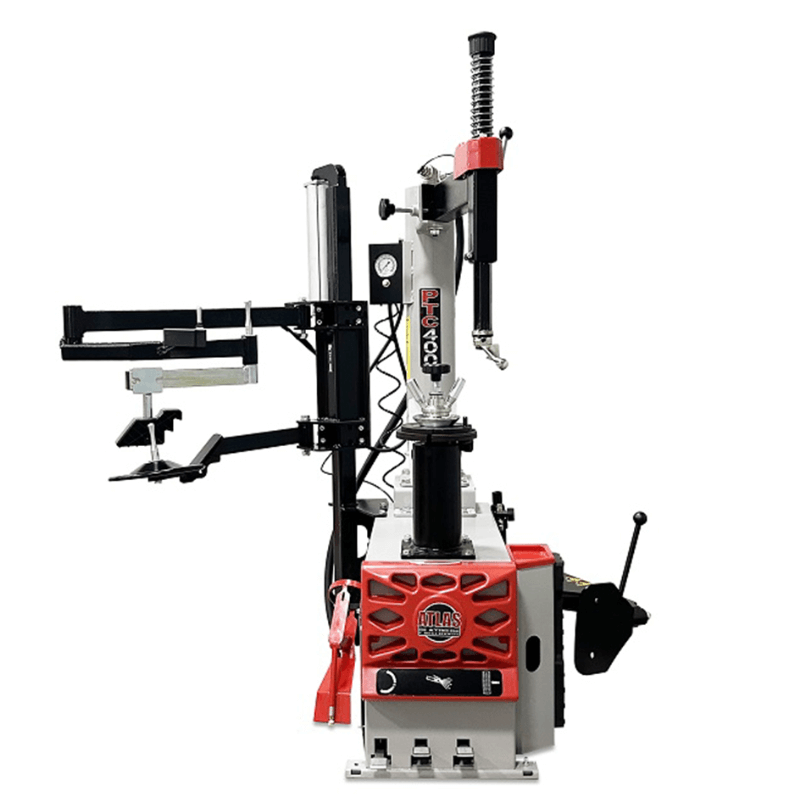

The Atlas® Platinum PTC400 combines all the best features and qualities of the popular PTC300 and a versatile center post design. The PTC400 is an Italian engineered Swing-Arm Tire Changer that comes standard with a Left-Hand Bead Pressing and Bead Lifting Assist Arm to make changing the most challenging tires a breeze.The PTC400 boasts a center post with a 26-inch rim capability, high torque 110V electric turntable, anodized aluminum bead breaker cylinder, integrated bead blast system, and a 2-year warranty. The Atlas® PTC400 requires some assembly after purchase..

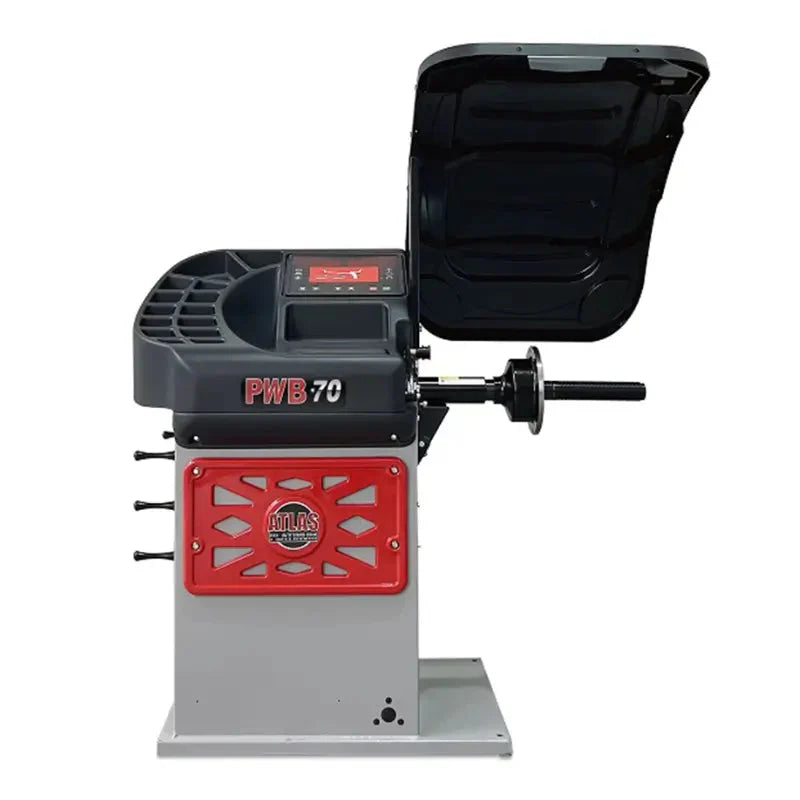

The Atlas® Platinum PWB70 is an electronic wheel balancer that improves on the already high quality PWB50 model. The Platinum PWB70 features a bigger wheel weight tray, a larger hood, and also adds an LED light and Laser Line guide for more precise wheel weight placement.

The Platinum PWB70 comes standard with an easy to read LED display and Automatic 2D Data Entry via a single data entry gauge. The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows an operator to change the weight application position from 12 o'clock to 6 o'clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the PWB70 via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient.

The Atlas® Platinum range of wheel service equipment incorporates the highest quality Italian designed components and engineering to assure it is the best value available at its price point.

Atlas Platinum PTC400 Tire Changer – Specifications

• Clamping Range: 10" – 26"

• Max Tire Diameter: 43"

• Max Wheel Width: 15" (13" reverse)

• Rotating Speed: 7 RPM

• Bead Breaker Force: 6,924 lbs

• Operating Voltage: 110V

• Air Requirement: 120–145 PSI

• Shipping Weight: 620 lbs

Atlas Platinum PTC400 Tire Changer – Key Features

• Italian-engineered swing-arm center post design

• Left-hand assist arm for tough applications

• High-torque 110V electric turntable

• Air-operated bead breaker with plastic protective cover

• External flexible bead blast system

• Metal mount/demount head with replaceable plastic inserts

• Filter/regulator/lubricator system included

• Tire tool, lube bucket, and brush included

• Anodized aluminum bead breaker cylinder

• Durable construction with quality components

• Replacement parts and wear items always available

• 2-year parts-only warranty

Atlas Platinum PWB70 Wheel Balancer – Specifications

• Rim Sizes (Car/Light Truck): 10" – 30"

• Max Tire Diameter: 43"

• Rim Width: 1.5" – 20"

• Max Wheel Weight: 165 lbs

• Shaft Size: 40mm

• Balancing Speed: 130 RPM

• Cycle Time: 7 seconds

• Accuracy: 1 gram

• Weight Position Resolution: 1.4°

• Power Supply: 110V

• Data Entry: Automatic 2D

• Measurements: Standard or Metric

• Shipping Weight: 280 lbs

Atlas Platinum PWB70 Wheel Balancer – Key Features

• Computer-controlled motorized spin balancer

• Premium Italian components and durable build

• LED light and laser weight placement guide

• Large wheel weight tray and oversized hood

• Electric brake with smart approach system

• Optimatch, FES, and Opposite Weight Function

• Static, dynamic, ALU, and ALU-S balancing modes

• No-wheel-needed (NWN) system

• Self-diagnosing and self-calibrating operation

• Automatic start/stop with hood movement

• USB hub for firmware updates

• Includes cones, quick-release nut, pliers, and calipers

• No anchor-down installation required

• 2-year parts-only warranty

Atlas PTC400 & PWB70 Optional Item Sold Separately

• PTC400 Center Post Tire Changer with Assist Arm
• PWB70 Motorized Spin Wheel Balancer with Laser
