This combo package includes the Atlas® Platinum PTC400 tire changer and the Atlas® Platinum PWB50 wheel balancer.

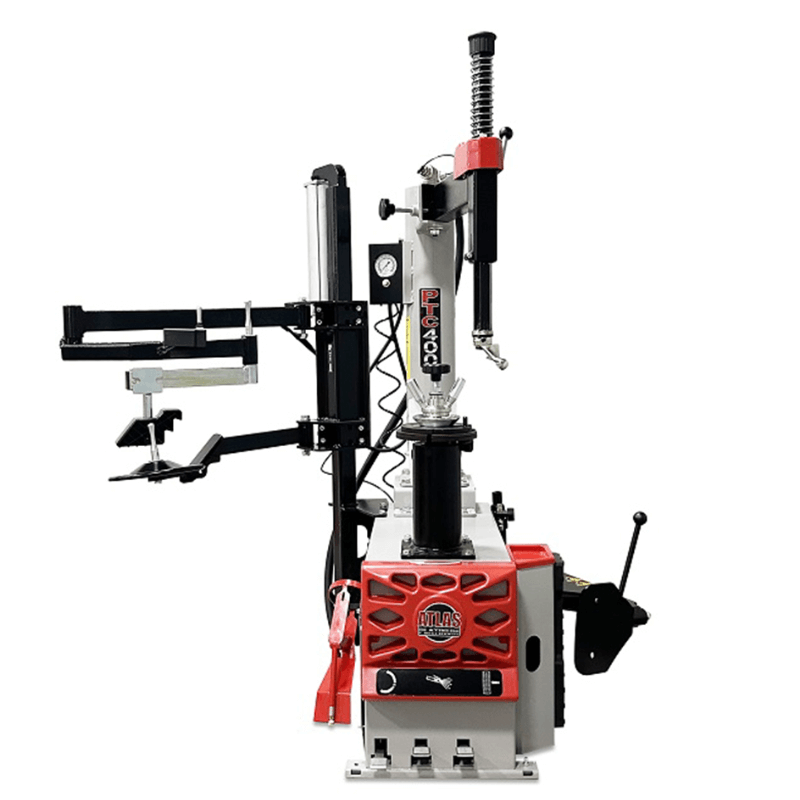

The Atlas® Platinum PTC400 combines all the best features and qualities of the popular PTC300 and a versatile center post design. The PTC400 is an Italian engineered Swing-Arm Tire Changer that comes standard with a Left-Hand Bead Pressing and Bead Lifting Assist Arm to make changing the most challenging tires a breeze.The PTC400 boasts a center post with a 26-inch rim capability, high torque 110V electric turntable, anodized aluminum bead breaker cylinder, integrated bead blast system, and a 2-year warranty. The Atlas® PTC400 requires some assembly after purchase..

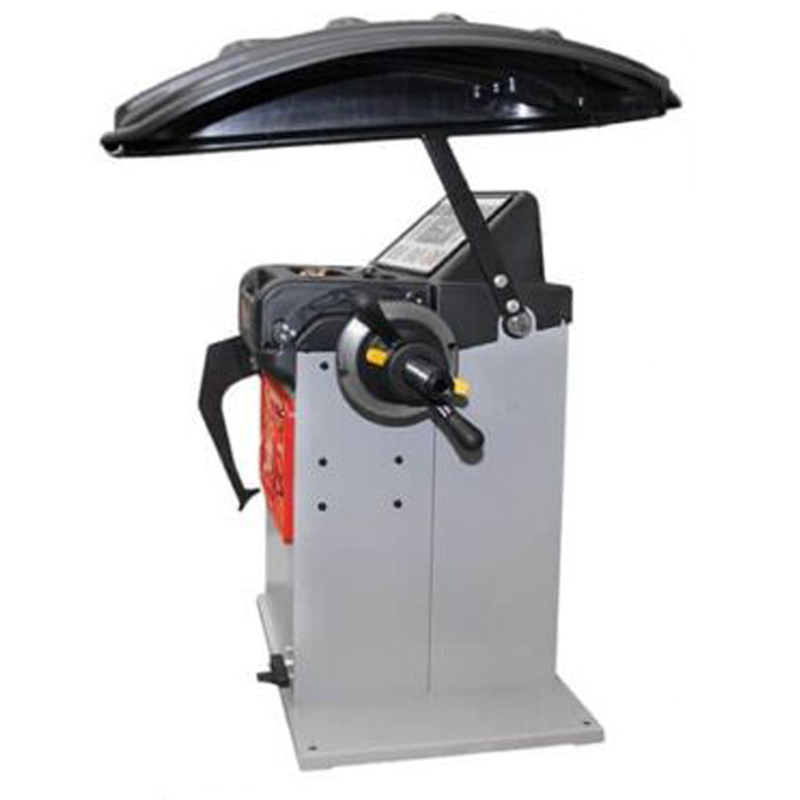

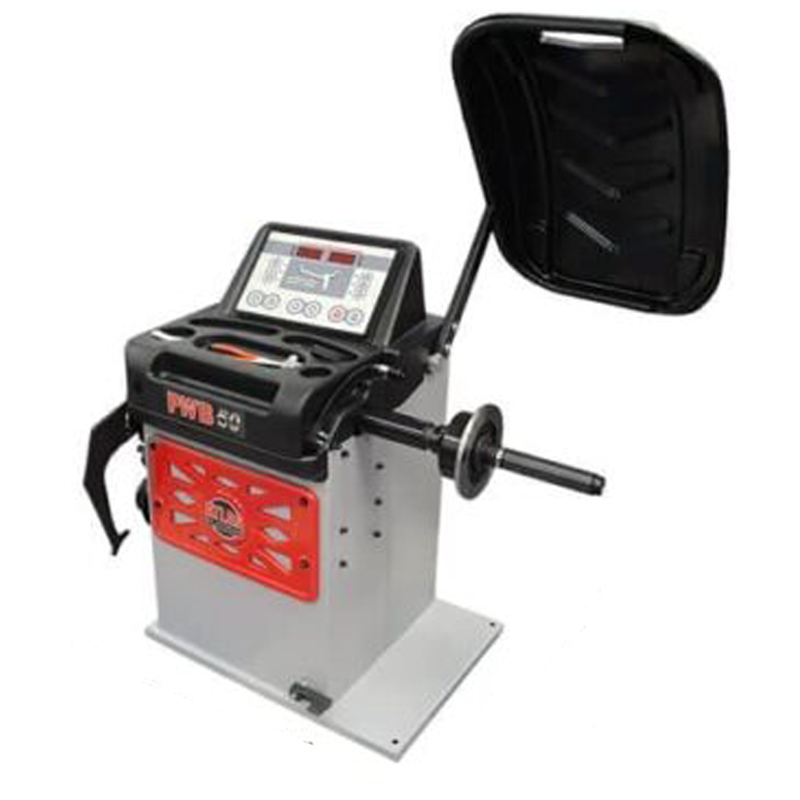

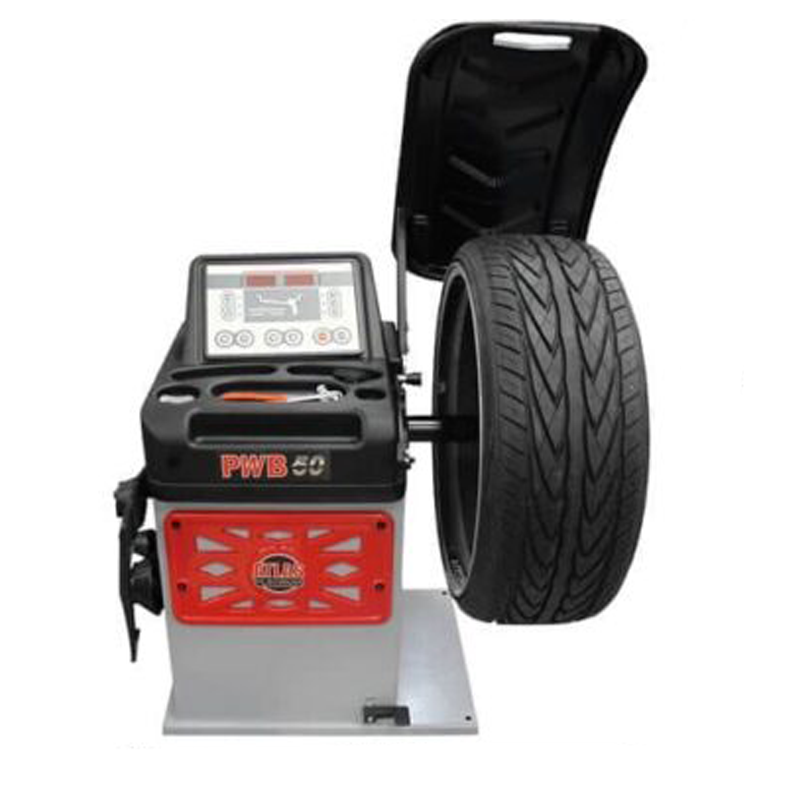

The Atlas® Platinum PWB50 is an electronic wheel balancer with an easy to read LED display and that offers Automatic 2D Data Entry via a single data entry gauge. Whilst there are a multitude of ALU weight placement configurations, the weight placement arm actually enables the operator to choose the most convenient position for the weights, and the machine will guide the operator back to that exact position after the spin cycle, ensuring accurate dynamic adhesive weight application. The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows an operator to change the weight application position from 12 o'clock to 6 o'clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the PWB50 via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient.

The Atlas® Platinum range of wheel service equipment incorporates the highest quality Italian designed components and engineering to assure it is the best value available at its price point.

PTC400 Tire Changer – Key Specifications

• Clamping Range: 10" – 26"

• Max Tire Diameter: 43"

• Max Wheel Width: 15" (13" for reverse)

• Rotating Speed: 7 RPM

• Bead Breaker Force: 6,924 lbs

• Operating Voltage: 110V

• Air Requirement: 120–145 PSI

• Shipping Weight: 620 lbs

PTC400 Tire Changer – Special Features

• Italian-engineered swing-arm center post design

• Left-hand assist arm for tough tire applications

• High-torque electric turntable (110V)

• Metal mount/demount head with replaceable plastic inserts

• Air-operated bead breaker (external air supply required)

• External flexible bead blast system

• Bead breaker with plastic protective cover

• Filter/regulator/lubricator system included

• Tire tool, lube bucket, and brush included

• Anodized aluminum bead breaker cylinder

• Durable construction with quality components

• Replacement parts and wear items readily available

• 2-year parts-only warranty

PWB50 Wheel Balancer – Key Specifications

• Rim Sizes (Cars and Light Trucks): 10"–30"

• Rim Width: 1.5"–20"

• Shaft Size: 40mm

• Max Wheel Weight: 165 lbs

• Balancing Speed: 130 RPM

• Data Entry: Automatic 2D

• Measurements: Standard or Metric

• Accuracy: 1 gram

• Weight Position Resolution: 1.4°

• Self Calibration: Yes

• Cycle Time: 7 seconds

• Power Supply: 110V

• Shipping Weight: 230 lbs

PWB50 Wheel Balancer – Special Features

• Max Tire Diameter: 43"

• Platinum computer-controlled motorized spin balancer

• Italian engineering and components

• Automatic and pedal-operated brake

• Automatic start/stop when hood is lowered/raised

• Static and dynamic balancing modes

• OPTIMATCH, FES (Split), OPF (Opposite Position) functions

• Special ALU-S and other ALU programs

• Automatic 2D data entry

• NWN (No Wheel Needed) system

• Self-diagnosing and self-calibrating

• USB hub for firmware updates through PC/Notebook

• Exceptional stability in unbalance reading between planes

• Display in grams/ounces and mm/inches

• No anchor-down installation required

• Includes plastic quick-release nut, 4 centering cones, wheel weight pliers, & measuring calipers

• Replacement parts and wear items always in stock

• 2-year parts-only warranty

Atlas Platinum PTC400 Optional Item Sold Separately

• PTC400 Center Post Tire Changer with Assist Arm
• PWB50 Premium 2D Computer Wheel Balancer
