Description

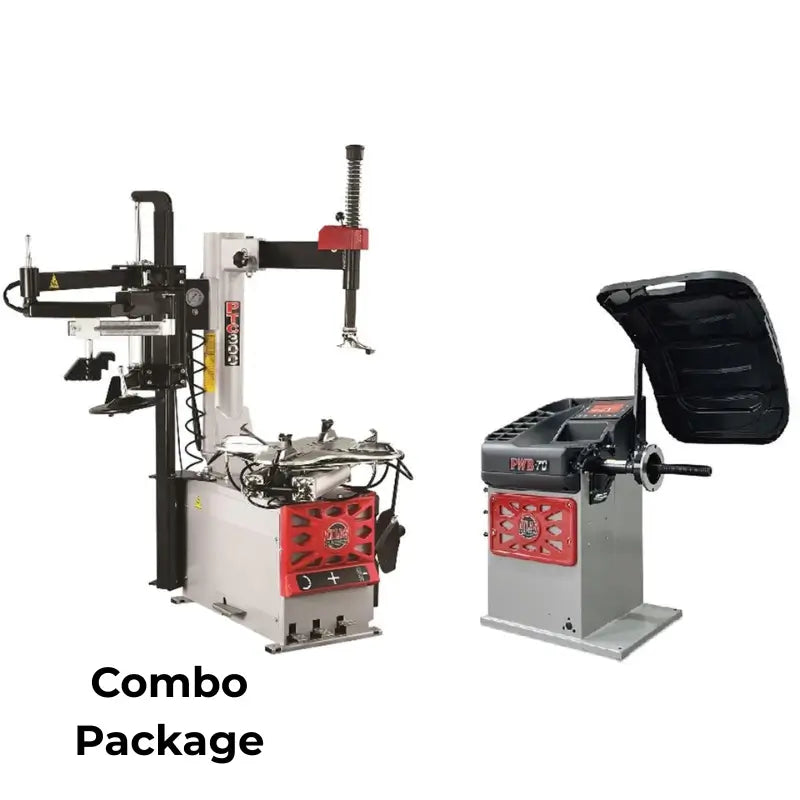

This combo package includes the Atlas® Platinum PTC300 tire changer and the Atlas® Platinum PWB70 wheel balancer.

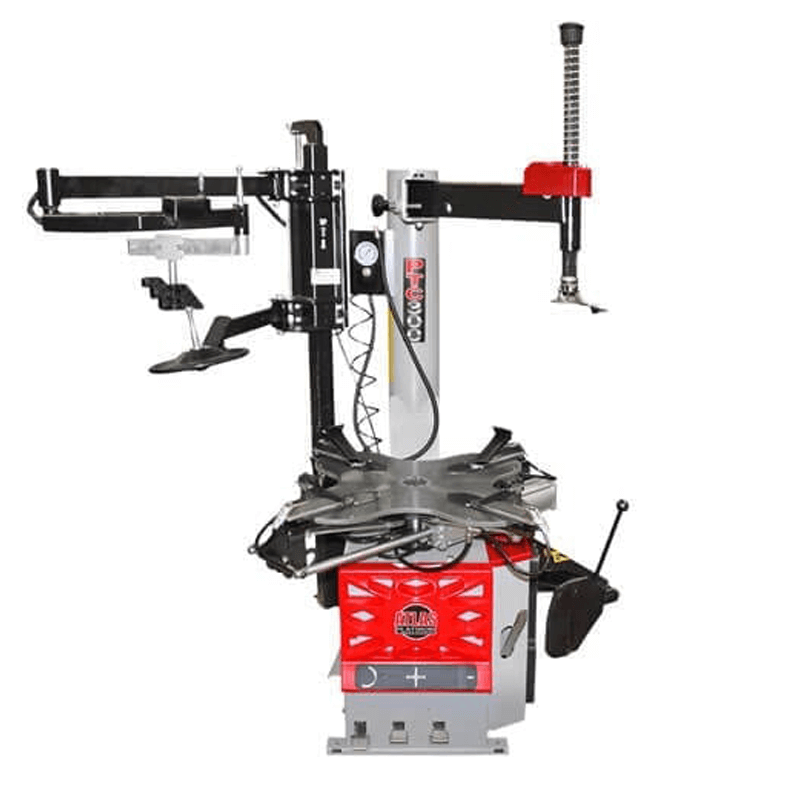

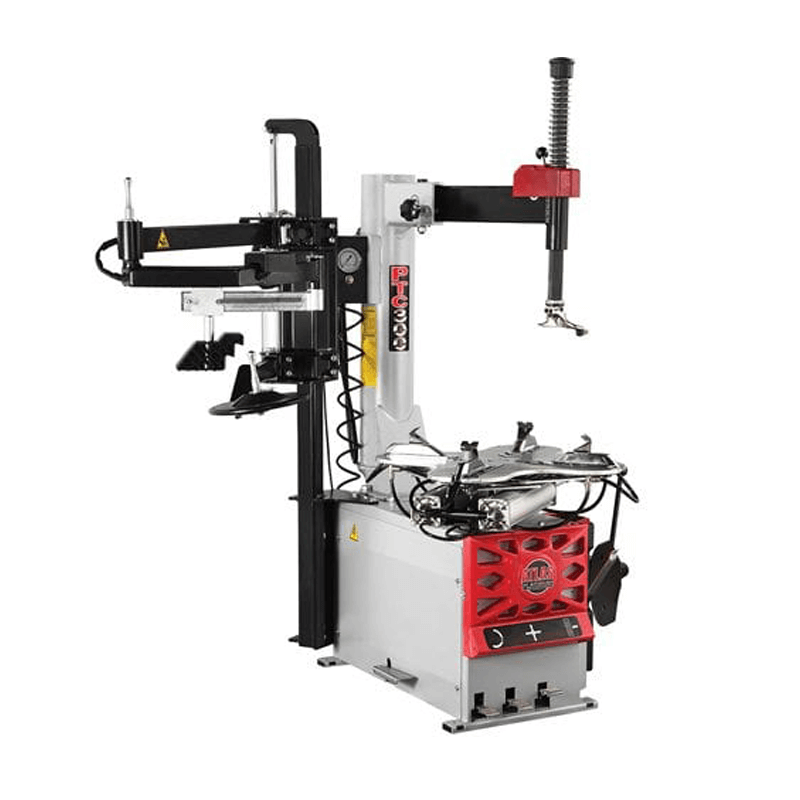

The Platinum PTC300 represents the evolution of the most familiar tire changer configuration found in high volume tire shops around the world. The PTC300 is an Italian engineered Swing-Arm Tire Changer that comes standard with a Left-Hand Bead Pressing and Bead Lifting Assist Arm to make changing the most challenging tires a breeze.The PTC300 boasts a 26-inch clamping capability, high torque 110V electric turntable, anodized aluminum bead breaker cylinder, and integrated bead blast system.

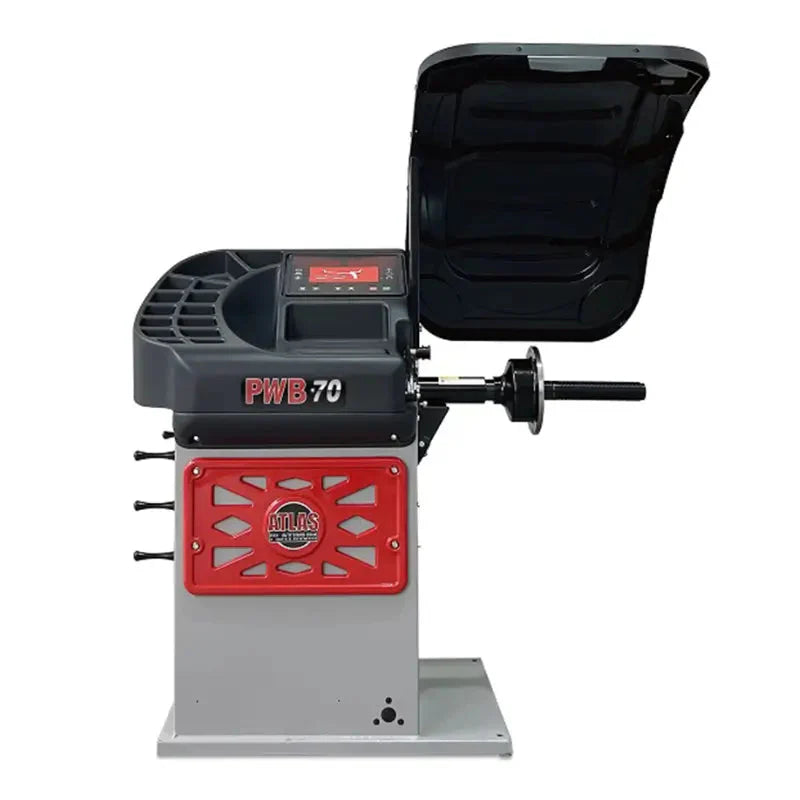

The Atlas® Platinum PWB70 is an electronic wheel balancer that improves on the already high quality PWB50 model. The Platinum PWB70 features a bigger wheel weight tray, a larger hood, and also adds an LED light and Laser Line guide for more precise wheel weight placement.
The Platinum PWB70 comes standard with an easy to read LED display and Automatic 2D Data Entry via a single data entry gauge. The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows an operator to change the weight application position from 12 o'clock to 6 o'clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the PWB70 via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient.
The Atlas® Platinum range of wheel service equipment incorporates the highest quality Italian designed components and engineering to assure it is the best value available at its price point. The Atlas PTC300 requires some assembly after purchase.
Atlas Platinum PTC300 Tire Changer – Specifications
-
Rims Supported: Steel, Aluminum, Alloy
-
External Locking Rim Dimension: 10" – 24"
-
Internal Locking Rim Dimension: 12" – 26"
-
Maximum Tire Diameter: 43"
-
Maximum Wheel Width (Bead Breaker): 15"
-
Turntable Rotating Speed: 7 RPM
-
Bead Breaker Force: 6,924 lbs
-
Air Requirement: 120–145 PSI
-
Operating Voltage: 110V
-
Shipping Weight: 620 lbs
Atlas Platinum PTC300 Tire Changer – Key Features
-
Platinum rim clamp/swing arm tire changer design
-
Left-hand assist arm with pressing/lifting disk
-
Extra-large star-shaped turntable
-
Air-operated jaws and bead breaker
-
Built-in beadblaster for quick seating
-
Electric turntable for smooth operation
-
Column-mounted inflator box with gauge
-
Includes tire tool, lube bucket with brush, and jaw covers
-
Filter/regulator/lubricator included
-
Metal mount/demount head with replaceable plastic inserts
-
Plastic cover for bead breaker shovel included
-
2-year parts-only warranty
Atlas Platinum PWB70 Wheel Balancer – Specifications
-
Rim Sizes (Car/Light Truck): 10" – 30"
-
Max Tire Diameter: 43"
-
Rim Width: 1.5" – 20"
-
Max Wheel Weight: 165 lbs
-
Shaft Size: 40mm
-
Balancing Speed: 130 RPM
-
Cycle Time: 7 seconds
-
Accuracy: 1 gram
-
Weight Position Resolution: 1.4°
-
Power Supply: 110V
-
Data Entry: Automatic 2D
-
Measurements: Standard or Metric
-
Shipping Weight: 280 lbs
Atlas Platinum PWB70 Wheel Balancer – Key Features
-
Computer-controlled motorized spin balancer
-
Premium Italian components and durable build
-
LED light and laser weight placement guide
-
Large wheel weight tray and oversized hood
-
Electric brake with smart approach system
-
Optimatch, FES, and Opposite Weight Function
-
Static, dynamic, ALU, and ALU-S balancing modes
-
No-wheel-needed (NWN) system
-
Self-diagnosing and self-calibrating operation
-
Automatic start/stop with hood movement
-
USB hub for firmware updates
-
Includes cones, quick-release nut, pliers, and calipers
-
No anchor-down installation required
-
2-year parts-only warranty
Atlas Platinum PTC300 + PWB70 Manual
Atlas PTC300 Rim-Clamp Tire Changer Optional Item Sold Separately
- PWB70 Motorized Spin Wheel Balancer with Laser
- PTC300 Rim-Clamp Tire Changer w/ Assist Arm
