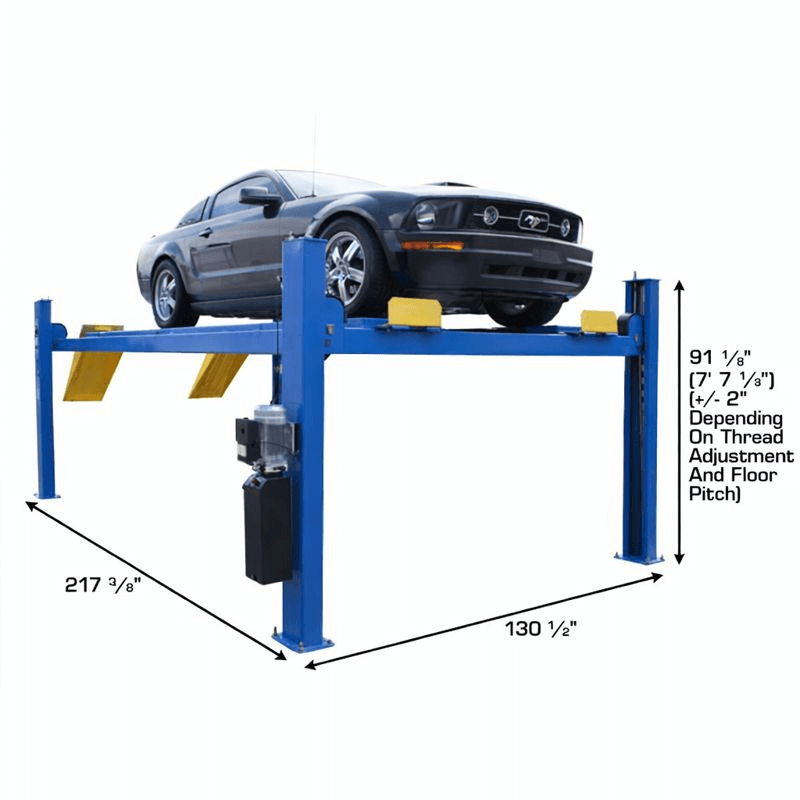

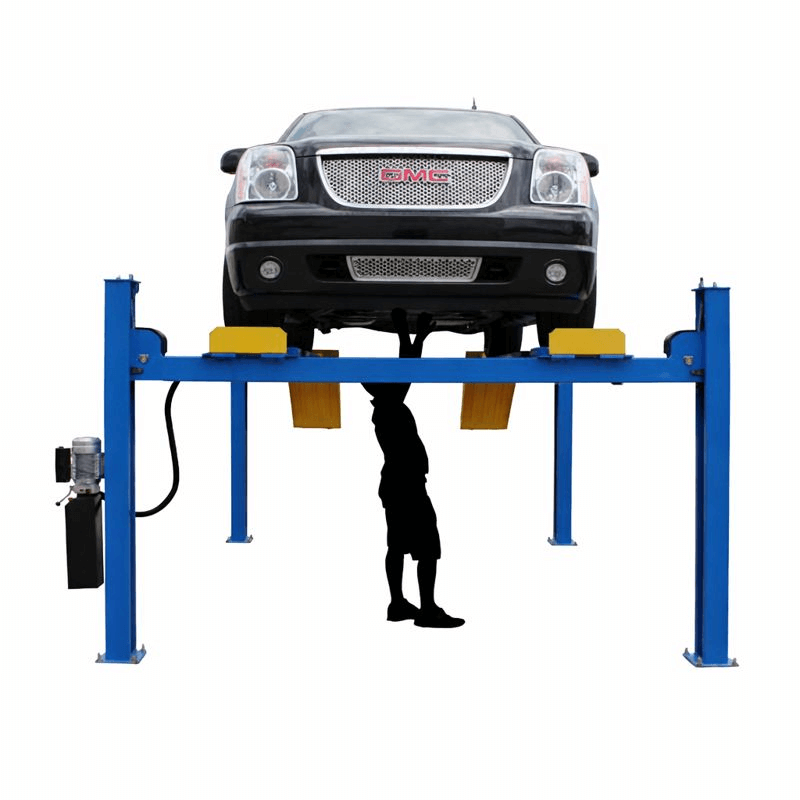

Atlas 14,000 lb 4-Post Alignment Lift w/ Turntables SKU ATEATTD-414AT
Designed to handle large vehicles with ease, this lift features built-in slip plates and alignment turntables, allowing technicians to perform precise alignments without additional add-ons. Its extra-tall, extra-wide, and extra-long design makes it ideal for trucks, vans, and long-wheelbase vehicles.
Built to demanding commercial standards, the Atlas 414A uses a high-strength cable lifting system paired with an oversized hydraulic cylinder positioned under the runways. This design improves lift stability, simplifies leveling, and helps protect vehicle doors from damage. A lock ladder design with a double-lock safety system, air-operated single-point lock release, and durable powder coat finish all contribute to long-term reliability and safe daily operation in busy shop environments.
Perfect for professional automotive shops, fleet maintenance facilities, and alignment centers, the Atlas 414A offers exceptional versatility. Multiple turntable placement positions accommodate a wide range of wheelbases, while included metal runway covers allow the lift to be used for general service when alignments are not required. With compatibility for rolling bridge jacks and optional accessories, this lift is a smart investment for shops that demand performance, safety, and flexibility.
4-Post Alignment Lift 414A Specifications:
-
Capacity: 14,000 lbs
-
Lift Type: 4-post alignment lift
-
Lifting Height: 80" (6' 8")
-

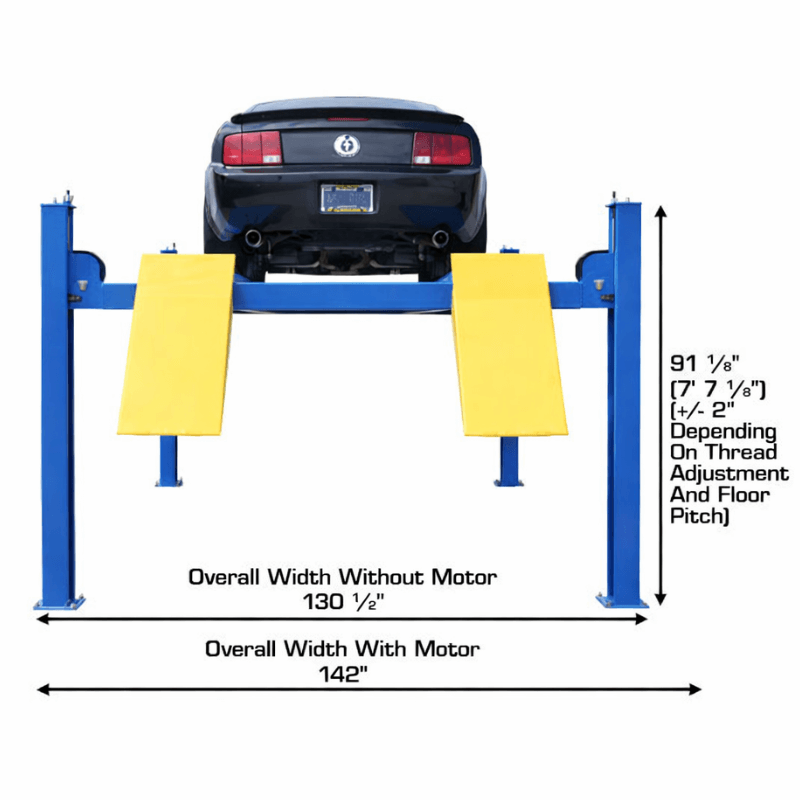

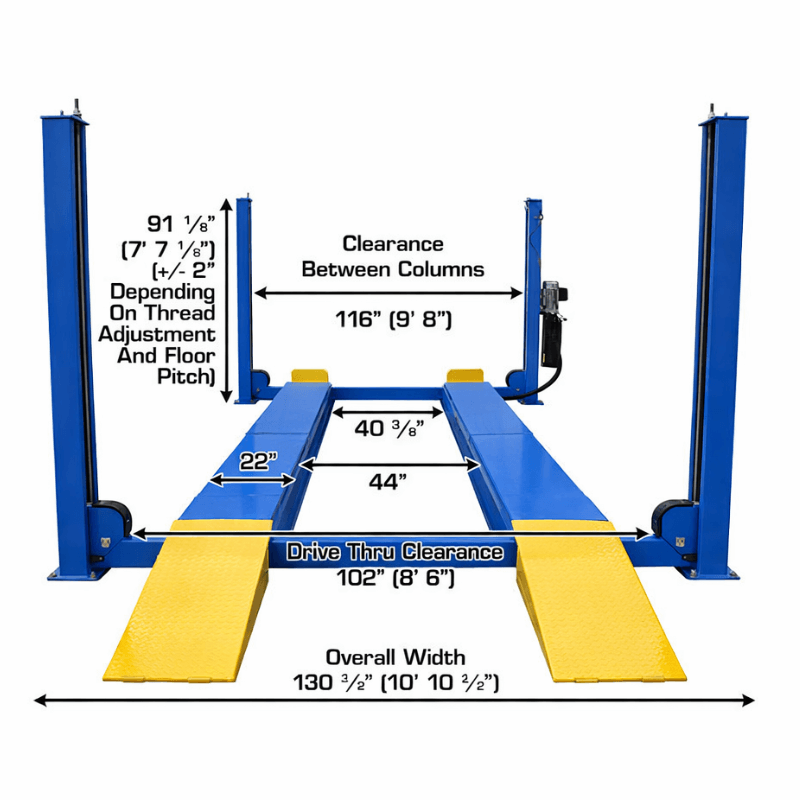

Overall Width (without motor): 130 7/8" (10' 10 7/8")
-
Overall Width (with motor): 138 7/8" (11' 6 7/8")
-

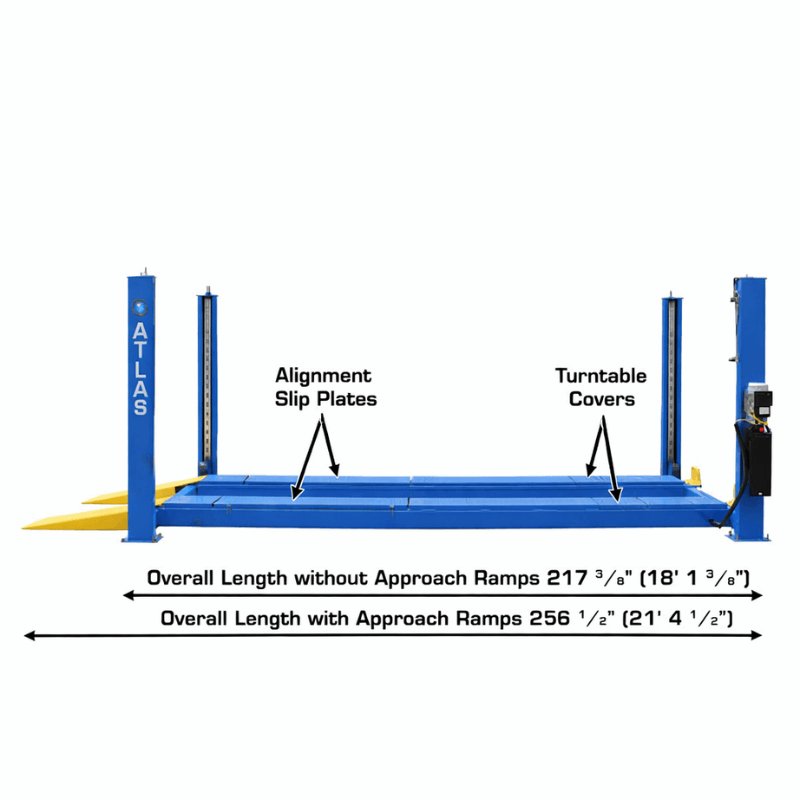

Overall Length with Approach Ramp: 255" (21' 3")
-
Length Between Columns: 197 1/4" (16' 5 1/4")
-
Runway Length: 208 5/8" (17' 4 5/8")
-
Runway Width: 20"
-
Runway Thickness: 8 3/4"
-
Width Between Runways: 46 7/8" (44 3/8" with rail)
-
Outside Runway to Outside Runway: 86 7/8" (7' 2 7/8")
-

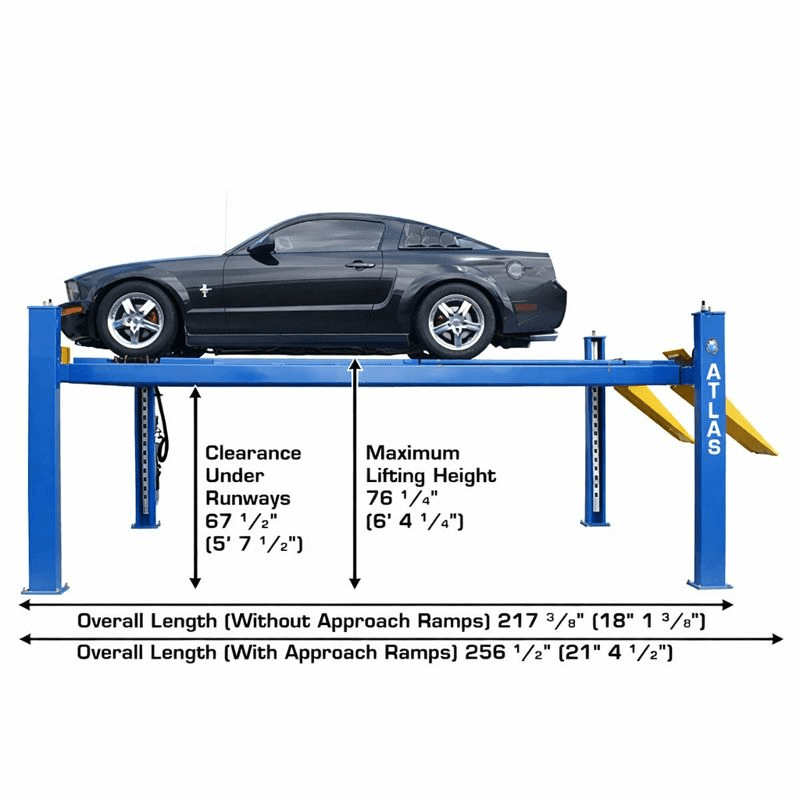

Clearance Under Runways: 71 1/4" (5' 11 1/4")
-

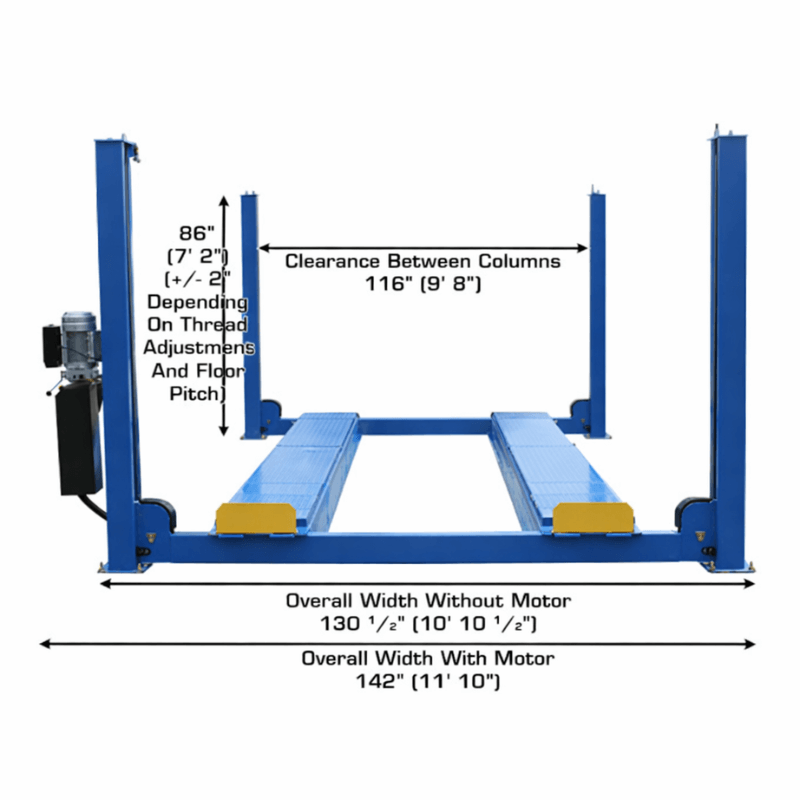

Clearance Between Columns: 116" (9' 8")
-

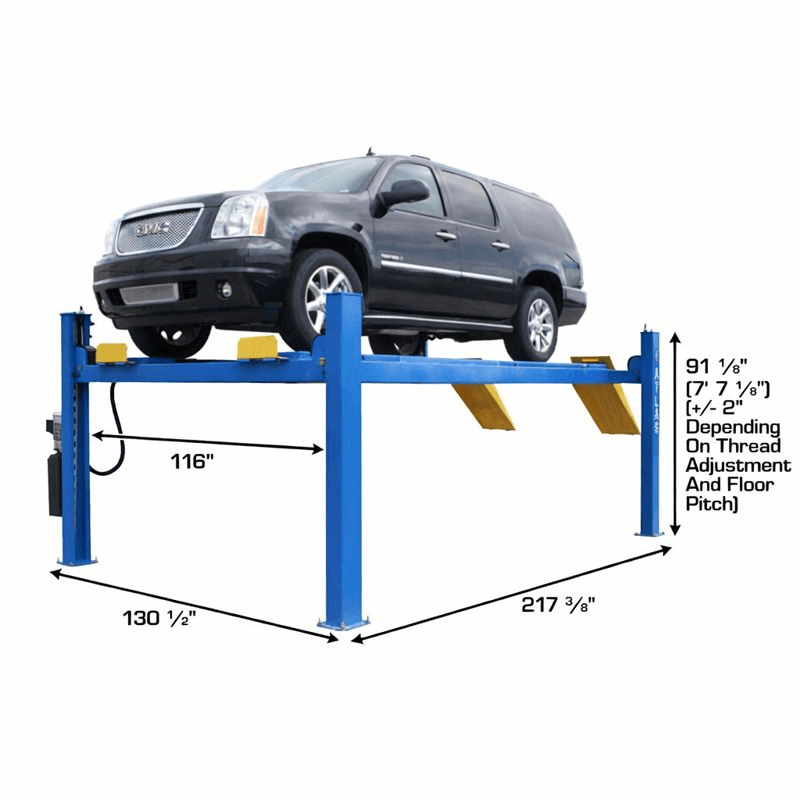

Column Height: 91 1/8" (7' 7 1/8")
-

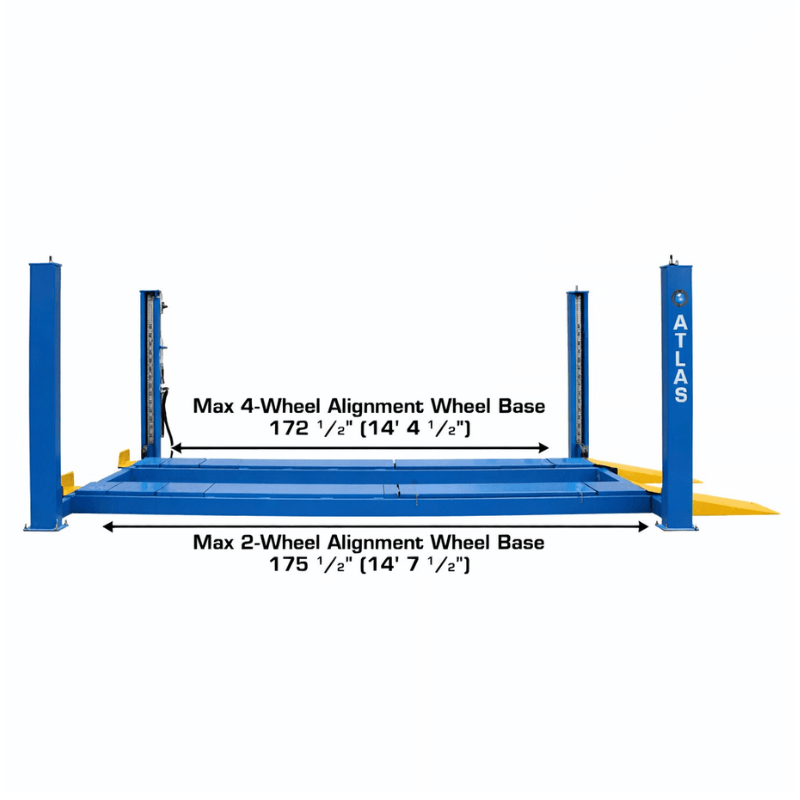

Maximum Wheelbase: 197" (16' 5")
-
Drive-Thru Width: 102 1/8" (8' 6 1/8")
-
Air Requirement: 85–115 PSI (external air supply required)
-

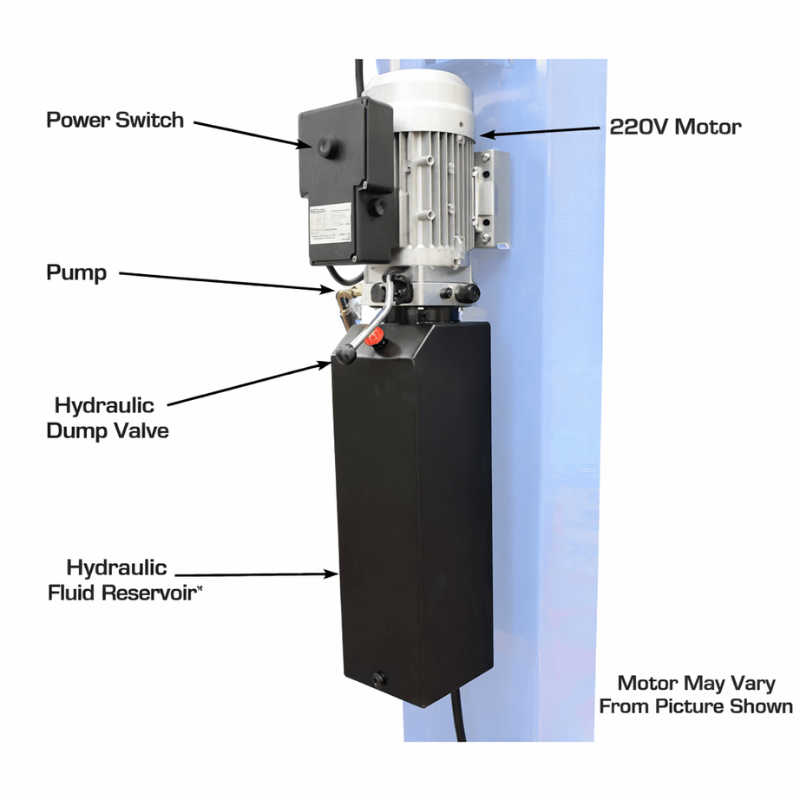

Electrical Requirement: 220V, single-phase, 30 amp breaker recommended
-
Oil Requirement: 3–5 gallons AW32 / AW46 (not included)
-

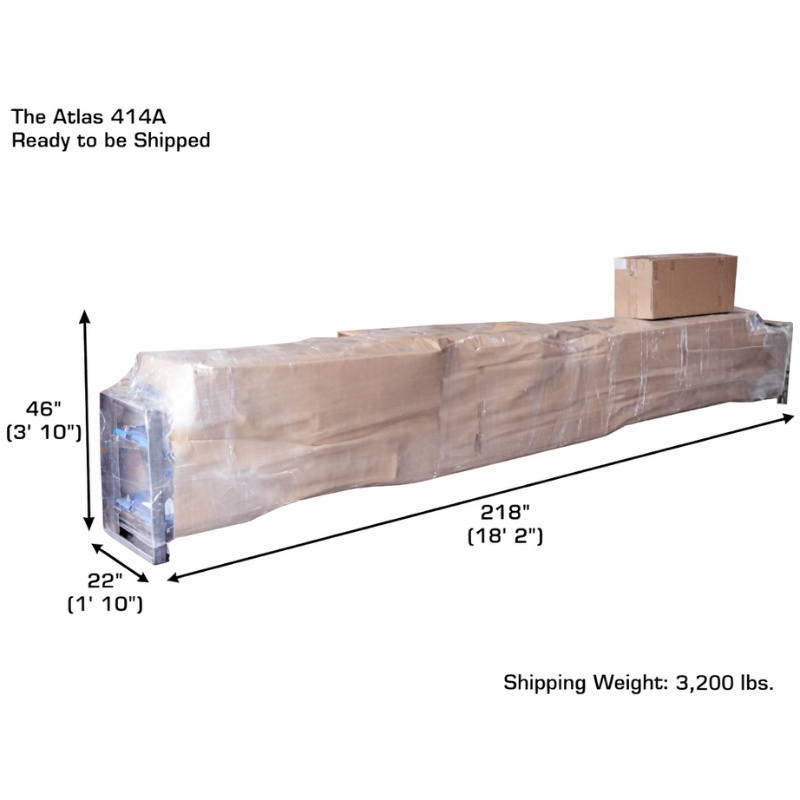

Shipping Weight: 3,200 lbs
414A 14,000 lb 4-Post Alignment Lift Special Features:
-
14,000 lb commercial-grade lifting capacity
-

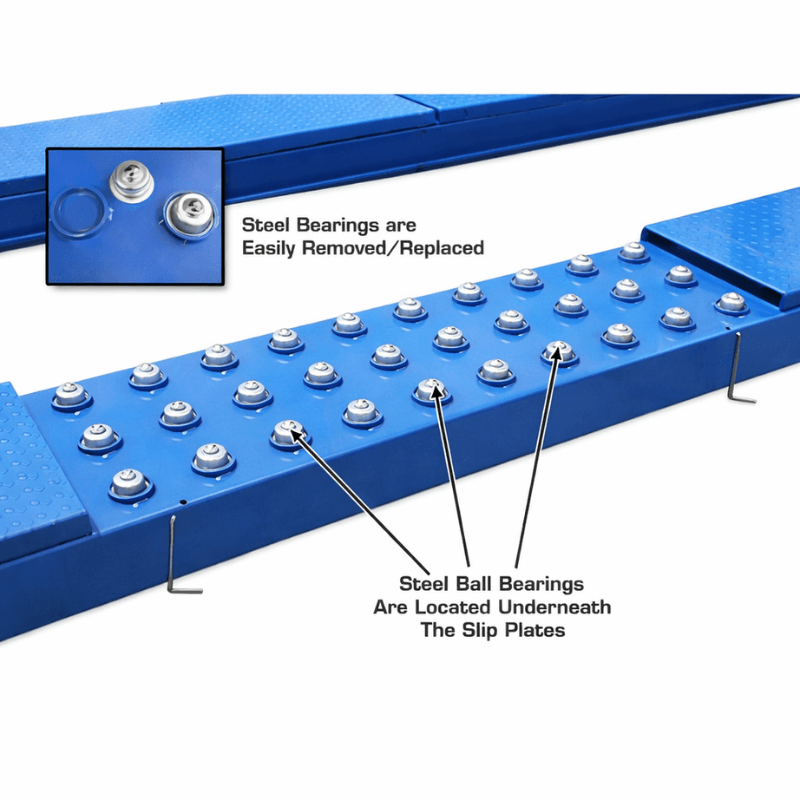

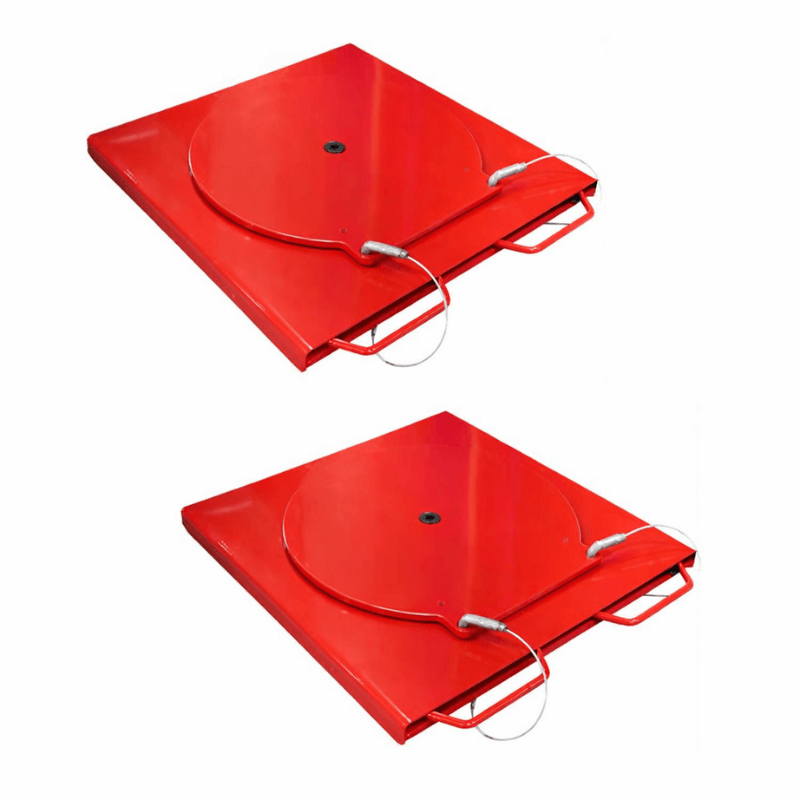

Built-in slip plates and alignment turntables included
-

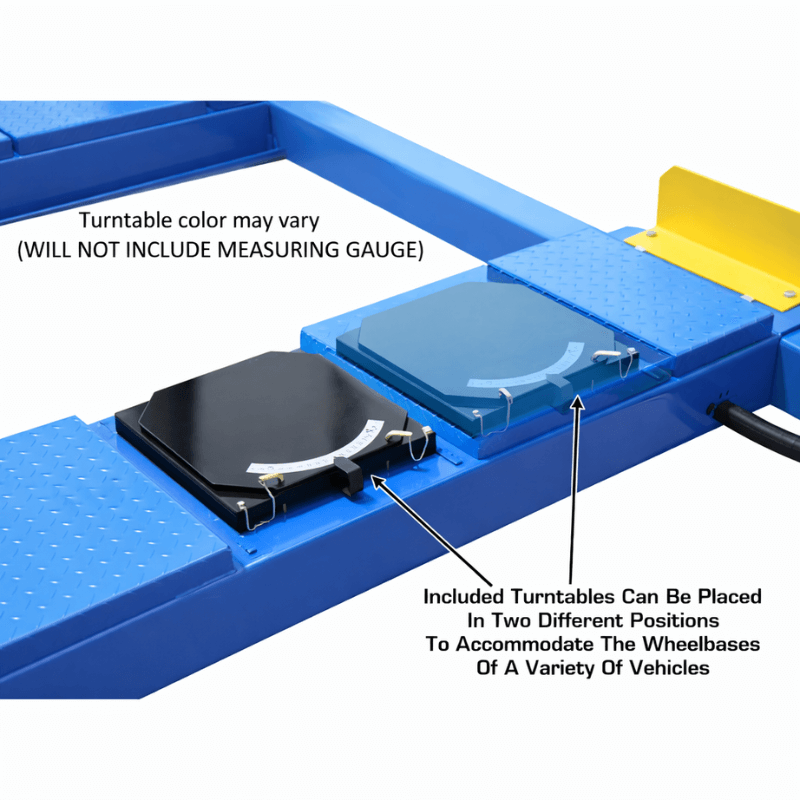

Multiple turntable positions for various wheelbases
-
Extra-tall, extra-wide, and extra-long design
-

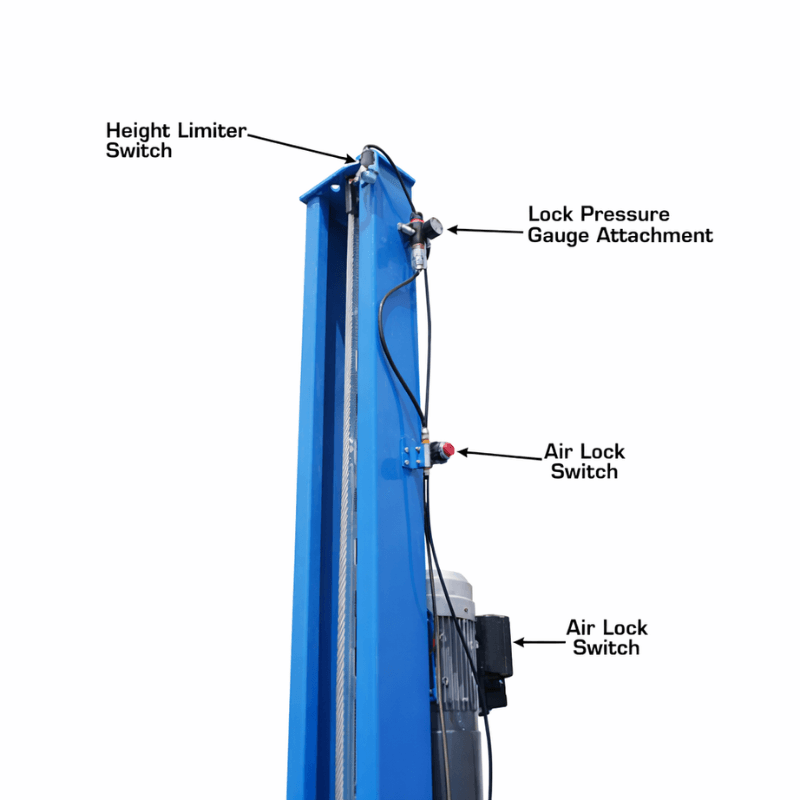

Air-operated single-point lock release
-

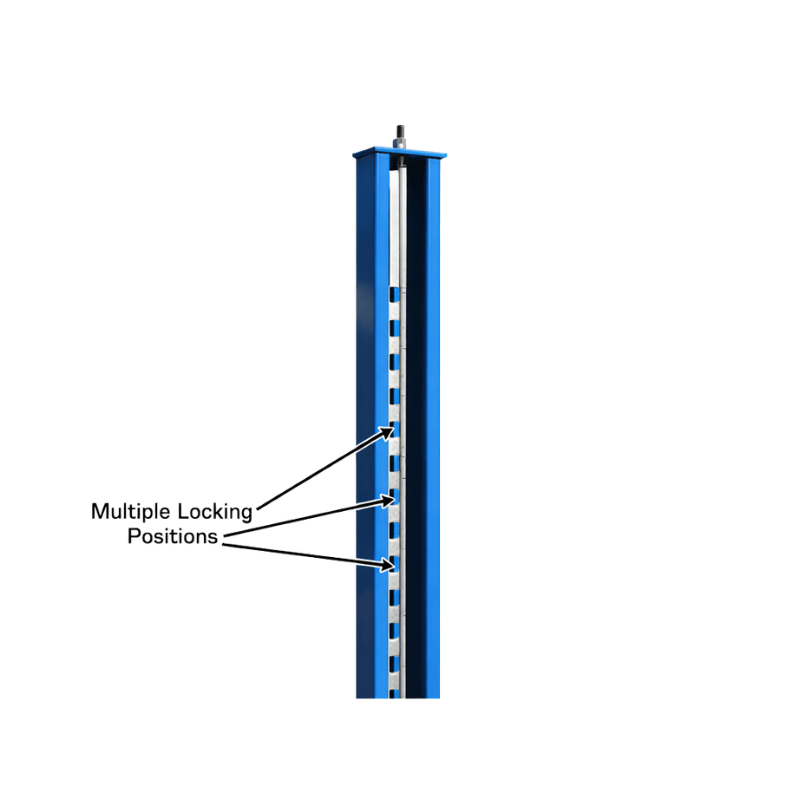

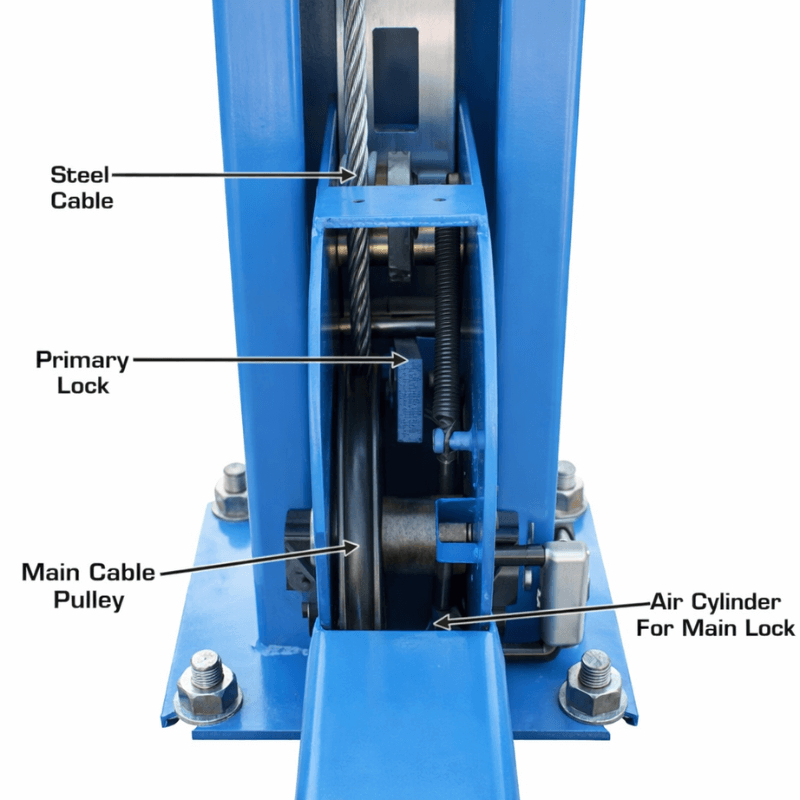

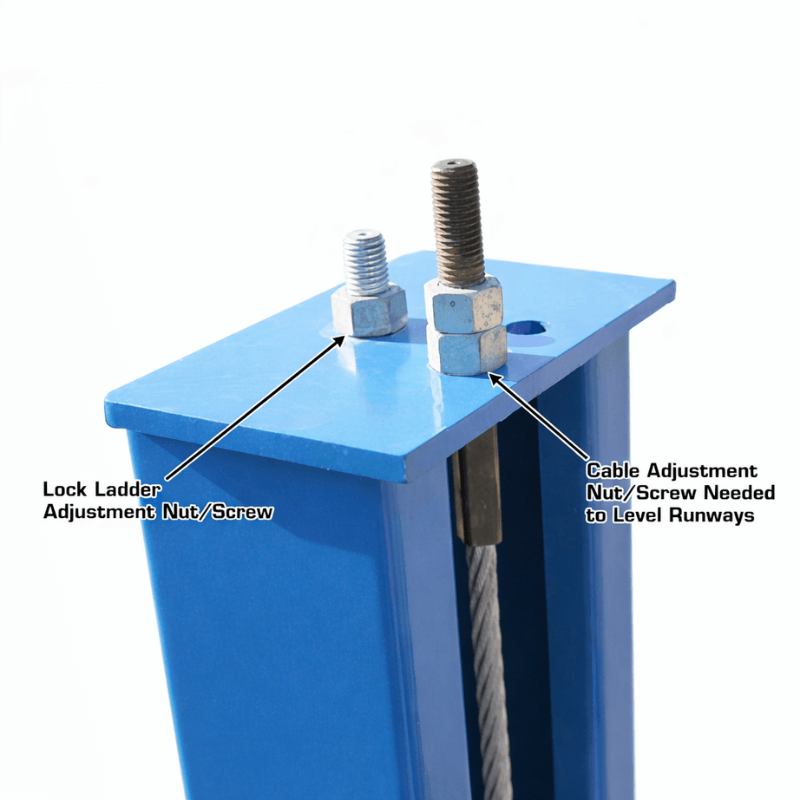

Lock ladder design with double-lock safety system
-

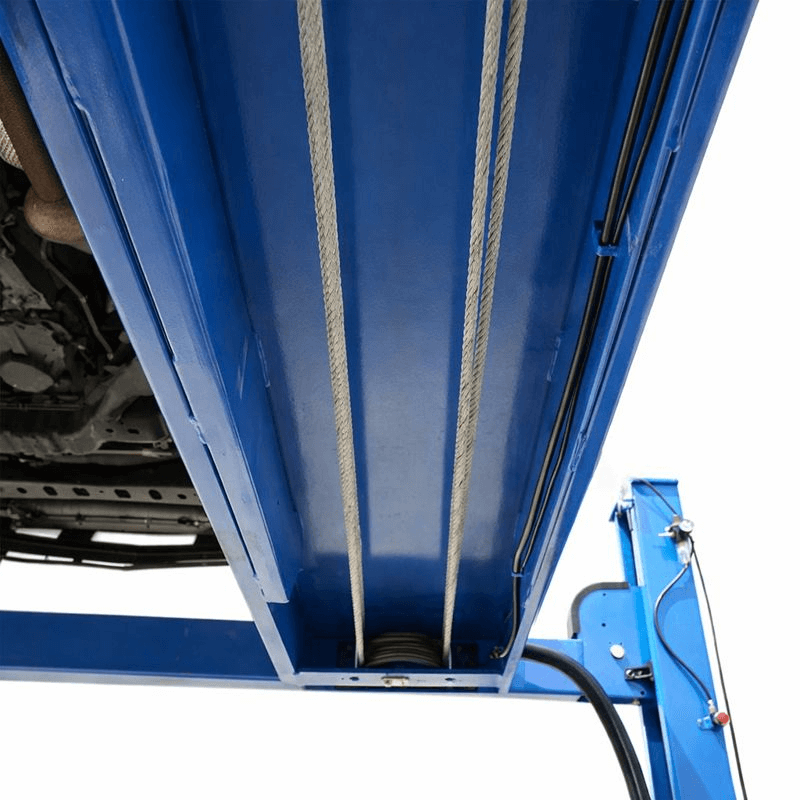

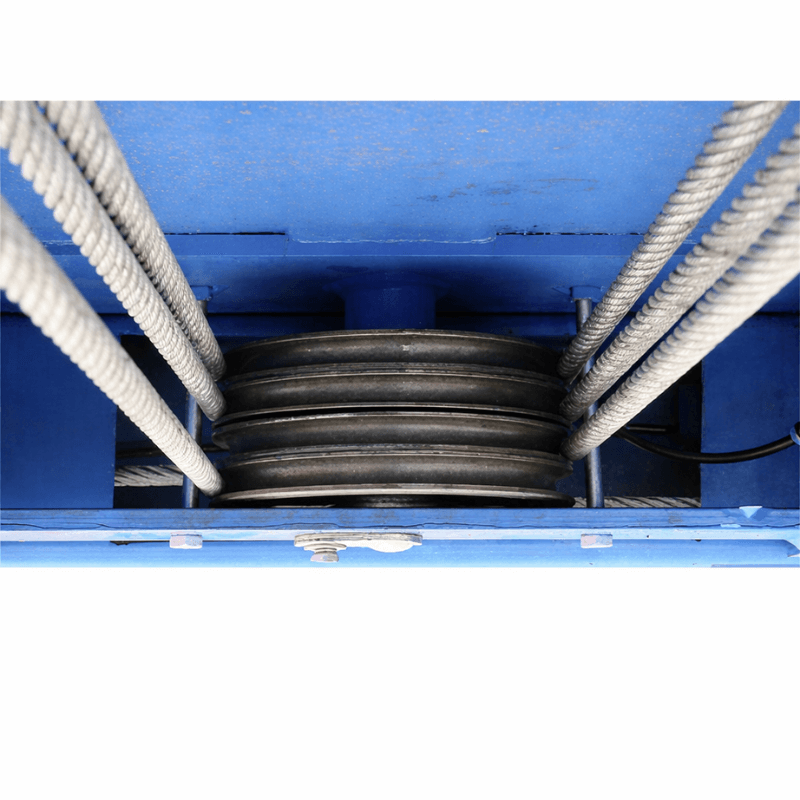

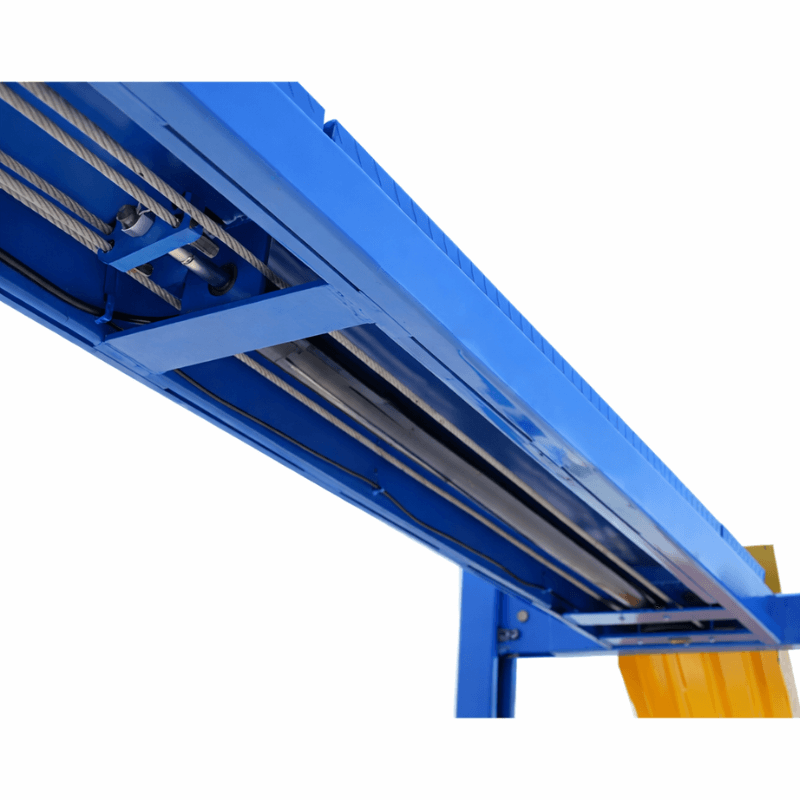

High-strength cable system with under-runway hydraulic cylinder
-
Powder coat finish for long-term durability
-

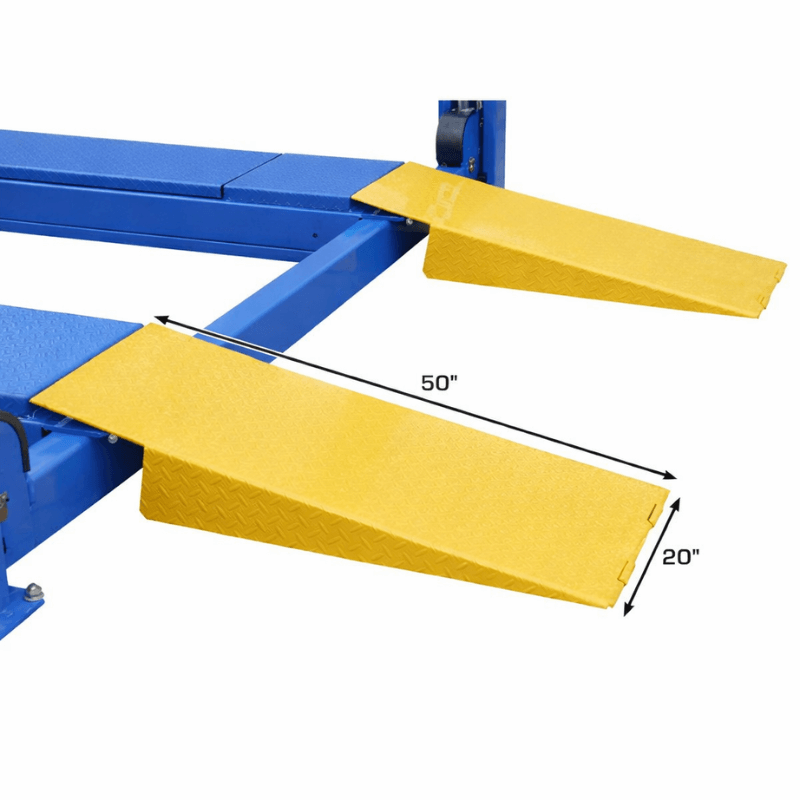

Steel approach ramps included
-

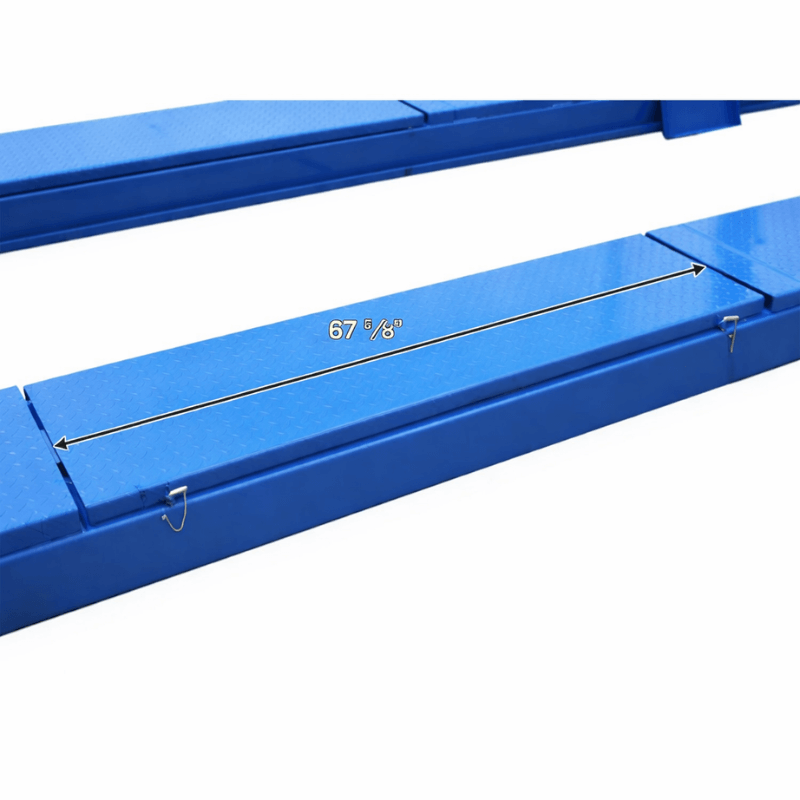

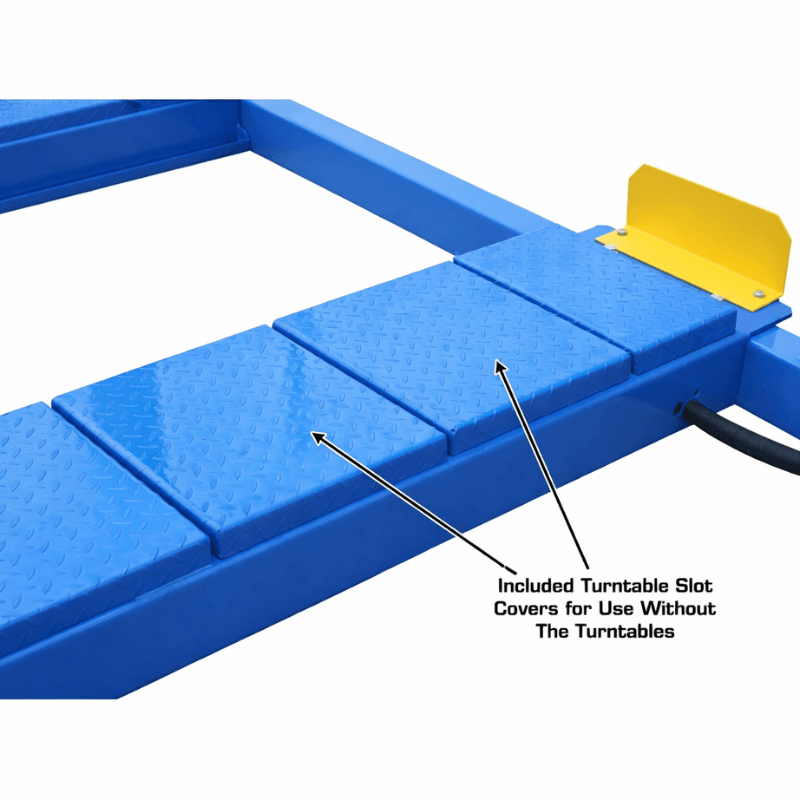

Runway covers included for non-alignment service
-

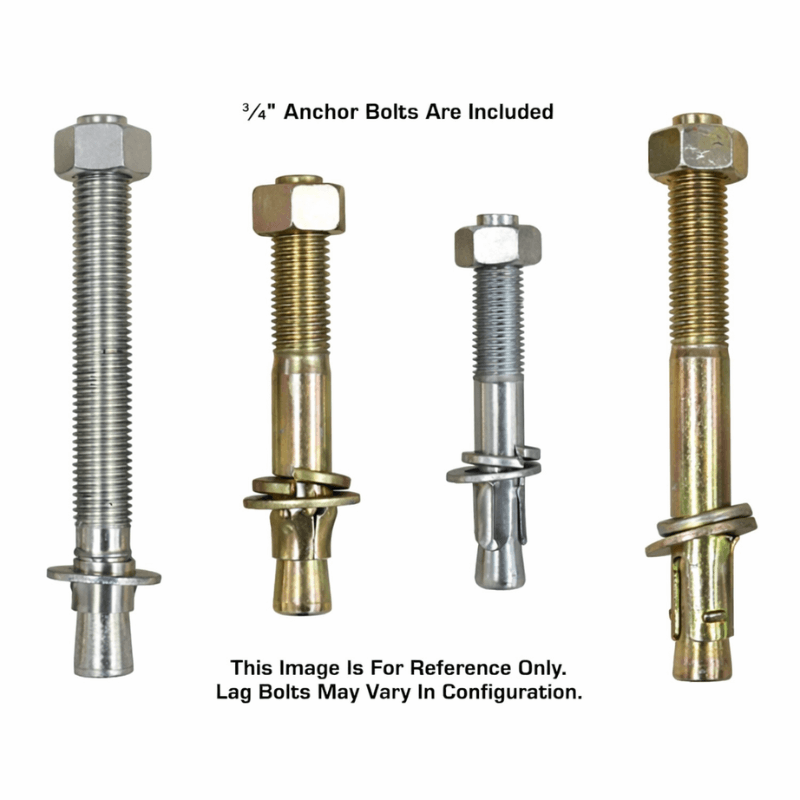

Mounting hardware included
-
Backed by a 5-year structural and 2-year hydraulic parts-only warranty
-
Buy as a Combo Atlas 414A + RJ8BK
414A Manual
Atlas 414A Alignment Lift Optional Item (Sold Separately)
- Atlas RJ8000 Rolling Bridge Jack
- Runway Extension Kit - ATEATPK-41402
- Additional Drive off Ramps
*Warehouse pickup is not an option on Atlas alignment lifts.
*Due to Extra Large Size, product cannot be delivered to a freight terminal.
