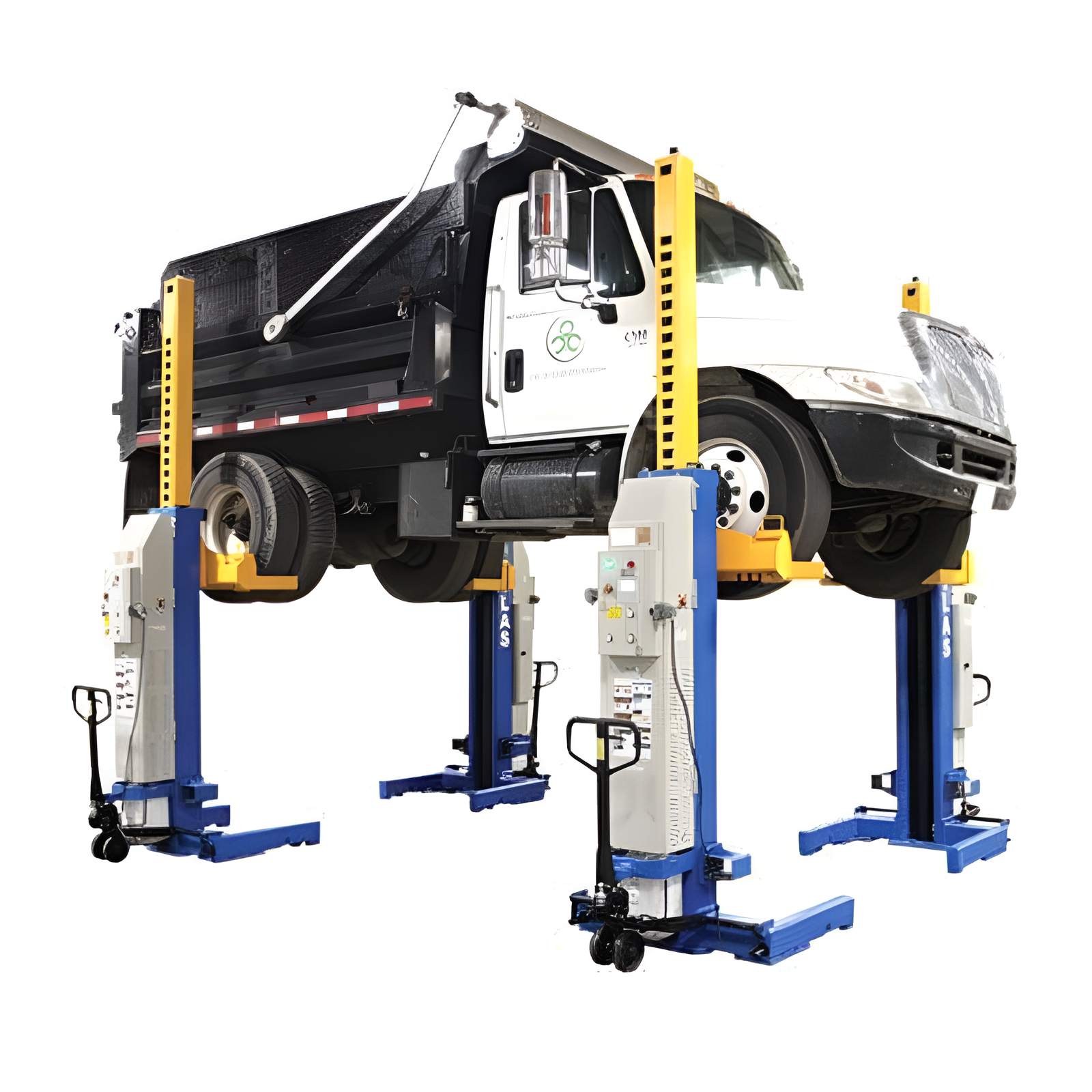

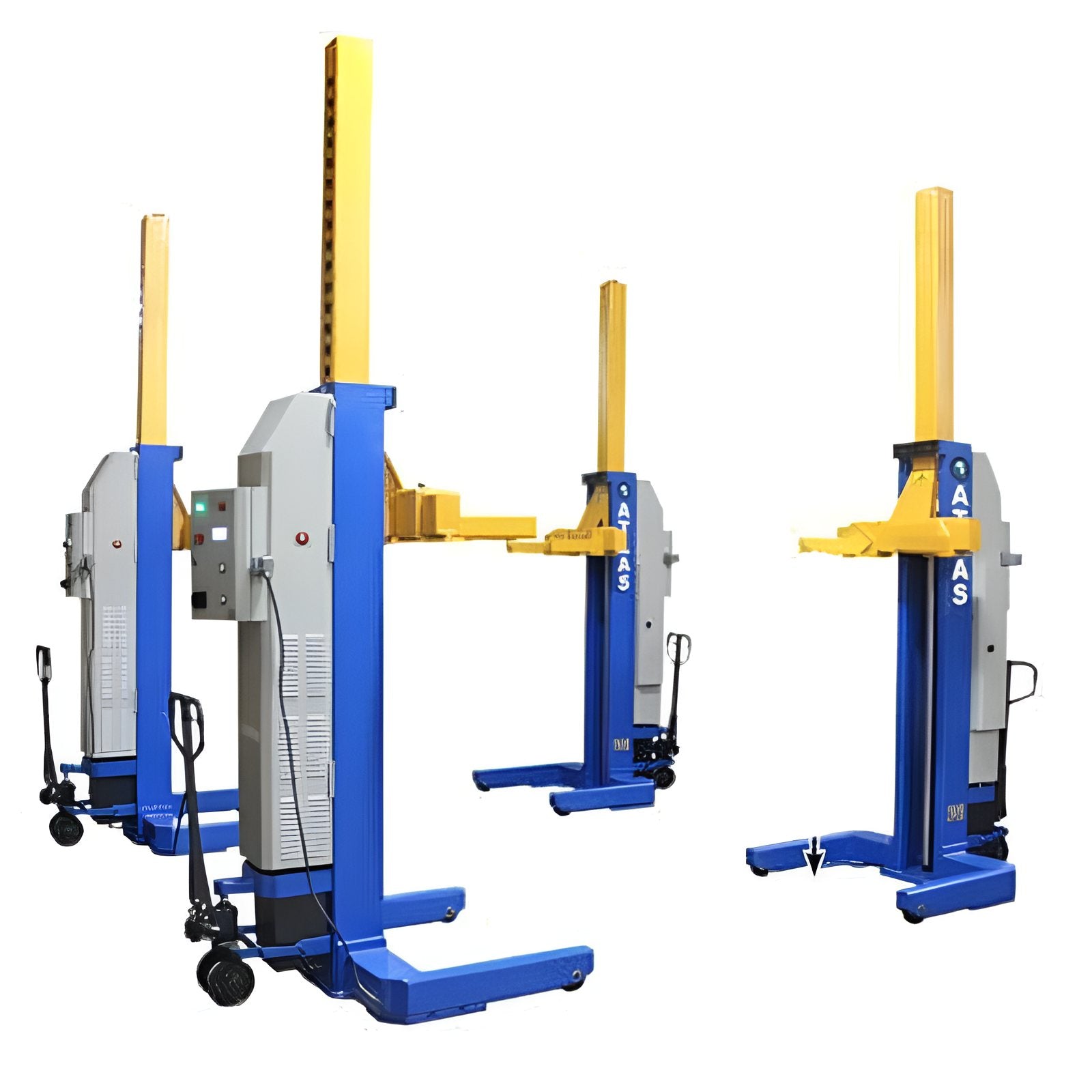

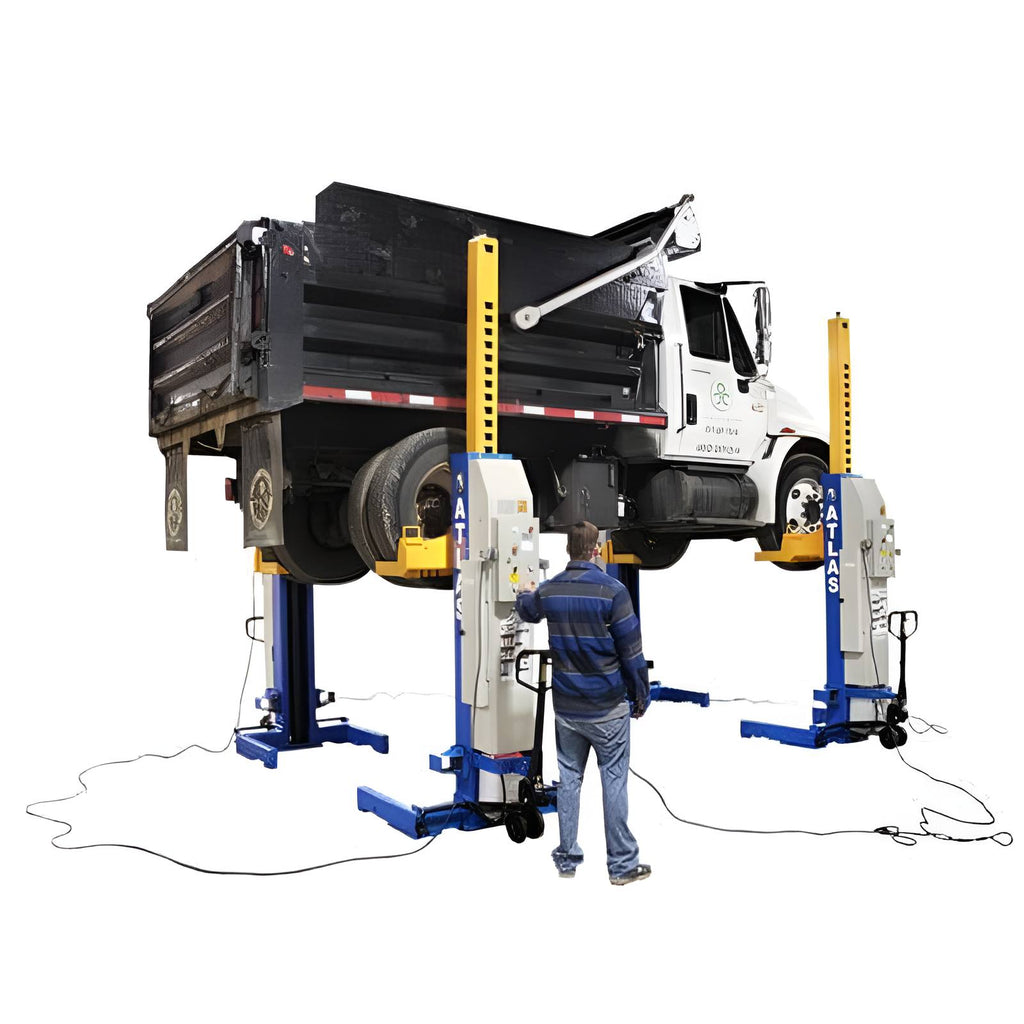

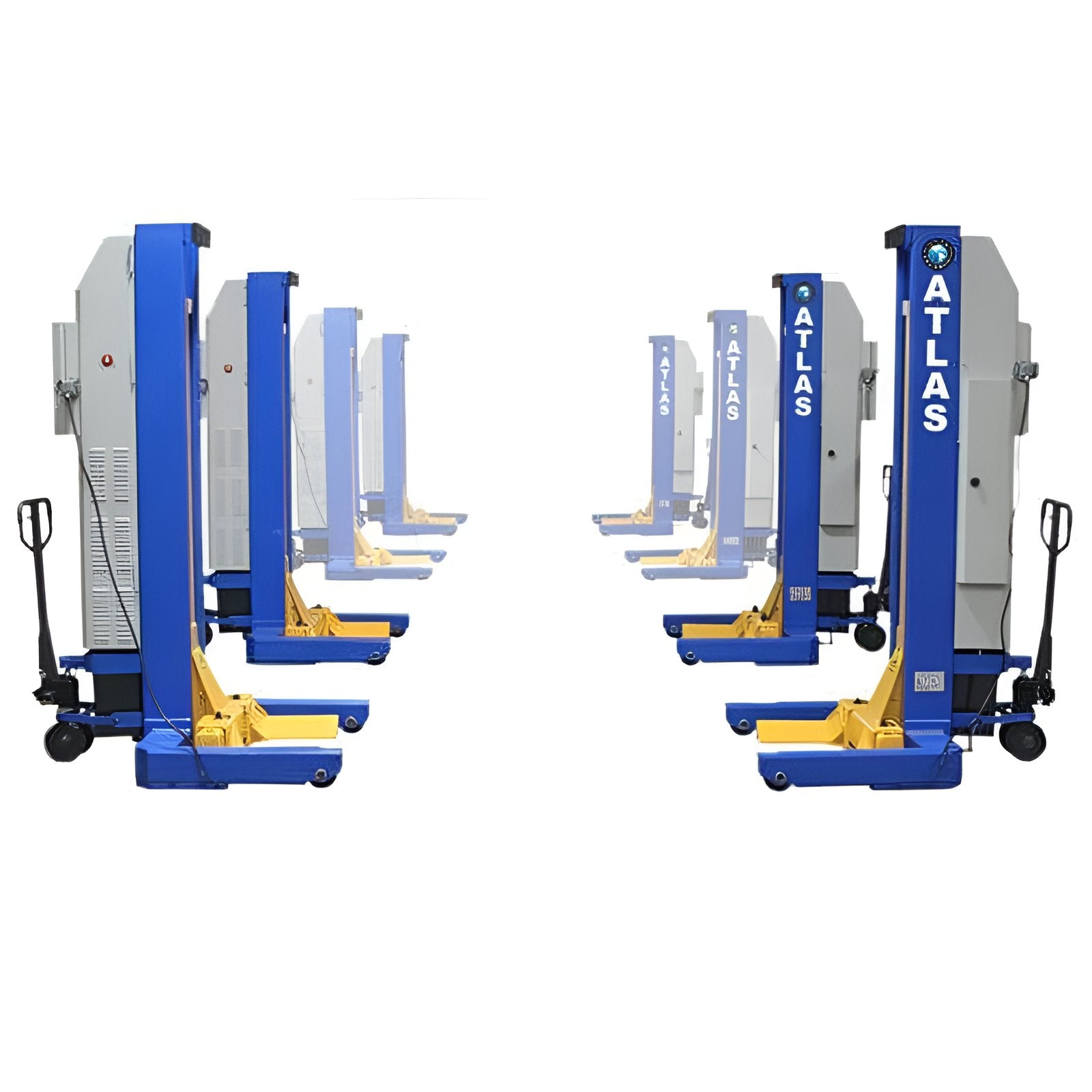

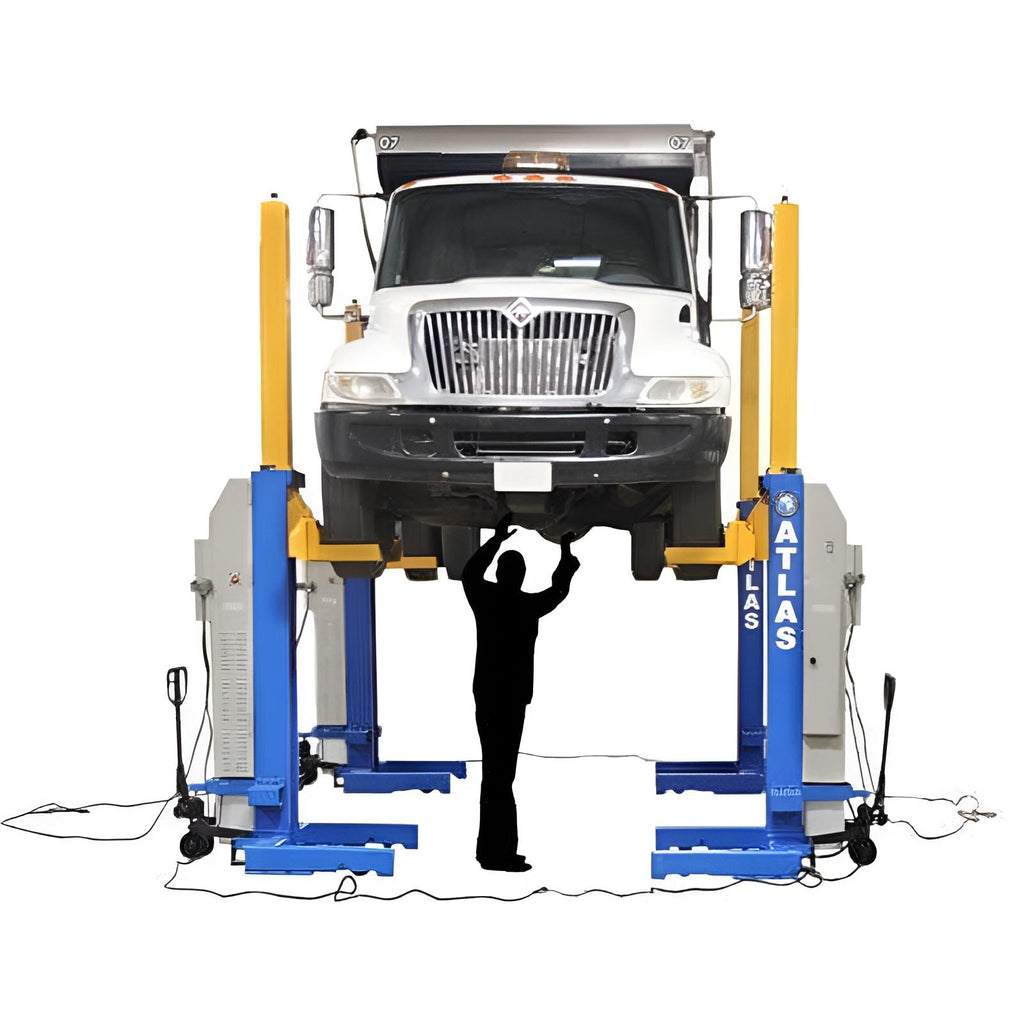

Atlas 16,500 lb Mobile Column Lift, 4 Units, 24v Battery, w/ Cable Communication, ALI Certified SKU ATEML-4030BC

The Maxima® mobile column lift system is the superhero your garage deserves. Each column packs a powerful 2.2 kW DC motor and dual rechargeable batteries, giving you the freedom to move your workspace around like it's nobody's business. With a lifting capacity of 16,500 lbs per column, you can tackle any job, from tiny compacts to full-sized trucks. Say goodbye to wasted space and hello to maximum lifting prowess.

And guess what? These columns are as smart as they are strong. Each one comes with a handy LCD screen and an emergency stop button for your peace of mind. Plus, the adjustable forks can handle tires from 19 to 44 inches, so you're covered no matter what rolls into your shop. With a battery life of 10-20 lifts per charge, you'll spend more time working and less time waiting. It's like having a team of tireless mechanics at your disposal.

ML 4030BC Specification:

• Capacity per Column: 16,500 LB.
• Motor: 2.2 Kw 24V DC motor with two batteries per column
• Max. Lifting Height: 67" (5' 7")
• Overall Height: 145" (12' 1")
• Resting Height: 88 1/2" (7' 4 1/2")
• Width: 43 1/2" (3' 7 1/2")
• Length: 55 1/2" (4' 7 1/2")
• Column Width: 13 1/4"
• Max Tire Diameter: 44"
• Min Tired Diameter: 19"
• Warranty: 2 Year Limited
• Shipping Weight (For Four Columns): 6,400 LB.
• Shipping Weight Per Column: 1,600 LB. each
• Shipping Dimension per Column: 49" Length x 47" Width x 89" Height

ATEML-4030BC Special Features:

• ALI CERTIFIED
• Lift Qty: 4
• Simultaneous operation of all columns
• LCD screen shows exact lifting height of each column
• Electronic system ensuring synchronization of all columns
• Double-safety guaranteed by both hydraulic flow control and mechanical locks
• Portable columns make your work easy and comfortable
• Can be Expanded from a four (66,000 lb. capacity) column system to a six (99,000 lb. capacity) or eight (132,000 lb. capacity) column system
• Adjustable forks can accommodate tire diameters from 19 inches to 44 inches
• Emergency stop button on every column
• Four 32′ column connecting cables included
• 2.2 Kw 24V DC motor with two batteries per column
• 2 Year Limited Warranty
• Lifting capacity per column: 16,500
• Weight per column: 1,600 lbs
• Shipping Weight (for four columns): 6400 lbs
• Want more capacity?
  • Atlas 18,500lb Mobile Column Lift, 4 Units, 24v Battery w/ Cable Communication, ALI Certified SKU ATEML-4034BC


ML-4030BC Manual

   Atlas ML-4030BC Manual
