Standard lifts may fall short in terms of height, width, or capacity, making it difficult to accommodate larger vehicles, let alone keep them secure for long-term storage or maintenance.

The Atlas Garage Pro 9000 is the ultimate solution for users who need a heavy-duty, extra-large vehicle storage lift with exceptional versatility. With a 9,000 lb. capacity, this lift is built to handle everything from compact cars to diesel dually trucks. The lift features extra height, width, and length, making it ideal for accommodating long wheelbase vehicles. It includes a free caster kit for easy portability, steel approach ramps, plastic drip trays, and a steel jack tray, all of which contribute to a highly practical and efficient storage solution for any garage or service center.

This powerful lift also boasts a single-point lock release for ease of operation, a double-lock safety system for secure lifting, and a lock ladder design to ensure the vehicle stays safely in place. It’s designed to fit both residential and professional settings, with an easy-to-use mechanism for moving the lift between bays or even outdoors. Perfect for hobbyists and professionals alike, the Atlas Garage Pro 9000 ensures safety, durability, and mobility all in one lift.

Atlas Pro9000 Vehicle Storage Lift Specifications:

• Capacity: 9,000 lbs

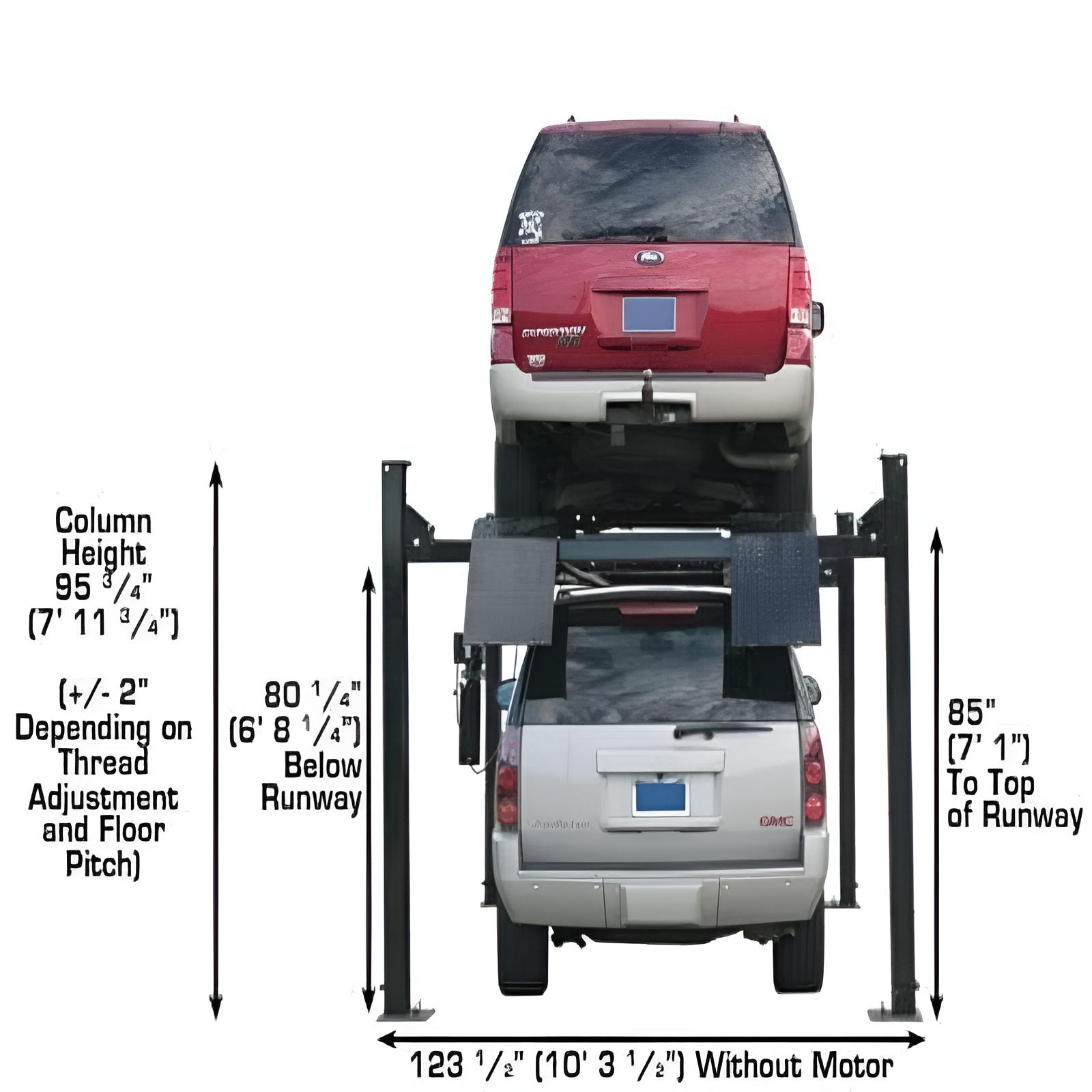

• Lifting Height to Top of Runway: 85" (7' 1")

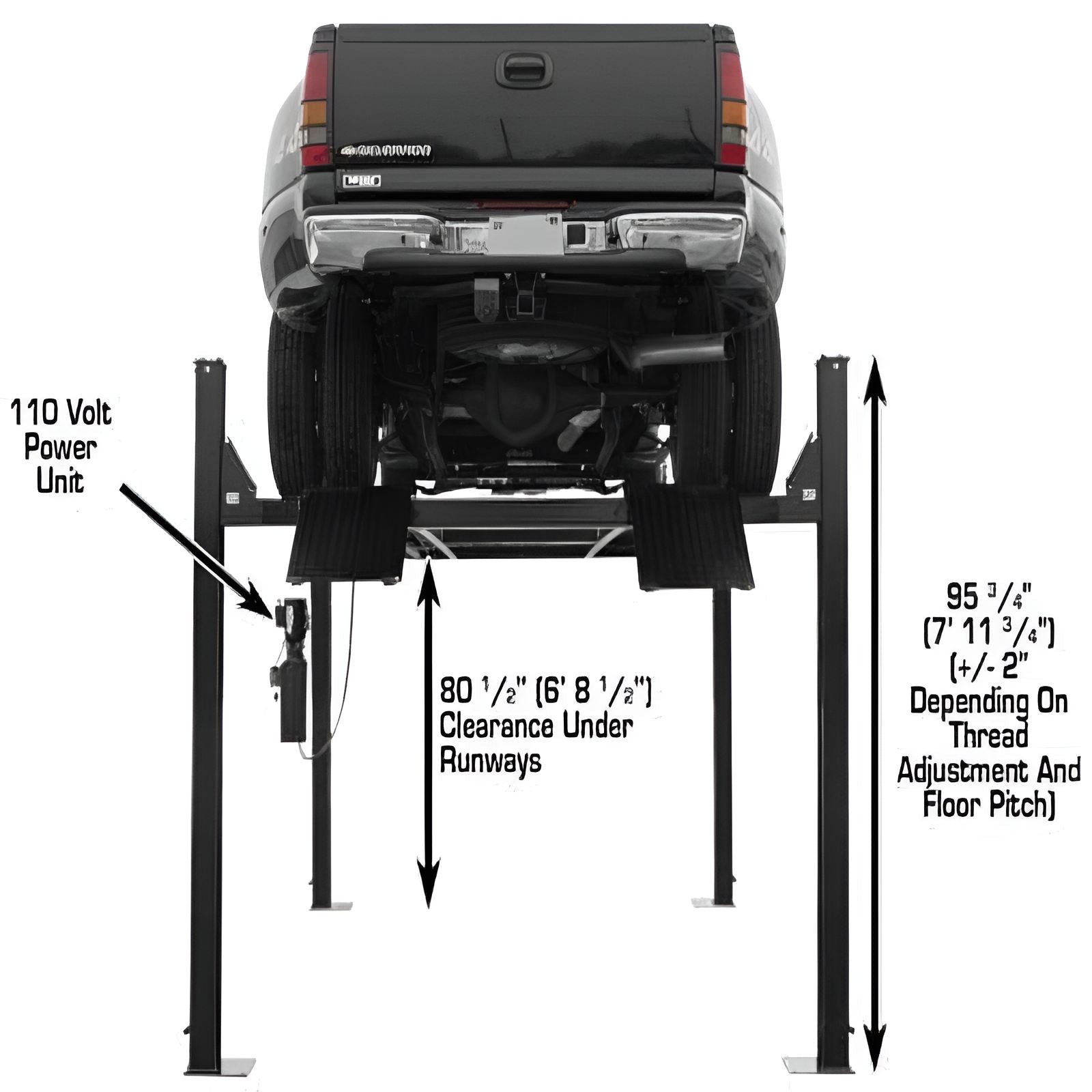

• Clearance Under Runways: 80 1/4" (6' 8 1/4")

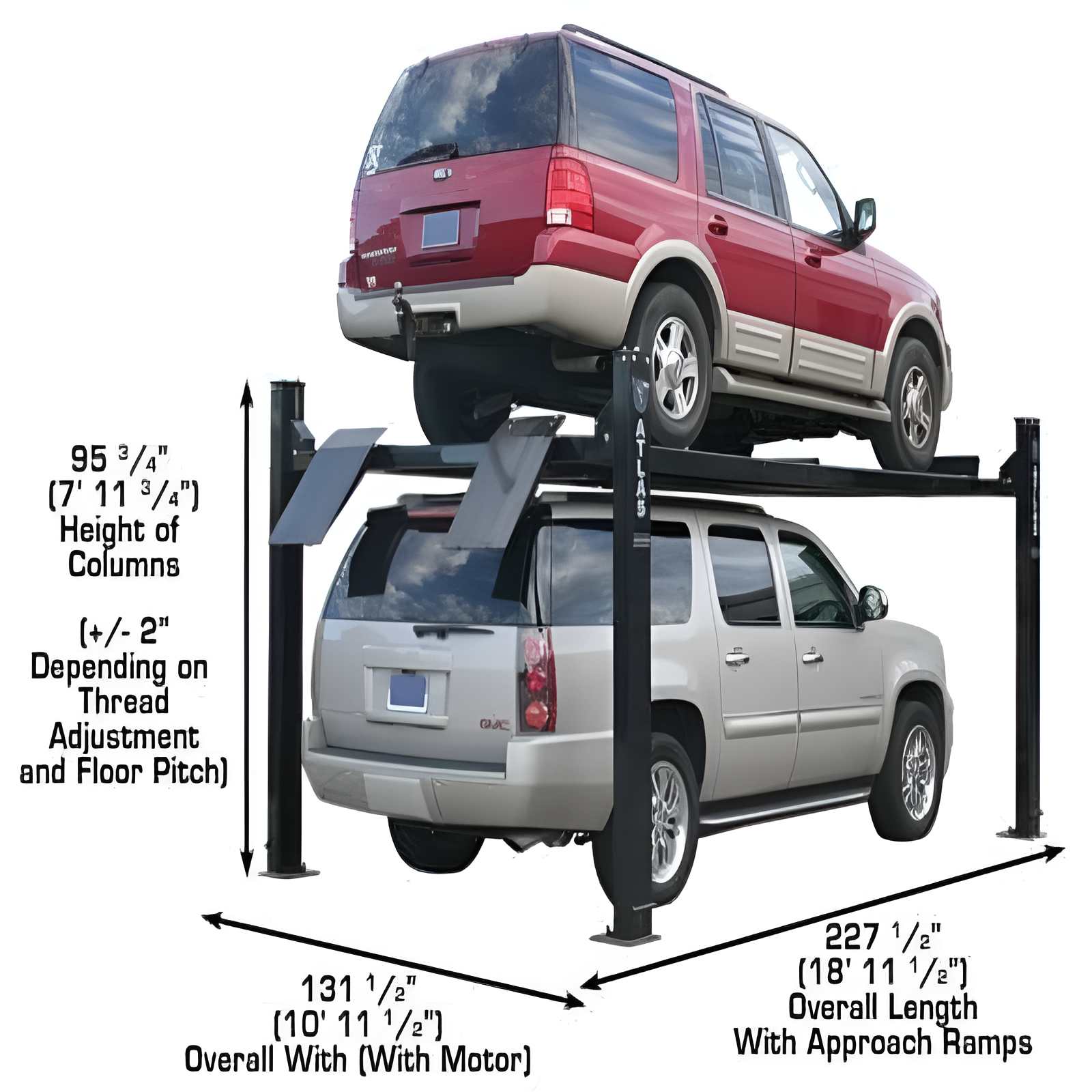

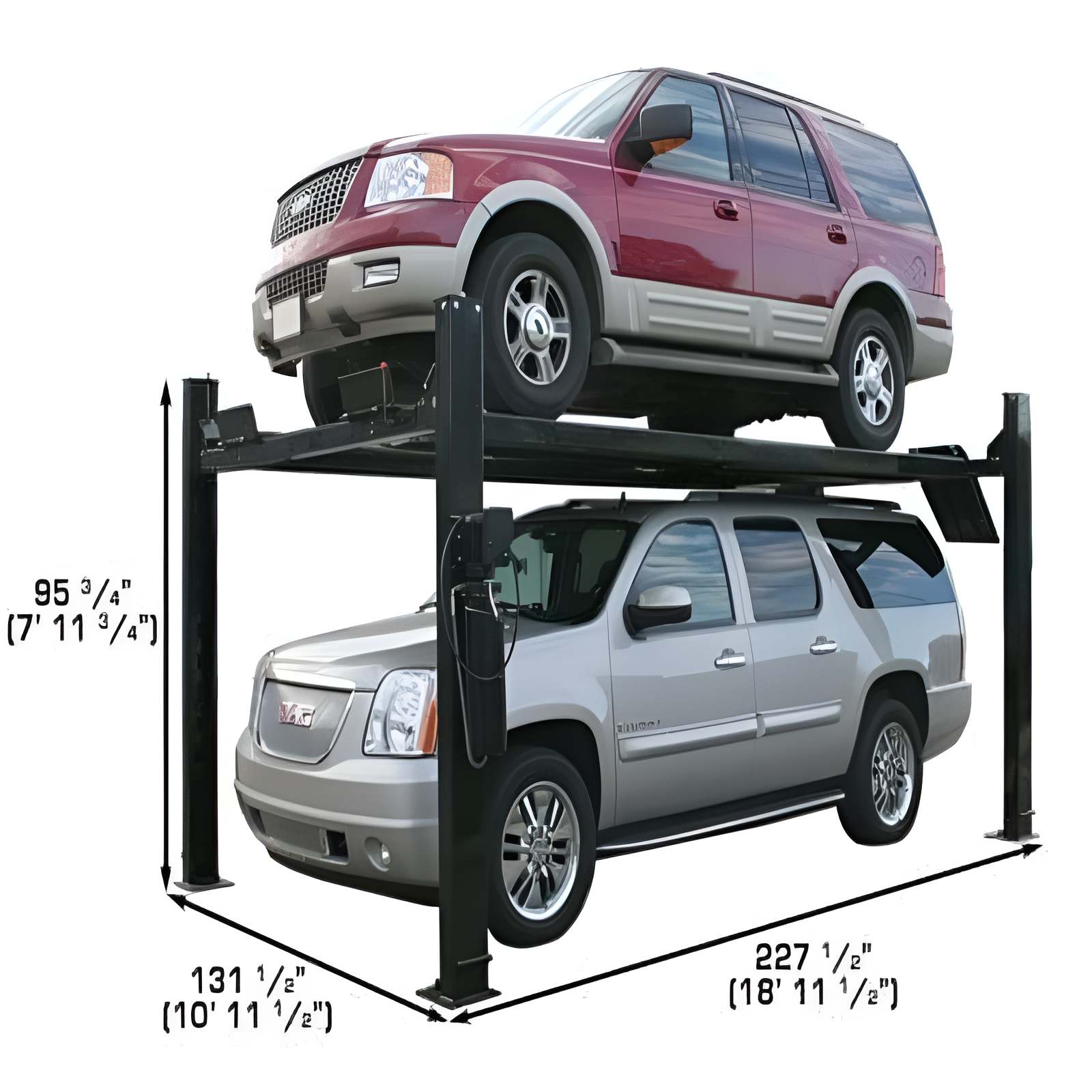

• Height of Columns: 95 3/4" (7' 11 3/4")

• Overall Width (Without Motor): 123 1/2" (10' 3 1/2")

• Overall Width (With Motor): 131 1/2" (10' 11 1/2")

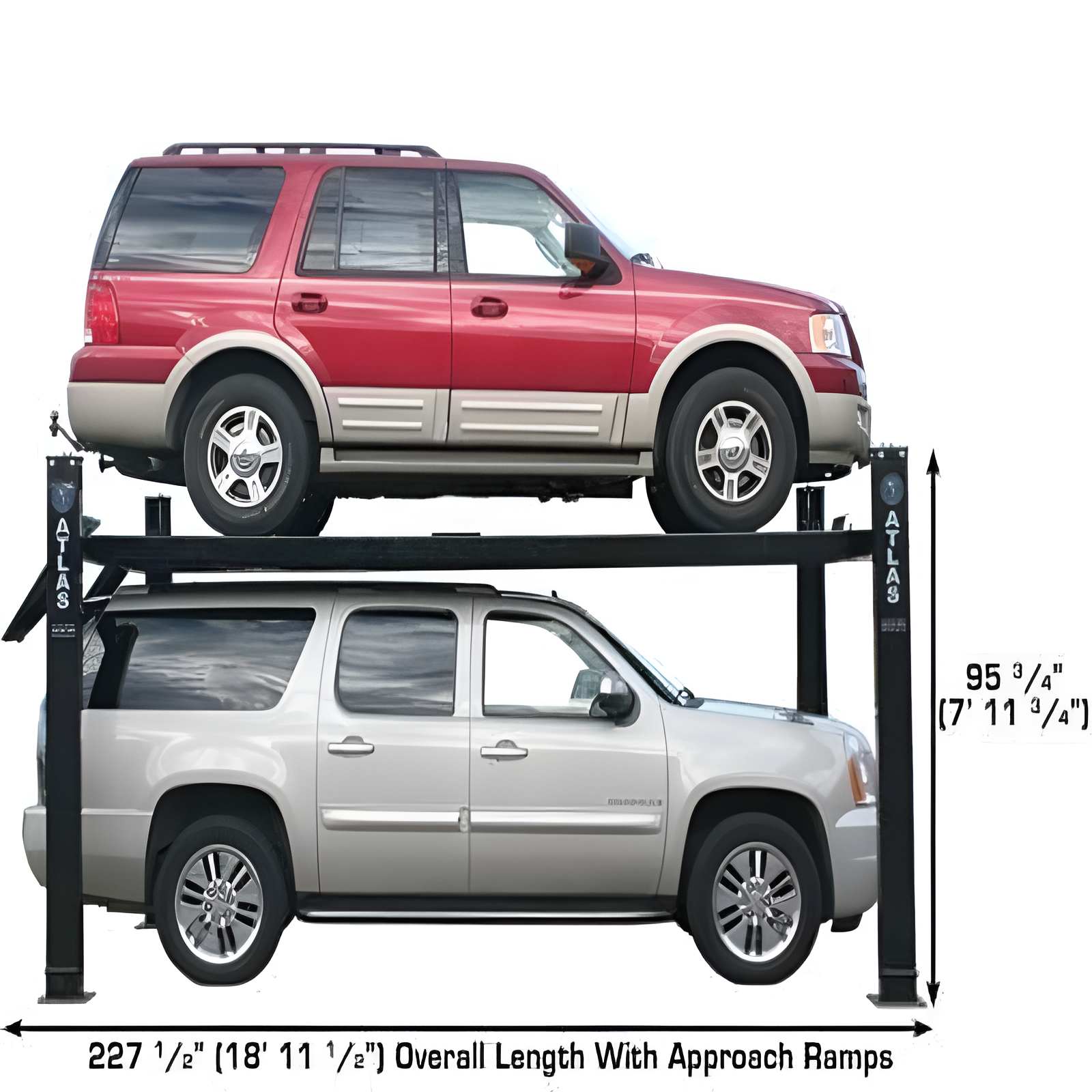

• Overall Length with Approach Ramp: 227 1/2" (18' 11 1/2")

• Approach Ramp: 31" (2' 7")

• Runway Width: 21 1/4" (with rails) or 20" (driving surface)

• Runway Length: 199 1/2" (16' 7 1/2")

• Runway Thickness: 4 3/4"

• Width Between Runways: 39 1/4" (3' 3 1/4")

• Width Between Runway Rails: 35 1/2" (2' 11 1/2")

• Outside Runway to Outside Runway: 79" (6' 7")

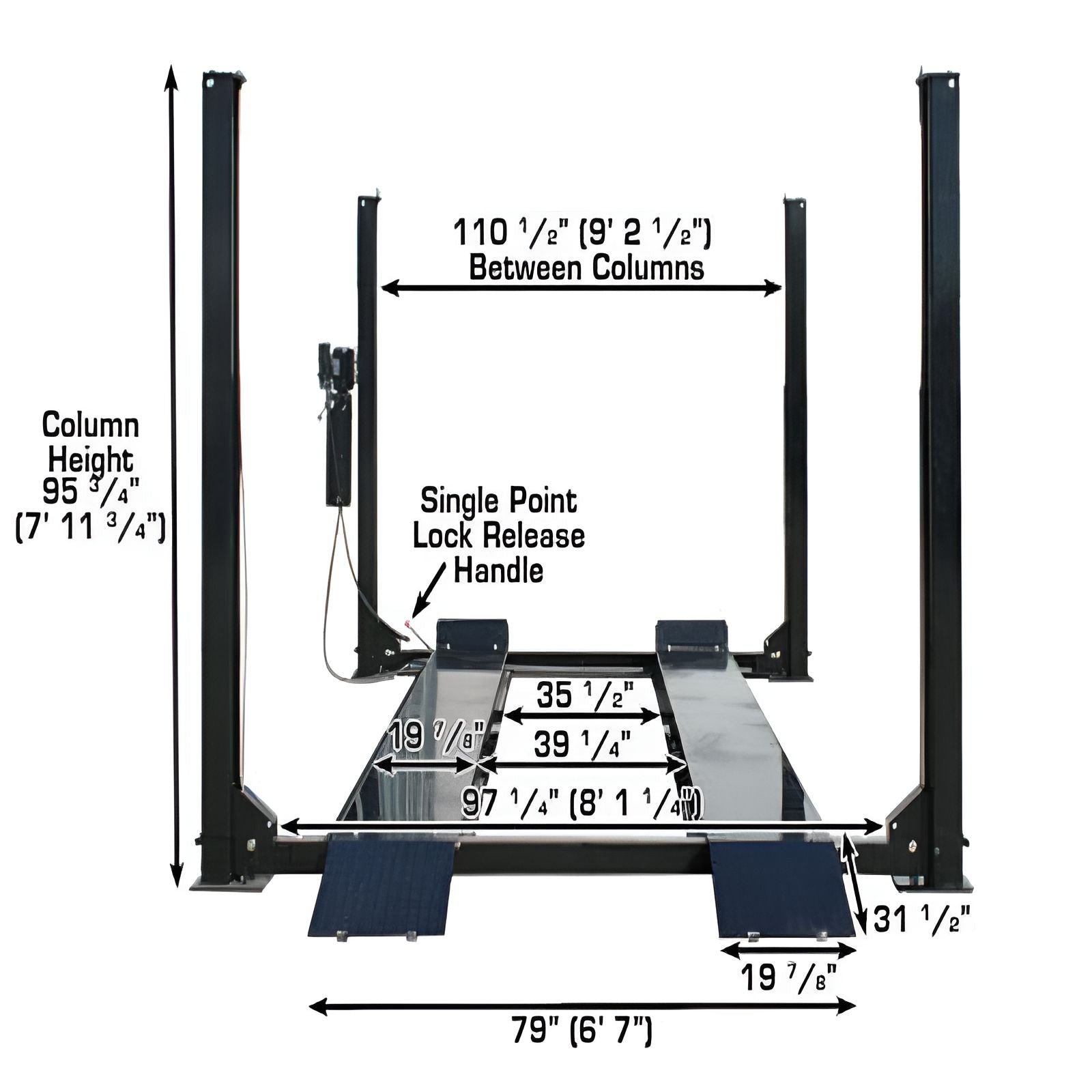

• Clearance Between Columns: 110 1/2" (9' 2 1/2")

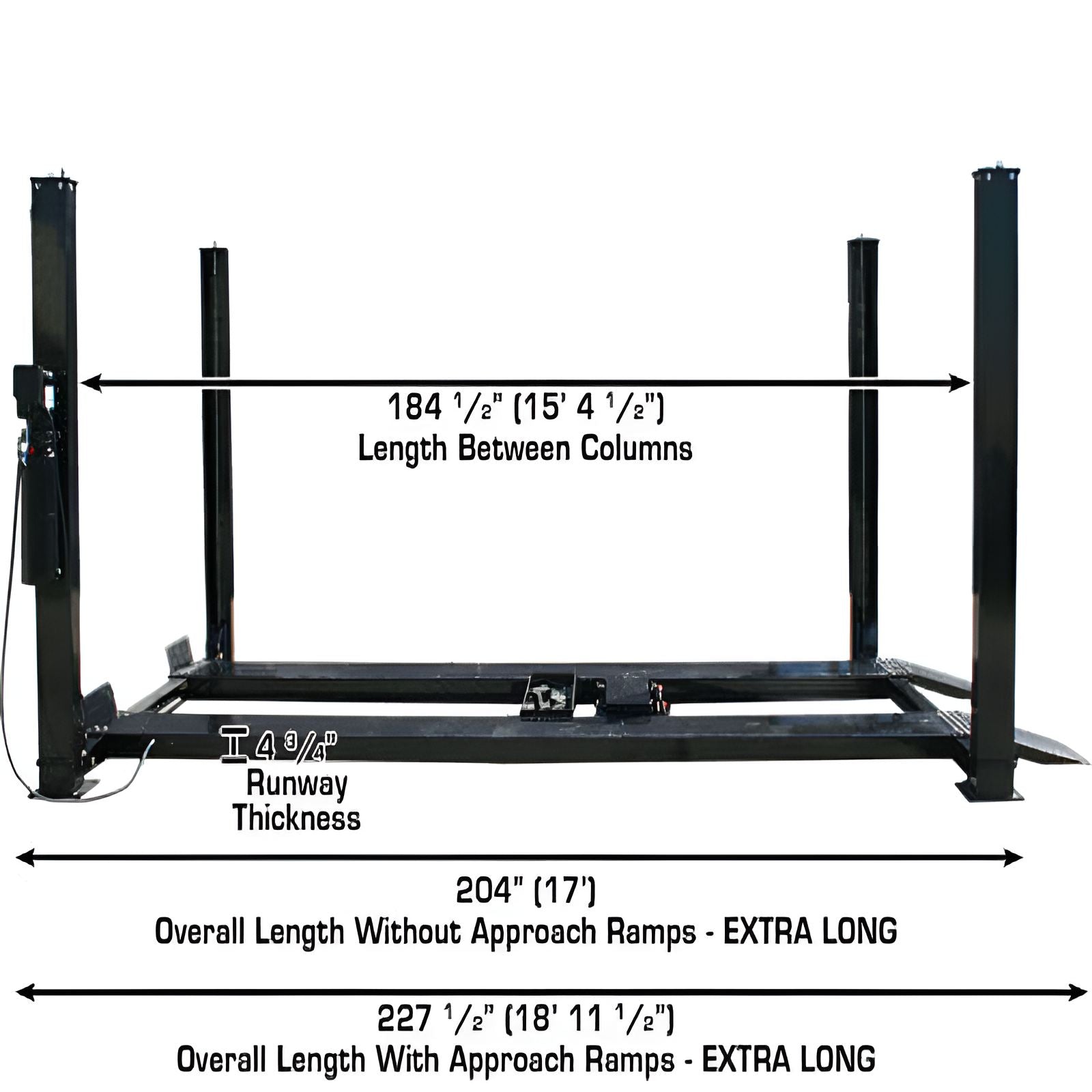

• Length Between Columns: 184 1/2" (15' 4 1/2")

• Maximum Wheel Base: 187" (15' 7")

• Drive Thru (Outside of Tire to Outside of Tire): 97 1/4" (8' 1 1/4")

• Motor/Electrical Requirement: 110 Volt, 30 AMP breaker required

• Shipping Weight: 2,300 lbs

9000 lb 4 Car Lift Special Features:

• 9,000 lb. capacity to handle a wide range of vehicles, from compact cars to heavy-duty trucks

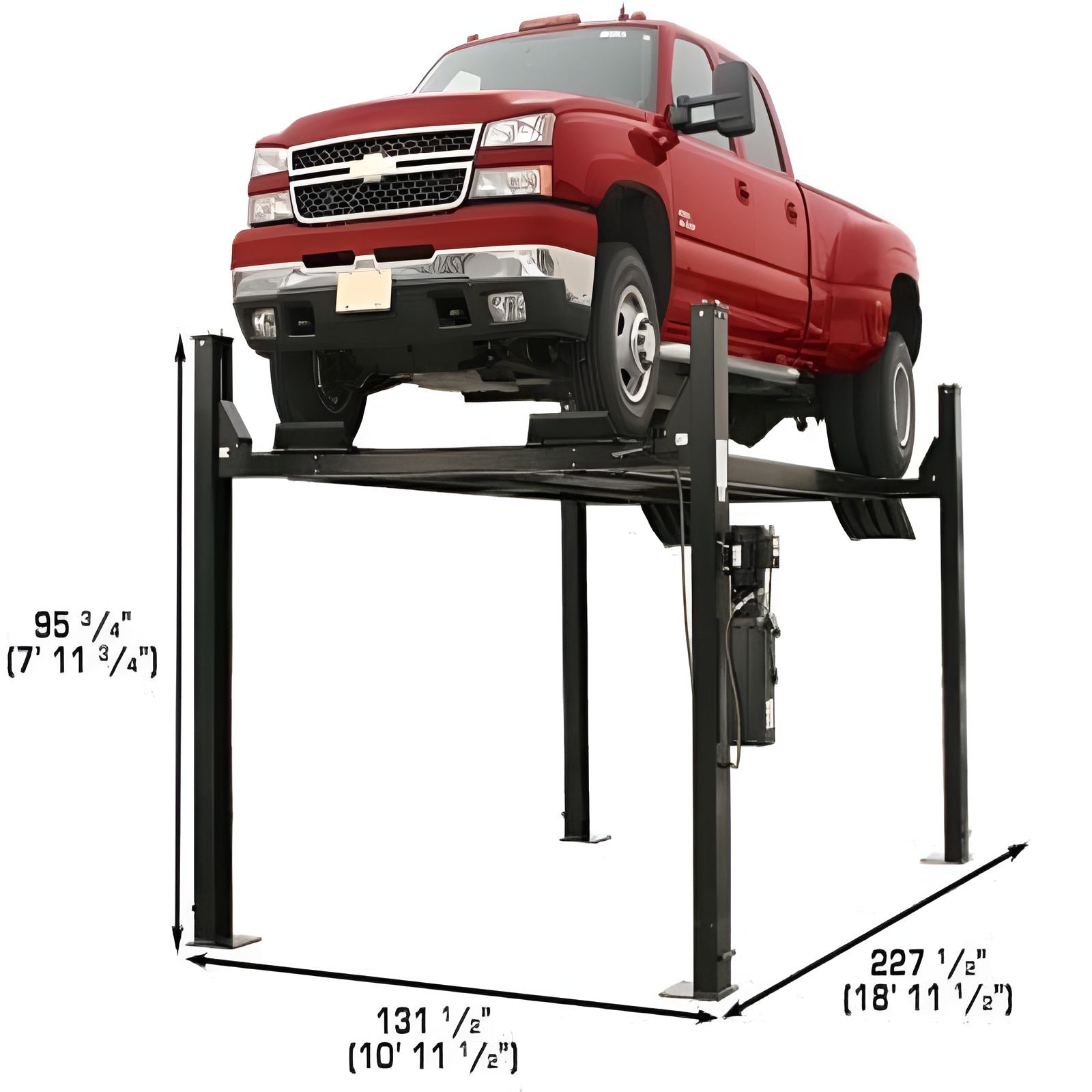

• Extra tall, wide, and long design accommodates large vehicles, including diesel duallys

• Free-standing, portable design allows for easy relocation within the shop or even outdoors

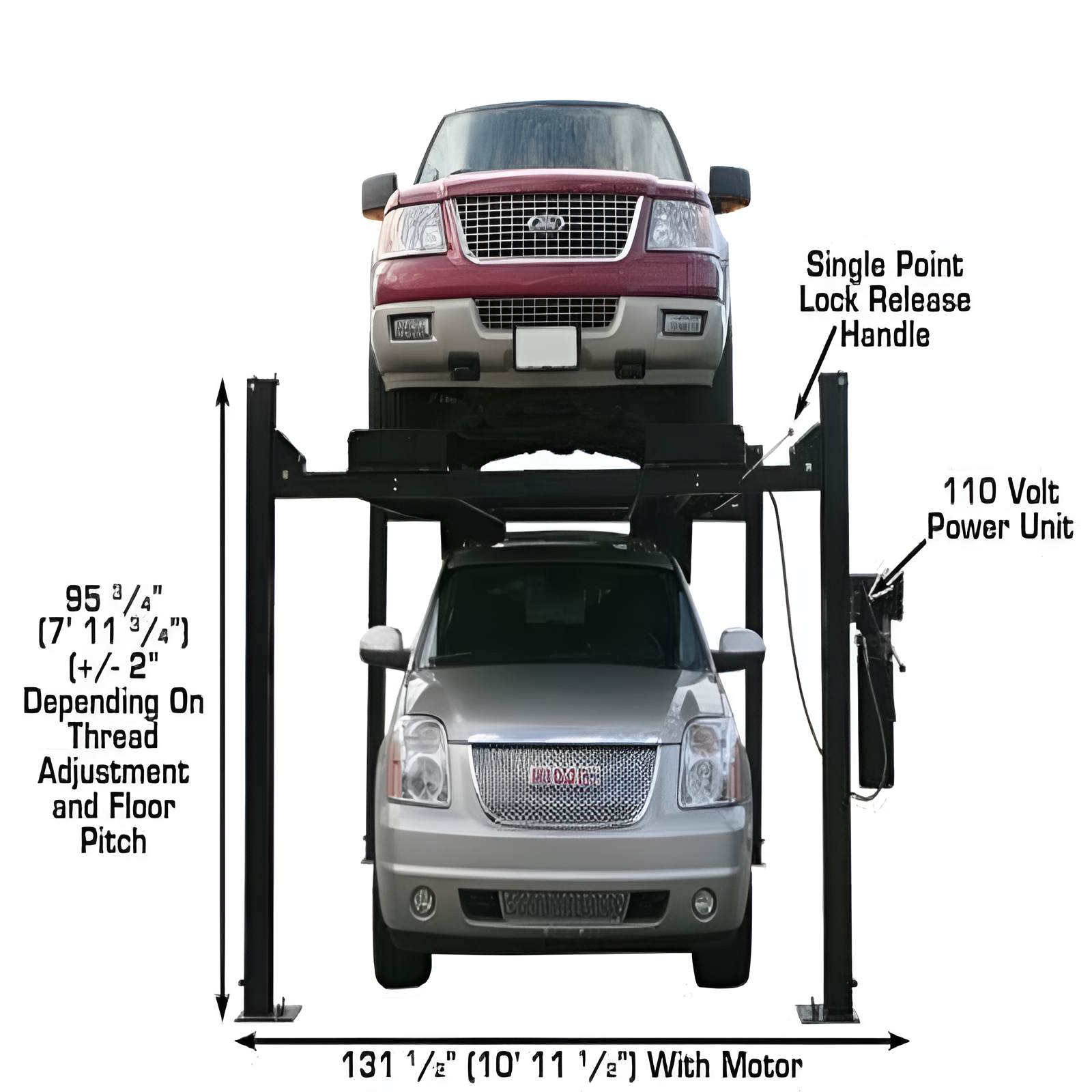

• Single-point lock release and lock ladder design ensure easy, secure lifting

• Double-lock safety system for enhanced security during operation

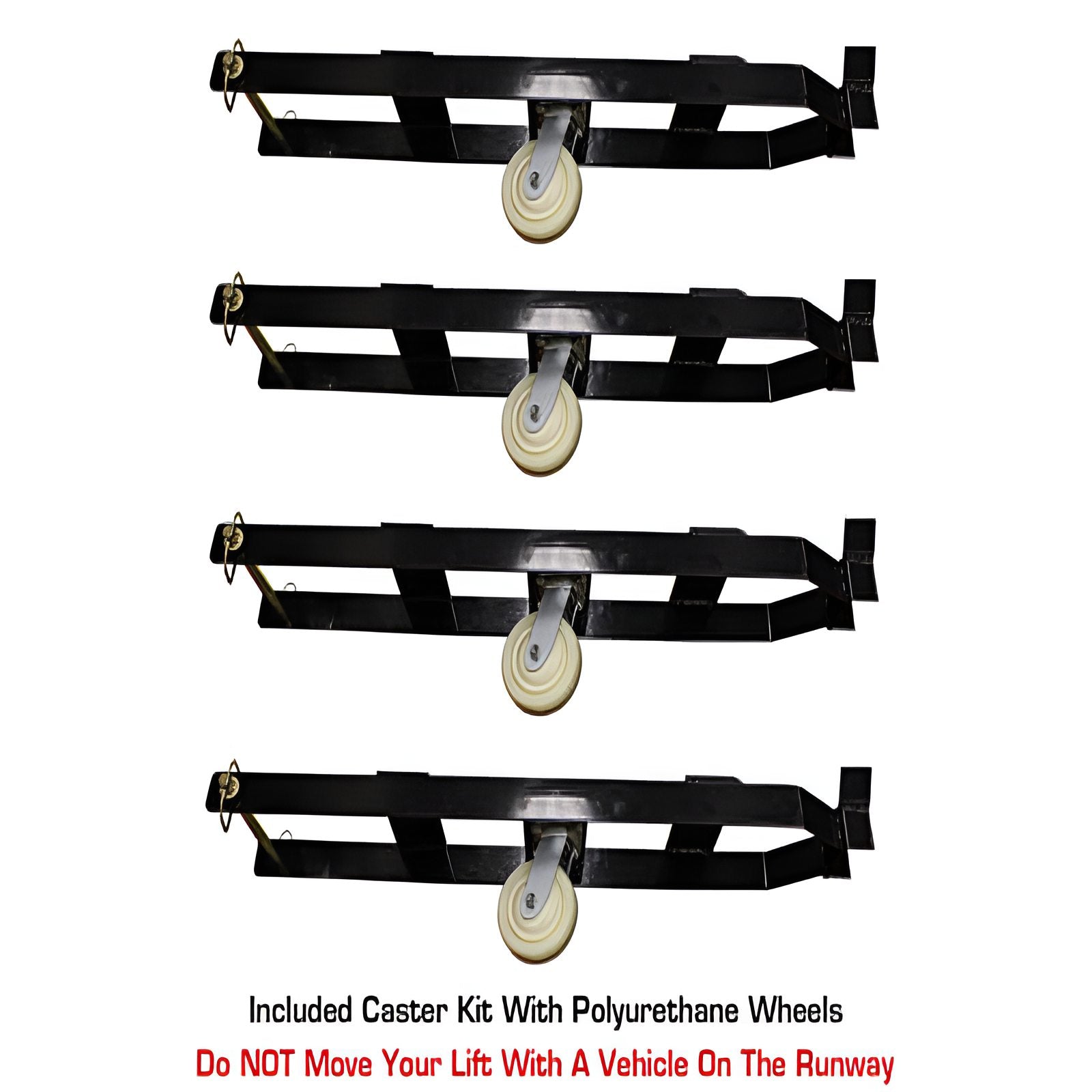

• Caster kit with polyurethane wheels for effortless mobility

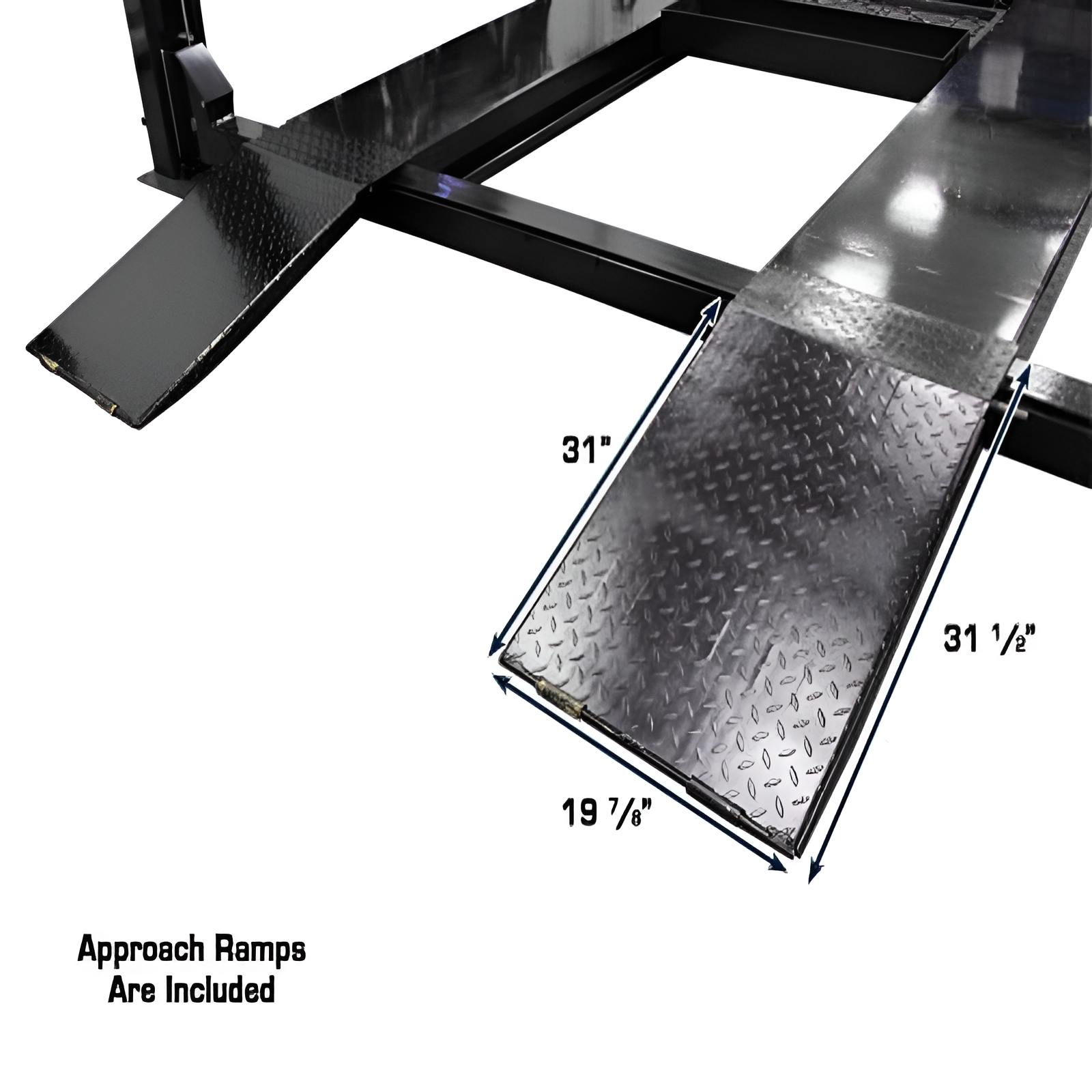

• Steel approach ramps for easy drive-on and access

• Plastic drip trays and steel jack tray included for added convenience

• Buy as a Combo Atlas PRO9000 + PROjack35
• Buy as a Combo Atlas PRO9000 + RJ6
• Optional Item (Sold Separately)

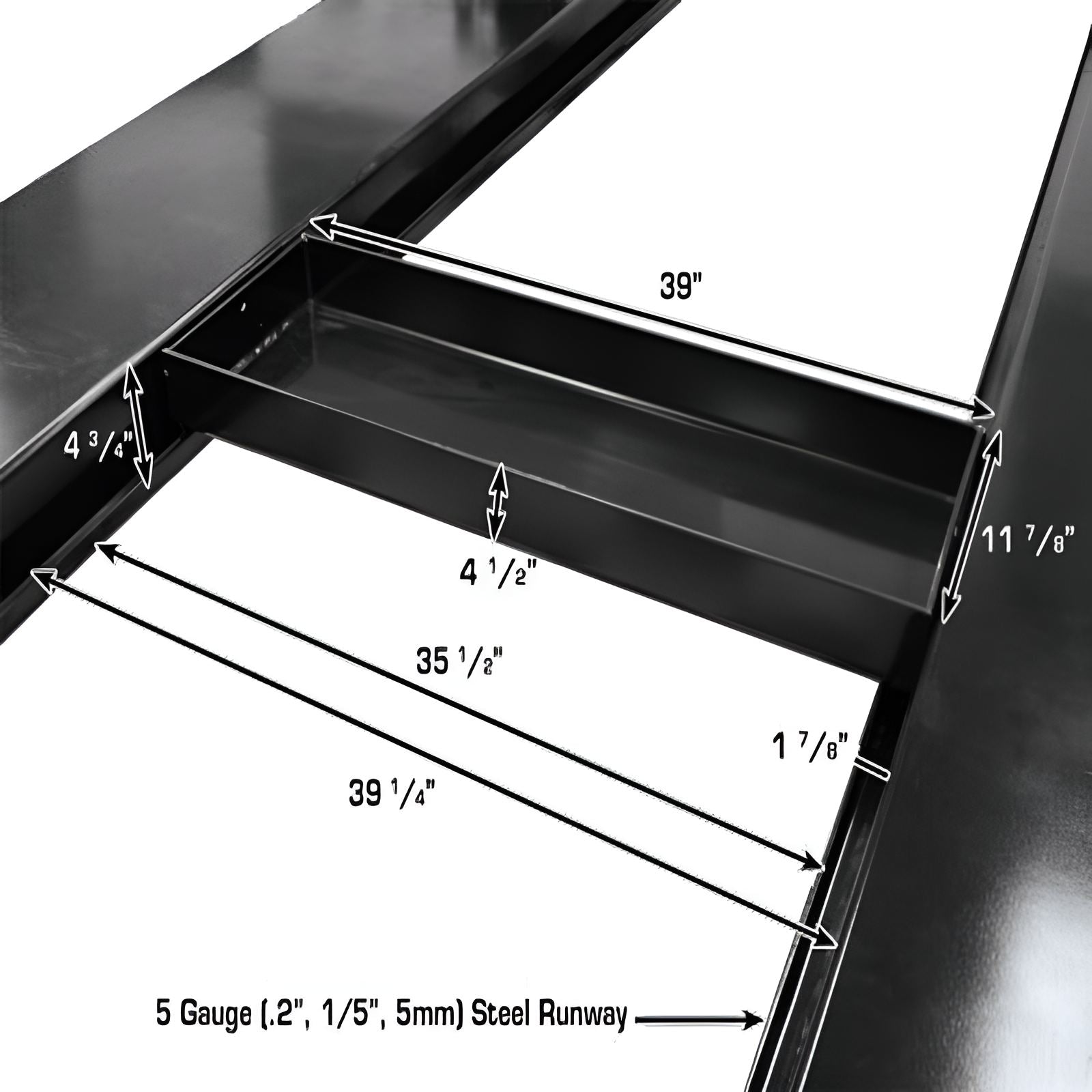

  • 39" Steel Jack/Drip Tray
  • 39" Plastic Drip Tray

Atlas PRO9000 Manual:

   Atlas Garage Pro9000 Manual

*Due to Extra Large Size, product cannot be delivered to a freight terminal.

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Dallas, TX
• Indianapolis, IN
• Phoenix, AZ
• Somerset, NJ
