Description
Atlas 9,000 lb In Ground Lift, Full Rise SKU ATEATTD-FM9SL

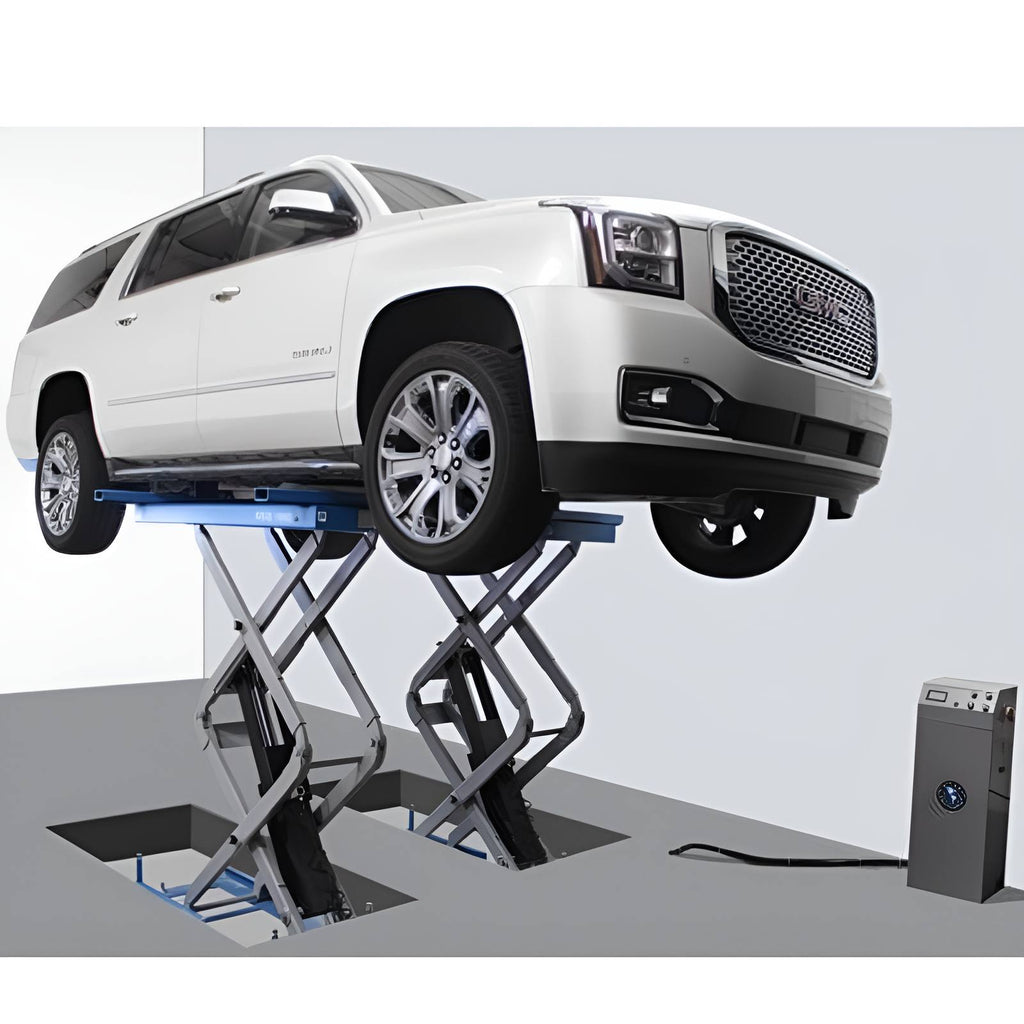

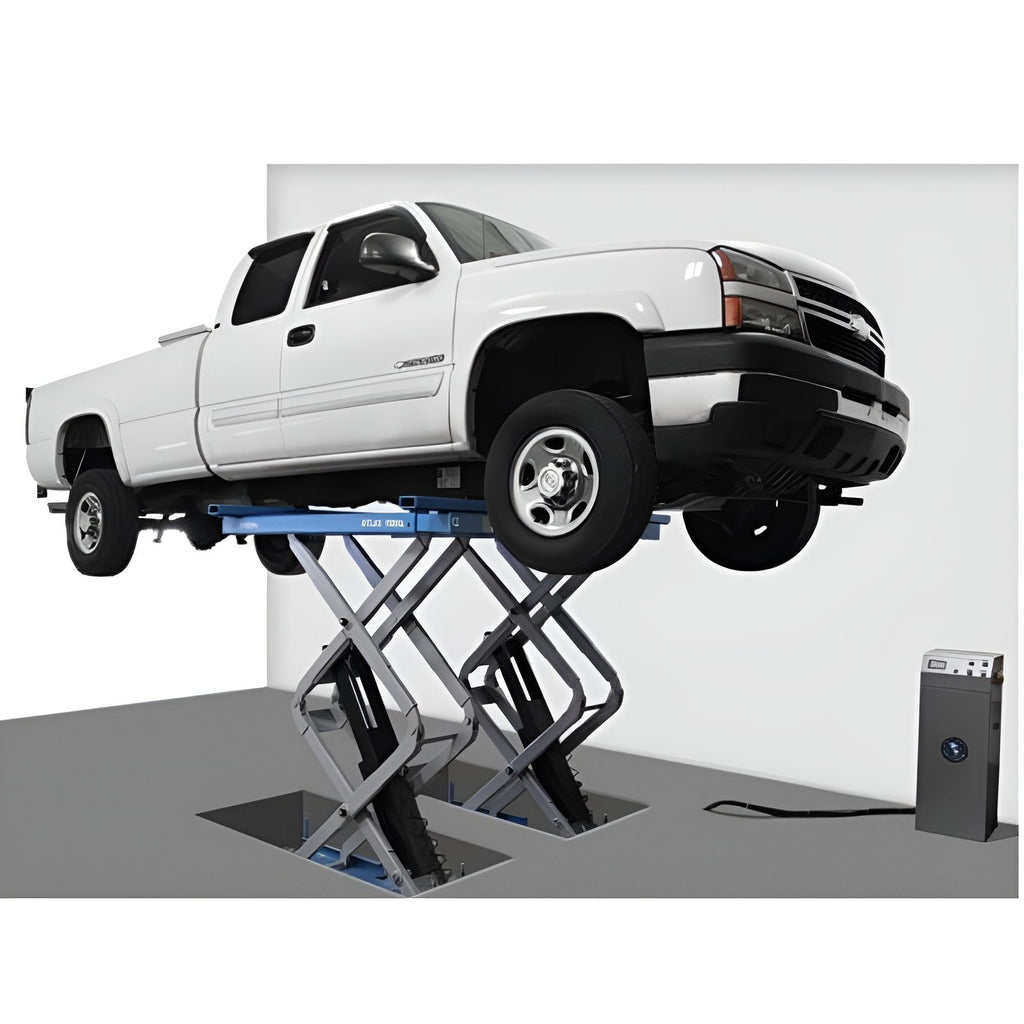

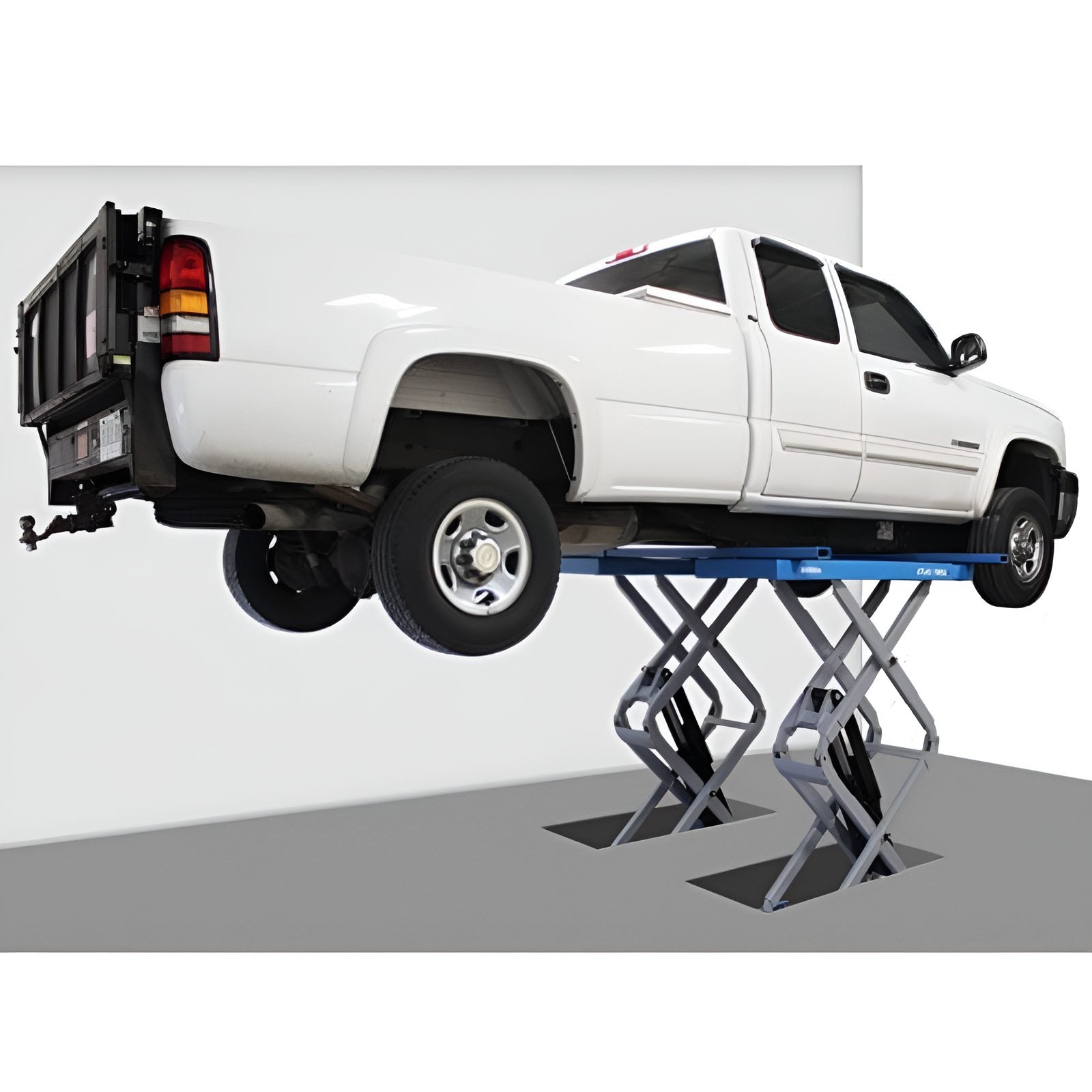

The Atlas FM9SL 9,000 lb In-Ground Full Rise Scissor Lift addresses these challenges with its flush-mounted design, which eliminates above-ground obstructions and allows vehicles to be driven over the platforms from any direction. Its adjustable platform width and front/rear extensions cater to different vehicle sizes, while the open-center design and easy access to the self-contained control unit simplify maintenance, ensuring a smooth and efficient operation in any service facility.
FM 9SL Specifications:
-
Lifting Capacity: 9,000 lbs
-
Lift Type: In-ground, full rise scissor lift
-
Maximum Lift Height (with blocks): 73 3/4" (6' 1 3/4")
-

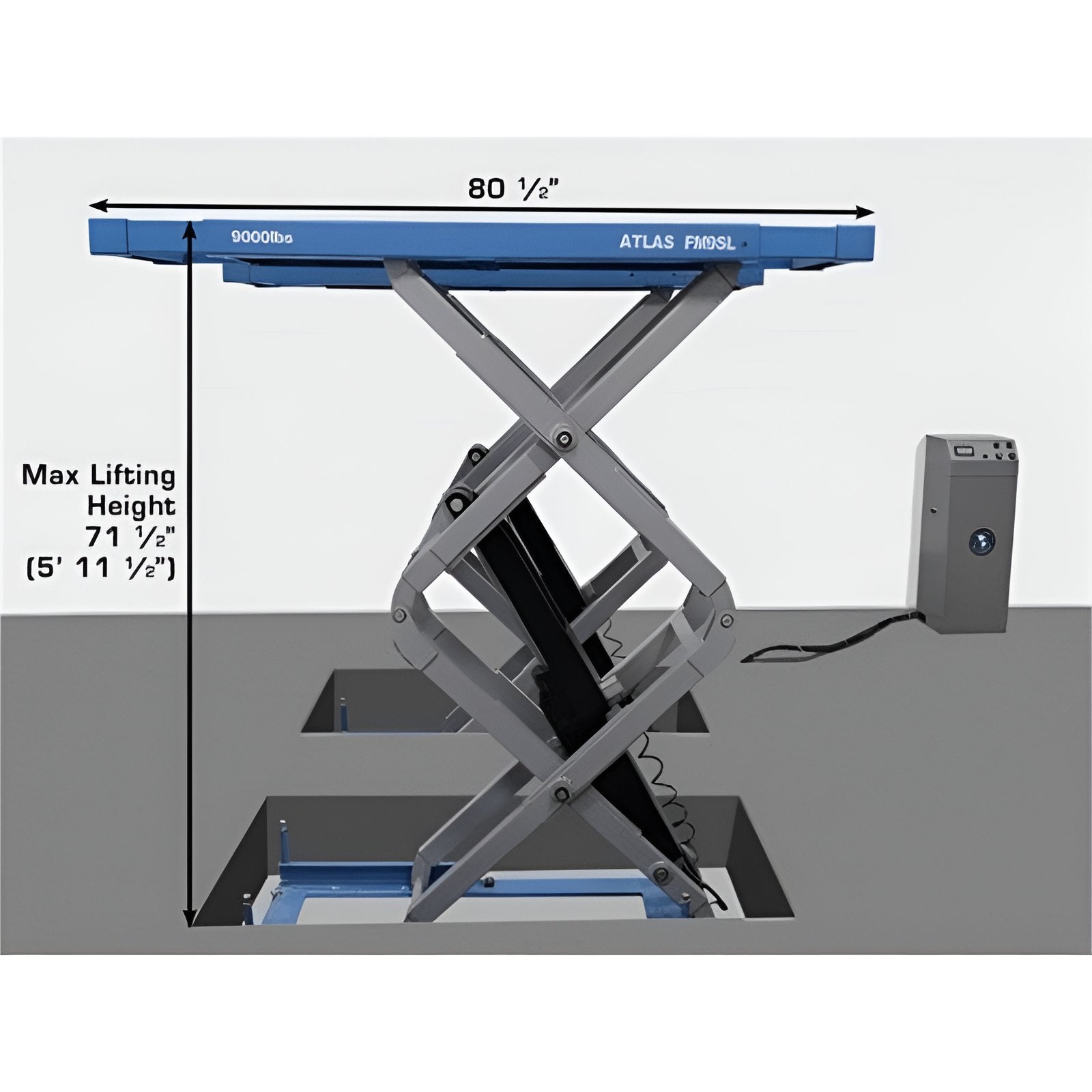

Maximum Lift Height (without blocks): 71" (5' 11")
-
Overall Length (extensions out): 80" (6' 8")
-
Overall Length (extensions in): 64" (5' 4")
-
Platform Width: 21"
-
Platform Thickness: 4"
-

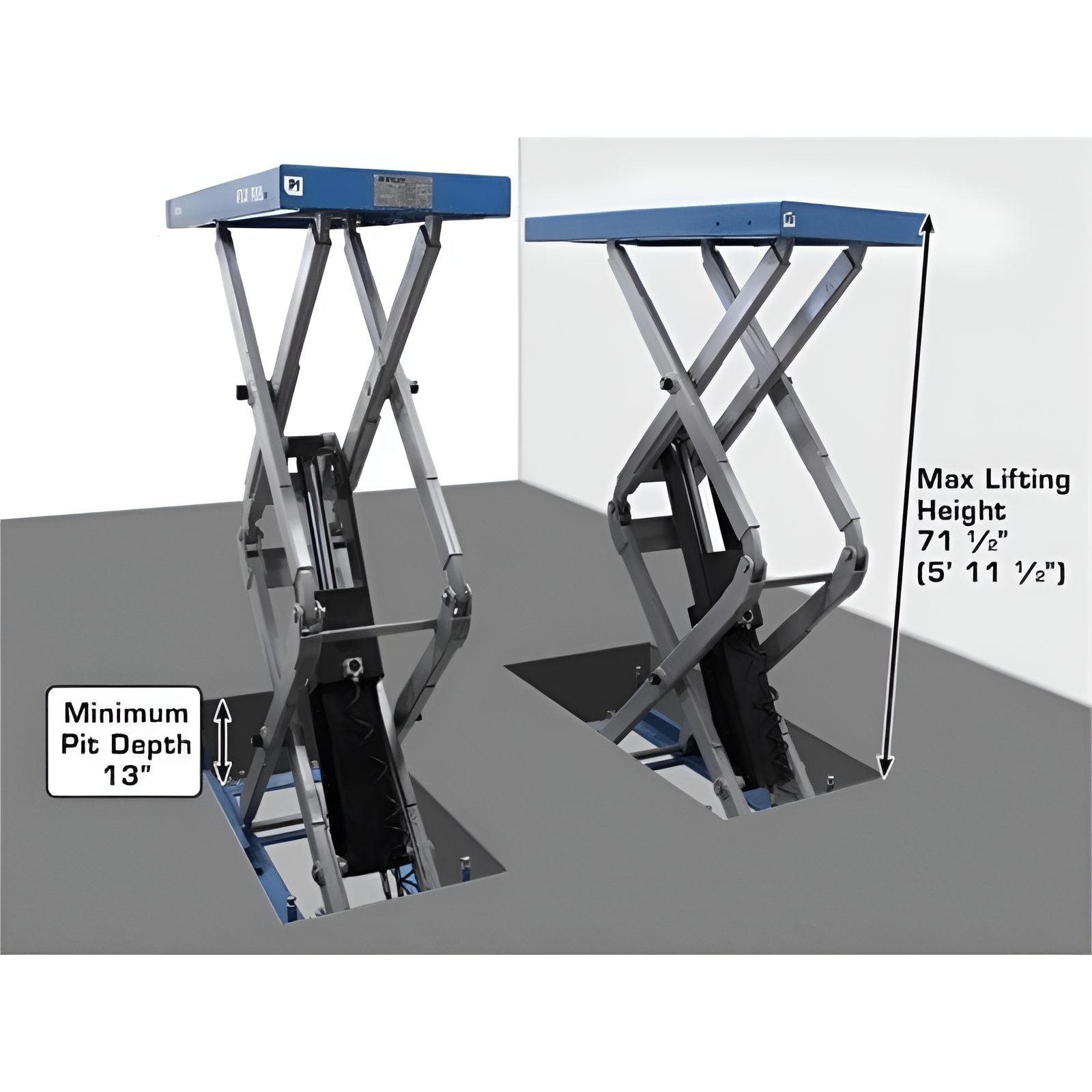

Minimum Lowered Height (in-ground): 13"
-
Width Between Platforms: Adjustable up to 31"
-
Air Requirement: 90–120 PSI
-
Electrical Requirement: 220V ±5%, single-phase, 30 amp breaker required
-
Oil Requirement: 3–5 gallons AW32 or AW46 (not included)
-
Shipping Weight: 2,025 lbs
-
Certification: CE Certified
Atlas In Ground Lift Special Features:
-
9,000 lb commercial-grade lifting capacity
-
Full-rise, flush-mounted in-ground design
-

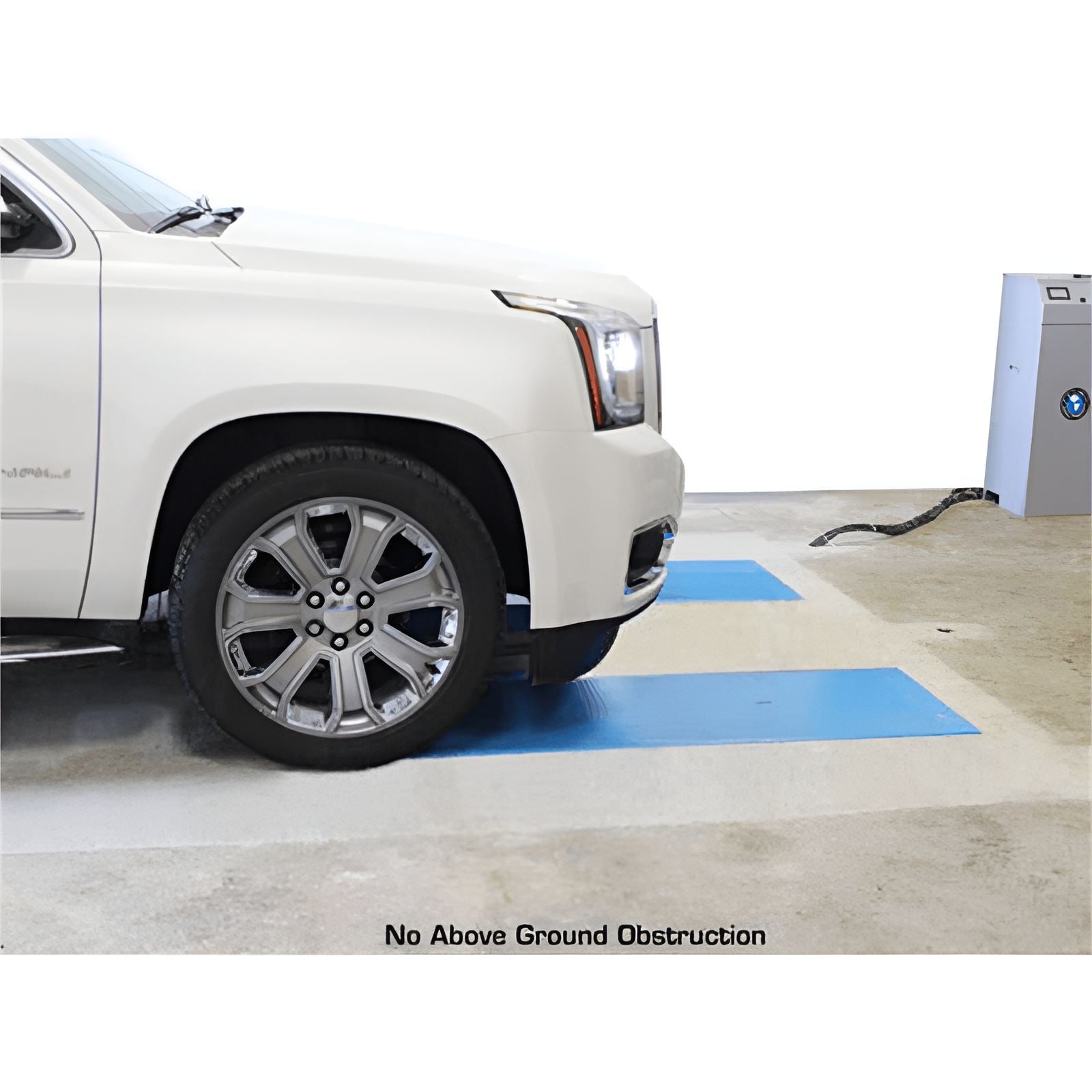

No above-ground obstructions for a clean floor layout
-
Adjustable platform width for vehicle flexibility
-
Front and rear platform extensions for long wheelbase vehicles
-

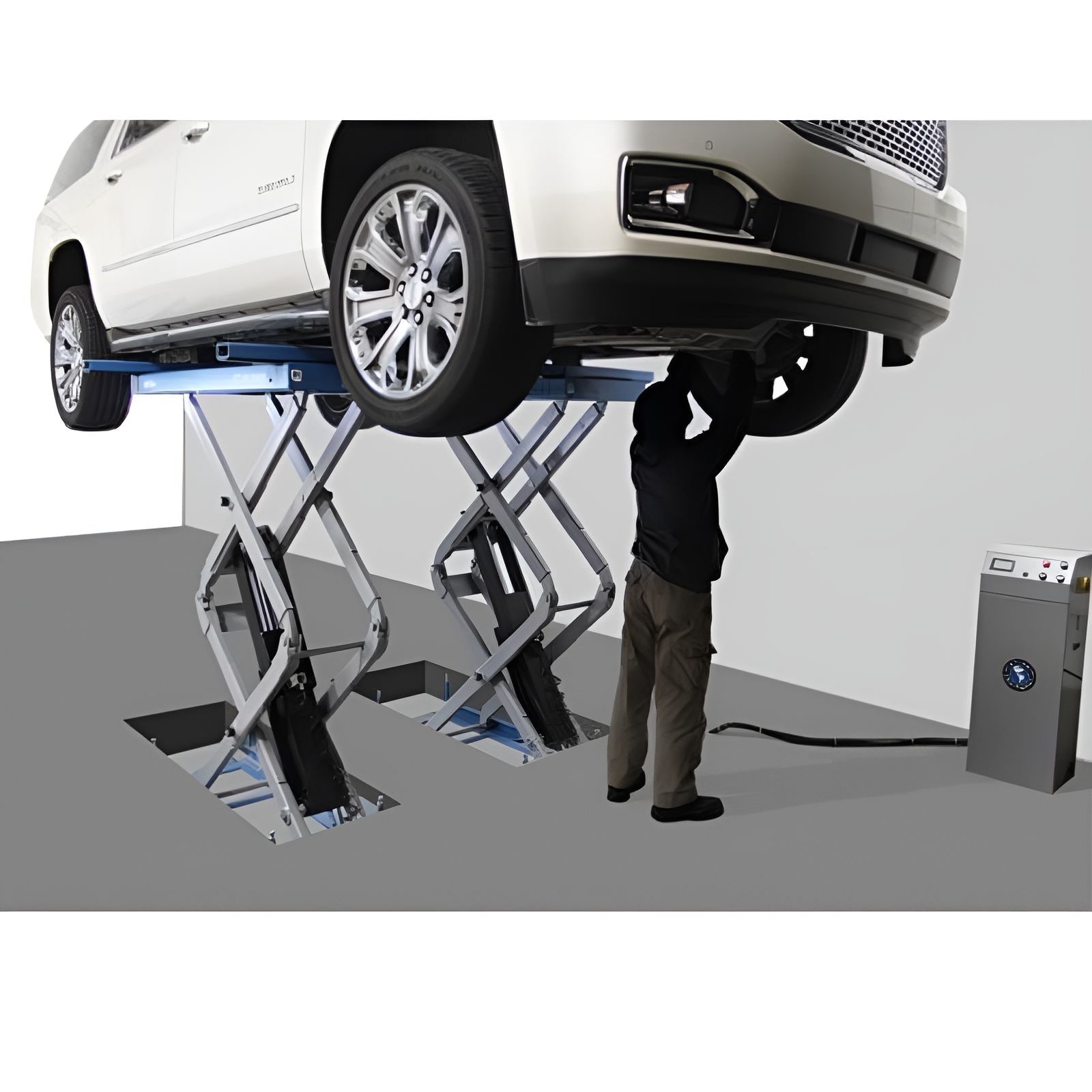

Open-center design for improved access
-
Air-operated single-point lock release
-

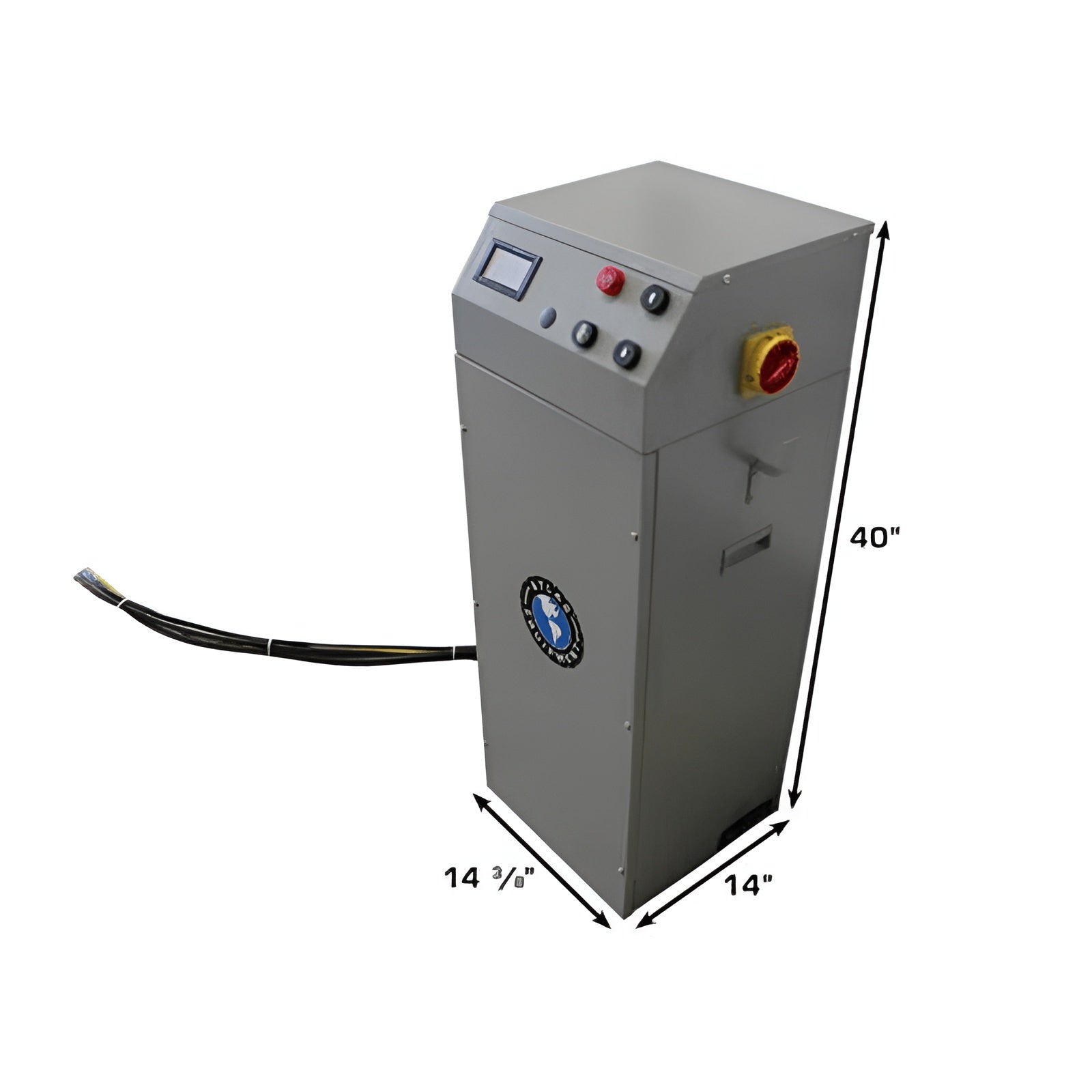

Separate self-contained control unit for easy maintenance access
-
Grease zerk fittings at each hinge point
-
Heavy-duty rubber lifting blocks included
-
Mounting hardware included
-
Backed by a 1-year structural and 1-year hydraulic parts-only warranty
FM9SL Manual
