Description

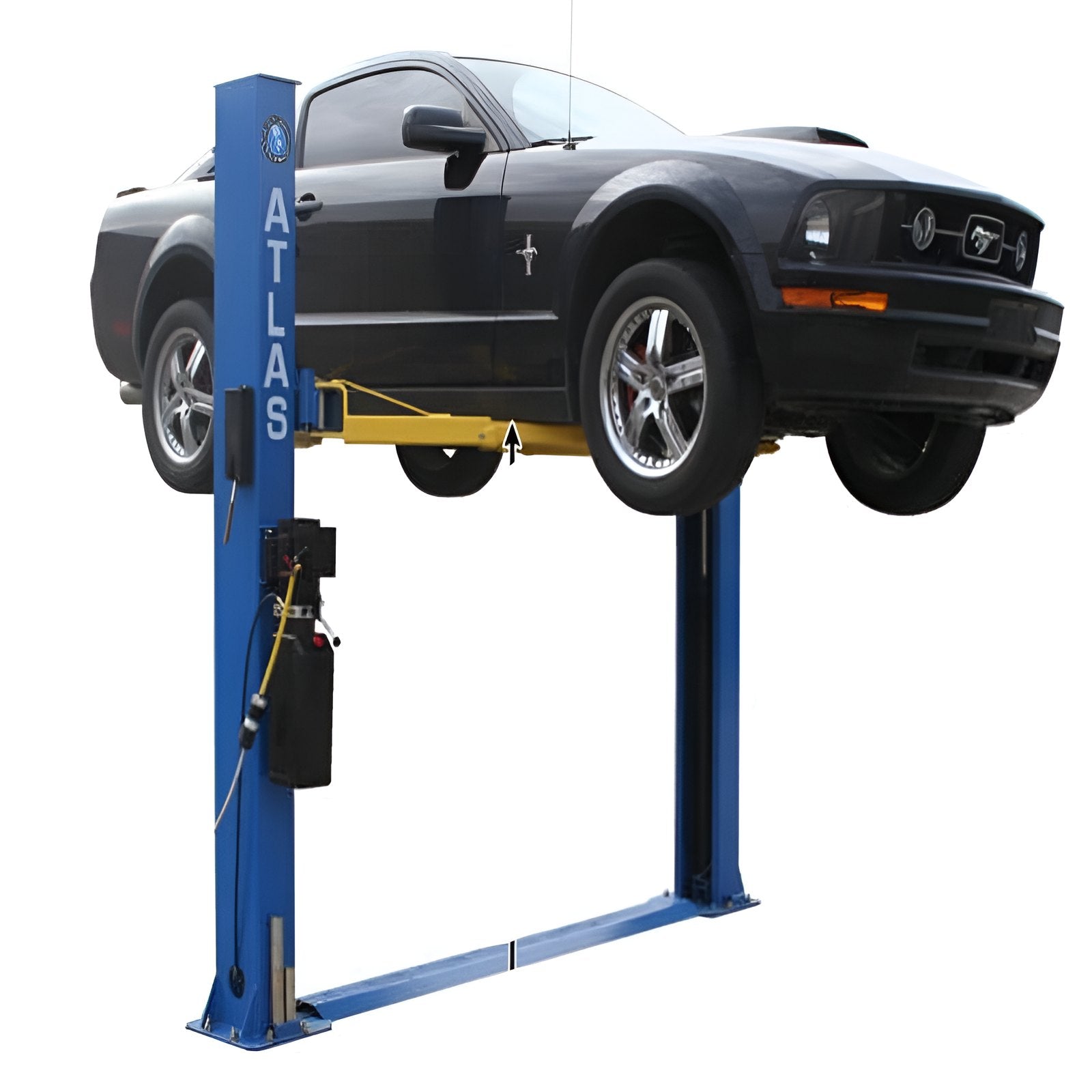

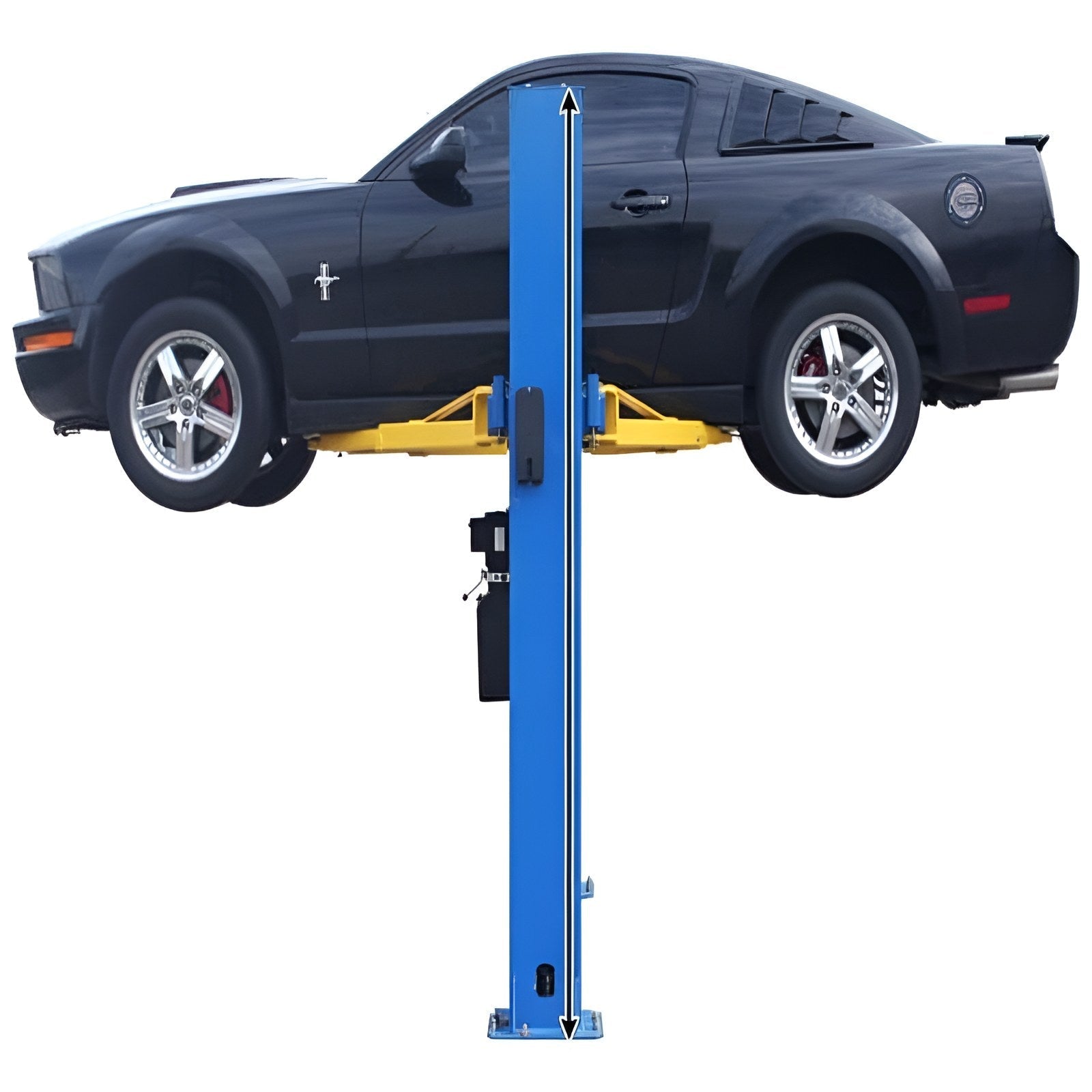

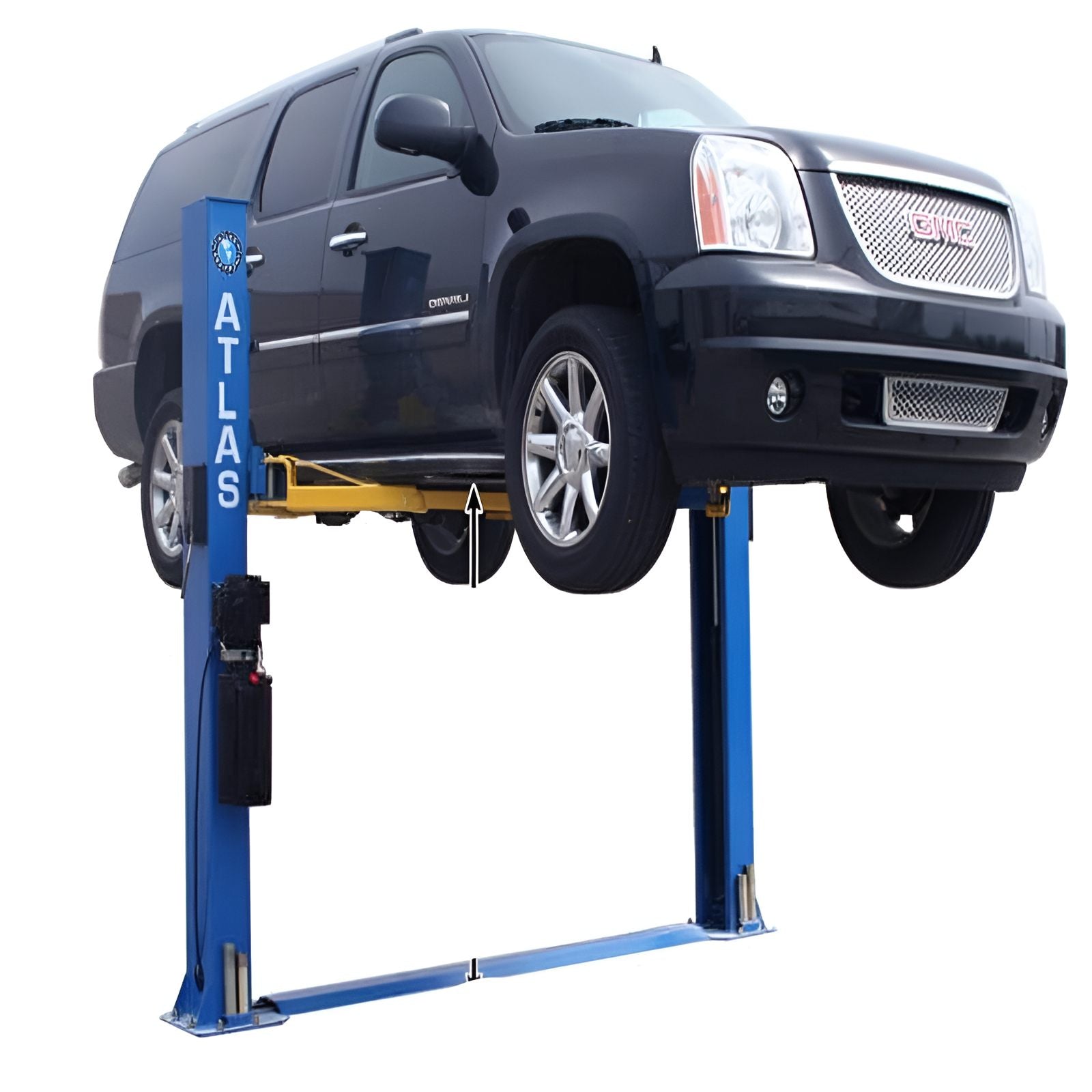

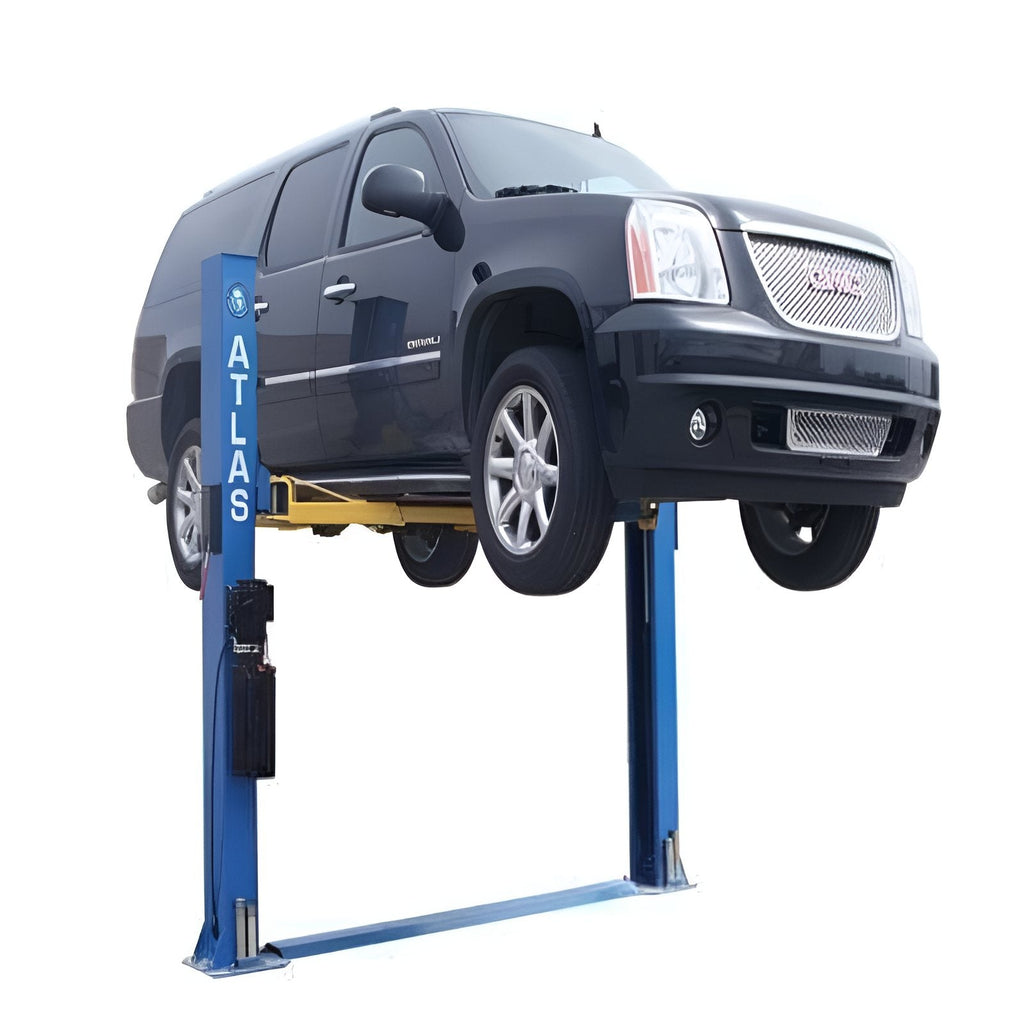

Atlas 8,000 lb 2 Post Lift, Low Ceiling SKU ATEATTD-BP8000
The Atlas® BP8000 is here to save the day - and your forehead. This nimble ninja of a lift sneaks into spaces as tight as 9 foot 3 inches, bringing 8,000 pounds of lifting prowess to the party. No more turning away jobs or playing limbo with truck suspensions. With its asymmetric arms and single-point lock release, it's easier to operate than your morning coffee maker. And talk about adaptable - its twelve-piece truck adapter set is more versatile than a Swiss Army knife at a camping trip. With the Atlas® BP8000, you'll be lifting your way to new heights - literally and figuratively!
Atlas 8k Lift Specifications:
- Capacity 8,000 LB.
- Overall Height 108" (9')

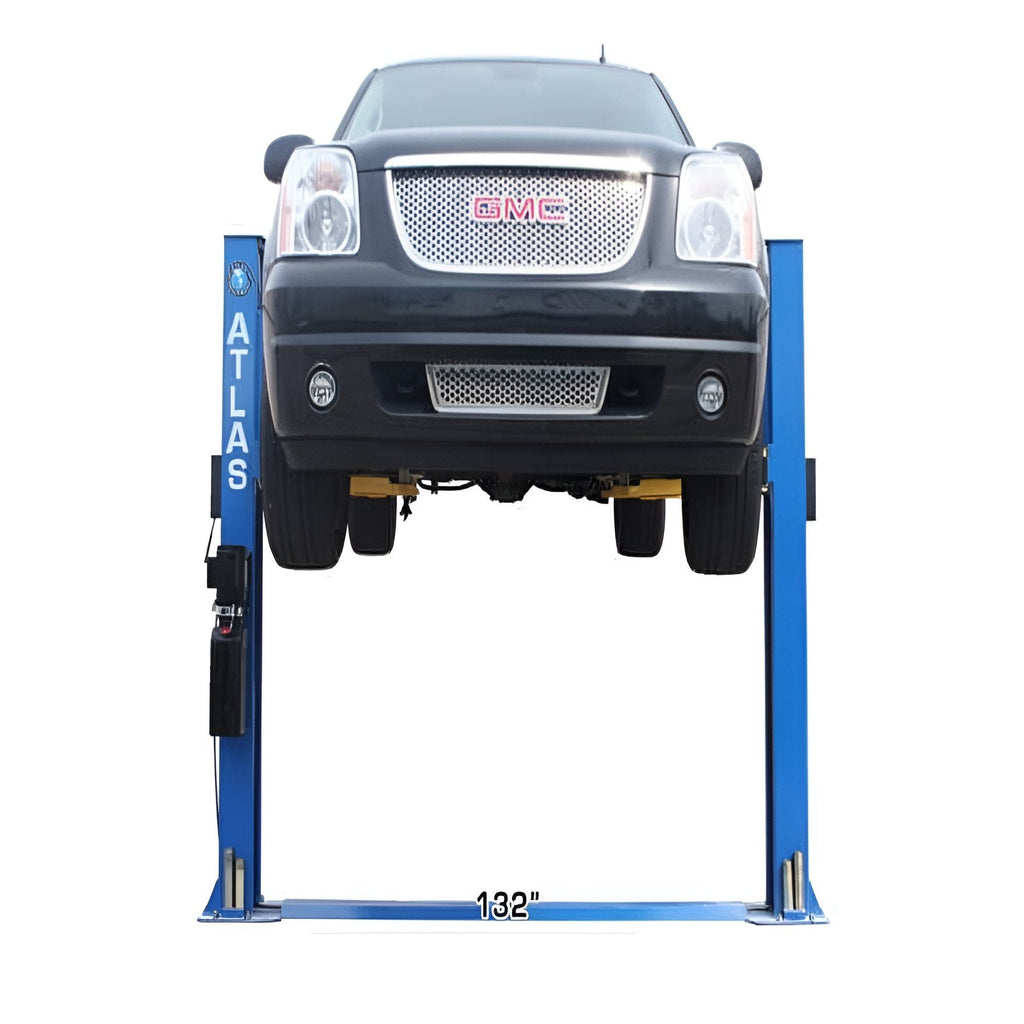

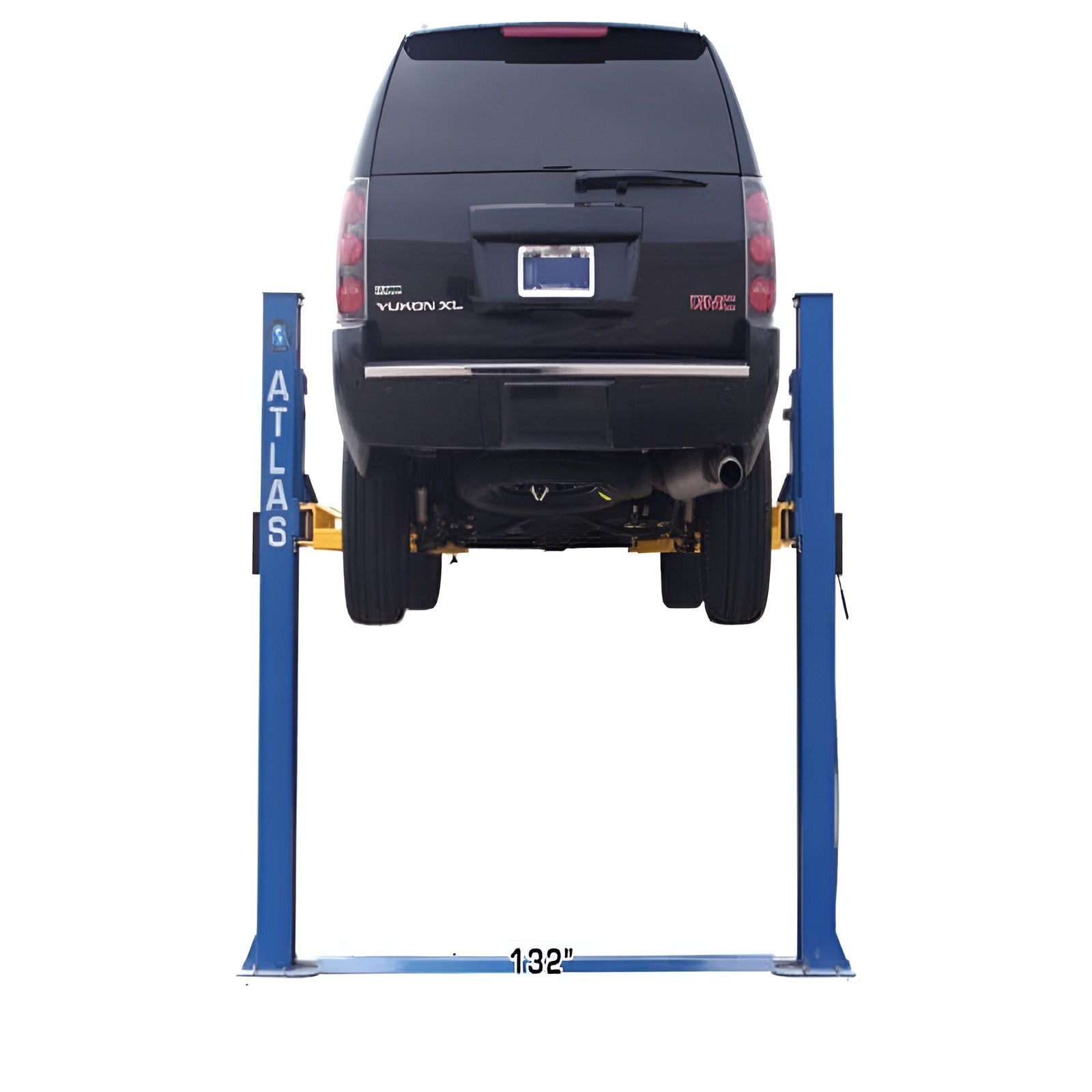

- Overall Floor Width 132" (11')
- Outside Column to Outside Column 124" (10' 4")
- Maximum Lift Height (Without Adapters) 75 1/2"
- Maximum Lift Height (With Adapters) 86 1/2"
- Minimum Arm Height 4"
- Inside Column 109 1/8” (9' 1 1/8”)

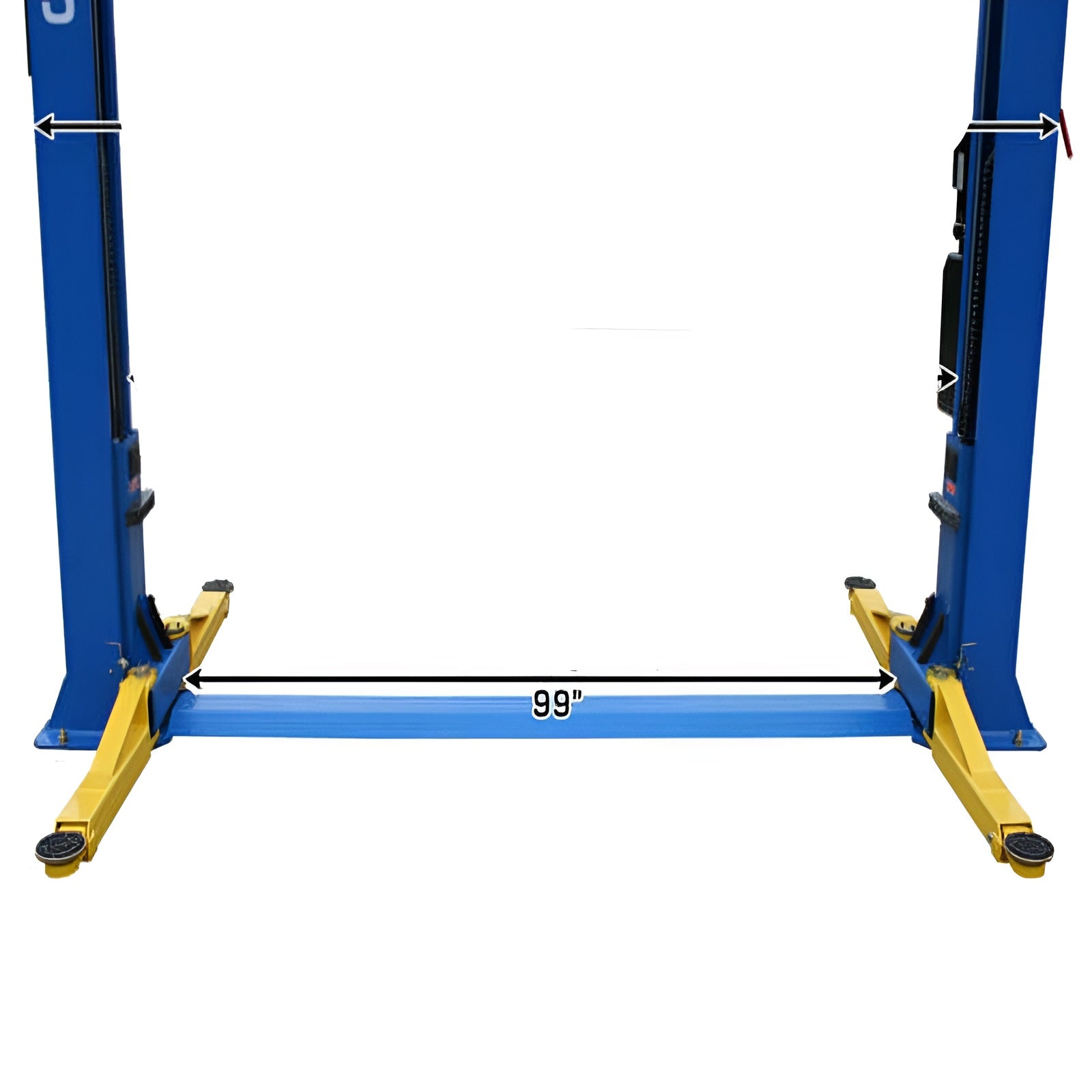

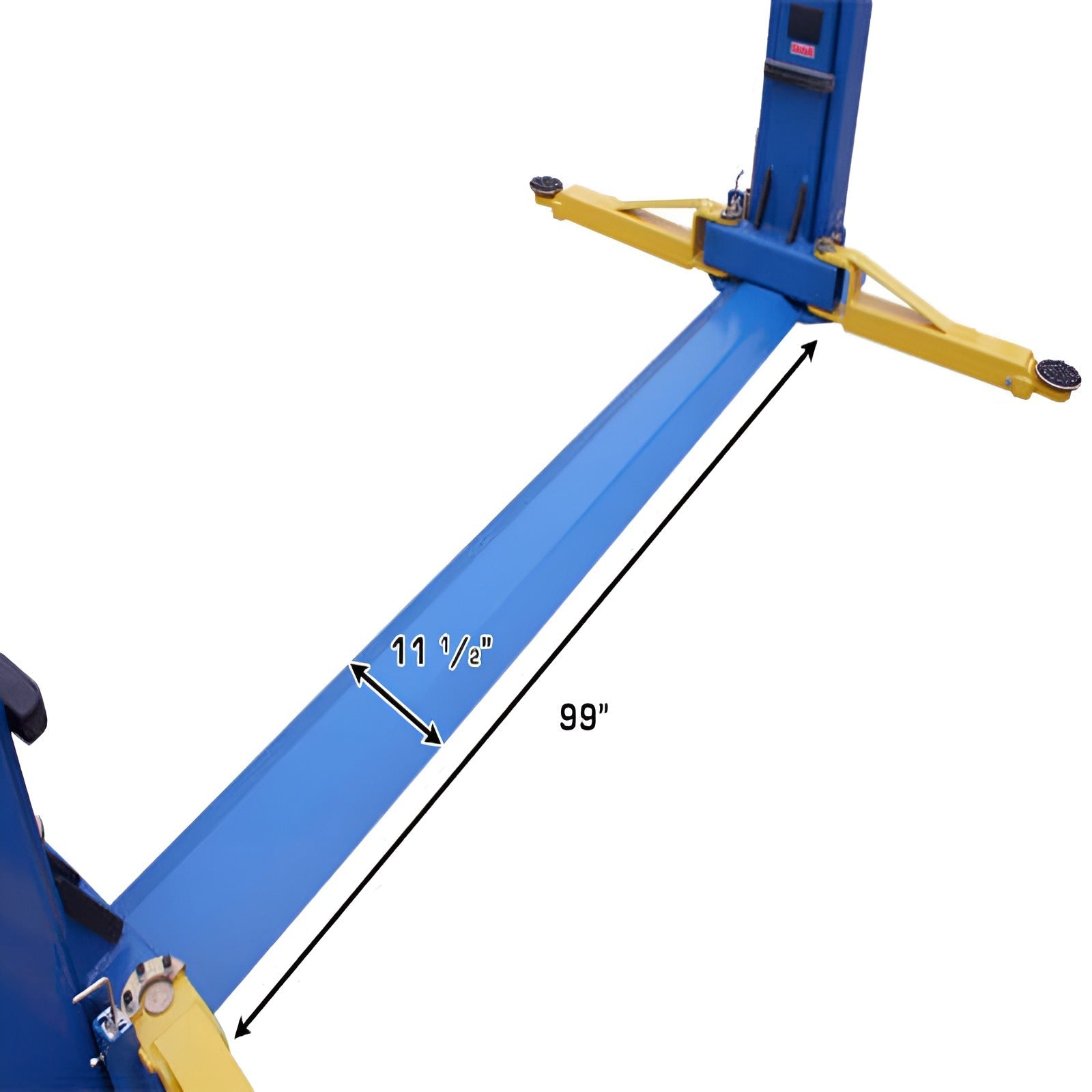

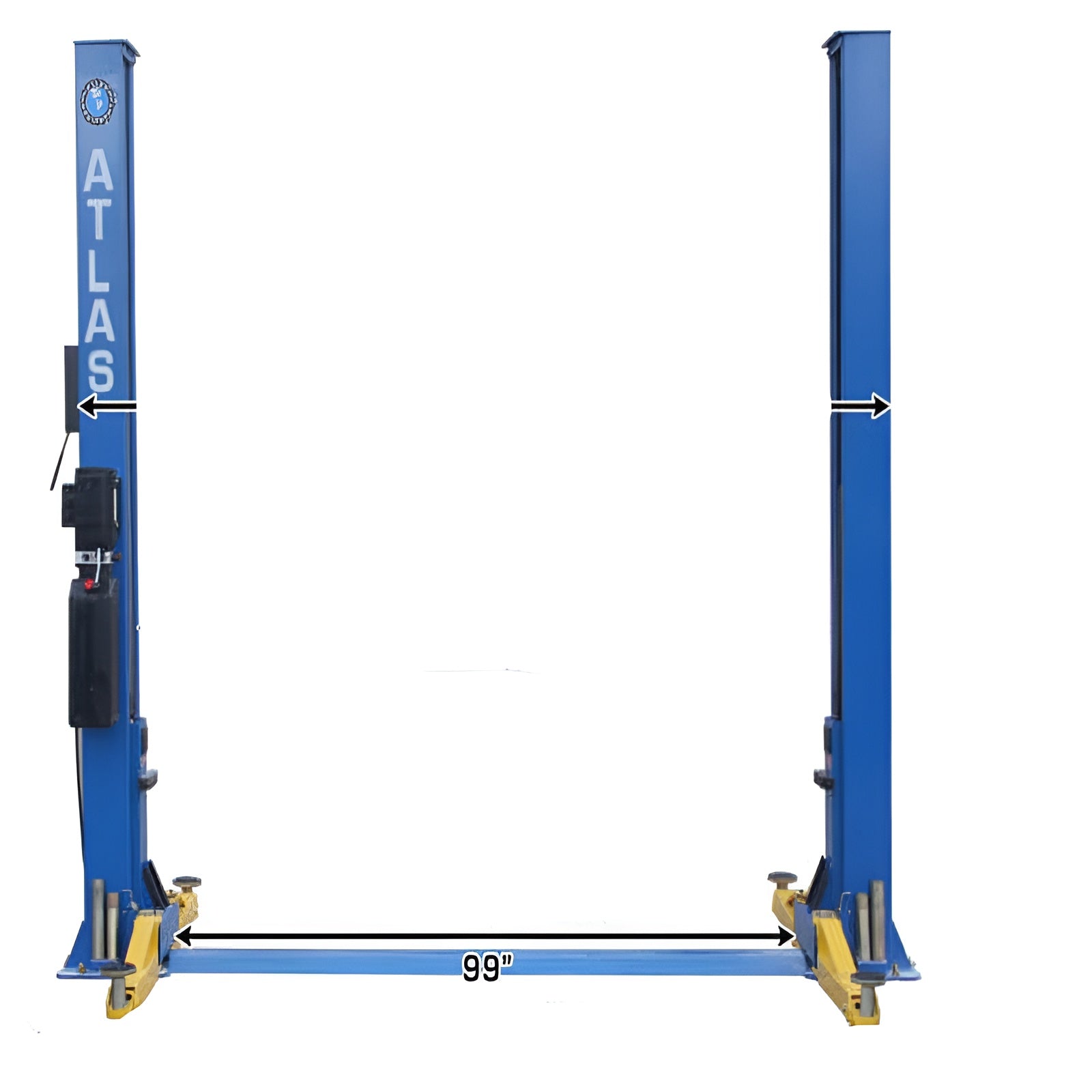

- Drive Thru 99” (8' 3”)

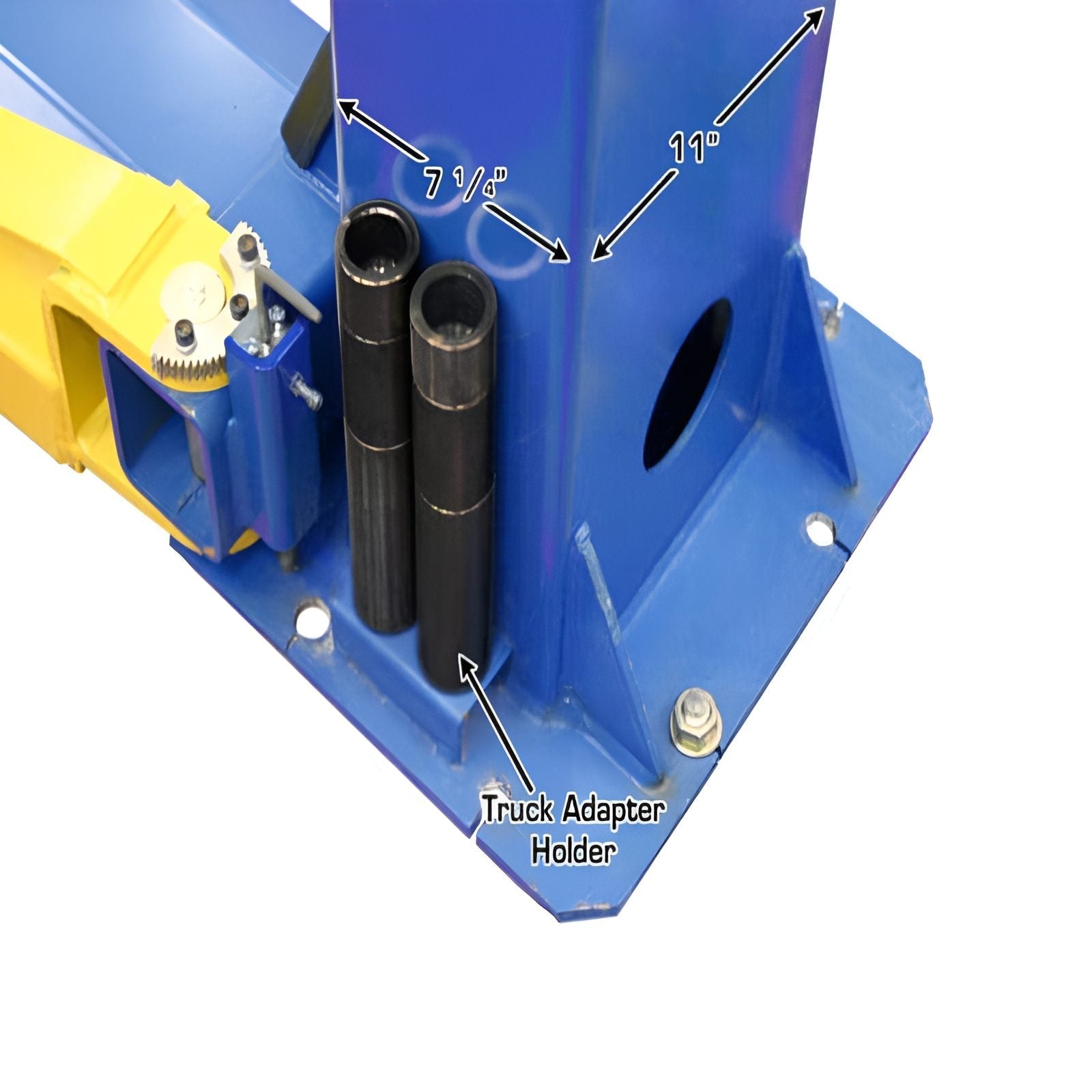

- Column Size 7 1/4" x 11"
- Column Thickness of Steel 6mm
- Base Of Lift 17 1/2" x 17 3/4"
- Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 1,300 LBS.
- Pallet Size: 111" Long x 45" Tall x 19" Wide

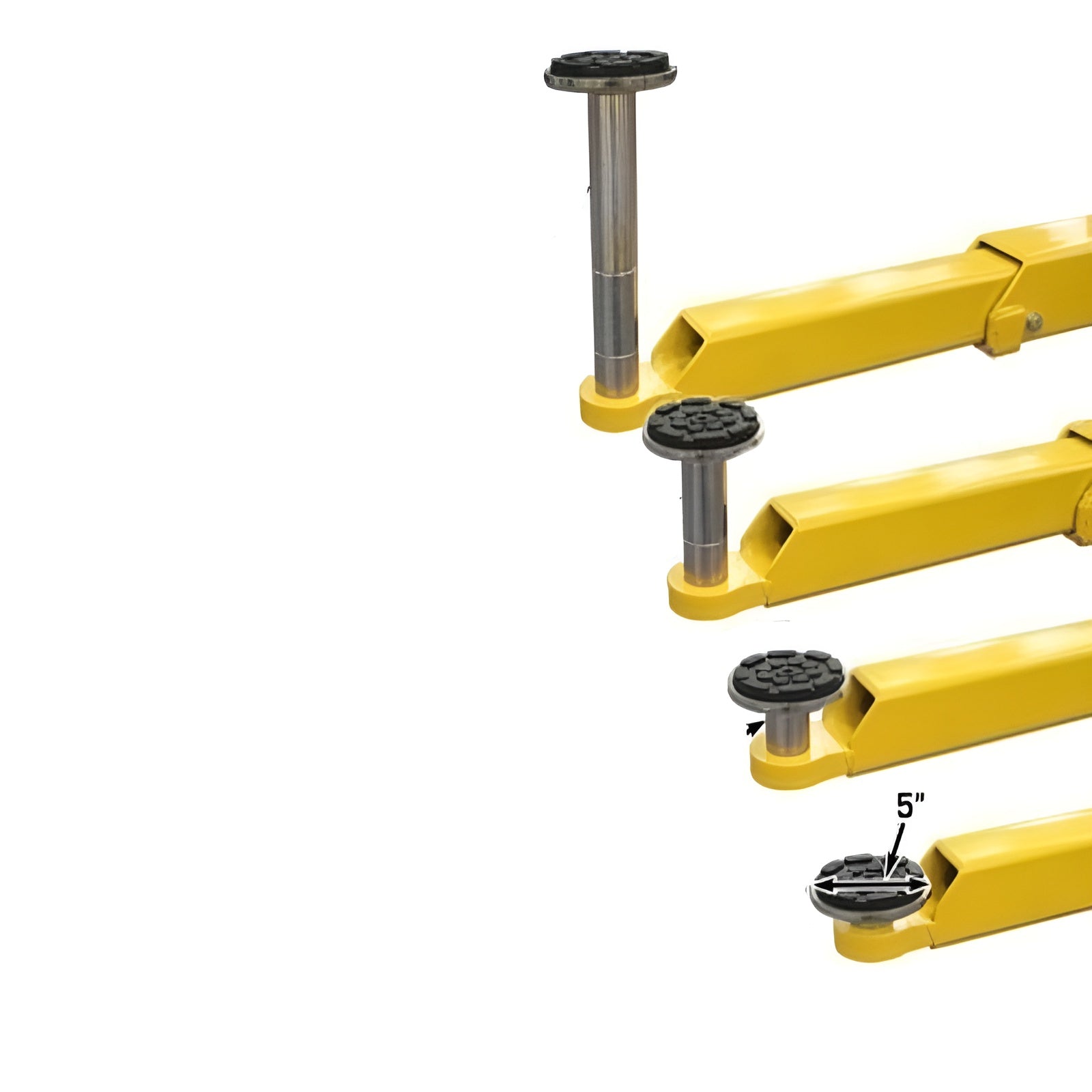

- Adapter Heights 4 Each 2”, 3”, 6”
- Arm Hole/Adapter Peg Size 1.5”
- Requires a minimum of 4" of concrete with a 3000 psi. rating
Atlas 8,000 lb 2 Post Lift Special Features:
- Hobbyist Grade Lift - Not Intended for Commercial Use
- Baseplate, Open-Top Style Lift
- 3-stage Front Arms, 2-Stage Rear Arms
- Lock Release: Single Point
- Double Safety Lock System

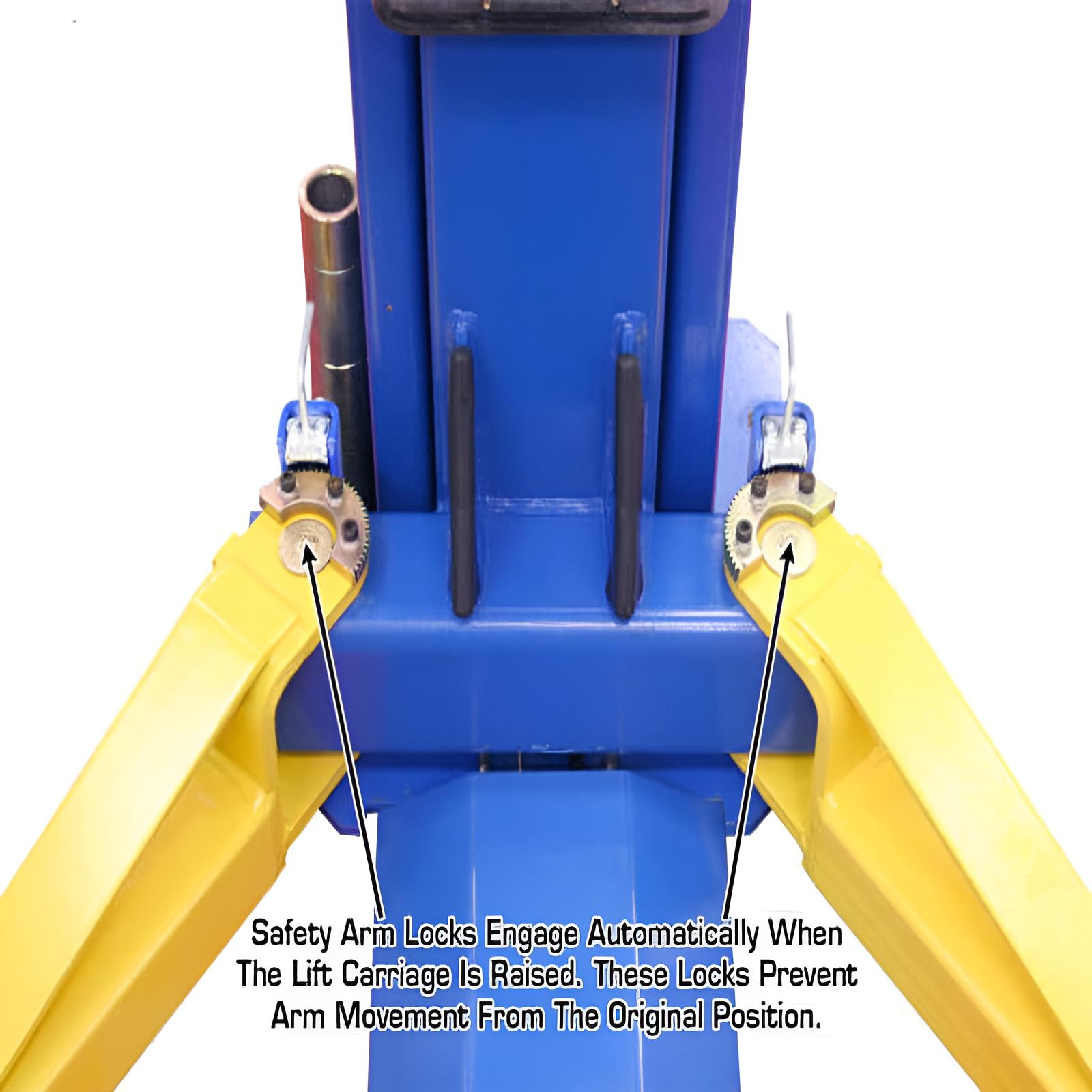

- Automatic Arm Restraints
- Dual Hydraulic Chain-Drive Cylinders
- Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only
- Unit Includes:
- Mounting Hardware

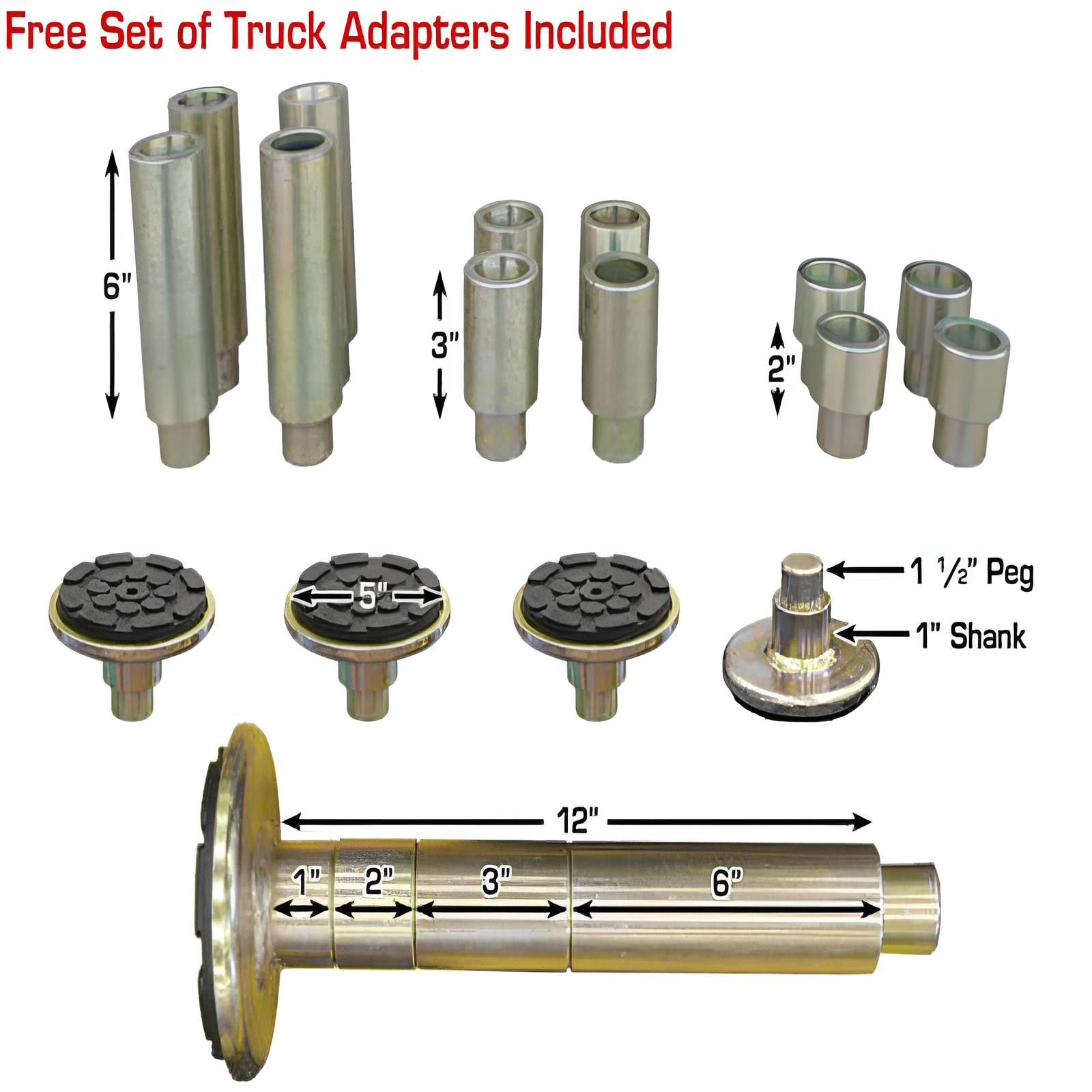

- 12-piece Truck Adapter Set
- Optional Item (Sold Separately):
- Lawnmower Adapter for 2-Post Lift
- ATEATTD-BP-EXTKIT-BP8 - Base Plate Extension for Stability
BP8000 Manual
Warehouse Pickup locations (No shipping charge):
- Atlanta, GA
- Dallas, TX
- Fresno, CA
- Indianapolis, IN
- Phoenix, AZ
- Somerset, NJ
