Description

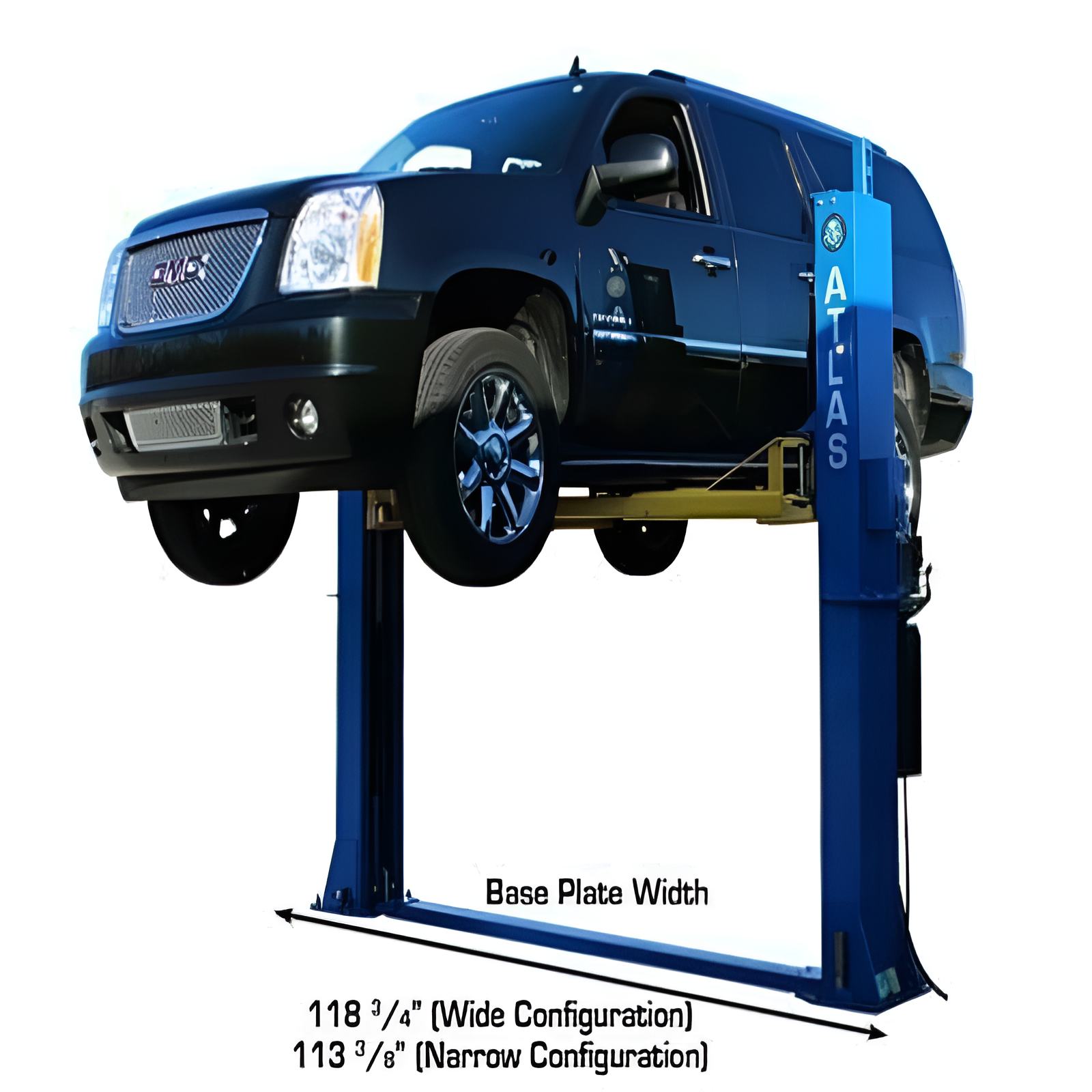

Atlas 12,000 lb 2 Post Lift, Commercial Grade SKU ATEATTD-BP12000X
The Atlas® BP12000X, your garage's new best friend. This 12,000-pound capacity titan is the answer to your prayers, with a height of just 122 1/2" that'll slide under your ceiling like a limbo champion. But don't let its low profile fool you – this lift is tougher than a two-dollar steak. With its adjustable width settings, it'll handle everything from wide-bodied trucks to slender sports cars. The BP12000X's symmetric three-stage arms and oversized columns are itching to show you what real lifting power looks like. With the Atlas® BP12000X, you'll be lifting your way to the top of the automotive repair and maintenance food chain!
BP12000X Specifications:
- Capacity 12,000 LB.

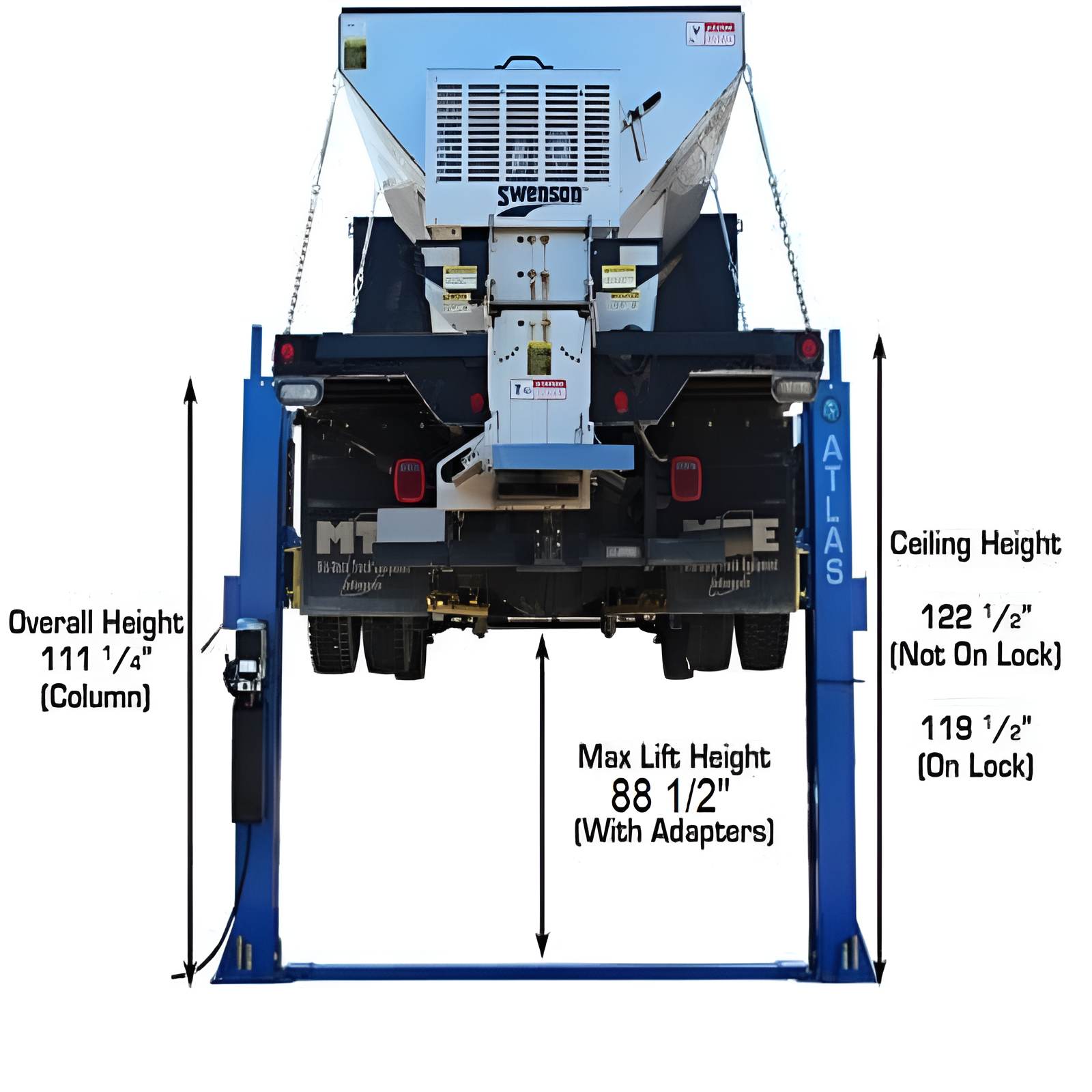

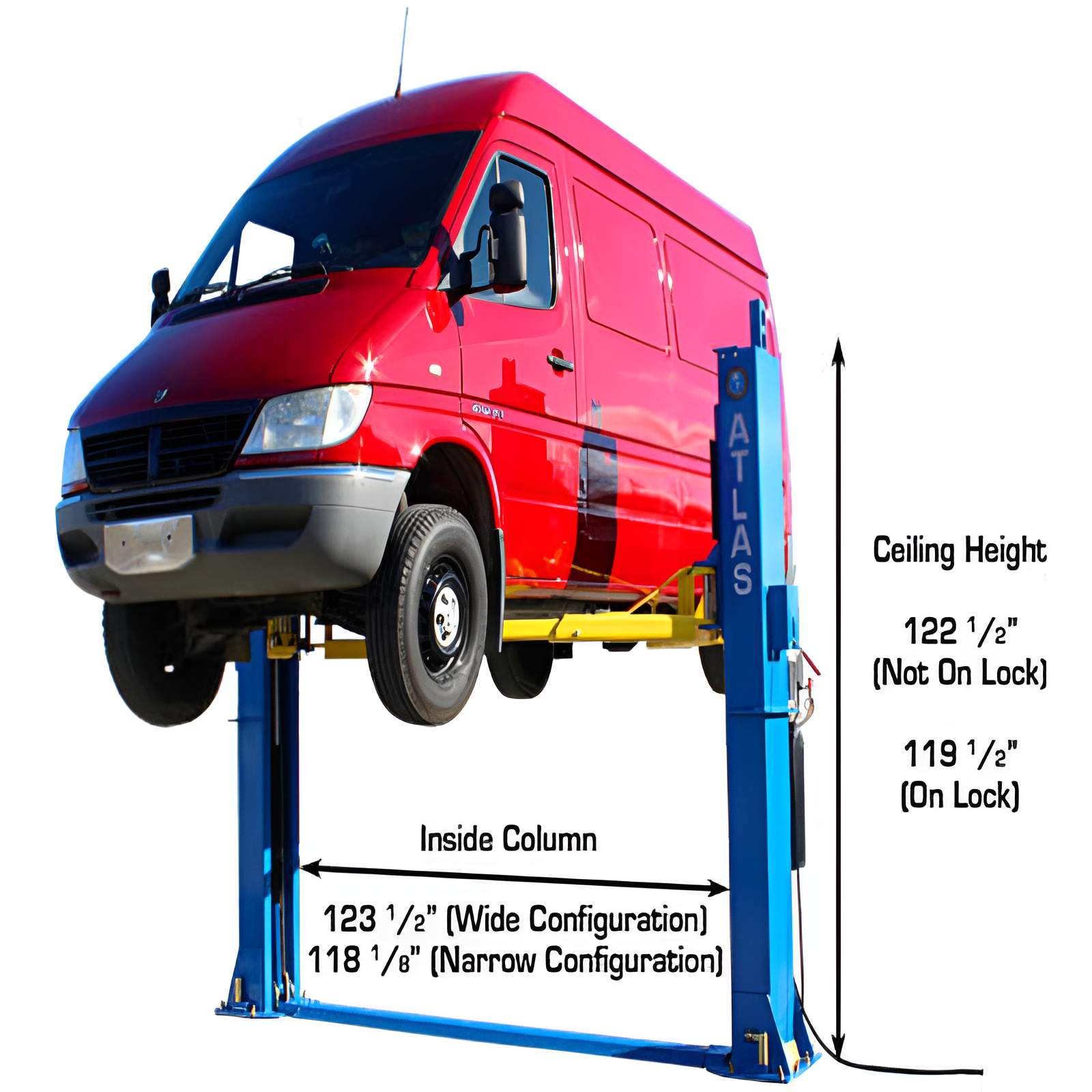

- Overall Height 122 1/2" (10' 2 1/2")

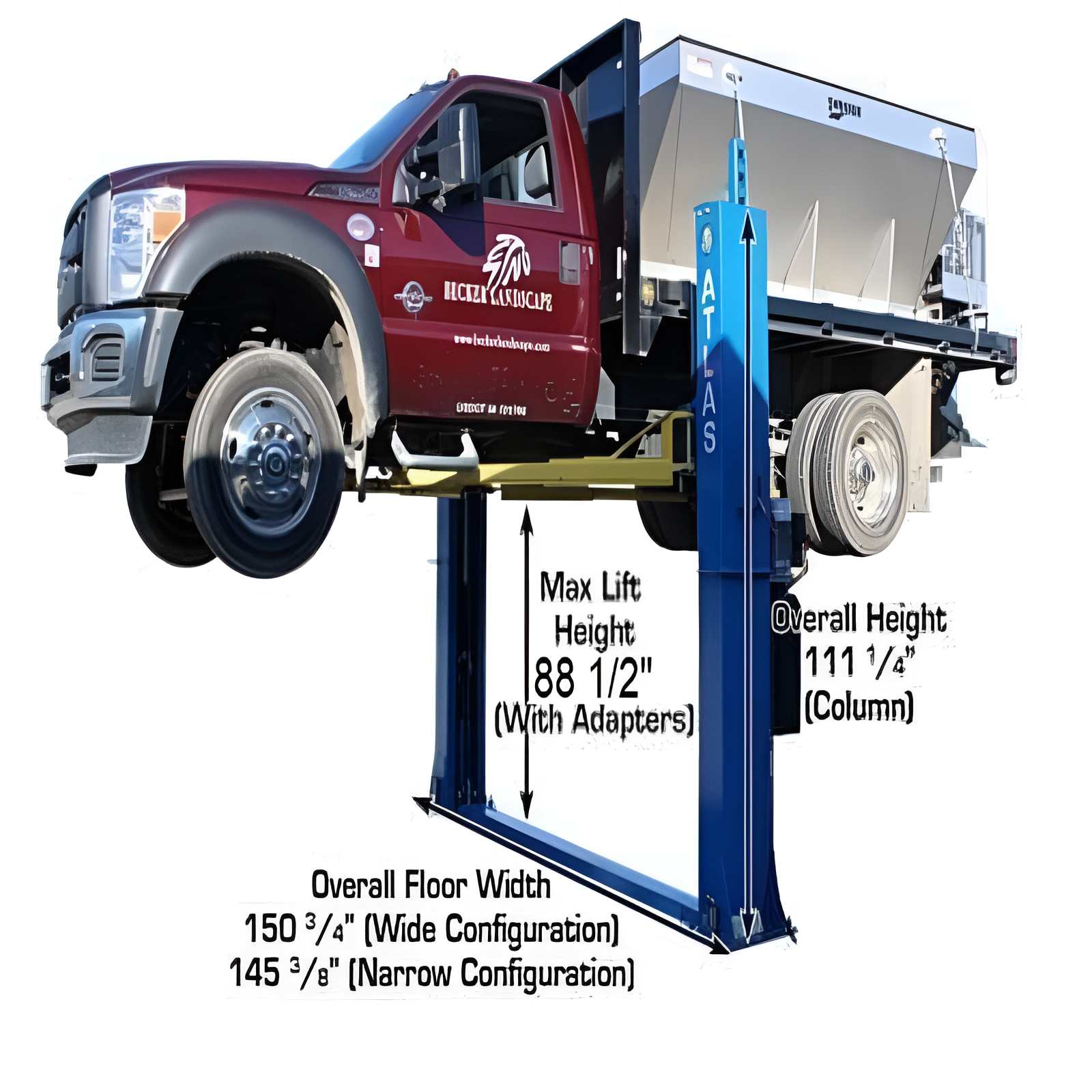

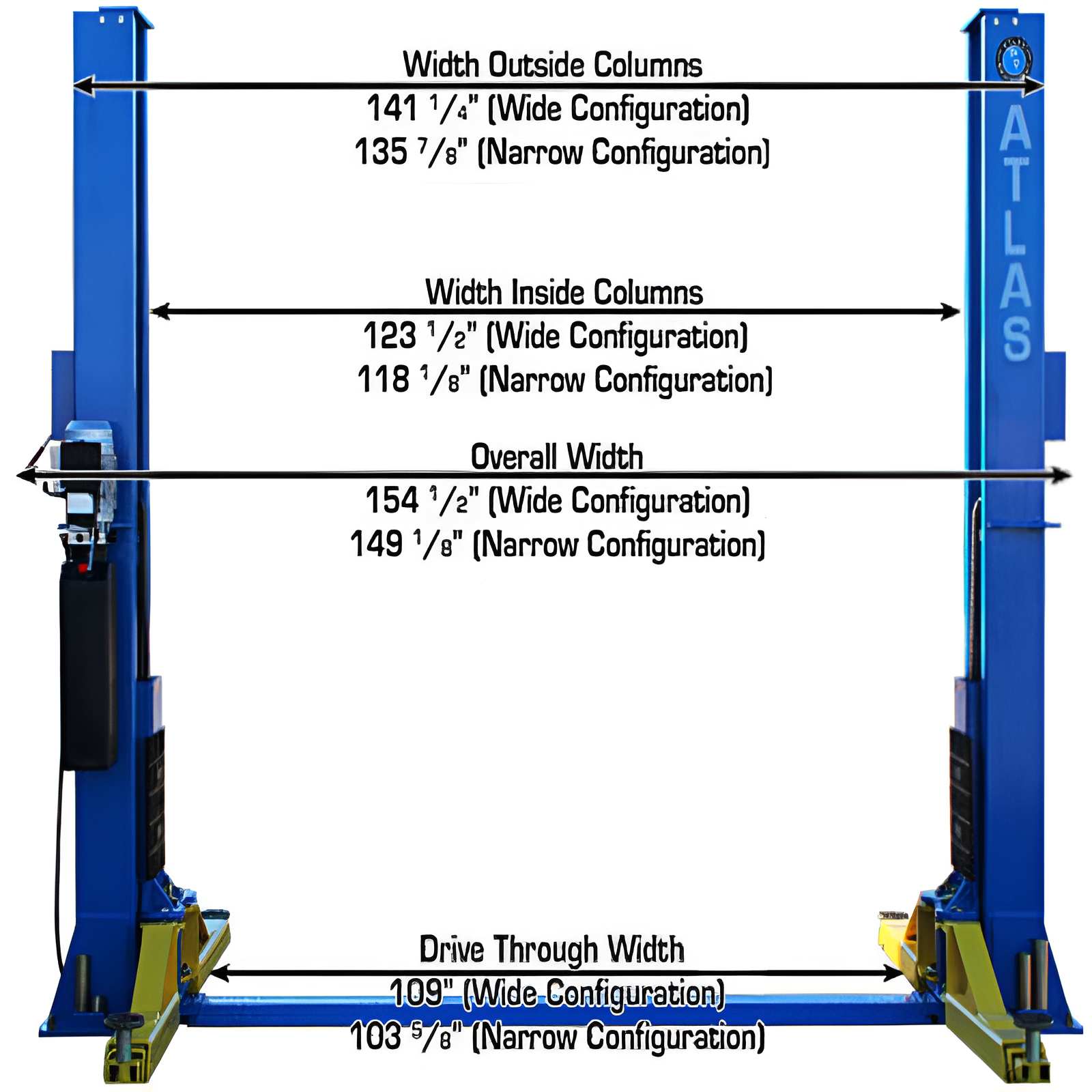

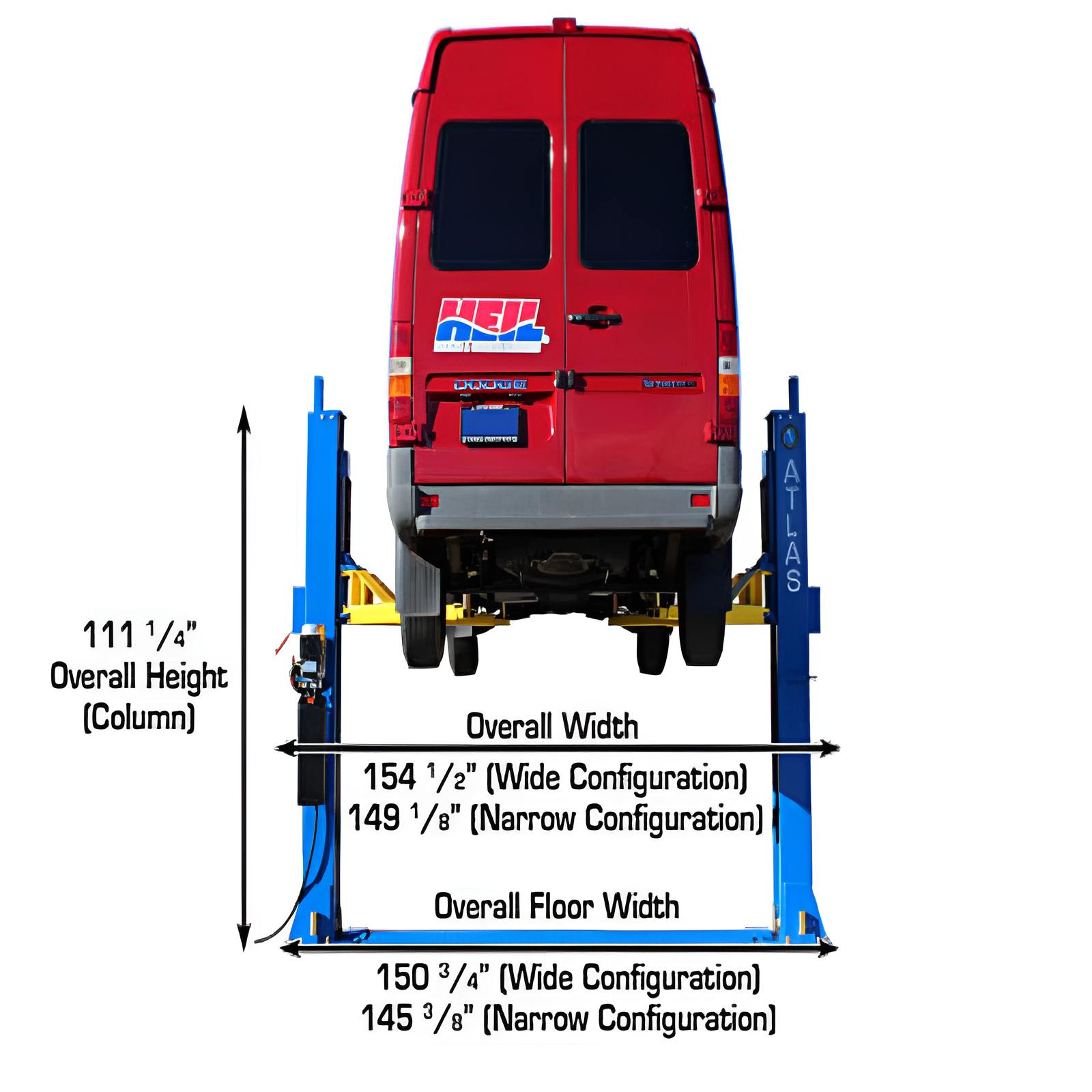

- Overall Floor Width 149 3/8" (12' 5 3/8") or 154 1/2” (12' 10 1/2”)

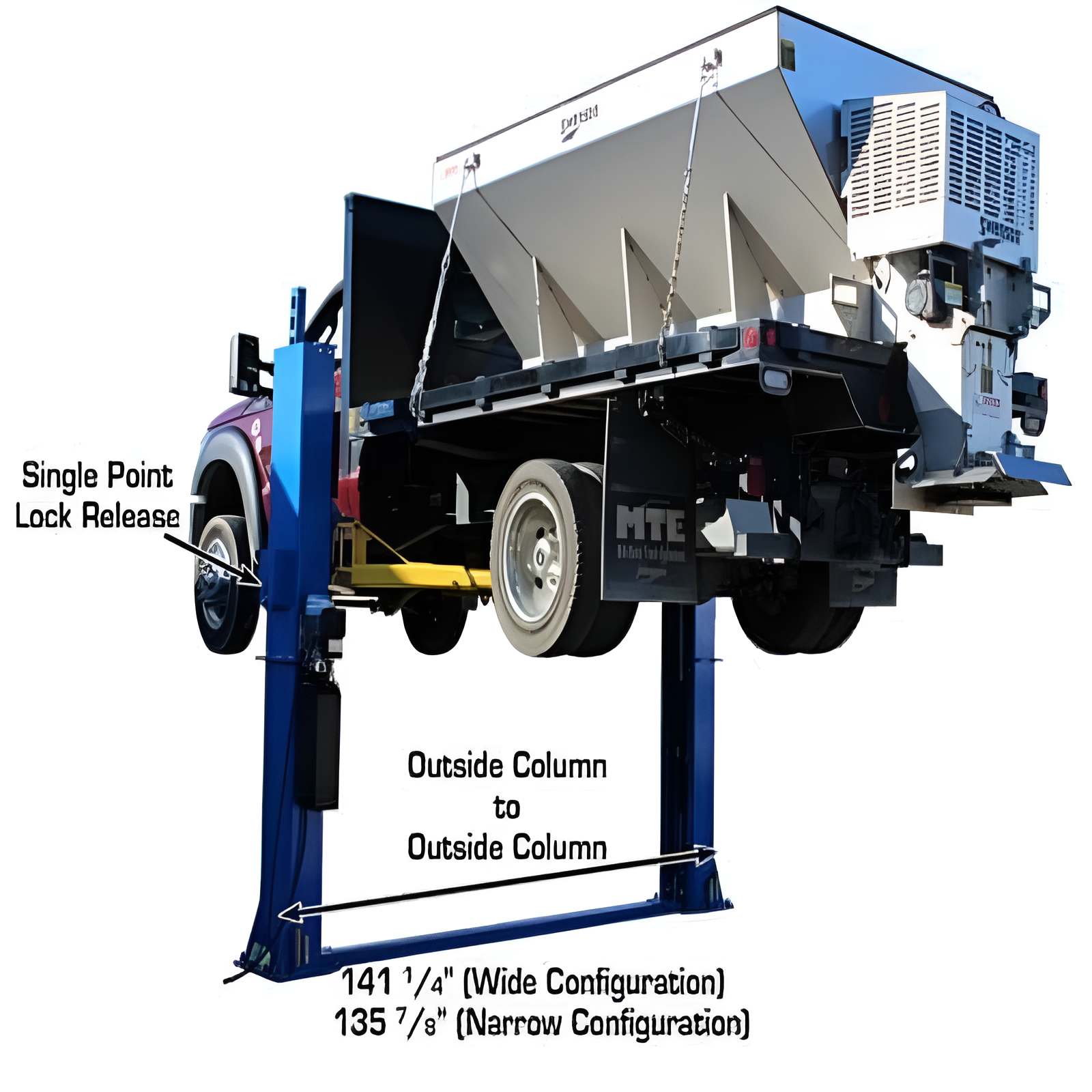

- Outside Column to Outside Column 135 7/8" (11' 3 7/8") or 141 1/4" (11' 9 1/4”)

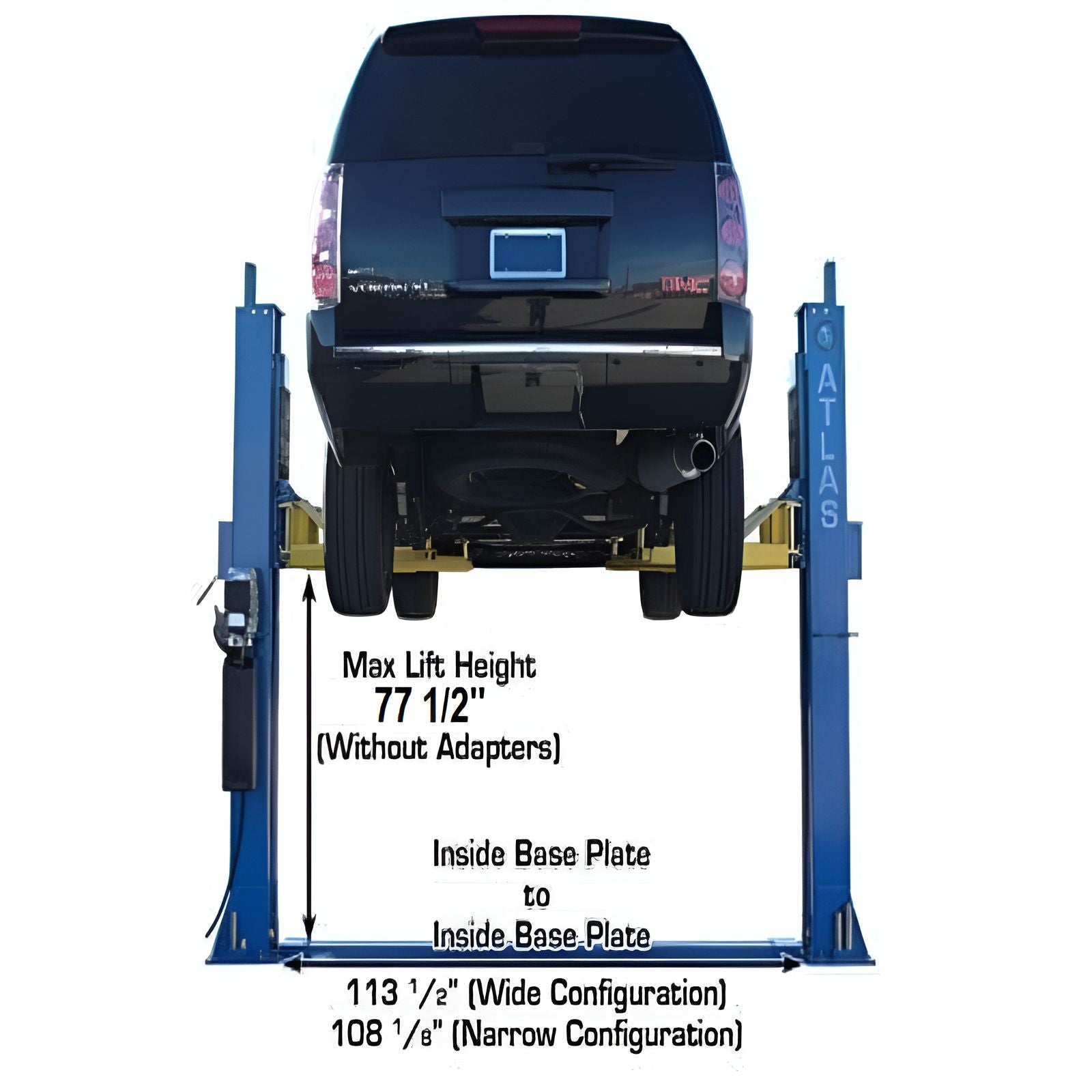

- Maximum Lift Height (Without Adapters) 77 1/2"

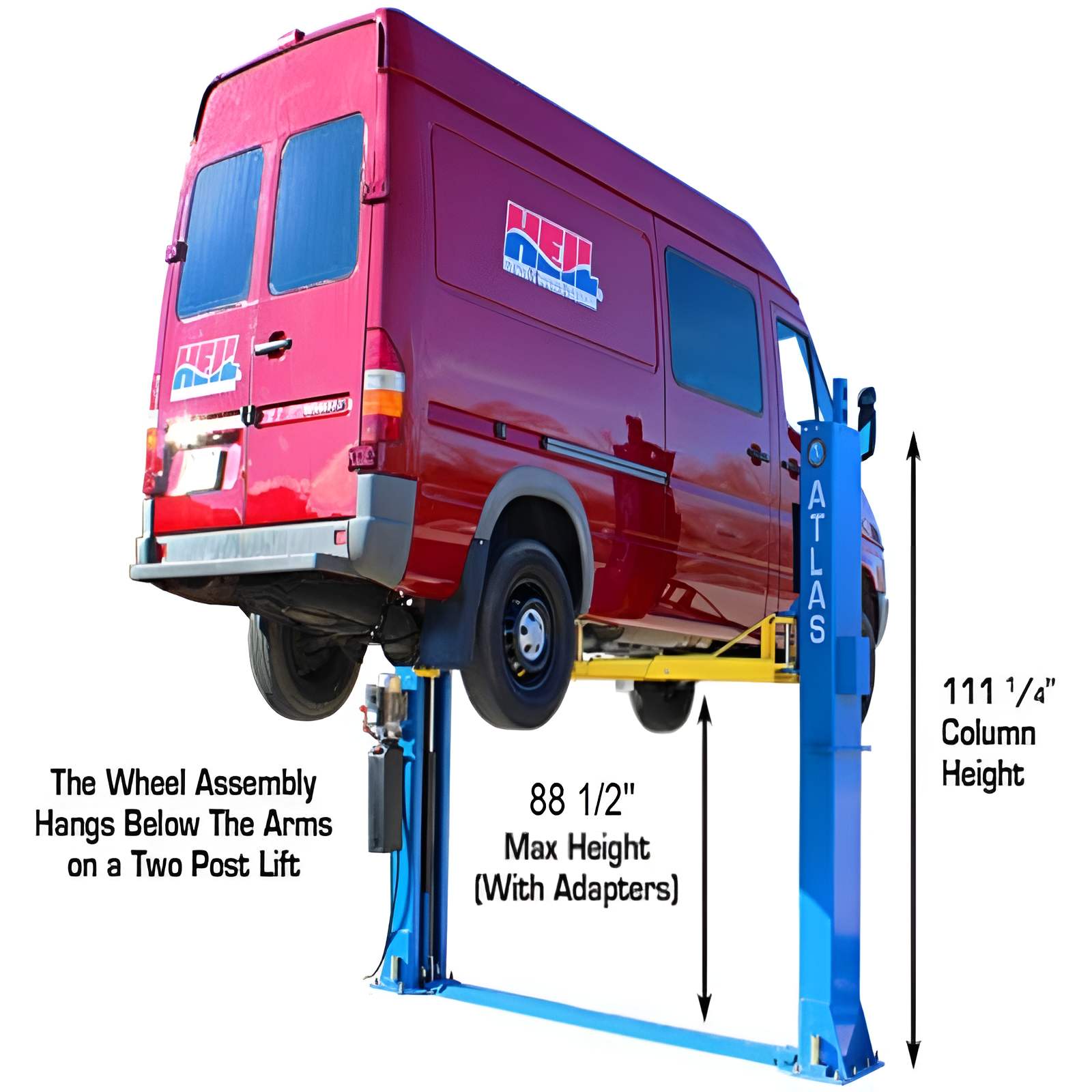

- Maximum Lift Height (With Adapters) 88 1/2"
- Minimum Arm Height 4"
- Inside Column 118 1/8” (9' 10 1/8”) or 123 1/2" (10' 3 1/2")

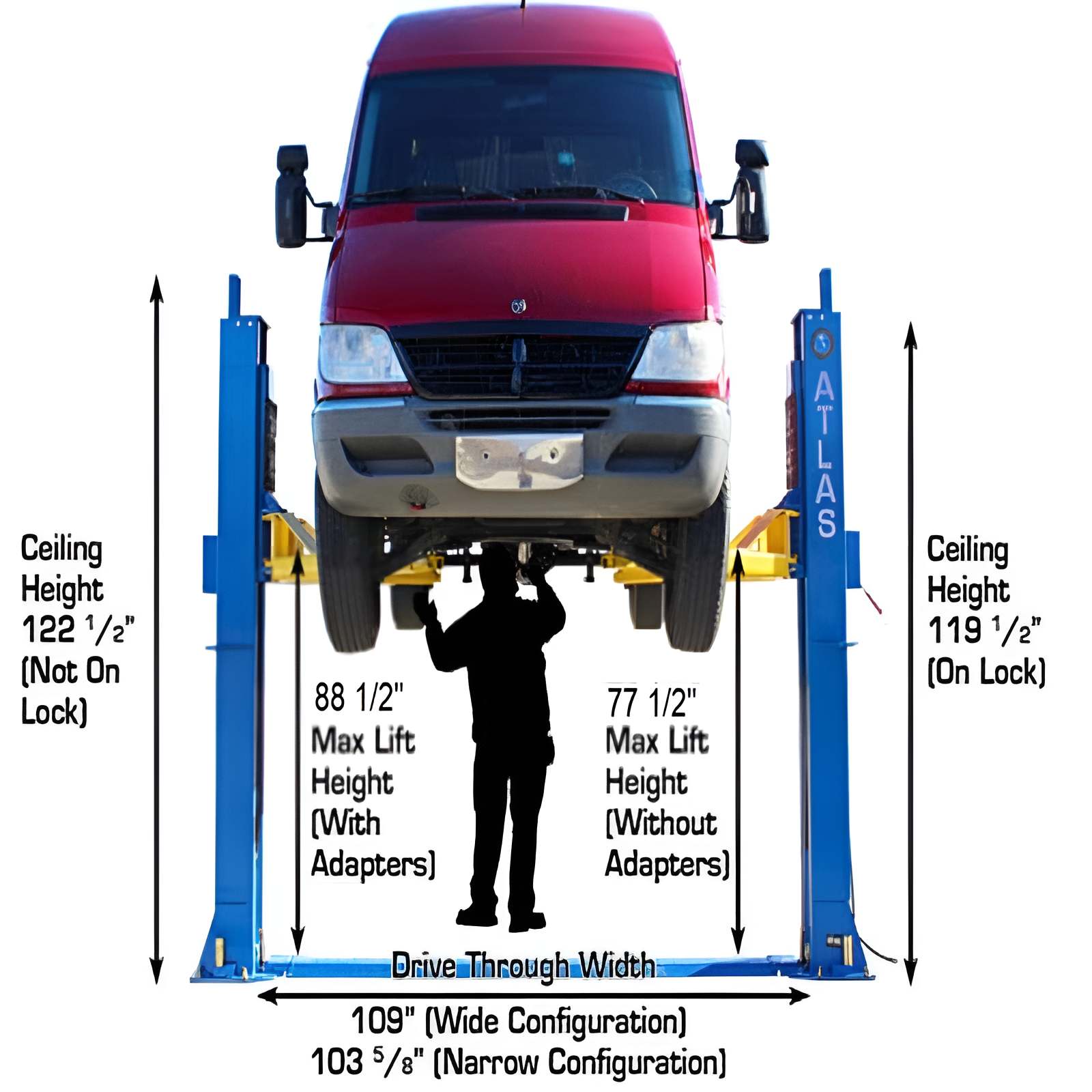

- Drive Thru 103 5/8” (8' 7 5/8”) or 109” (9' 1”)
- Column Size 8 3/4" x 14"
- Column Thickness of Steel 6mm
- Base Of Lift 18 1/2" x 21 1/2"
- Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 2,130 LBS.
- Pallet Size: 115-1/4" Long x 44" Tall x 22-1/2" Wide
- Adapter Heights 4 Each 2”, 3”, 6”
- Arm Hole/Adapter Peg Size 1.5”
- Requires a minimum of 6" of concrete with a 3000 psi. rating
Atlas 12,000 lb 2 Post Lift Special Features:
- Heavy Duty, Commercial Grade Strength
- Baseplate, Open-Top Design
- 3-Stage Symmetric
- Adjustable Width
- Automatic Arm Restraints

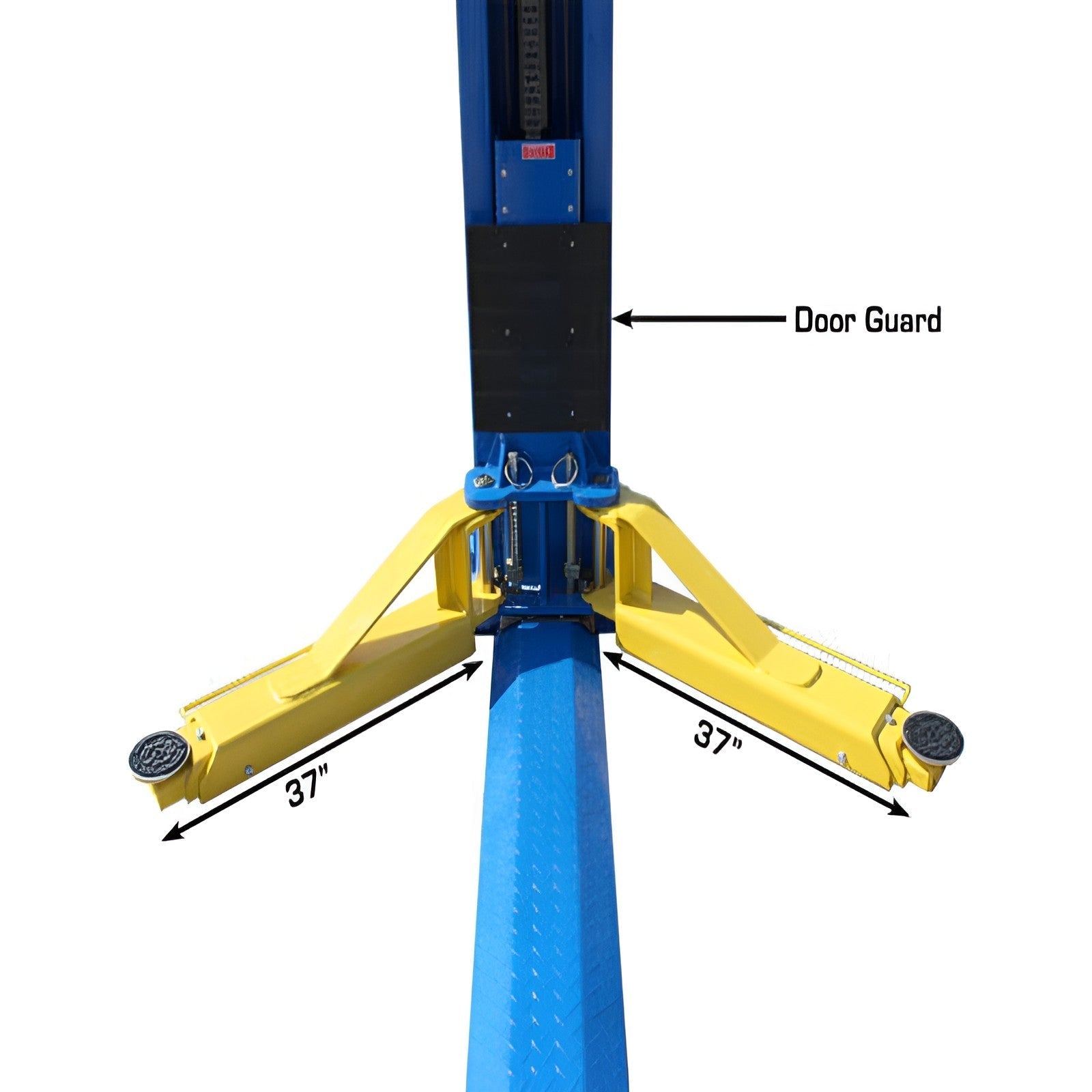

- Rubber Guards on Carriages

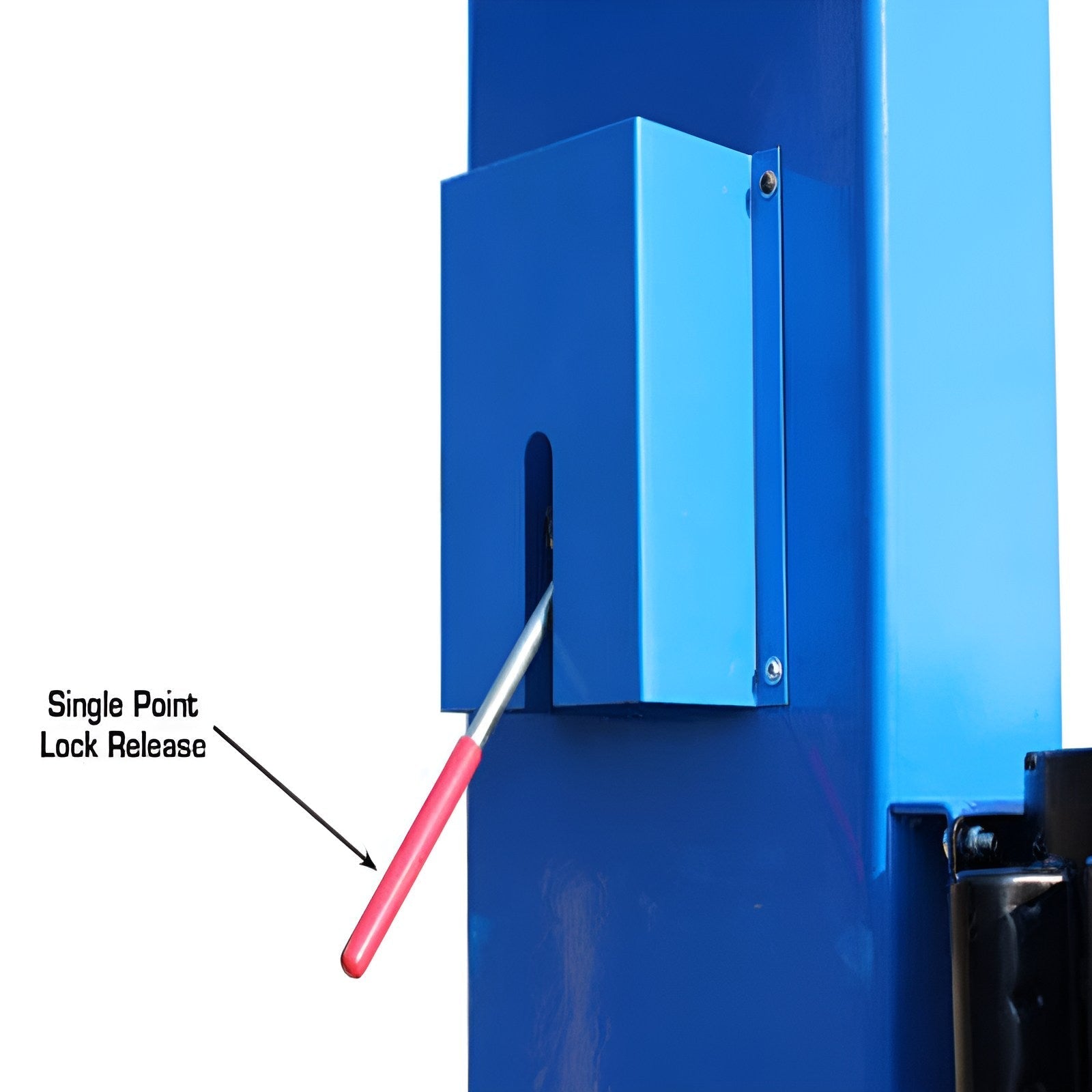

- Lock Release: Single Point

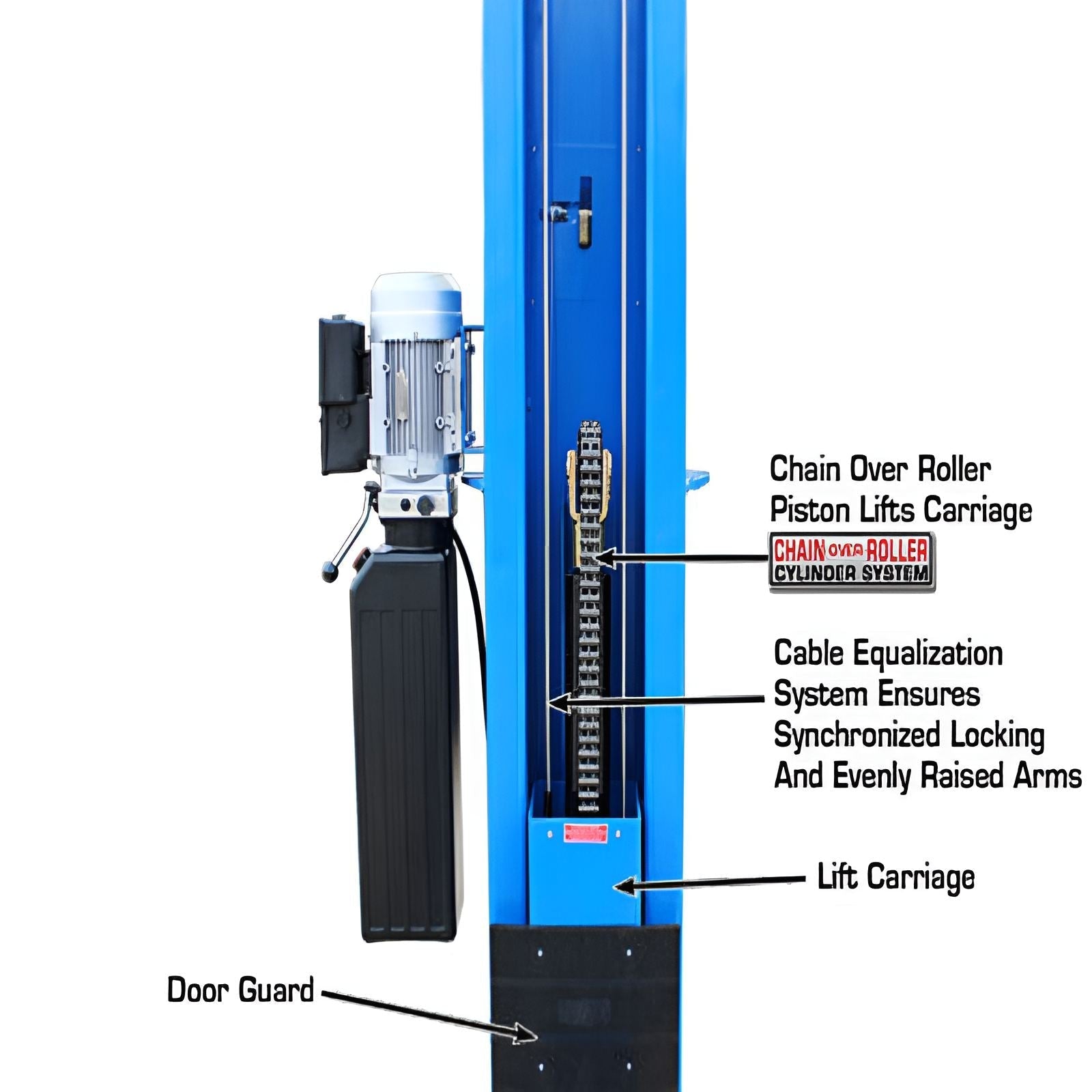

- Dual Hydraulic Chain Drive Cylinders (ASNI Standard)
- Powder Coat Finish
- Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only
- Unit Includes:

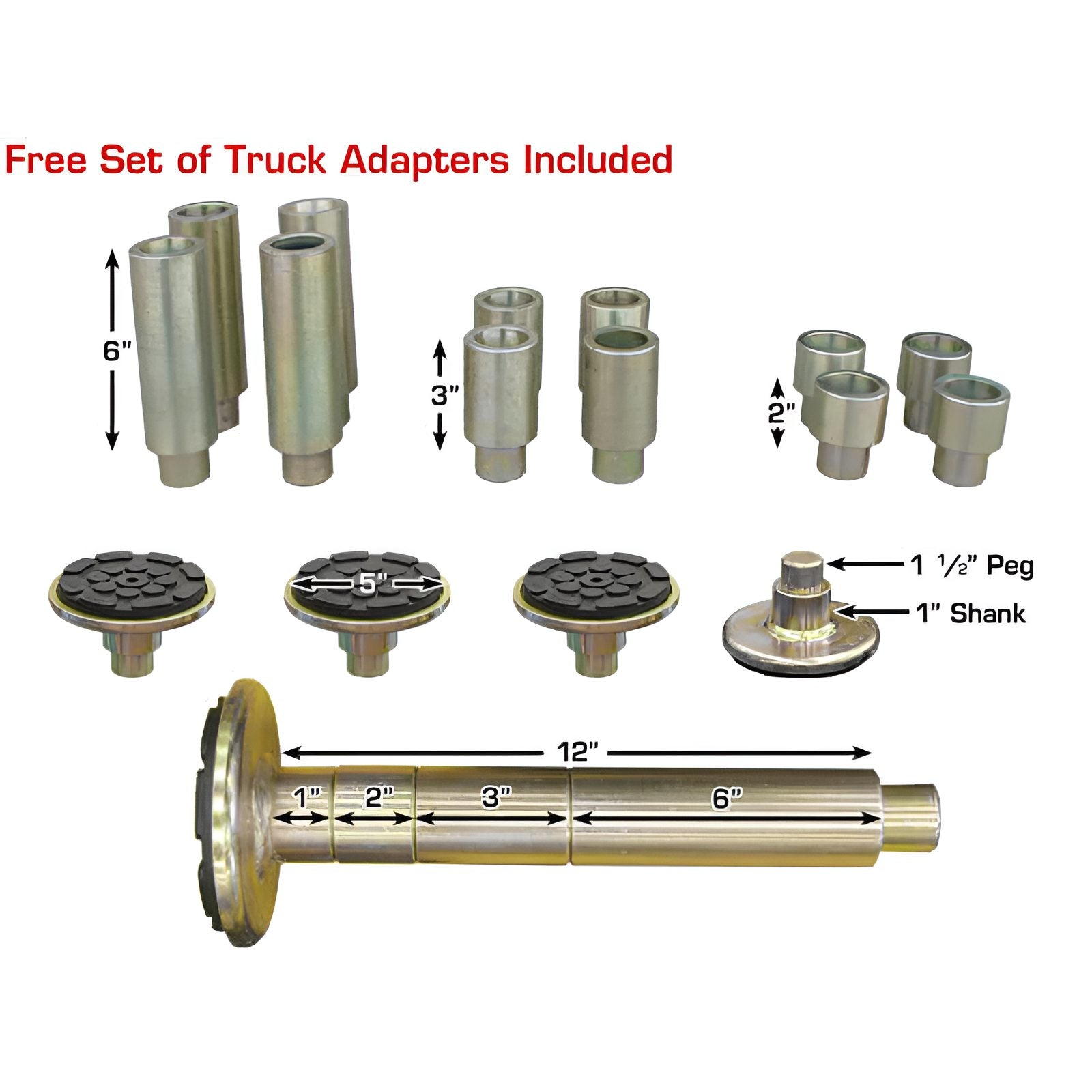

- 12-piece Truck Adapter Set (12" total)
- 1" Shank, 2", 3", & 6" - Totals up to 12" of added height
- Sold Separately:
- Frame Adapter Set - 1-1/2" Peg (Pair) - SKU: ATEXH-FTA
BP12000X Manual
