Atlas 10,000 lb 2 Post Lift, Low Ceiling SKU ATEATTD-BP10000X
Meet the Atlas® BP10000X, the superhero of low-ceiling garages! This 10,000 lb capacity beast laughs in the face of heavy-duty trucks while ducking under 11-foot ceilings like a limbo champion. With its single-point lock release and reinforced columns, it's tougher than a drill sergeant at boot camp.
From three-ton duallies to tiny Smart Cars, this lift doesn't discriminate. It'll hoist them all with a maximum lift height of 86 3/8" (with adapters), giving you plenty of room to work your magic. The BP10000X isn't just strong; it's smart too. Its super-symmetric design and dual hydraulic chain drive cylinders make it smoother than a buttered skillet. Ready to transform your cramped garage into a powerhouse workshop? The Atlas® BP10000X is your ticket to the big leagues!
Atlas BP 10000 Specifications:
- Capacity 10,000 LB.

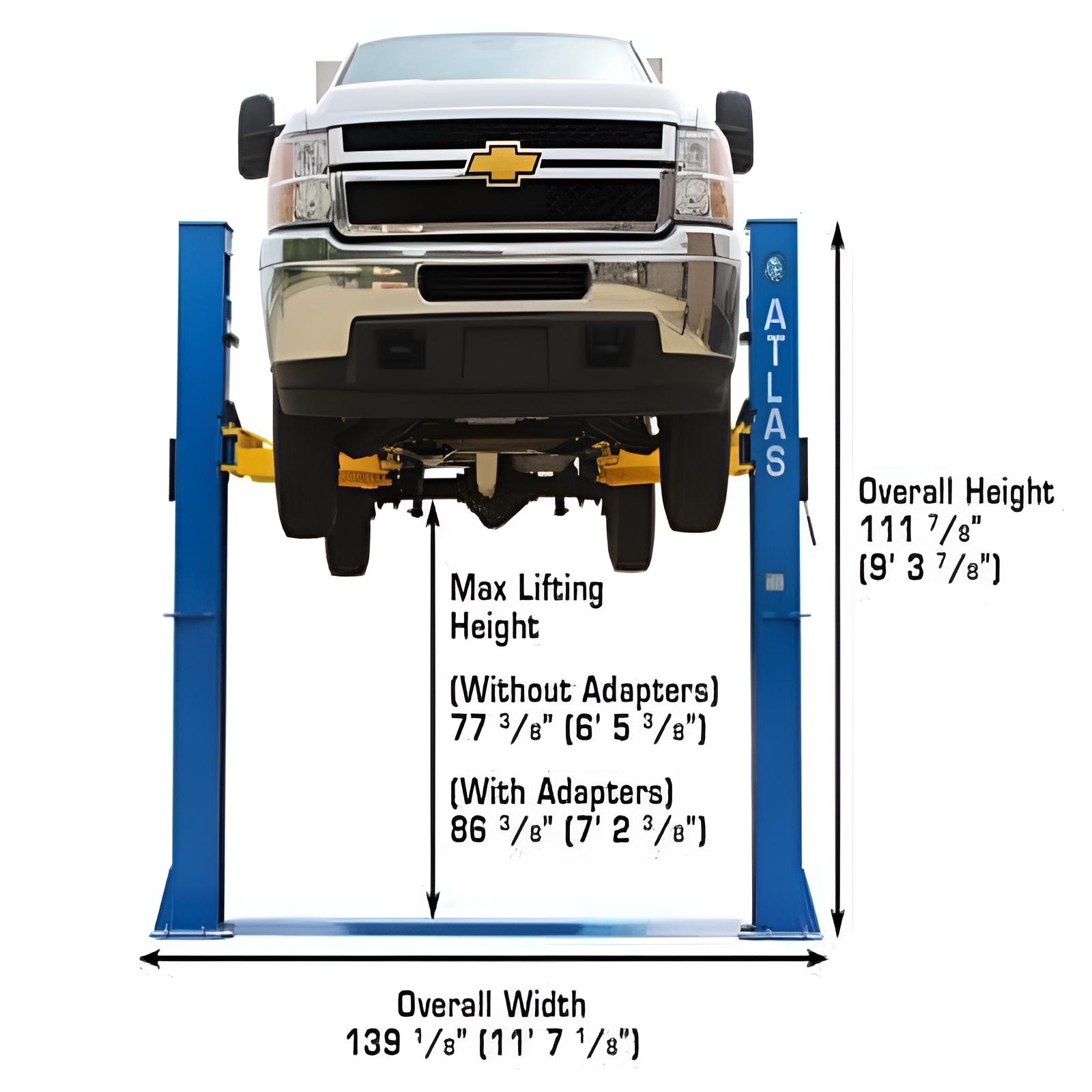

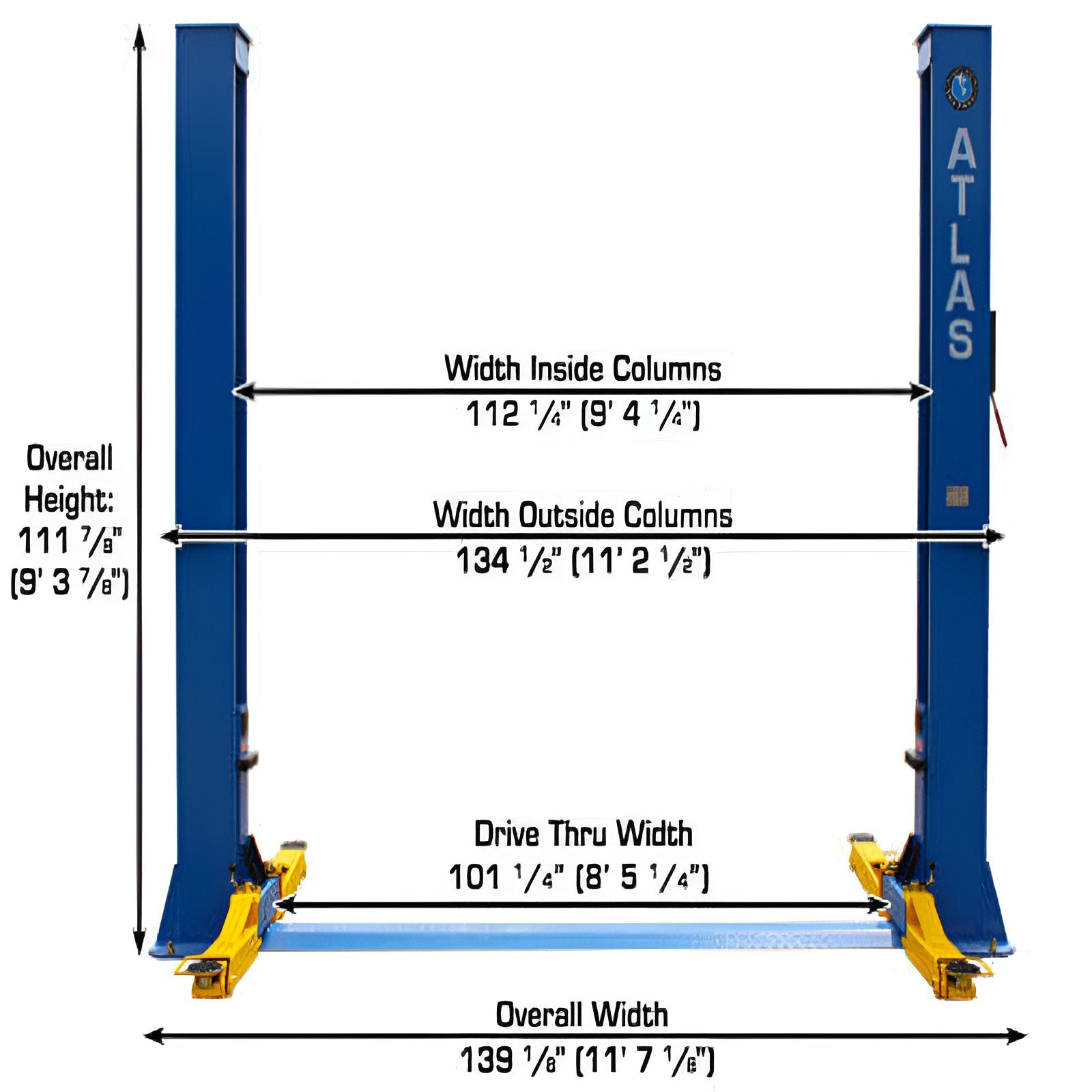

- Overall Height 111 7/8" (9' 3 7/8")

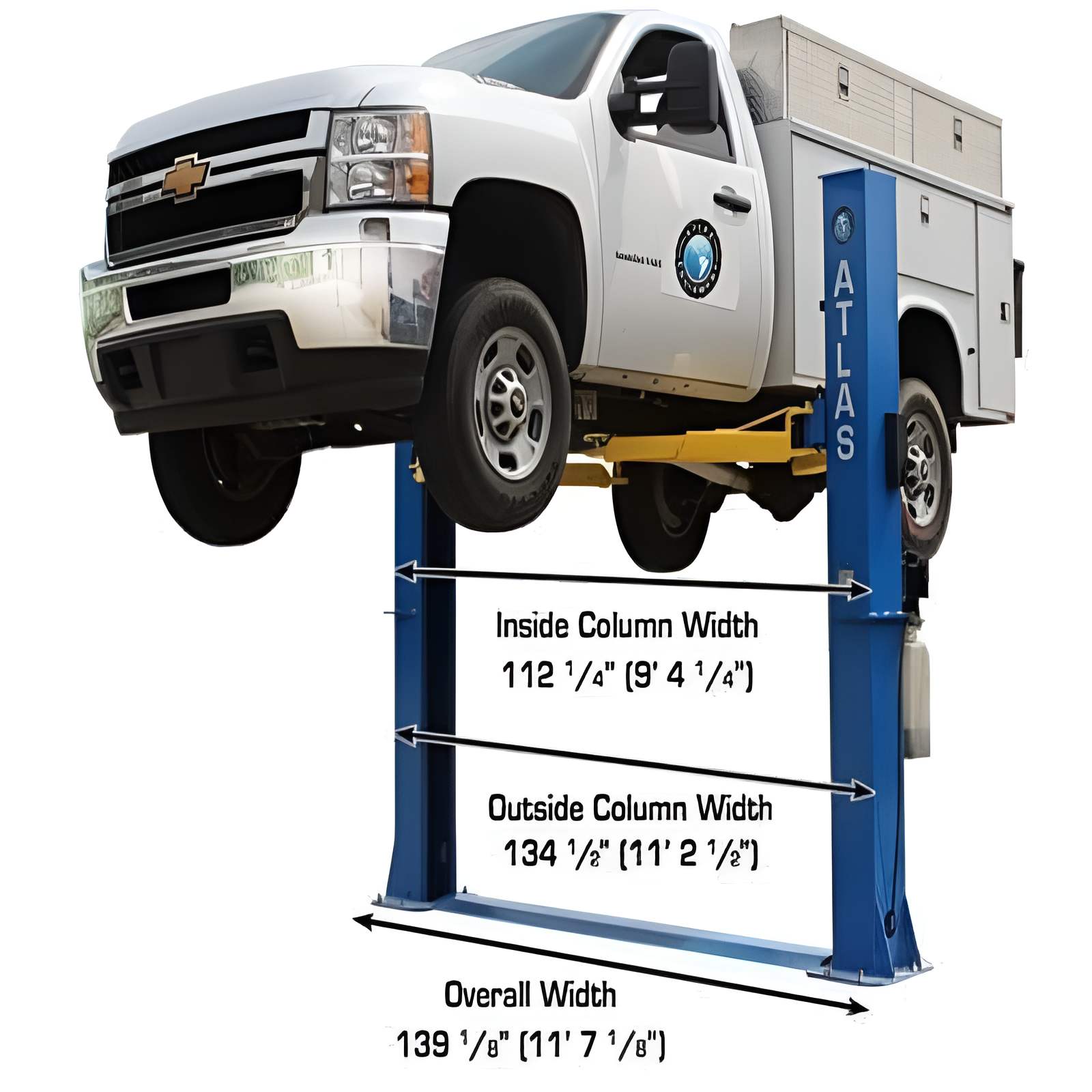

- Overall Floor Width 139 1/8" (11' 7 1/8")
- Outside Column to Outside Column 134 1/2" (11' 2 1/2")

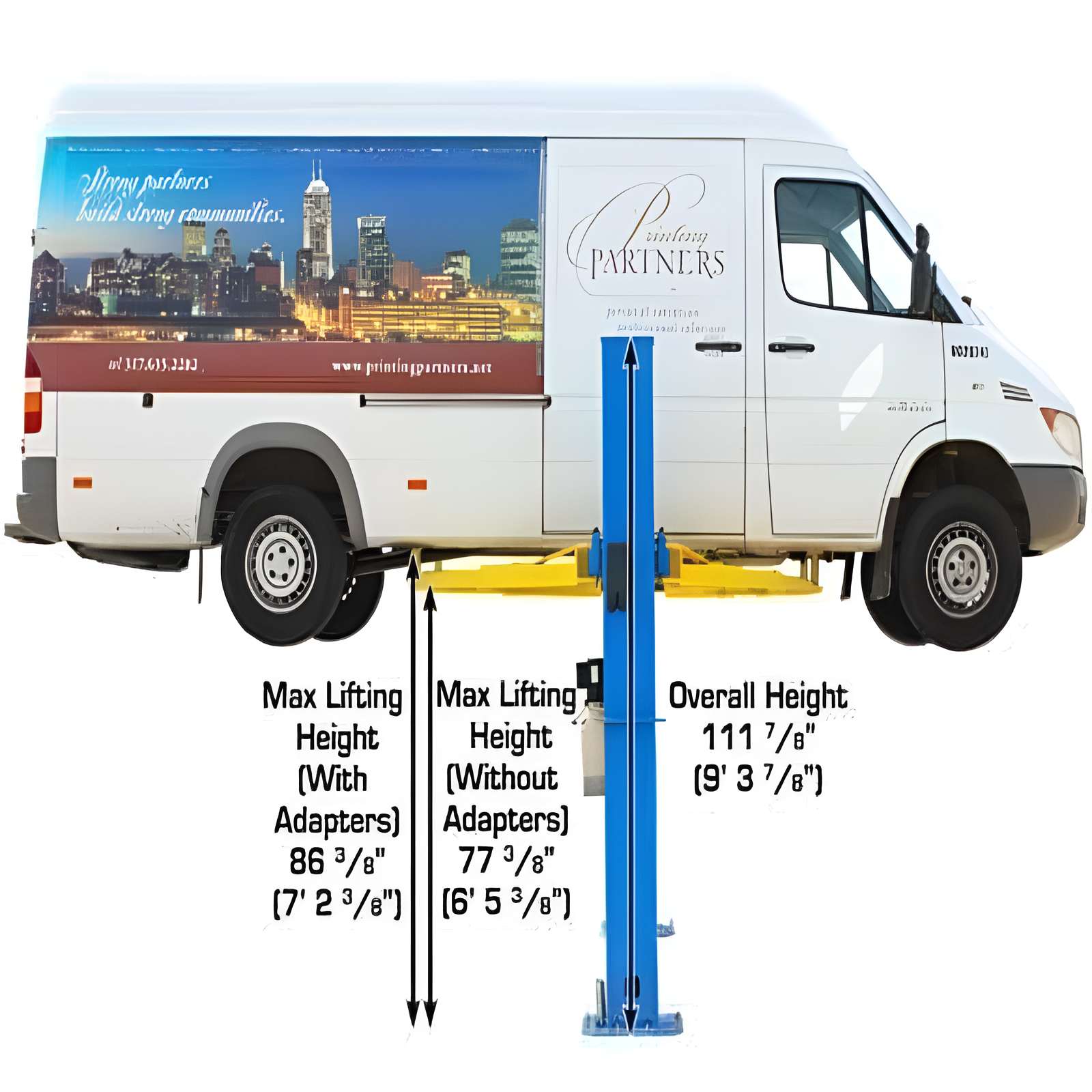

- Maximum Lift Height (Without Adapters) 77 3/8"
- Maximum Lift Height (With Adapters) 86 3/8"
- Minimum Arm Height 4"

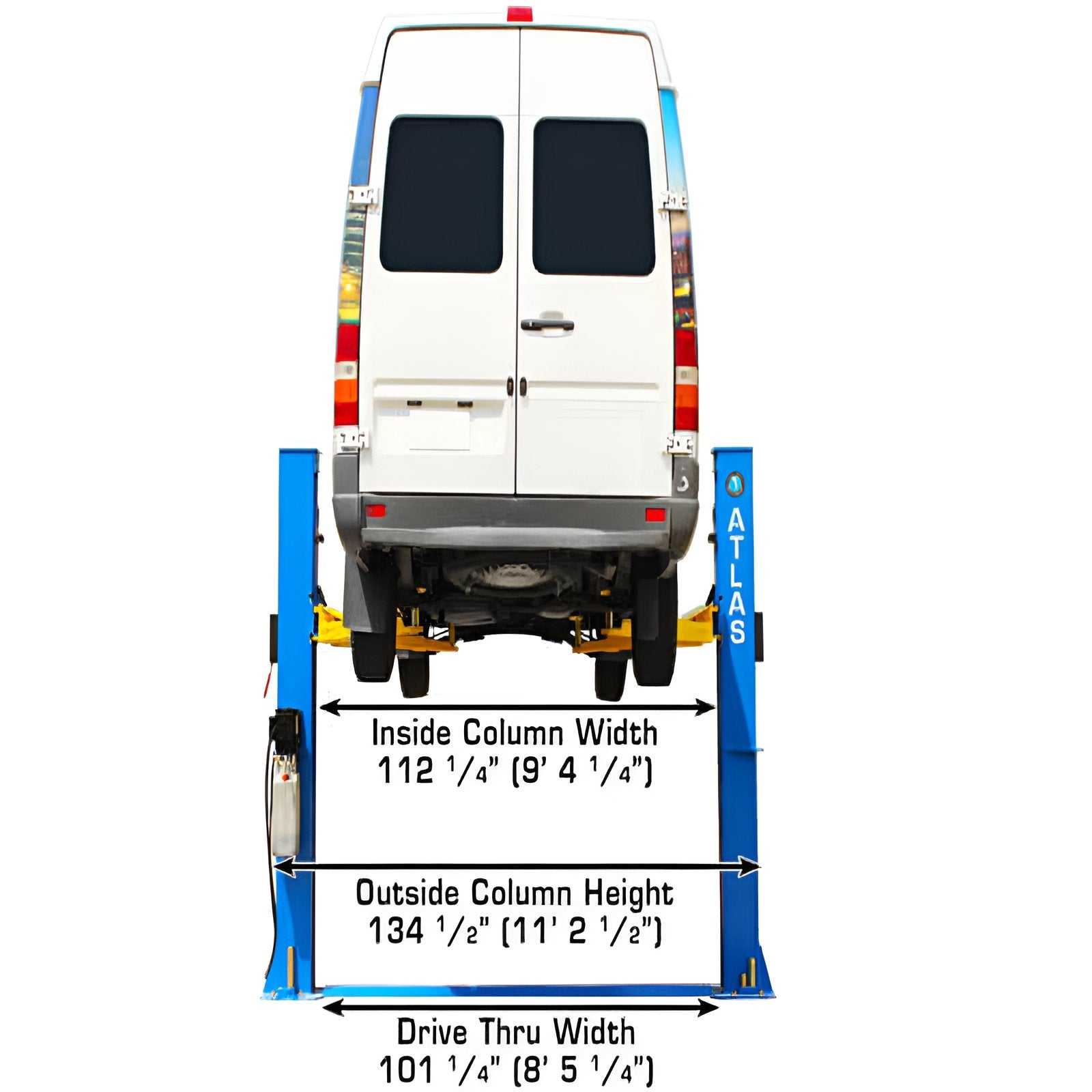

- Inside Column 112 1/4” (9' 4 1/4”)

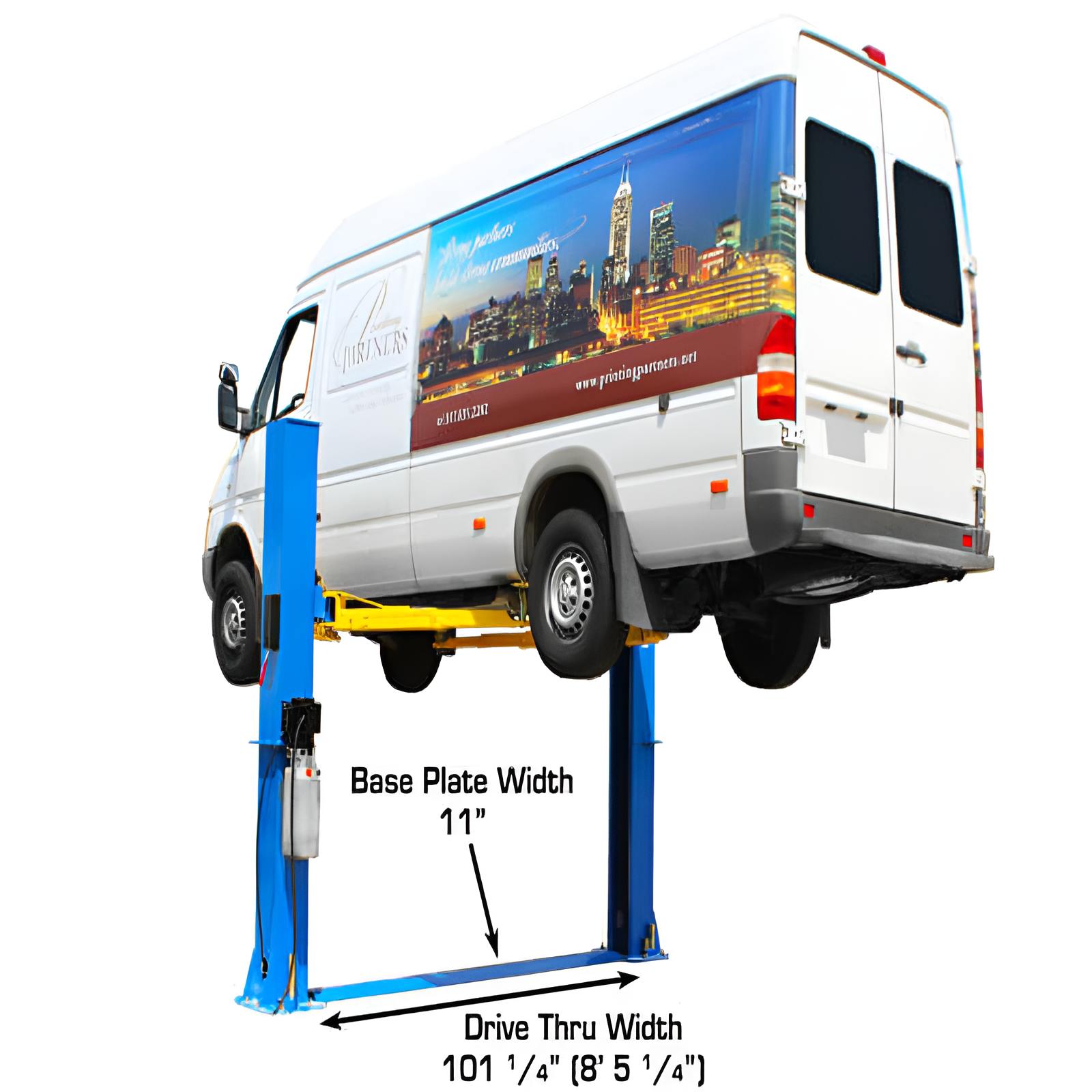

- Drive Thru 101 1/4” (8' 5 1/4”)
- Column Size 9 1/2" x 11"
- Column Thickness of Steel 6mm
- Base Of Lift 17 1/2" x 21 1/2"
- Motor/Electrical Requirement 220 volt single (1) phasem (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 1,640 LBS.
- Pallet Size: 115" Long x 32" Tall x 22" Wide + 1 small pallet

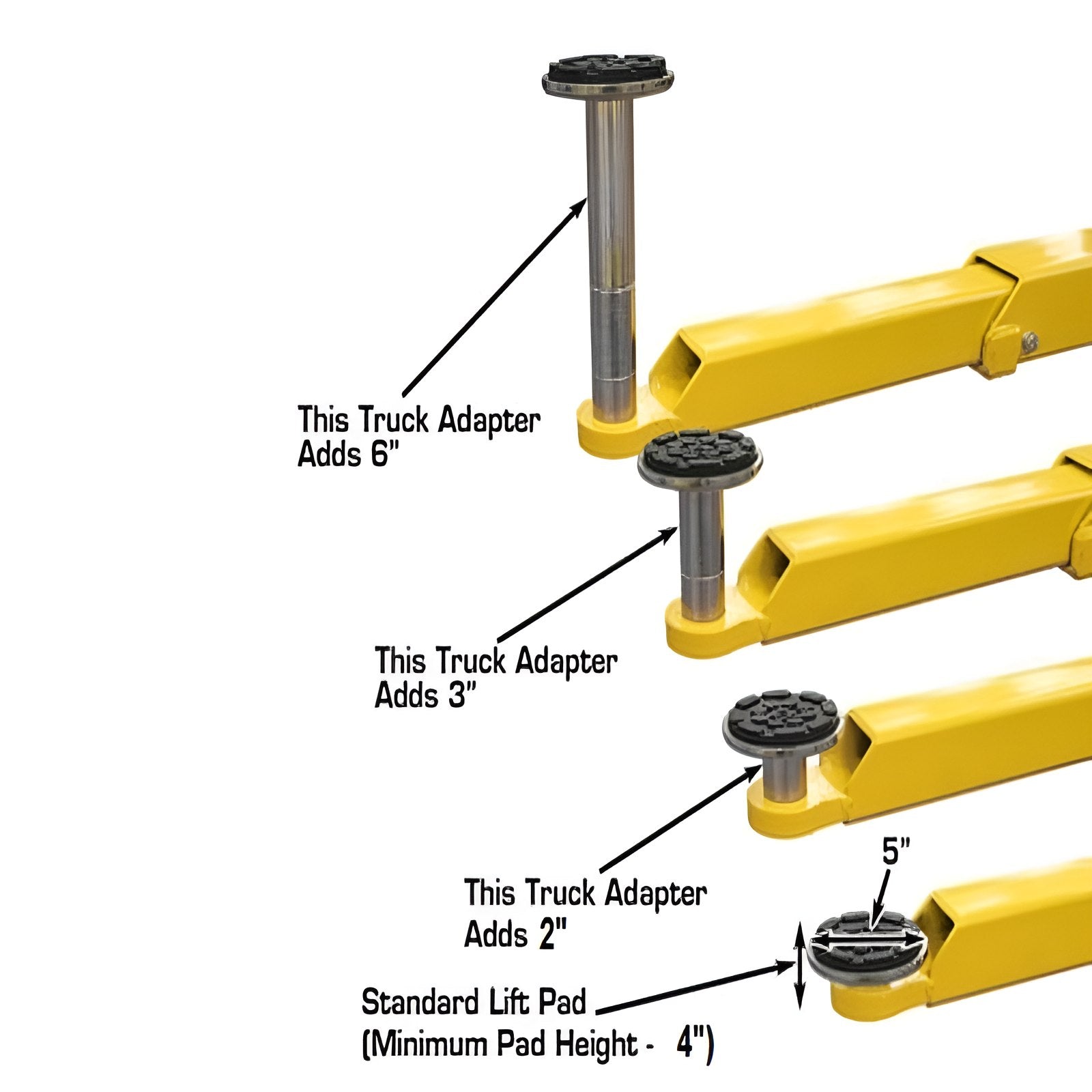

- Adapter Heights 4 Each 2”, 3”, 6”
- Arm Hole/Adapter Peg Size 1.5”
- Requires a minimum of 4" of concrete with a 3000 psi. rating
Atlas 10000lb 2 Post Lift Special Features:

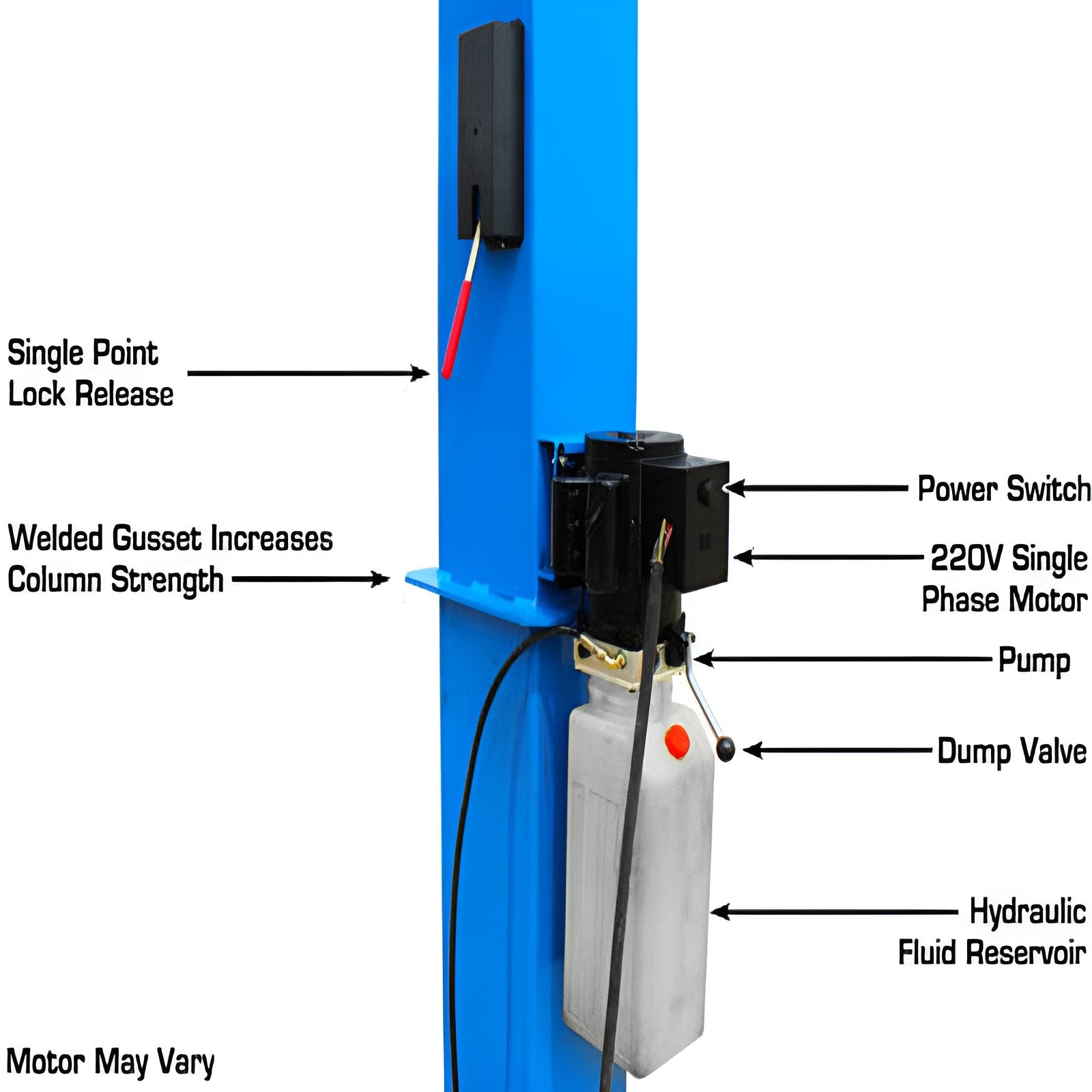

- Commercial Grade - Welded Support Gussets Increase Column Strength
- Baseplate, Open-Top Design

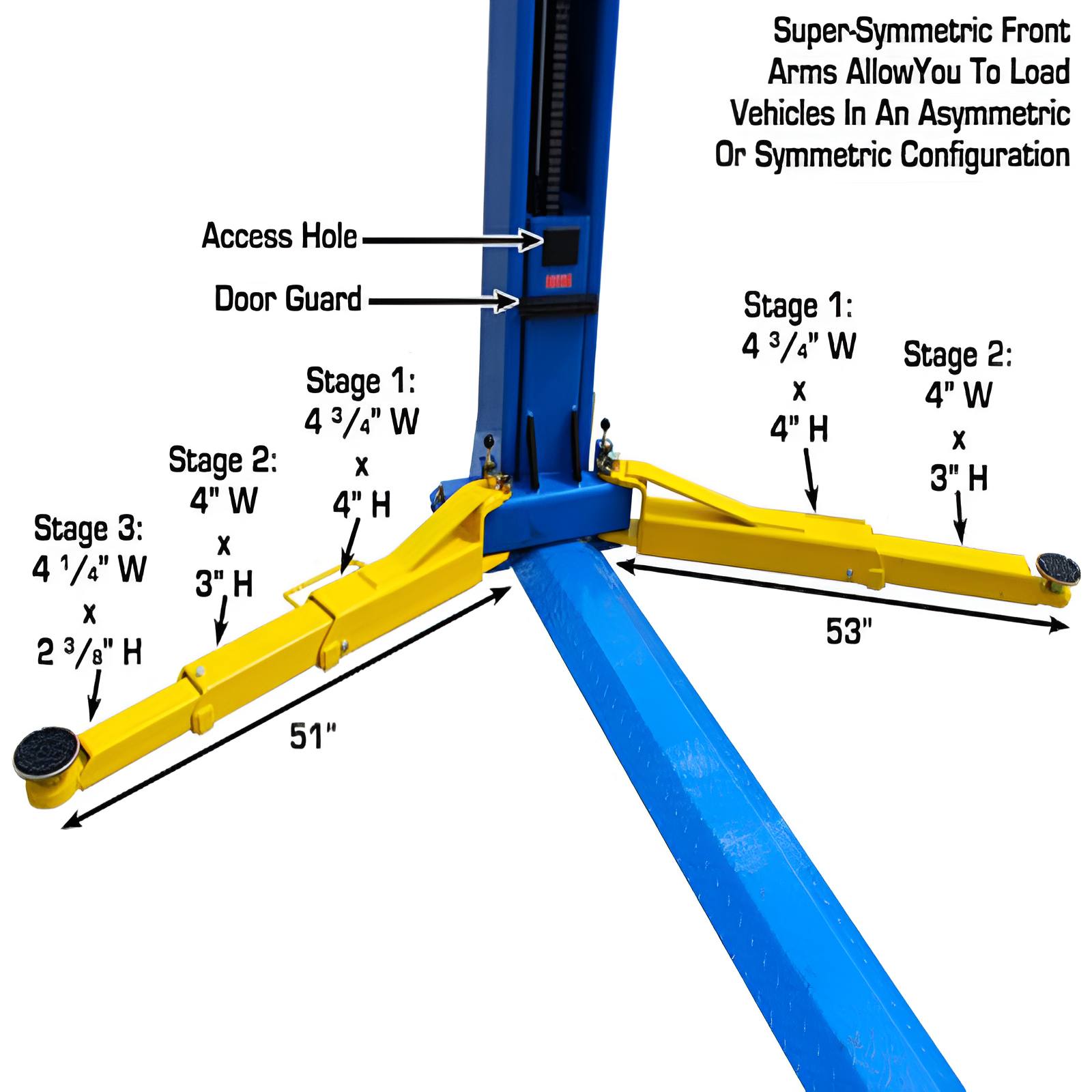

- Super Symmetric
- Lock Release: Single Point

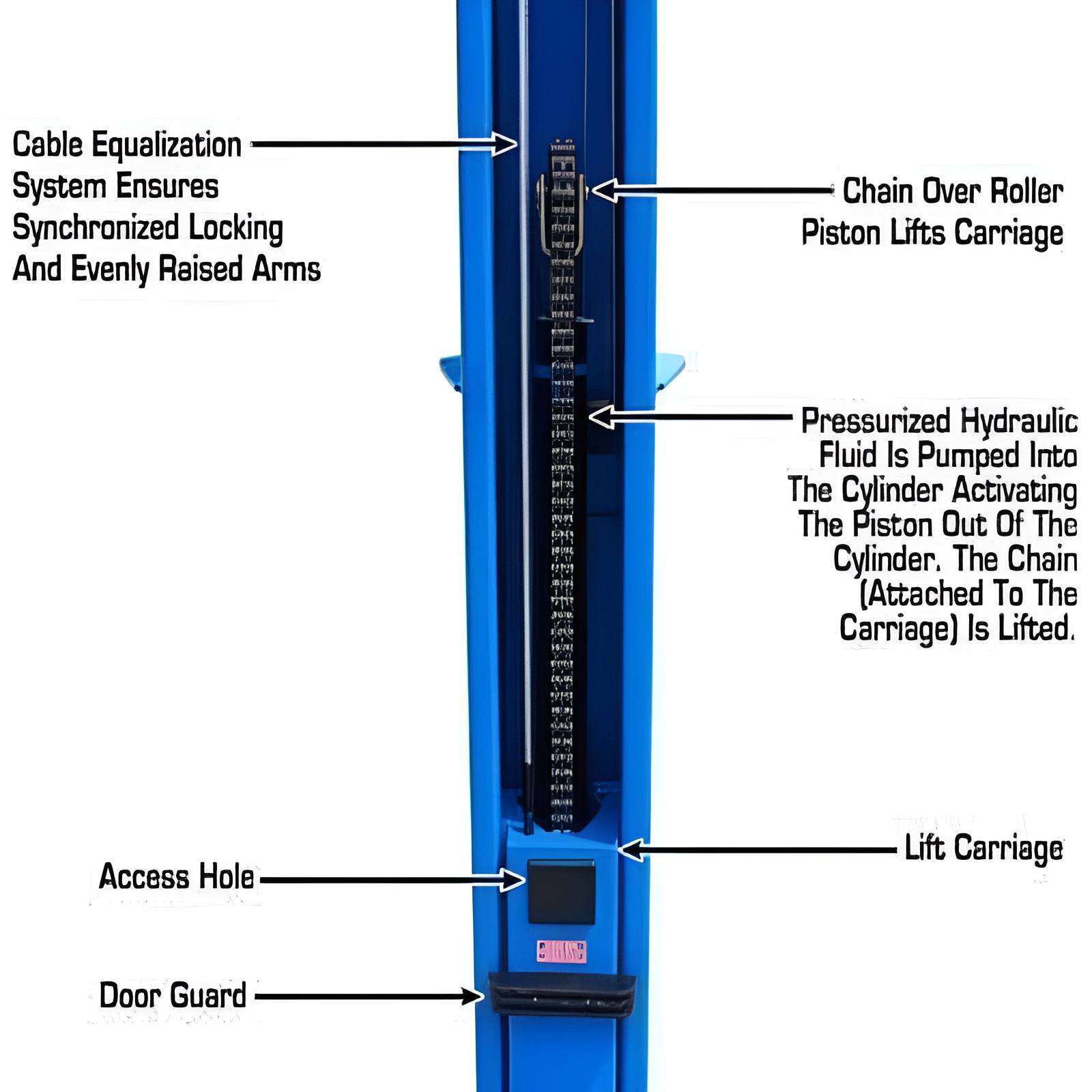

- Dual Hydraulic Chain Drive Cylinders (ASNI Standard)
- Powder Coat Finish
- Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only
- Unit Includes:

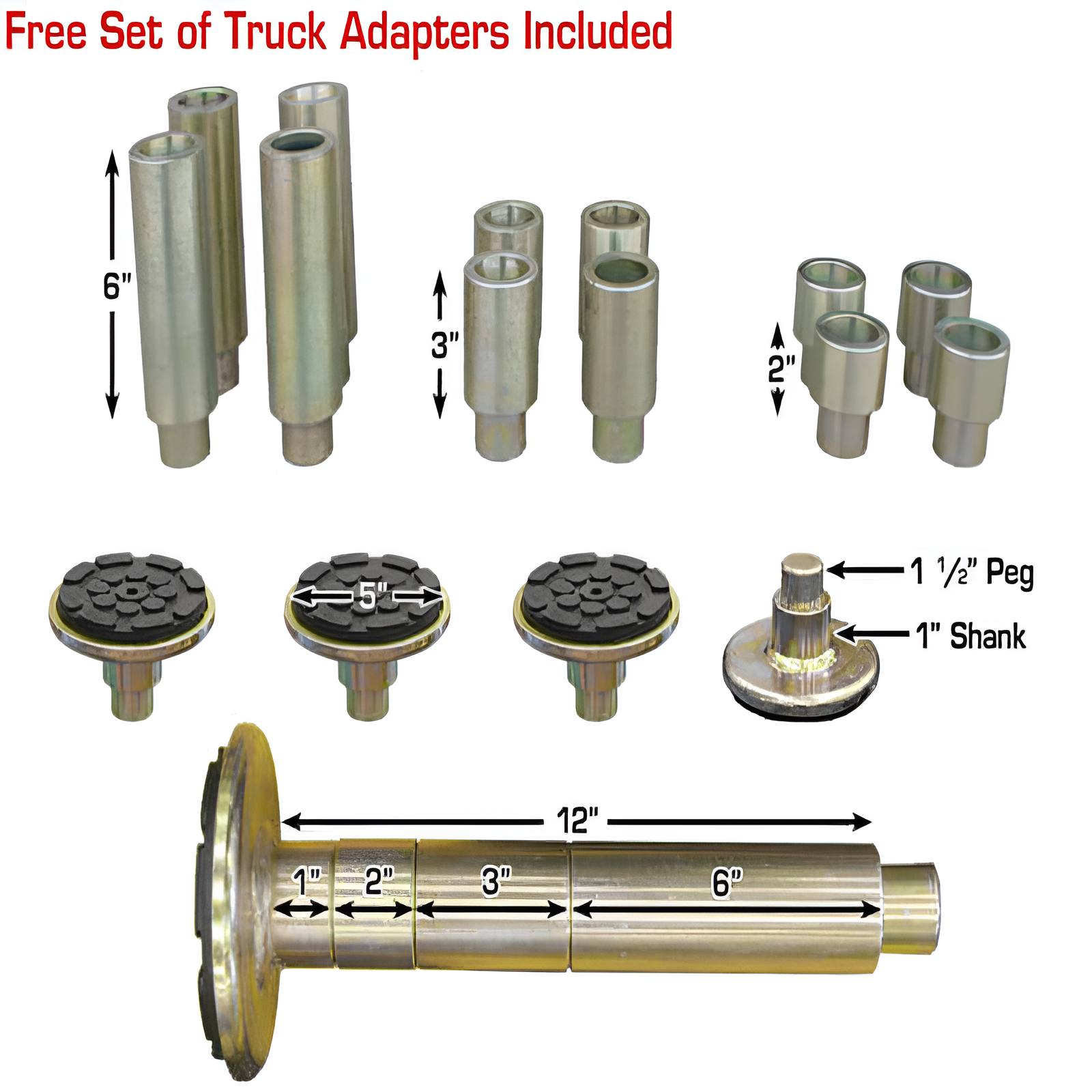

- 12-piece Truck Adapter Set
- Optional Item(Sold Separately)
- Lawnmower Adapter for 2-Post Lift
BP10000 Manual
