Description

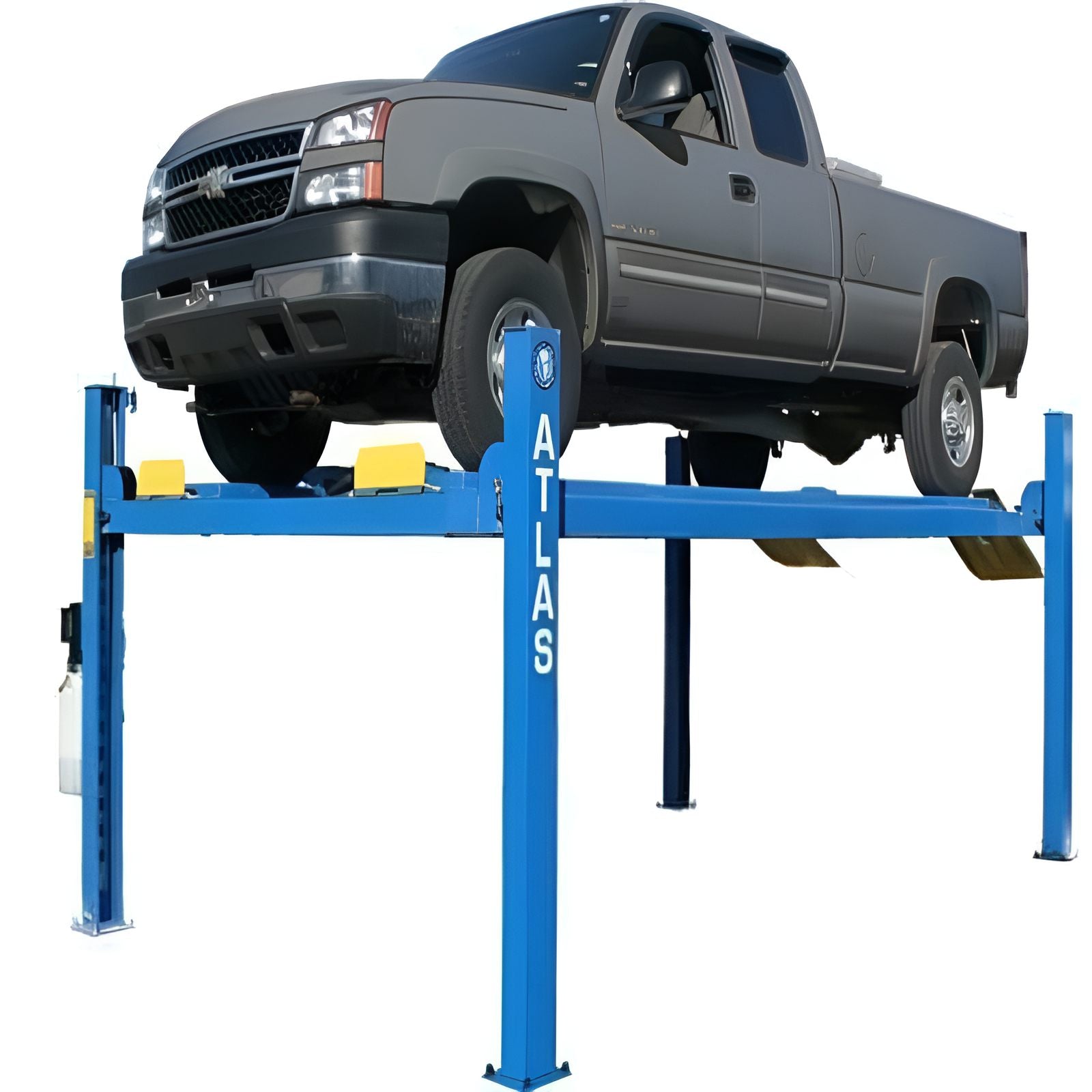

Atlas 4 Post Lift 12,000 lb, Commercial Grade SKU ATEATTD-412
The AtlasĀ® 412 into your life! This beauty combines high-end structural integrity with an aesthetic that would make even the fanciest lifts jealous. With a whopping 12,000 lb. capacity, this lift has undergone rigorous testing to ensure it meets the highest standards of performance and reliability.
Powered by a state-of-the-art cable system and an oversized hydraulic cylinder, the AtlasĀ® 412 makes lifting your vehicles feel like a walk in the park. No more worrying about pesky ādoor dingsā or uneven leveling ā this lift has got your back. And with tracks between the runways for a rolling bridge jack, youāll have all the versatility you need to tackle any job. So why settle for a garage thatās just okay? Make it great. Start with the 412.
Atlas 12000 4 Post LiftĀ Specifications:Ā
- Capacity 12,000 lb.
- Lifting Height 77 3/4" (6' 5 3/4")

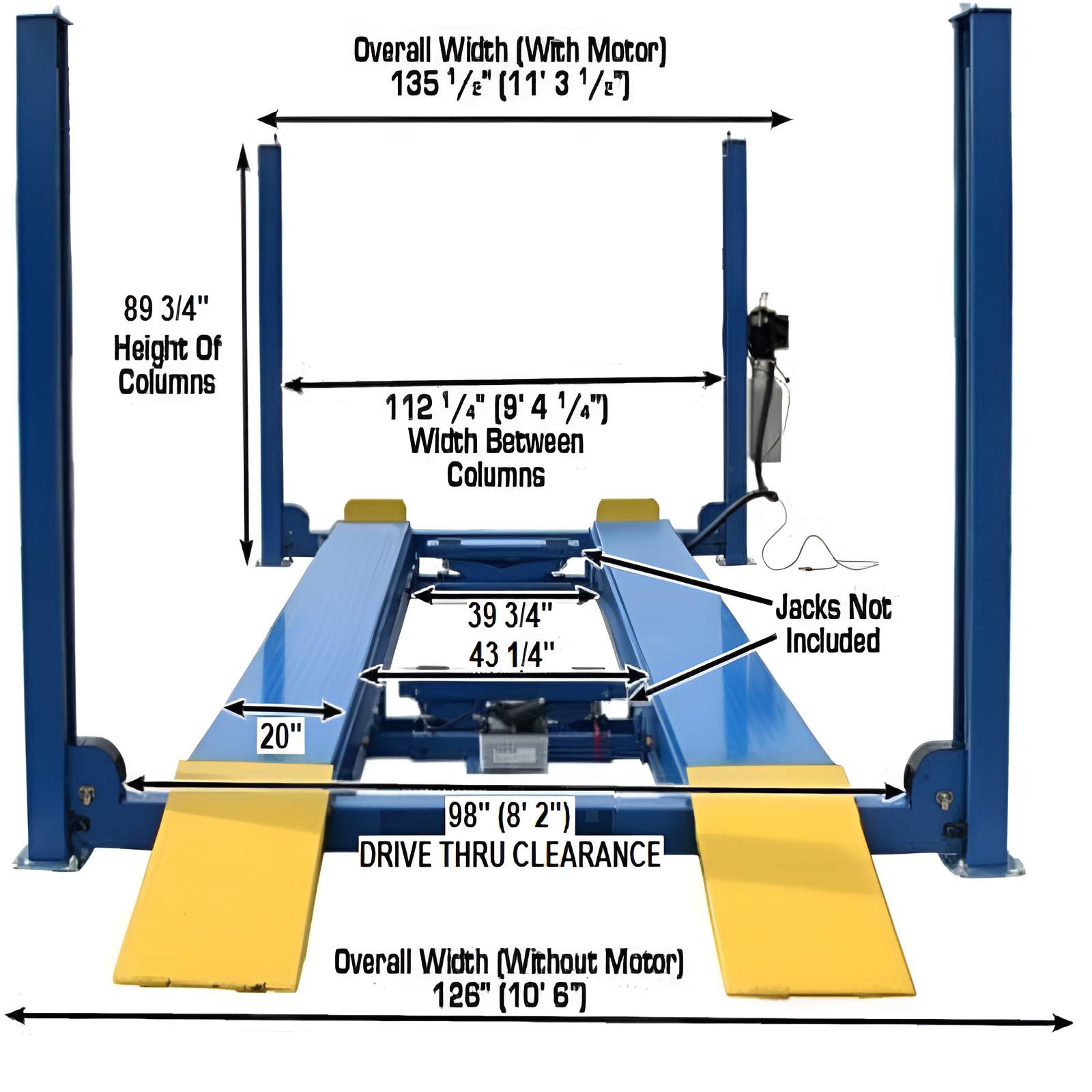

- Overall Width Of Columns (Without Motor) 126 1/4" (10' 6 1/4")
- Overall Width Of Columns (With Motor) 135 1/4" (11' 3 1/4")

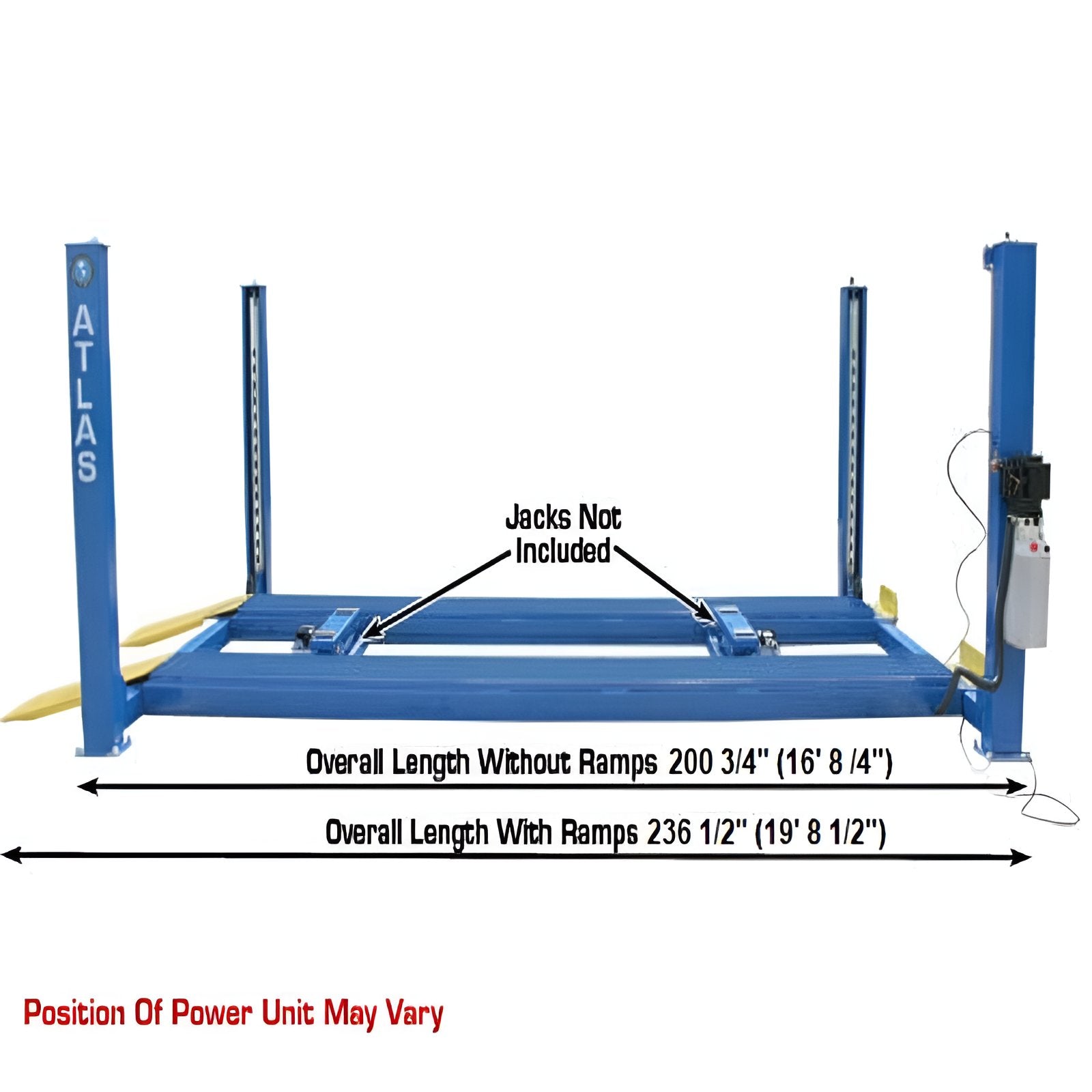

- Overall Length With Approach Ramp 236 1/2" (19' 8 1/2")
- Length Between Columns 183 1/4" (15' 3 1/4")
- Runway Length 194 1/2" (16' 2 1/2")
- Runway Width 20"
- Thickness Of Runway 7 1/2"
- Width Between Runways 43 1/4" (w/ Rail 39 3/4")
- Outside Runway To Outside Runway 83 1/4" (6' 11 1/4")

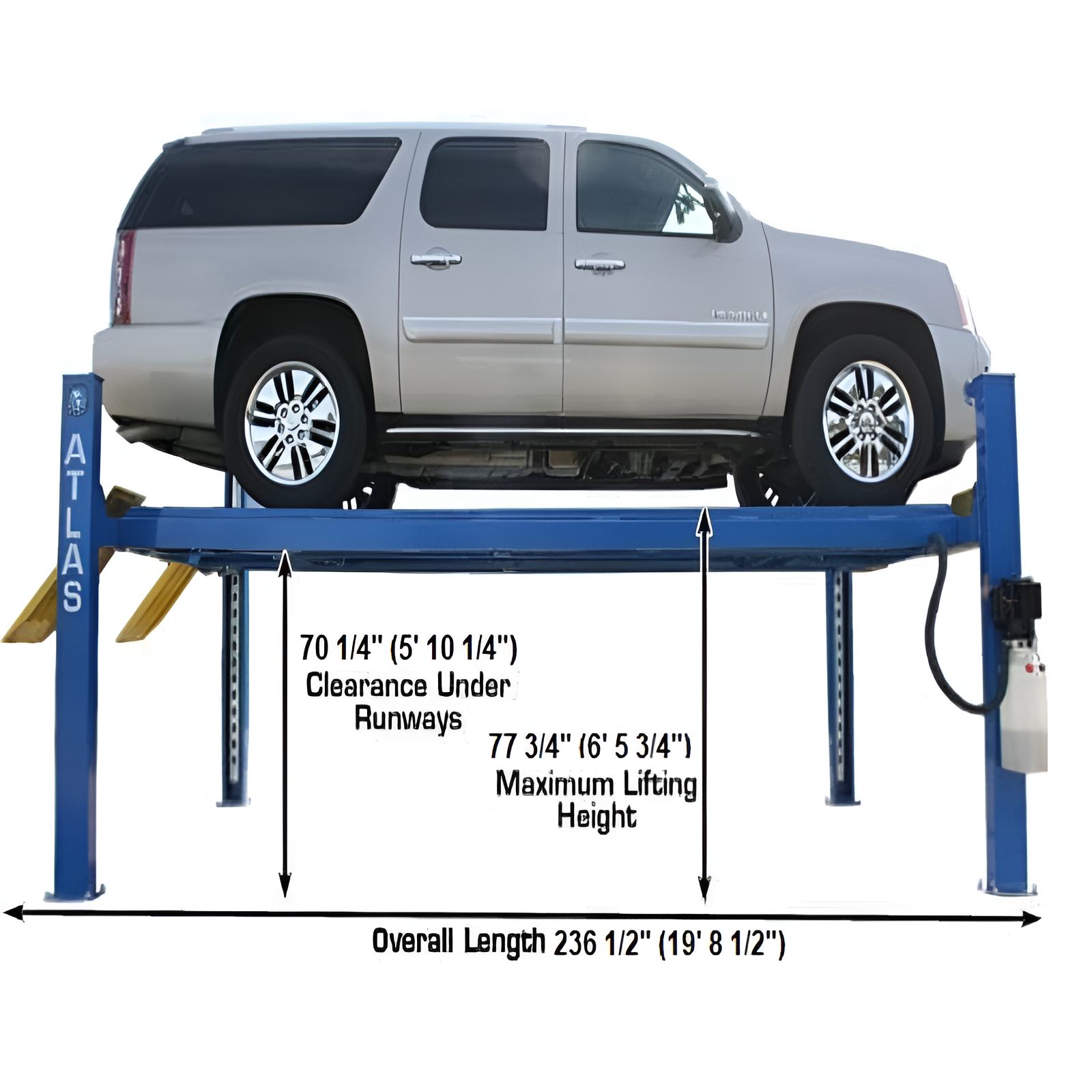

- Clearance Under Runways 70 1/4" (5' 10 1/4")

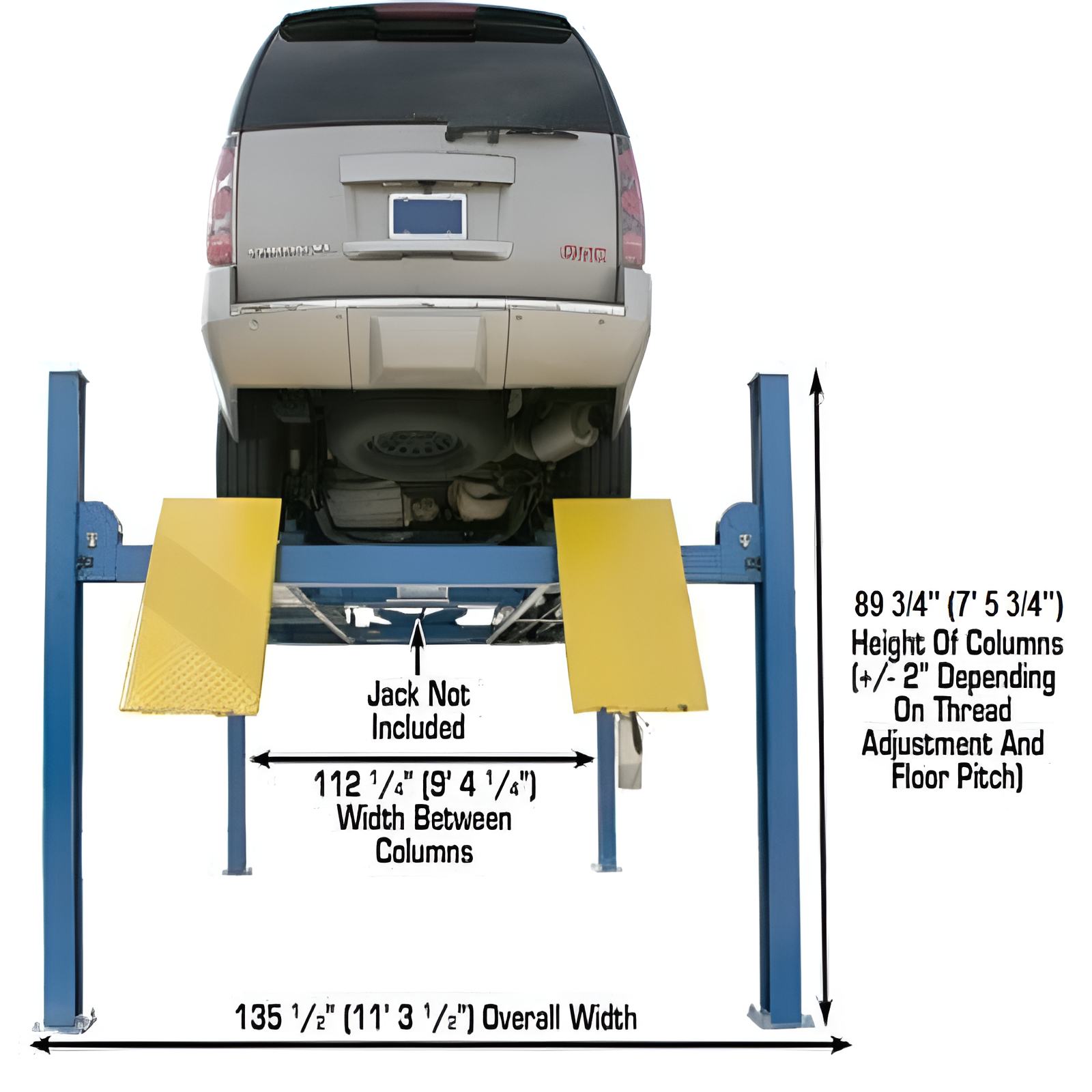

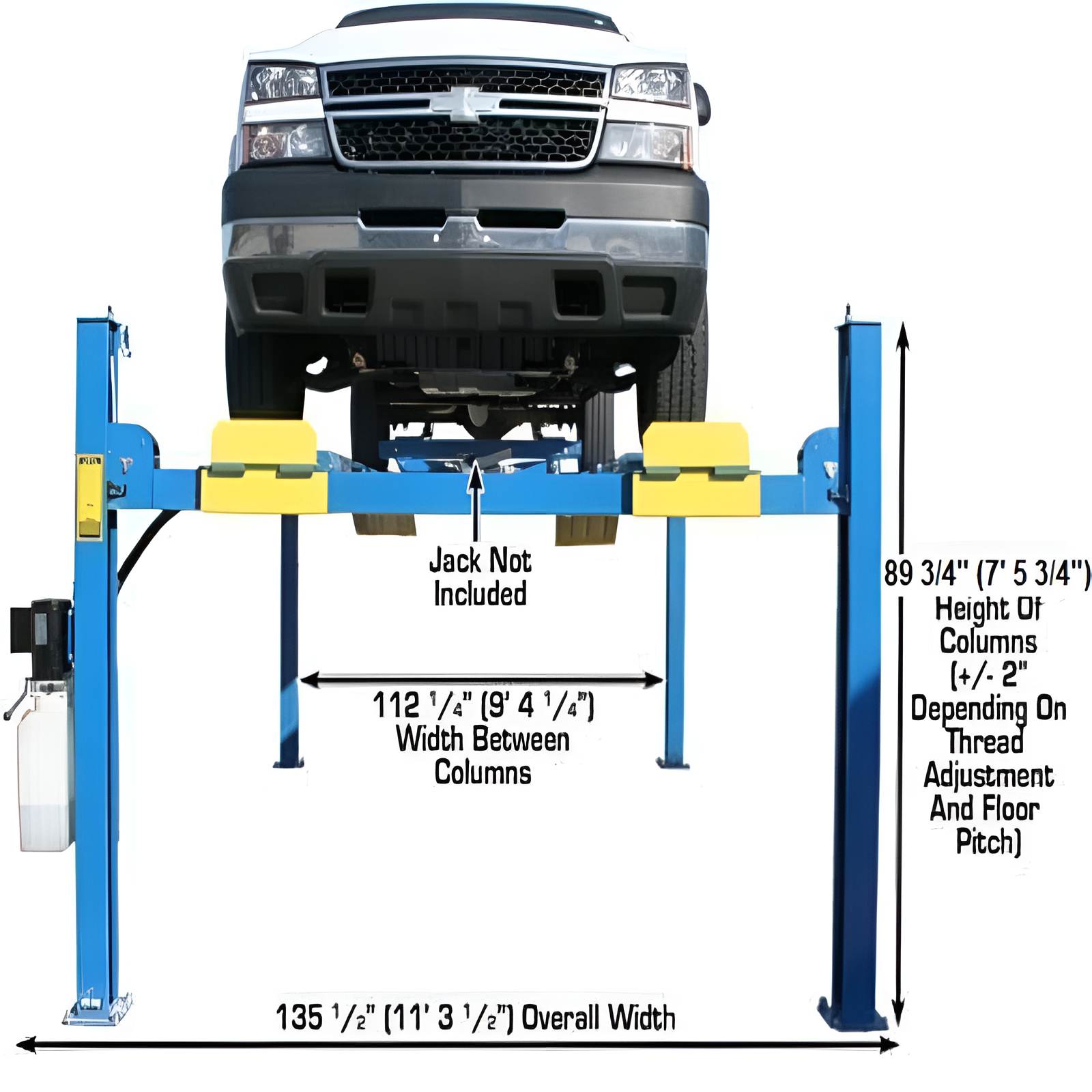

- Clearance Between Columns 112 5/8" (9' 4 5/8")

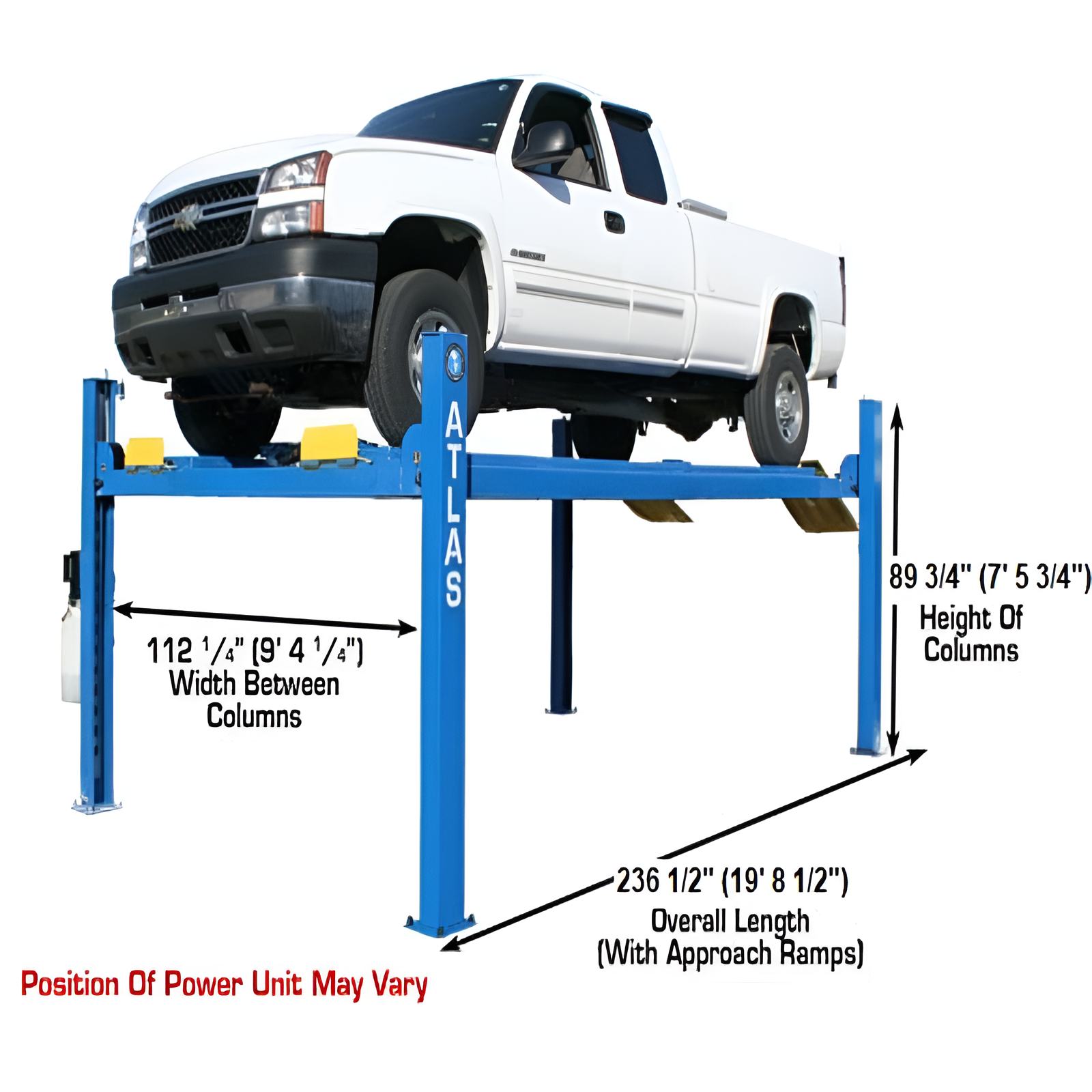

- Height Of Columns 89 3/4" (7' 5 3/4")
- Maximum Wheel Base 185" (15' 5")
- Drive Thru 98" (8' 2")
- Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)

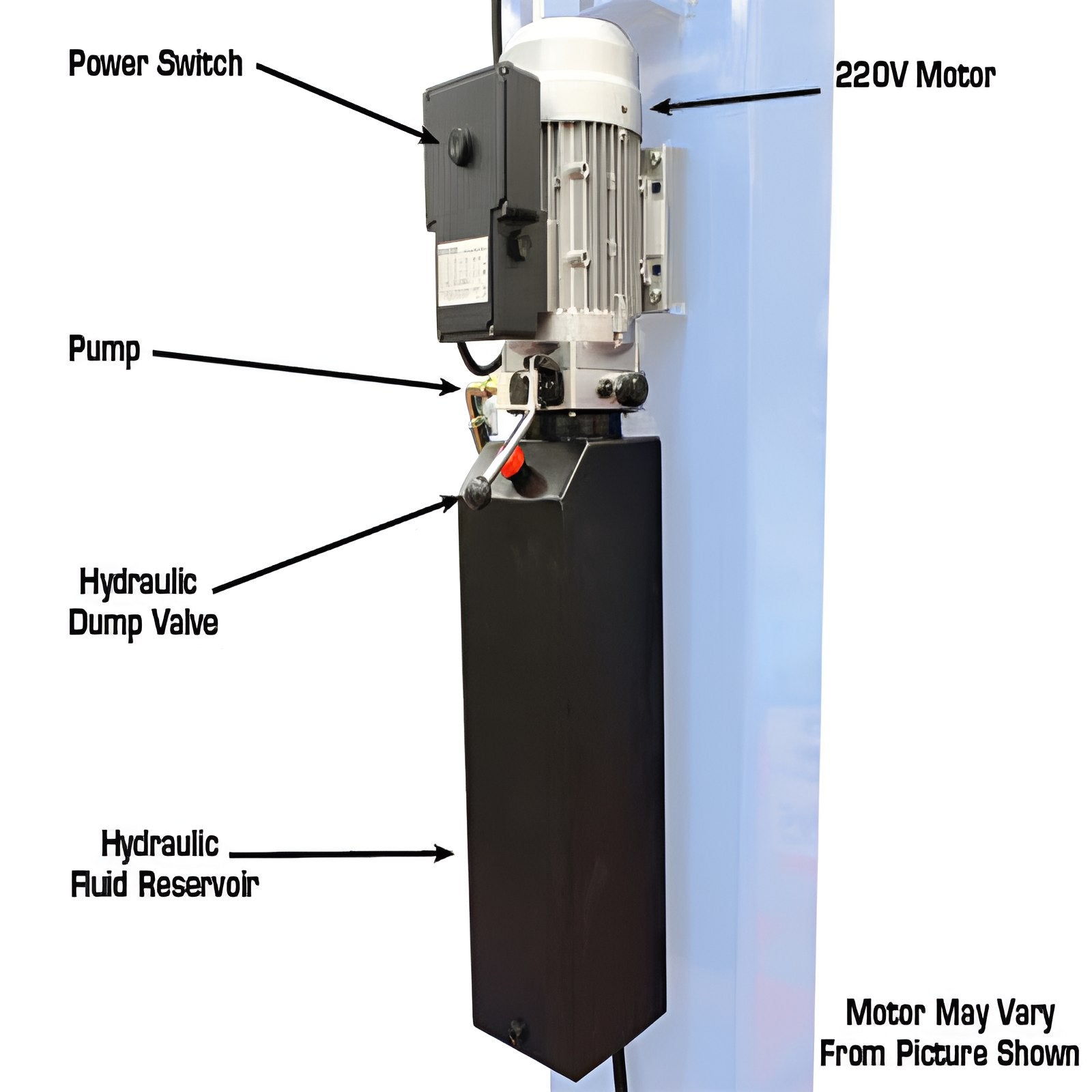

- Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 2,800 LBS.
- Pallet Size:Ā 203-1/2" Long x 27-1/8" Tall x 21" Wide
- Requires a minimum of 6" of concrete with a 3000 psi. rating
ATEATTD-412 Special Features:
- Capacity: 12,000 lb
- Heavy Duty, Commercial Grade
- Diamond Plated Runways
- Lock Release: Air Operated Single-Point (Requires Air Supply - NOT included)

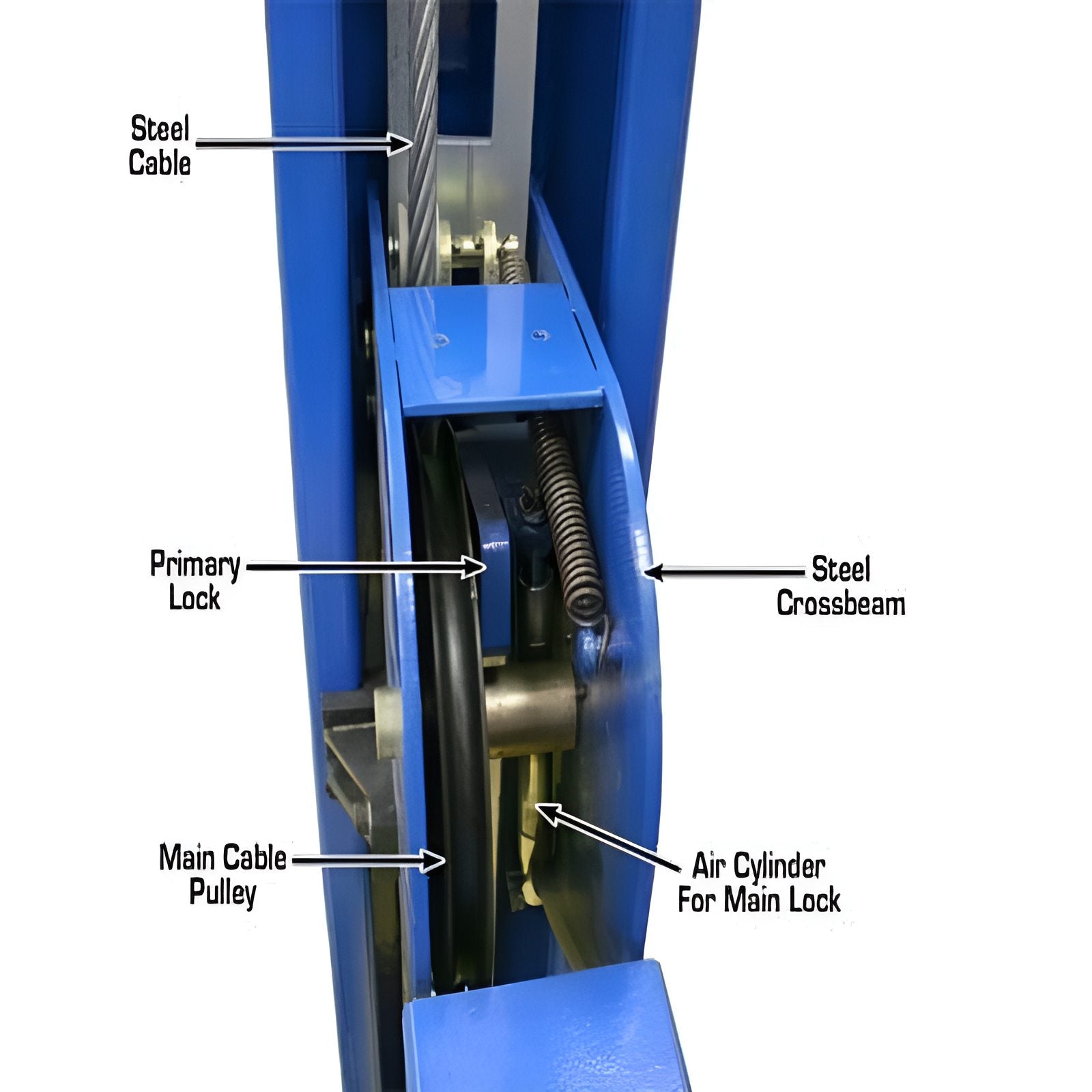

- Lock Design Lock Ladder w/Ā Double Lock Safety System
- Finish: Powder Coat
- Warranty: 5 year Structural; 2 year Hydraulic ā Parts Only
- Unit Includes:

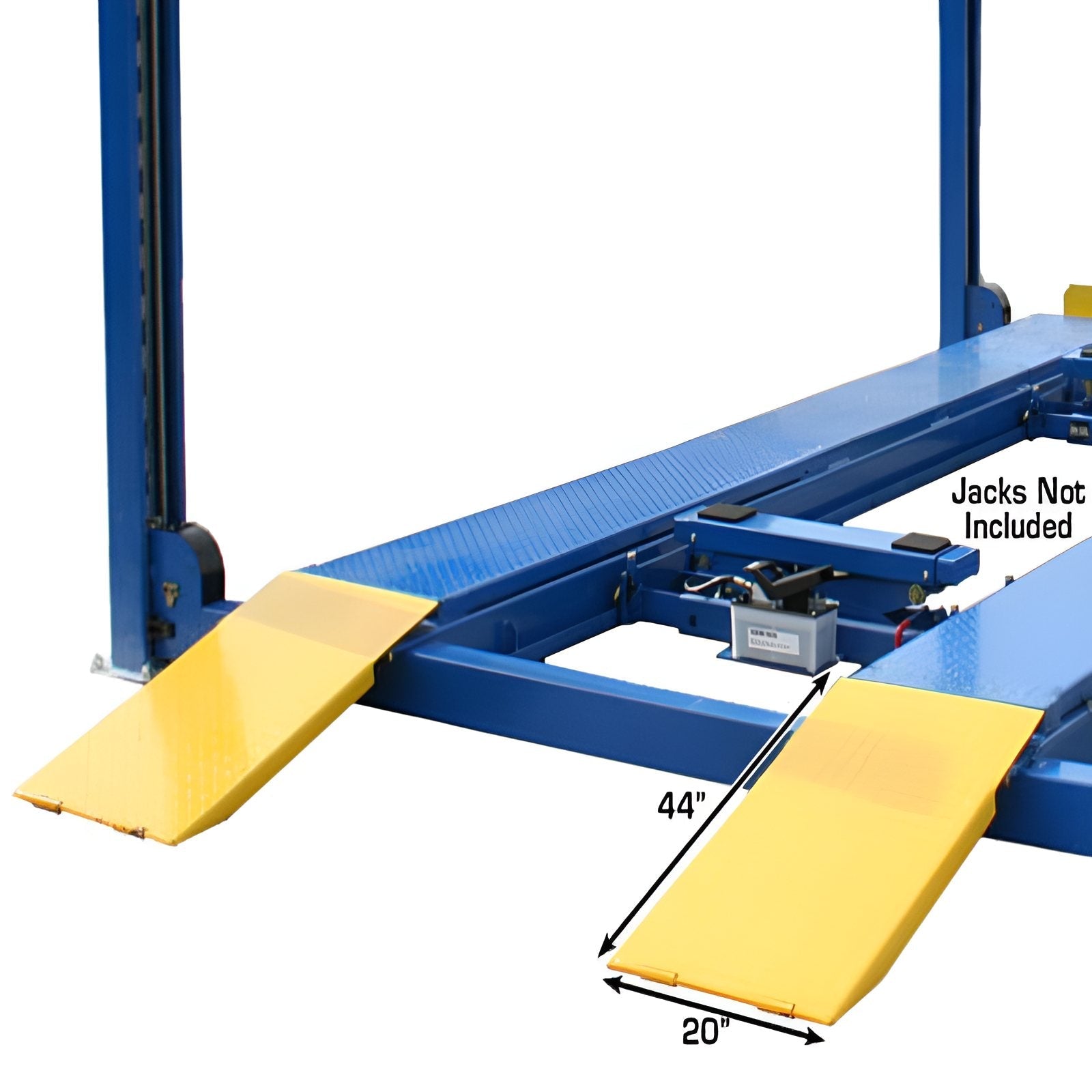

- Ā Ā Ā Steel Approach Ramps IncludedĀ Ā
- Ā Ā Ā Mounting Hardware
412 4 Post Lift Optional Items (sold separately):
- RJ6BK Rolling Jack
- Additional Drive Off Ramps
- Runway Extension Kits
412 Manual
Ā Ā Atlas 412 Manual
Atlas 412, 4 Post Lift Optional Item (Sold Separately)
- RJ6 Rolling Bridge Jack
*Due to Extra Large Size, product cannot be delivered to a freight terminal.
Warehouse Pickup locations (No shipping charge):
- Atlanta, GA
- Dallas, TX
- Indianapolis, IN
- Phoenix, AZ
- Somerset, NJ
