Atlas Apex 9,000 lb 4 Post Vehicle Storage Lift, ALI Certified SKU ATEAPEX9

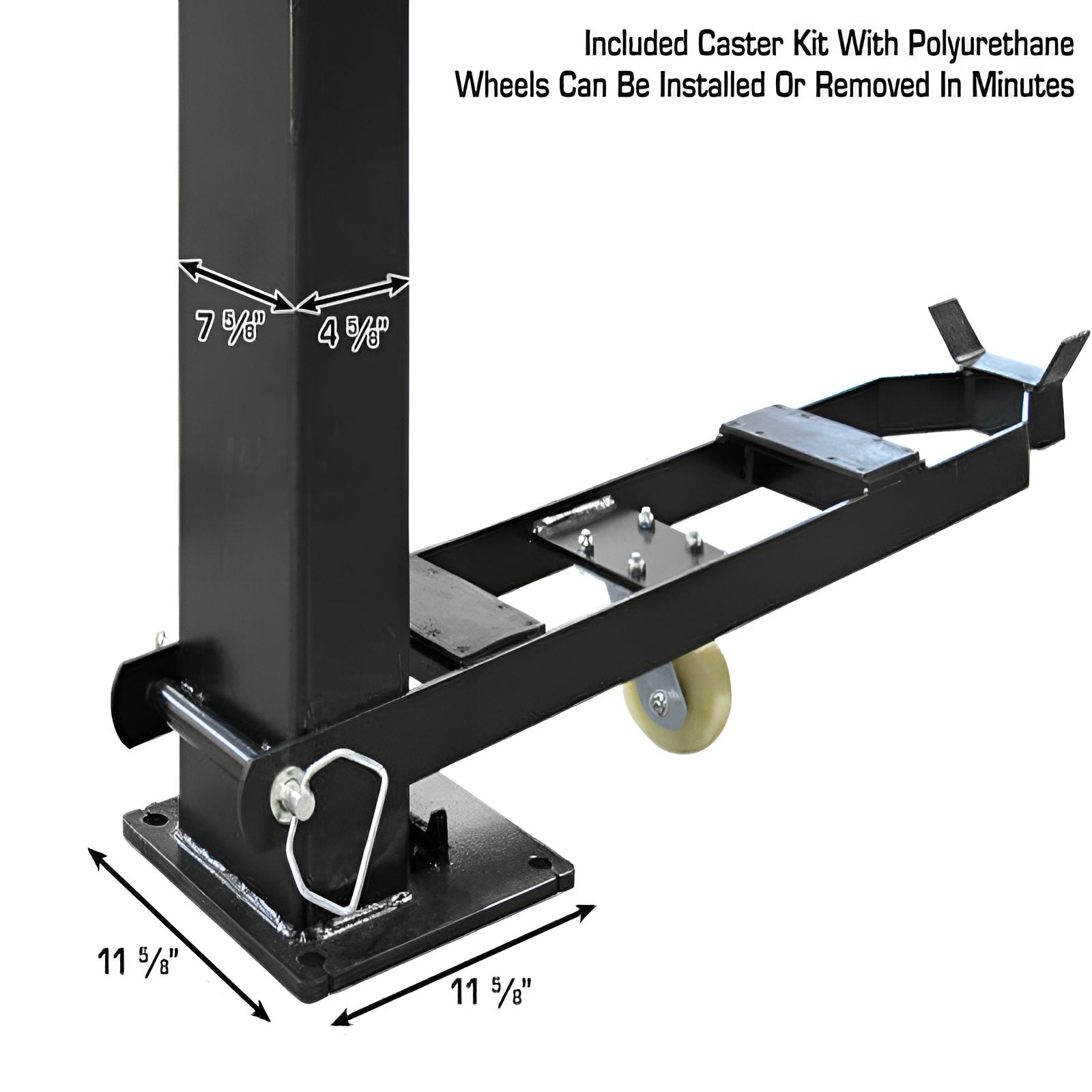

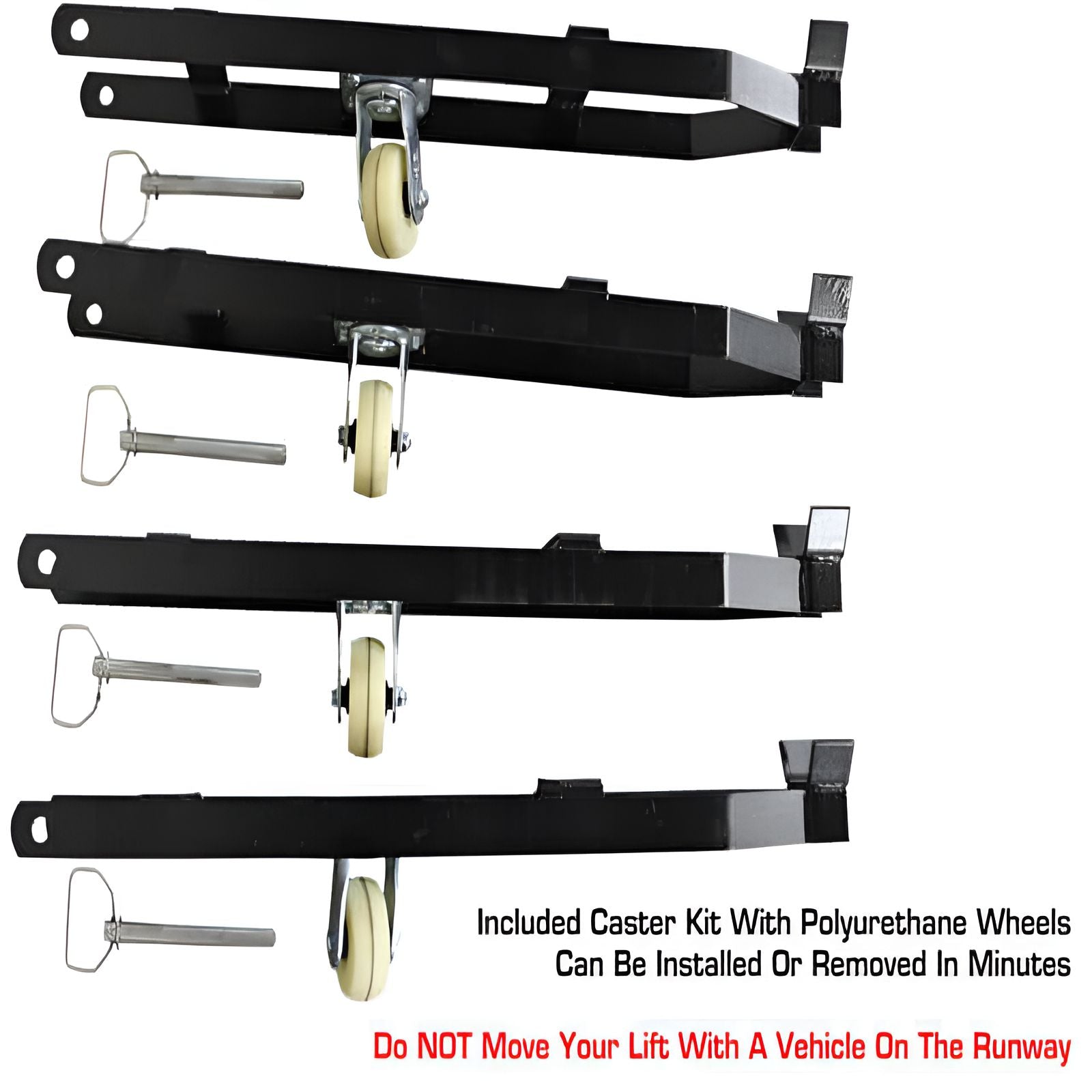

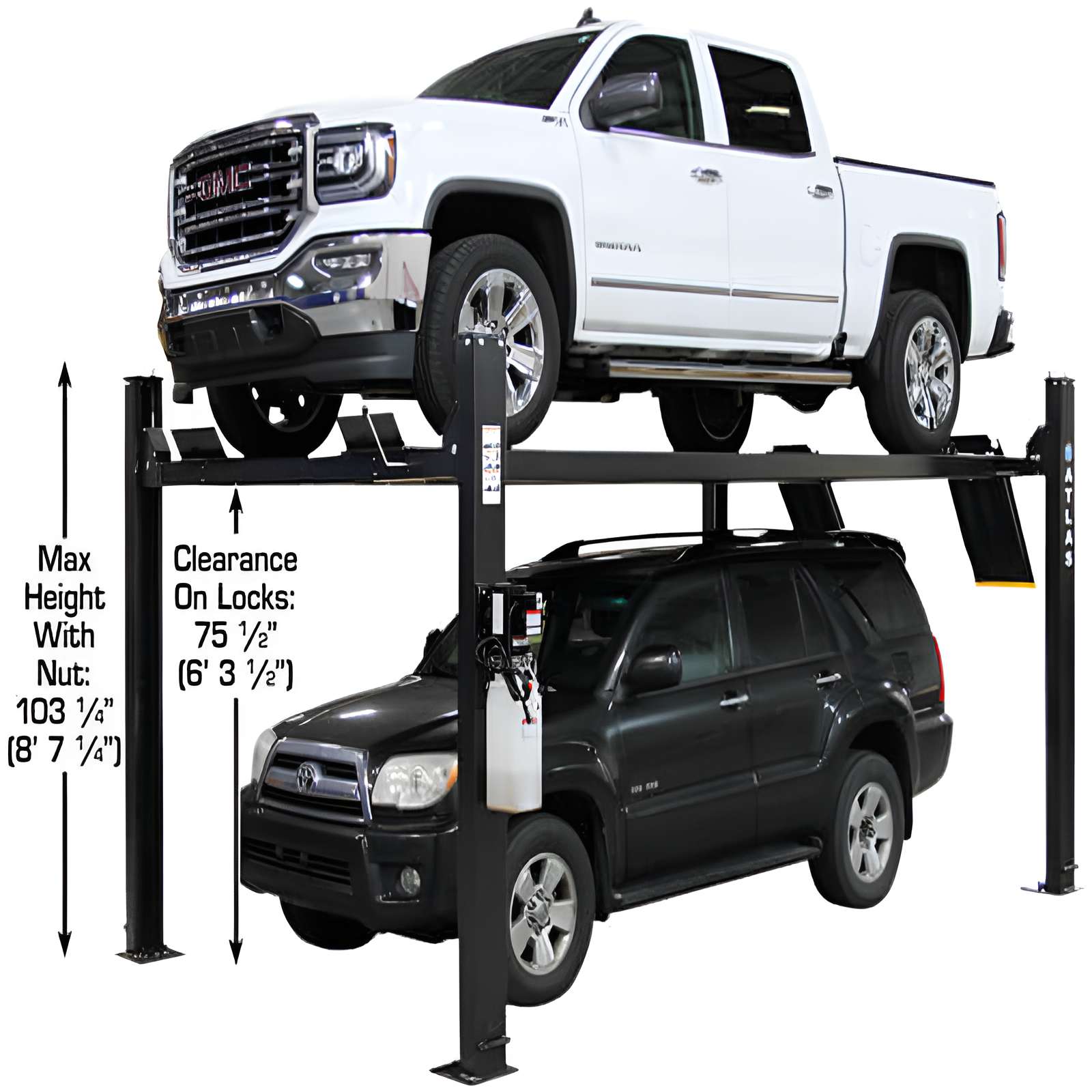

Enter the Atlas APEX9 – the ultimate solution to your automotive woes. This heavy-duty, 9000-pound capacity lift is built like a tank, but moves like a dream (thanks to optional caster kits). It’s wider than your average lift, so even those trucks and SUVs two sizes too big can climb aboard. And with its impressive 86” lifting height, you can park another car underneath!
It doesn't end there The Atlas APEX9 is packed with features that will make your life easier. Free drip trays to keep your garage clean, a steel jack tray for added stability, and runways designed to work with a rolling bridge jack. Plus, it’s certified and built to last.

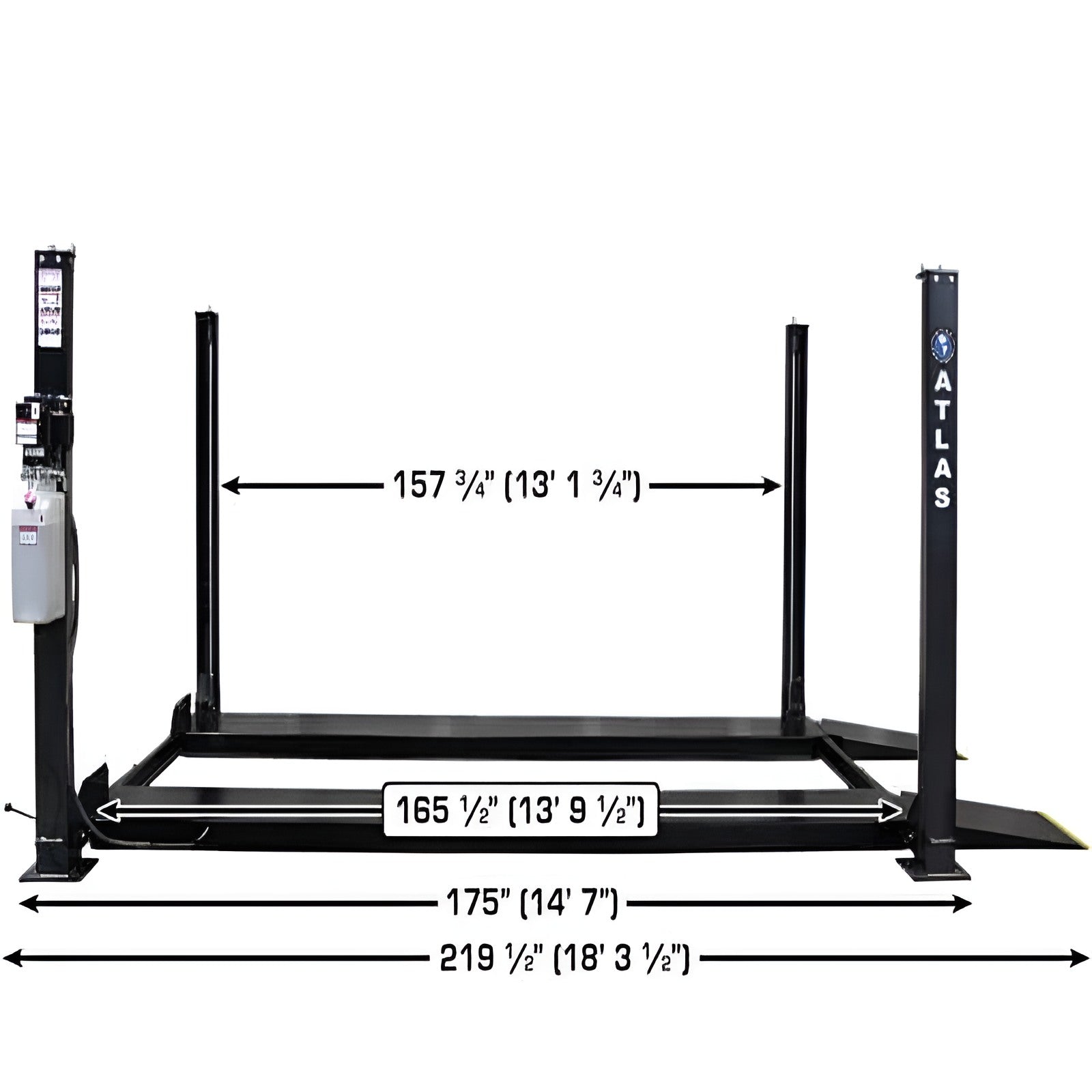

Atlas 9000 lb Lift Specifications:
- Capacity: 9000 lbs

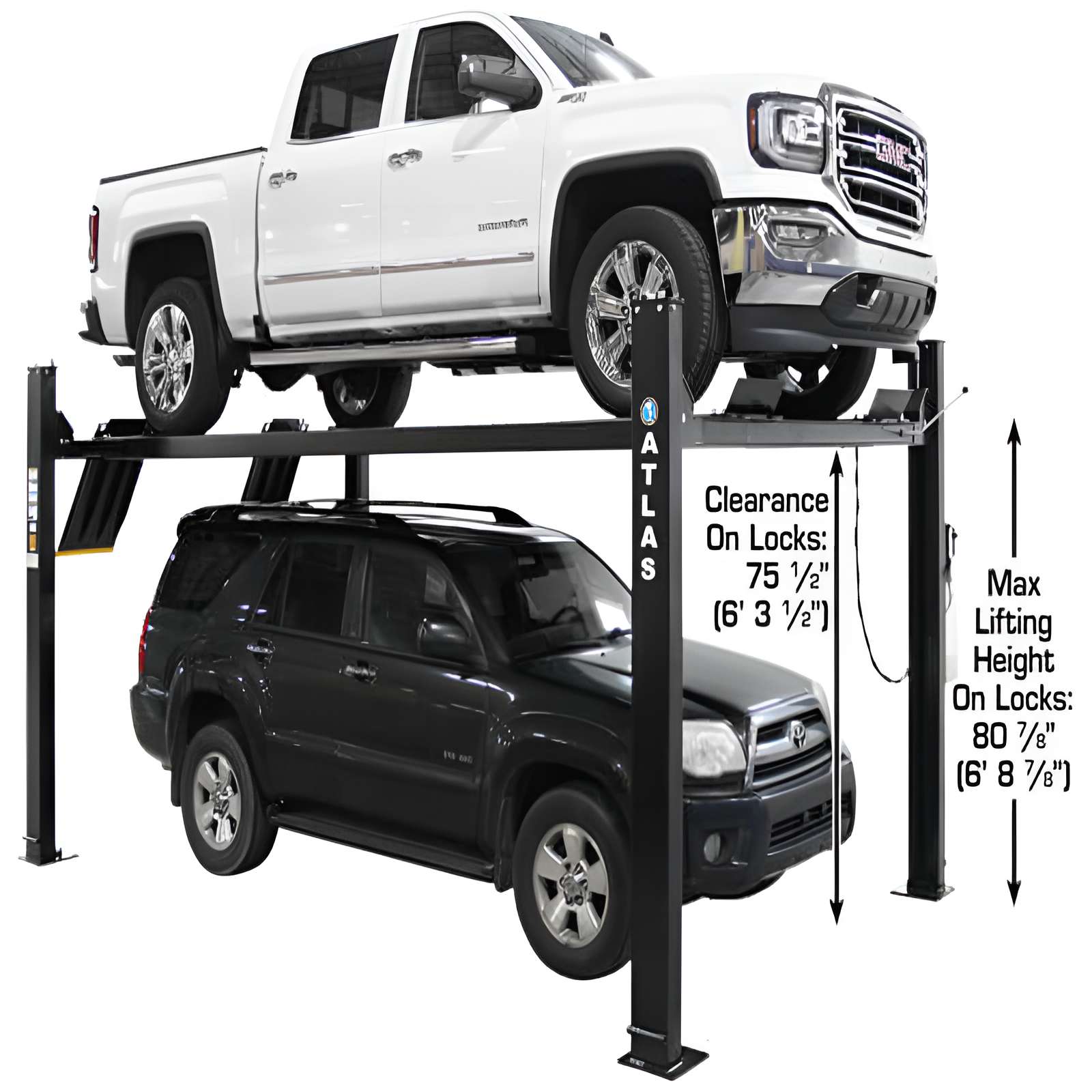

- Lifting Height, Top of Runway: 86" (7' 2")
- Clearance Under Runways: 81 1/4" (6' 9 1/4")
- Height of Columns: 99" (8' 3")
- Overall Width: 121 7/8" (10' 1 7/8") w/ motor 133 7/8" (11' 1 7/8")
- Overall Length w/ Ramps: 227 1/2" (18' 11 1/2")
- Runway Length: 196 1/2" (16' 4 1/2")

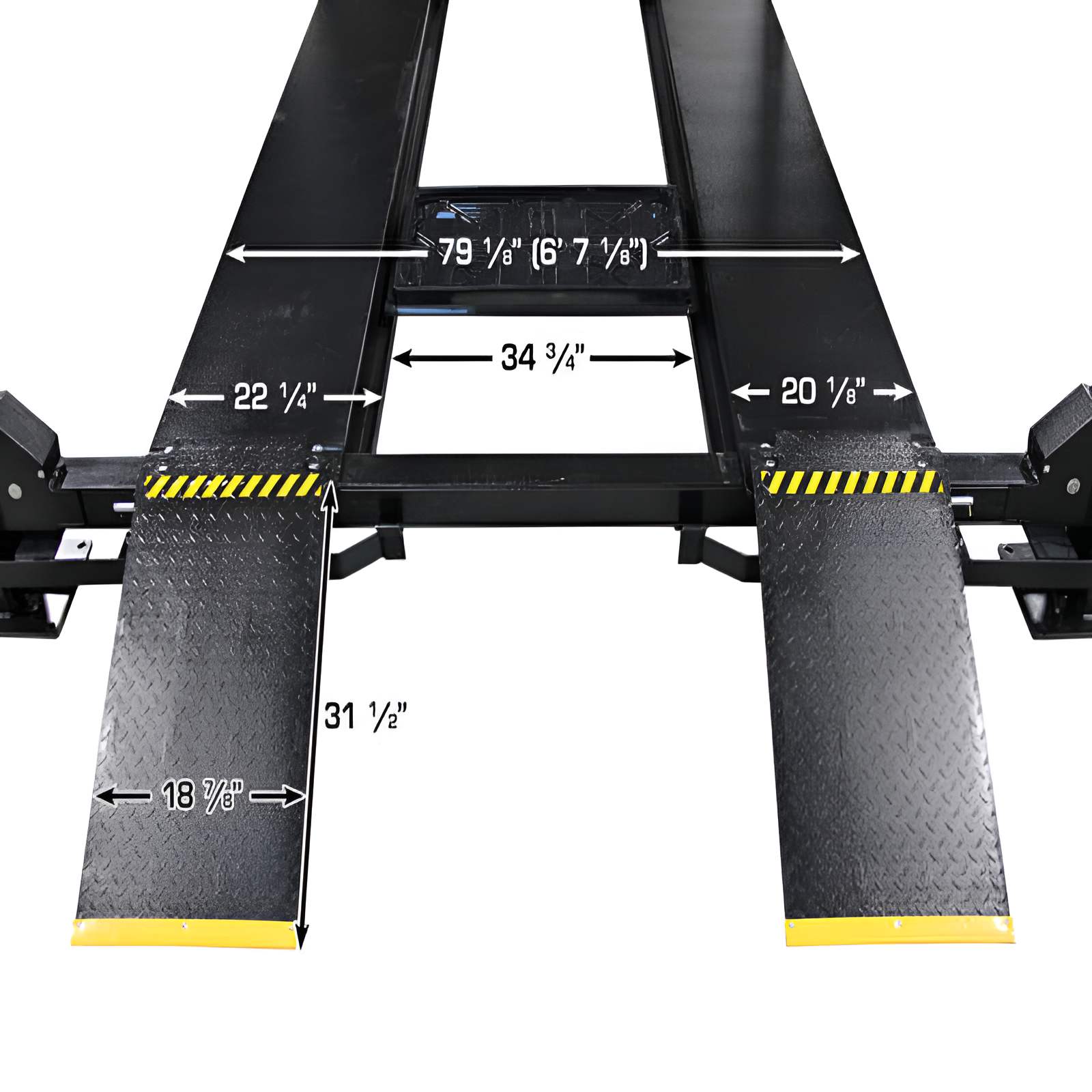

- Runway Width: 20 1/8"
- Runway Thickness: 4 3/4"
- Width Between Runways: 38 7/8" w/ Rail 34 3/4"
- Outside Runway to Outside Runway: 79" (6' 7")

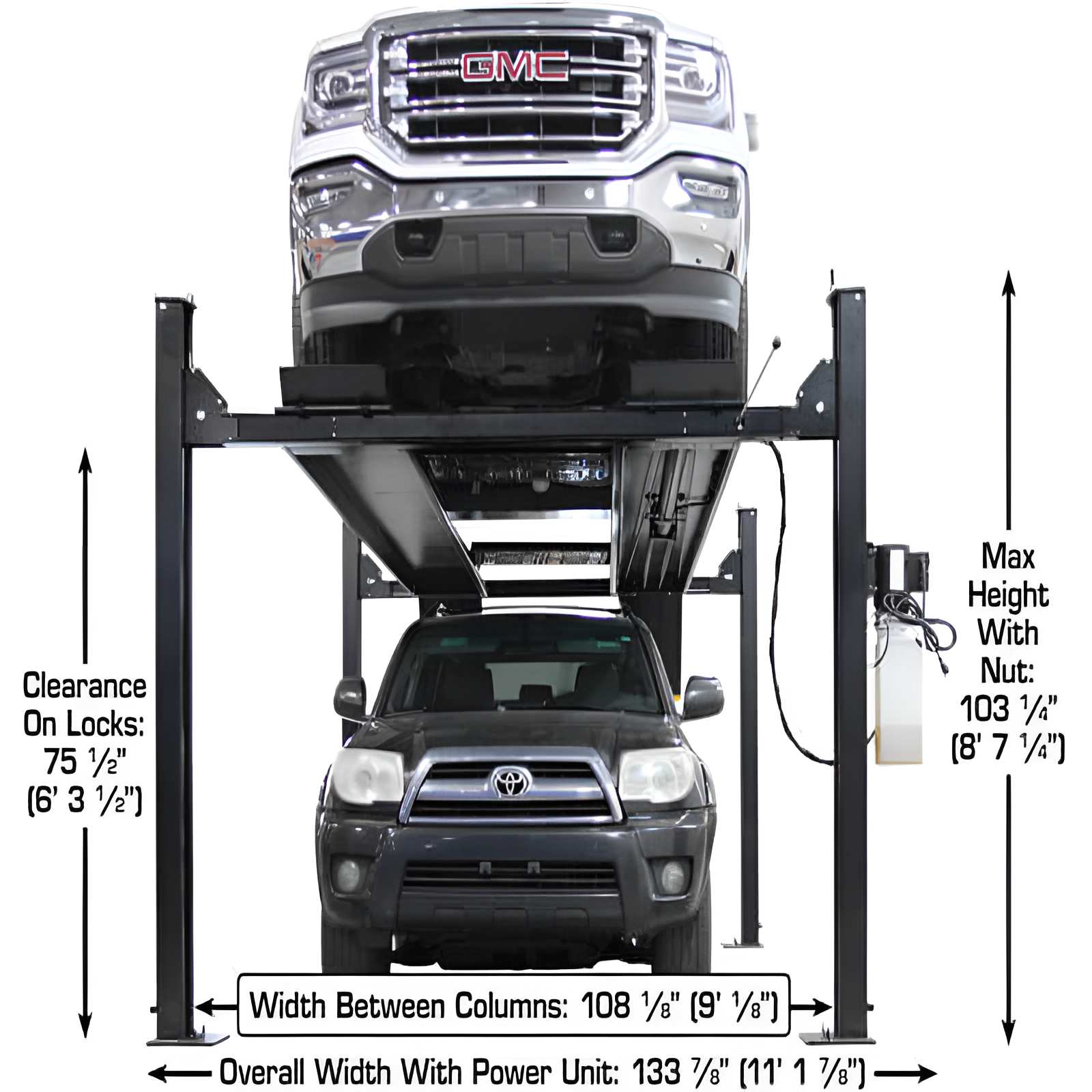

- Clearance Between Columns: 108 1/8" (9' 1/8")

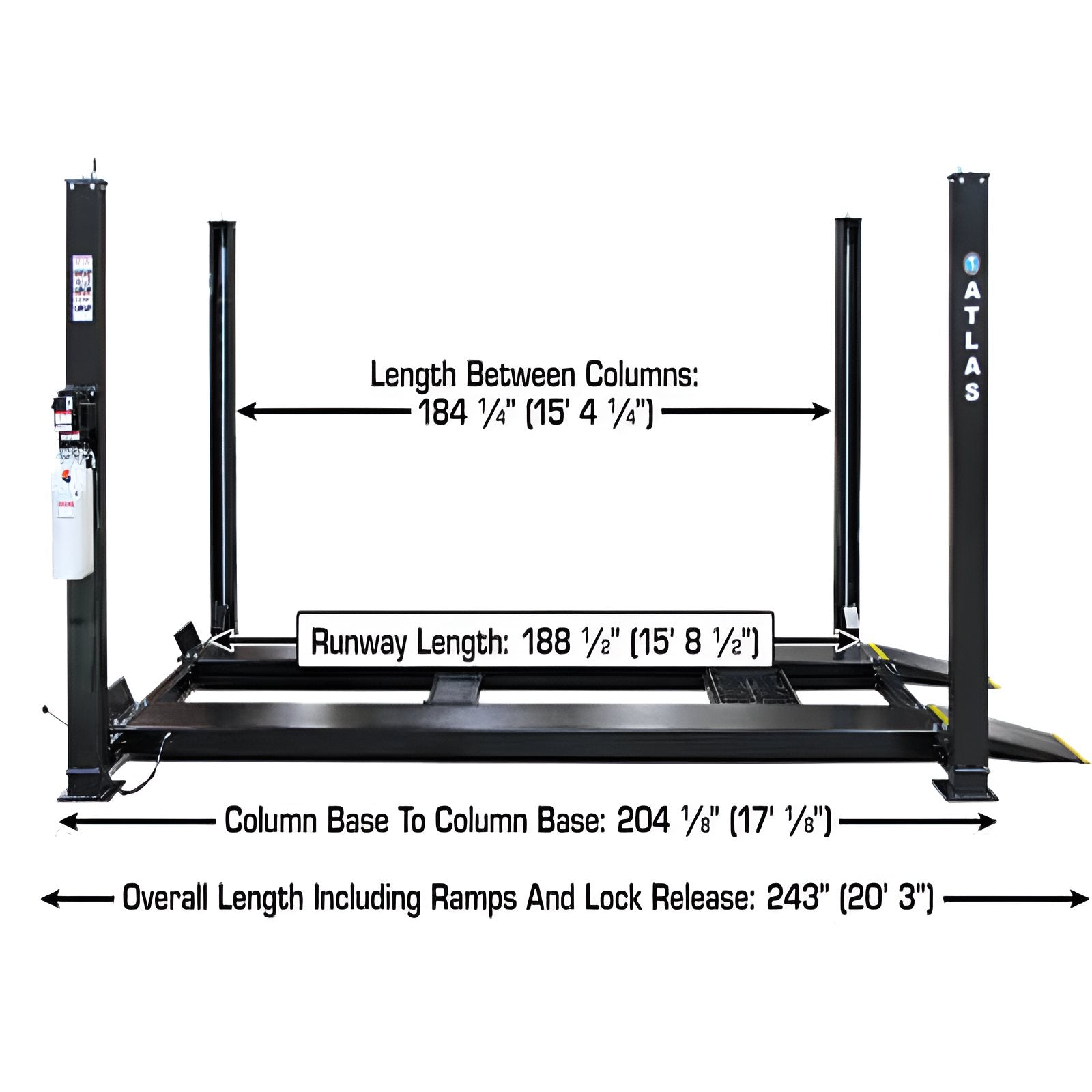

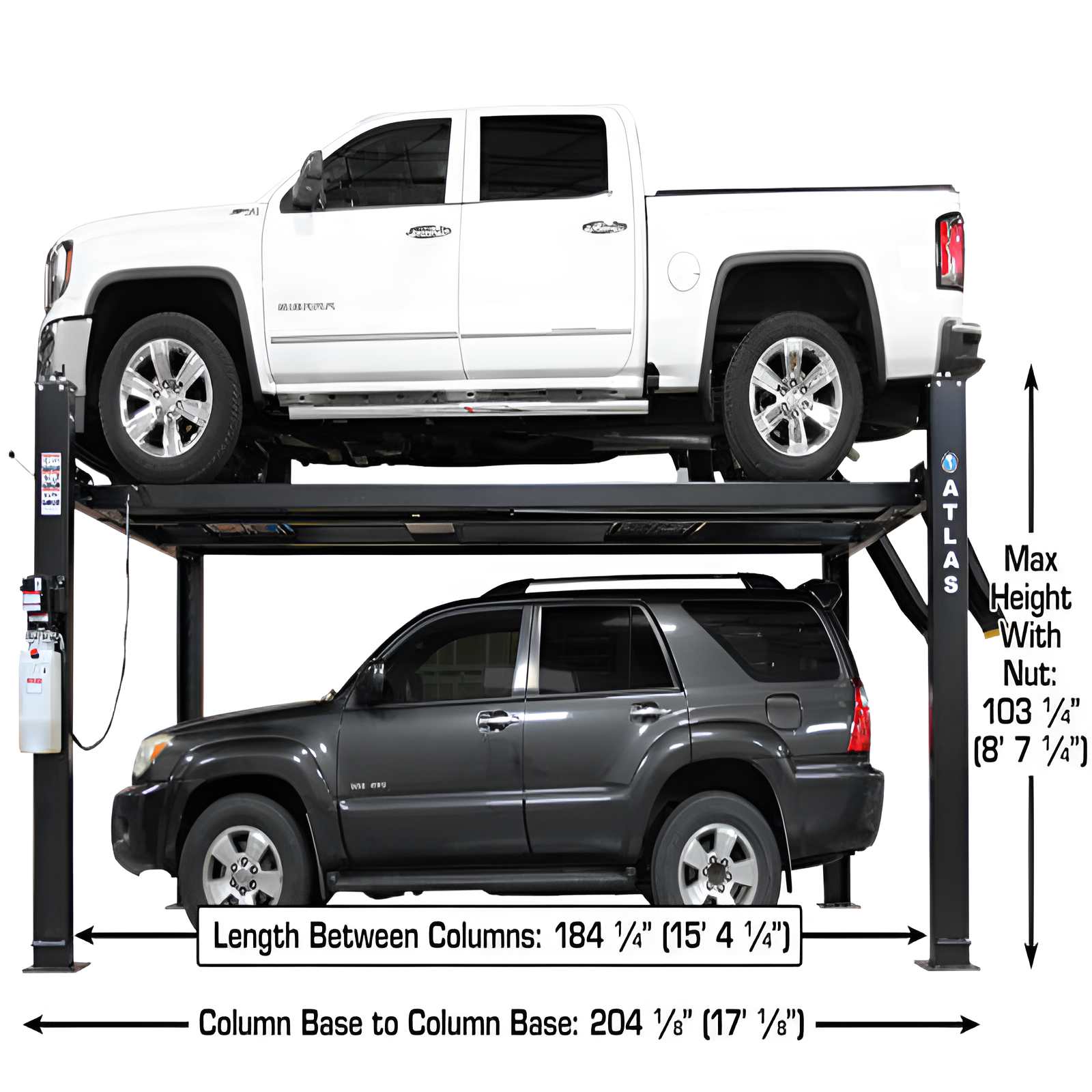

- Length Between Columns: 184 1/4" (15' 4 1/4")

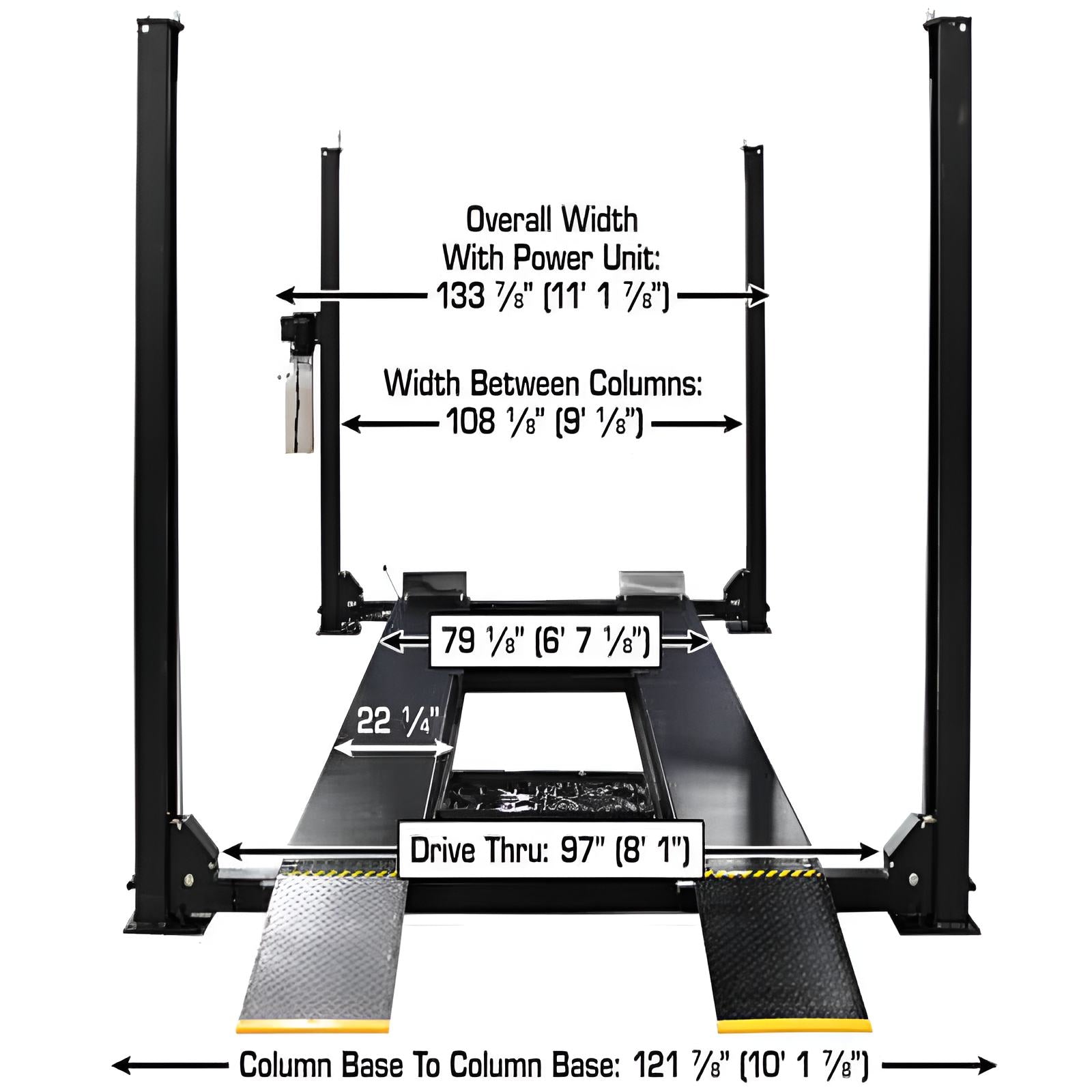

- Drive Thru: 98 5/8" (8' 2 5/8")
- Motor/Electrical Requirement: 110volt, 30 amp breaker required
- Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
- Shipping Weight: 2975 lbs
- Pallet Size: 204" Long x 30-1/2" Tall x 25" Wide
Apex9 9,000 lb 4 Post Vehicle Storage Lift Special Features:

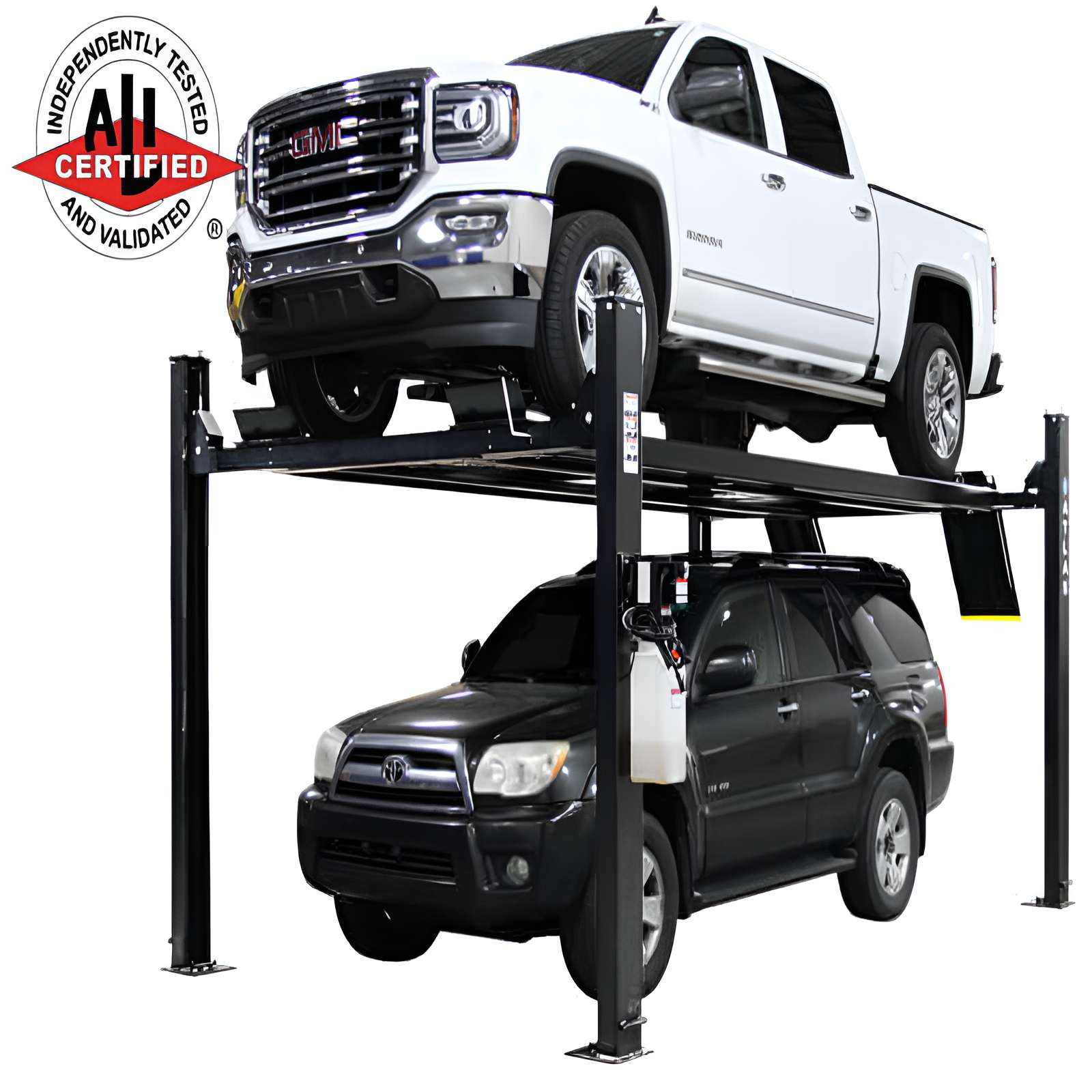

- ALI Certified Unit
- Heavy Duty
- Extra Tall, Extra Wide and Extra Long
- Design Free Standing & Portable
- Diamond Plated Runways
- Powder Coat Unit

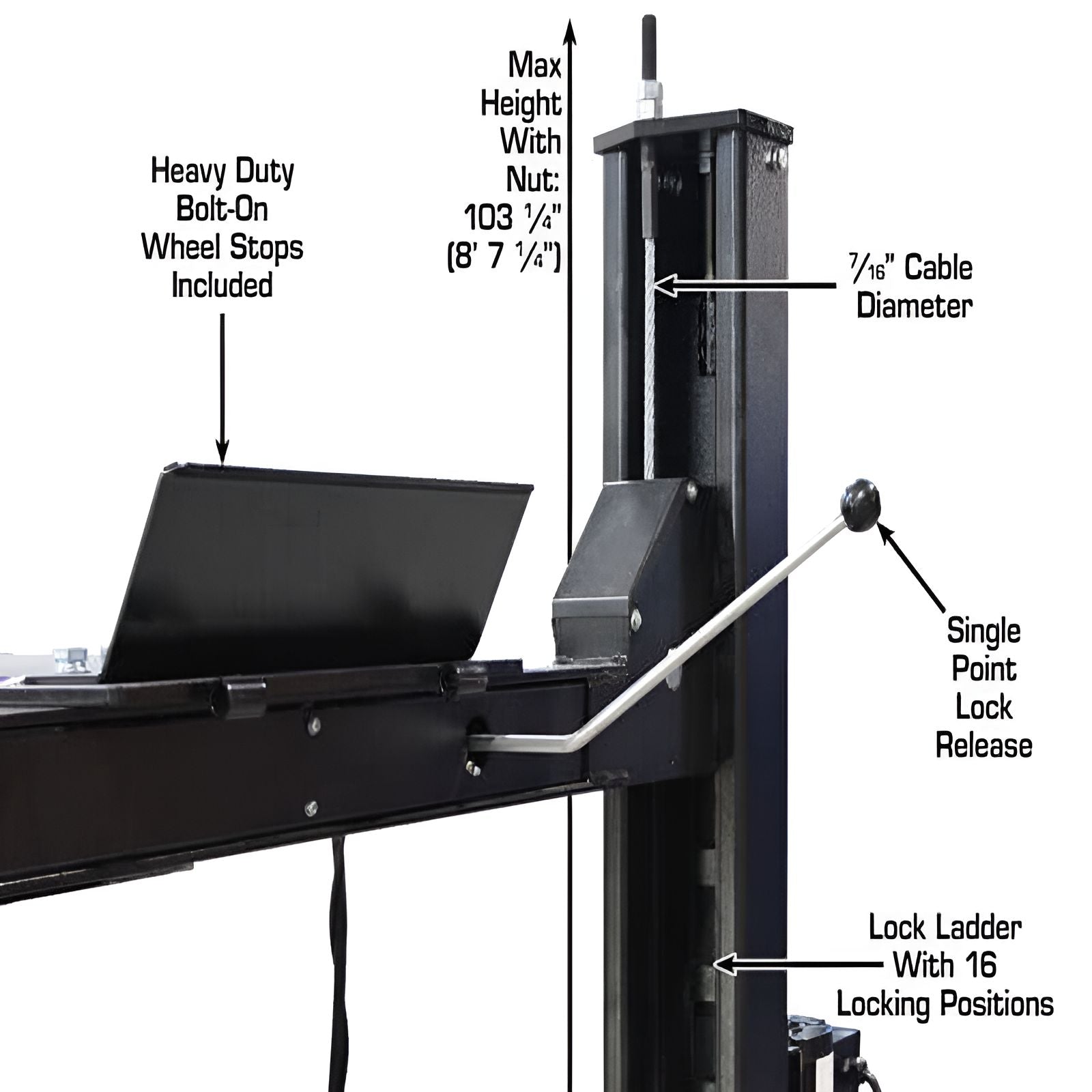

- Lock Release: Single-Point
- Lock Design Lock Ladder w/ Double Lock Safety System
- Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only
- 110volt Electric Operation (Requires 30amp Breaker)
- Unit Includes:
- Steel Approach Ramps Included
- Steel Jack Tray Included
- 4 Plastic Drip Trays
- 2 Rubber Wheel Chocks
- Buy as a Combo Atlas ALI Certified APEX9 + RJ6
Apex 9 4 Post Vehicle Storage Lift Optional Items (sold separately):
Apex 9 Manual
*Due to Extra Large Size, product cannot be delivered to a freight terminal.
Warehouse Pickup locations (No shipping charge):
- Atlanta, GA
- Dallas, TX
- Indianapolis, IN
- Phoenix, AZ
- Somerset, NJ
