Description
Atlas APEX 8 4 Post Lift, 2 x ProJack35 Sliding Jacks Combo SKU ATEATTD-APEX8-COMBO
The package includes two Atlas RJ35 sliding bridge jacks, each capable of lifting 3,500 lbs. These jacks glide effortlessly into position, making tire and brake services a breeze. No more wrestling with heavy jacks or wasting time on complicated setups—just smooth, efficient lifting every time. Imagine working on vehicles at the perfect height, allowing you to focus on the job without the discomfort of awkward positions. Now, get this combo and stop imagining.

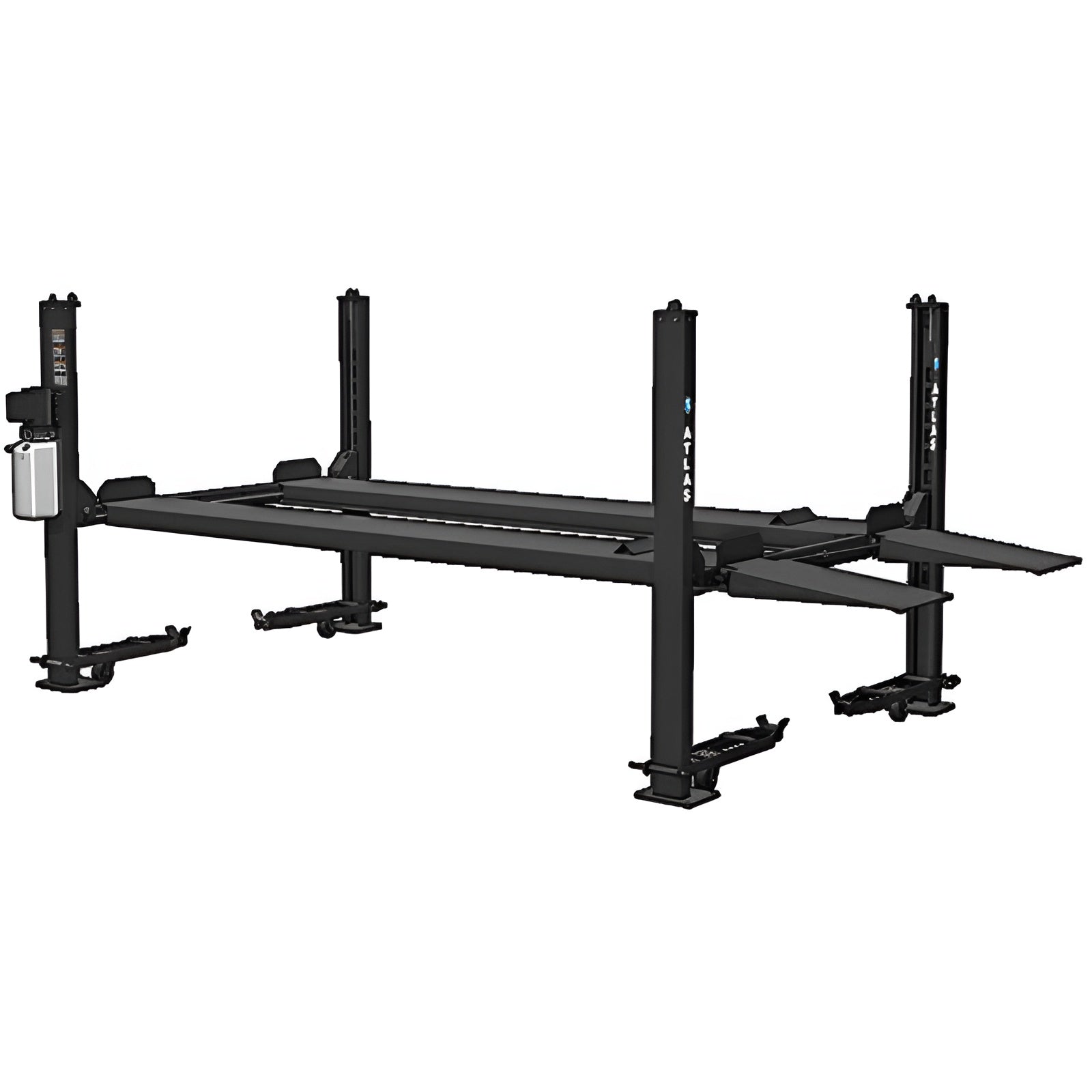

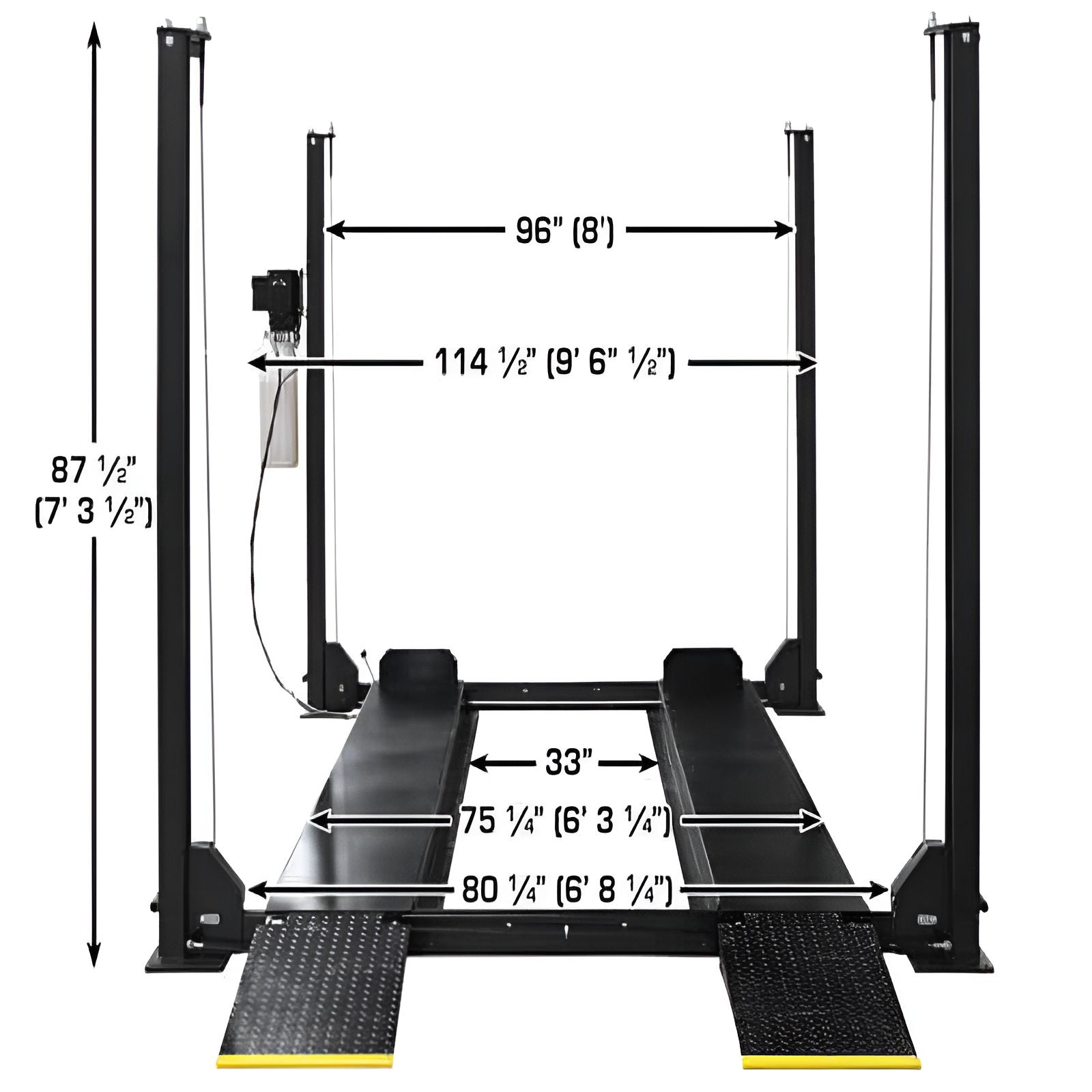

4 Post Parking Lift Apex 8
- Capacity: 8,000 lb.

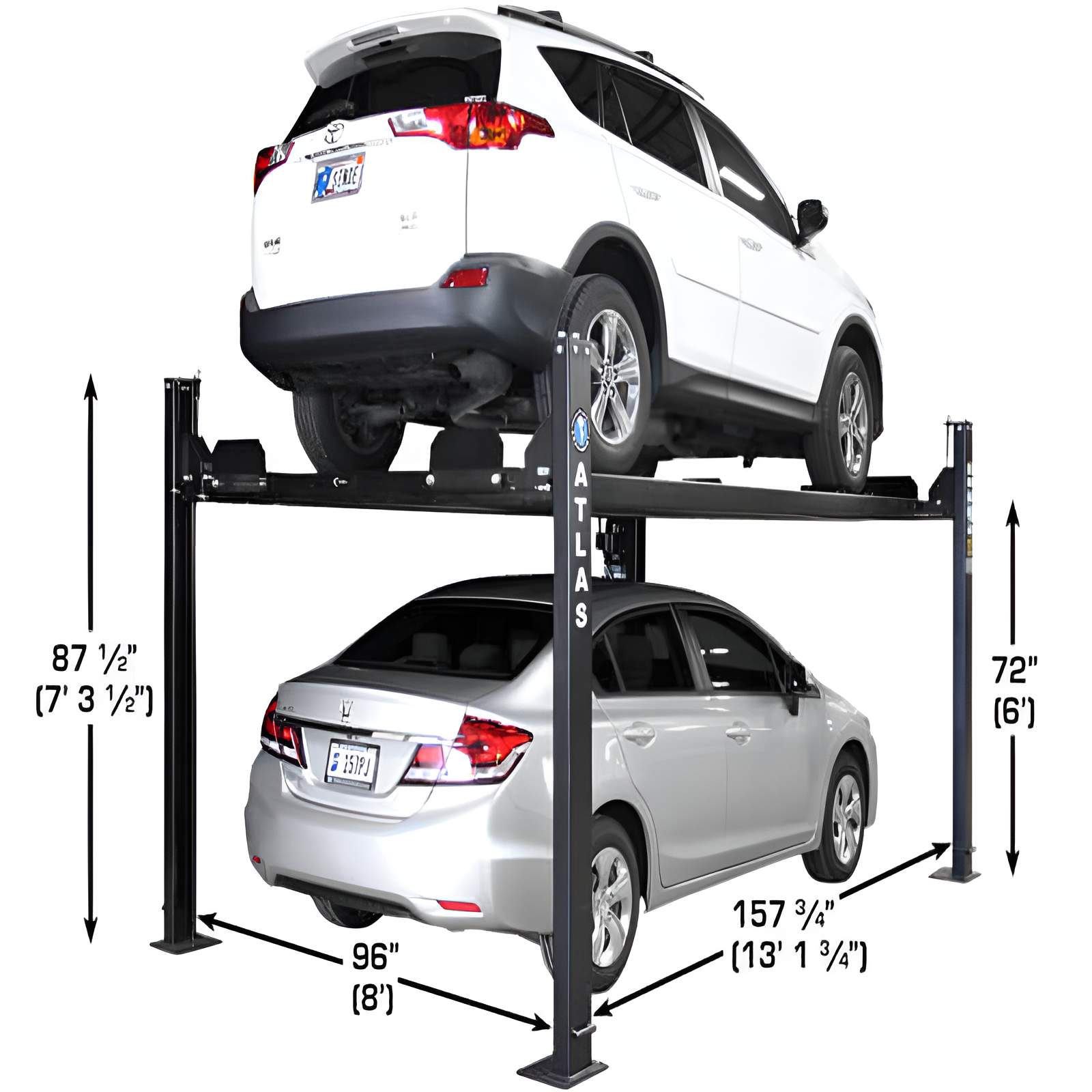

- Lifting Height to Top of Runway: 72" (6')

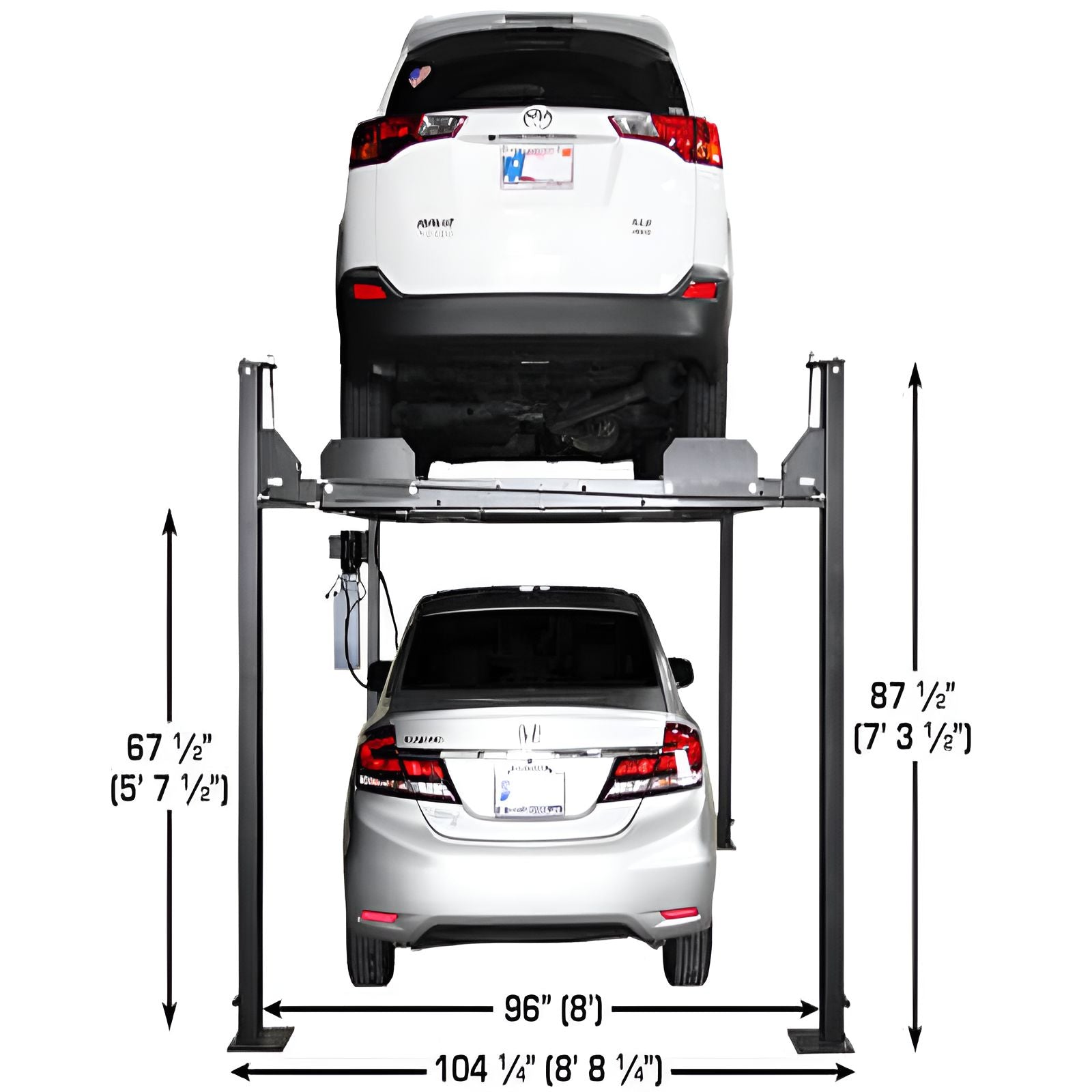

- Clearance Under Runways: 67" (5' 7")
- Height of Columns (Including Nuts): 86 5/8" (7' 2 5/8")
- Overall Width (Without Motor or Casters): 104" (8' 8")
- Overall Width (With Motor): 114" (9' 6")
- Overall Length without Approach Ramps (Including Lock Release Bar): 186 1/2" (15' 6 1/2")
- Overall Length with Approach Ramps: 207 5/6" (17' 3 5/6")

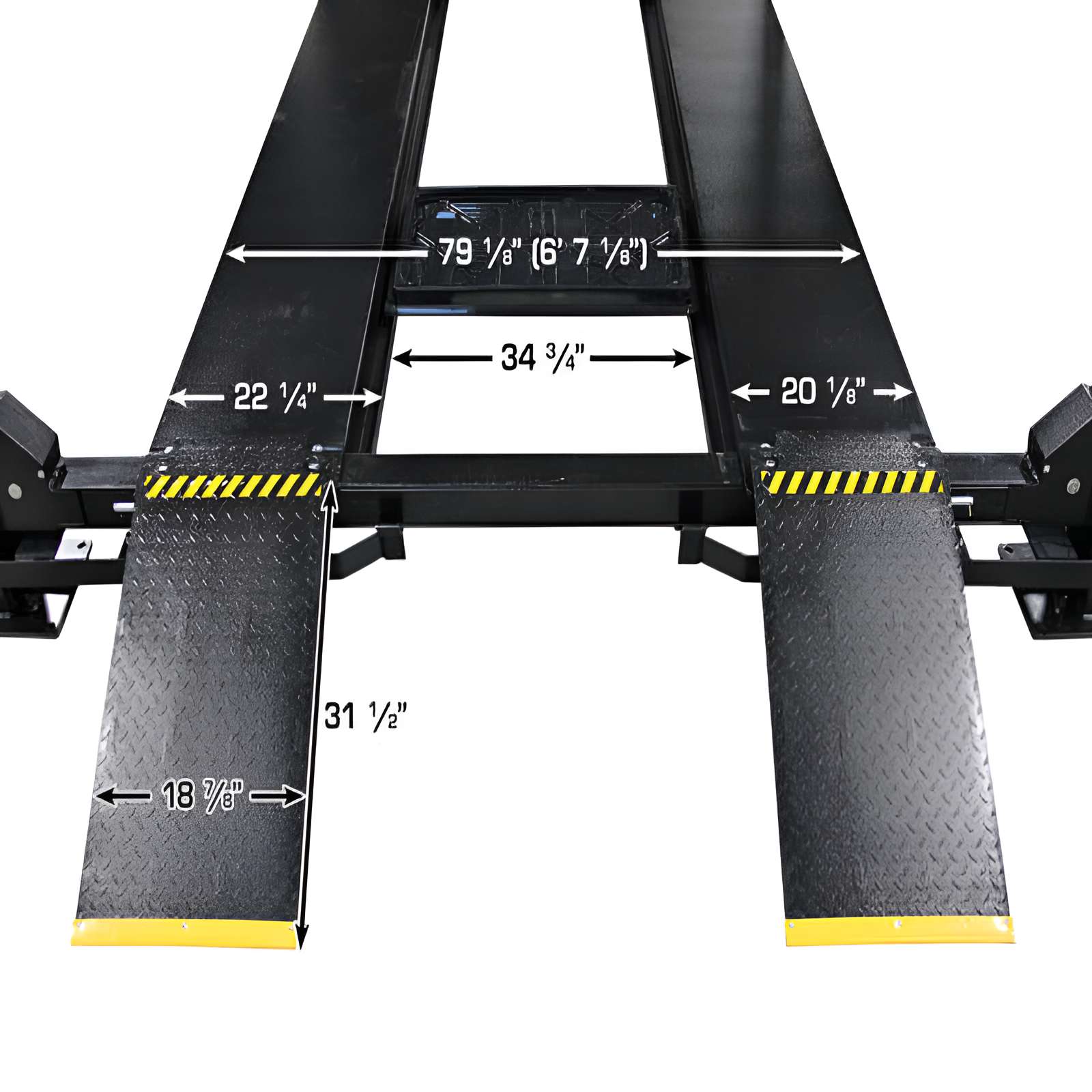

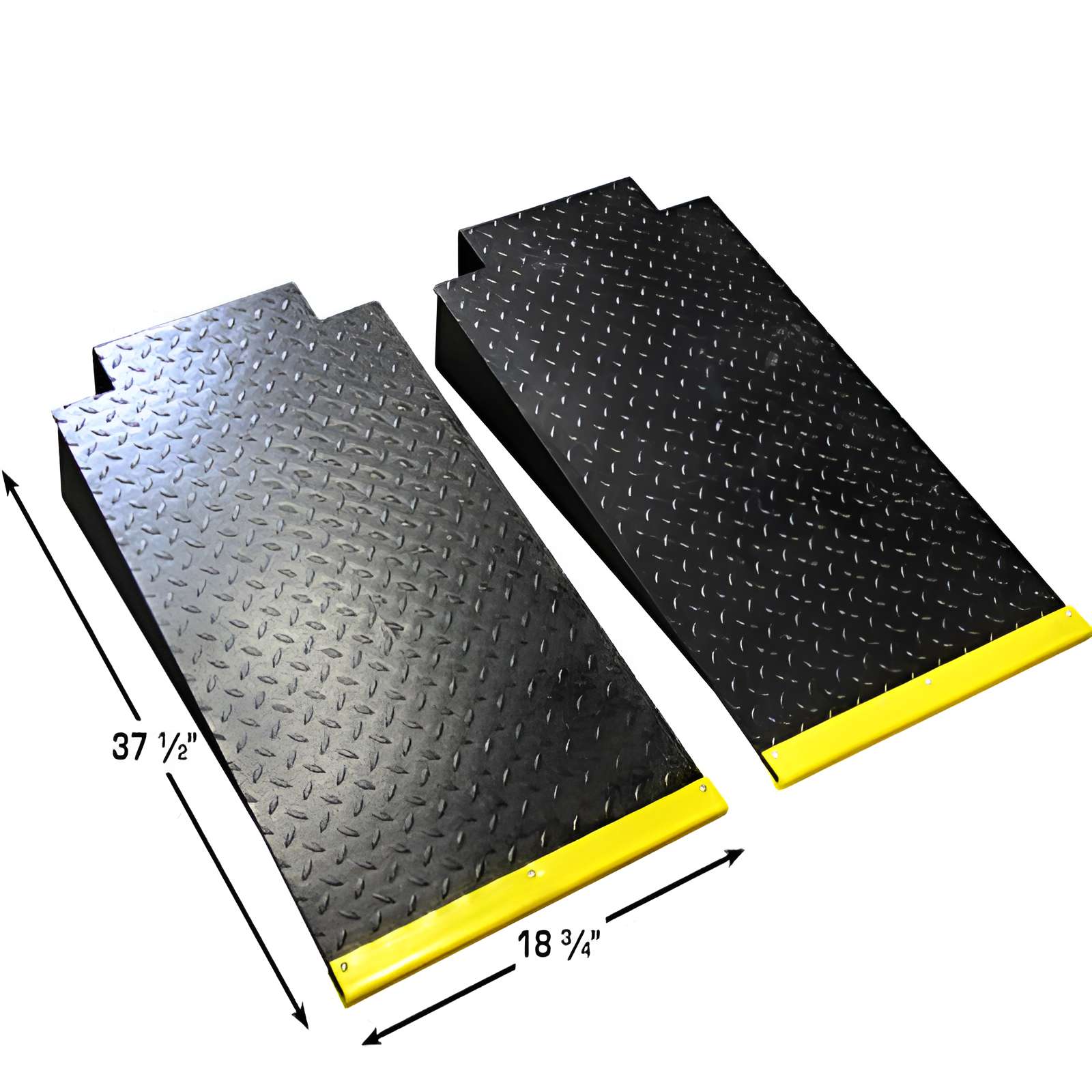

- Approach Ramps: 37 1/2" (3' 1 1/2")
- Runway Width: 18 2/3"
- Runway Rail Width: 2 1/2"
- Runway Length: 169 1/2" (14' 1 1/2")
- Runway Thickness: 4 1/3"

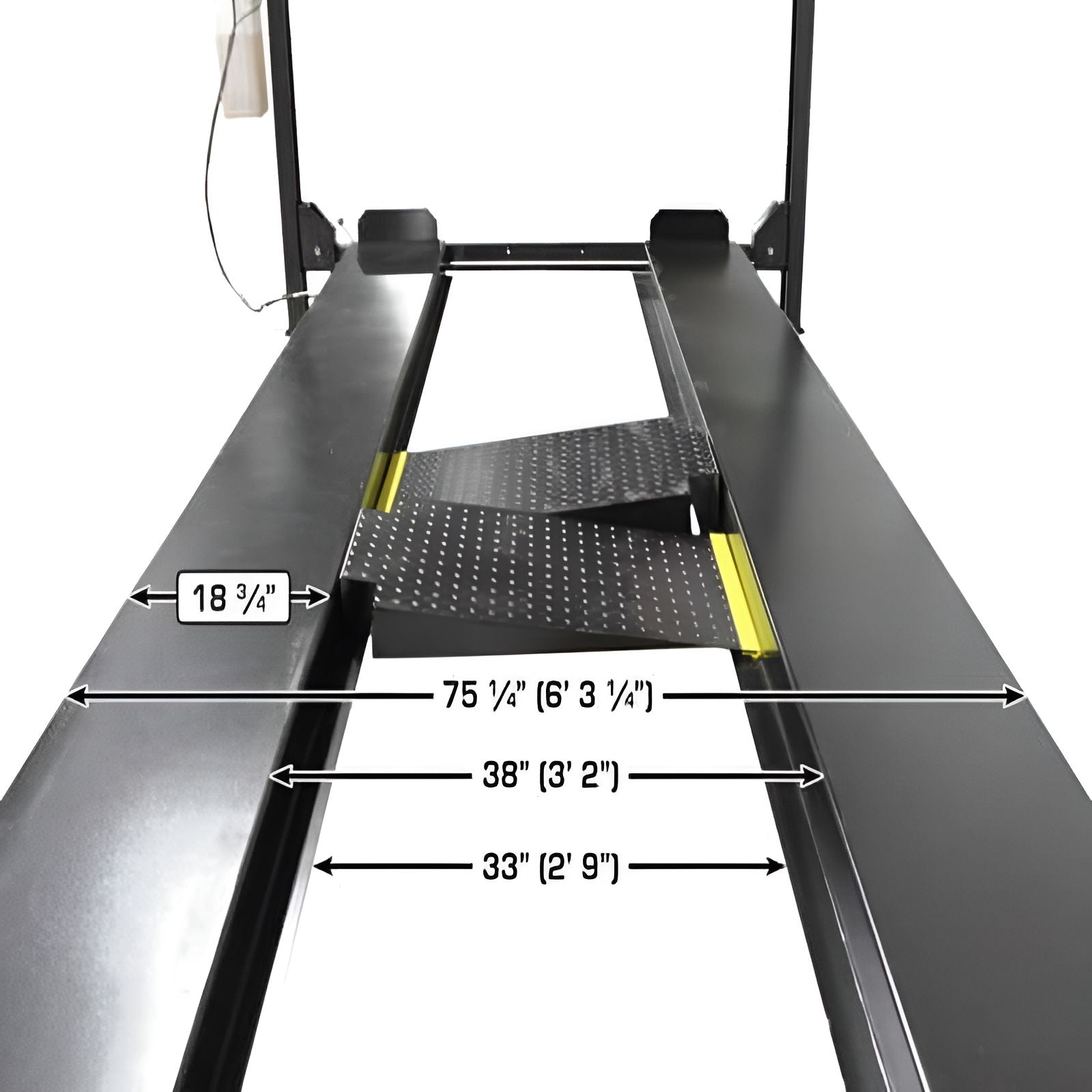

- Width Between Runways: 38" (3' 2")
- Width Between Runway Rails: 33" (2' 9")
- Outside Runway to Outside Runway: 75 1/4" (6' 3 1/4")
- Clearance Between Columns: 94" (7' 10")

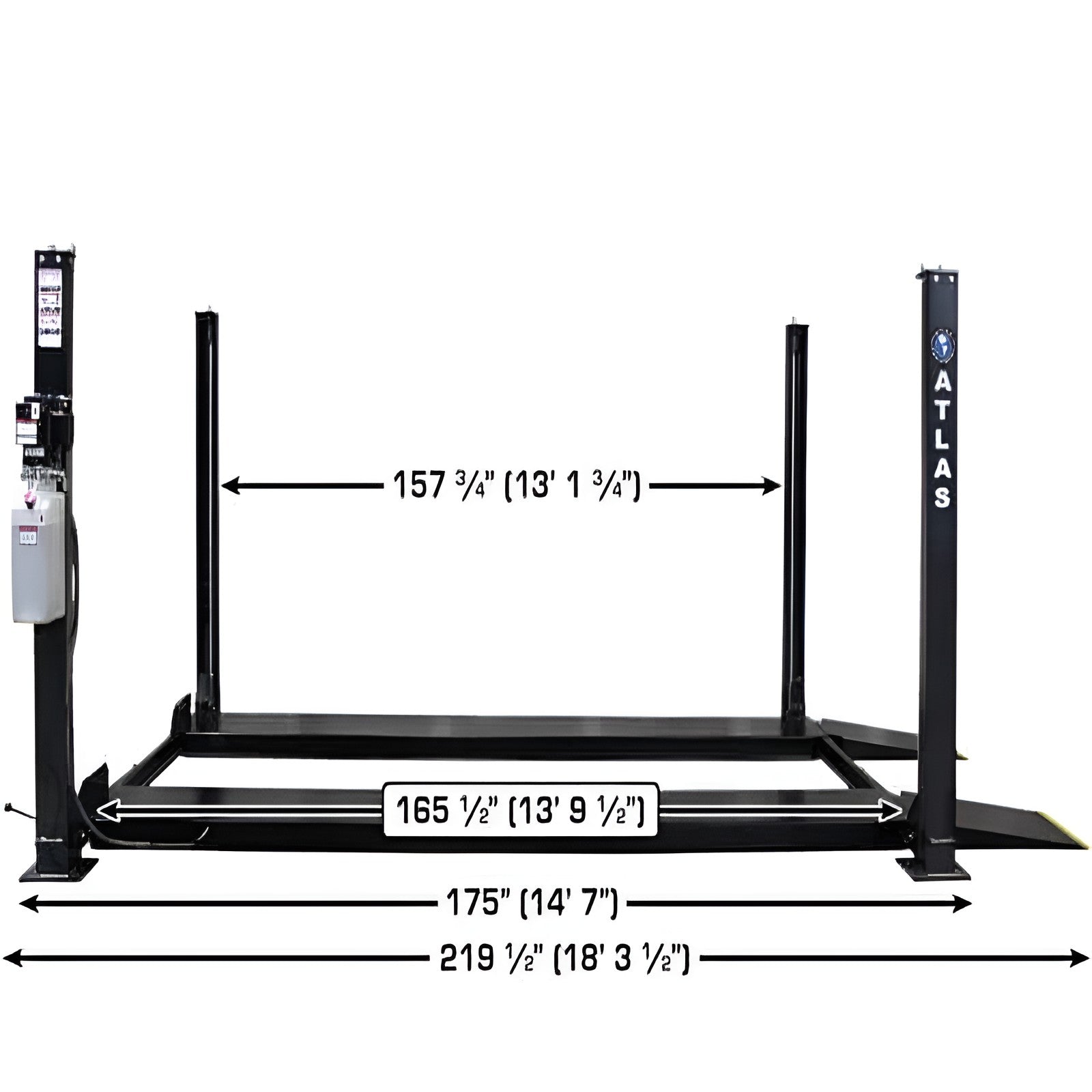

- Length Between Columns: 157 1/3" (13' 1 1/3")
- Maximum Wheel Base: 154" (12' 9")
- Drive Thru (Outside of Tire to Outside of Tire): 80 1/4" (6' 8 1/4")

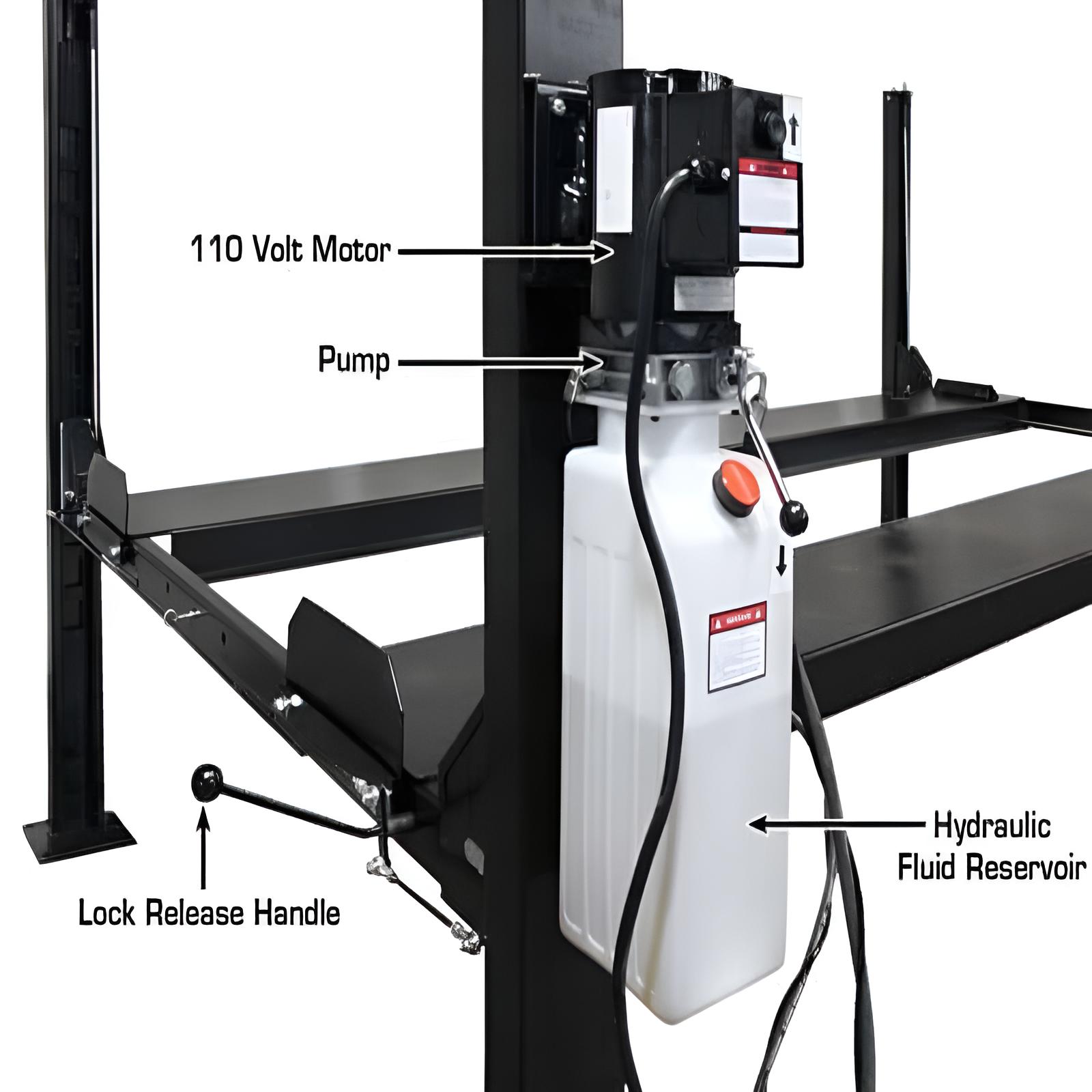

- Motor/Electrical Requirement: 110 Volt, 30 AMP Breaker Required
- Shipping Weight: 2,000 lb.
APEX 8 4 Post Lift Special Features:
- ALI Certified Lift
- 8,000 lb. Capacity
- Free Standing/Portable Design
- Powder Coat Finish
- Single Point Lock Release

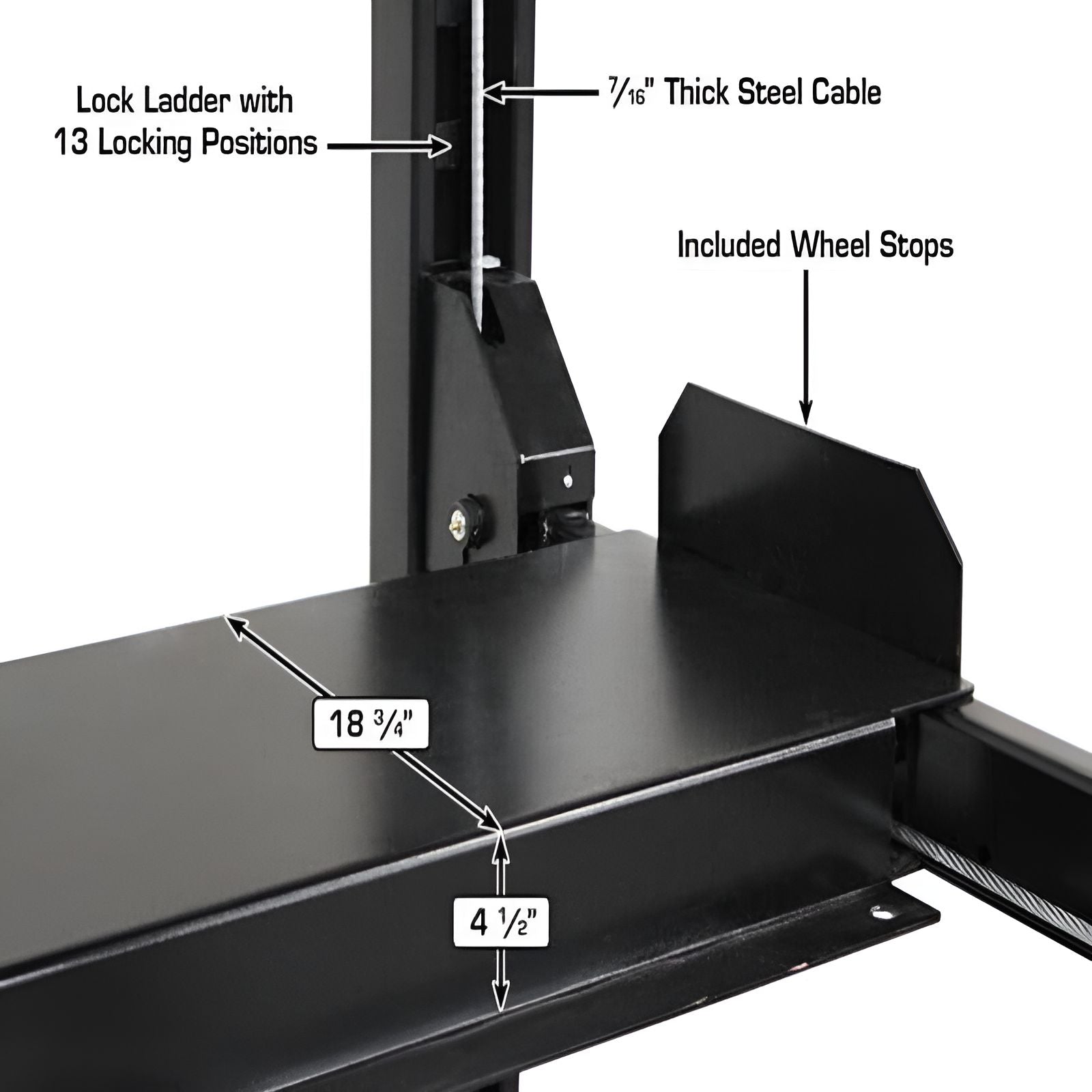

- Lock Ladder Design
- Double Lock Safety System
- Steel Approach Ramps Included
- Wheel Stops Included
- Two Wheel Chocks Included

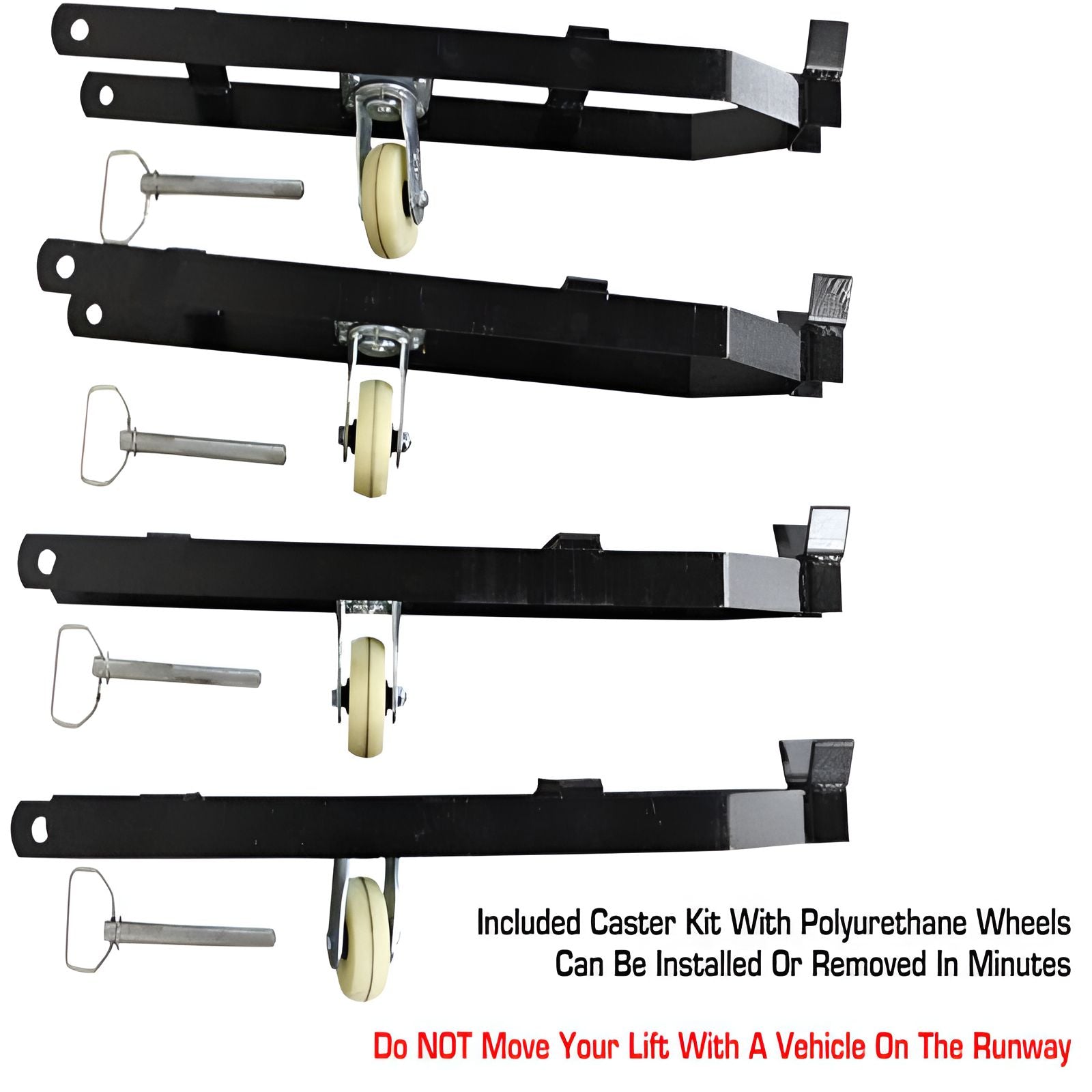

- Caster Kit with Polyurethane wheels Included
- Anchor Bolts Optional (Sold Separately)

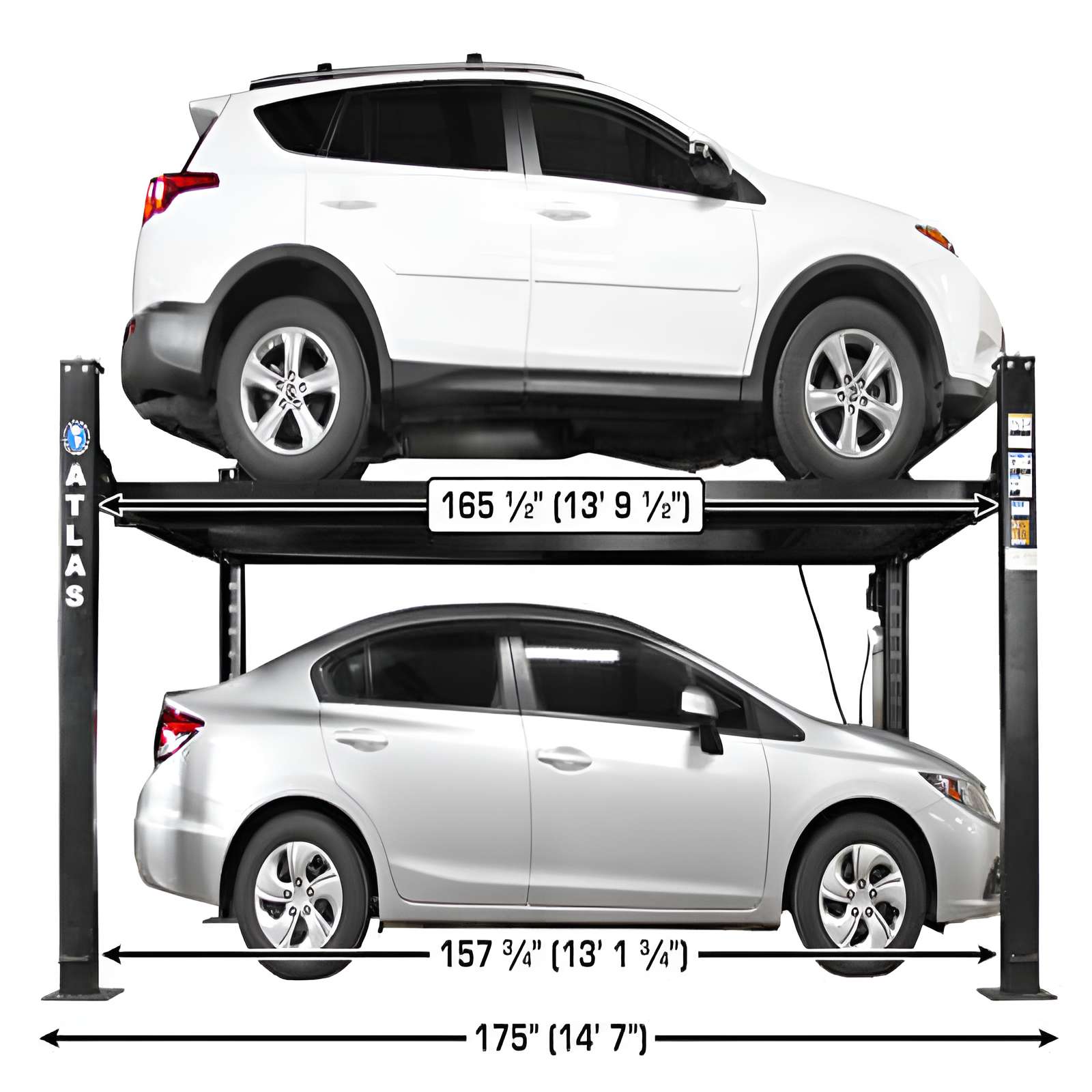

- Perfect for Storage or Working on Vehicles
- 110volt Electric Operation (Requires 30amp Breaker)
- Shipping Weight: 2,000 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
Atlas ProJack35 Specifications
- Qty: 2
- Maximum Capacity: 3,500 lbs.

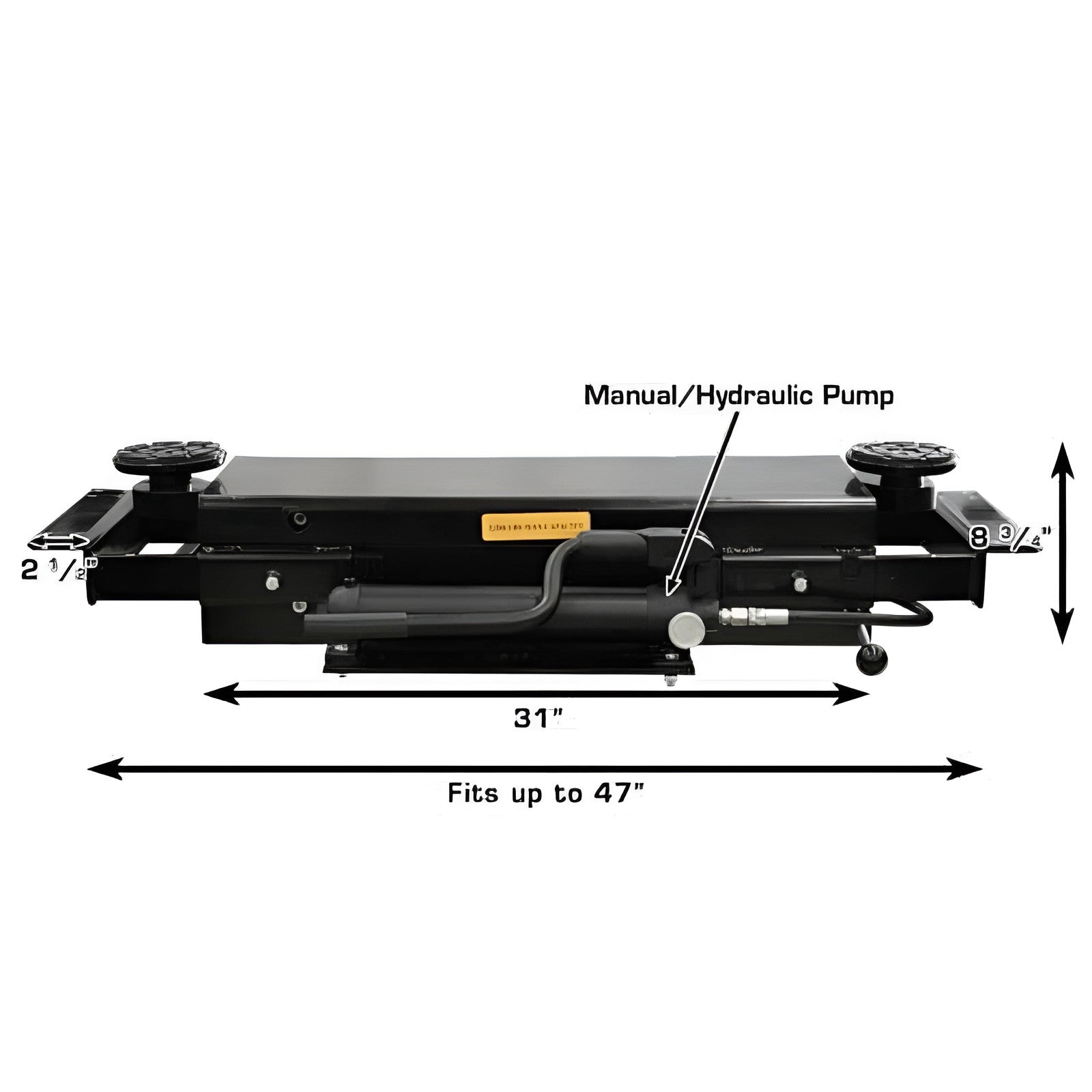

- Maximum Width: 64 3/4" (5' 4 3/4")
- Minimum Width: 29 1/2" (2' 5 1/2")
- Minimum Height with Lift Pad Above Runway: 3 1/2" (May Vary by Lift)
- Lift Pad Height Above Arm: 1 3/8"

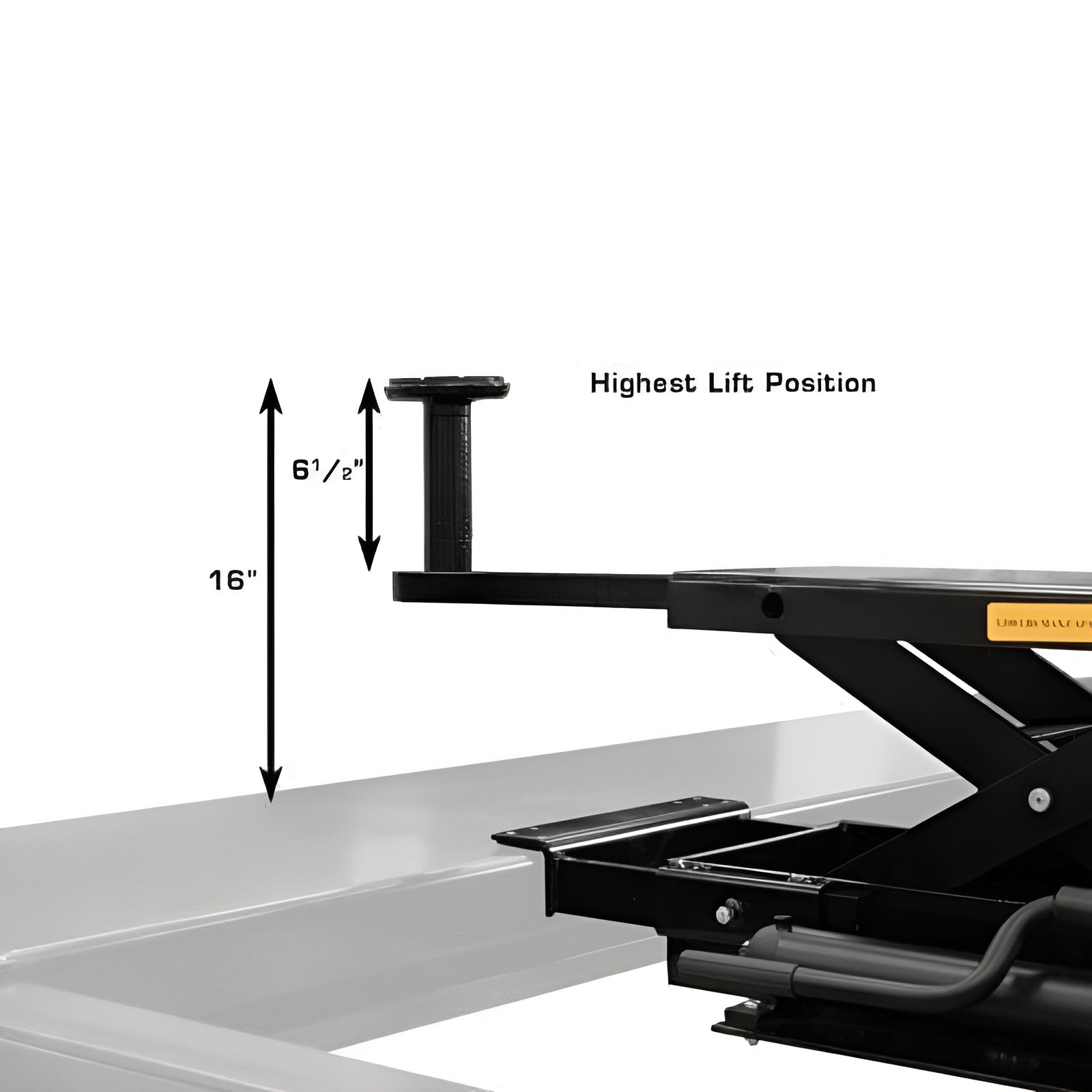

- Max Raised Height Without Adapters: 11"
- Max Raised Height With Adapters: 17 1/4"
- Shipping Weight: 350 lb.
- Adapter Heights: 2 each of 1.5", 5"
- Arm Hole/Adapter Peg Size: 1.5"

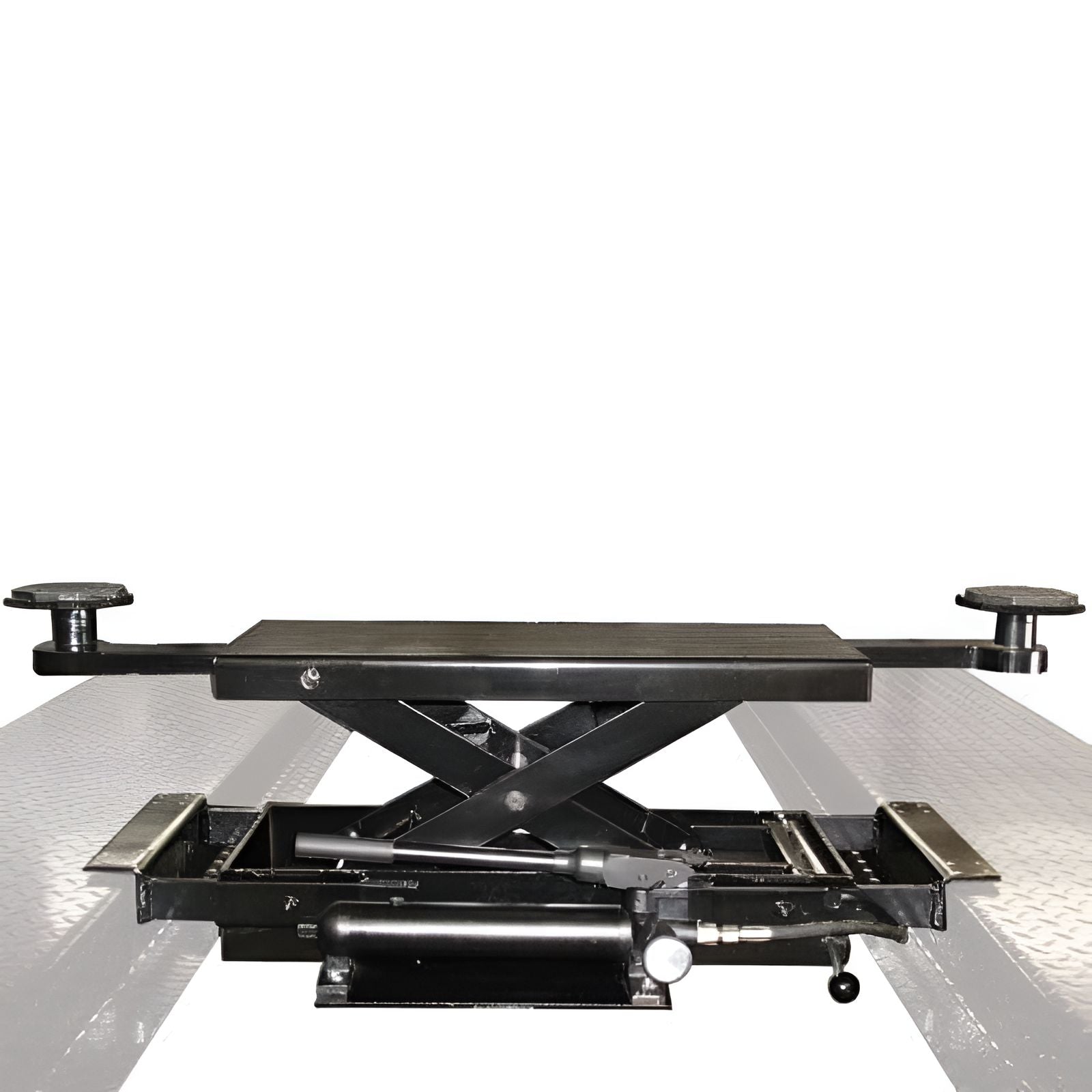

PROJACK35 Rolling Jack Special Features
- Sliding Bridge Jack
- Capacity: 3,500 lbs.

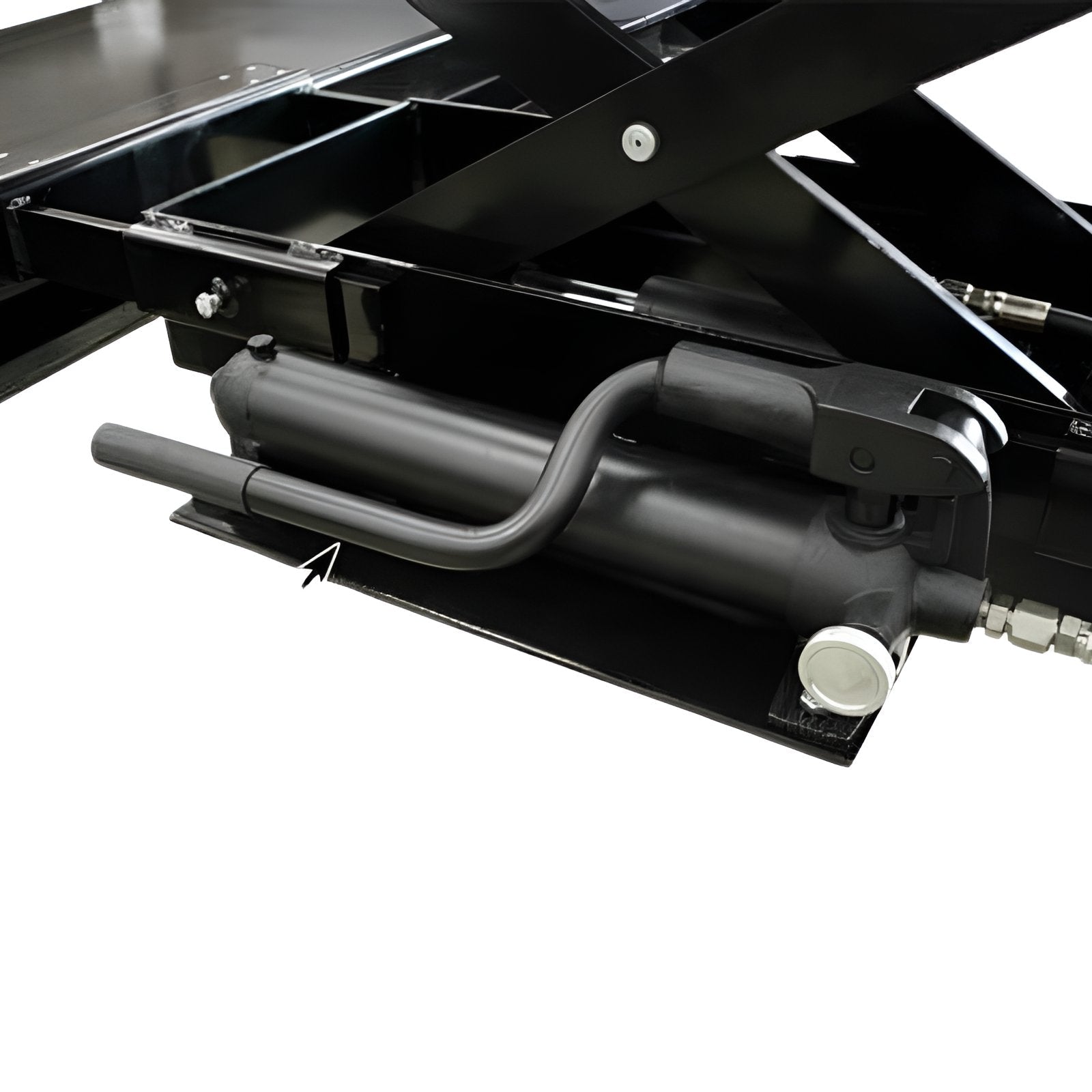

- Manual, hand pump operated
- Scissor mechanism allows for level lifting
- Low Profile, Compact Design
- Adjustable Width to fit many 4-post lifts
- Adjustable Lift Arms to reach many lifting points
- Multiple Safety Lock Positions

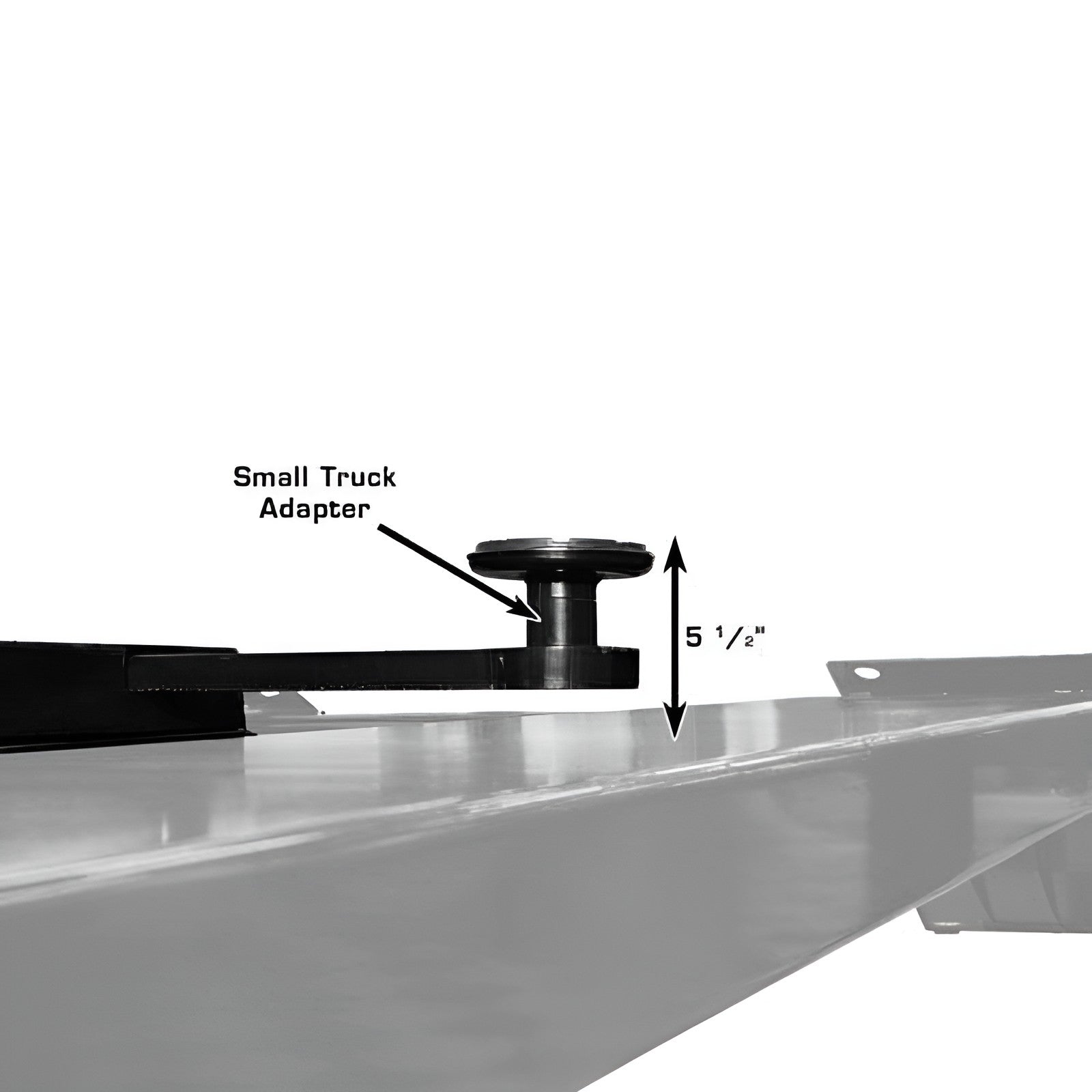

- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
Apex 8 Manual
APEX 8 + Prokjack35 Optional Item (Sold Separately)
- APEX 8 4-post lift
- ProJack35 Sliding Jack
