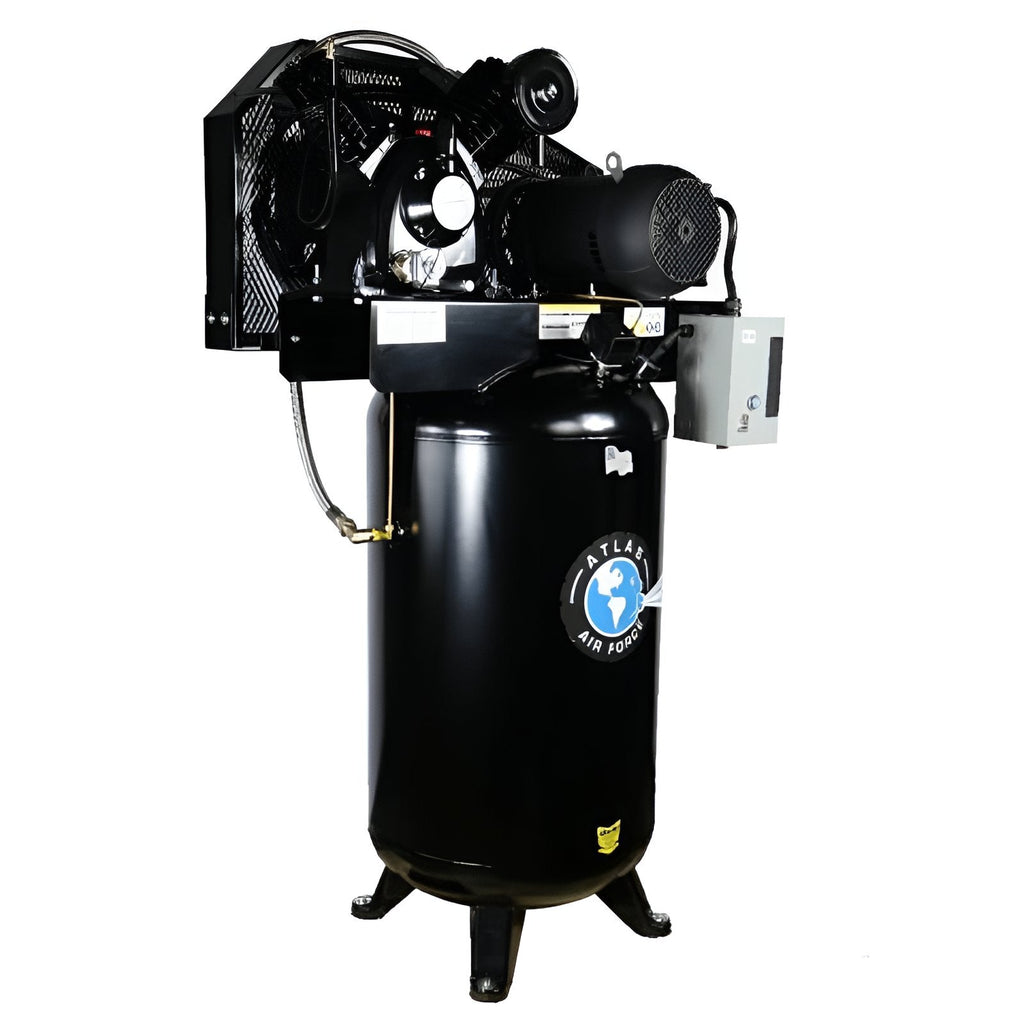

Atlas AF9P 7.5HP 80 Gallon Air Compressor w/ Plus Package SKU ATEMPAF9P

Powered by a 7.5HP, low-RPM motor (1740 RPM) and equipped with a 3-cylinder, 2-stage pump, this unit delivers consistent air output ranging from 145–175 PSI, with a solid 23 CFM at 90 PSI and 20 CFM at 175 PSI. It features a USA-made 80-gallon vertical tank, magnetic starter, and belt-driven design—all engineered to withstand daily, heavy-duty use while operating extremely quietly.

What sets the AF9P apart is its integrated Plus Package, which includes three critical enhancements: an automatic low oil monitor, an automatic tank drain, and an air cooled aftercooler. These additions help protect your investment by ensuring longer life, cleaner air output, and less routine maintenance. Additional features include vibro-isolation pads, finned tank inlet tubing for moisture reduction, and industrial-grade Hubbell pressure switch with Eaton starter. As part of the trusted Atlas Air Force line, the AF9P is built to exceed expectations for durability, performance, and shop-readiness.

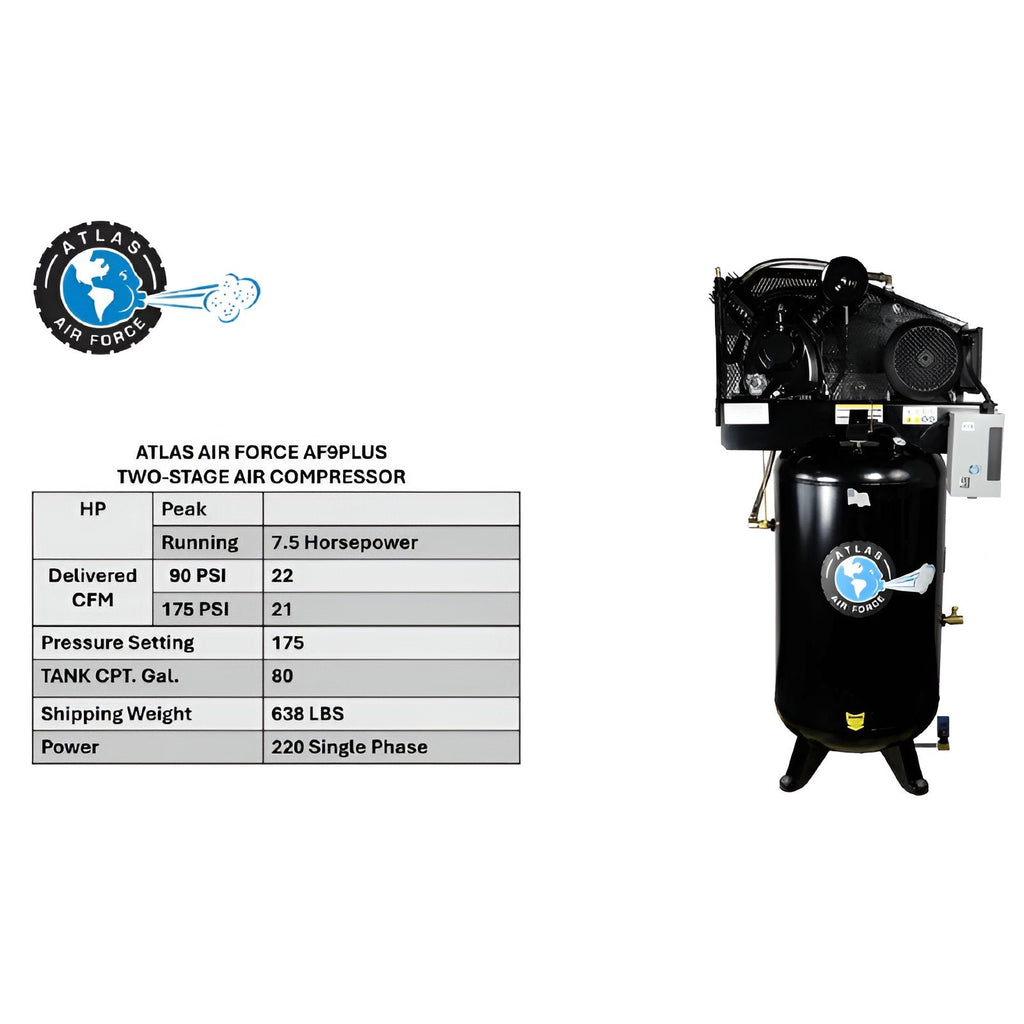

Air Compressor AF9P Specifications:

• Motor Running Power: 7.5 Horsepower

• Motor Speed: 1740 RPM

• Voltage: 220V, 1 Phase

• Breaker Requirement: 40 Amp

• Wiring: #8 wire required

• Pressure Setting: 145 – 175 PSI

• Delivered CFM at 90 PSI: 23

• Delivered CFM at 175 PSI: 20

• Tank Capacity: 80 Gallons (Vertical, Made in the USA)

• Air Outlet Size: 3/4" NPT

• Compressor Pump: 3-Cylinder, 2-Stage

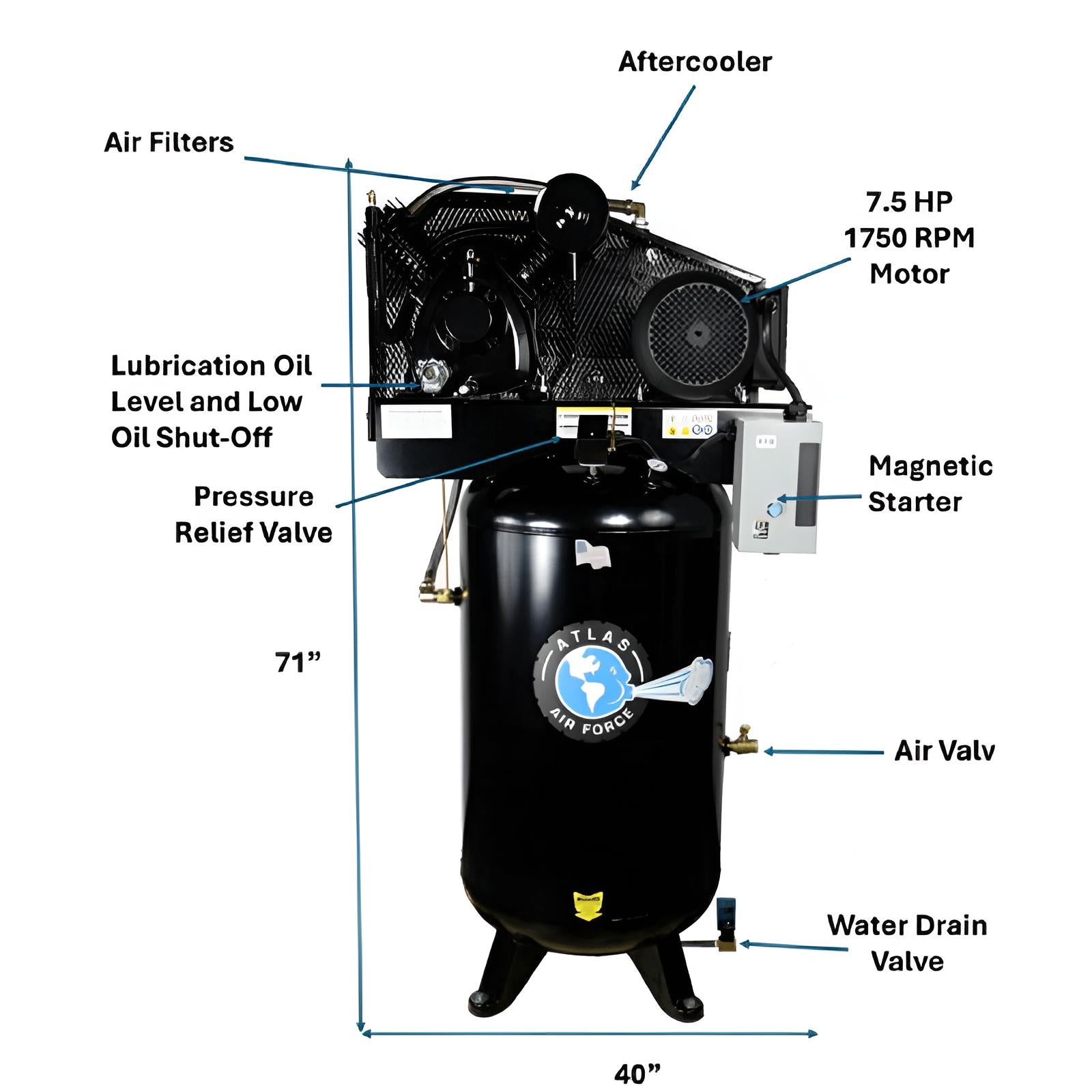

• Overall Dimensions: L 40" x W 24" x H 71"

AF9P Air Compressor Features:

• Commercial-grade compressor ideal for growing or high-demand auto shops

• Quiet 7.5HP low-RPM motor delivers powerful, consistent air output

• 3-cylinder, 2-stage belt-driven pump ensures long-term reliability

• Magnetic starter improves motor longevity

• Industrial Hubbell pressure switch and Eaton starter included

• USA-made 80-gallon vertical steel tank

• Vibro-isolation pads included for reduced vibration

• Finned tank inlet tube minimizes water accumulation inside the tank

• Heavy-duty metal belt guard for added safety

• The “PLUS” features for our commercial grade two stage air compressors include an automatic low oil monitor, automatic tank drain, and air-cooled aftercooler. These three features help to extend the life of your Atlas® air compressor while also delivering “better air”.


• Backed by a 1-year parts-only warranty
