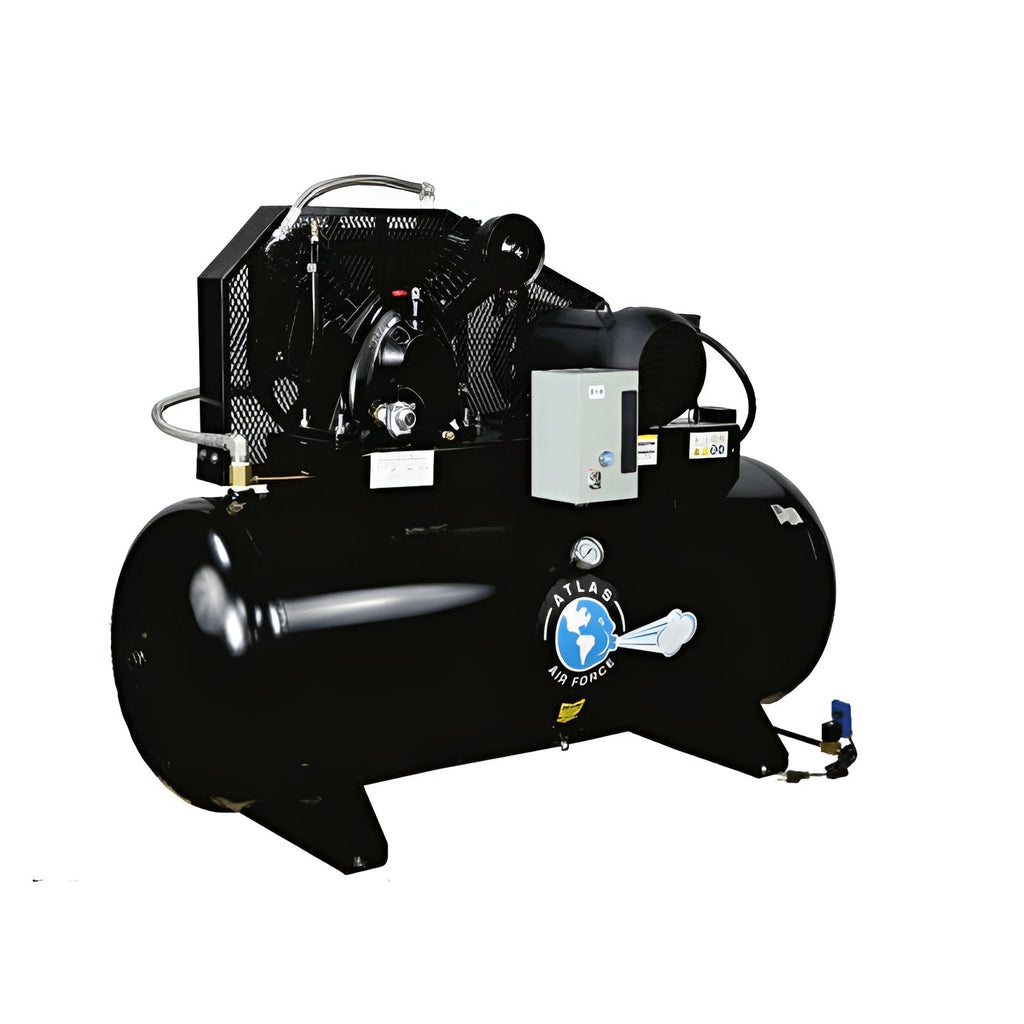

Atlas AF9P 7.5HP 120 Gallon Air Compressor w/ Plus Package SKU ATEMPAF9P-120H

This air compressor is built for durability and efficiency, featuring a two-stage, 2-cylinder pump that delivers high-output performance with minimal noise. It is equipped with advanced features like an automatic low oil monitor, automatic tank drain, and an air-cooled aftercooler to enhance longevity and prevent common wear and tear issues. The addition of a magnetic starter further boosts the unit's lifespan by controlling the electric input. With a rugged steel tank made in the USA and industrial-grade components, the Atlas AF9P ensures long-term, trouble-free operation, even in demanding work environments.

Ideal for auto repair shops, fleet maintenance operations, or any business requiring high-pressure compressed air, the Atlas AF9P provides exceptional performance and efficiency. The included "Plus Package" ensures additional protection and maintenance features, making it a smart investment for businesses focused on both reliability and productivity. With quiet operation and easy-to-use features, this compressor will seamlessly integrate into your workshop environment, delivering better air quality and performance every day.

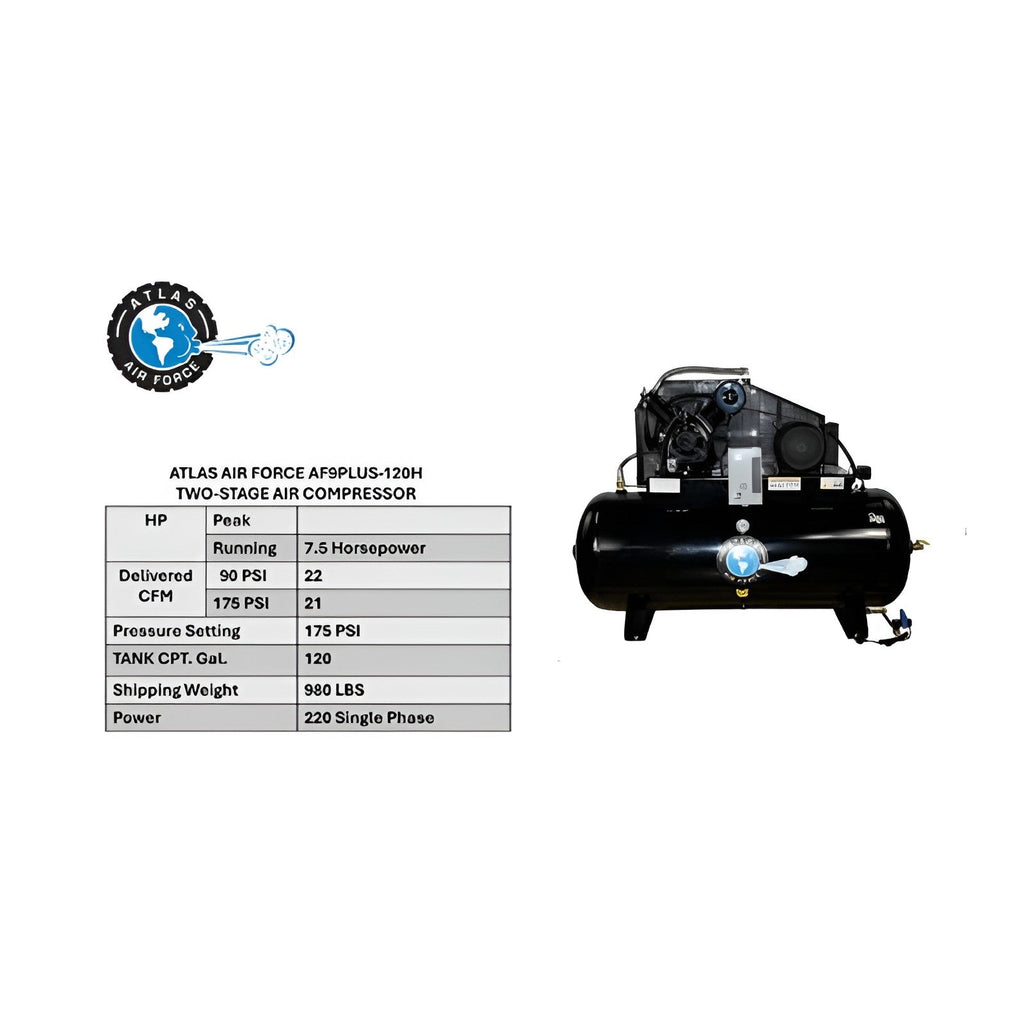

Air Compressor AF9P 120 Specifications:

• Motor Power: 7.5 HP

• Motor Speed: 1750 RPM

• Air Output: 145-175 PSI

• Tank Capacity: 120 Gallons (Vertical)

• CFM Delivered: 23 CFM at 90 PSI, 22 CFM at 175 PSI

• Pressure Setting: 145-175 PSI

• Air Outlet Size: 3/4" NPT

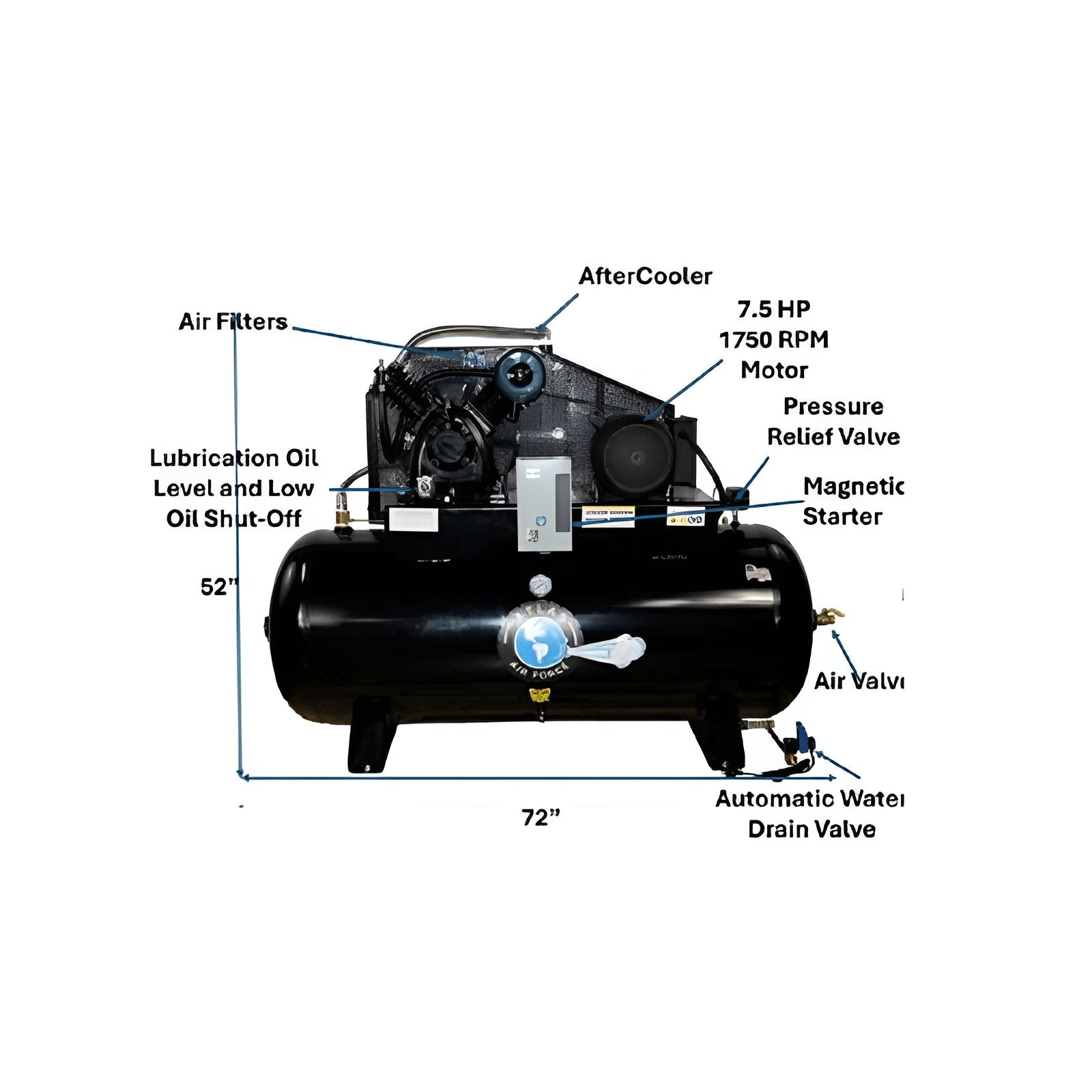

• Dimensions: L 72" x W 32" x H 52"

• Electrical Requirements: 220V, 1PH, 40 Amp Breaker, #8 Wire

• Compressor Pump: 2-Cylinder, 2-Stage

AF9P 120 Air Compressor Features:

• High-Performance: 7.5 HP motor and 120-gallon vertical tank for consistent and powerful air compression.

• Quiet Operation: Operates quietly to maintain a more pleasant work environment.

• Enhanced Longevity: Magnetic starter and automatic low oil monitor extend the lifespan of the compressor.

• Heavy Duty: Built with industrial-grade components, including a 2-cylinder, 2-stage pump for durability.

• Efficient Drainage: Includes automatic tank drain and oil drain extensions to minimize maintenance time.

• USA-Made Tank: 120-gallon steel tank manufactured in the USA for reliability.

• Versatile Applications: Ideal for large auto repair shops, fleet maintenance, and industrial applications.

• Plus Package Features: Includes automatic low oil monitor, air-cooled aftercooler, and automatic tank drain for optimal performance.

• Additional Features:

  • Automatic low oil monitor

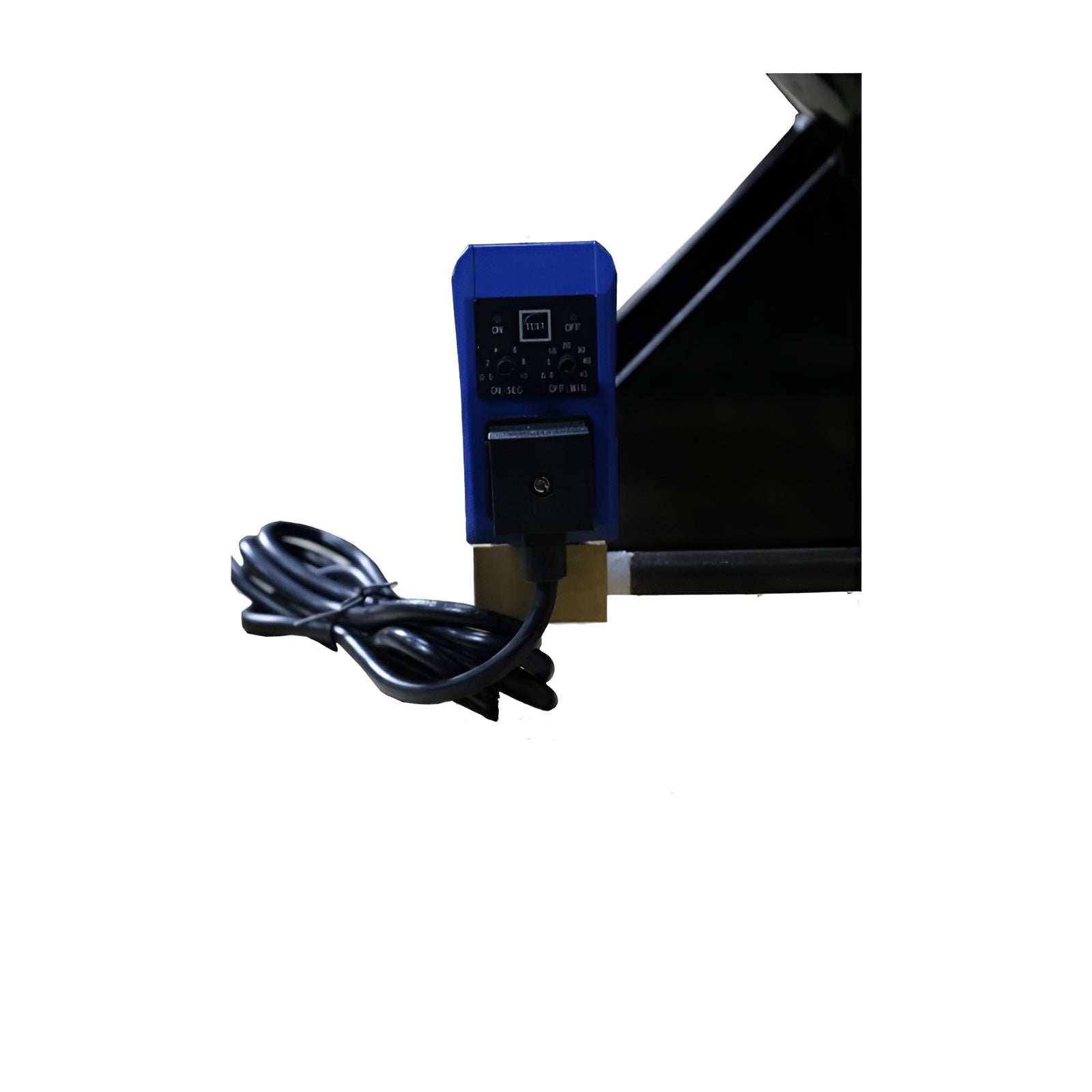

  • Automatic tank drain

  • Air-cooled aftercooler

  • Finned tank inlet tube for reduced water accumulation

  • Heavy-duty metal belt guard

  • Industrial-grade pressure switch (Hubbell) and Eaton starter

  • Includes Vibro-Isolation pads
