Description

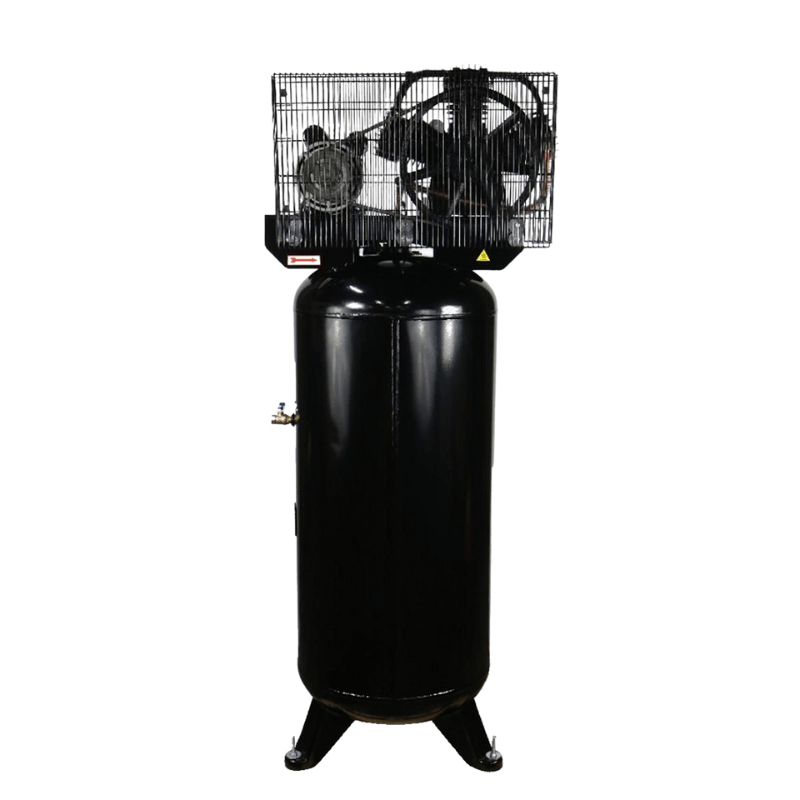

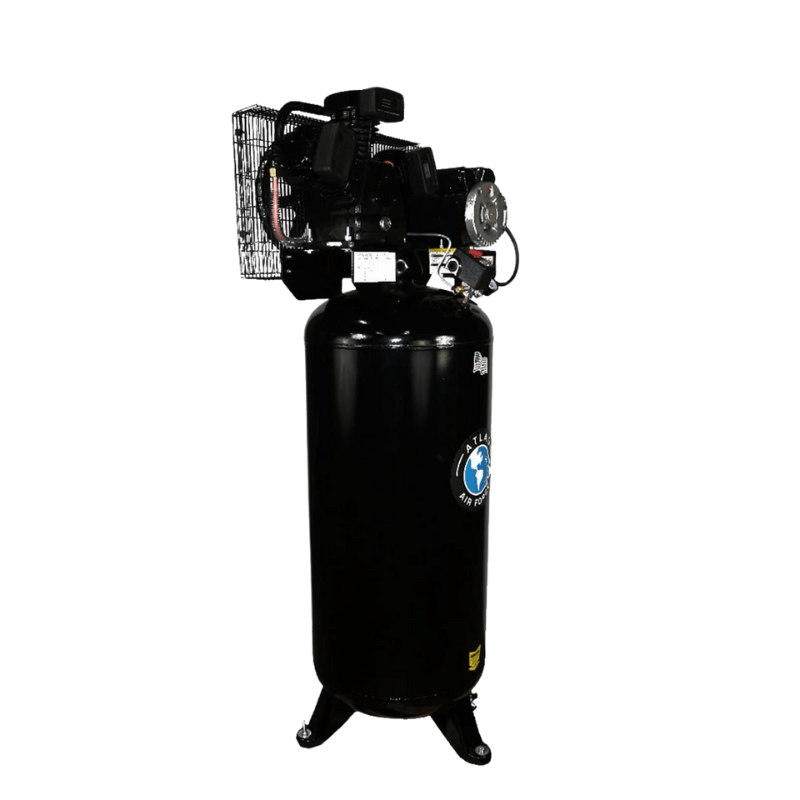

Atlas 5HP 60 Gallon Air Compressor SKU ATEMPAF5
Equipped with a 5-horsepower motor and a 3-cylinder, 1-stage pump, this unit is engineered for reliability and efficiency.
With 20.0 CFM at 40 PSI and 18.0 CFM at 90 PSI, it delivers excellent airflow for a wide variety of pneumatic tools, from grinders and sanders to paint sprayers and impact wrenches. The 60-gallon vertical tank, made in the USA, offers generous air storage while saving floor space in busy workshops or garages.

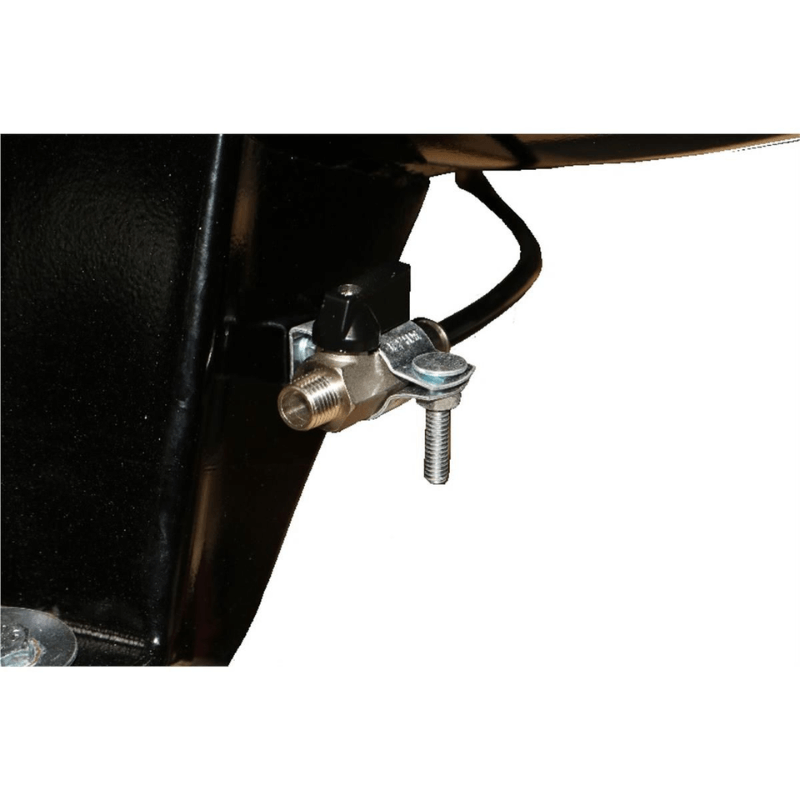

This model includes several premium features to enhance usability and longevity, such as vibro-isolation pads, a hands-free tank drain extension, and a finned tank inlet tube that helps reduce moisture accumulation inside the tank. The heavy-duty metal belt guard protects moving components while ensuring adequate ventilation.
Operating on 220V, single-phase power, the compressor requires a 30-amp breaker and No. 10 gauge wire for proper installation. If you're looking for dependable performance with thoughtful features that support long-term use and easy maintenance, the Atlas 5HP 60 Gallon model is an excellent choice for shops, garages, and contractors alike.

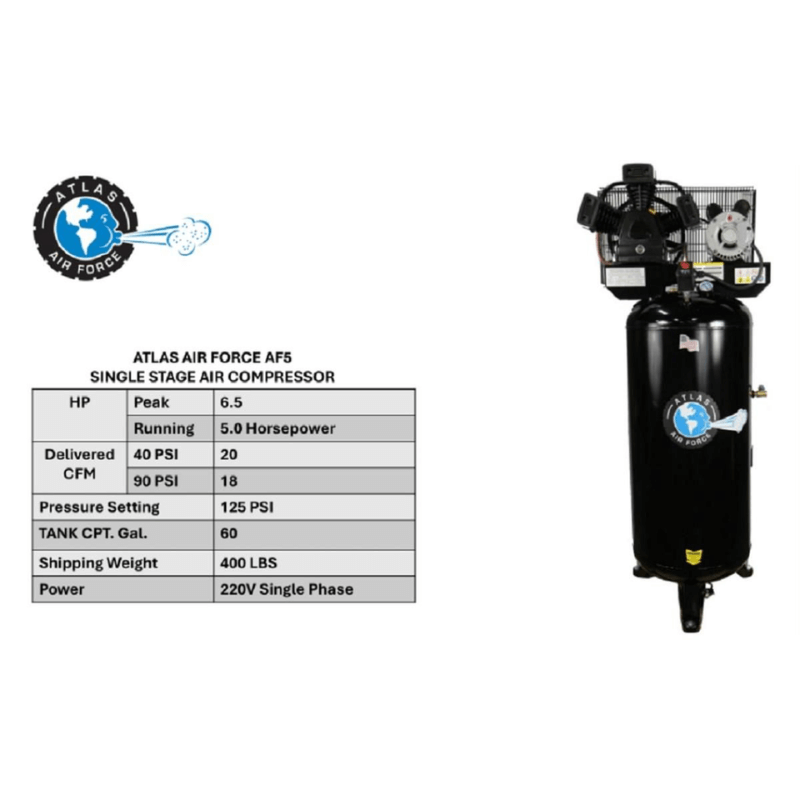

Air Compressor AF5 Specifications:
-
Motor Power: 5 Horsepower
-
Compressor Pump: 3-Cylinder, 1-Stage
-
Air Delivery @ 40 PSI: 20.0 CFM
-
Air Delivery @ 90 PSI: 18.0 CFM
-
Operating Pressure Range: 90–125 PSI
-
Tank Capacity: 60 Gallons (Vertical, USA-made)
-
Air Outlet Size: 1/2" NPT (Ball Valve Included)
-
Voltage Requirements: 220V, 1 Phase, 30 Amp Breaker, No. 10 Wire Required
-
Overall Dimensions: 28" L x 18" W x 68" H
-
Shipping Weight: 400 lbs.
AF5 Air Compressor Features:
-
Compact and portable design with oversized wheels for easy mobility
-
1.8 HP motor (2 HP peak) operates on standard 110V electric power
-
20-gallon vertical tank saves space and provides sufficient air storage
-
Delivers 6.0 CFM @ 90 PSI and 7.8 CFM @ 40 PSI for a wide range of tools
-
Quick coupler included for fast, convenient tool changes
-
Heavy-duty metal belt guard for enhanced safety and durability
-
Belt-driven 1-stage pump offers smooth and quiet operation
-
Ideal for homeowners, DIYers, and small workshop environments
-
Built with Atlas’s professional-grade construction standards
-
Backed by a 1-year parts-only warranty for peace of mind
