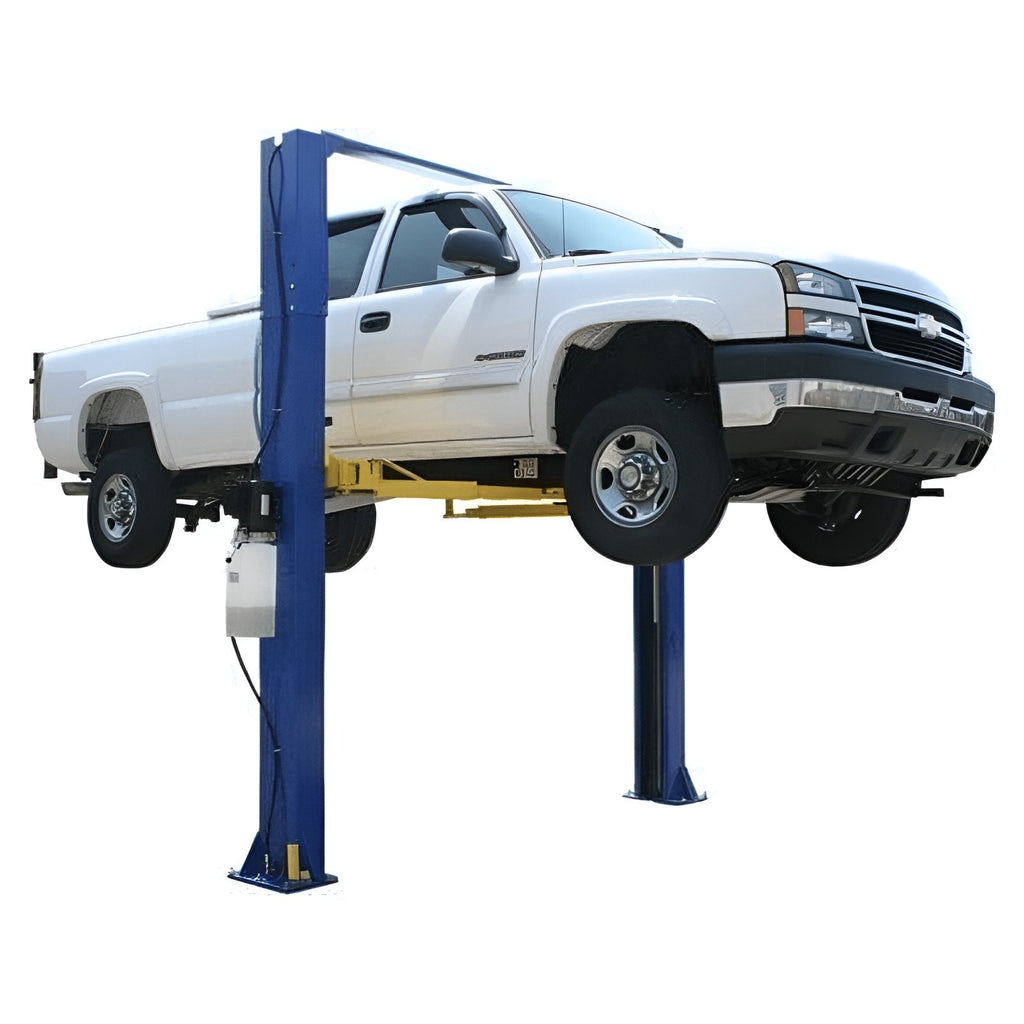

Atlas 9,000 lb 2 Post Lift SKU ATEXH-9KOHX
The Atlas® 9KOHX is here to break you out of lift limbo and into a world of possibilities. This lift is a marvel with a 9,000-pound lifting capacity that adapts to your garage and your fleet.
With its adjustable height and configurable arms, it's like having multiple lifts in one. Its symmetric-to-asymmetric flexibility means you can cradle a lowered sports car one day and hoist a hefty pickup the next. The spring-loaded Secondary Lock System (SLS) is standing by 24/7, ready to catch any slack faster than you can blink. Don't let inflexible lifts hold you back - with the Atlas® 9KOHX, you're not just lifting vehicles; you're entering a realm of productivity you have only daydreamed of before.
Atlas 9KOHX Specifications:
- Capacity 9,000 LB.

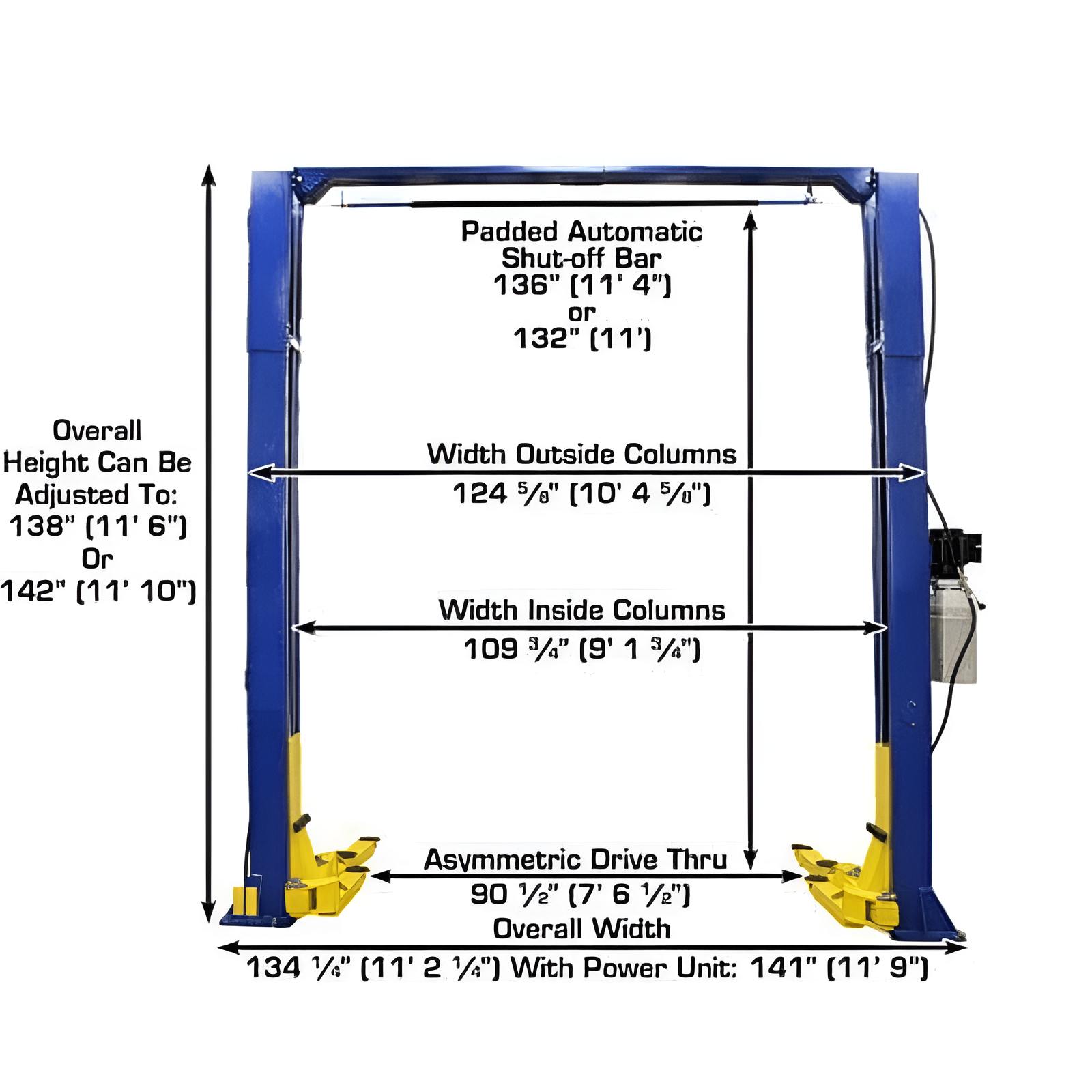

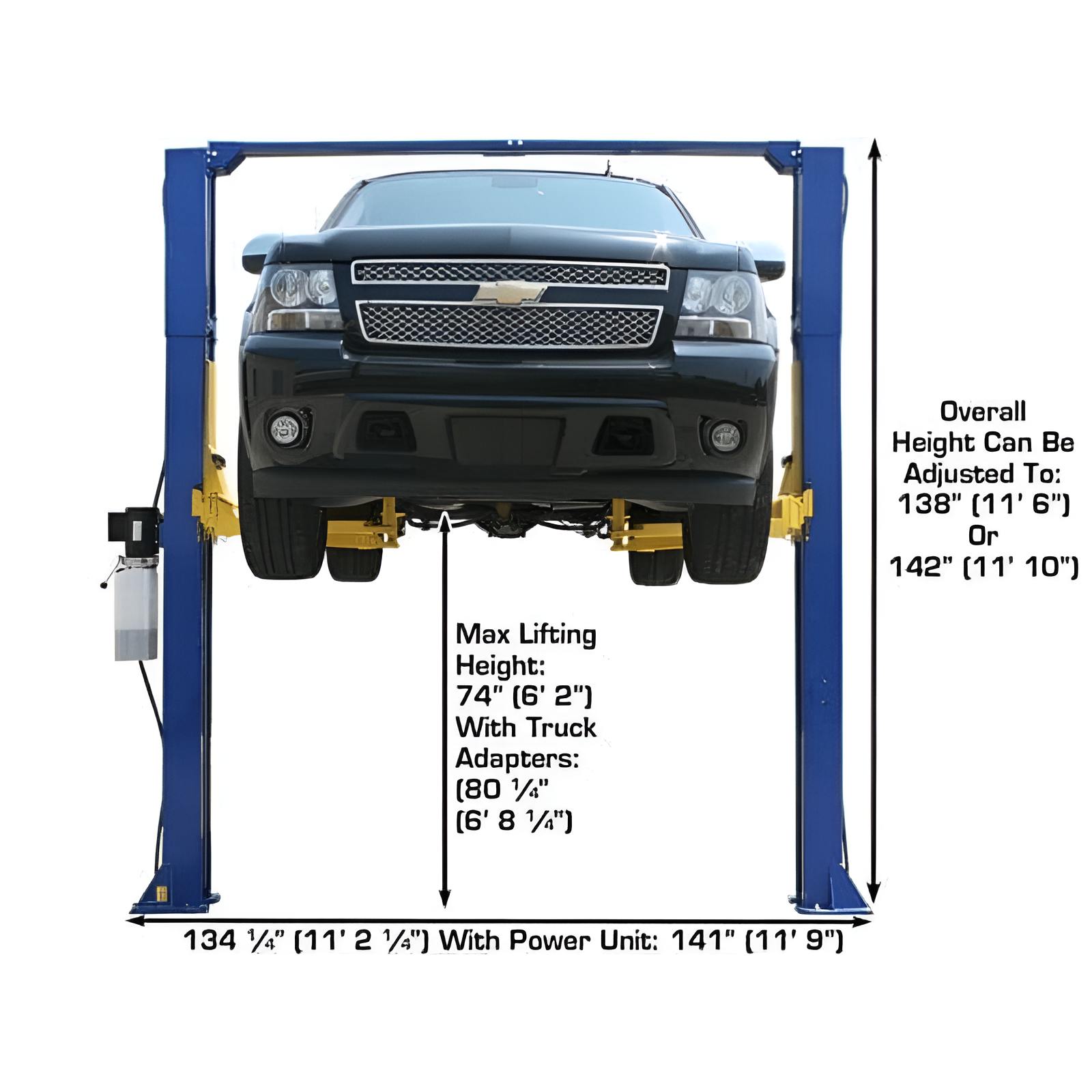

- Overall Height 138" (11’ 6") or 142” (11’ 10”)
- Overall Floor Width 134 1/2" (11’ 2 1/2")
- Outside Column to Outside Column 124 7/8" (10’ 4 7/8")

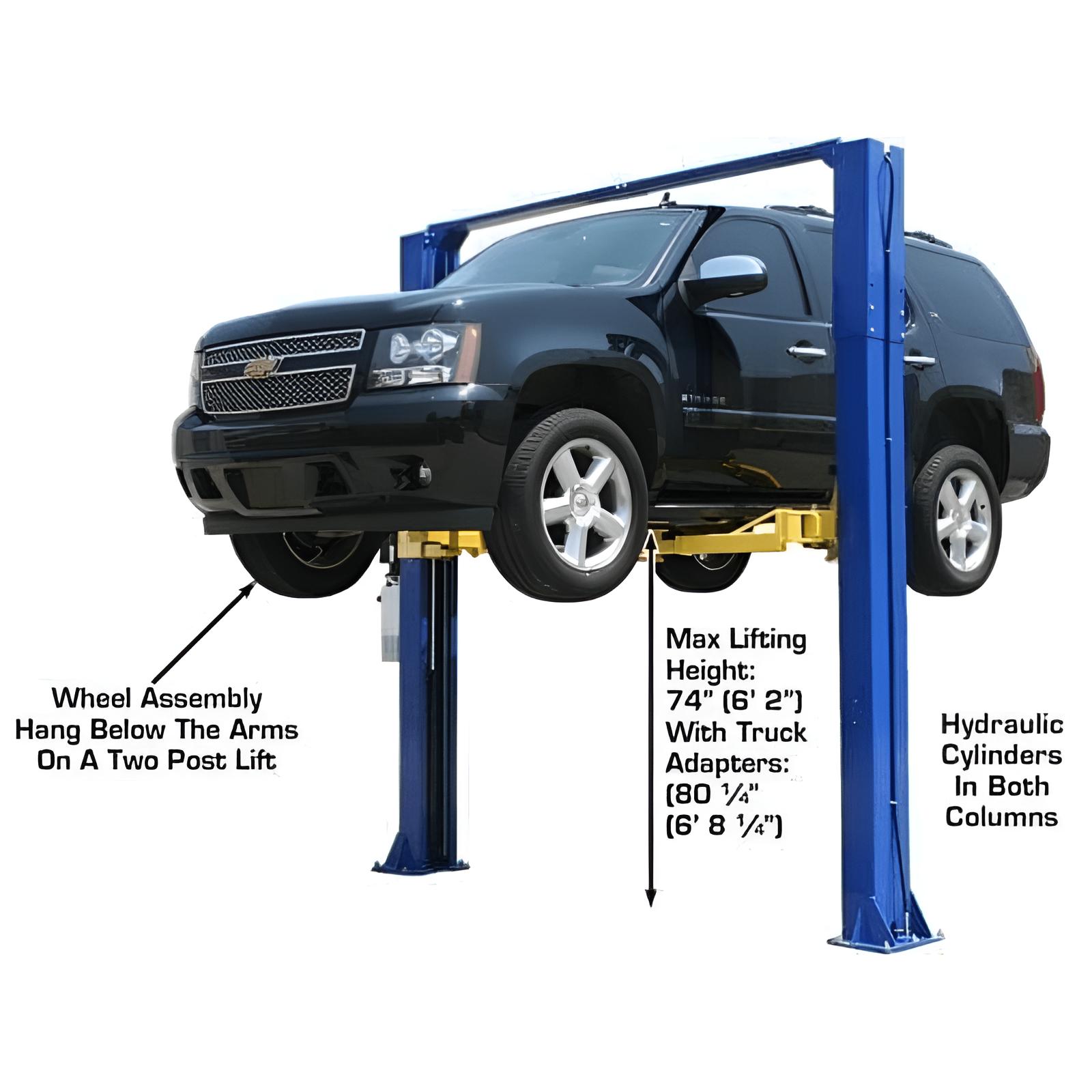

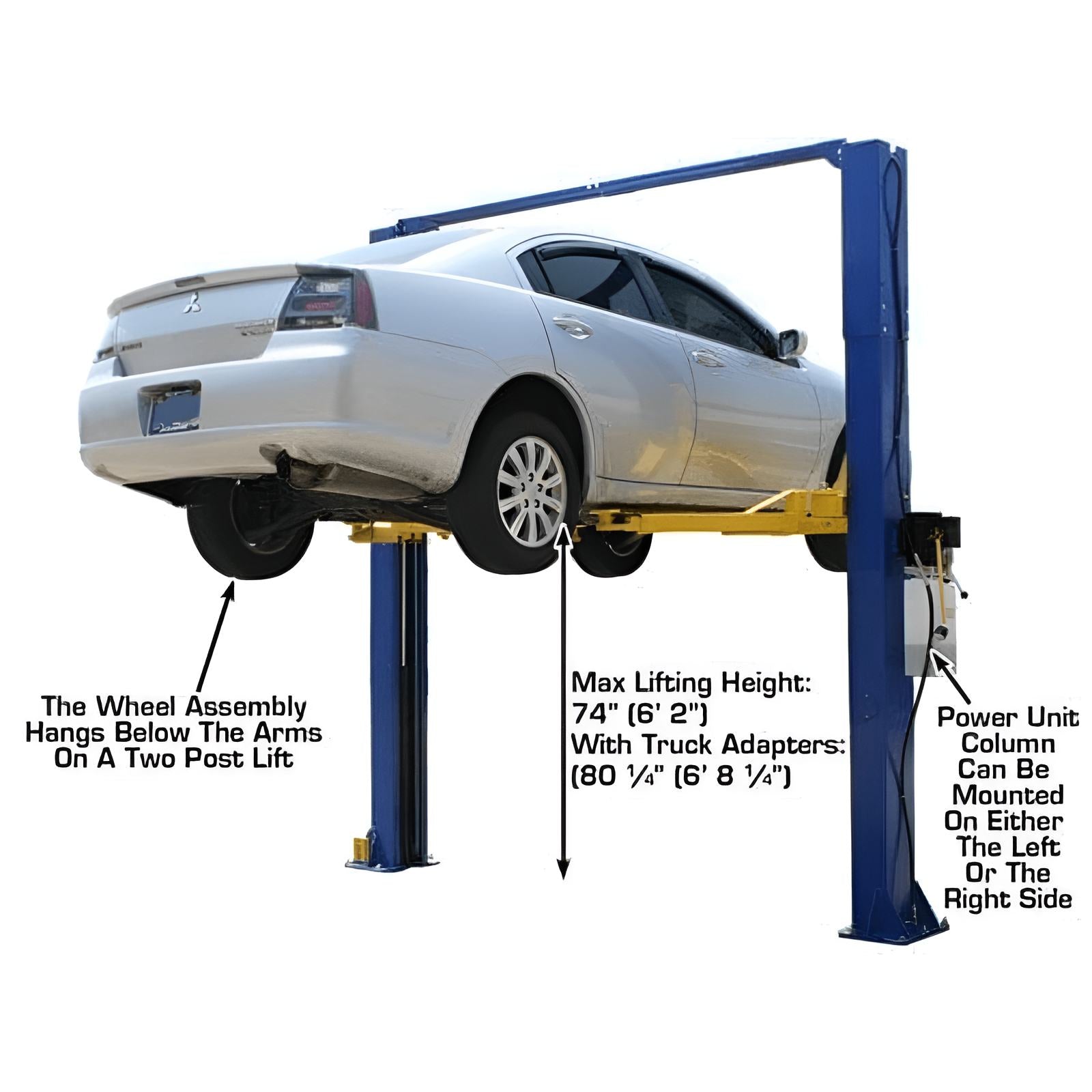

- Maximum Lift Height (Without Adapters) 74 1/2"
- Maximum Lift Height (With Adapters) 81"
- Minimum Arm Height 4"
- Inside Column 110” (9’ 2”)

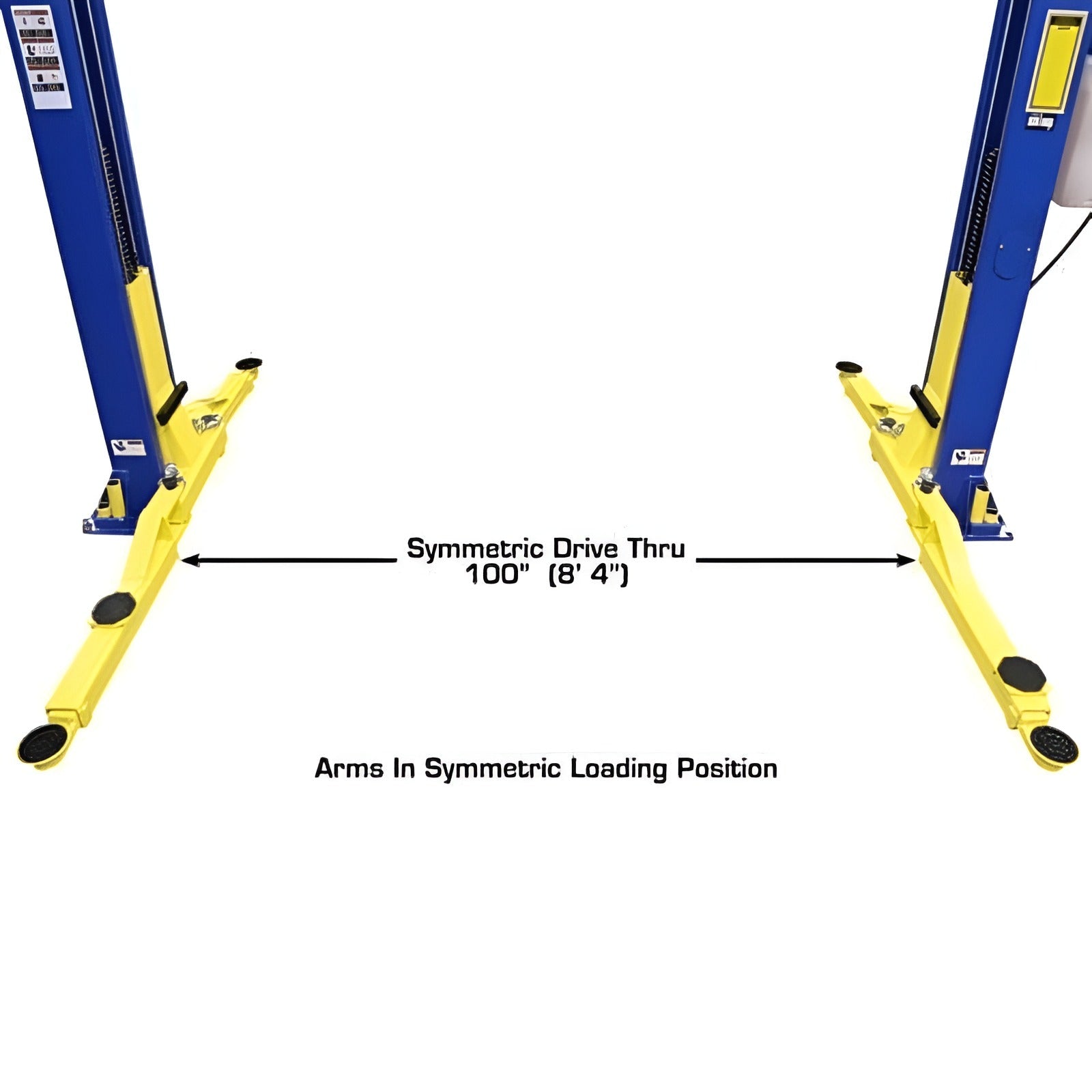

- Drive Thru 100” (8’ 4”) Symmetric/ 90 1/2" (7’ 6 1/2”) Asymmetric

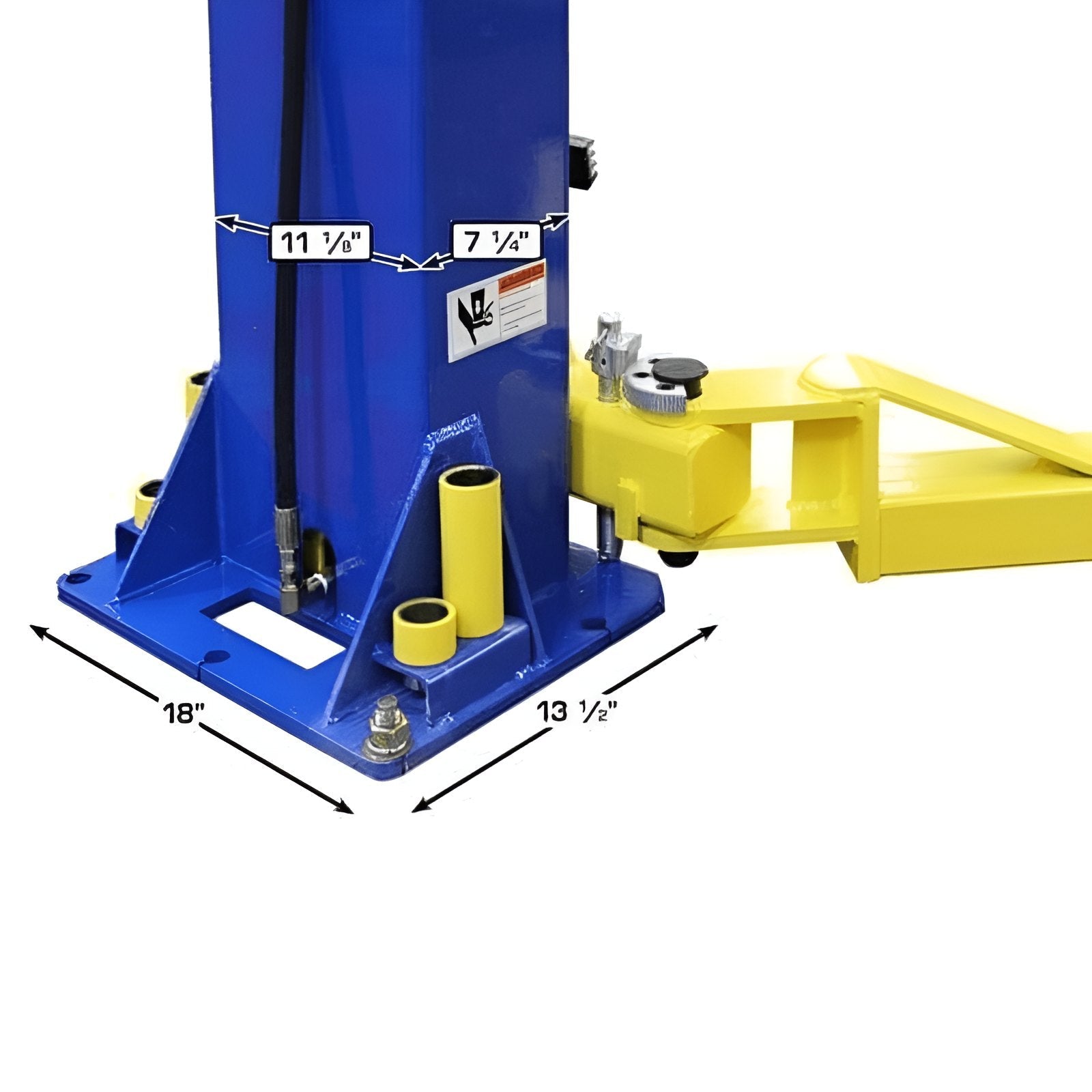

- Column Size 7 1/4" x 11"
- Column Thickness of Steel 5mm
- Base Of Lift 14 1/4" x 18"

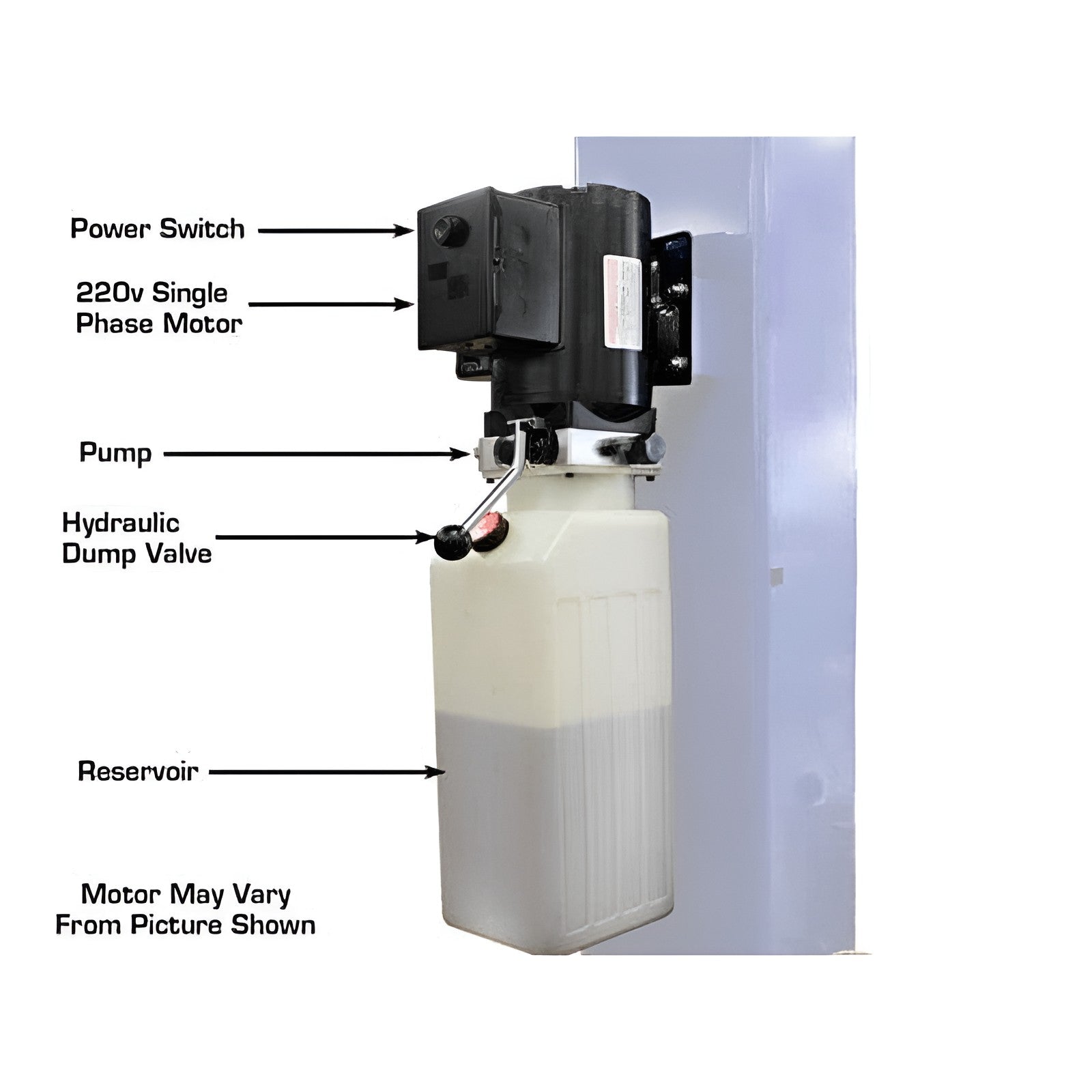

- Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 1,450 LBS.

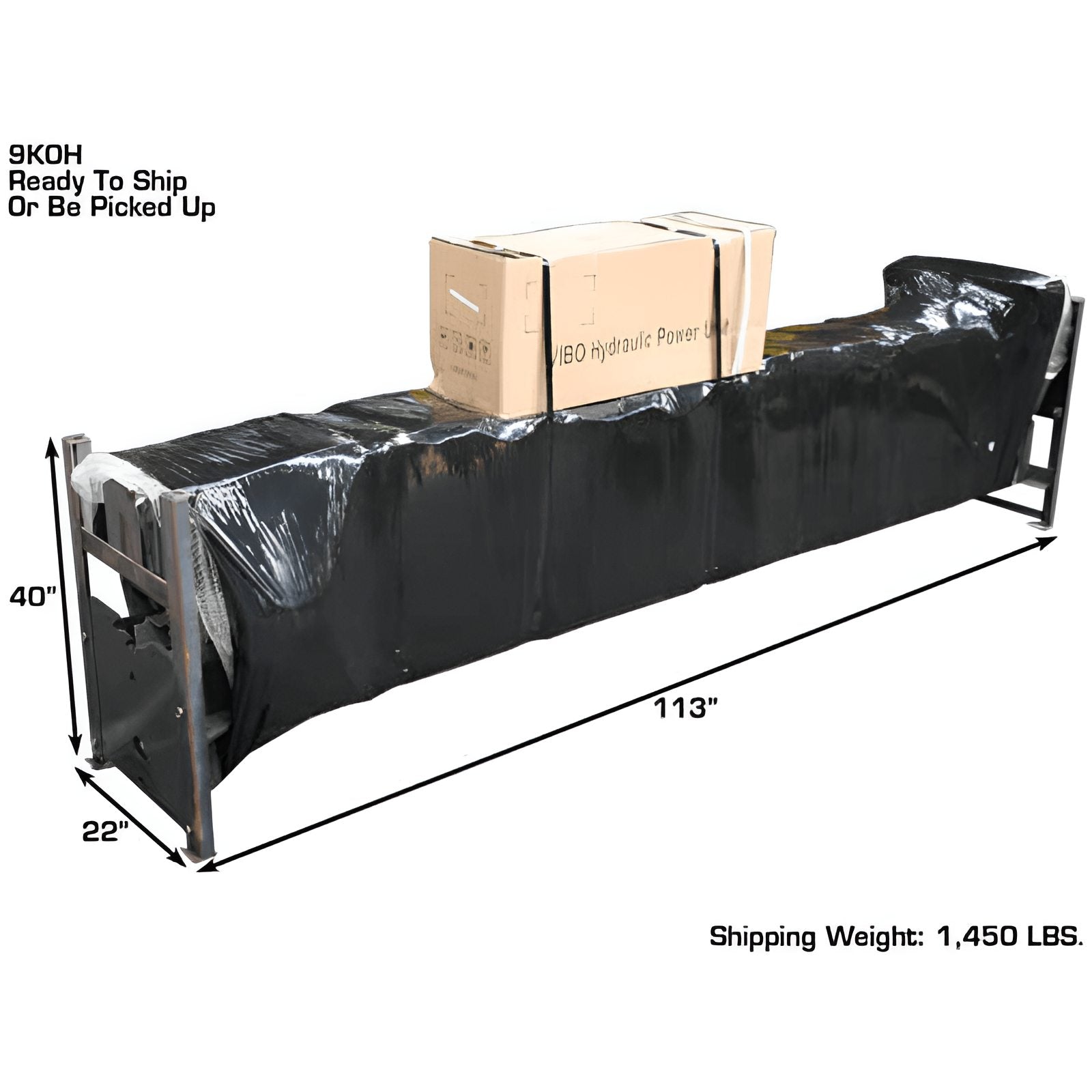

- Pallet Size: 113" Long x 40" Tall x 22" Wide + Box strapped to top of pallet

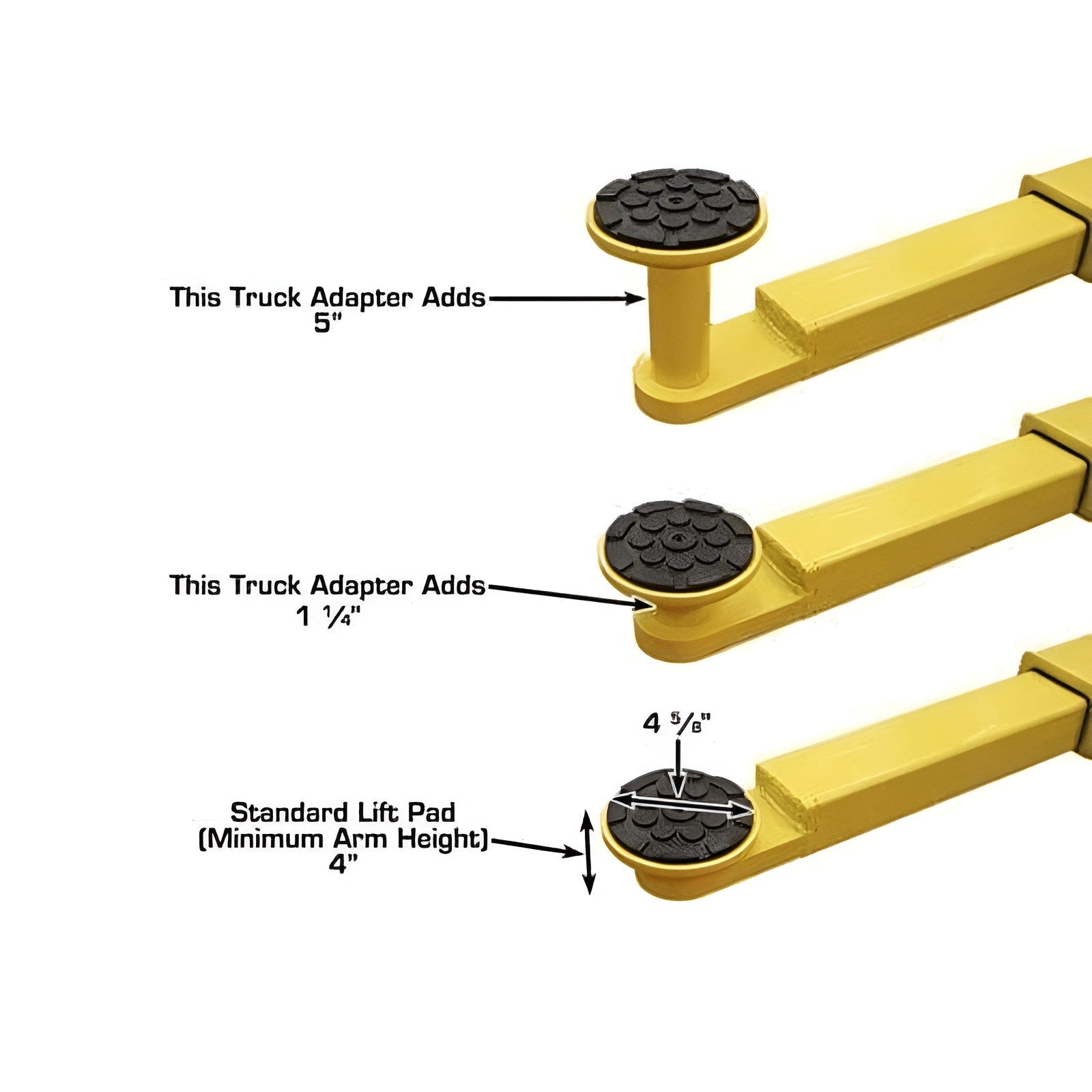

- Adapter Heights 4 Each 1.5”, 5”
- Arm Hole/Adapter Peg Size 1.5”
- Requires a minimum of 4" of concrete with a 3000 psi. rating
9KOHX 9,000 lb 2 Post Lift Special Features:
- Overhead, Open Floor Design

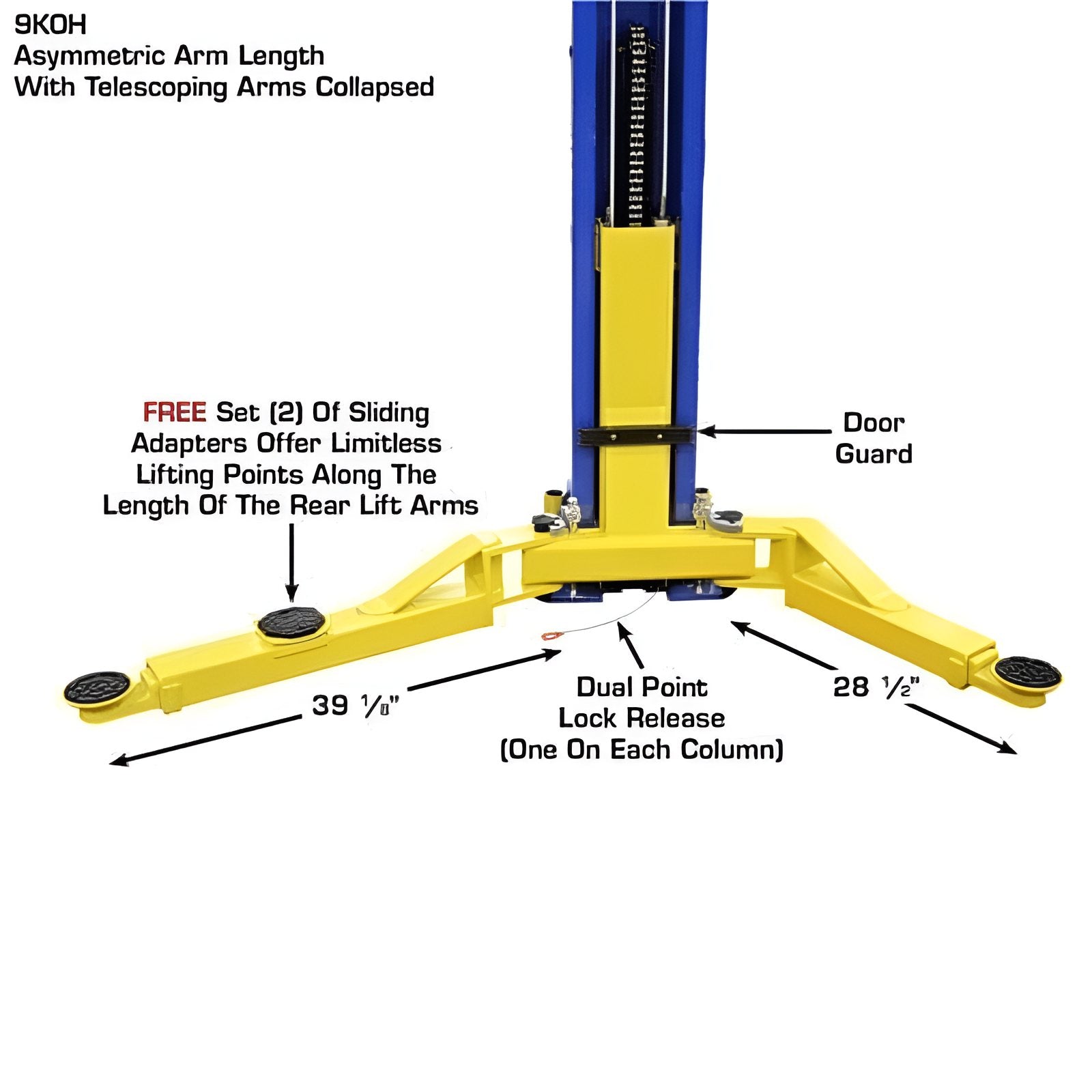

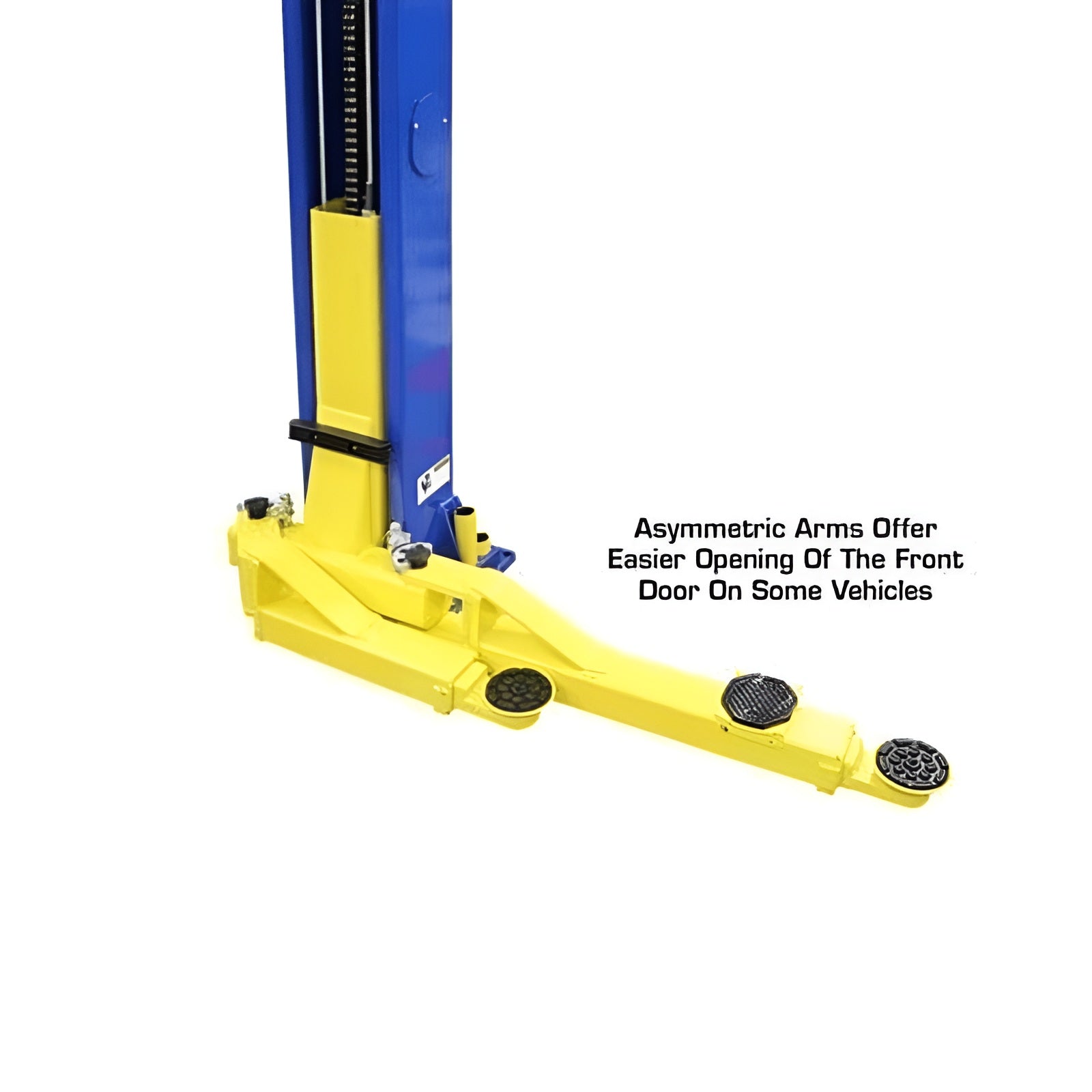

- Asymmetric & Symmetric Arms

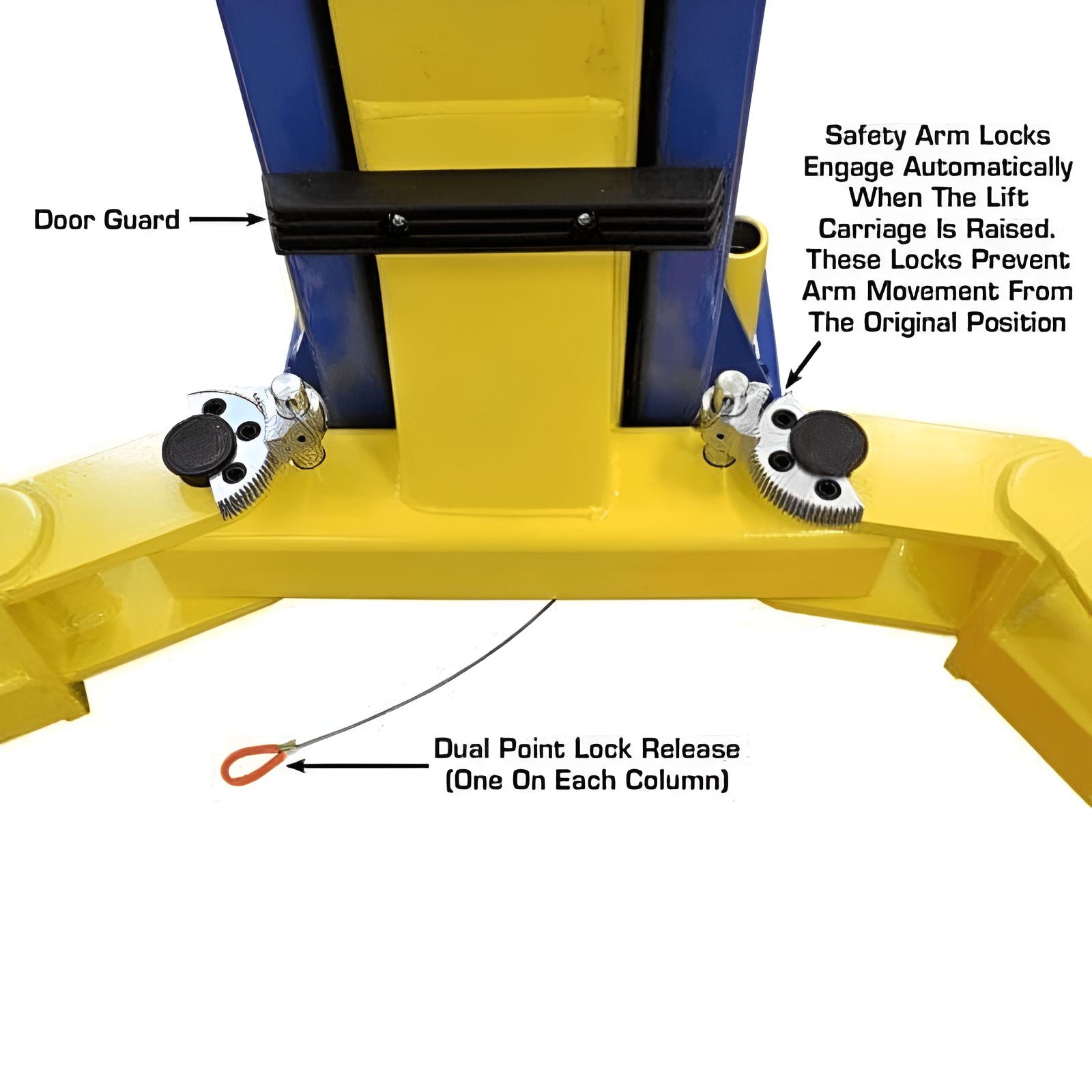

- Automatic Arm Restraints
- Lock Release: Dual Point
- Rubber Guards on the Carriage

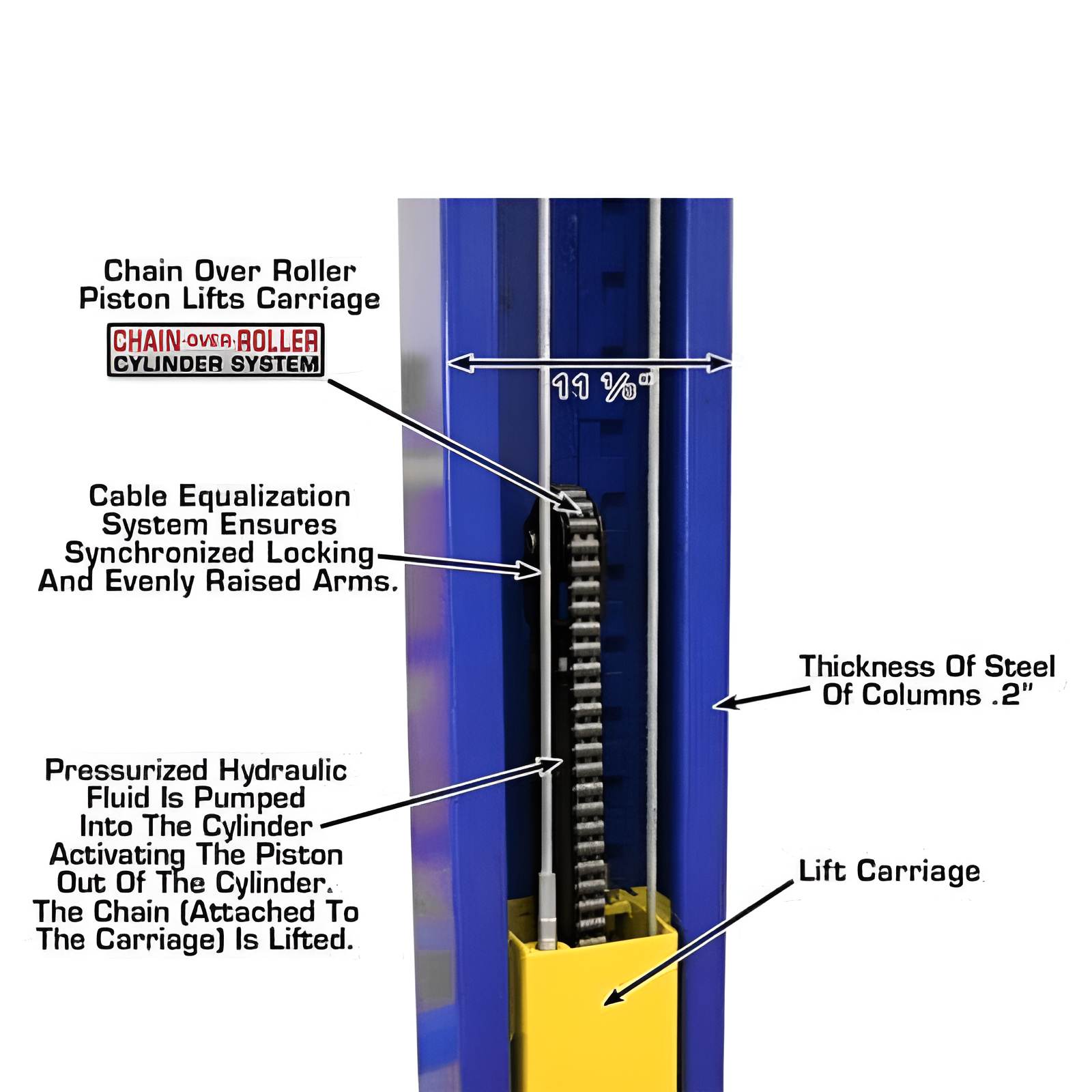

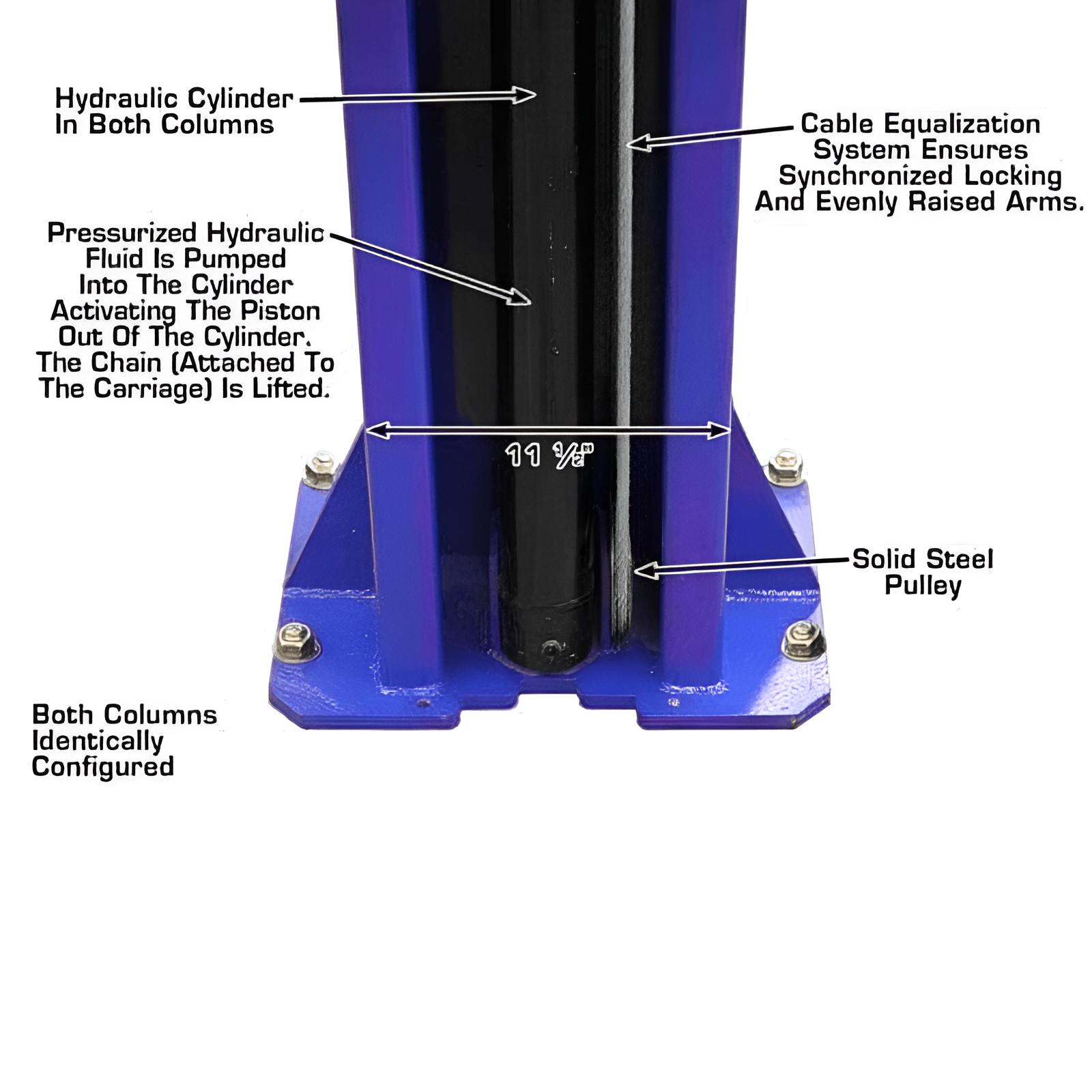

- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System
- Warranty: 2 year Structural; 1 year Hydraulic ‐ Parts Only
- Unit Includes:

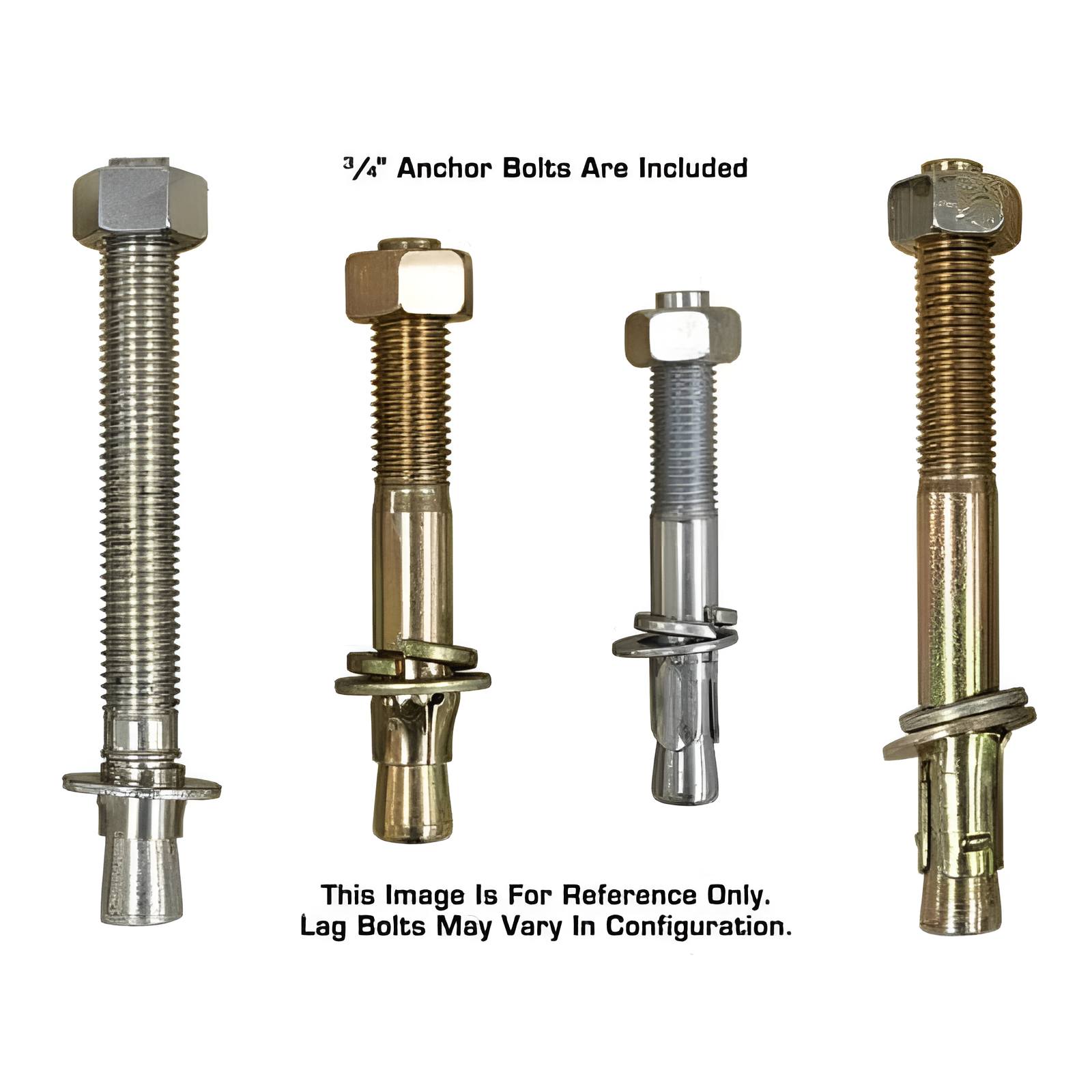

- Mounting Hardware

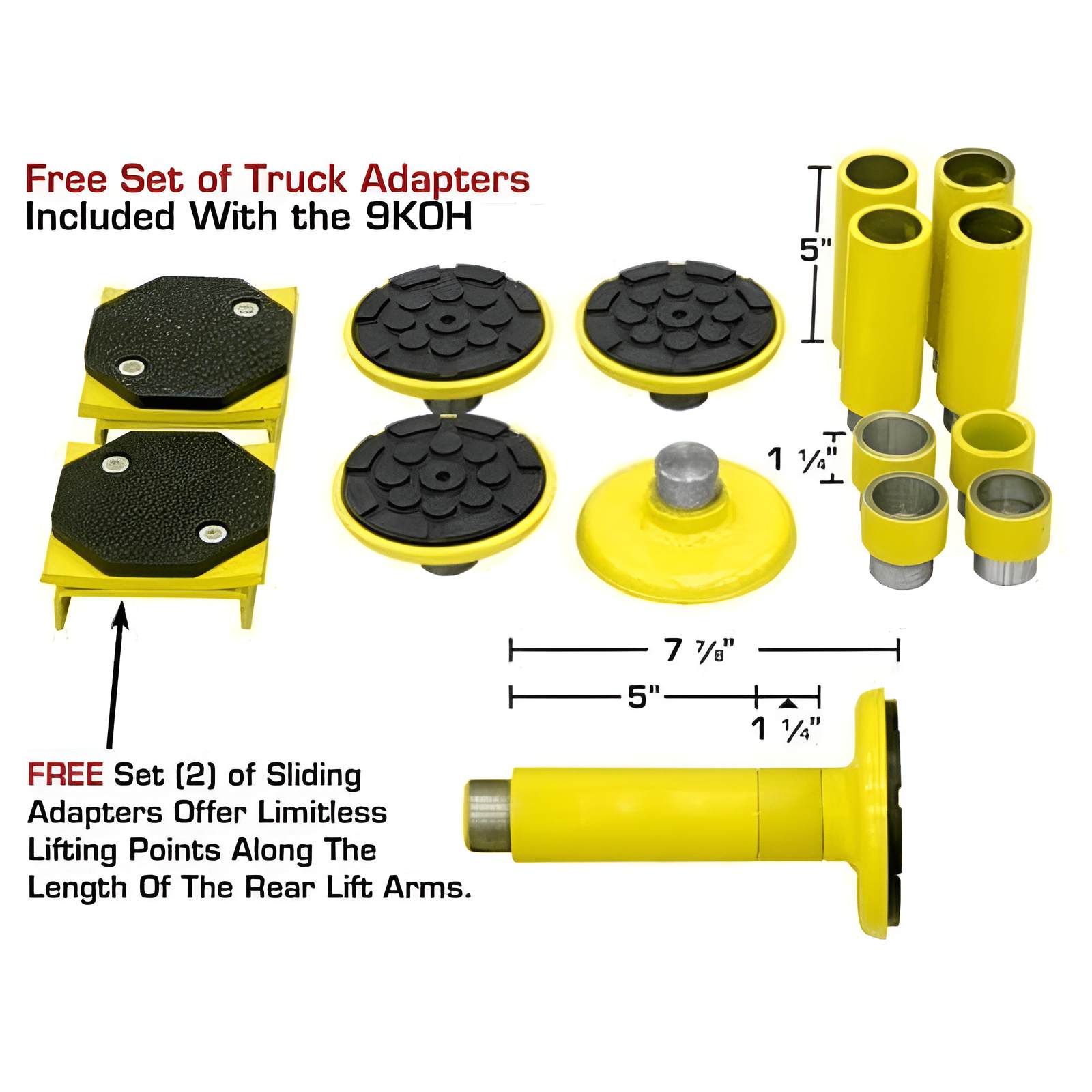

- 8-piece Truck Adapter Set
- Sliding Arm Adapters
Atlas 9KOH Manual:
