Description

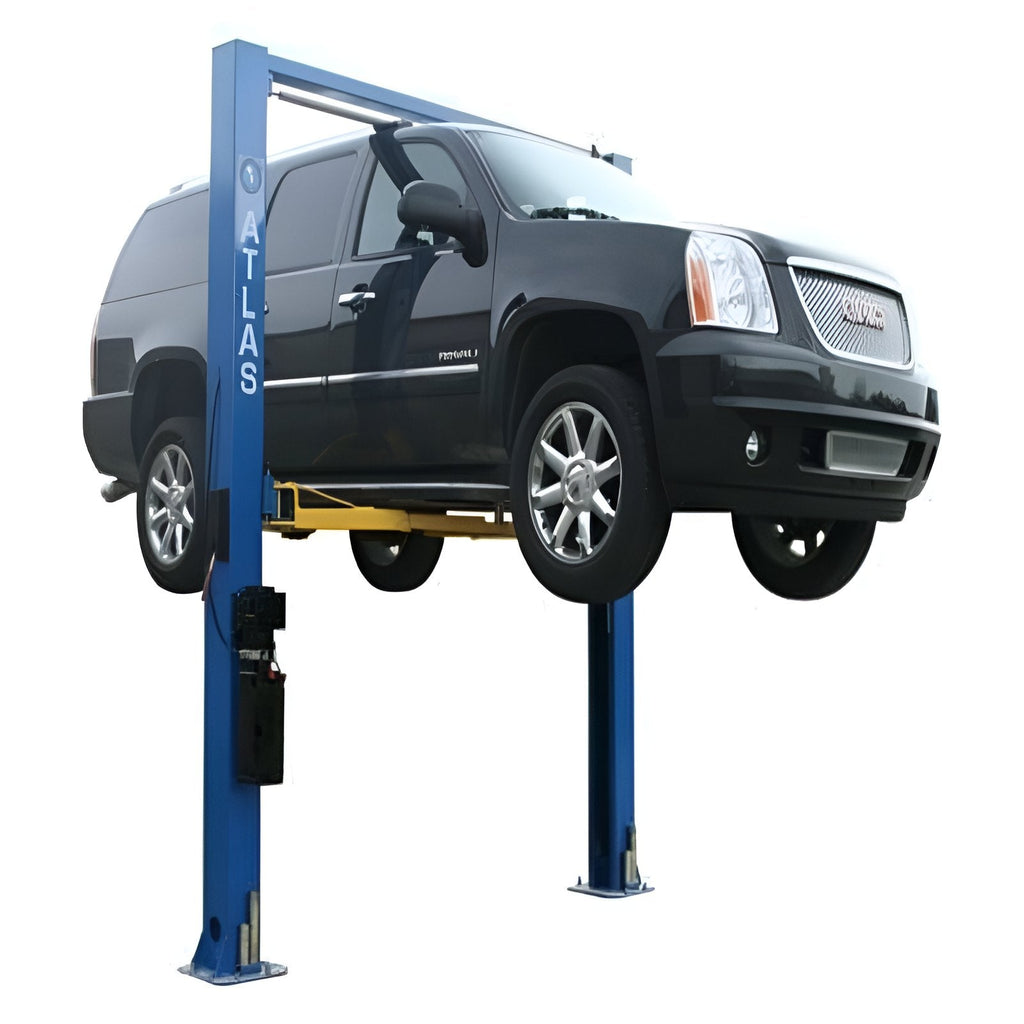

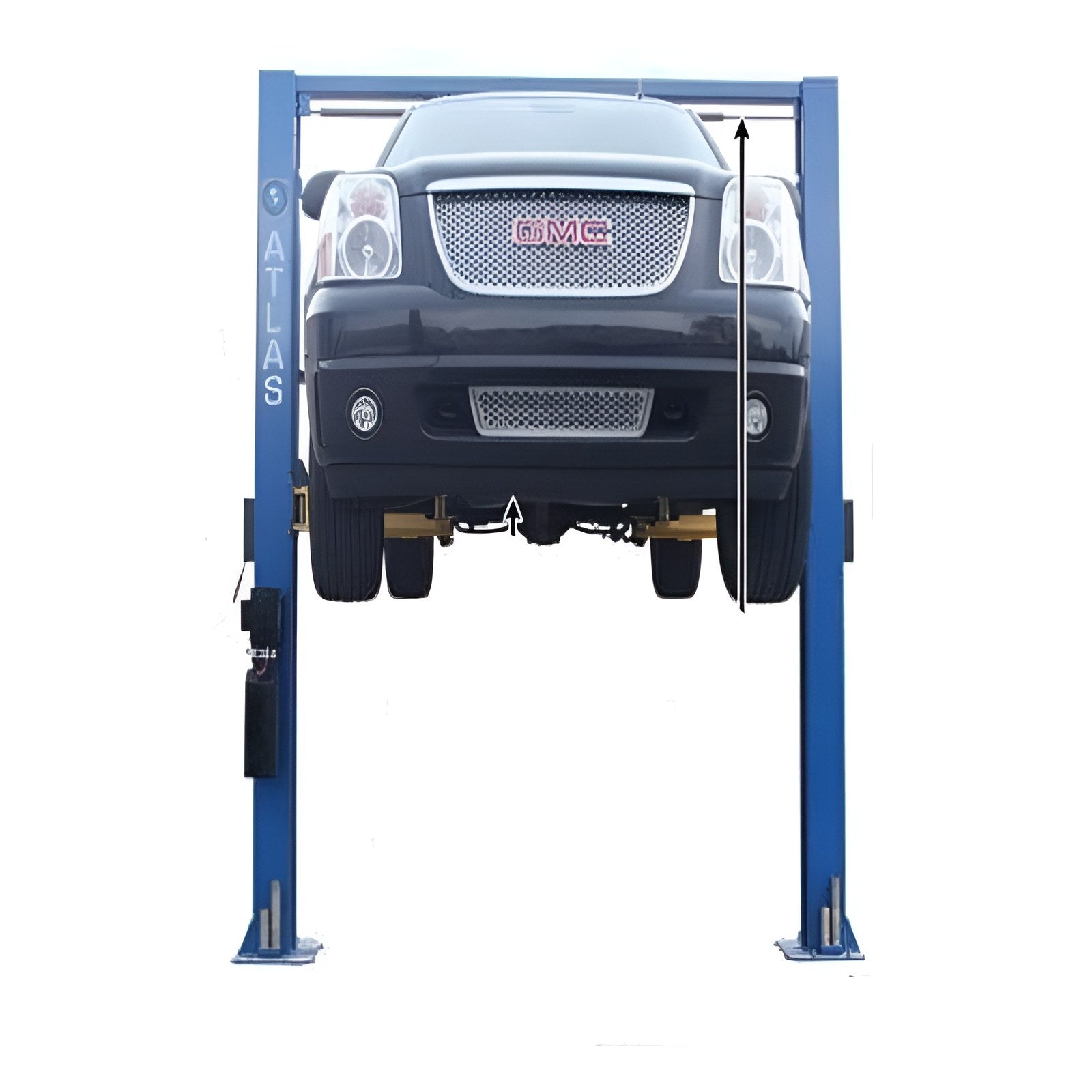

Atlas 9,000 lb 2 Post Lift SKU ATEATTD-9OHSC-SS
The Atlas® 9OHSC two-post lift is the answer to your wishes. With a hefty 9,000 lb capacity, it can handle anything you put on it. Its single-piece columns and extra-long carriages are built to last, giving you peace of mind while you work. Plus, with a generous 100.5” drive-thru, you can easily maneuver any car into position.
The 9OHSC stands tall at 11’10”, and it features a 133.5” floor width. It features a max lift height of 76 3/4". Now imagine the relief of working on a car at a comfortable height, without sacrificing safety or strength. You’ll be wondering how you ever lived without this.
9OHSC SS Specifications:
- Capacity: 9,000 LB.

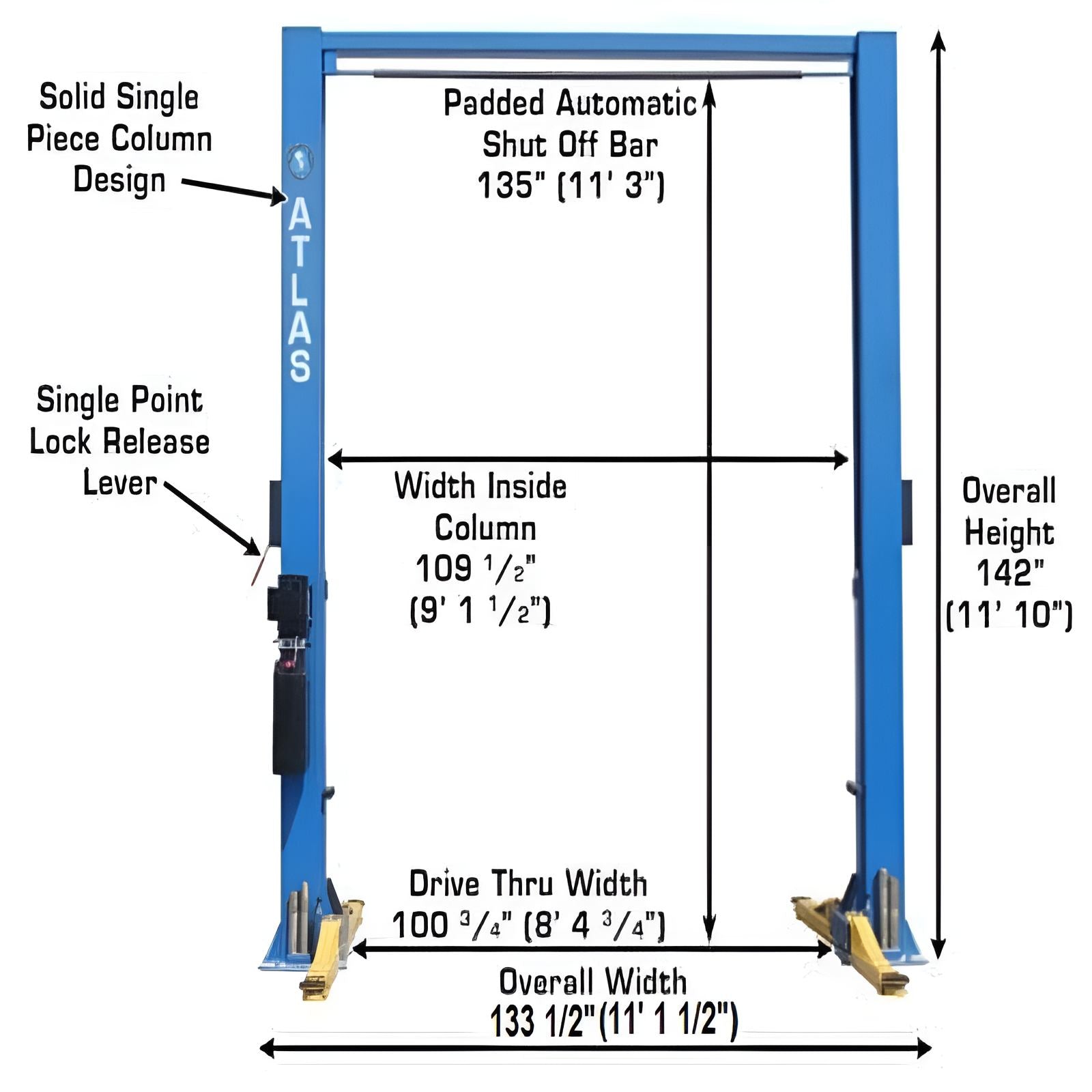

- Overall Height 142" (11' 10")
- Overall Floor Width133 1/2" (11' 1 1/2")

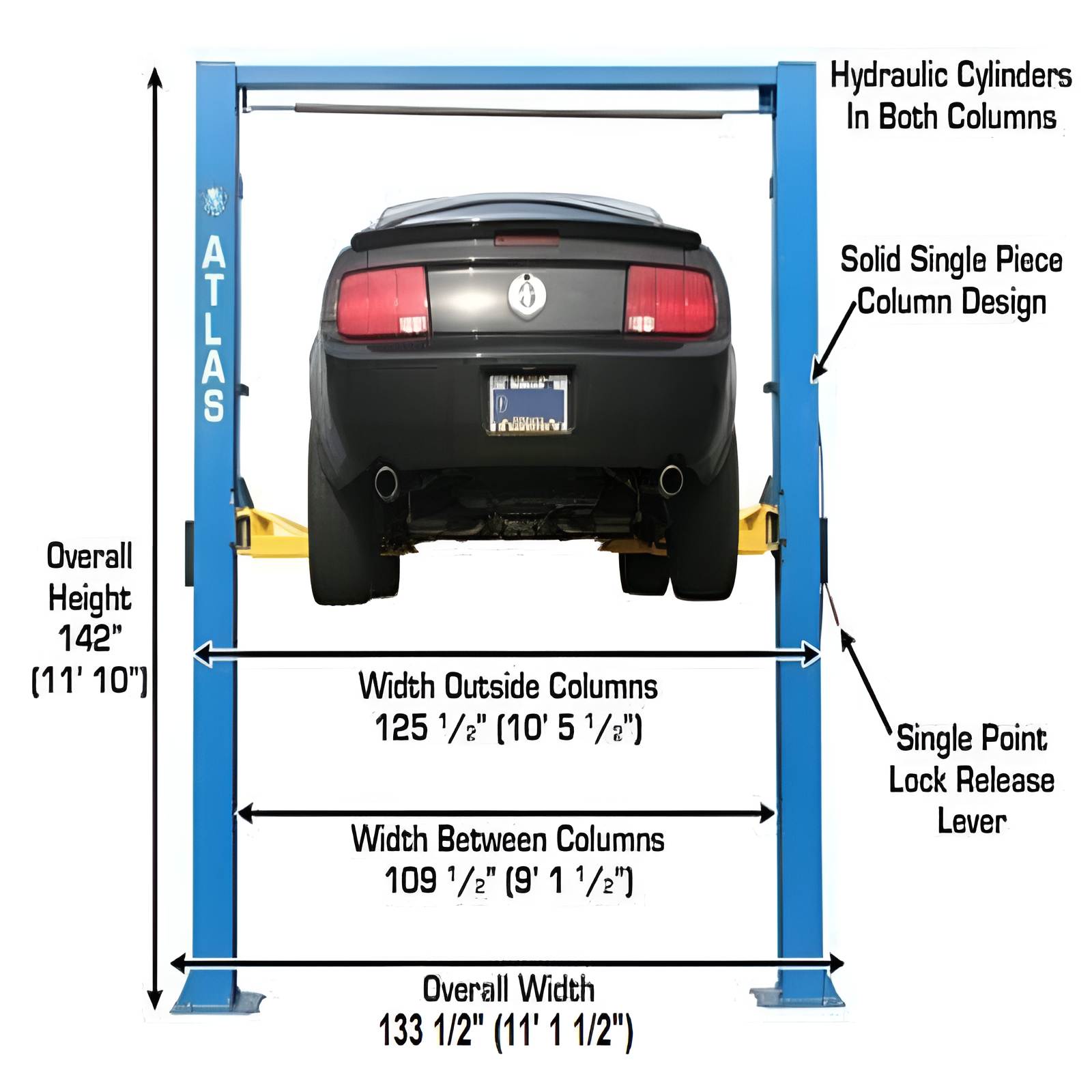

- Outside Column to Outside Column 125 1/2" (10' 5 1/2")

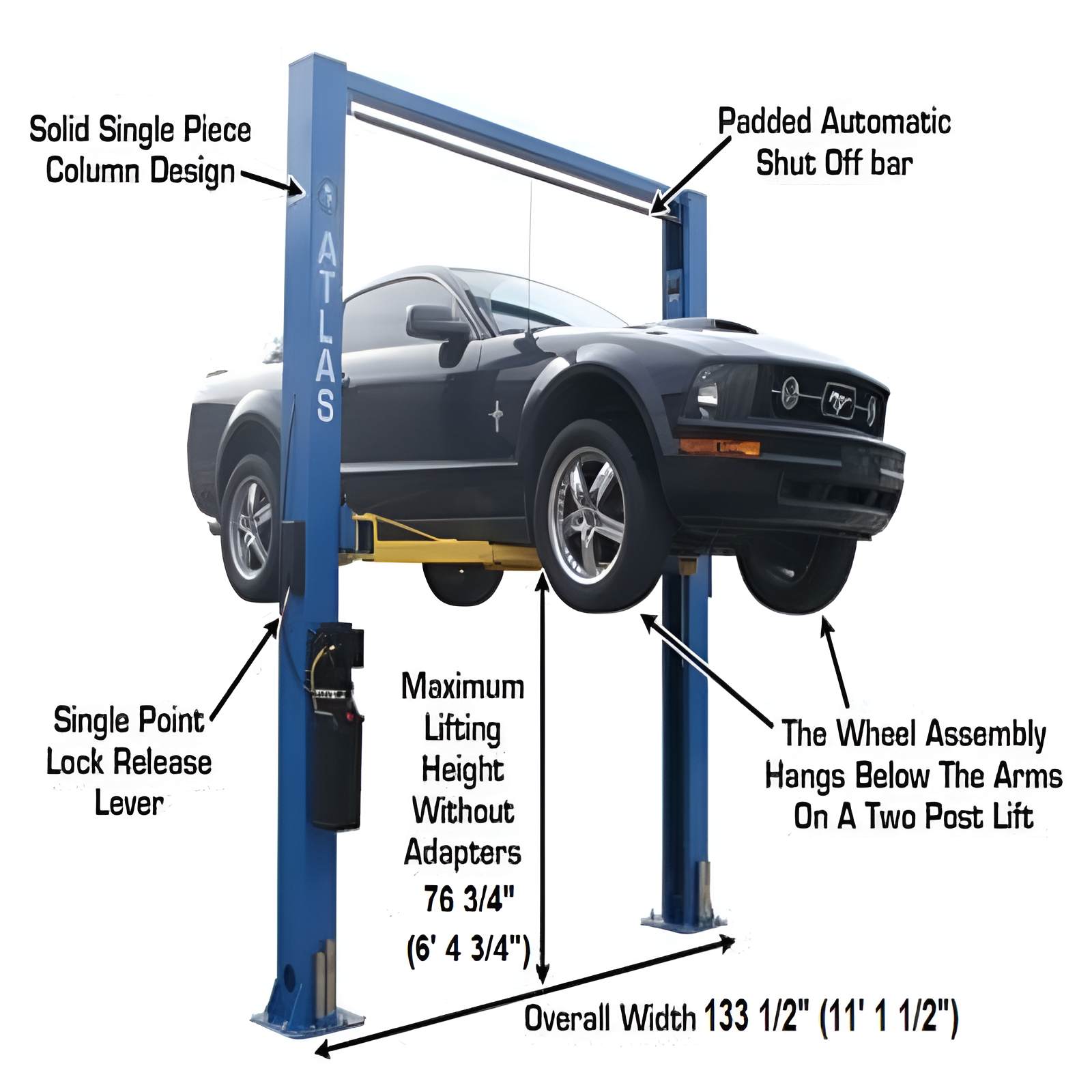

- Maximum Lift Height (Without Adapters) 76 3/4"

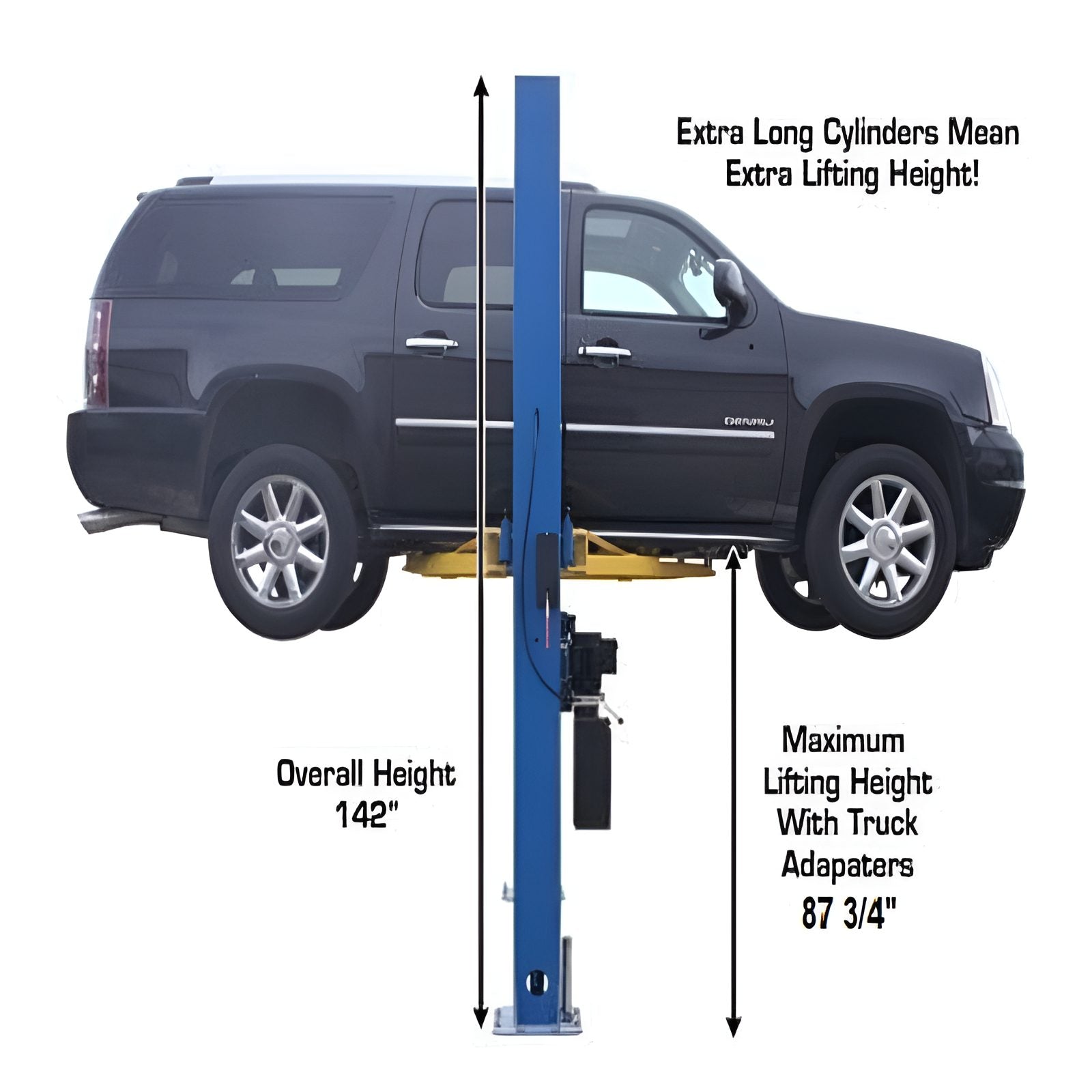

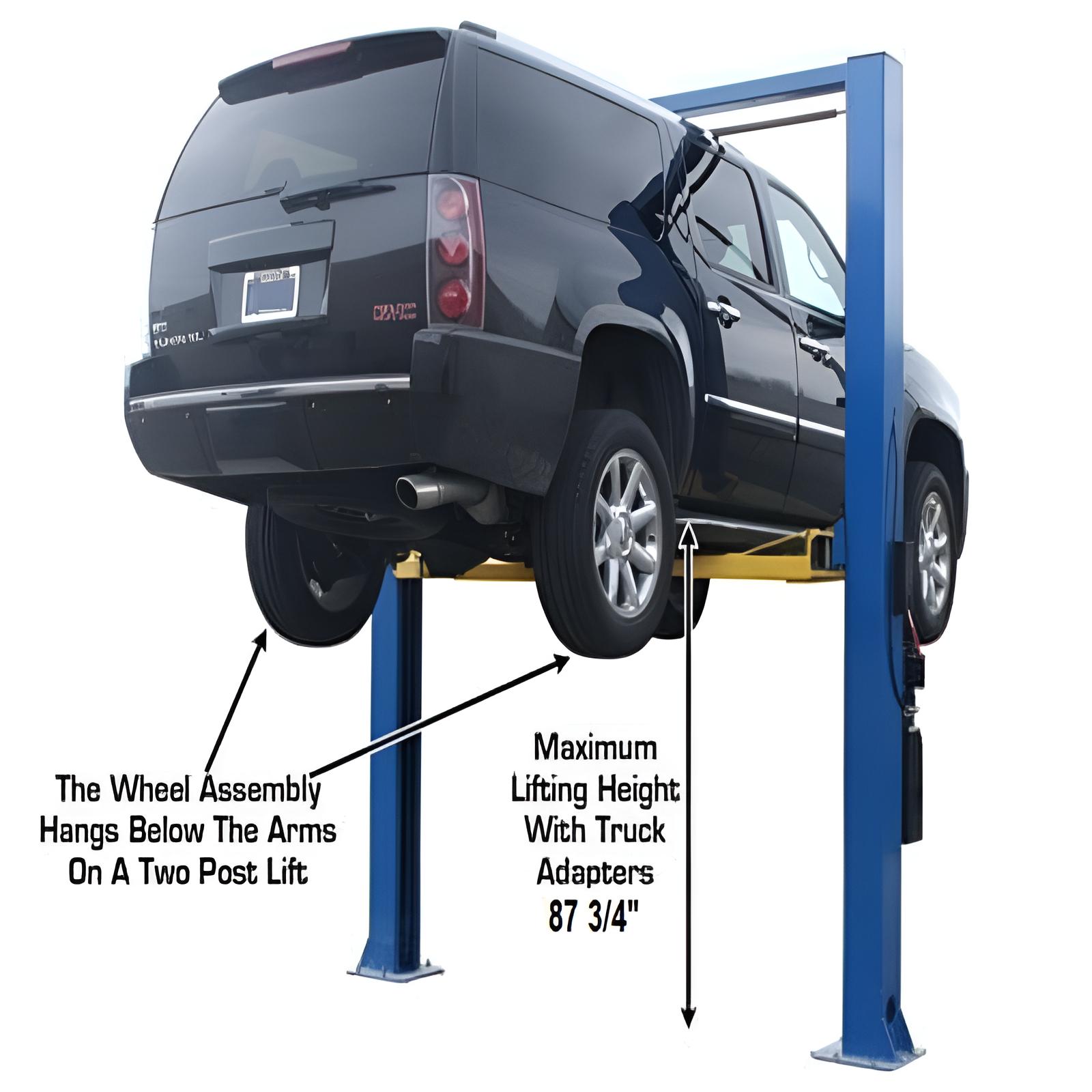

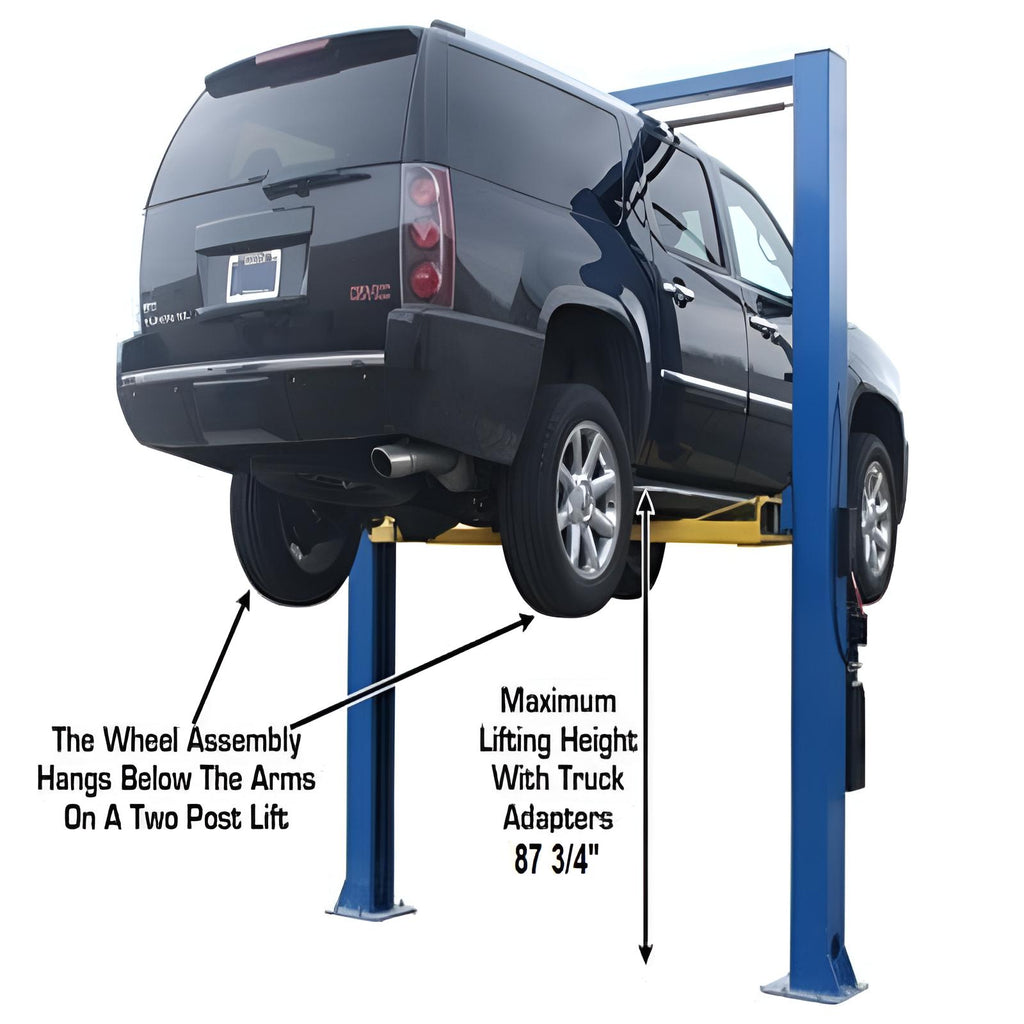

- Maximum Lift Height (With Adapters) 87 3/4"
- Minimum Arm Height 4"
- Inside Column 109 1/2” (9' 1 1/2”)
- Drive Thru 100 1/2” (8' 4 1/2”)

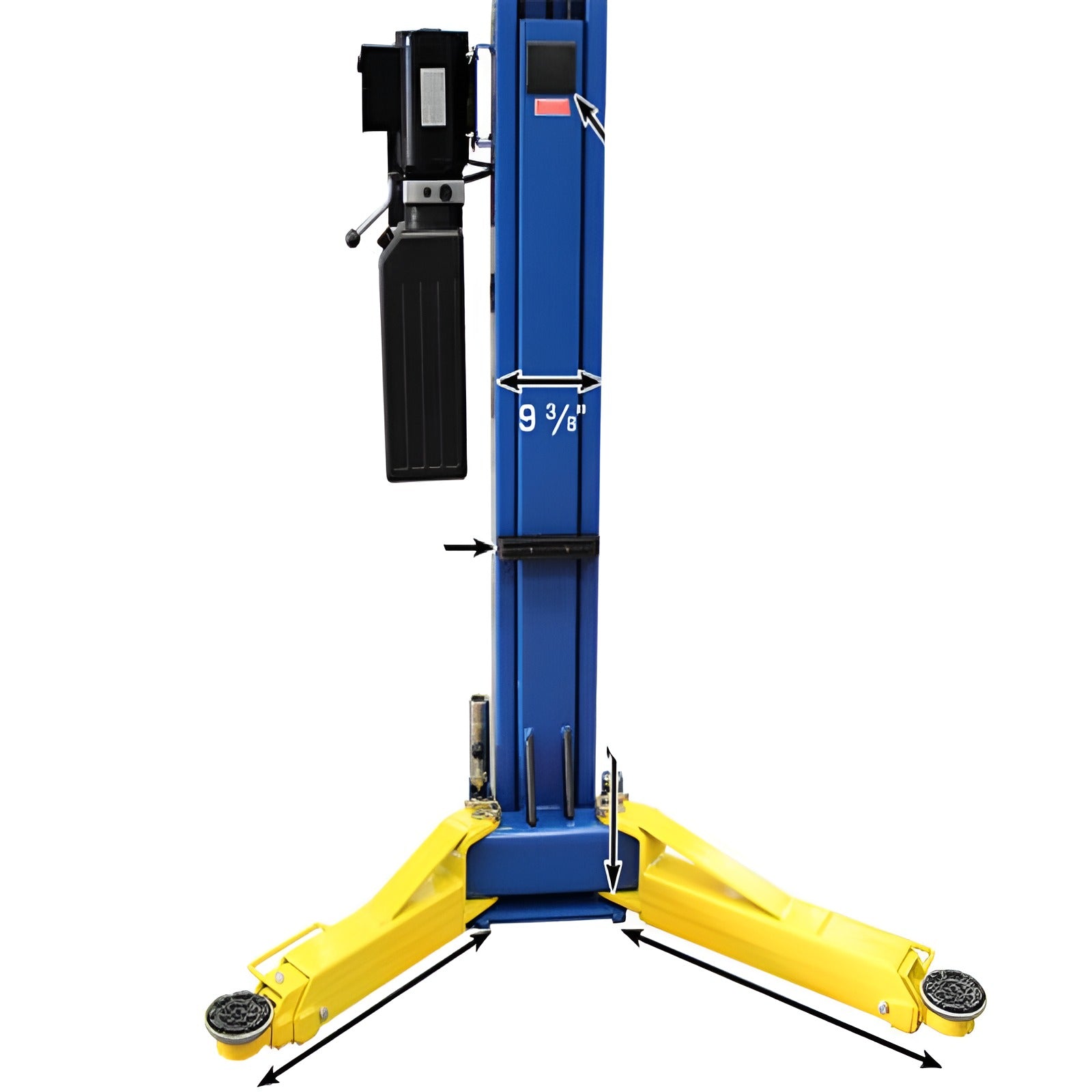

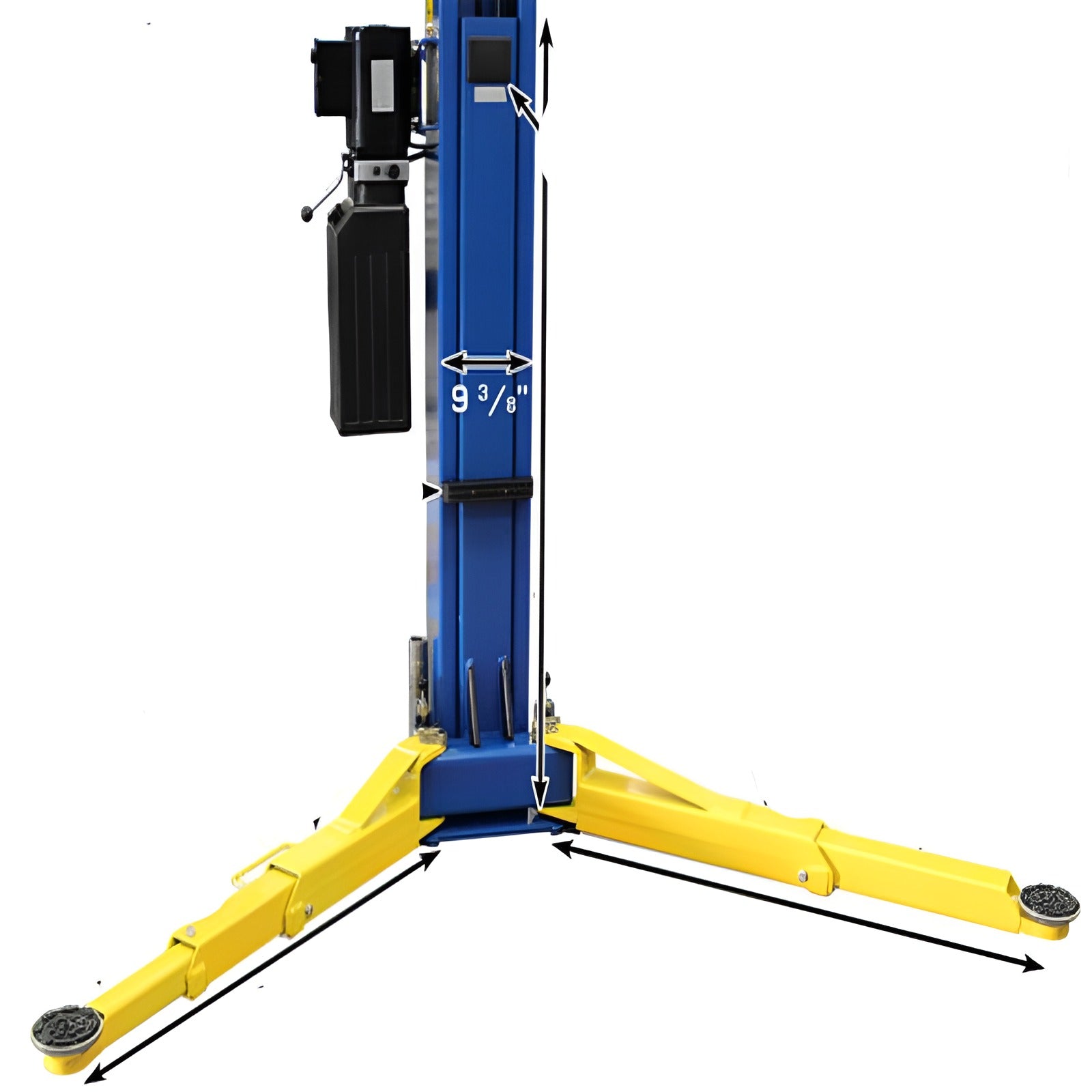

- Column Size 8" x 9 3/8"
- Column Thickness of Steel 5mm
- Base Of Lift 16 3/4" x 17 3/4"
- Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Shipping Weight 1,430 LBS.
- Pallet Size: 146-1/2" Long x 43" Tall x 19" Wide
- Adapter Heights 4 Each 2”, 3”, 6”
- Arm Hole/Adapter Peg Size 1.5”
- Requires a minimum of 4" of concrete with a 3000 psi. rating
Atlas 9,000lb 2 Post Lift Special Features:
- Single-Piece Column Design
- Overhead, Open-Floor Style Lift
- 3-stage Front Arms, 2-Stage Rear Arms
- Lock Release: Single Point
- Double Safety Lock System

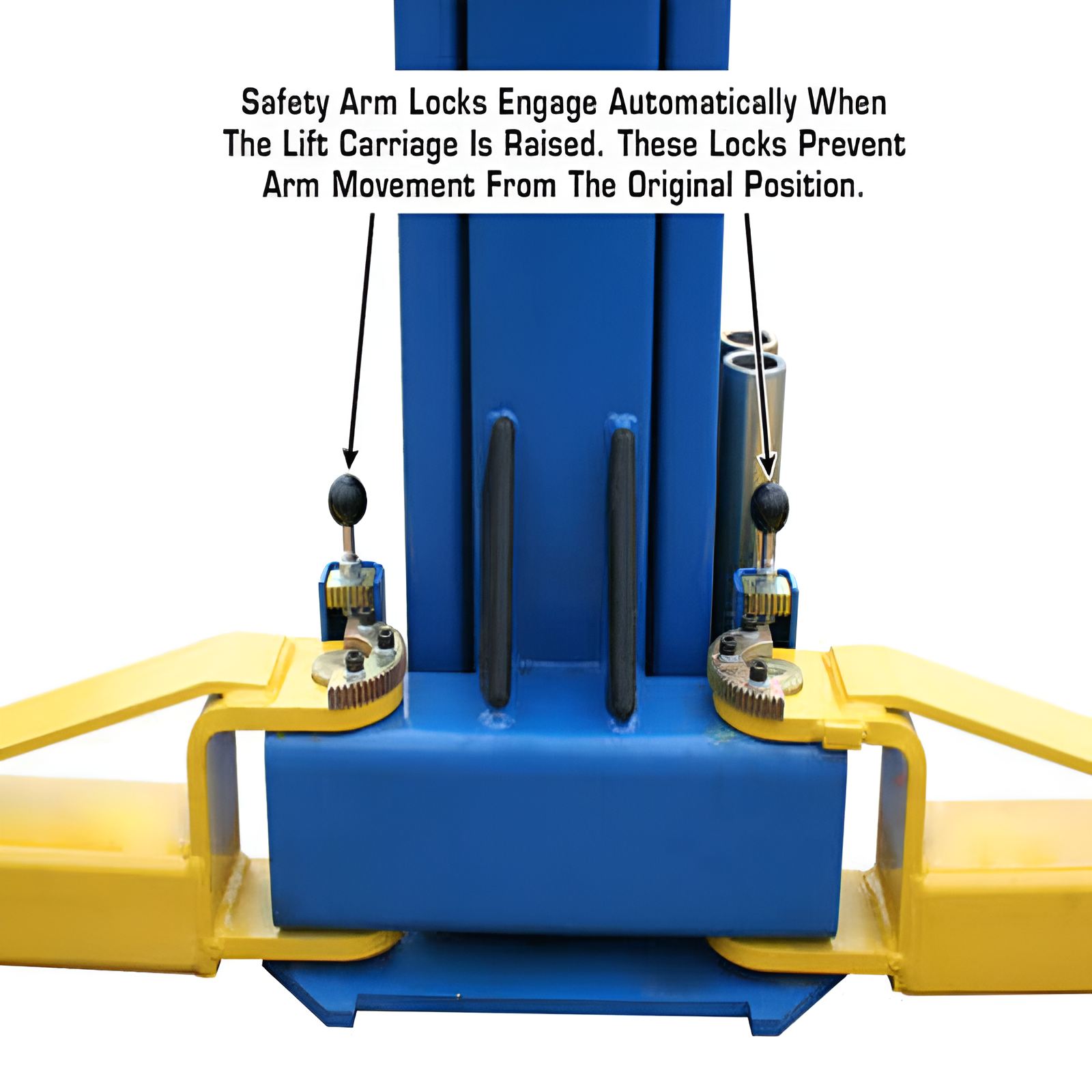

- Automatic Arm Restraints

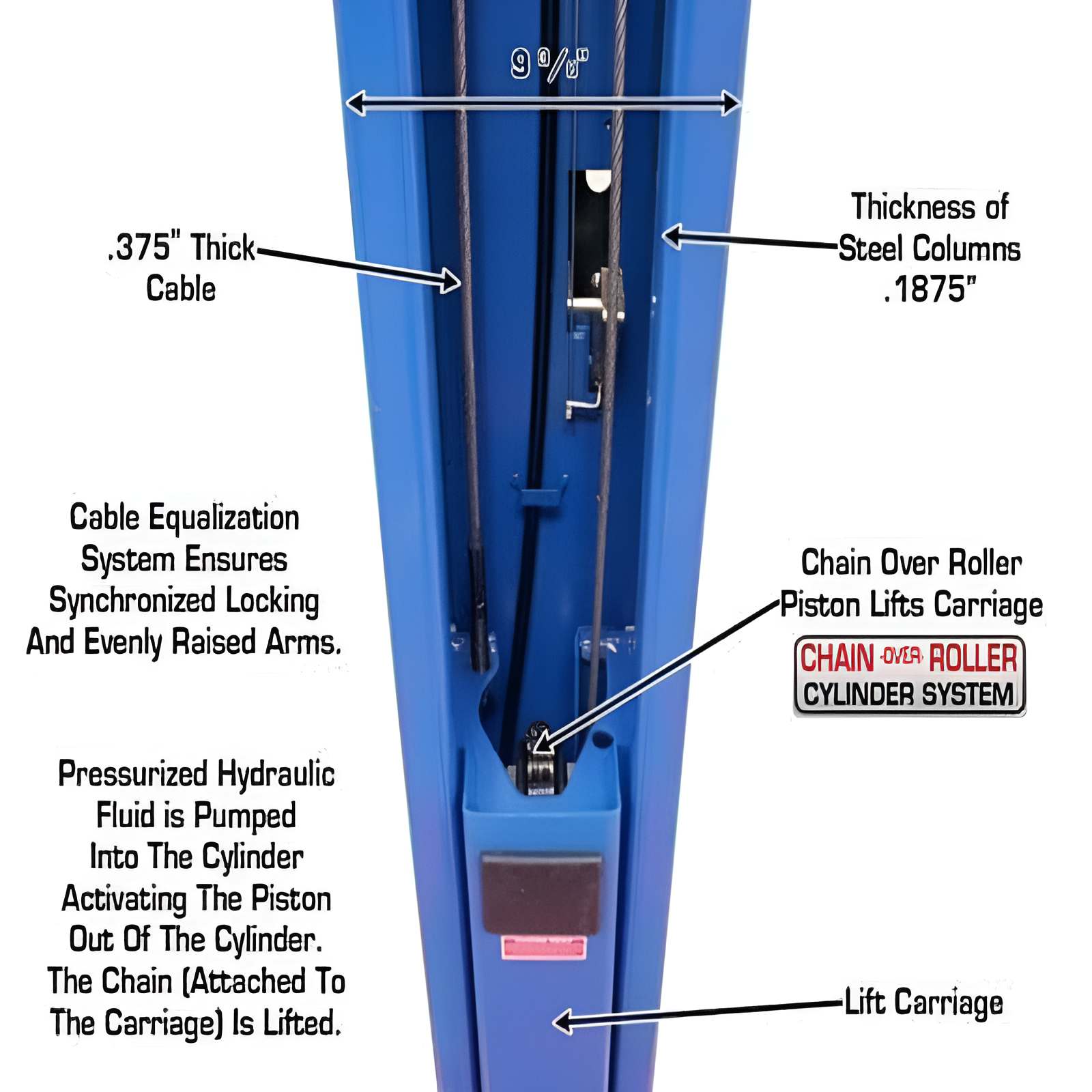

- Dual Hydraulic Chain-Drive Cylinders
- Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only
- Unit Includes:
- Mounting Hardware
- 12-piece Truck Adapter Set
- Optional Item(Sold Separately)
- Lawnmower Adapter for 2-Post Lift
9OHSC Manual
