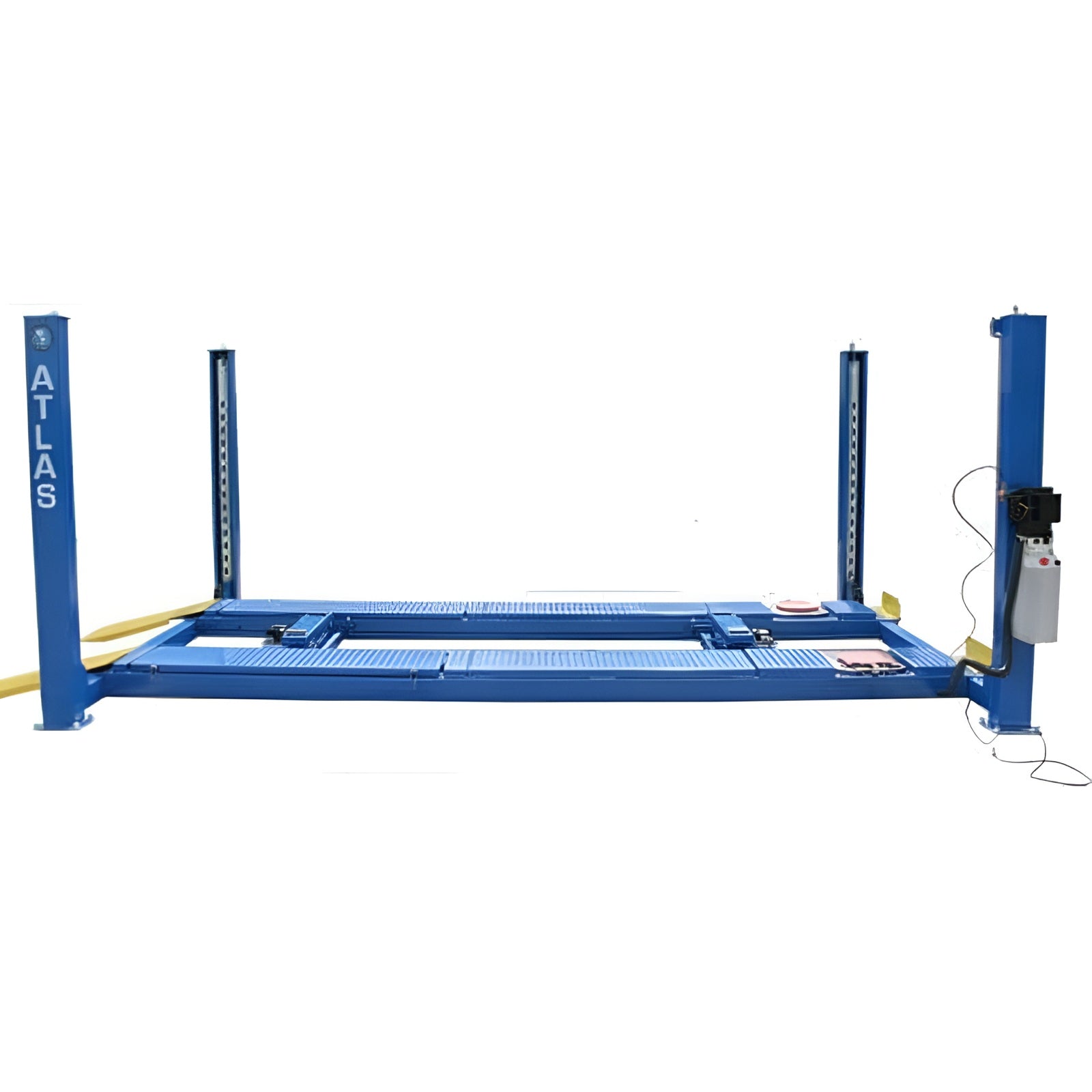

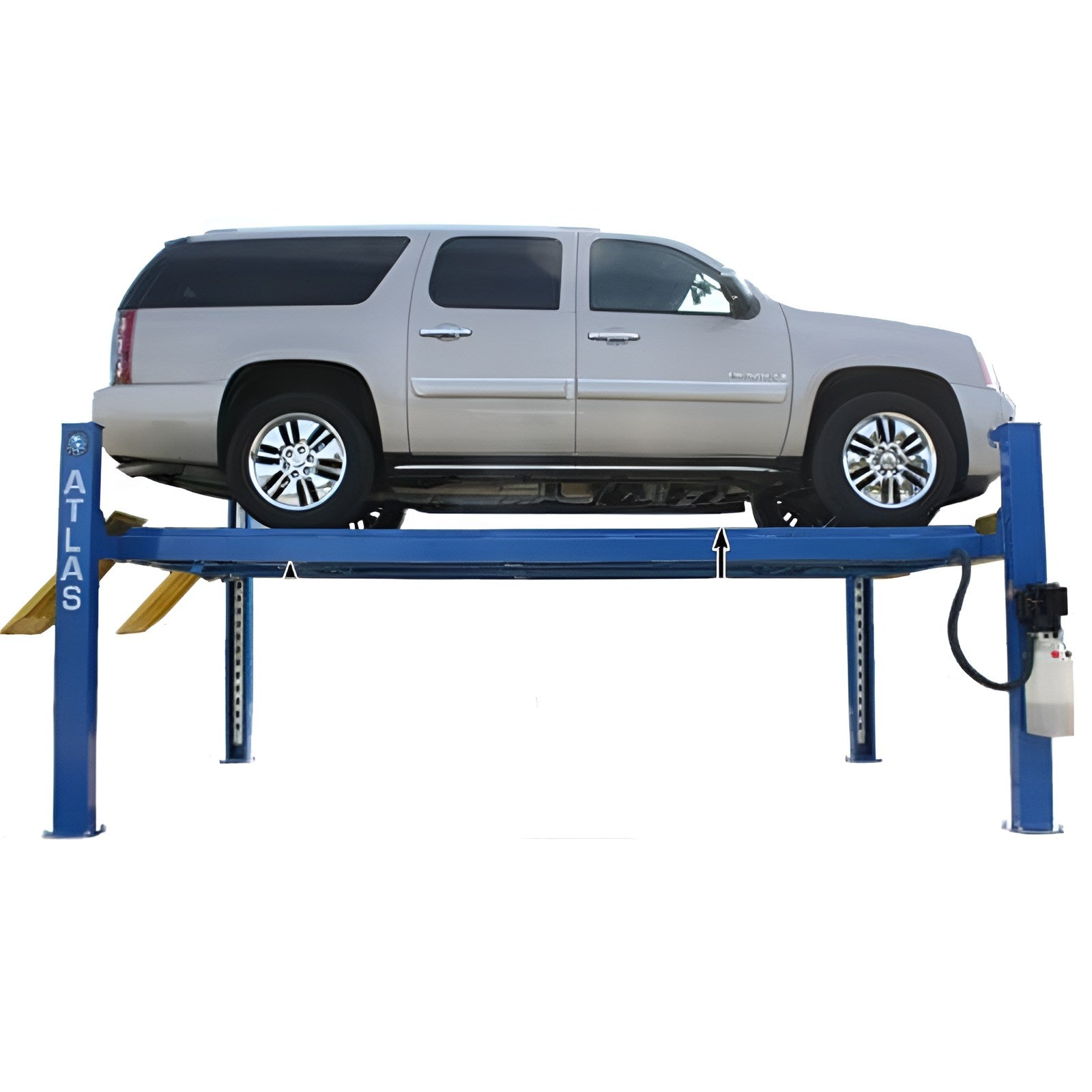

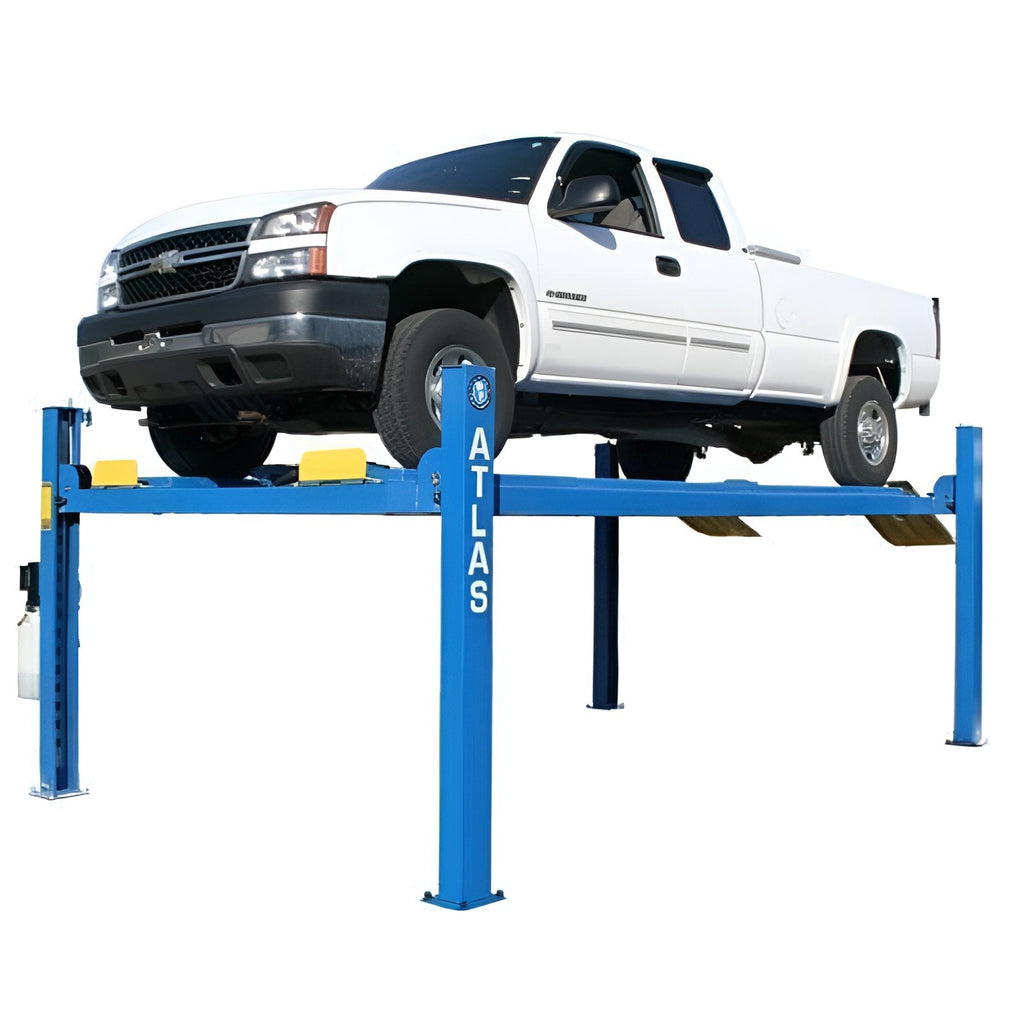

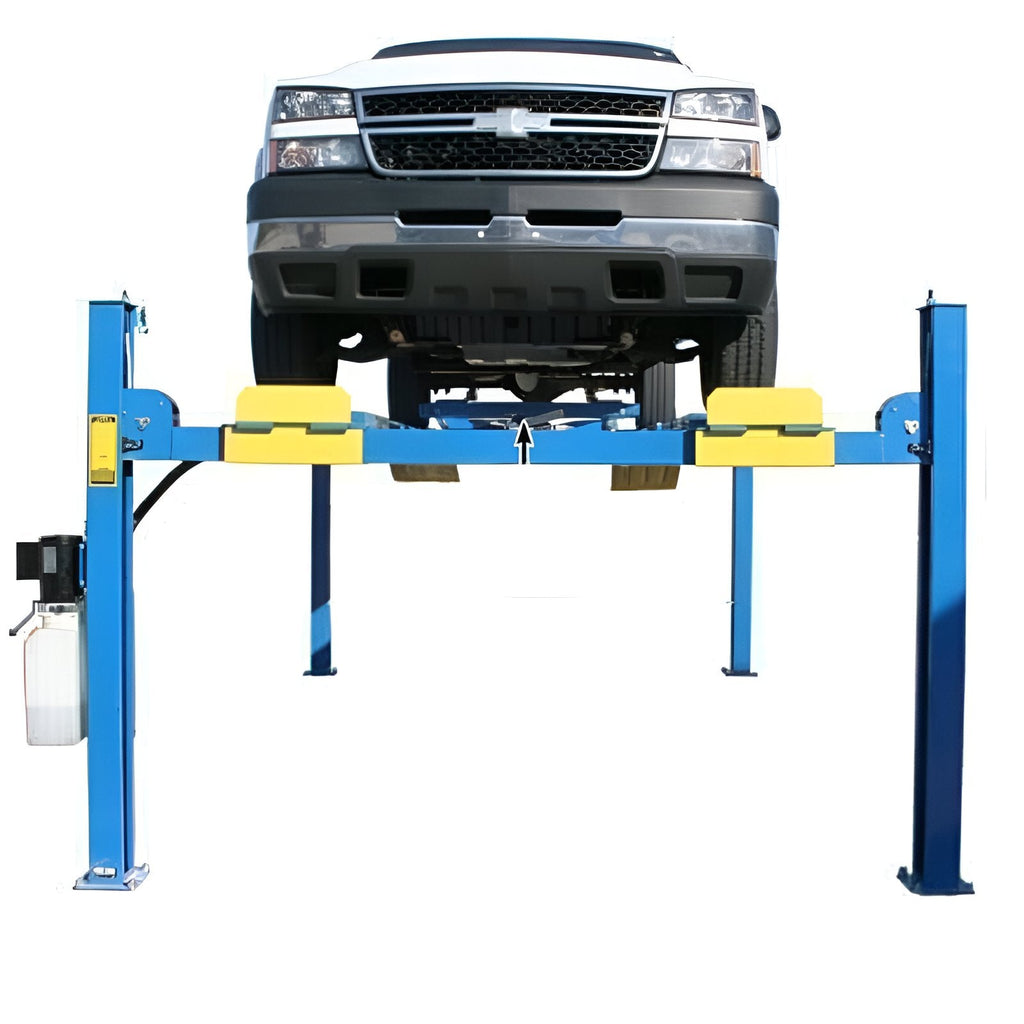

Atlas 12,000 lb 4 Post Alignment Lift SKU ATEATTD-412A-KIT
The Atlas 412A is not just another four-post alignment lift – it's the heavyweight champion of the garage, ready to hoist your beefiest beauties skyward. This bad boy doesn't just lift cars; it elevates your entire workshop game. With a jaw-dropping 12,000-pound capacity, it's like having a mechanical Hercules at your beck and call. But don't confuse its lifting prowess with its own weight – this 2,900-pound marvel is all muscle, no flab.
This isn't your grandpa's rickety old lift. The 412A struts its stuff with built-in slip plates and adjustable turntables, making precision alignments a breeze for even the most finicky vehicles. And when you're done with alignments, those nifty metal cover plates transform it into a versatile workhorse for all your other concerns. Powered by a beefy 220-volt single-phase unit and a smooth cable system, this lift laughs in the face of outdated chain mechanisms. Ready to revolutionize your garage? The Atlas® 412A is your ticket to the big leagues.
4-Post Alignment Lift 412A Specifications:
- Capacity: 12,000 lb.
- Lifting Height: 77 3/4" (6' 5 3/4")
- Overall Width Of Columns (Without Motor): 126 1/4" (10' 6 1/4")
- Overall Width Of Columns (With Motor): 135 1/4" (11' 3 1/4")
- Overall Length With Approach Ramp: 236 1/2" (19' 8 1/2")
- Length Between Columns: 183 1/4" (15' 3 1/4")
- Runway Length: 194 1/2" (16' 2 1/2")
- Runway Width: 20"
- Thickness Of Runway: 7 1/2"
- Width Between Runways: 43 1/4" (w/ Rail 39 3/4")
- Outside Runway To Outside Runway: 83 1/4" (6' 11 1/4")
- Clearance Under Runways: 70 1/4" (5' 10 1/4")
- Clearance Between Columns: 112 5/8" (9' 4 5/8")
- Height Of Columns: 89 3/4" (7' 5 3/4")
- Maximum Wheel Base: 185" (15' 5")
- Drive Thru: 98" (8' 2")
- Air Requirement: 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
- Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
- Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
- Requires a minimum of 6" of concrete with a 3000 psi. rating
- Shipping Dimensions: 203-1/2" x 20-5/8" x 27-1/2" - Weight: 2,900 lbs.
412A 12,000 lb 4-Post Alignment Lift Special Features:
- 12,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long

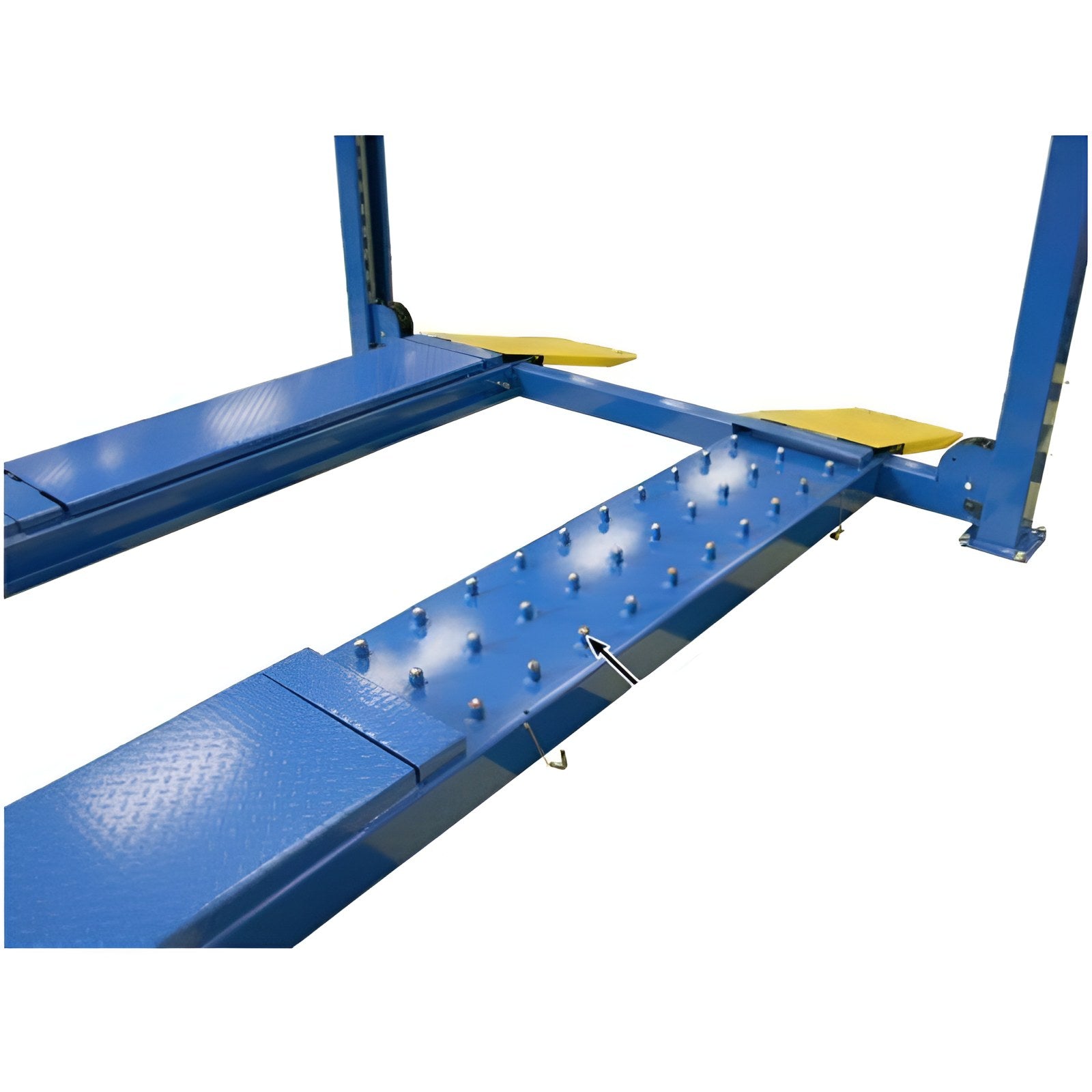

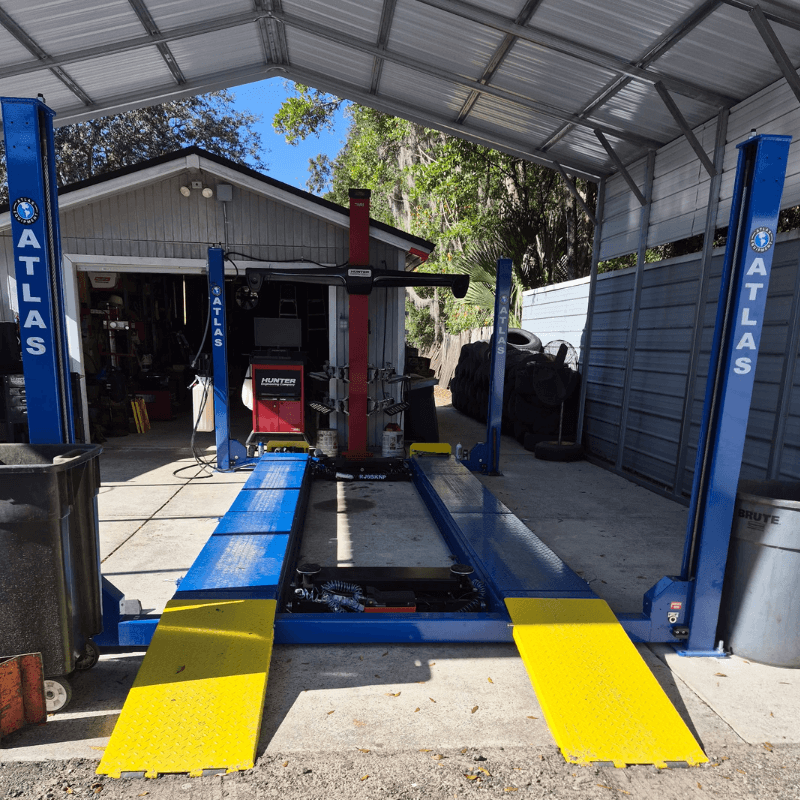

- Built-In Slip Plates & Alignment Turntables Included
- Turnplates can be placed in 2 different positions for various wheelbases

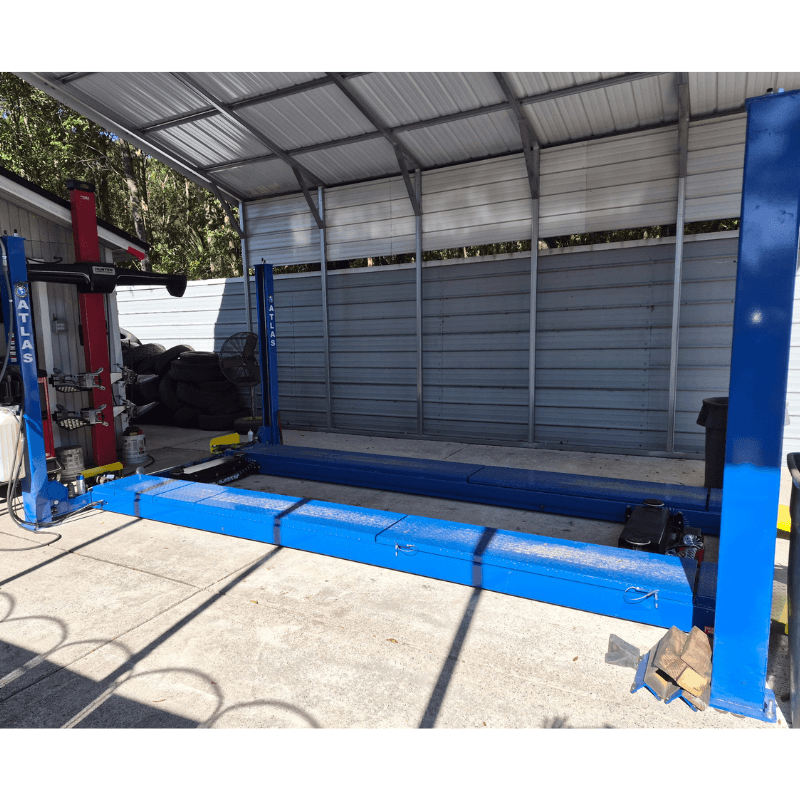

- Runway Covers Included (when Turntables are Removed)
- Air Operated Single Point Lock Release (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Steel Approach Ramps Included
- Additional Drive off Ramps Available (Sold Separately)
- Runway Extensions Available (Sold Separately)
- Mounting Hardware Included
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
- Buy as a Combo Atlas 412A Alignment Lift + RJ6
412A Manual
*Warehouse pickup is not an option on Atlas alignment lifts.
**Due to Extra Large Size, product cannot be delivered to a freight terminal.
