Description
Atlas 412 Lift 12,000 lb, 2 x RJ6 Jacks Combo SKU ATEATTD-412-COMBO
Paired with two Atlas RJ6 rolling bridge jacks, each with a 6,000 lb capacity, this combo is unbeatable. The RJ6 jacks offer a 21" maximum lifting height with adapters and adjust from 35" to 55" in width. They feature air/hydraulic operation (70-115 PSI required) and multiple safety lock positions. The 412's air-operated single-point lock release and powder-coated finish on both pieces provide durability and ease of use. Elevate your garage's capabilities today with this Atlas combo - it's the upgrade you've been waiting for.
Atlas 12000 4 Post Lift Specifications:
- Capacity: 12,000 lb.
- Lifting Height: 77 3/4" (6' 5 3/4")

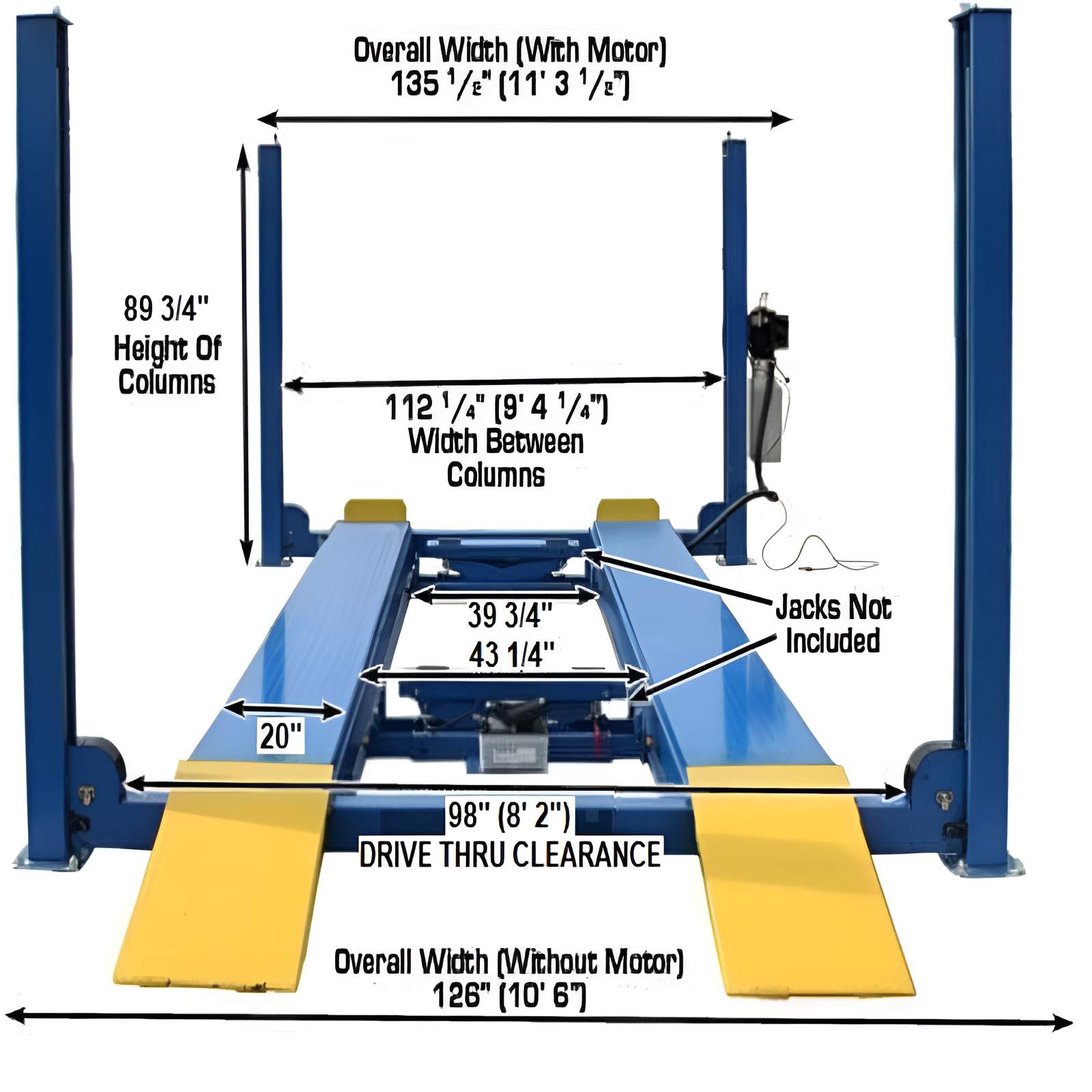

- Overall Width of Columns (Without Motor): 126 1/4" (10' 6 1/4")
- Overall Width of Columns (With Motor): 135 1/4" (11' 3 1/4")

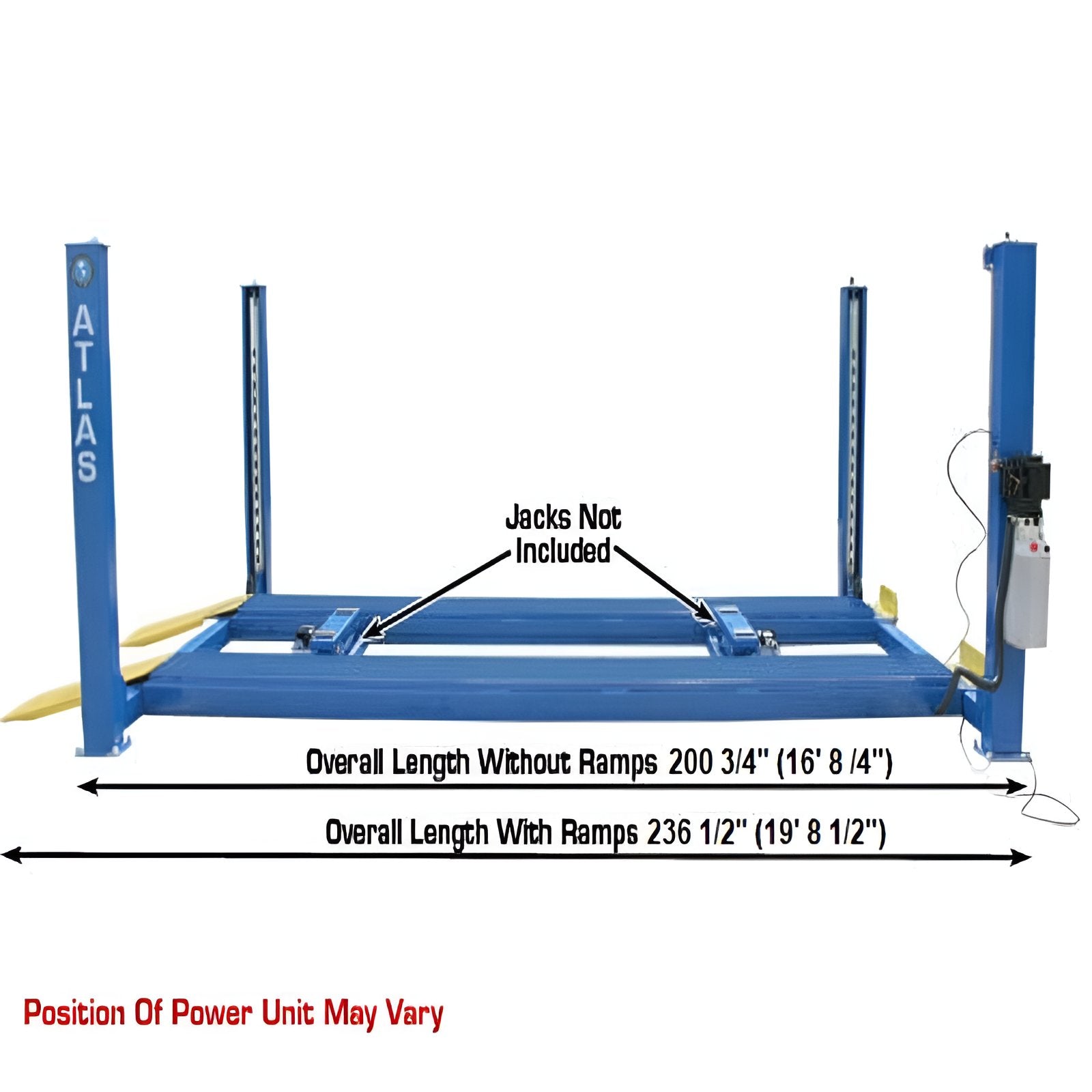

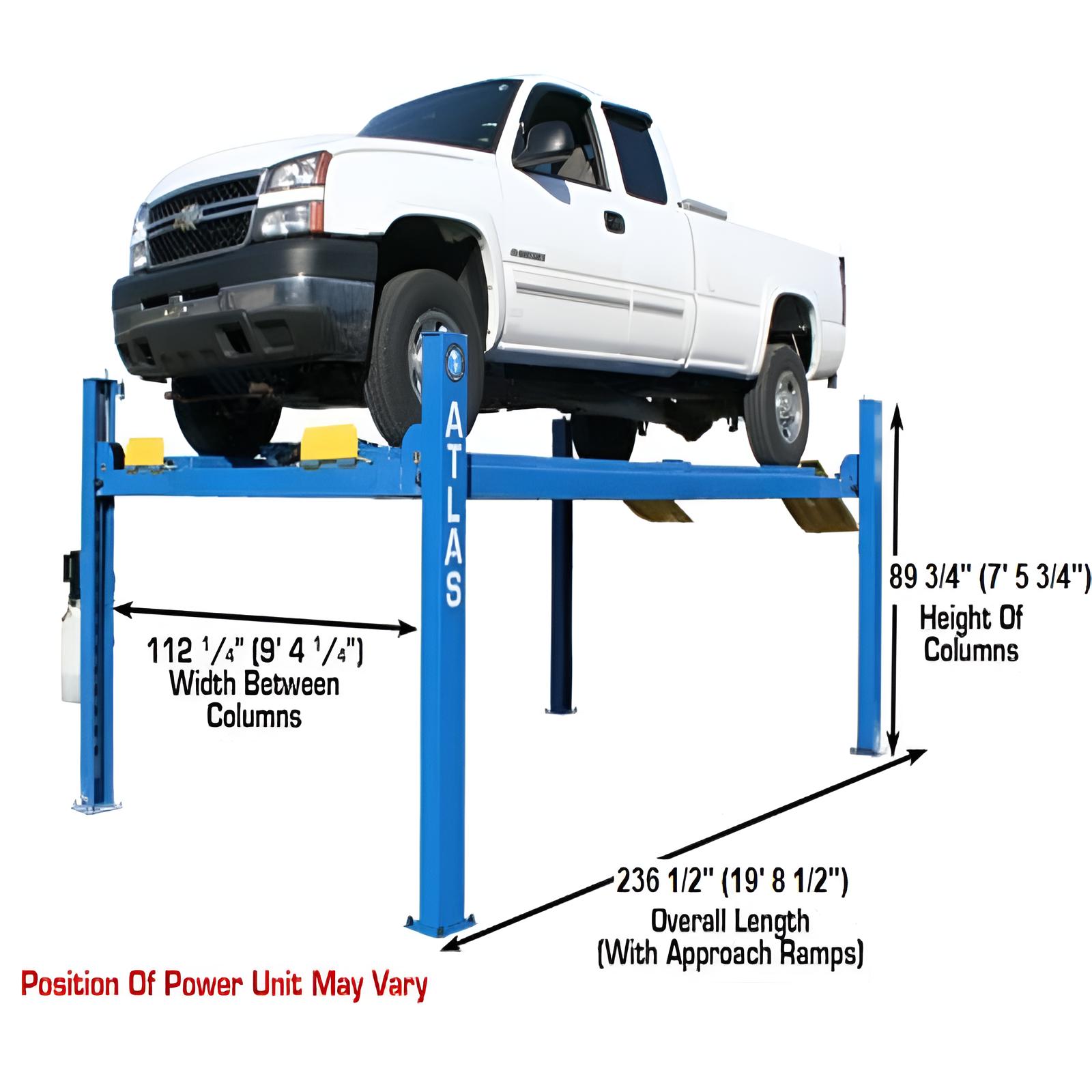

- Overall Length with Approach Ramp: 236 1/2" (19' 8 1/2")
- Length Between Columns: 183 1/4" (15' 3 1/4")
- Runway Length: 194 1/2" (16' 2 1/2")
- Runway Width: 20"
- Thickness of Runway: 7 1/2"
- Width Between Runways: 43 1/4" (w/ Rail 39 3/4")
- Outside Runway to Outside Runway: 83 1/4" (6' 11 1/4")

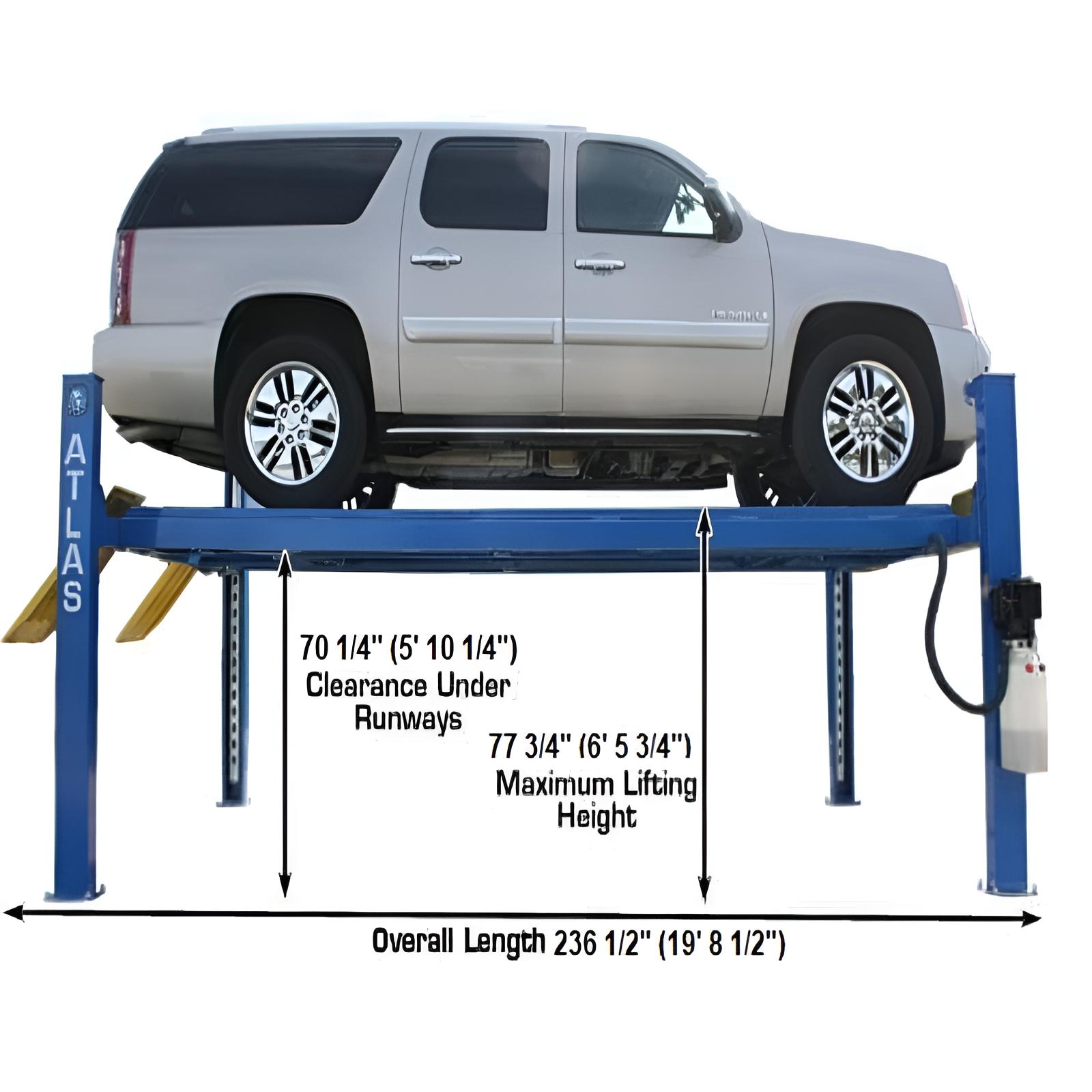

- Clearance Under Runways: 70 1/4" (5' 10 1/4")

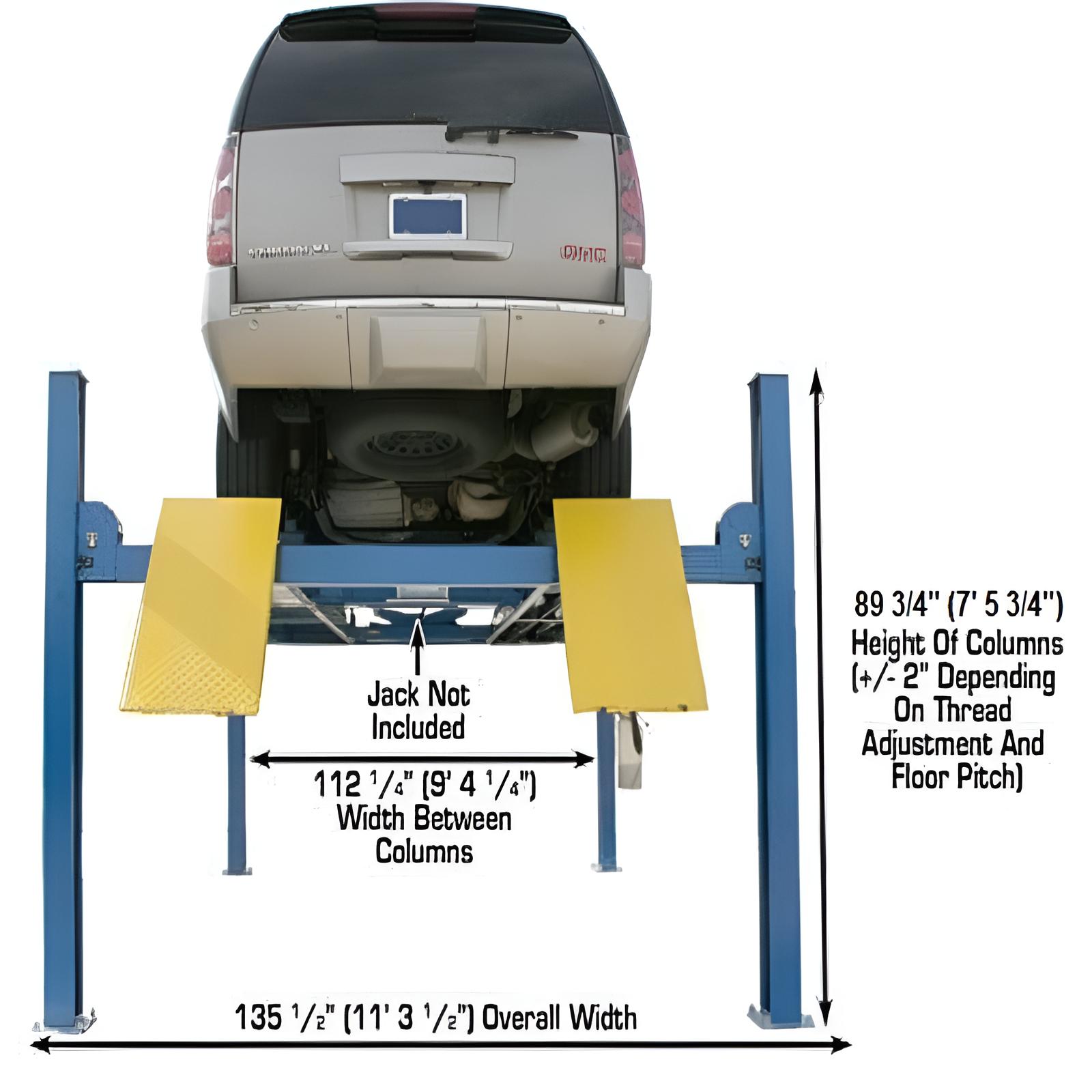

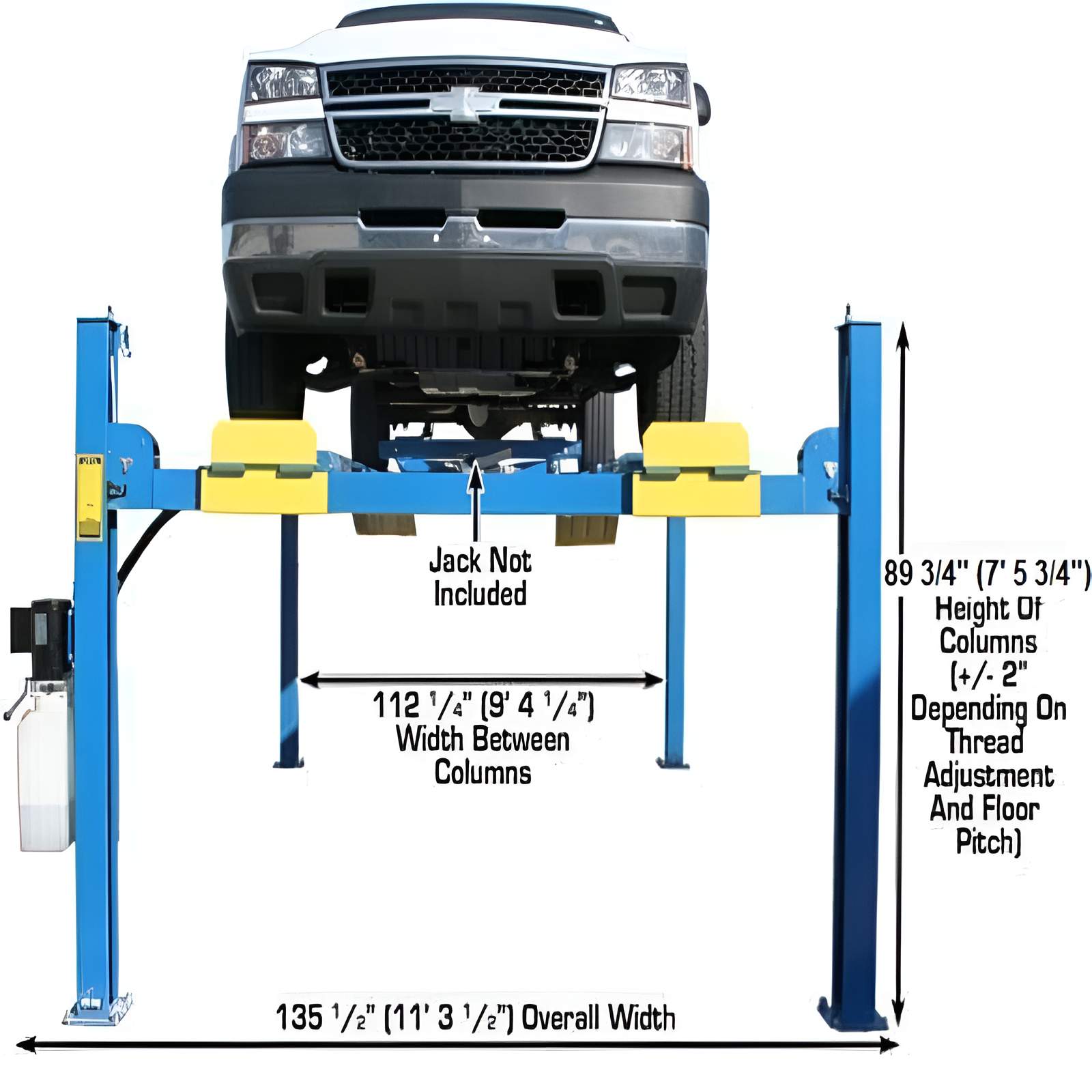

- Clearance Between Columns: 112 5/8" (9' 4 5/8")
- Height of Columns: 89 3/4" (7' 5 3/4")
- Maximum Wheel Base: 185" (15' 5")
- Drive Thru: 98" (8' 2")
- Air Requirement: 85-115 PSI (External Air Supply Required)

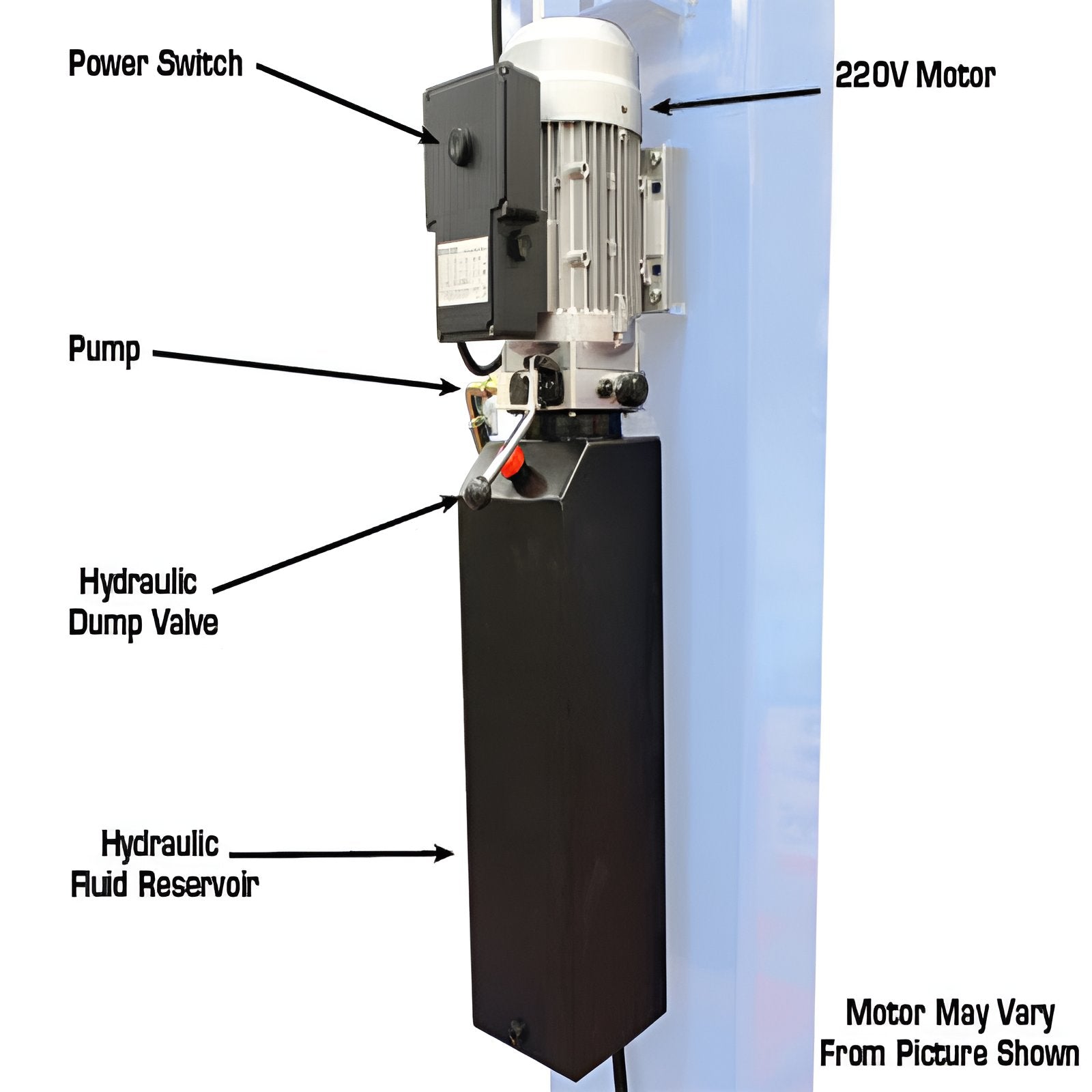

- Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
- Oil Requirement: 3-5 Gallons AW32/AW46 (Not Included)
- Shipping Weight: 2,800 lbs.
- Concrete Requirement: Minimum of 6" with a 3000 psi rating
412 12,000 lb 4 Post Lift Special Features:
- 12,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long
- Diamond Plated Runways
- Air Operated Single Point Lock Release (External Air Supply Required)
- Lock Ladder Design

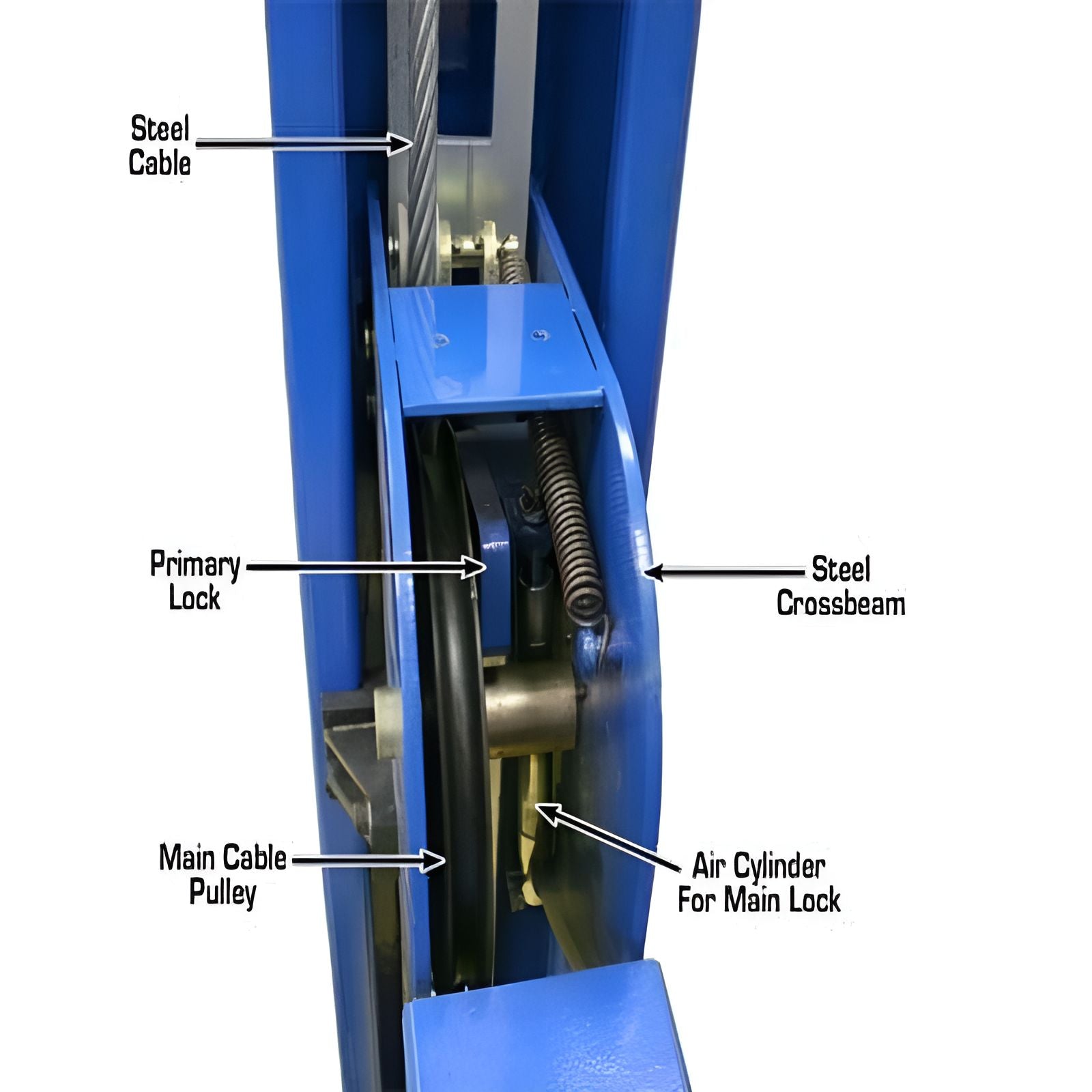

- Double Lock Safety System
- Powder Coat Finish

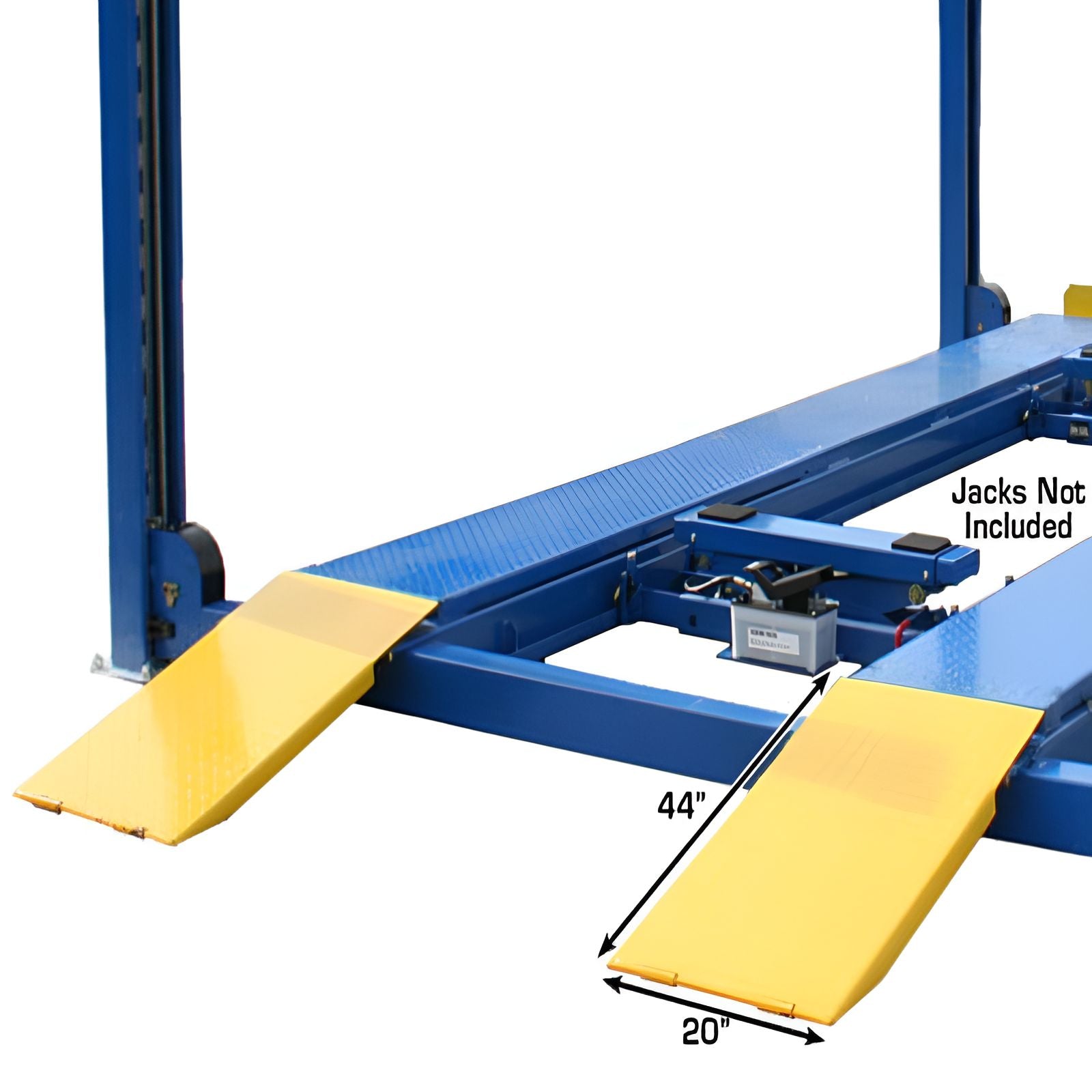

- Steel Approach Ramps Included
- Additional Drive off Ramps Available (Sold Separately)
- Runway Extensions Available (Sold Separately)
- Mounting Hardware Included
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- Shipping Weight: 2,800 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

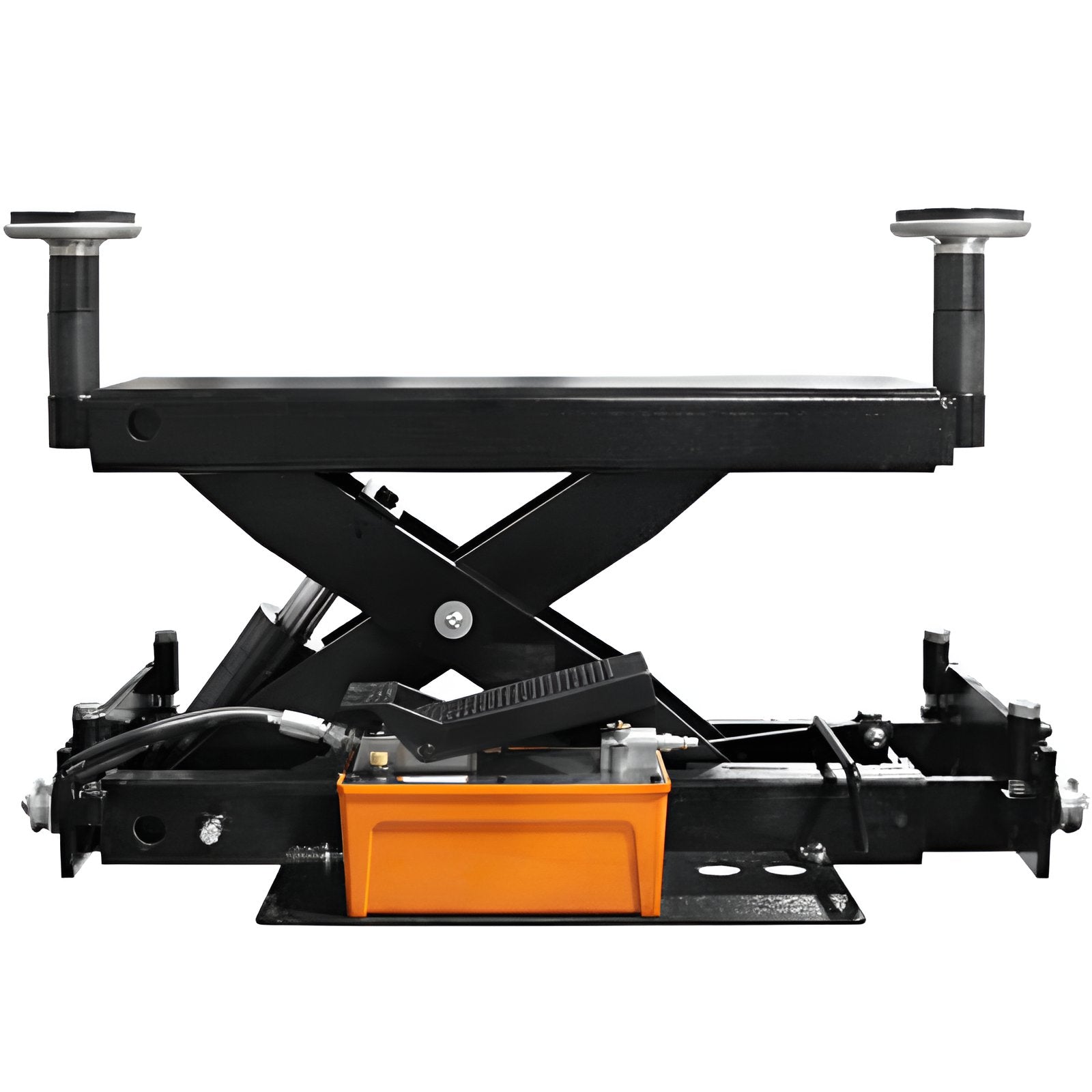

RJ6 Rolling Jack Specifications
- Qty: 2
- Maximum Capacity: 6,000 lb.

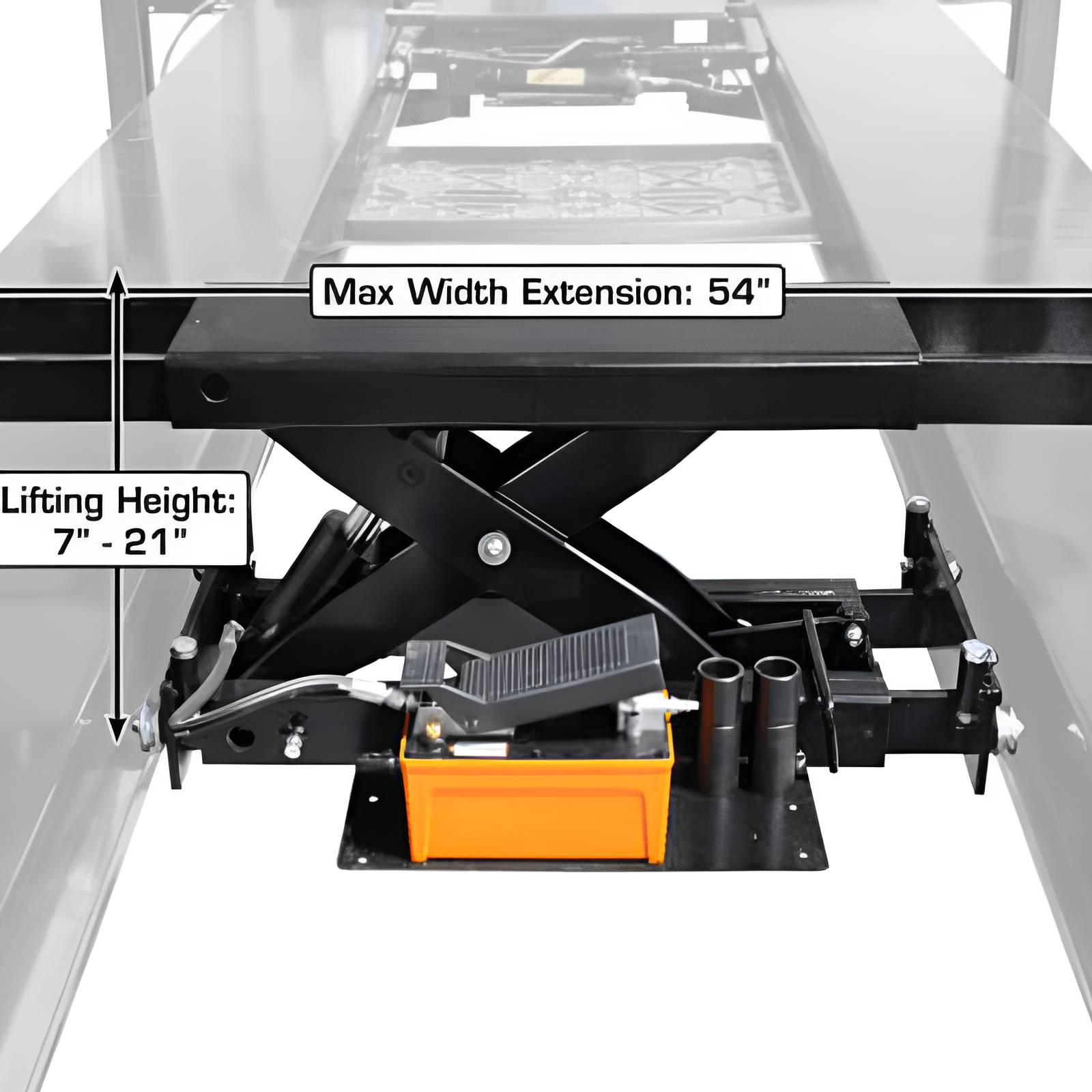

- Maximum Width: 55" (4' 7")

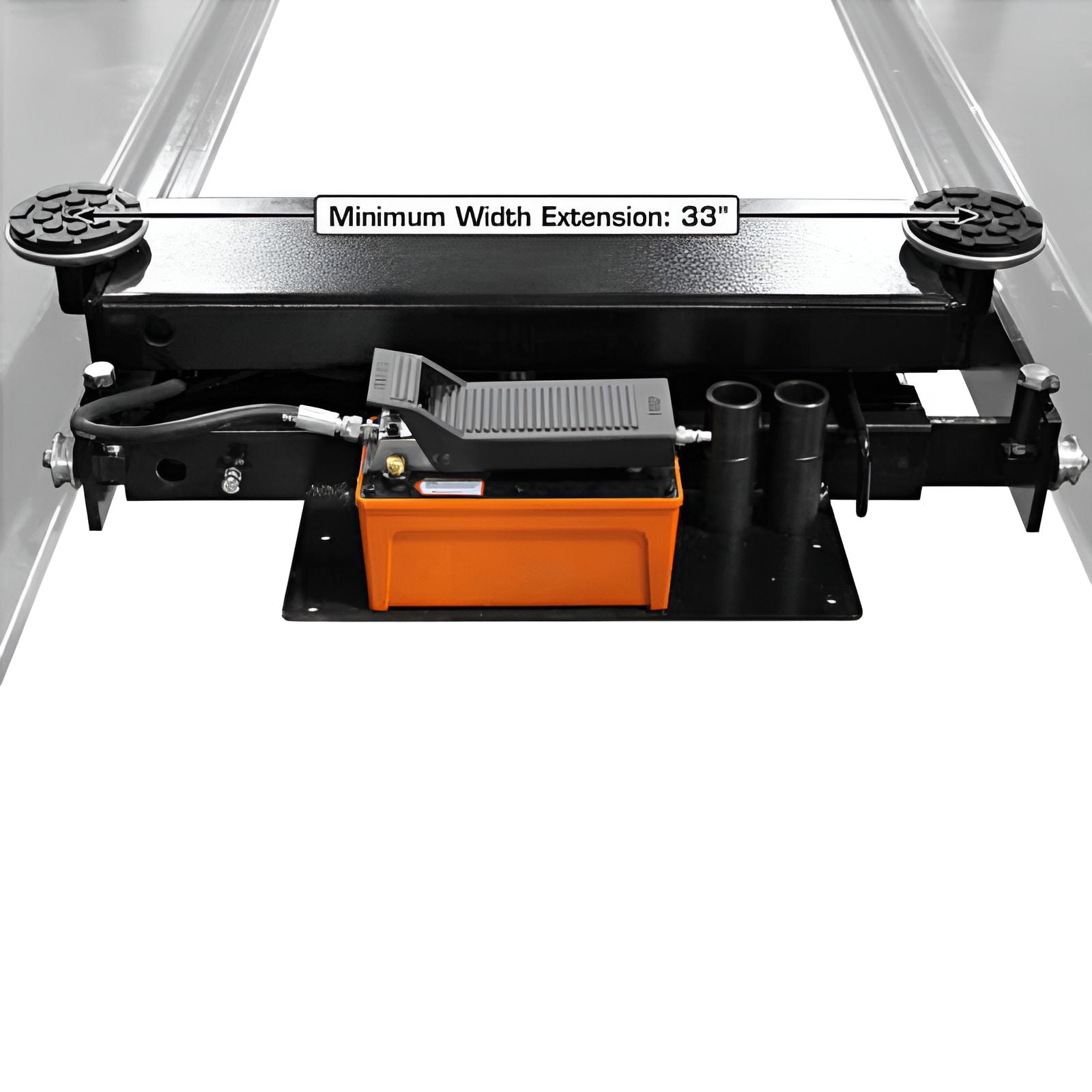

- Minimum Width: 35" (2' 11")
- Distance Between Runway Capability: 32"-52"

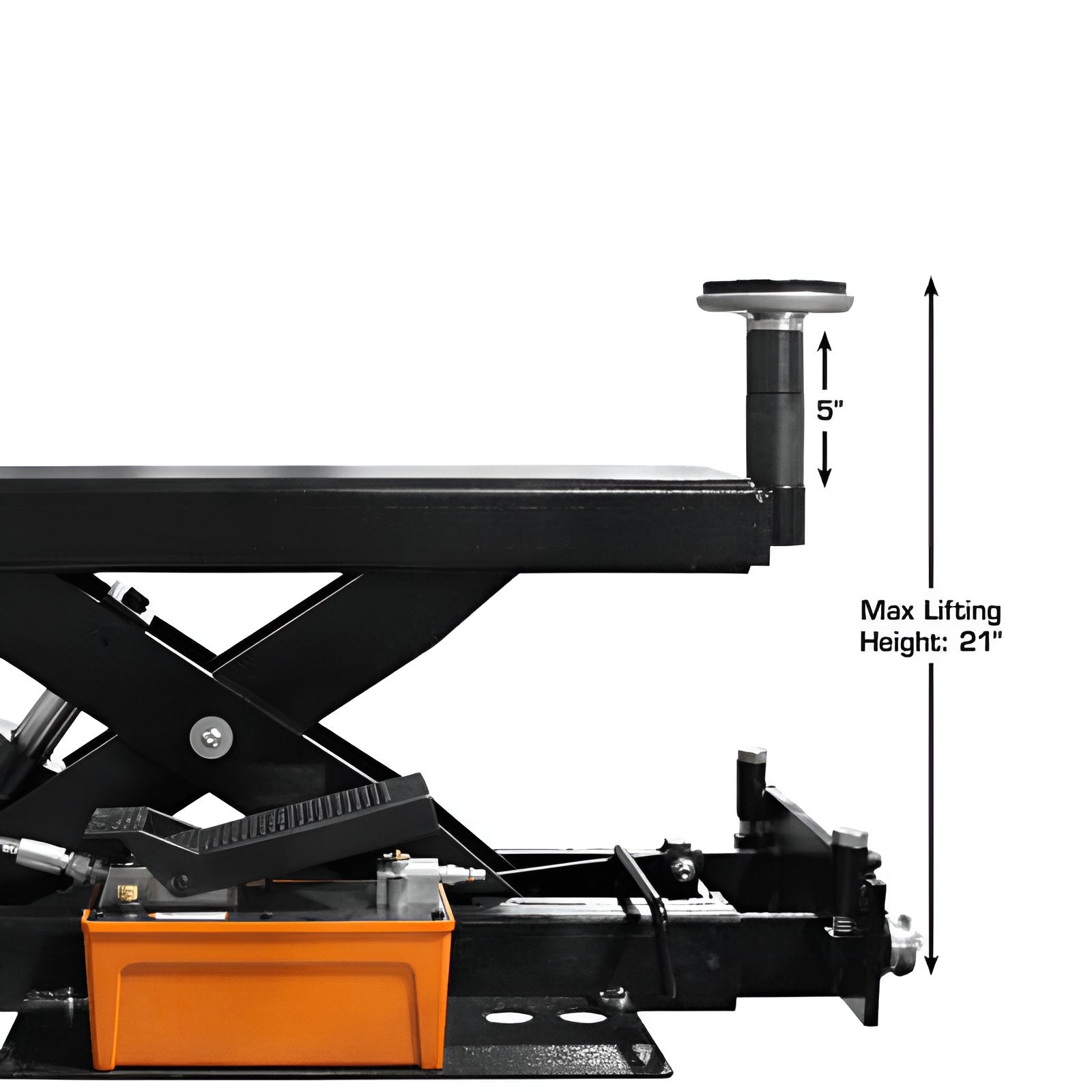

- Maximum Lifting Height (With Adapters): 21" (1' 9")
- Air Requirement: 70-115 PSI
- Shipping Weight: 350 lbs.
- Adapter Heights: 2 Each 2", 3"
- Arm Hole/Adapter Peg Size: 1.5"
RJ6 Rolling Jack Special Features
- 6,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)
- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
412 Manual
412 4 Post Lift Optional Items (sold separately):
- 412 4-Post Lift
- RJ8 Rolling Jack
*Due to Extra Large Size, product cannot be delivered to a freight terminal.
Warehouse Pickup locations (No shipping charge):
- Atlanta, GA
- Dallas, TX
- Indianapolis, IN
- Phoenix, AZ
- Somerset, NJ
