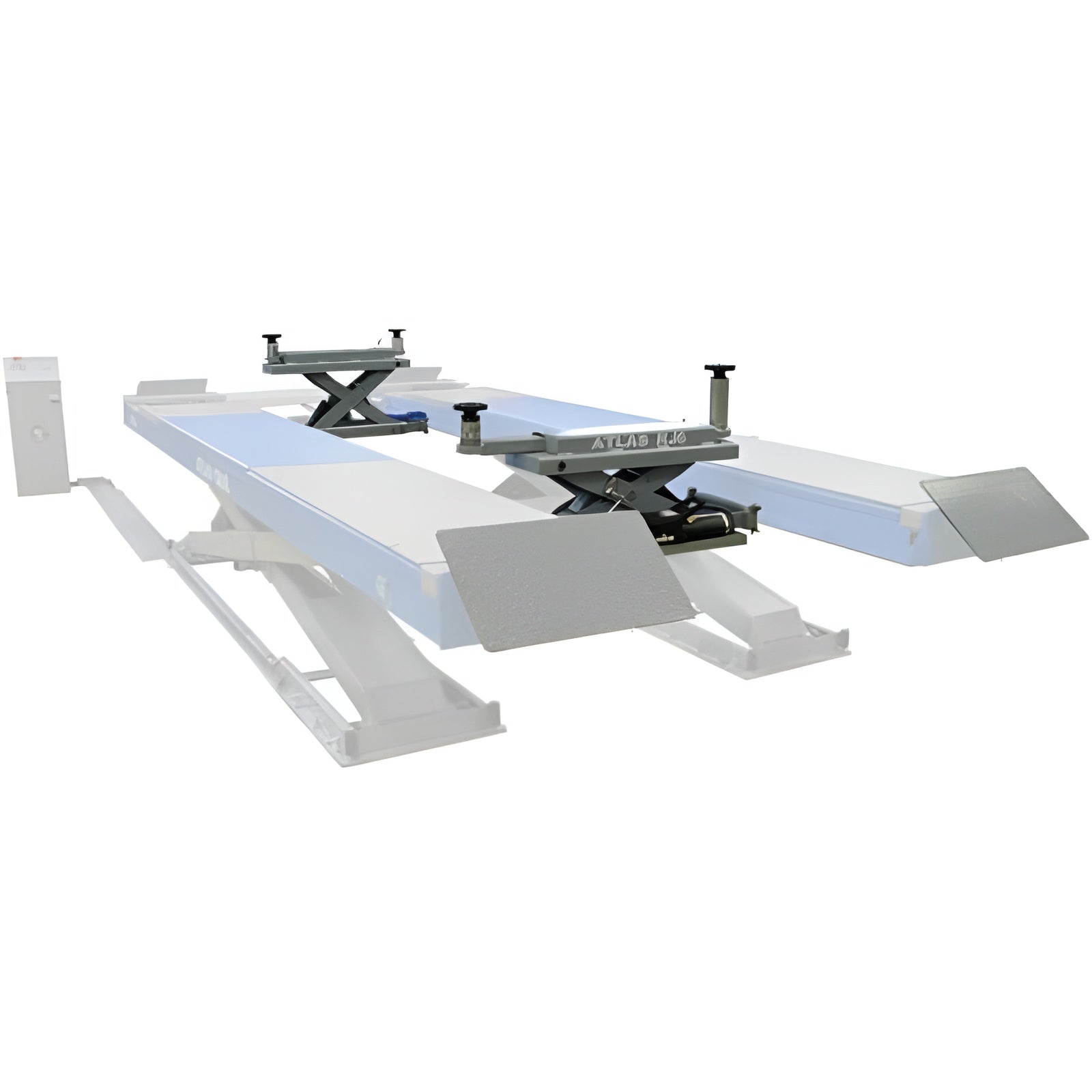

Atlas Alignment Scissor Lift and RJ-6 Rolling Jack Combo SKU ATEATTD-12AWFSL-COMBO
With a 12,000 lb. lifting capacity and a towering height of over seven feet, it's ready to handle everything from your run-of-the-mill sedans to those three-ton, dual-wheel pickups that always seem to show up unannounced. Got a low-rider? No problem—the extra-long ramps make loading them a breeze, even if they’re practically scraping the ground. And if you’re after precision, the built-in slip plates and alignment turntables will make sure those alignments are spot on, because, let’s face it, close enough isn't good enough.
The combo deal throws in the Atlas RJ-6 Rolling Jack, perfect for when you need to get the wheels off and actually get some work done. It's air-powered, of course—because manual labor is so last decade—and has a 6,000 lb. capacity to lift those delicate vehicles with ease. Compact, powerful, and just a little bit showy, this lift-and-jack combo is ready to make your shop the go-to spot for serious alignment work.
Scissor Lift and Rolling Jack Atlas 12AWSL+RJ-6 Specification
12AWFSL
- Lifting Capacity: 12,000 LB
- Lifting Height: 84 1/4" (7' 1/4")
- "Wheels Free" in Ramp Jack System Height: 17" (1' 5")
- Overall Width: 86 3/8" (7' 2 3/8")
- Overall Length with Approach Ramps: 250" (20' 10")
- Overall Length without Approach Ramps: 197" (16' 5")
- Approach Ramp Length: 53" (4' 5")
- 4-Wheel Alignment Wheelbase:
- Max: 168 in.
- Min: 90 in.
- 2-Wheel Alignment Wheelbase:
- Max: 172 in.
- Min: 86 in.
- Runway Width: 23 3/4" (1' 11 3/4")
- Lowered Height: 11 1/2"
- Locking Positions: 19
- Width Between Runways: 39"
- Motor/Electrical Requirement: 220 volt +/- 5% (209-231 volts) single (1) phase. Requires a 30 amp breaker.
- Shipping Weight: 5,500 lbs.
RJ-6 Rolling Jack
- Maximum Width: 64 1/2"
- Minimum Width: 30 1/2"
- First Locking Position: 7 1/4"
- Second Locking Position: 15"
- Minimum Pad Height: 3 1/2"
- Maximum Lifting Height: 17 5/8"
- Maximum Capacity: 6,000 LB
- Recommended Operating Air Pressure (PSI): 70-105 PSI
- Shipping Weight: 350 lbs.
12AWFSL Alignment Scissor Lift and RJ-6 Rolling Jack Special Features
12AWFSL
- 12,000 LB. Capacity
- Commercial Grade
- Scissor Alignment Lift
- Built in “Wheels Free” Lifting System
- Built in Slip Plates and Alignment Turntables Included
- Turntable Covers Included
- Open Center Design for Easy Access
- Air-Operated Single Point Lock Release (External Air Supply Required)
- Airline Kit Included
- Rear Cross Beam for Extra Stability Included
- Extra Long 72″ Ramps Standard
- Precise Platform Leveling Accuracy

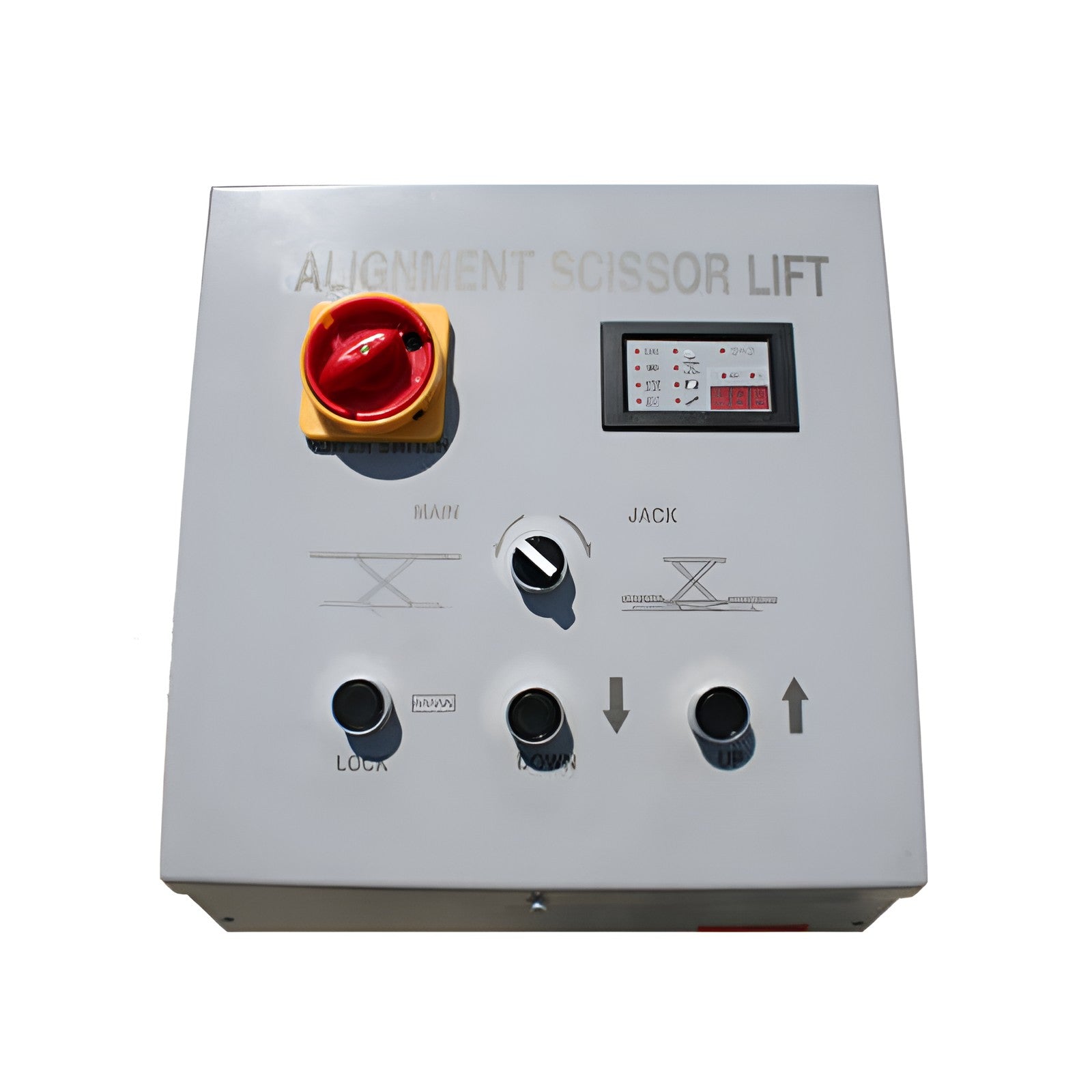

- Separate Self-Contained Control Panel
- Emergency Manual Pump for Lowering
- 19 Locking Positions
- CE Certified
- Can be Surface Mounted or Flush Mounted
- Mounting Hardware Included
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- Shipping Weight: 5,000 lb.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
RJ-6
- 6,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)
- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- Double Screw-Up Adapters Included
- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
- Optional Item(Sold Separately)
- Runway Extensions for 12ASL/12AWFSL
12AWFSL + RJ-6 Manual
Atlas 12AWFSL 12,000 lb Alignment Lift and RJ-6 Rolling Jack Optional Item (Sold Separately)
- RJ6 Rolling Jack
- Atlas 12AWFSL Alignment Lift
*Due to Extra Large Size, product cannot be delivered to a freight terminal.
Warehouse Pickup locations (No shipping charge):
- Atlanta, GA
- Dallas, TX
- Indianapolis, IN
- Phoenix, AZ
- Somerset, NJ
