Description

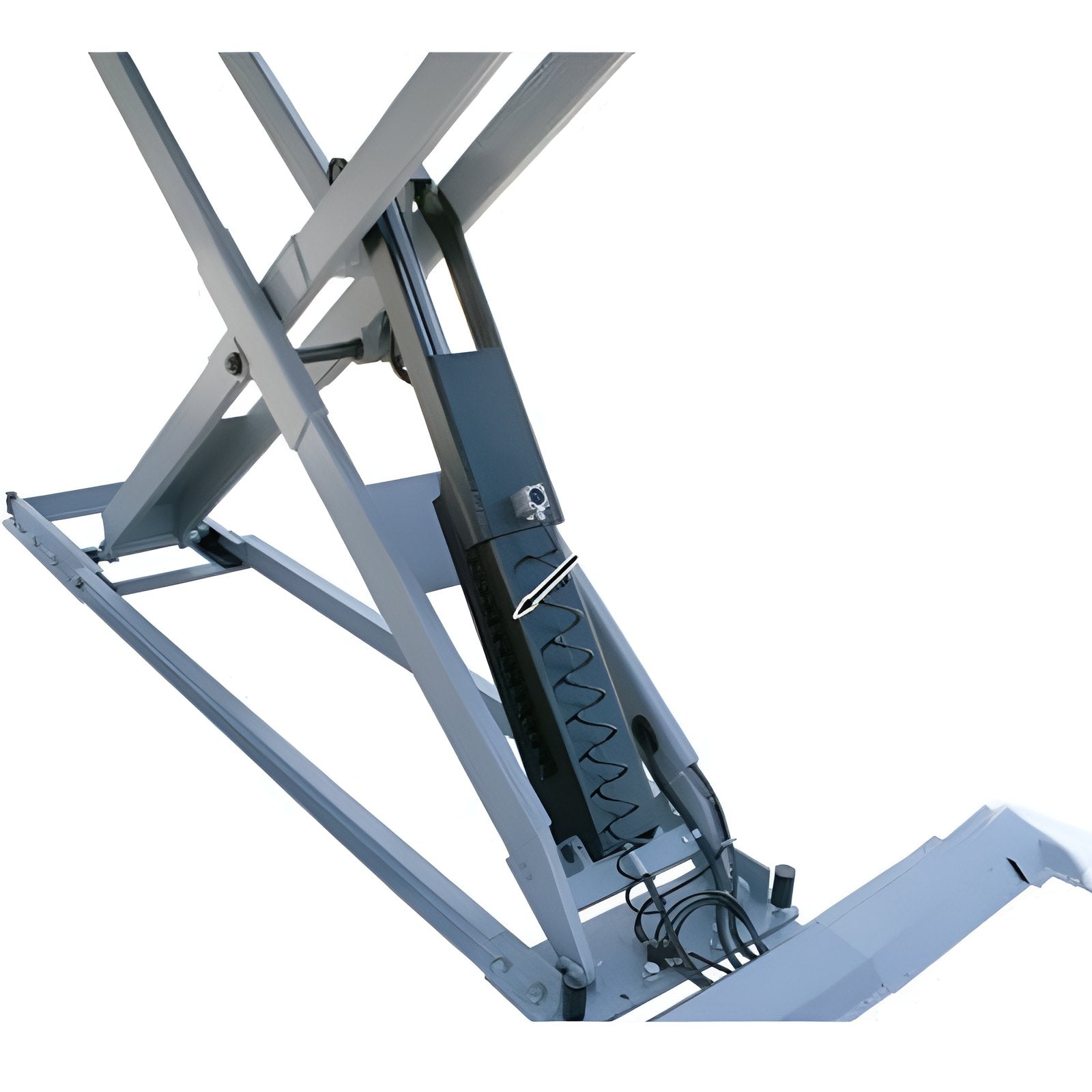

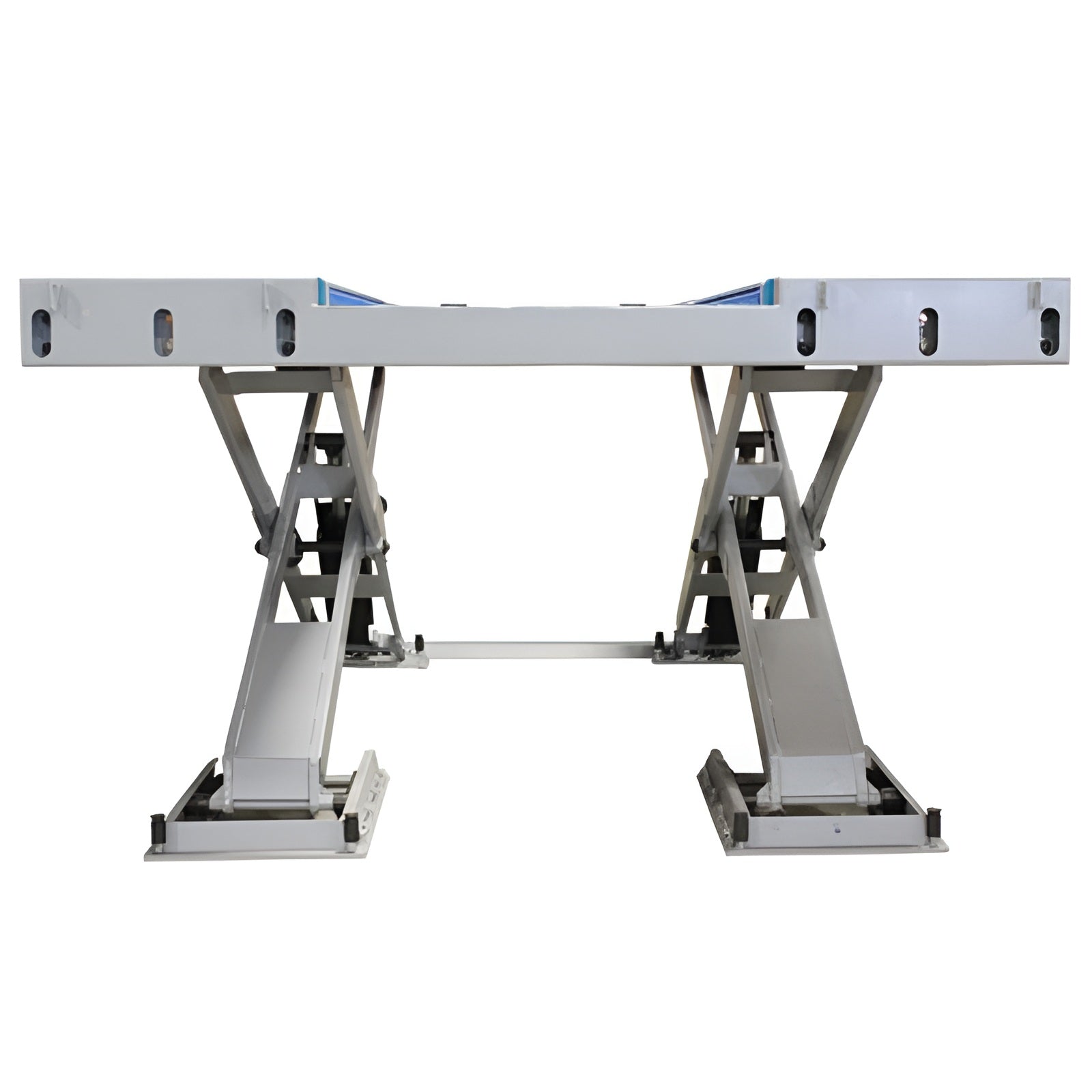

12ASL Scissor Alignment Lift by Atlas
This Italian-engineered marvel combines precision and efficiency to deliver a top-tier alignment solution that's unmatched in its class. With a lifting height of over seven feet, this lift is versatile enough to be floor or flush-mounted, ensuring stability even under vehicles weighing up to 12,000 pounds.
But that's not all. The separate control panel makes operation a breeze, while the automatic air-actuated lock system and built-in lowering limit switch ensure your safety is paramount. Whether you're working on compact cars or burly dually trucks, this system maximizes space without compromising performance. So, why settle for anything less? Upgrade to the Atlas® 12ASL and experience the ultimate in alignment solutions.
Scissor Alignment Lift 12ASL-N Specifications:
- Lifting Capacity: 12,000 LB
- Lifting Height: 84 1/4" (7' 1/4") (Surface Mounted)
- Lowered Height: 11 1/2"
- Overall Width: 86 3/8" (7' 2 3/8")
- Overall Length with Approach Ramps: 250" (20' 10")
- Overall Length without Approach Ramps: 197" (16' 5")
- Approach Ramp Length: 72" (6')
- 4-Wheel Alignment Wheelbase: Max. 168 in. Min. 90 in.
- 2-Wheel Alignment Wheelbase: Max. 172 in. Min. 86 in.
- Runway Width including Rail: 23 3/4" (1' 11 3/4")
- Width Between Runways: 39 1/4"
- Width Between Runway Rails: 34 3/8"
- Air Requirement: 90-120 PSI
- Motor/Electrical Requirement: 220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required.
- Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
- Shipping Weight: 5,000 lbs.
- Requires a minimum of 6" of concrete with a 3000 psi. rating
12ASL 12,000 lb Scissor Alignment Lift Special Features:
- 12,000 LB. Capacity
- Commercial Grade
- Scissor Alignment Lift
- Built in Slip Plates and Alignment Turntables Included
- Turntable Covers Included
- Open Center Design for Easy Access
- Air-Operated Single Point Lock Release (External Air Supply Required)
- Airline Kit Included
- Rear Cross Beam for Extra Stability Included
- Extra Long 72″ Ramps Standard
- Precise Platform Leveling Accuracy
- Separate Self-Contained Control Panel
- Emergency Manual Pump for Lowering
- 19 Locking Positions
- CE Certified
- Can be Surface Mounted or Flush Mounted
- Mounting Hardware Included
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- Shipping Weight: 5,000 lb.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
- Buy as a Combo 12ASL + RJ-6
- Optional Item(Sold Separately)
- Runway Extensions for 12ASL/12AWFSL
12ASL Manual
12ASL Alignment Scissor Lift Individual Item(Sold Separately):
*Due to Extra Large Size, product cannot be delivered to a freight terminal.
Warehouse Pickup locations (No shipping charge):
- Atlanta, GA
- Indianapolis, IN
