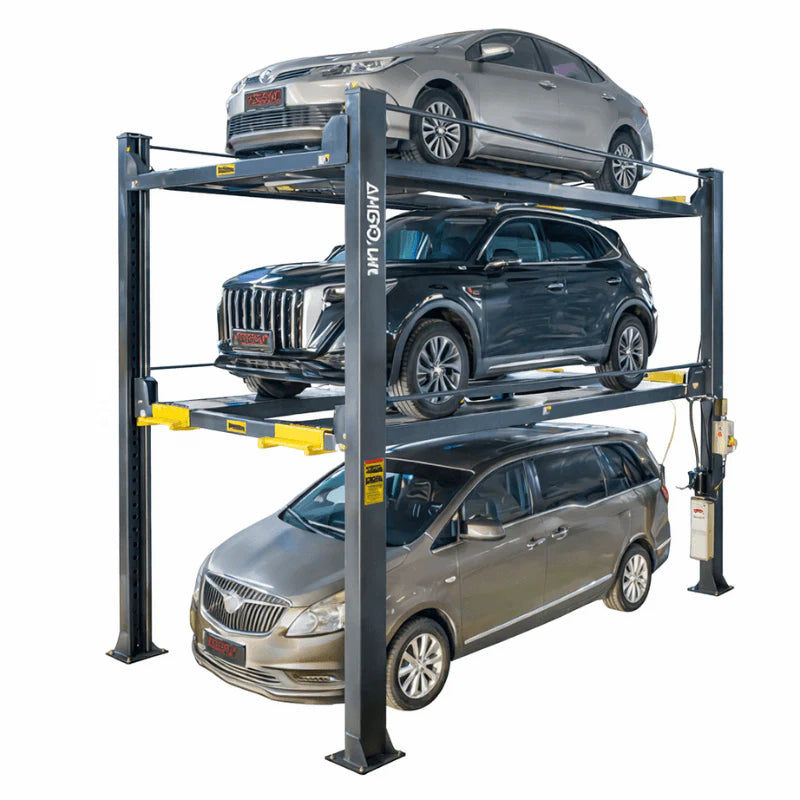

Brand New Release 4097X 9,000lb Capacity Triple Parking Lift

The Amgo 4097X 9,000lb Capacity Triple Parking Lift is a game-changer. This revolutionary lift is designed to maximize your parking capacity while keeping operation effortless and safe. Featuring a patented embedded platform design and multi-functional ramps, the 4097X provides a seamless parking experience with advanced safety features, making it the perfect solution for any high-demand parking environment.

With a 7,000lb capacity for the upper platform and a 9,000lb capacity for the lower platform, the 4097X accommodates a wide range of vehicles. The innovative design allows for a minimum height of just 7 1/16”, providing the perfect solution for low-clearance garages. The lift's fingertip push lock release operation and double safety locks ensure safe and smooth operation, while the drive-in ramps act as both a tire stop and a drive-on ramp, allowing for quick assembly and disassembly.

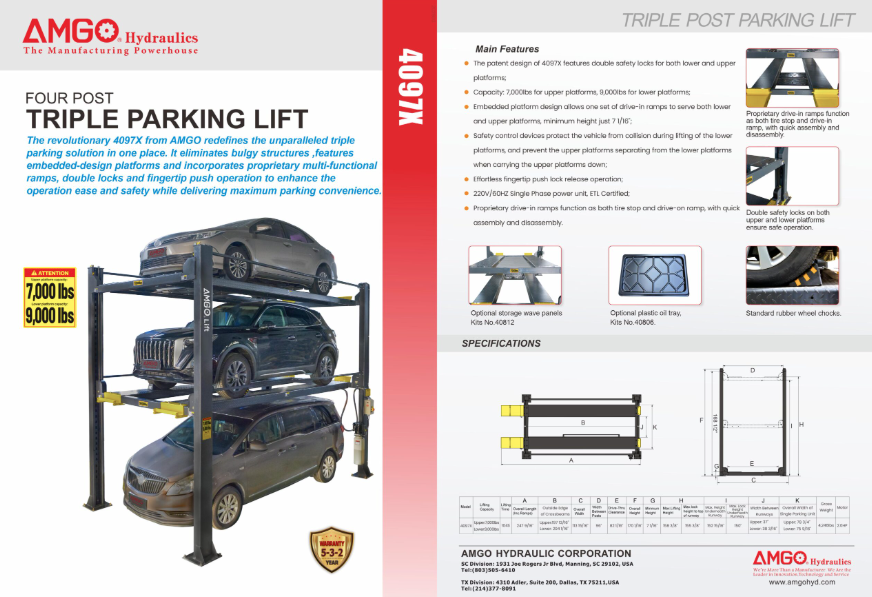

4 Post Lift 4097X Specifications:

• Model: 4097X

• Lifting Capacity:

  • Upper Platform: 7,000 lbs

  • Lower Platform: 9,000 lbs

• Lifting Time: 104 seconds

• Overall Length (Inc. Ramps): 247 9/16"

• Width Between Posts: 96"

• Drive Through Clearance: 82 1/16"

• Overall Height: 170 1/16"

• Minimum Height: 7 1/16"

• Max. Lifting Height: 158 3/8"

• Max. Lock Height to Top of Runway: 155 3/8"

• Max. Height Underneath Runway: 152 15/16"

• Max. Lock Height Underneath Runway: 150"

• Width Between Runways:

  • Upper Platform: 37"

  • Lower Platform: 38 3/16"

• Overall Width of Single Parking Unit:

  • Upper Platform: 78 3/4"

  • Lower Platform: 75 9/16"


• Motor: 2.0 HP (220V) - Requires Double 30amp Breaker

• Power Supply: 220V / 60HZ, Single Phase, ETL Certified


• Concrete Requirements: 6 inch 3500 psi required.

• Shipping Dimensions: 211"L x 23"W x 40"H - 4246lbs

4097X 9,000lb 4 Post Lift Special Features:

• Double Safety Locks on both upper and lower platforms for secure operation

• Embedded Platform Design that allows a single set of ramps to serve both upper and lower platforms

• Fingertip Push Lock Release for effortless operation

• Proprietary Drive-in Ramps function as both tire stop and ramp, quick to assemble and disassemble

• Safety Control Devices to prevent vehicle collision during lifting and ensure the upper platforms do not separate when lowering

• Standard Rubber Wheel Chocks for added safety

• Optional Accessories:

  • Plastic Oil Tray (Kits No. 40806)

  • Storage Wave Panels (Kits No. 40812)
